Description

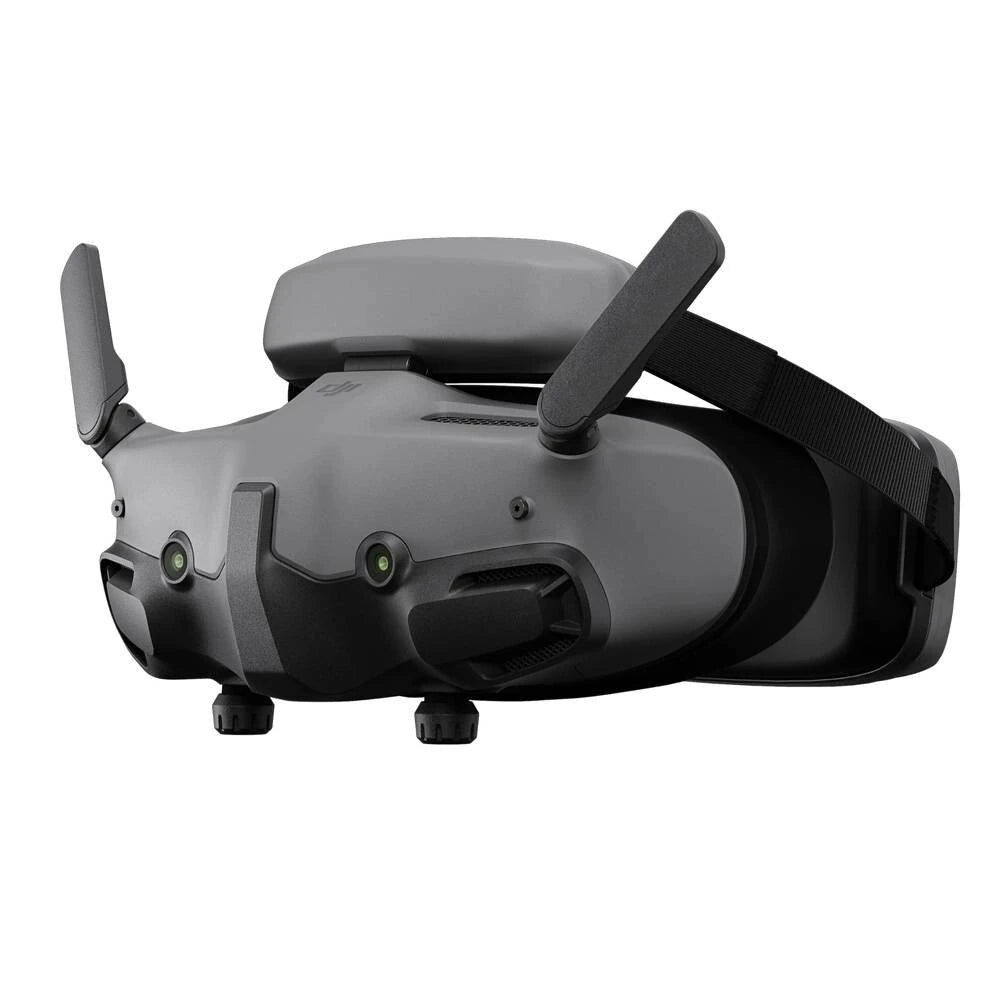

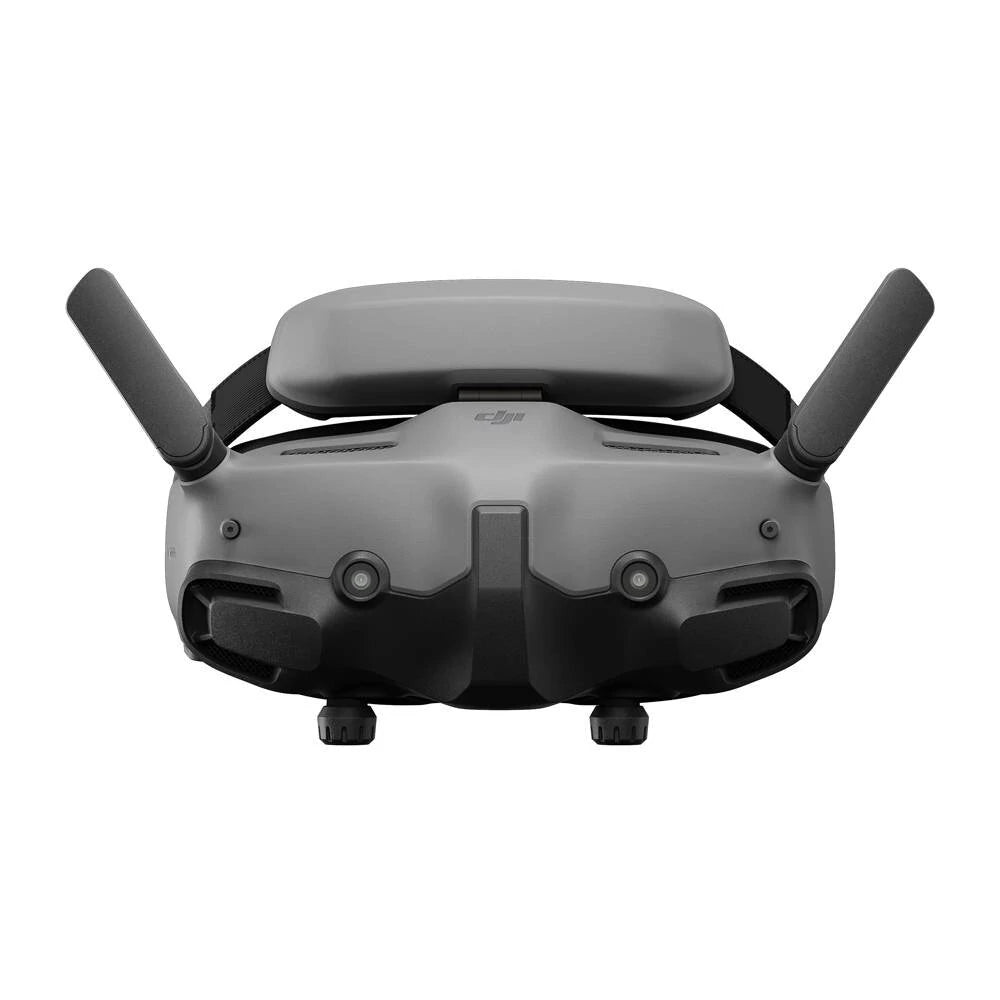

The DJI Goggles 3 feature Real View PiP (Picture-in-Picture), allowing you to observe your surroundings without removing the goggles for enhanced safety and immersion. With its microOLED high-definition display and ultra-low-latency transmission, the world comes into view with stunning clarity.
Features:
- DJI O4 compatible as well as DJI O3 Air Unit
- Ultra-Low Latency Transmission
- Real-View Picture-In-Picture
- Micro OLED HD Display
- DJI Goggles 3
O4 Video Transmission, Compatible with Airr 3 and Mini 4 Pro
With Avata 2, O4 video transmission delivers ultra-low latency at 24 ms and a high bitrate of 60Mbps. Also compatible with Airr 3 and Mini 4 Pro, the reliable O4 HD transmission offers crystal-clear and fluid first-person views.
Real View PiP, Safety in View
You can conveniently observe your surroundings without removing your goggles to get enhanced flightt safety.
All-Around Comfort and Convenience

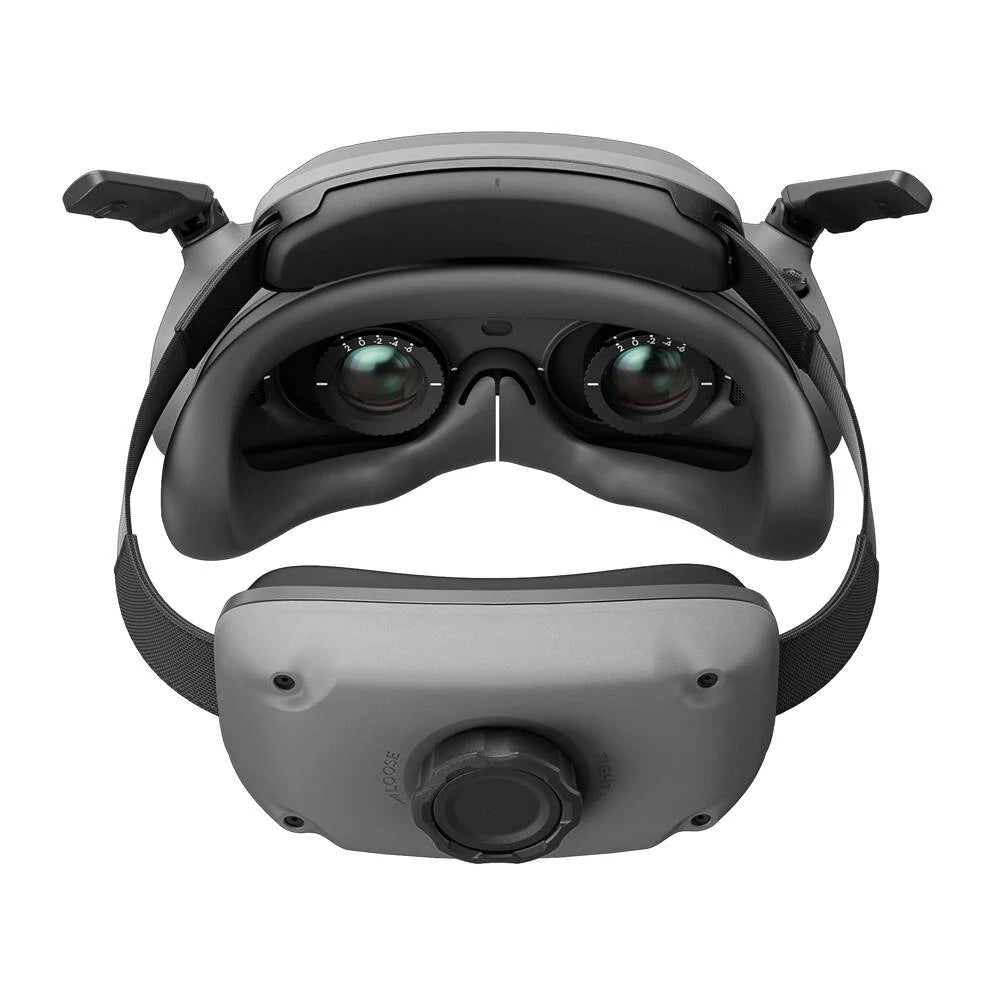

1. Dazzling Upgrades: Enjoy a 1080p microOLED screen with a refresh rate of up to 100 Hz, alongside the TüV Rheinland Low Blue Light Certification. Accommodates diopter adjustments from -6.0 D to +2.0 D for nearsighted and farsighted users.

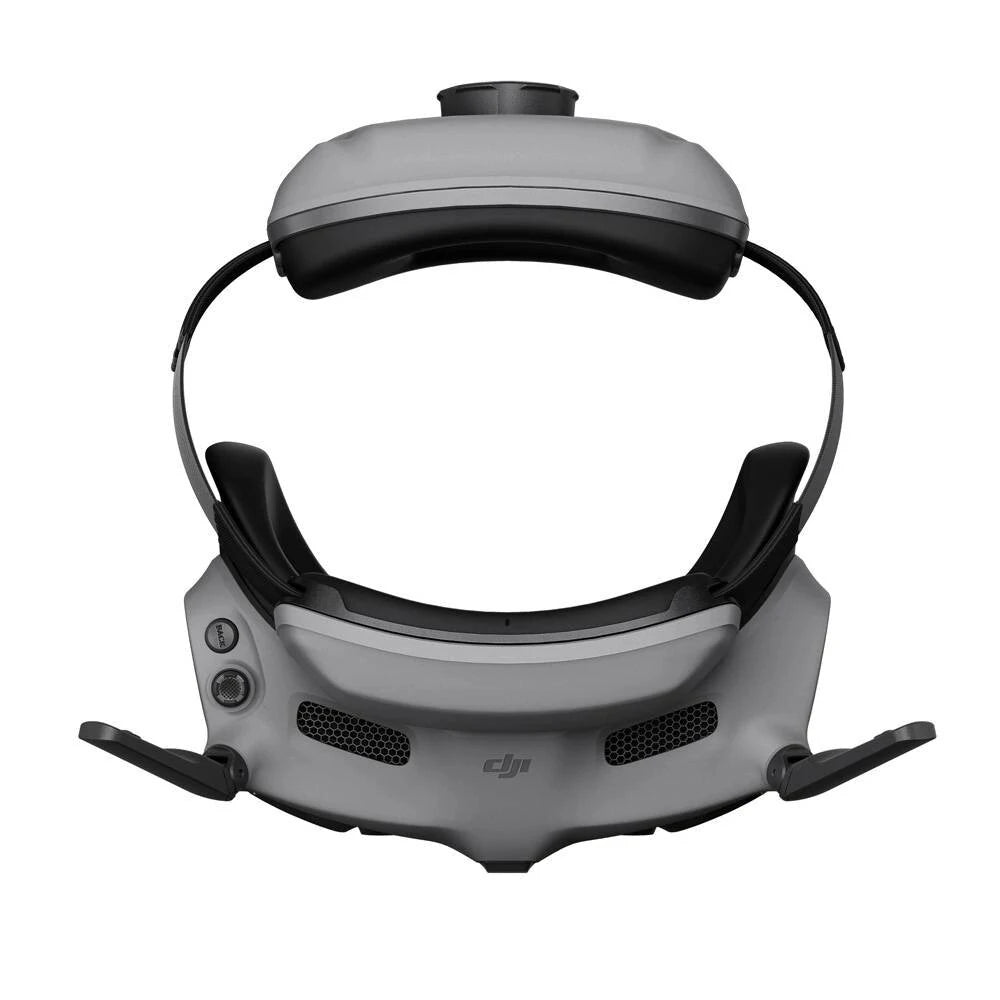

2. Battery and Headband Integration: The lightweight, comfortable design that integrates the headband liberates you from tangled cables and offers a lengthy 3-hour operating time.
3. One-Tap Defogging: With defogging enabled, you get a convenient solution for sudden changes in temperature or high-humidity conditions.
More Fun with Wireless Streaming
* Stream your flightt in real-time on the DJI Fly app of your smartphone via WiiFi connection.
* You can also importt panoramic and 3D videos onto an SDcar and play them back using Goggles 3 for an immersive experience that seems almost within reachh.
Specifications:
GOGGLES
| Model: | TKGS3 |
| Operating Temperature: | -10°C to 40°C (14°F to 104°F) |
| Supported SDCars: | micrSD (up to 512 GB) |
| Diopter Adjustment Rangee: | -6.0 D to +2.0 D |
| Resolution (single screen): | 1920×1080 |
| Screen Size (single screen): | 0.49 inch |
| Video Recording Format: | MOV |
| Power Input: | Built-in battery |
| Refresh Rate: | Up to 100 Hz |
| FOV (single screen): | 44° |
| Real View FOV: | 44° |
| Supported Video and Audio Playbackk Formats | Yes |
| 3D Video: | Half-Side-by-Side (HSBS), Full-Side-by-Side (FSBS), Half Over-Under (HOU), Full Over-Under (FOU) |
| Panoramic Video: | Spherical 2D panoramic videos |
| Video coding formats: | H.264, H.265 |
| Max Video Specification: | 4K/60fps |
| Audio formats: | AAC, PCM |
| Interpupillary Distance Rangee: | 56-72 mm |
| Dimensions (L×W×H) |
With antennas folded: 170×109×112 mm (L×W×H) With antennas unfolded: 205×109×112 mm (L×W×H) |
| Weight： | Approx. 470 g (battery included) |
VIDEO TRANSMISSION
| Max Transmisssion Distance: | 13 km (FCC); 10 km (CE/SRRC/MIC) |
| Max Video Bitrate: | 60 Mbps |
| Latency with DJI Avata 2: |
-1080p/100fps video transmission quality: latency down to 24 ms -1080p/60fps video transmission quality: latency down to 40 ms |
| Transmitter Power (EIRP): |
2.4 GHz < 20 dBm (CE/SRRC/MIC) 5.1 GHz 5.8 GHz |
| Operating Frequency | 2.4000-2.4835 GHz 5.150-5.250 GHz 5.725-5.850 GHz |
BATTERY
| Max Charging Power: | 20 W (charging when powered off) |
| Charging Temperature: | 0° C to 50° C (32° F to 122° F) |
| Dimensions: | 121×65×52.5 mm (L×W×H) |
| Chemicall System: | LiNiMnCoO2 |
| Runtime: | Approx. 3 hours |
| Capacity: | 3000 mAh |
| Voltag: | 5.6-8.4 V |
| Energy: | 21.6 Wh |
| Category: | Li-ion |
WIiFI
| Protocol: | 802.11 a/b/g/n/ac |
| Transmitter Power (EIRP): |
2.4 GHz < 20 dBm (FCC/CE/SRRC/MIC) |
| Operating Frequency |
2.4000-2.4835 GHz 5.170-5.250 GHz 5.725-5.850 GHz |
BLUETOOTH
| Operating Frequency: | 2.400-2.4835 GHz |
| Transmitter Power (EIRP): | < 10 dBm |
| Protocol: | Bluetooth 5.0 |
GFSK
| Refresh Rate | 60Hz-100Hz adaptive Supports 50Hz/60Hz systems；PAL/NTSC compatible |
| RF Power (GFSK) | < 26 dBm (FCC) |
| Compatibility: | DJI FPV Remote Controller 3 DJI RC Motion Controller DJI O3 Airr Unit DJI Mini 4 Pro DJI Avata 2 DJI RC-N2 DJI RC 2 DJI Airr 3 |
Note：
1. Dynamic Refresh Rate• Auto-syncs between 100Hz-60Hz to match real-time video transmission2. Battery Specifications• 3-hour continuous runtime (at 25°C, brightness level 4)• Requires: DJI Avata 2 (1080p/100fps), all extra features disabled3. Regional Compliance• 5.1GHz/5.8GHz restricted in some markets• Wi-Fi sharing unavailable where prohibited (wired alternative recommended)
• Always check local RF regulations
Related products:Transmission
DJI O4 Air Unit PRO, click here
DJI O4 Air Unit, click here

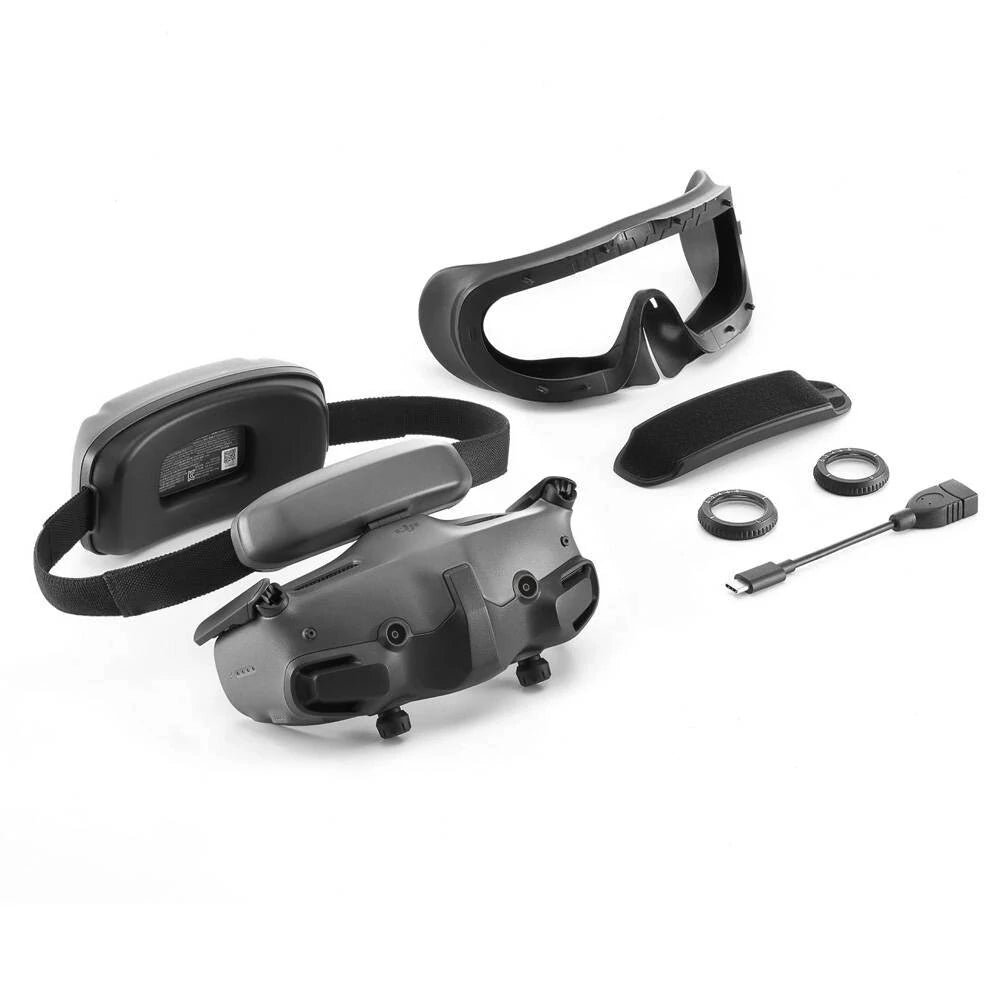

Package Included:
1x DJI Goggles 3 -2.0D Corrective Lenses (Pair)
1x DJI Goggles 3 Additional Forehead Pad
1x DJI Goggles 3 Foam Padding
1x USB-C OTG Cable
1x DJI Goggles 3
