Description

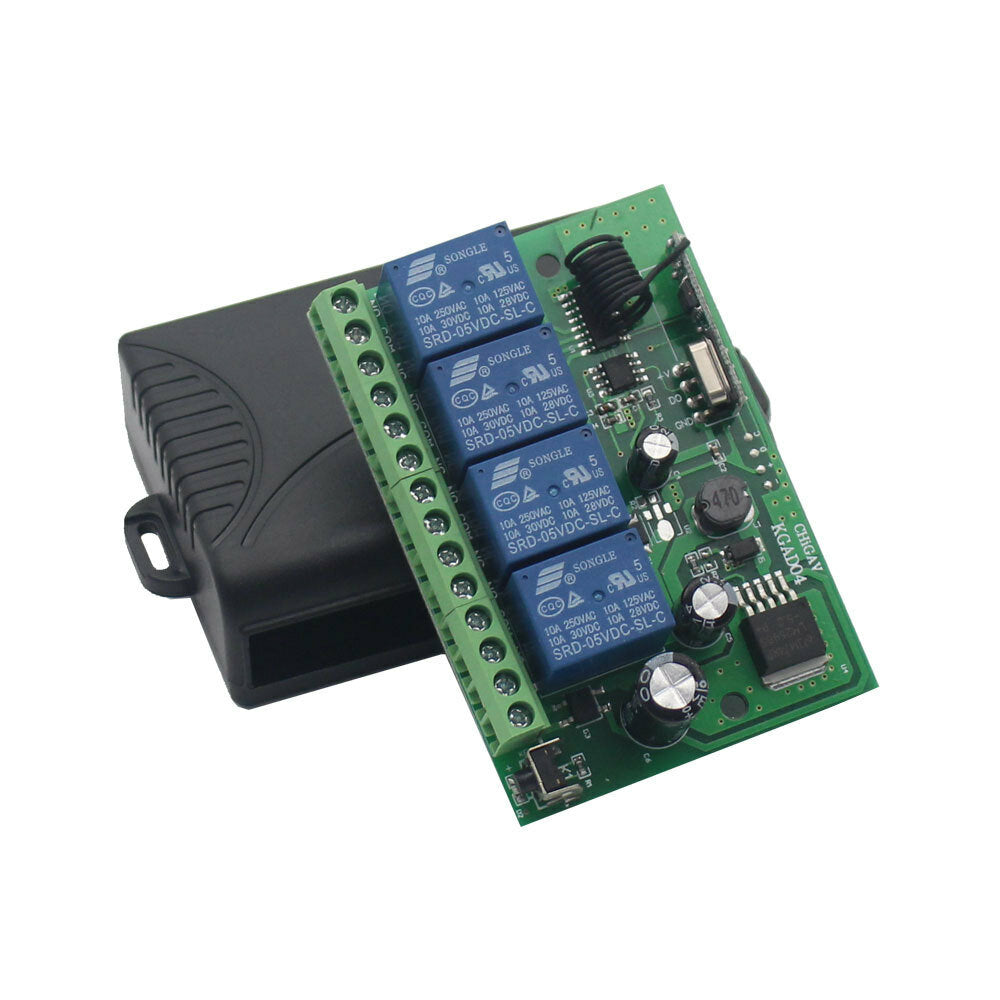

Receiver Description:
1. Working voltage: DC12V-24V
2. Quiescent current: 8mA
3. Operating frequency: 433MHz
4. Load power: Each channel 10A
5. Receiving sensitivity: -105dbm
6. Frequency deviation: -0.2MHz ~ +0.2MHz
7. Coding method: learning type
8. Working mode: Inching, self-locking, interlock, (two-way jogging/two-way self-locking) (two-way jogging/two-way interlock) (two-way self-locking/two-way interlock) (two ways Interlock / Two-way interlock)
9. Modulation method: ASK
10. Remote control distance: 100M (wild)
11. PCBA size: 82mm*58mm*18mm
12. Shell size: 100mm *65mm *26mm
Transmitter Description:
1. Working voltage: DC12V ,12V27A
2. Working current: less than or equal to 10mA
3. Operating frequency: 433.92MHz
4. Transmit power: greater than or equal to 10mW
5. Launch distance: 30-50m(open space)
6. Frequency deviation: -0.2MHz ~ +0.2MHz
7. Transmission rate: 50--60KHZ
8. Modulation method: ASK
9. Oscillation resistance: 330K
10. Working chip: Ev1527 (learning code remote control)
11. Working temperature: -20℃~+70℃
12. Storage temperature: -10 ℃ ~ +50℃
How to set the working model:
Power on first, press the 'paired button' on the switch board once, indicator light on, receiver is waiting for pairing.
Jog-lock(Momentary): Press 'paired button' once
Self-locking: Press 'paired button' twice
Interlock: Press 'paired button' triple times
2 gang Jog-lock + 2 gang Self-lock: Press 'paired button' 4 times
2 gang Jog-lock + 2 gang Interlock: Press 'paired button' 5 times
2 gang Self-lock + 2 gang Interlock: Press 'paired button' 6 times
2 gang Interlock + 2 gang Interlock: Press 'paired button' 7 times
How to clean code:
Press the Paired Button on the board 8 times,light flash,cleaning code successfully.
Package included:
1 x Switch
5 x RF Remote Control
