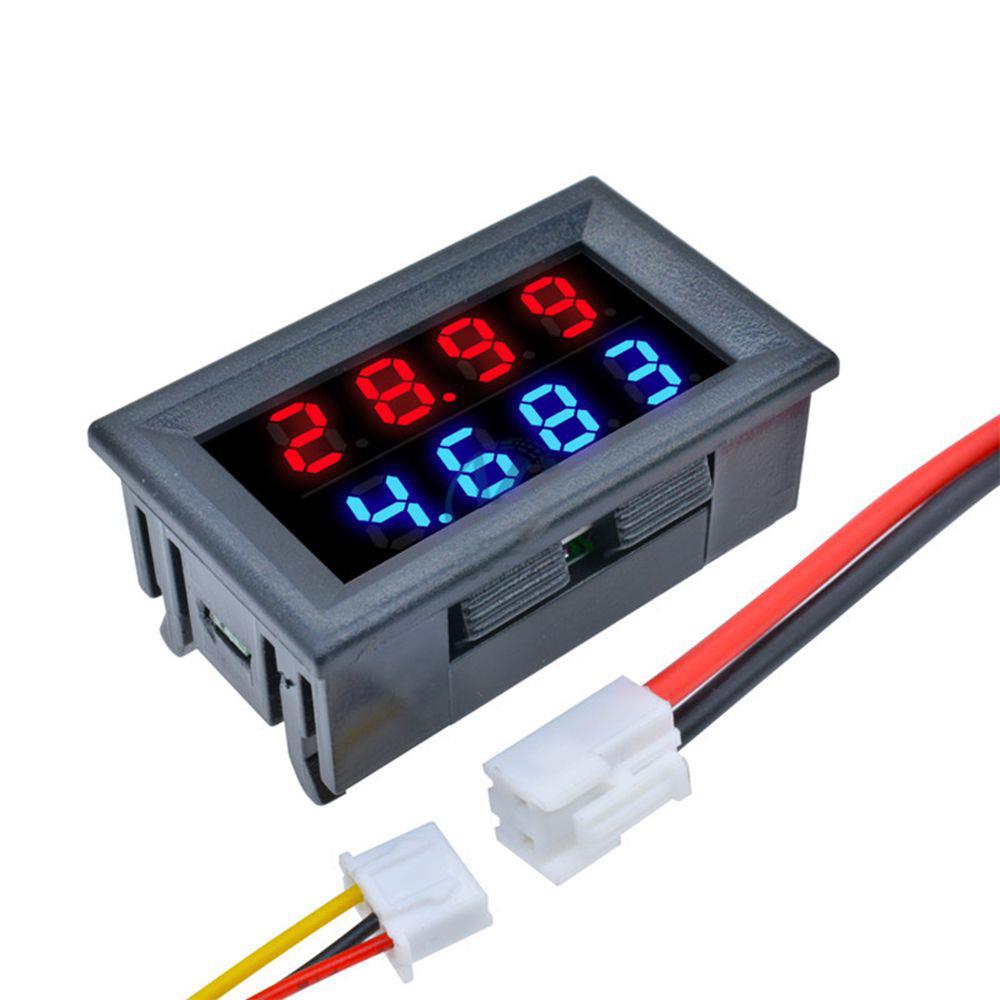

DC 200V 10A 0.28 Inch Mini Digital Voltmeter Ammeter 4 Bit 5 Wires Voltage Current Meter with LED Dual Display


Isaiah 55:8-9 John 3:16 Philippians 4:19
Price:
Sale priceR 294.86 Regular priceR 360.00
Stock:
Sold out



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

Features:

High precision: 4-digit
Working voltage: DC 4V-28V
Working current: <20mA
Display: 0.28" Red + Blue Dual LED Display
Voltage Measuring Range: DC 0.000V-200.0V
Current Measuring Range: 0-9.999A
Refresh rate: about 1S / 3times
Operating temperature: -10°C - 65°C
Working pressure: 80 to 106 kPa
Size : 48x29x20 mm
Mounting hole: 46 x 27 mm
Current: Range x 0.08%+Two decimal point
Voltage: Range x 0.08%+Two decimal point

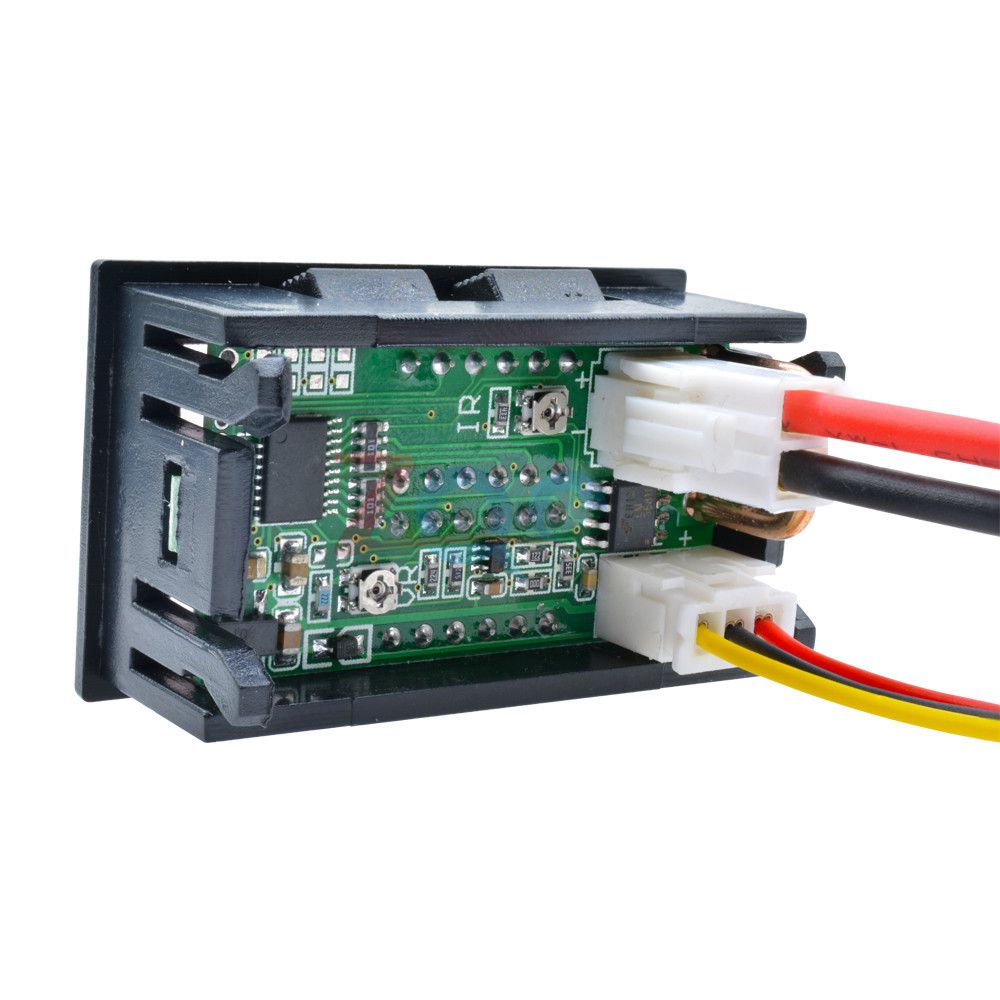

Wiring:

Red line thin: power supply +
Red line (thick): IN+, current input
Yellow line (thick): PW+, measuring terminal voltage input positiv
Black line thick: COM, common measuring

Note:

Please follow the wiring diagram, special attention, the load can only be connected to the positive, not negative! Otherwise burn the table!

Package Included:

1 x DC 200V 10A 0.28 Inch Mini Digital Voltmeter Ammeter
