Description
Specification:
Brand: DarwinFPV
Model: 2006.5

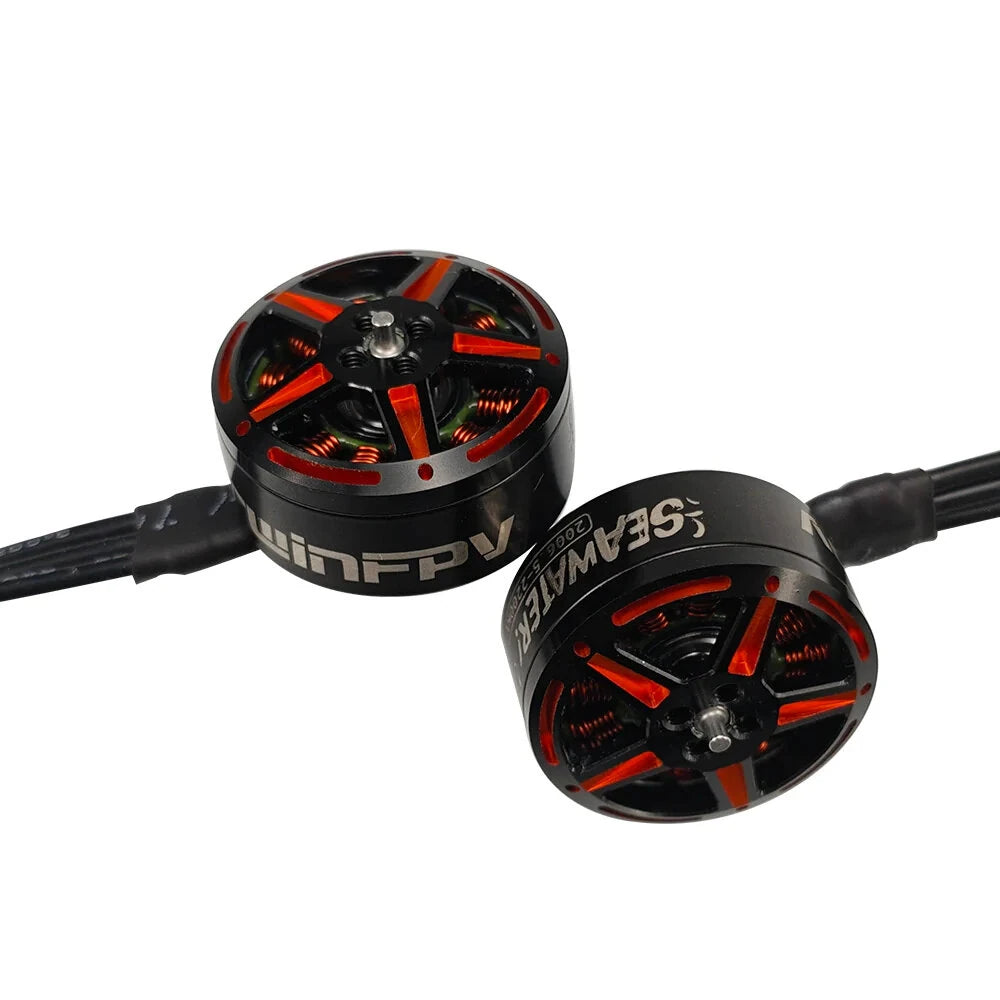

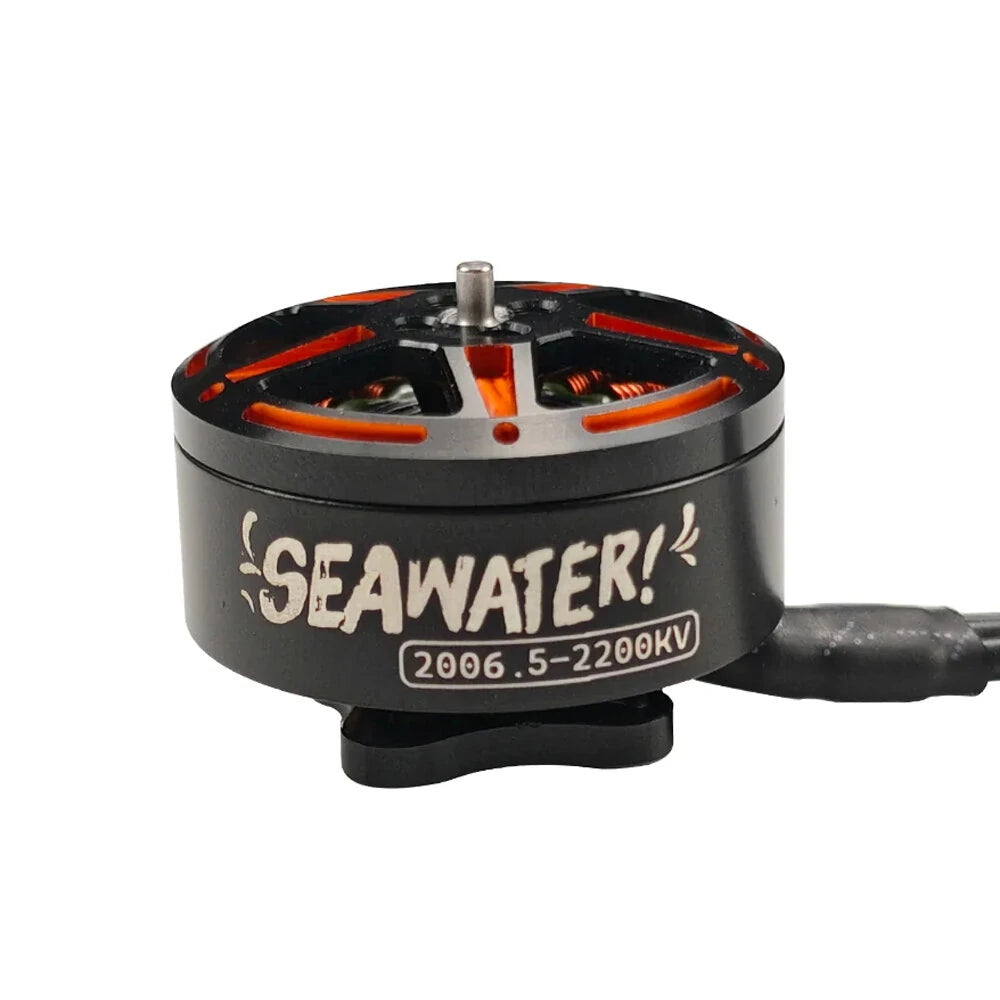

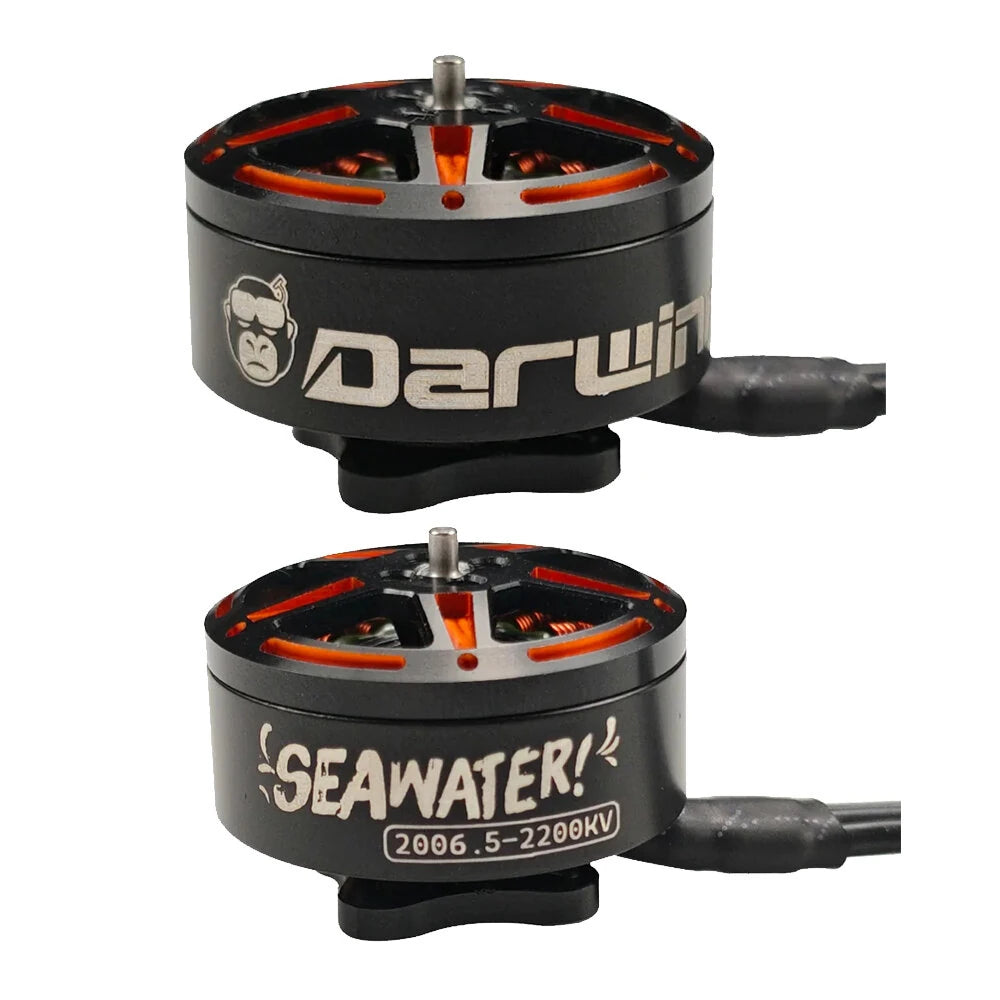

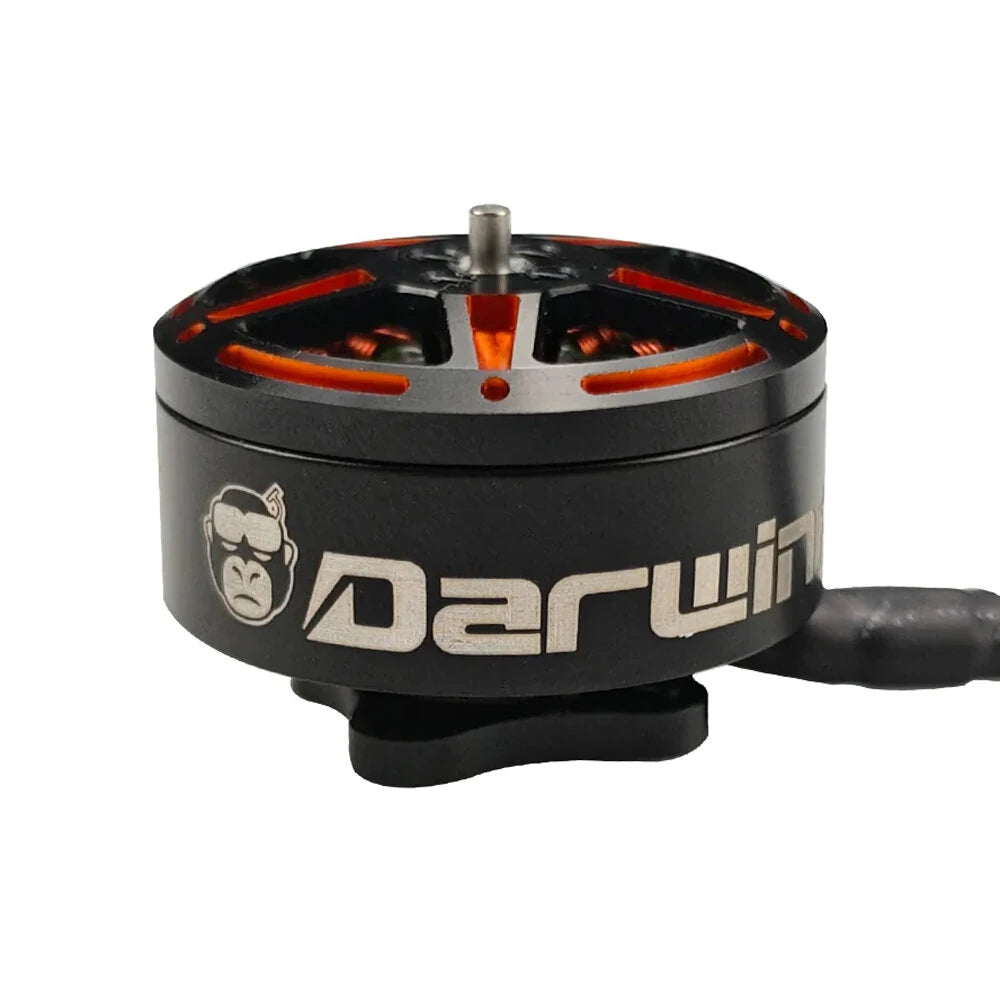

Item Name: 2200KV Seawater-proof Brushless Motor
KV: 2200KV
Stator Dimension: Φ20×6.5mm
Rated Voltage: 24V (6S LiPo)
Idle Current: 1.5A/24V
Maximum Current: 20.2A
Maximum Power: 484.8W
Framework: 12N14P
Prop Shaft: Φ1.5×2mm
Interphase Resistance: 120mΩ
Bearing Specification: Φ3×Φ8×4mm
Rotor: split
Magnet: N52SH
Winding: Single Strand Copper Winding
Lead Wire Size: 20AWGx160mm

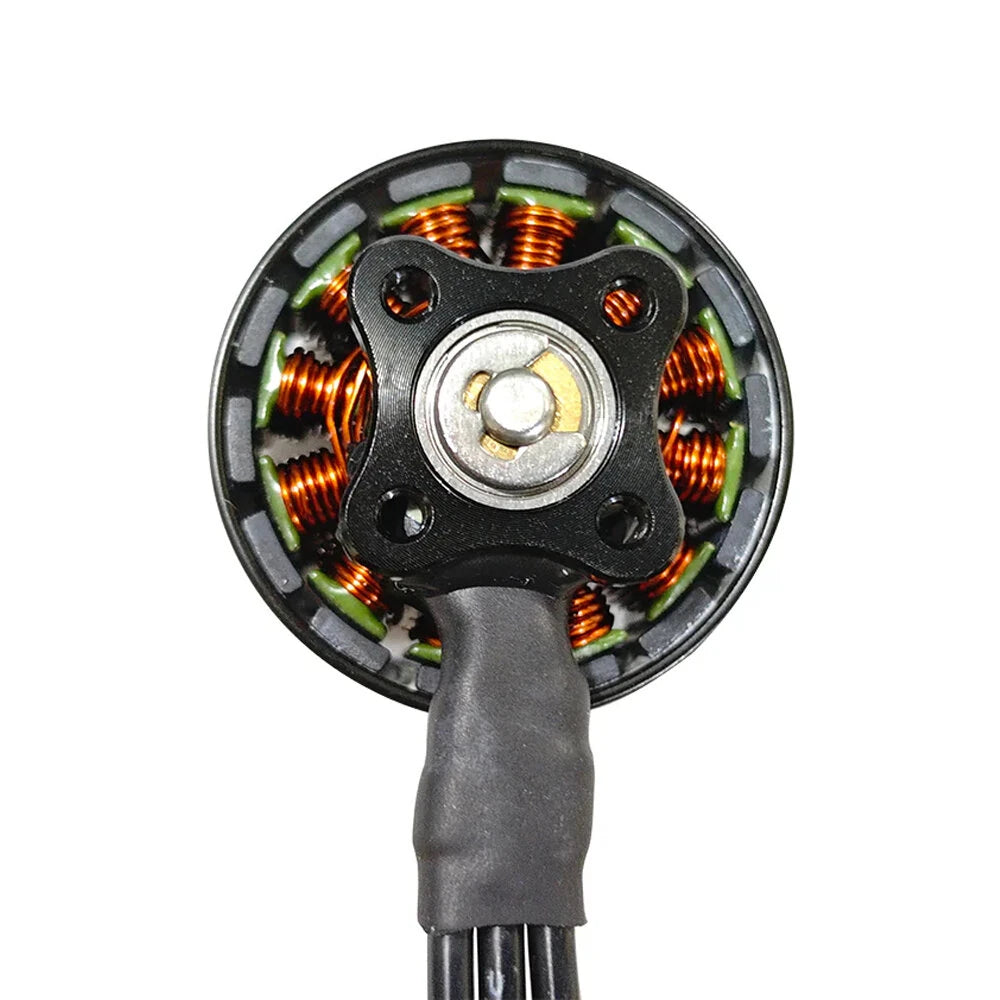

Mounting Holes: 12×12mm (M2)
Dimensions: Φ24.6×20mm

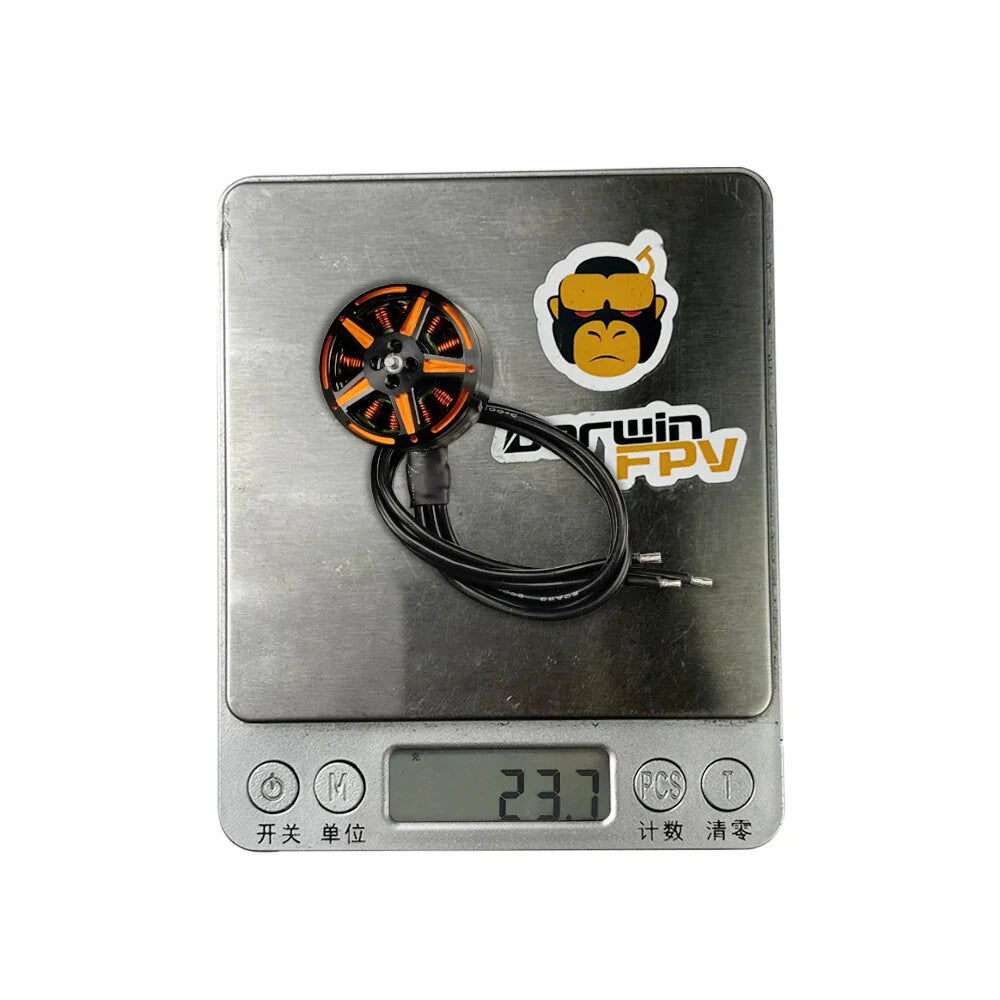

Weight (Including wires): 23.8±0.3g
Applicable Models: 3.5 Inch CineWhoop FPV Drones, 5-6 Inch Long Range FPV Drones
Package included:
1 x Brushless Motor
OR

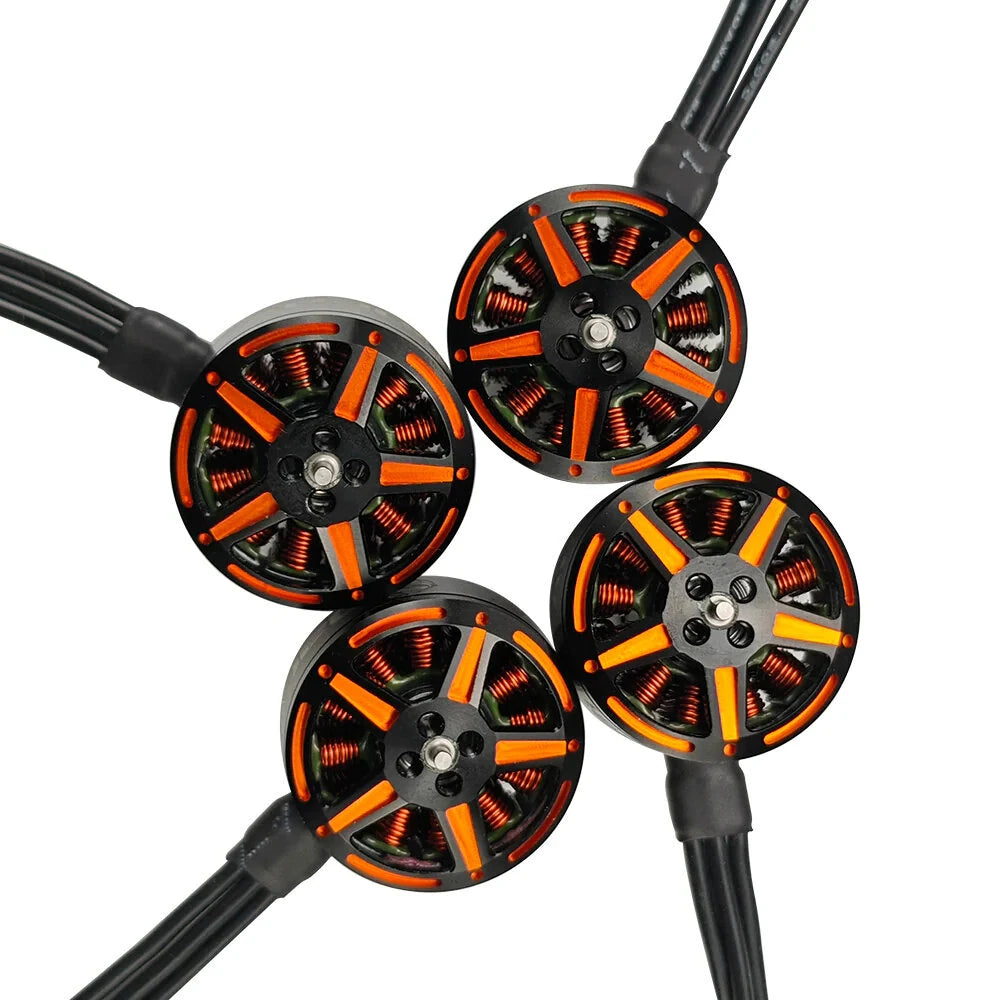

4 x Brushless Motors
