Description
40112302 Dial Test Indicator Precision Metric with Dovetail rails, 0-0.8mm 32mm is available now from our UK warehouse
Description :
40112302 Dial Test Indicator Precision Metric with Dovetail rails 0-0.8mm 32mm
Features :
Fowler inch/metric dial test indicator with yellow face is designed to measure surface variations in narrow or recessed areas
0-0.8mm measuring range, 0.0005"/0.01mm graduations, 0-40-0 balanced inch readings, and 0.001mm balanced metric readings.
Auto-reversing contact point and adjustable bezel.

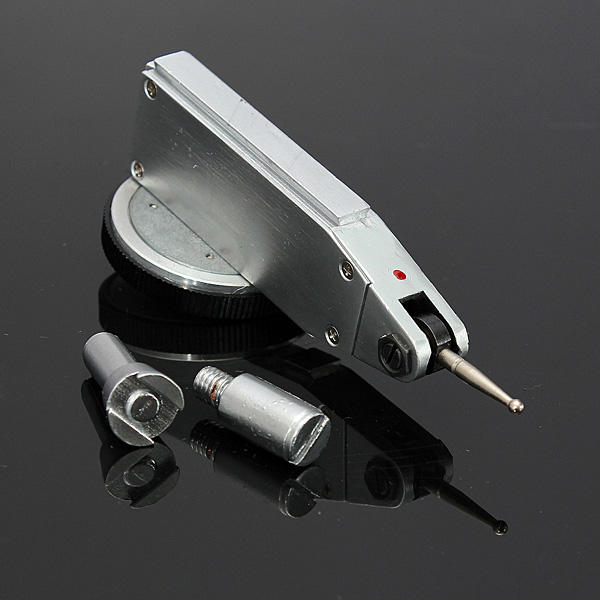

Three dovetail mounts for mounting indicator from the top, back, or front.
One-piece housing with satin chrome finish provides durability.
The 40112302 dial test indicator is designed for taking measurements in machining, layout, and inspection work.
Has microfine black graduations for 0-40-0 balanced inch readings and red graduations for 0.001mm balanced metric readings.

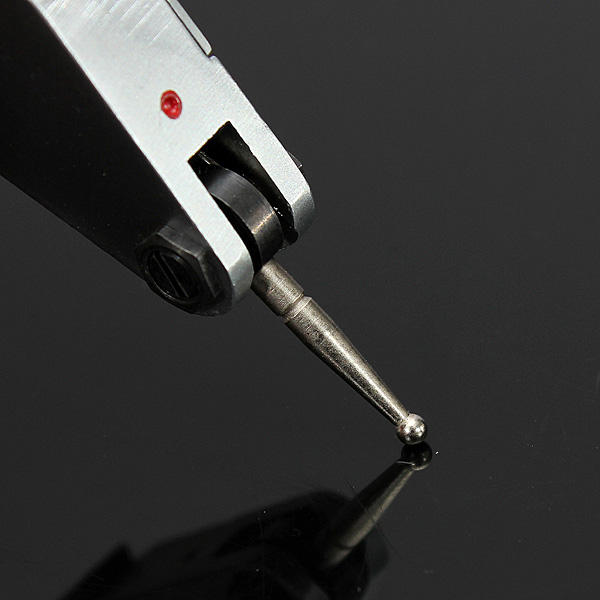

A movement and an auto-reversing contact point provide smooth action.
A knurled bezel rotates 360 degrees to zero the reading at any location.
Three dovetail mounts on the top, back, and front of the indicator provide a range of mounting options.
The one-piece housing and satin chrome finish provides durability.
The 40112302 inch/metric dial test indicator includes one 3/8" and one 5/32" dovetail clamp and a molded case.
Dial readings with three digits, 0-40-0 for example, signify that the indicator has a balanced dial.
Dial readings with two digits, 0-100 for example, indicate the dial has a continuous dial.
Balanced dials are used for reading the difference from a specific surface reference point.
Continuous dials are used for direct readings and usually have a larger measurement range than balanced dials.
Specifications :
Package included :
1 x 40112302 dial test indicator
1 x 3/8" dovetail clamp
1 x 5/32" dovetail clamp
1 x Molded case

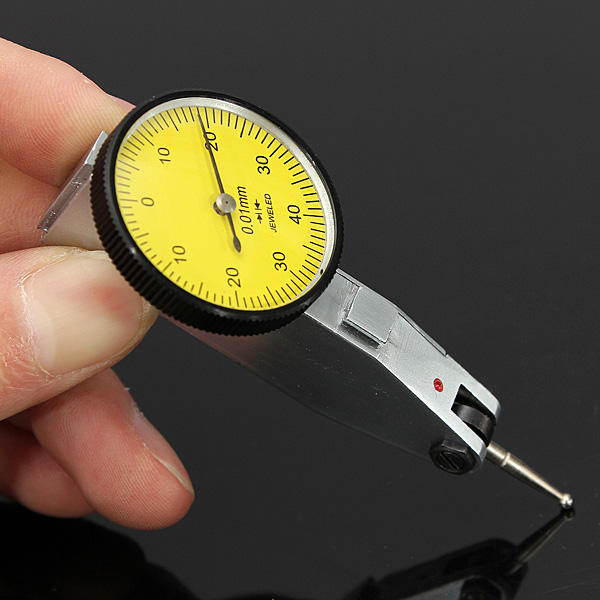

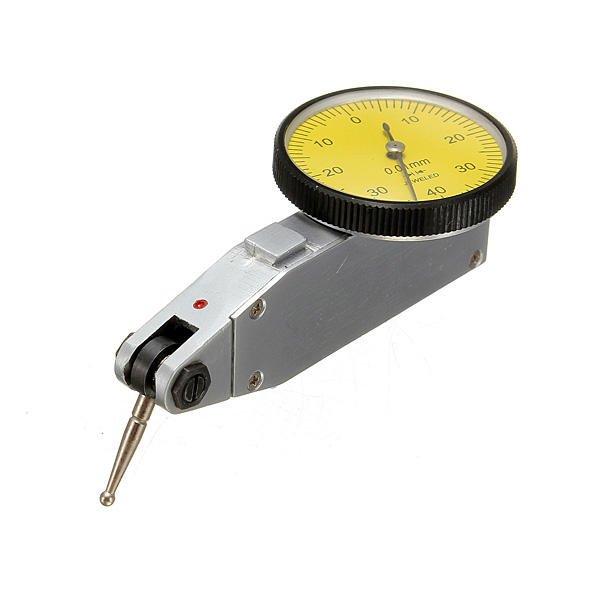

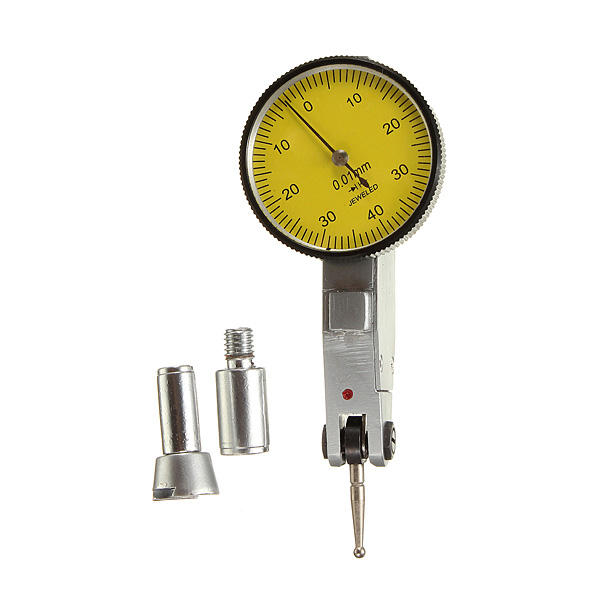

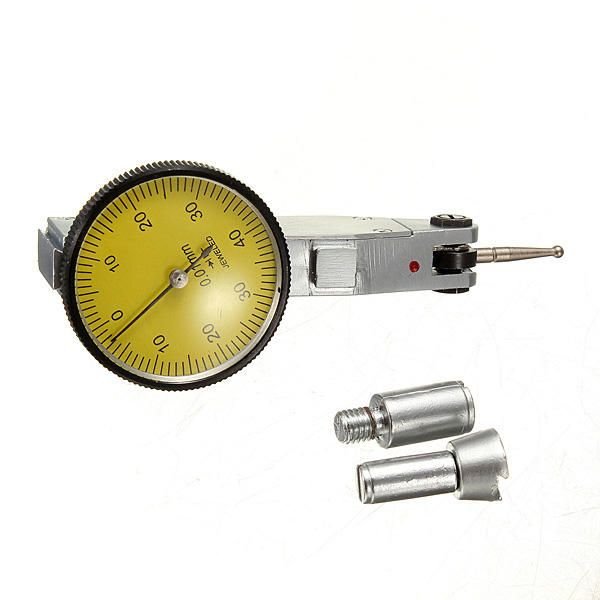

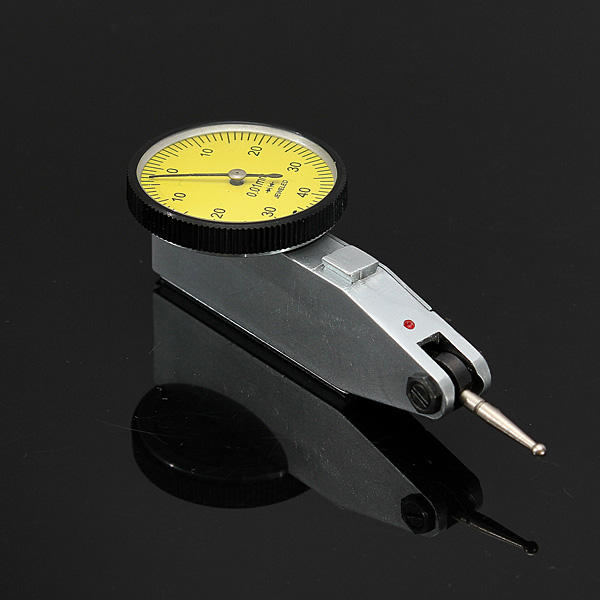

Details pictures :
,,,,,,,
Description :
40112302 Dial Test Indicator Precision Metric with Dovetail rails 0-0.8mm 32mm
Features :
Fowler inch/metric dial test indicator with yellow face is designed to measure surface variations in narrow or recessed areas
0-0.8mm measuring range, 0.0005"/0.01mm graduations, 0-40-0 balanced inch readings, and 0.001mm balanced metric readings.
Auto-reversing contact point and adjustable bezel.
Three dovetail mounts for mounting indicator from the top, back, or front.
One-piece housing with satin chrome finish provides durability.
The 40112302 dial test indicator is designed for taking measurements in machining, layout, and inspection work.
Has microfine black graduations for 0-40-0 balanced inch readings and red graduations for 0.001mm balanced metric readings.
A movement and an auto-reversing contact point provide smooth action.
A knurled bezel rotates 360 degrees to zero the reading at any location.
Three dovetail mounts on the top, back, and front of the indicator provide a range of mounting options.
The one-piece housing and satin chrome finish provides durability.
The 40112302 inch/metric dial test indicator includes one 3/8" and one 5/32" dovetail clamp and a molded case.
Dial readings with three digits, 0-40-0 for example, signify that the indicator has a balanced dial.
Dial readings with two digits, 0-100 for example, indicate the dial has a continuous dial.
Balanced dials are used for reading the difference from a specific surface reference point.
Continuous dials are used for direct readings and usually have a larger measurement range than balanced dials.
Specifications :
Face | 1-1/4" diameter yellow face |
Dial type and reading | 0-40-0 balanced inch and 0-.25-0 balanced metric readings |
Range | 0-0.8mm |
Graduations | 0.0005"/0.01mm |
Contact point length | 1/2" |
Dovetail clamps | 3/8" and 5/32" |
Mounting type | Dovetail |

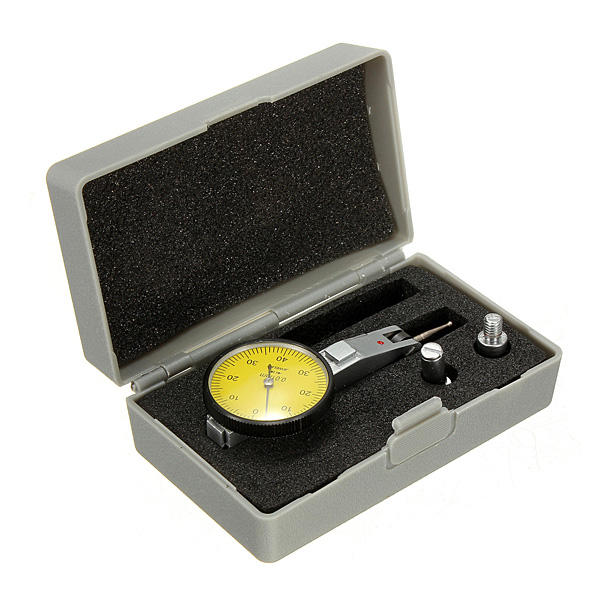

Package included :
1 x 40112302 dial test indicator
1 x 3/8" dovetail clamp
1 x 5/32" dovetail clamp
1 x Molded case
Details pictures :
