Description
Specification:
Type: Digital
Weight: 202± 1 g
Size: 66*30*56mm
Control System: (+)Pulse Width Control 1500usec Neutral
Operating Voltage: 6.0~7.4Volts
Operating Temperature Range: (-)10 to +50 degree C
Operating Speed (6.0V): 0.13sec/60° at no load
Operating Speed (7.4V): 0.11sec/60° at no load
Stall Torque (6.0V): 52kg.cm
Stall Torque (7.4V): 55kg.cm
Operating Angle: 45deg.one side pulse traveling 500 usec
Direction: Anticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V): 20mA/idle and 120mA no load operating
Current Drain (7.4V): 20mA/idle and 150mA no load operating
Stall Current: 10A/13.4A
Dead Band Width: 4usec
Motor Type: NdFeB motor
Bearing Type: Dual Ball Bearing
Horn gear spline: 15T
Gear Type: Steel
Connector Wire Length: 300mm
Wire info:
Brown/Black = Negative
Red = Positive
Orange/White = Signal
Features:
1. High torque: With a torque of 55KG, this servo provides powerful and reliable performance.
2. Digital technology: The use of digital technology ensures precise control and accurate movements.
3. Metal gear: The metal copper gear ensures durability and longevity, making it suitable for long-term use.
4. Waterproof design: With a waterproof feature, this servo can be used in various weather conditions without any worries.
5. Versatile application: This servo can be used in a wide range of applications, including RC cars, boats, and robots.

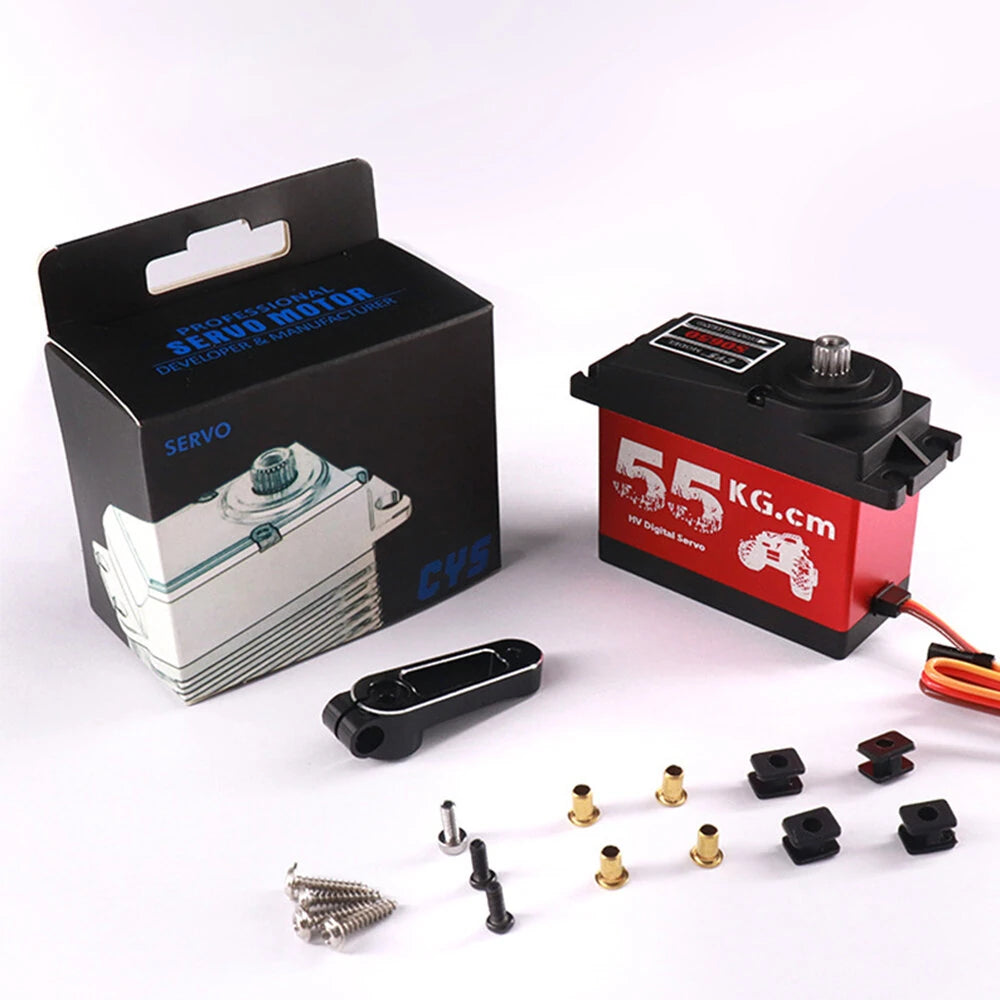

Package Included:

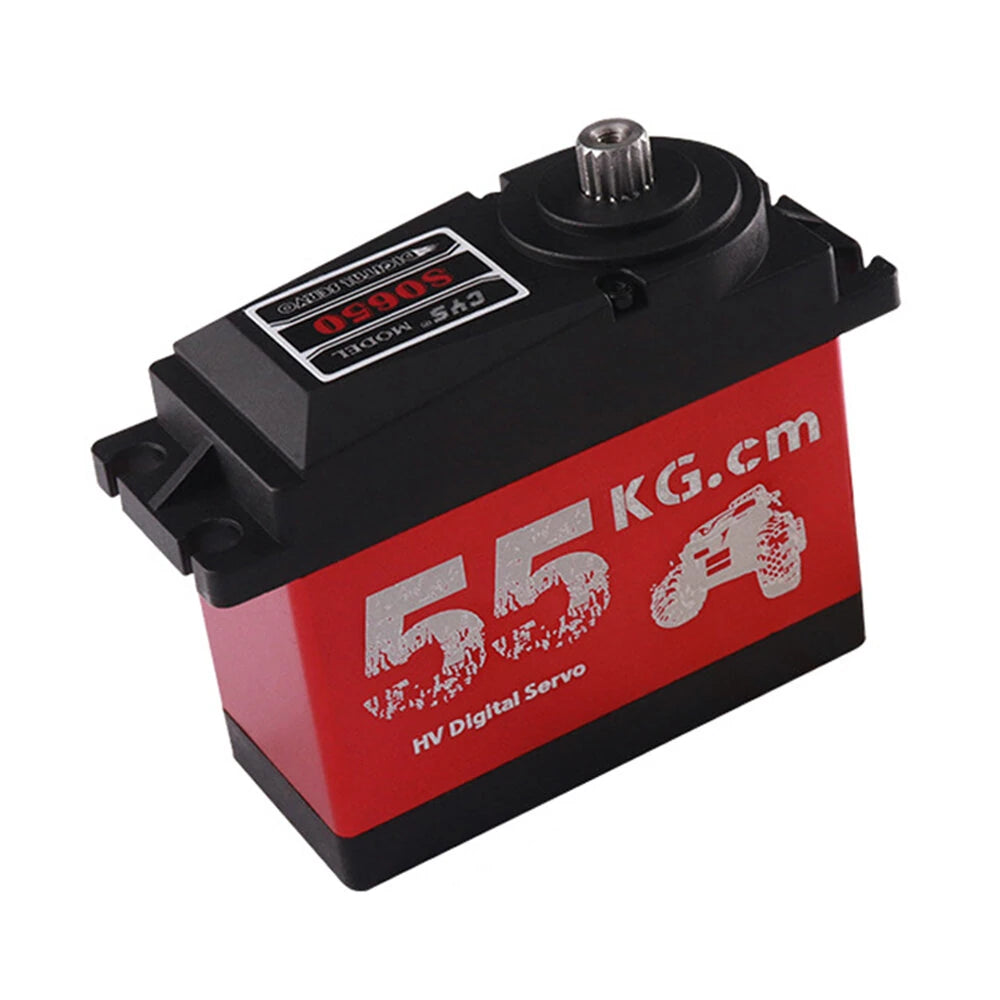

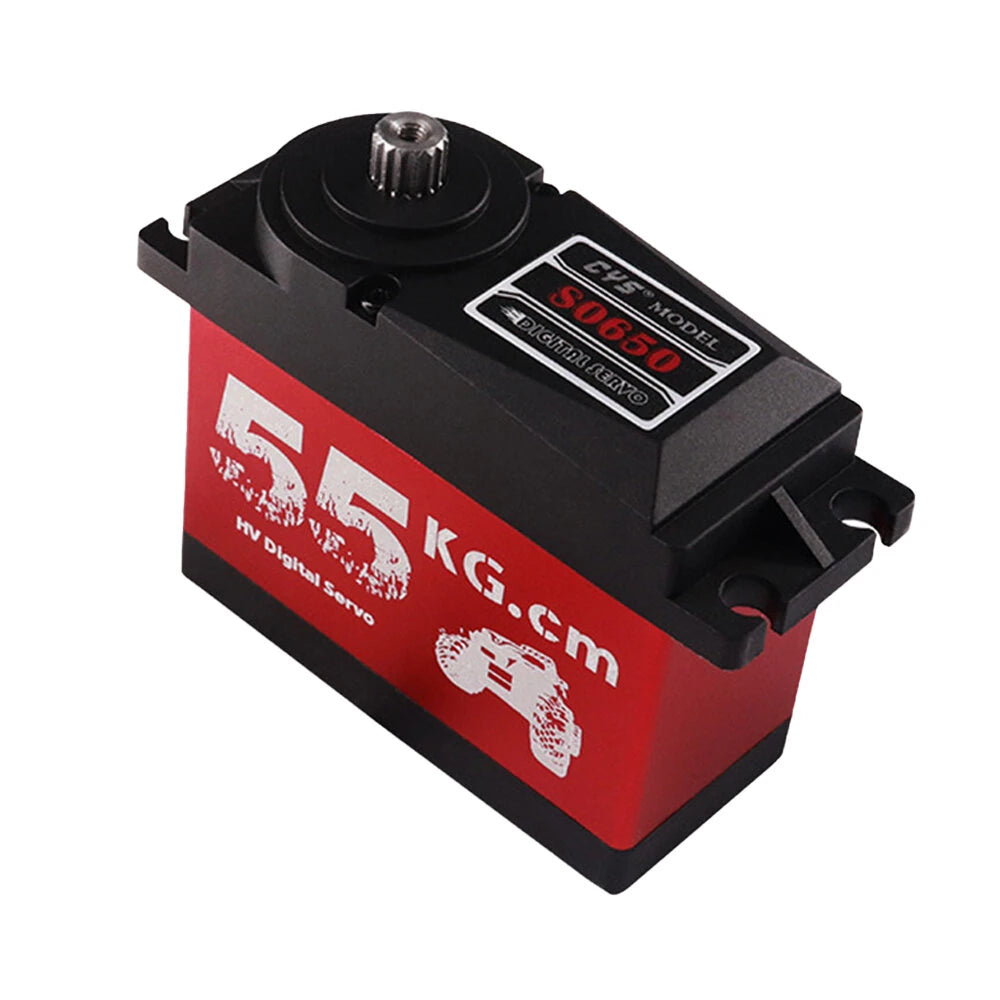

1x CYS-S0650 55KG Servo
1x Accessories Kit
