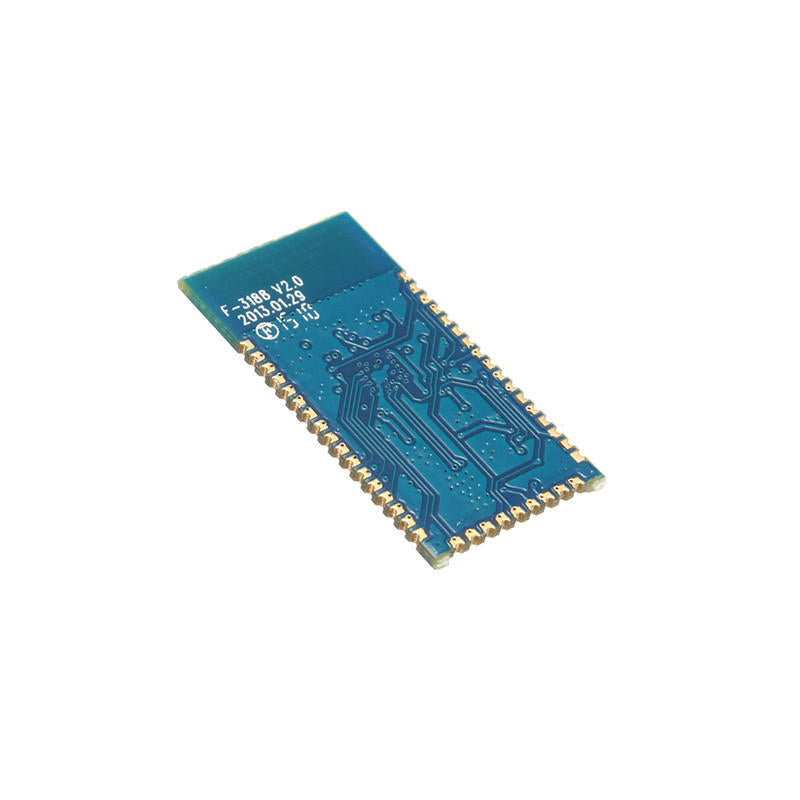

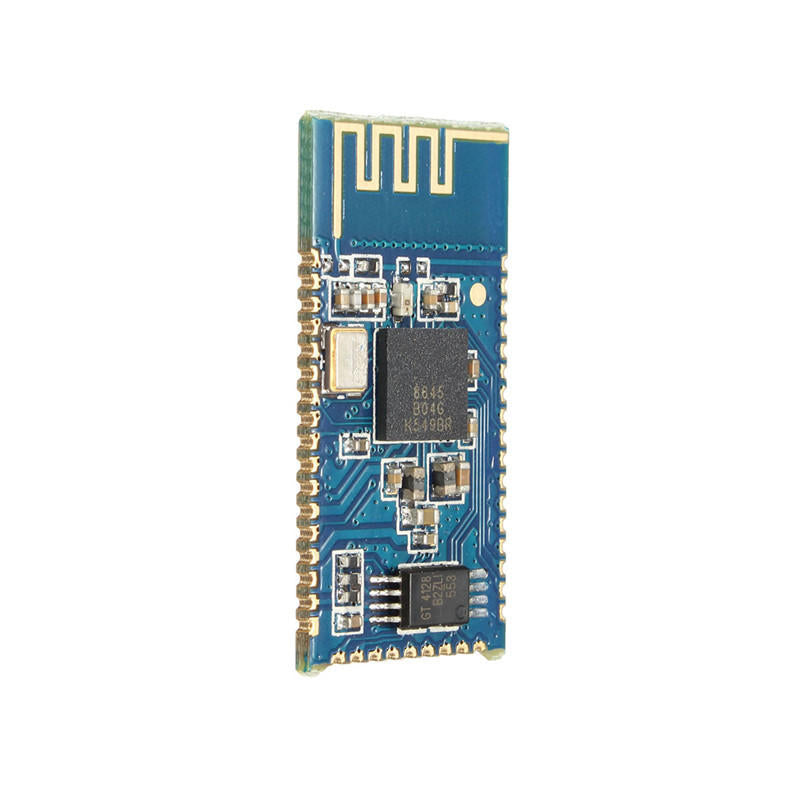

CSR8645 4.0 bluetooth Stereo Audio Module Low Power Consumption


Isaiah 55:8-9 John 3:16 Philippians 4:19
Price:
Sale priceR 348.82
Stock:
Sold out



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

>>>Manual: Click here to open<<<

Feature:


1.Type:  F-3188
2.bluetooth Specification: v4.0
3.Voltage:  DC3.3V-4.2V
4.bluetooth protocol:  HFP V1.6/A2DP V1.2/AVRCP V1.4/HSP V1.2
5.Working Current:  ≤30mA
6.Standby Current:  <50uA
7.Temperature range: -40 Celsius ~ +80 Celsius
8.Wireless transmission range: > 10m
9.Transmission power: CLASS1/CLASS2/CLASS3,9dbm(MAX)
10.Sensitivity:  -80dBm<0.1%BER
11.Frequency Range: 2.4GHZ ~ 2.480GHZ
12.External Interface:  PIO/SPI/I2S/PCM/USB
13.Audio Performance:  AAC/MP3/SBC/AP TX
14.Audio SNR:  ≥75dB
15.SIZE:16x26mm approx

Package included:

1 x CSR8645 4.0 bluetooth Stereo Audio Module
