Description
Specification:
Brand: BZGNSS
Model: P18 Pro
Product Name: High-performance GPS Module
Cold start: ≤20s
Hot start: Yes
Max satelliites tracked: 50+
Baud rate: 115200
Frequency: 10Hz
Satelliite systems supported: Five-mode positioning
Operating voltage: 5V

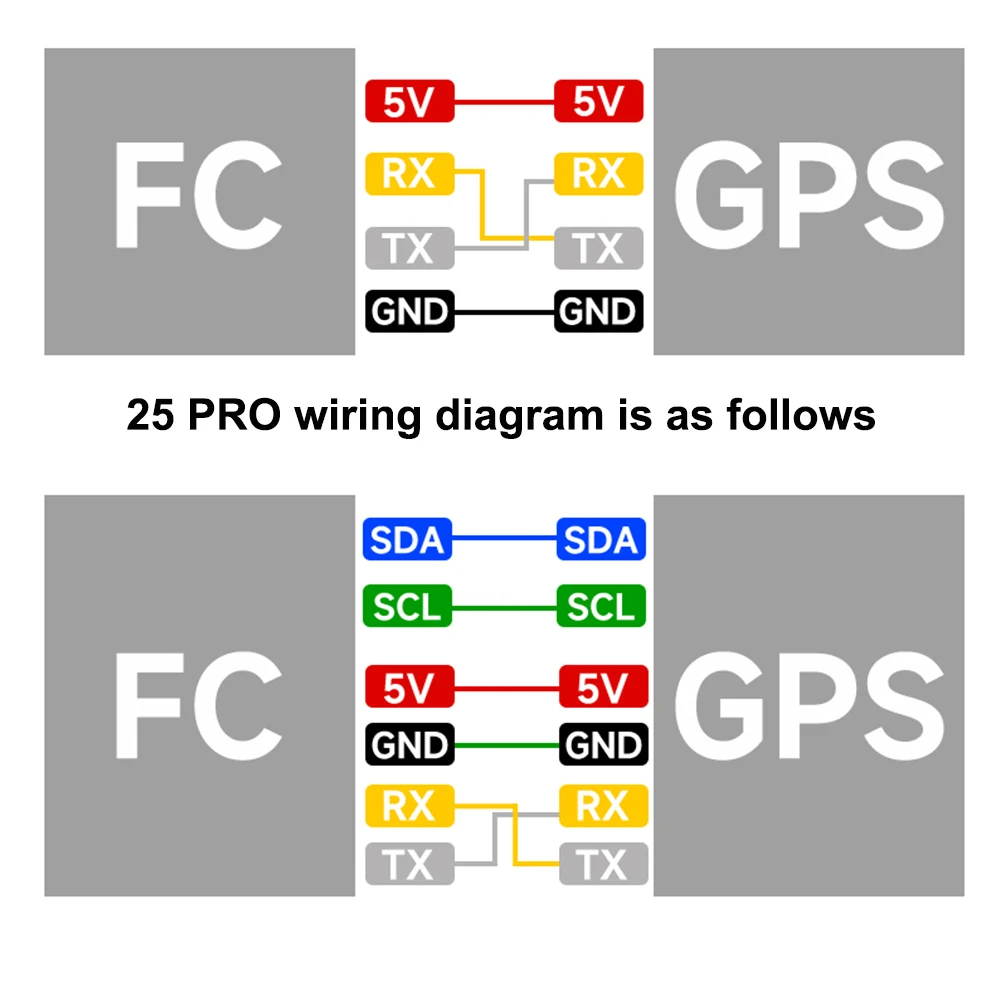

Port connector: SH1.0 4-pin socket
Compass: No

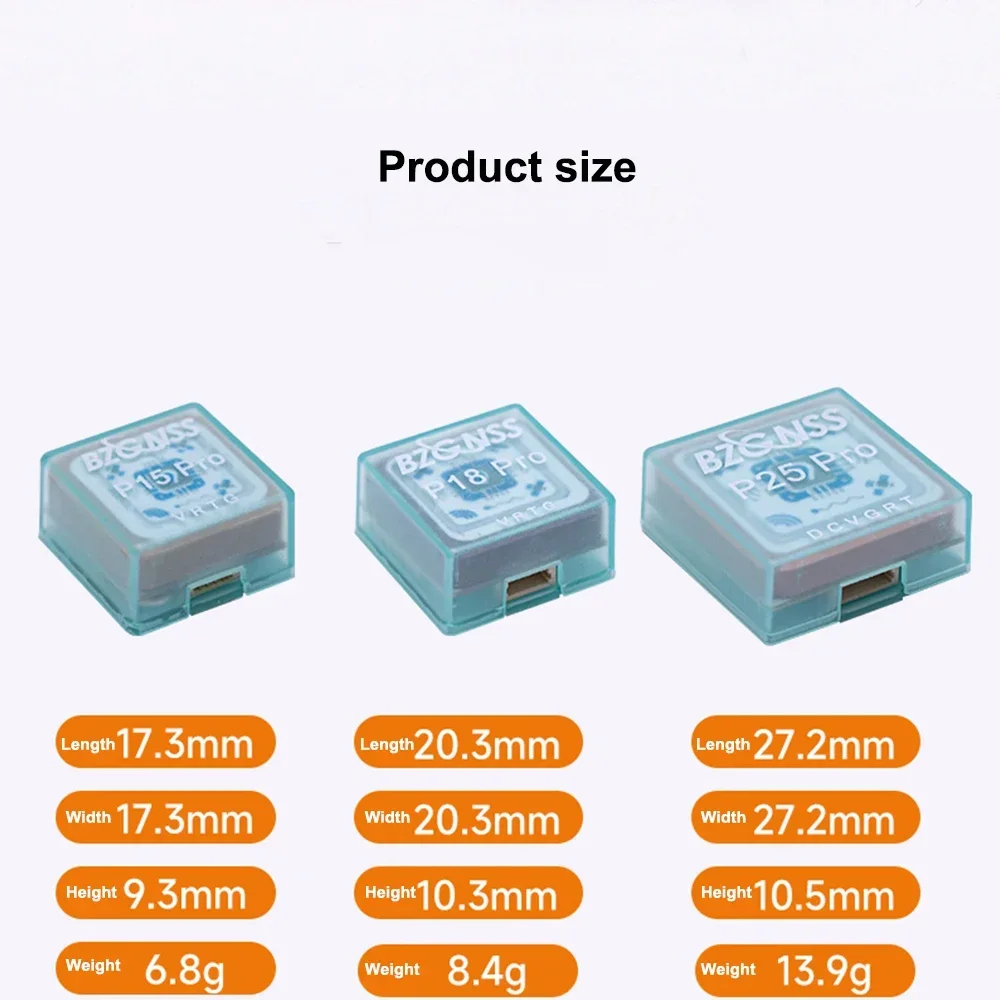

Dimensions: 20.3mm × 20.3mm × 10.3mm
Weight (excluding cable): 8.4g
Tracking sensitivity: -167dBm
Reacquisition sensitivity: -160dBm
Cold start sensitivity: -148dBm
Hot start sensitivity: -160dBm
Horizontal accuracy: 2m (CEP50)
Speed accuracy: 0.05m/s
Heading accuracy: 0.3°
Time accuracy: RMS 30ns; 99% 60ns
Assisted positioning: ≤2s
PPS output: 0.25Hz–10MHz
Altitude: <80,000m
Speed: <500m/s
Max acceleration: ≤4g
Operating temperature: -40°C to +85°C
PPS indicator: Solid on (no fix), flashing (fix acquired)

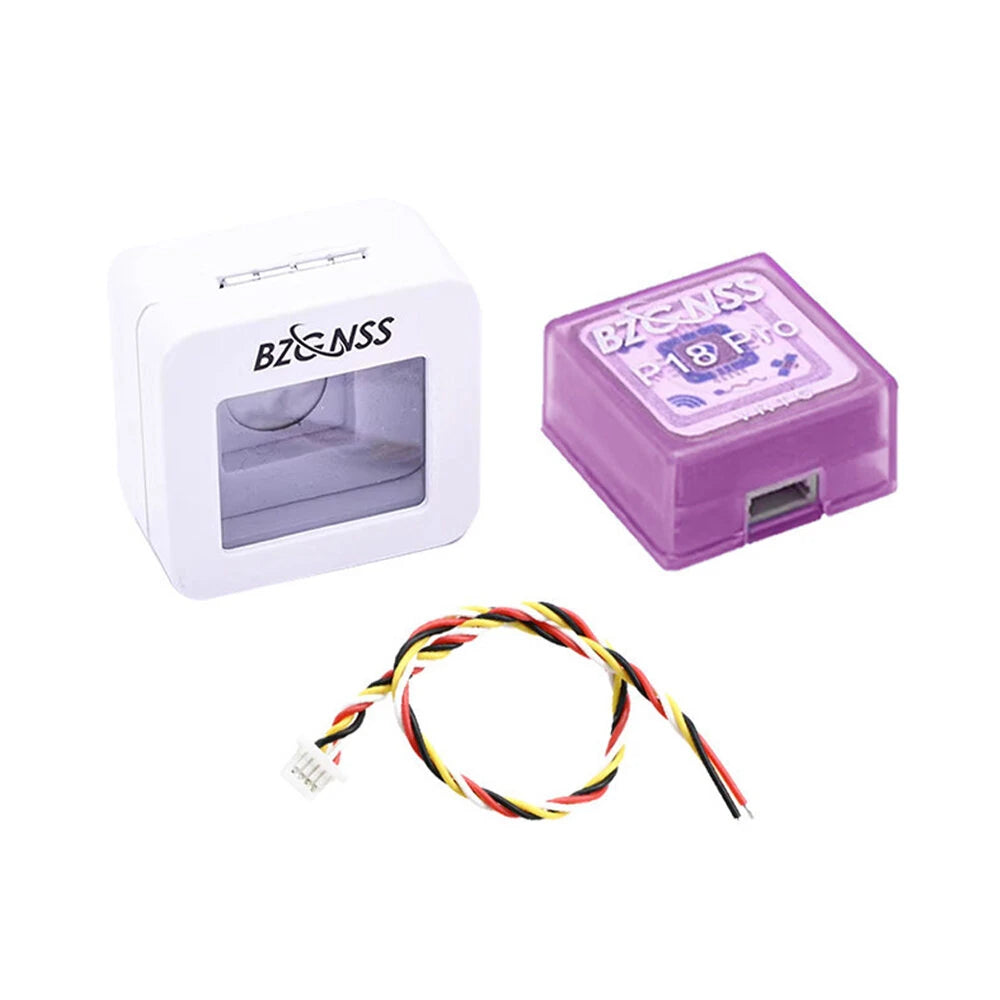

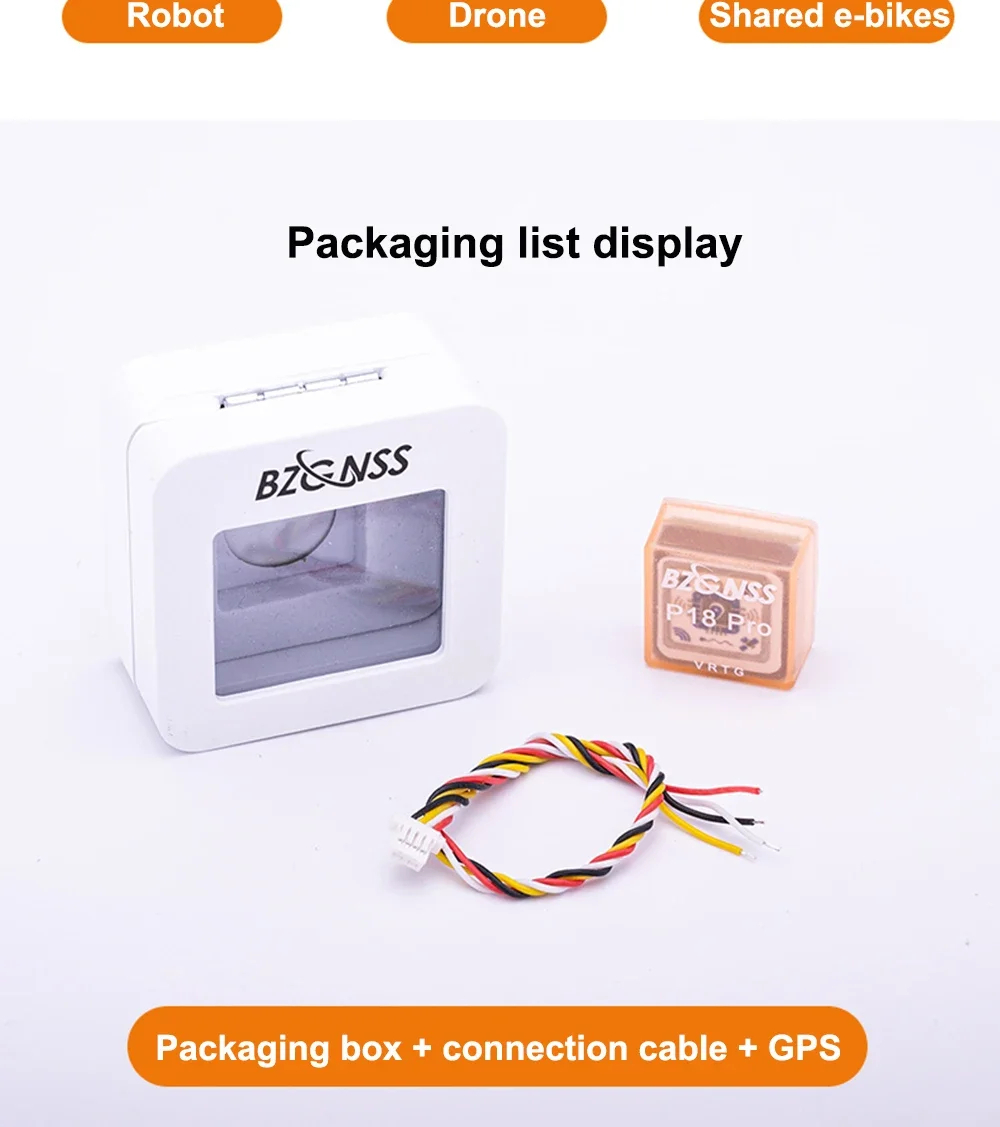

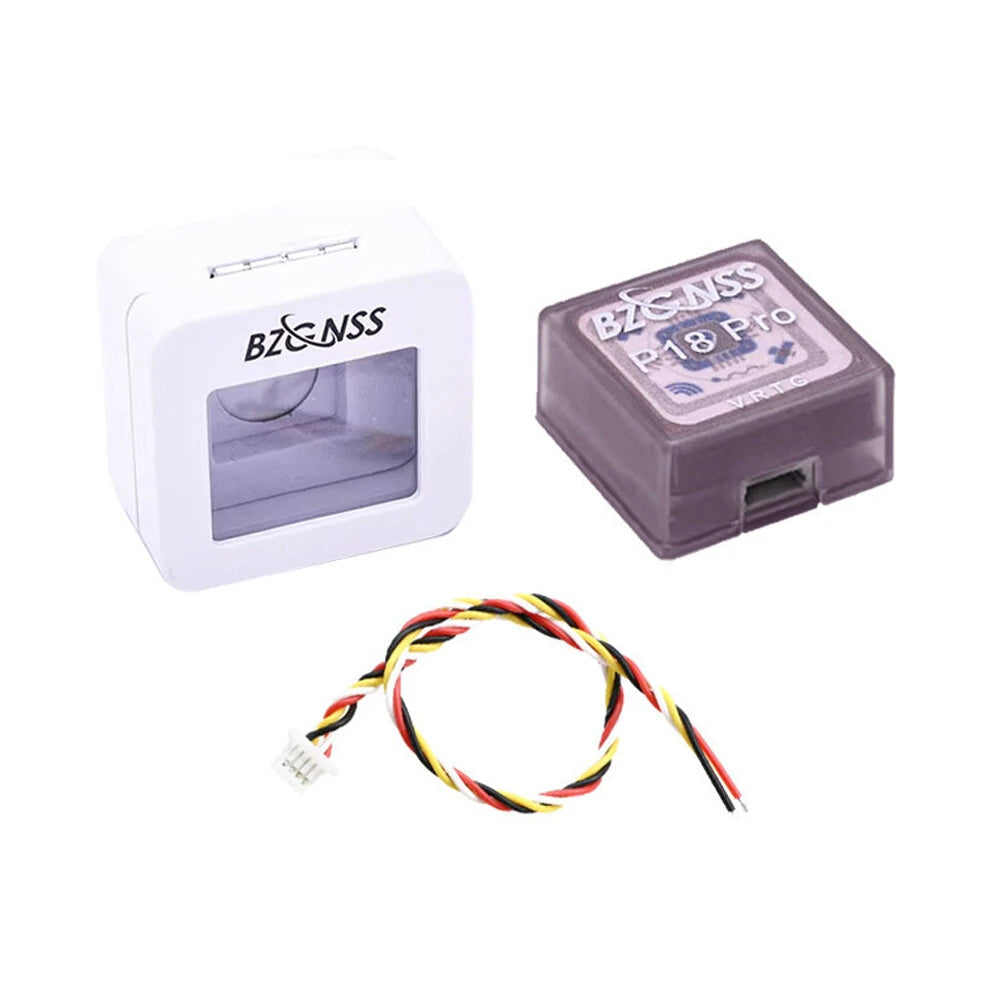

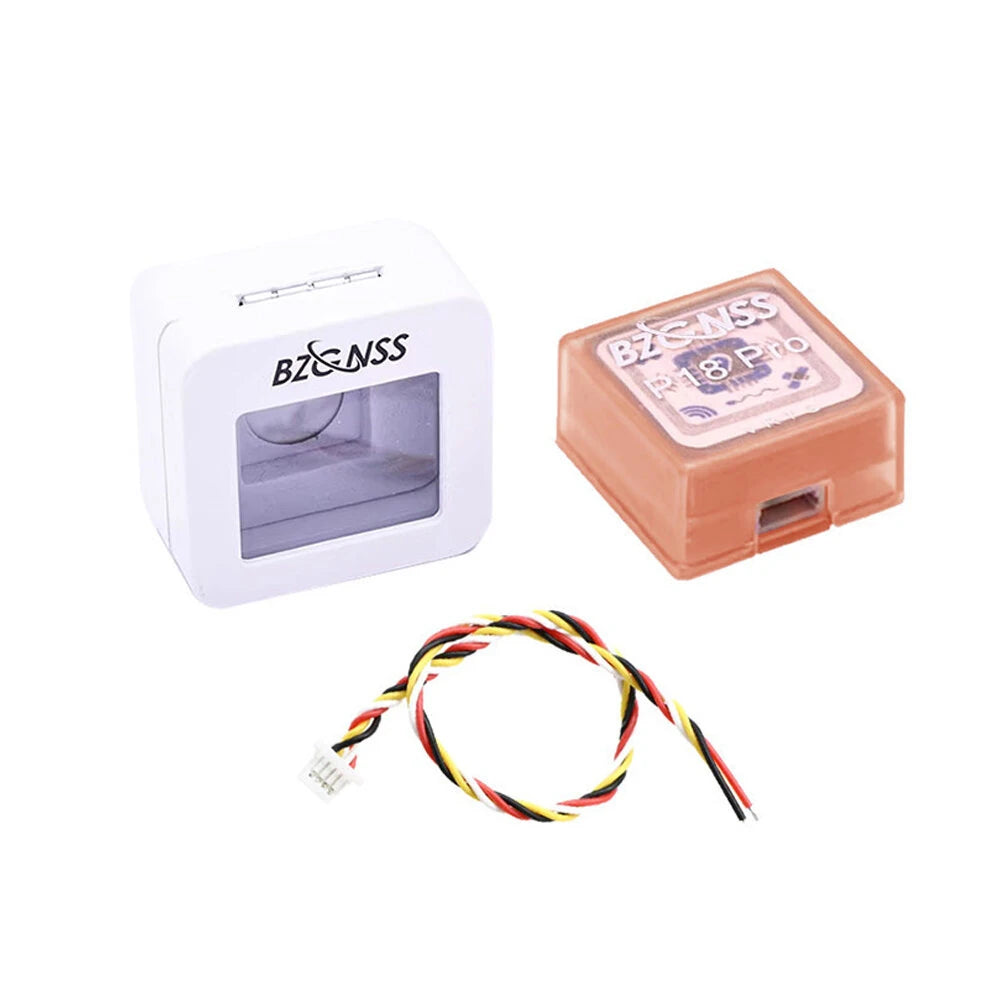

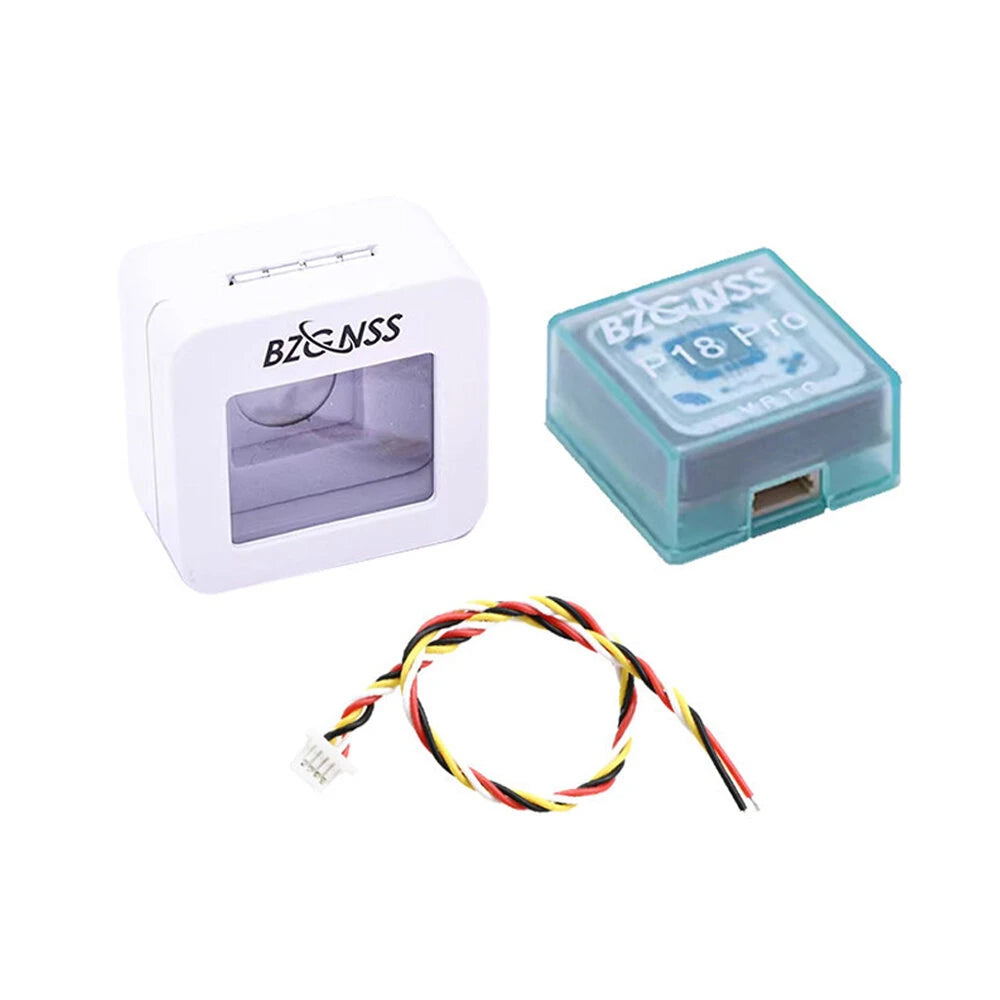

Package Included:
1 x GPS Module
1 x Packaging Box
1 x Ribbon Cable
