Description:

Tired of bulky FPV goggles burning your eyes?The VRO2 delivers a crisp 4.3' LCD screen in a lightweight 280g body – 40% lighter than FatShark clones. With 48CH auto-scanning and 6-hour battery life, it's the ultimate starter kit for analog racers. It is specially designed for FPV starters.

Bullet Point:

- With the built-in antennas and structure patented design, the VR02 Goggles is more compact and exquisite, less than 300g lightweight is more comfortable for wearing and carrying.

- VR02 analog goggle comes with built-in 5.8G 14DBI high-quality antennas, you can receive stable and clear images even for long-range flights.

- With 4.3 inches 800*480px HD high brightness LCD, VR02 Goggles will show you a bright world without warped and blurred images, which is specially tuned for FPV racing or Model airplanes.

- Upgraded the frequency sweep function and the fast frequency auto-search function(only 2.5 seconds), pilots can easily find a band and channel with a stronger signal for a better flight experience.

- The advanced auto-searching function will show you the working frequency on the screen vividly.

- Adopt an ergonomic design with a foam sponge faceplate and a three-sided adjustable headband, this FPV Goggles fits your face and head perfectly.

Part	Specification
BODY	·  Dimension: 126x143x86.3mm · Weight: 300g with 2hr 2000mAh battery · Belt: Three-Ways adjustable belt
SCREEN	· screen size: 4.3 inch · Screen resolution: 800*480 px · Screen brightness: 300cd/m2 · View Angle: 55°
JACK	· Type-C Charging · Voltage: 3.7V, the device operating current of 500mA@3.7V · Current: 500mA
BATTERY	· Built-in 3.7V/2000mAh high-capacity polymer battery, LED turn on while charging. When charging is completed, the LED will turn off. · Each full charge revive is around 2 hours working time



BETAFPV Patented Design

With the built-in antennas and the special design of the Goggles lens, the VR02 Goggles is more compact and exquisite, which makes it maintains a small and lightweight body.

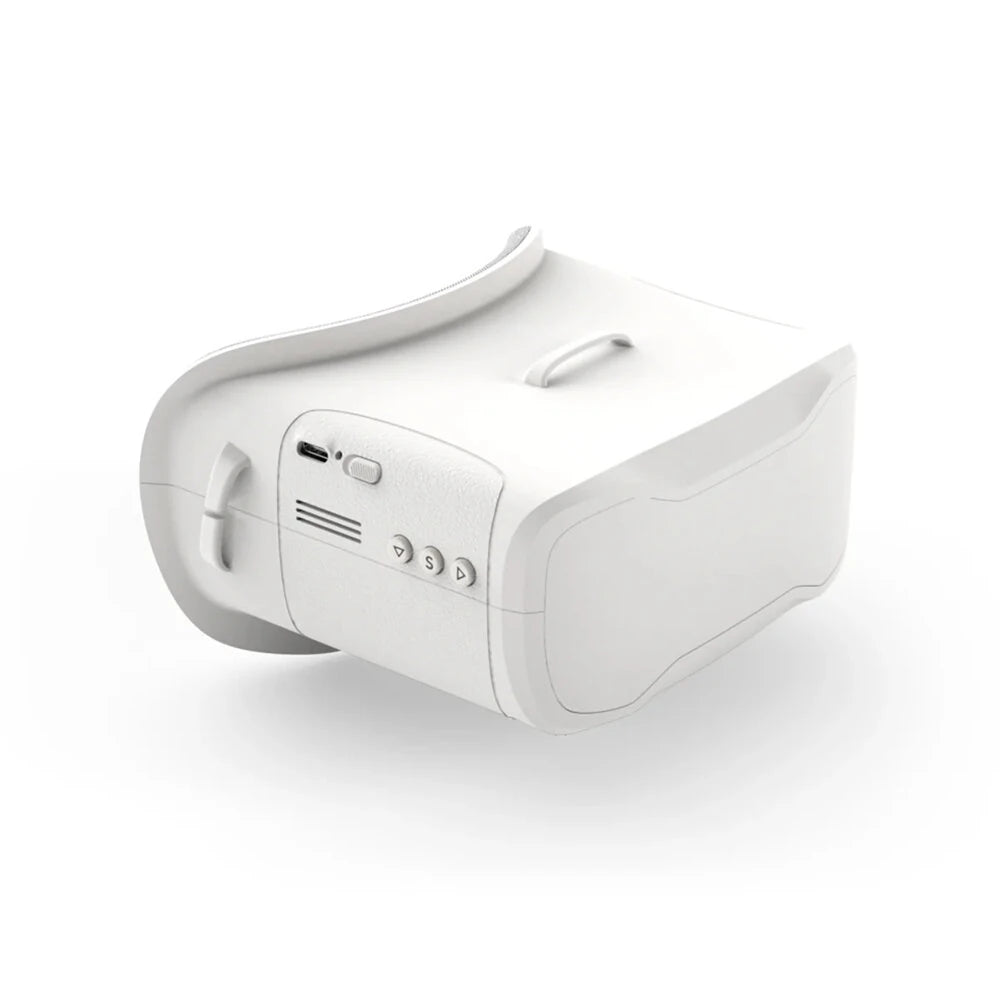

Operation Instructions

Button	Instruction
Power On/Off	· Flick to the left to turn off, and to the right to turn on, the screen will light up after a normal boot.
Band+	· Short press for Band+ option A, B, E, F, R, L cycle selection.
Search	· After powering on, short press the 'S' button to enter the sweeping interface. Press and hold the 'S' button for 1 second to start the frequency auto-search.
CH+	· Short press for CH 1~8 cycles.



Band and Channel Selection

CH

CH 1 (MHZ)

CH 2 (MHZ)
