Description:

The next-generation Pavo Pico II is the ultimate compact cinewhoop, completely redesigned for the DJI O4 system. It features a new rigid frame with guided mounting for easy assembly, the innovative O4 Bracket II with 4 shock absorbers to eliminate jello, and a new carbon plate that fits both the O4 and O4 Pro air units. Powered by upgraded LAV 1102 motors for 10% more power and efficiency, all in a lightweight 53.7g design, it delivers stunning, smooth 4K footage wherever you fly. Maximum Performance, Minimal Size.



Bullet Points:

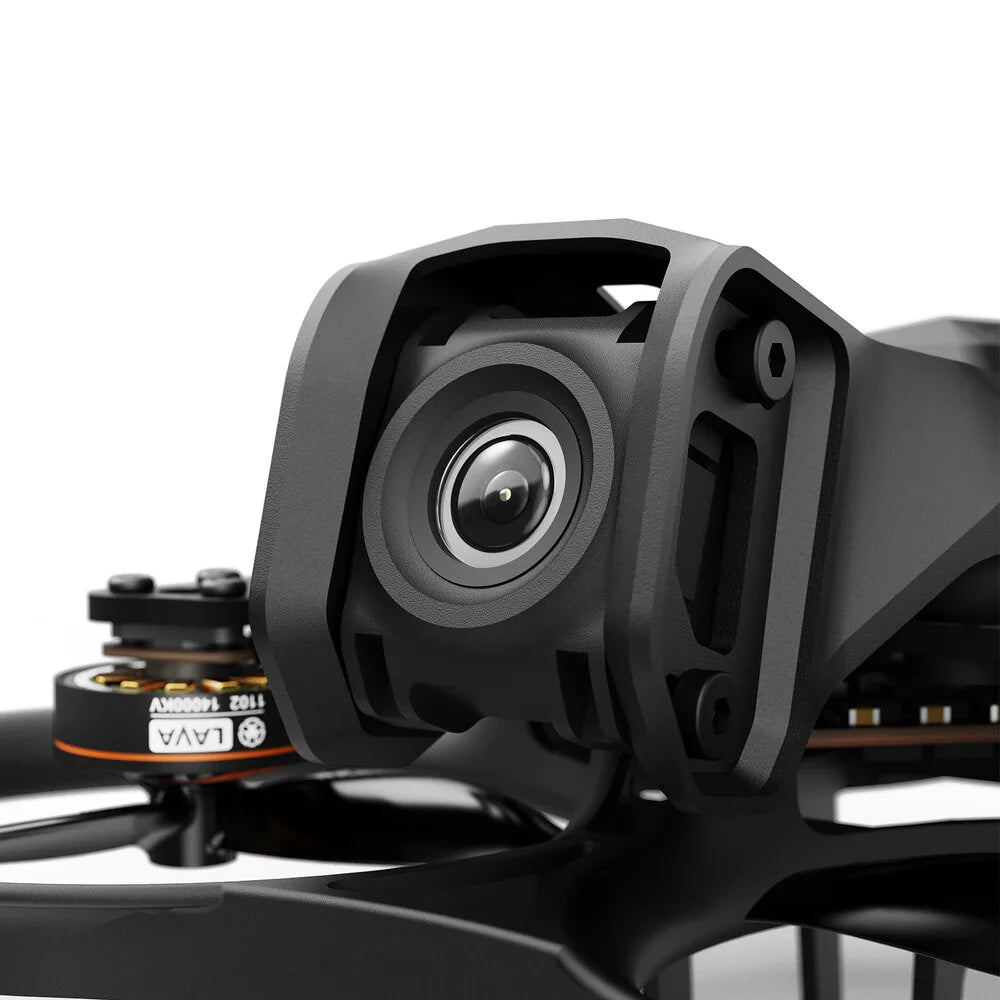

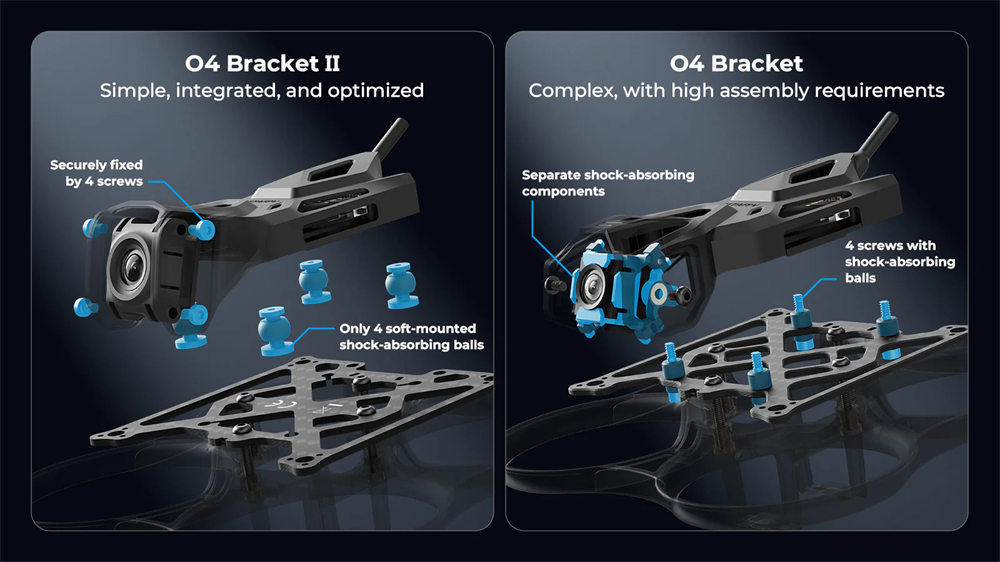

- O4 Air Unit Bracket II: The integrated bracket with 4 shock-absorbing balls eliminate jello for butter-smooth video.

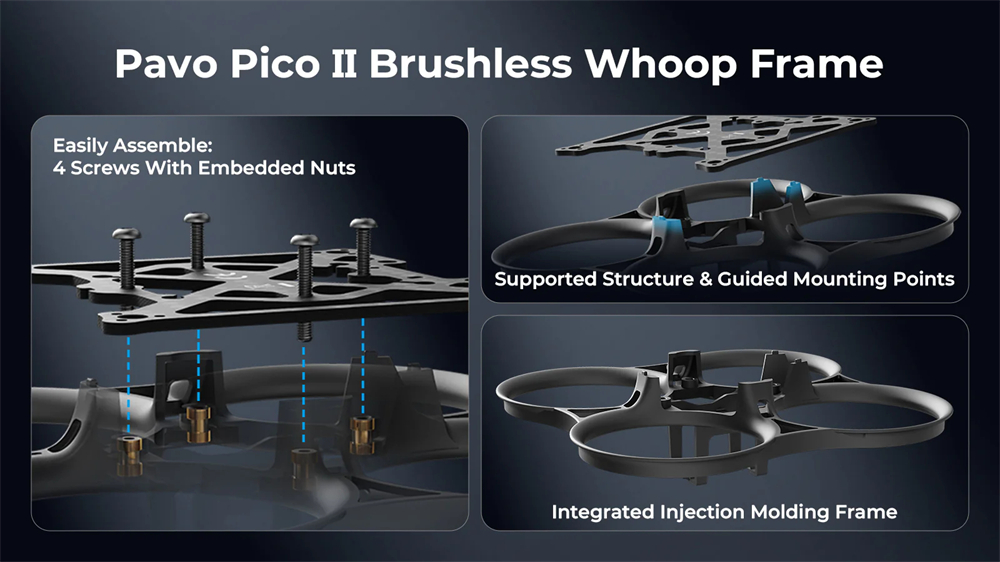

- Next-Gen Frame: The supported structure with guided mouting points and 4-screw design make assembly quick and incredibly rigid.

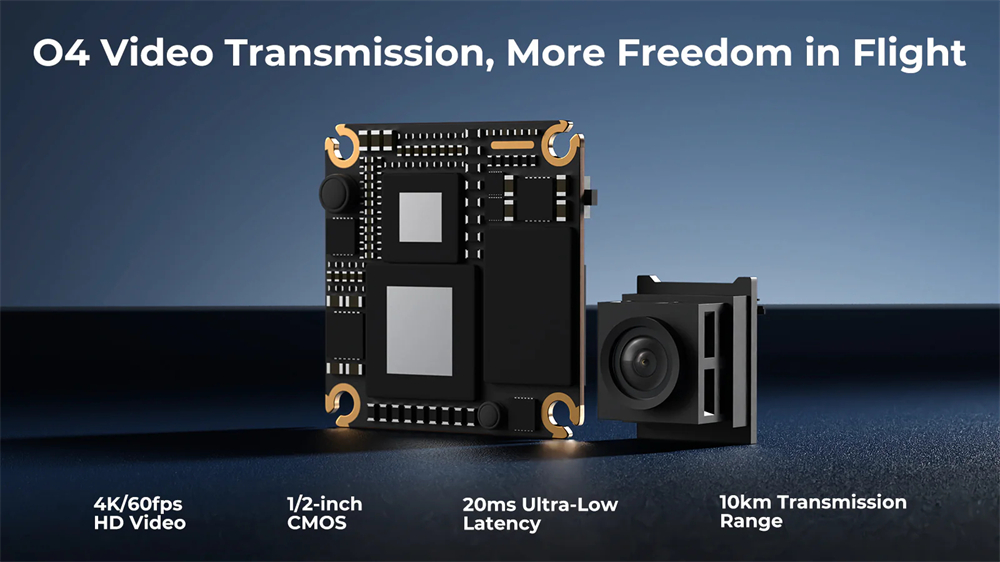

- O4 & O4 Pro Compatibility: A redesigned carbon plate seamlessly integrates both O4 and O4 Pro for stunning HD footage and build versatility.

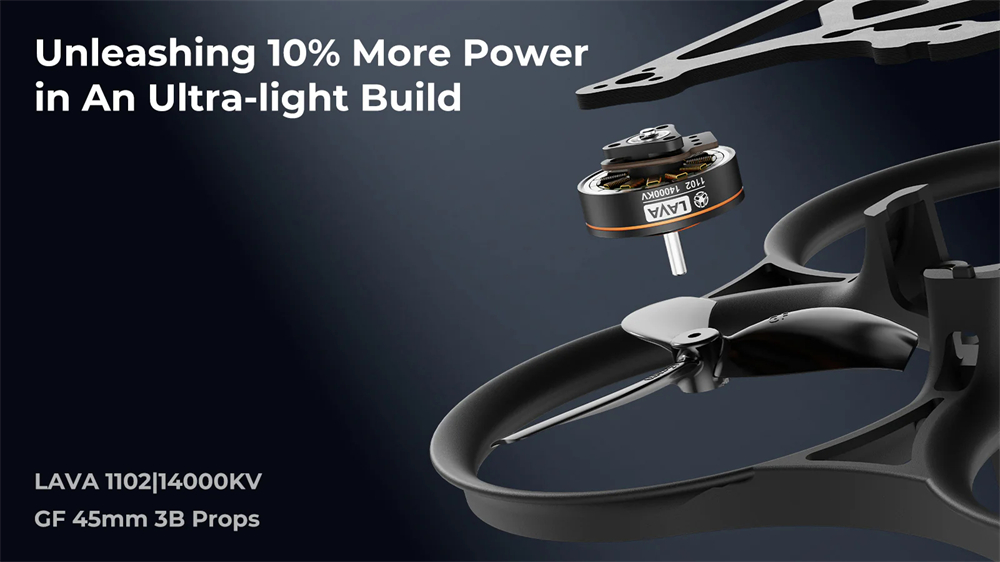

- New Propulsion: The upgraded LAV 1102 motors and GF 45mm props delivers a remarkable 10% power increase for explosive thrust, while also enabling extended flight times.

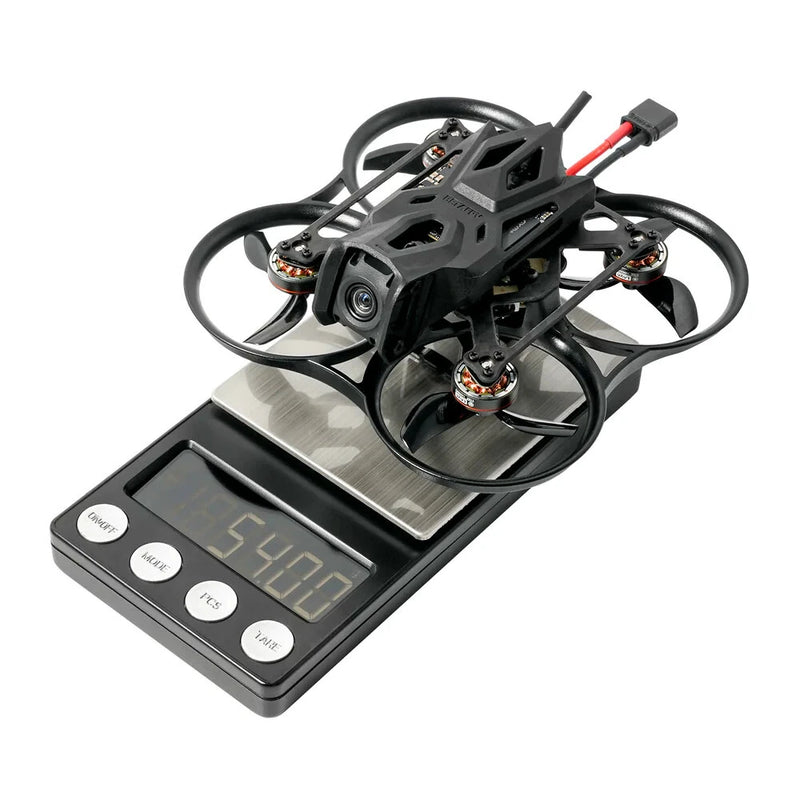

- Small and Lightweight: At a mere 53.7g with an 80mm wheelbase, this pocket-sized powerhouse combines an ultra-lightweight design with the raw thrust.

- Advanced Flight Controller: F4 20A AIO FC with dual BECs, supporting 9V 2A for HD VTX and 5V 3A for external devices.



Specification:

Brand: BETAFPV

Items: Pavo Pico II Brushless Whoop Quadcopter

Color: Black

Wheelbase: 80mm

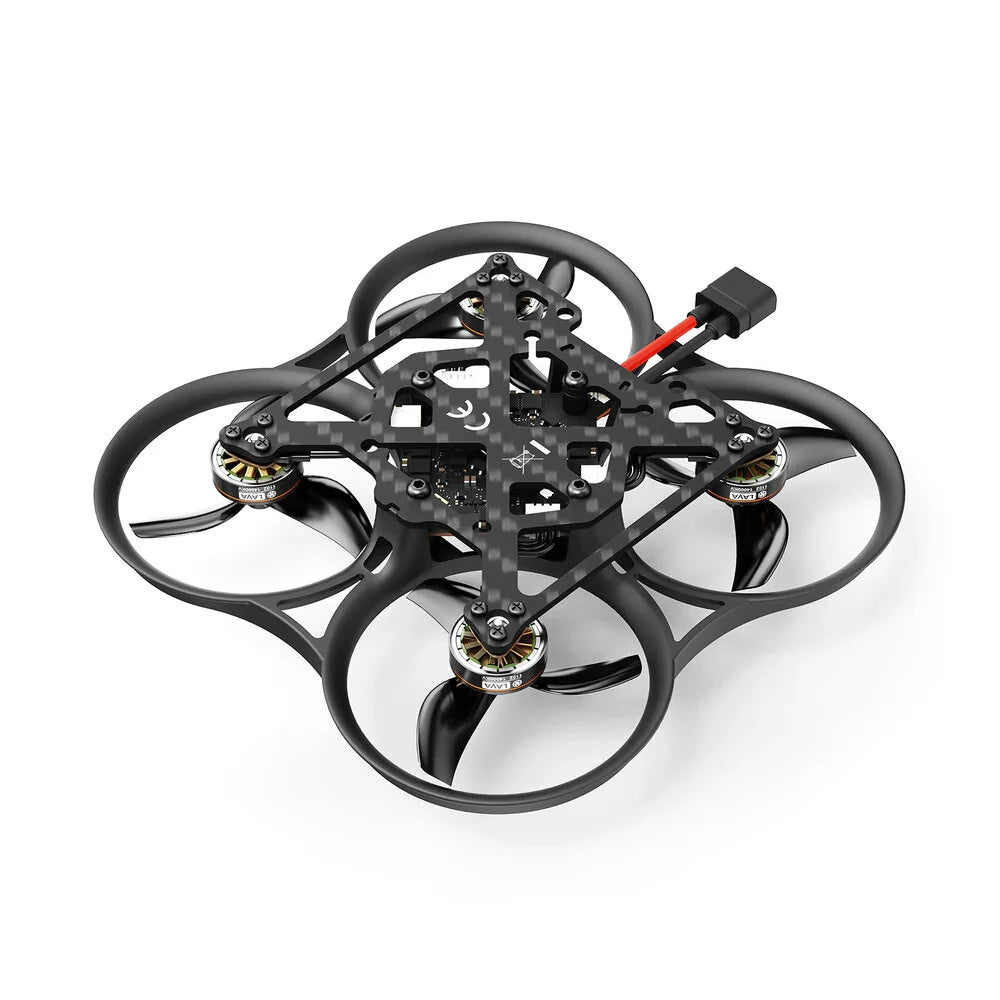

Frame: Pavo Pico II Brushless Whoop Frame

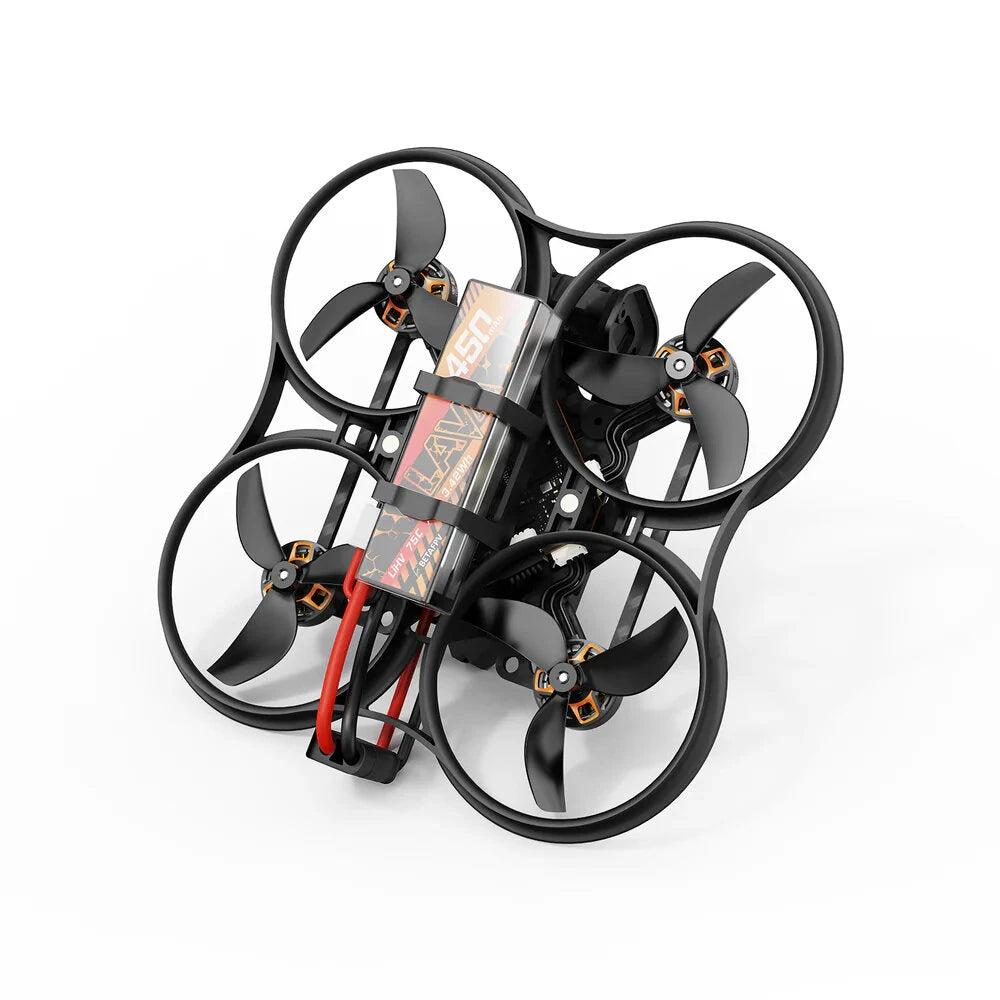

Battery: 2S 550mAh, 2S 450mAh

FC: F4 2-3S 20A AIO FC

Props: GF 45mm 3B Prop

Motor: 1102 | 14000kv

Battery Connector: XT30

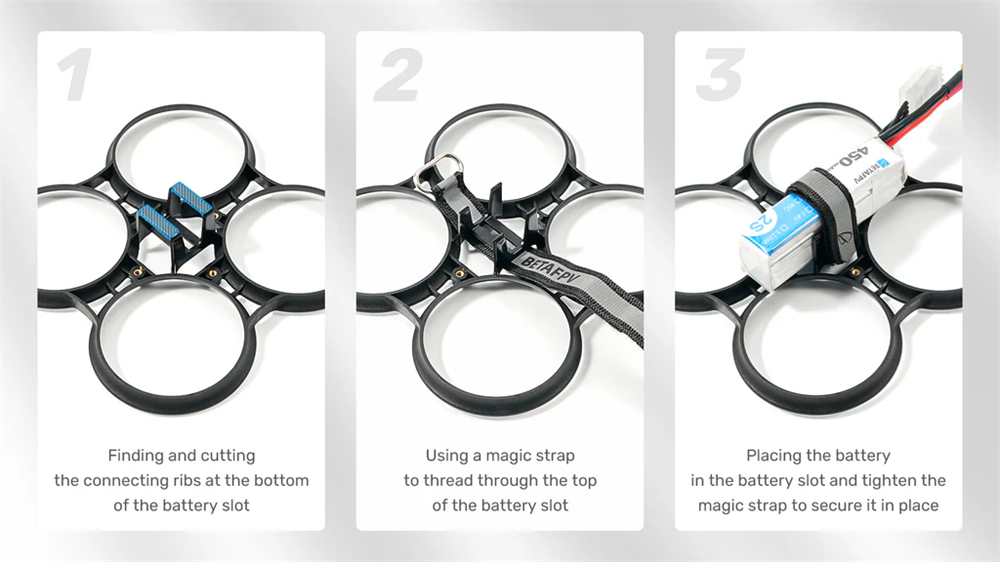

Battery Slot: 16*12.7mm

Flight Time: 6:30 min (O4 Version with 2S 550mAh battery)

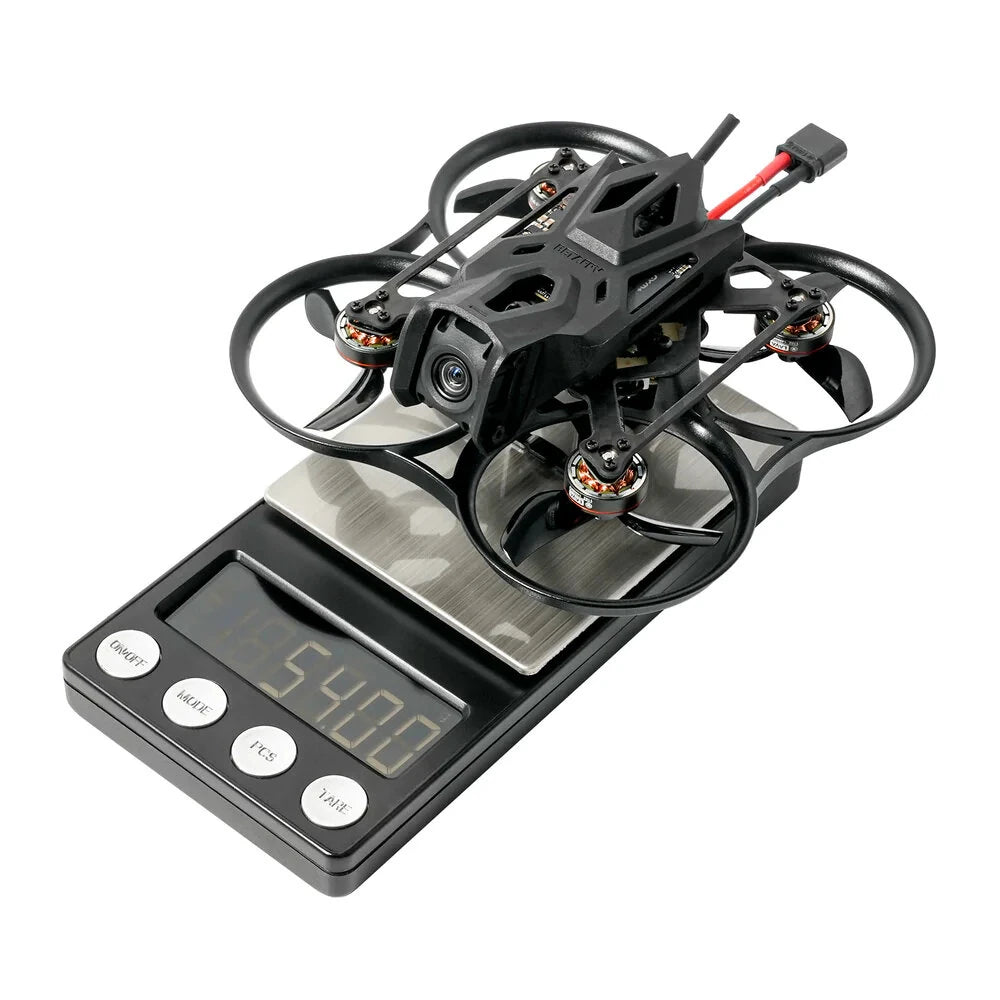

Weight: 39.1g (PNP Version), 53.7g (O4 Version)

RX Version: Serial ELRS, DJI SBUS

	Pavo Pico II	Pavo Pico	Pavo Femto
Wheelbase	80mm	80.8mm	75mm
Frame	Black Pavo Pico II Frame	Black Pavo Pico Frame	Black Pavo Femto Frame
Weight (PNP)	39.1g	34.6g	40.5g
Weight  (without battery)	53.7g (O4) / 78.6g (O4 Pro)	73.5g (DJI O3)	54.77g (O4)
RX	Serial ELRS, DJI SBUS	Serial ELRS, TBS	Serial ELRS, DJI SBUS
HD VTX Bracket	O4 Air Unit Bracket II	HD VTX Bracket	O4 Air Unit Bracket
Compatible VTX	DJI O4 Air Unit, O4 Air Unit Pro	DJI O3 Air Unit, Caddx Vista, RunCam Link, Walksnail Avatar	DJI O4 Air Unit
FC	F4 2-3S 20A AIO FC
Motor Connector	JST1.25-3Pin
Motor	LAV 1102|14000KV	1102|14000KV (2022)	LAV 1102|14000KV
Prop	GF 45mm 3 Blade		GF 1611 3 Blade
Thrust-to-Weight Ratio	6.35:1 (O4) / 4.88:1 (O4 Pro)	4:1 (DJI O3)	6.75:1 (O4)
Recommended Battery	LAV 2S 450mAh / LAV 2S 550mAh	LAV 2S 450mAh Battery	LAV 2S 450mAh / LAV 2S 550mAh
Battery Connector	XT30
Flight Time	6:30 (O4/2S 550mAh) / 5:40 (O4 Pro/2S 550mAh)	4:00	5:15
Filter Installation	-	Filter for DJI O3 Camera	-

Recommended Parts:

Frame: Pavo Pico II Brushless Whoop Frame

Motor: 1102 | 14000kv Brushless Motor

Propeller: GF 45mm 3-Blade Propeller

Battery: 2S 450mAh Battery, 2S 550mAh Battery

FC: F4 2-3S 20A AIO FC

Accessory: O4 Air Unit Bracket II

Supported VTX: DJI O4 Air Unit, O4 Air Unit Pro



Package Included:

Pavo Pico II Brushless Whoop Quadcopter (PNP Version)

1 * Pavo Pico II Brushless Whoop Quadcopter (PNP Version)

1 * Top Plate for O4 Air Unit Bracket II

1 * Bottom Plate for O4 Air Unit Bracket II

1 * O4 Air Unit Pro Bracket

4 * GF 45mm 3-Blade Propellers

1 * Type-C to SH1.0 Adapter

1 * SH1.0-4Pin Adapter Cable

6 * Shock-absorbing Balls for O4 Air Unit Pro Bracket (6.6mm)

6 * Shock-absorbing Balls for O4 Air Unit Bracket II (8.8mm)

6 * Shock-absorbing Pads for O4 Air Unit Bracket II (1.5mm)

6 * M2*10 Cylindrical Socket Head Cap Screws

6 * M2*4 Flat Head Socket Cap Screws

6 * M2*4 Socket Head Cap Self Tapping Screws

8 * M1.4*6 Phillips Flat Washer Head Tapping Screws

2 * 5.8G VTX Antenna

1 * 5.8G VTX Antenna Mount

1 * Phillips Screwdriver

1 * H1.5 Hex Screwdriver



Note: The PNP Version does not include VTX in the package.

Pavo Pico II Brushless Whoop Quadcopter (O4 Version)

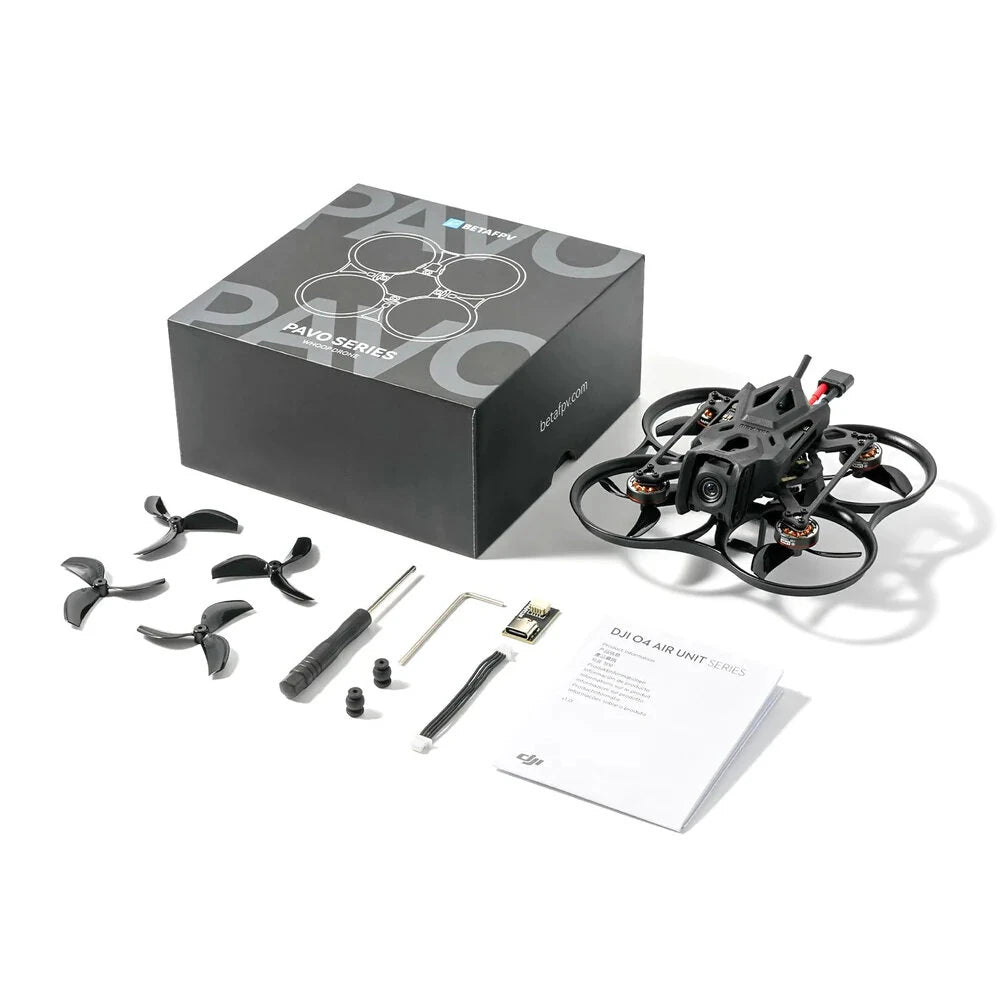

1 * Pavo Pico II Brushless Whoop Quadcopter (O4 Version)

1 * DJI O4 Air Unit User Manual

4 * GF 45mm 3-Blade Propellers

1 * Type-C to SH1.0 Adapter

1 * SH1.0-4Pin Adapter Cable

2 * Shock-absorbing Balls for O4 Air Unit Bracket II (8.8mm)

1 * Phillips Screwdriver

1 * H1.5 Hex Screwdriver
