Description:

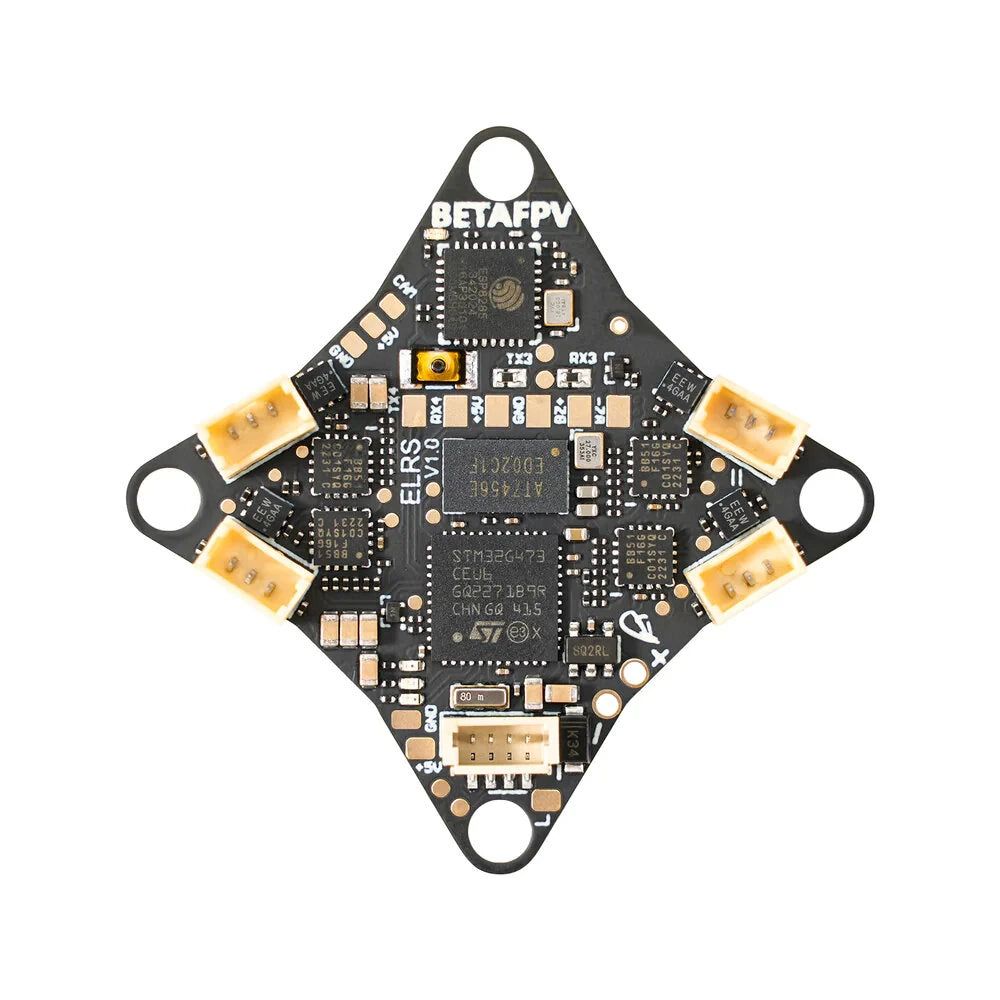

The Matrix 1S Brushless Flight Controller is a highly integrated solution designed for beginners and FPV enthusiasts. Its robust 1mm-thick board ensures durability during intense training, while the built-in motor connectors simplify installation, eliminating welding. Upgraded with the G473 processor, it delivers a 55% performance boost over the F411 for more precise control in racing and freestyle. Plus, its premium 5.8GHz 400mWVTX ensures stable, high-quality video transmission.



Attention

- The Matrix 1S Brushless Flight Controller is crafted for beginners and casual pilots, offering enhanced durability with its thicker board and no welding required—making it perfect for entry-level users. As a result, it is slightly heavier than the Air Brushless Flight Controller 5IN1 version. For advanced FPV pilots seeking a more responsive, race-oriented experience, the Air Brushless FC 5IN1 version is highly recommended. The Matrix 1S Brushless FC and Air Brushless FC 5IN1 Version have undergone rigorous testing and meet competition-grade standards.

- Flight controllers are covered for manufacturer defects. Issues arising from user errors, physical crash damage, damage during installation or dismantling, modifications, power surges, electrical fires, or water exposure are not covered.

- VTX Power: Higher VTX power consumes more energy and generates more heat, reducing flight time. For better flight time in indoor scenarios, use 25~100mW power.

- VTX Antenna: Connect and install the image transmission antenna before powering on the flight control. Alternatively, set transmission power to 0 to avoid burnout.



Feature:

- Built Tough: The Matrix 1S Brushless FC features a robust 1mm-thick circuit board. While slightly heavier, this design enhances durability for everyday training. For advanced pilots, the Air Brushless FC 5IN1 Verion provides a lighter alternative.

- Simplified Installation: The Matrix 1S Brushless FC is a true all-in-one flight controller with integrated FC+VTX+OSD+ESC+RX, plus standard motor connectors, making setup and maintenance remarkably easy. Ideal for FPV beginners, this design requires no welding and ensures a smooth installation experience.

- Upgraded Performance: Upgraded with the G473 processor, the Matrix 1S Brushless FC achieves a remarkable 55% increase in computing speed over the F411, delivering swift respons for precise racing and complex freestyle maneuvers.

- Premium Video Transmission: Equipped with a high-quality 5.8GHz VTX supporting up to 400mW, the Matrix 1S ensures stable, accurate transmission for both daily flying and competitive racing.



Specifications:

Brand: BETAFPV

Model: Matrix

Item Name: 1S 5A 5IN1 AIO Brushless FC

Model	Specification

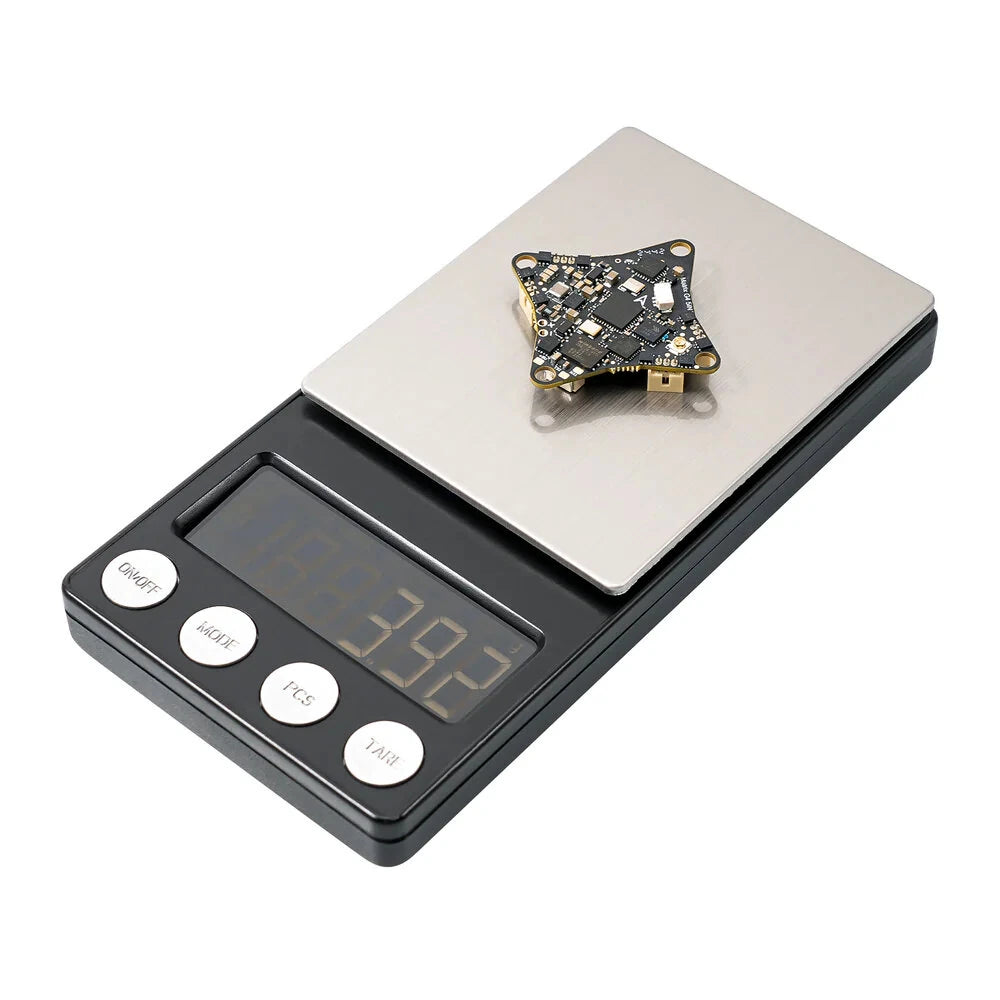

FC	MCU: STM32G473CEU6 Gyro: ICM42688P Blackbox memory: 16MB Sensor: Voltage & Current BEC: 5V, Max. 3A UART: UART 1, UART 2 (For VTX), UART 3 (For RX), UART 4 BetaFlight OSD: AT7456E ESC: 5A continuous RX: Serial ELRS 2.4GHz (V3.4.3) VTX: 5.8GHz 48 channels, Max. 400mW FC firmware: Betaflight_4.5.0_BETAFPVG473 USB port: SH1.0-4Pin Motor Connector: JST1.25 Battery connector: BT2.0 Mounting hole size: 26mm x 26mm Weight: 3.92±0.1g
ESC	Power input: 1S Only Current: 5A continuous, 8A peak ESC firmware: A_X_5_96KHz_V0.19.hex for BB51 Bluejay firmware Digital signal protocol: DShot300, DShot600
VTX	Output power: 25/100/200/400/PIT Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz Channel SEL: SmartAudio2.0 Modulation type: FM Frequency control: PLL All harmonic: Max -50dBm Frequency stability: ±100KHz (Typ.) Frequency precision: ±200KHz (Typ.) Channel carrier error: ±1.5dB Antenna port: 50 Ω Operating temperature: -10℃~+80℃



Comparison Between Matrix 1S, F4 1S 5A AIO & Air 5IN1

The Matrix 1S Brushless FC is designed with beginners in mind, offering enhanced durability and performance compared to the original F4 1S 5A AIO FC. With a 1mm-thick board, it’s more rugged than the 0.8mm-thick F4 1S 5A AIO board, and its built-in motor connectors simplify installation, eliminating the need for welding. With the advanced G473 processor and 5IN1 configuration, including a 5.8GHz 400mW VTX, the Matrix 1S is a better choice for beginners. For advanced pilots seeking a extremely lightweight, race-focused experience, the Air Brushless FC 5IN1 version is the best choice.

	Matrix 1S	Air 5IN1		F4 1S 5A AIO
MCU	STM32G473CEU6			STM32F411CEU6
MCU Frequency	168MHz			108MHz
Gyro, Max. Sampling Rate	ICM42688P, 8KHz			BMI270, 3.2KHz
Blackbox Memory	16M			8M
OSD	BetaFlight OSD: AT7456E
ESC	1S, 5A
RX	Onboard serial ELRS 2.4GHz
VTX	Onboard 5.8GHz 48 channels, 400mW			-
Circuit Board Thickness	1.0mm		0.8mm	0.8mm
Motor Connector	JST1.25		Not support	JST1.25
