Description:

For more than one year, the Air75 Frame defined lightweight agility. Now, forged alongside our global pilot community, the lighter Air75 II Frame (4g) reimagines the form. Our R&D team deconstructed every arm brace, duct geometry, and crash point. The result? A radcal yet refined frame: 4 arm braces replace 6, paired with optimized ducts and connecting structure. This shaves frame amplitude while adding 11% thrust and delivering near-perfect PID response. Beneath the form lies resilence. An optimized PP matrix absorbs brutal impacts from crashes. Refined details - screw protection structure, enlarged FC holes, and a lowered duct profile - ensure dominance. All engineered for relentless, worry-free flying.



Bullet Points:

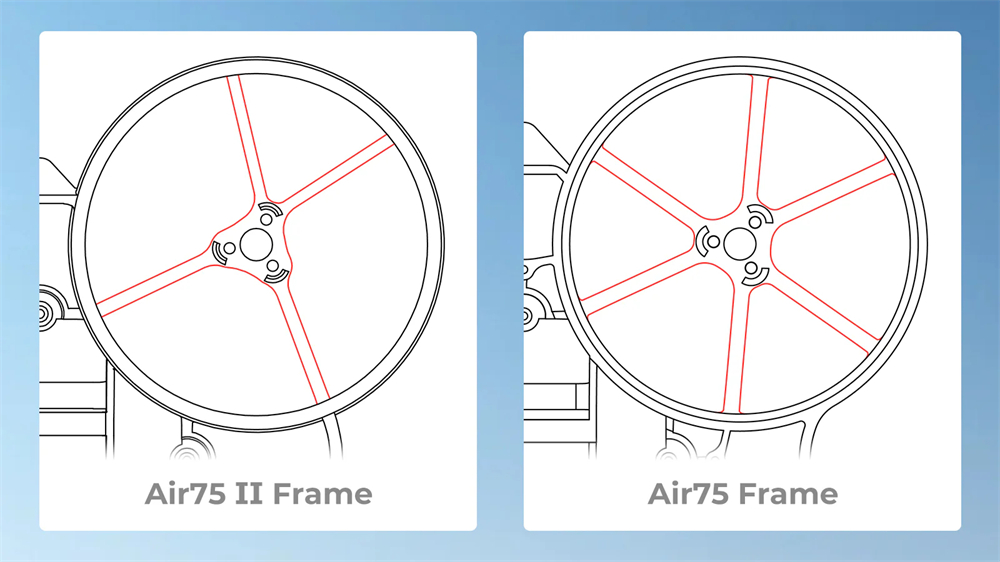

- Arm braces reduced from 6 to 4 + optimized duct geometry increase 11% thrust—while maintaining uncompromising durability.

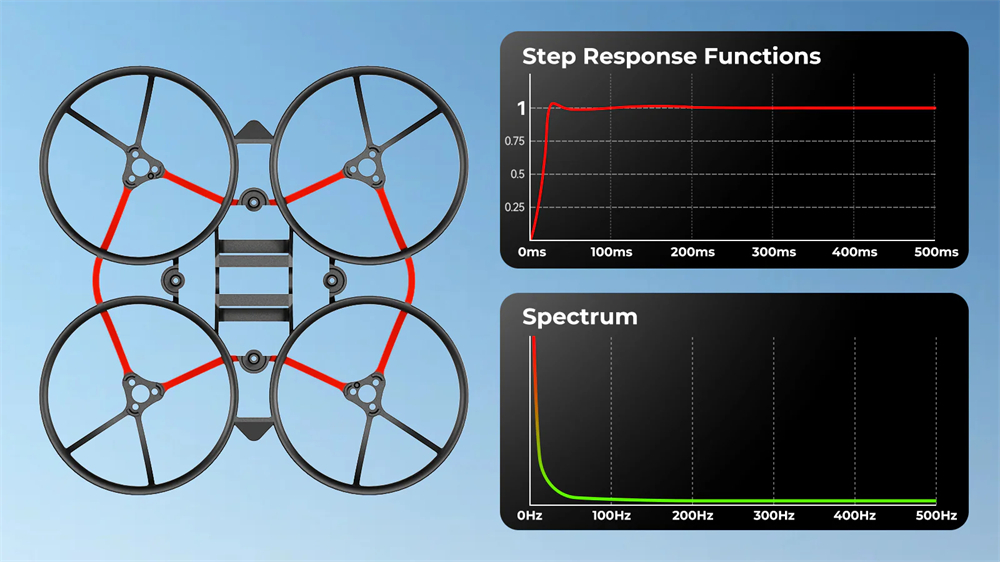

- Optimized connecting braces reduce frame amplitude and achieve ideal PID step response.

- Optimized PP blend makes it crash ready.

- Pilot-Focused Details: Motor fixed slots, motor screw protection structure, enlarged FC mounting holes (25.5 × 25.5mm), and lowered duct profile.

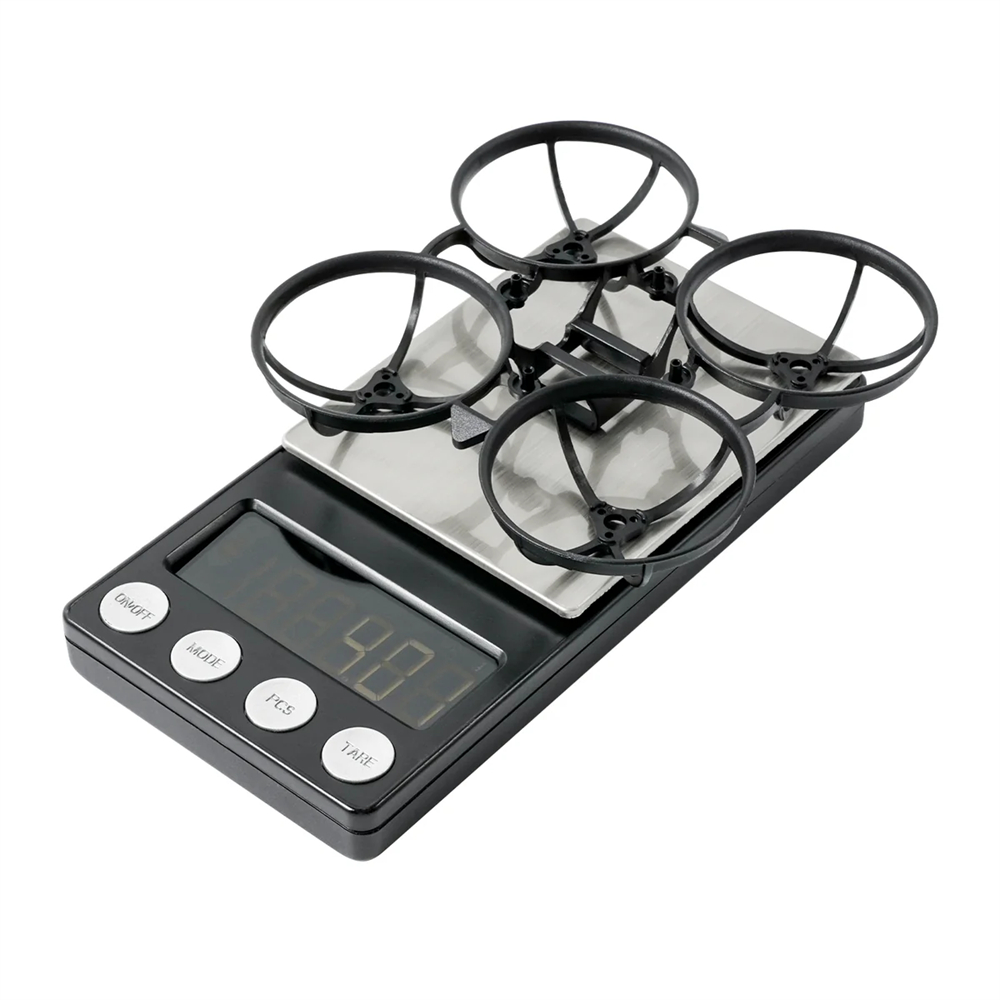

- At just 4g, the Air75 II achieves a 10% weight reduction compared to Gen 1.



Frame Reshaped:

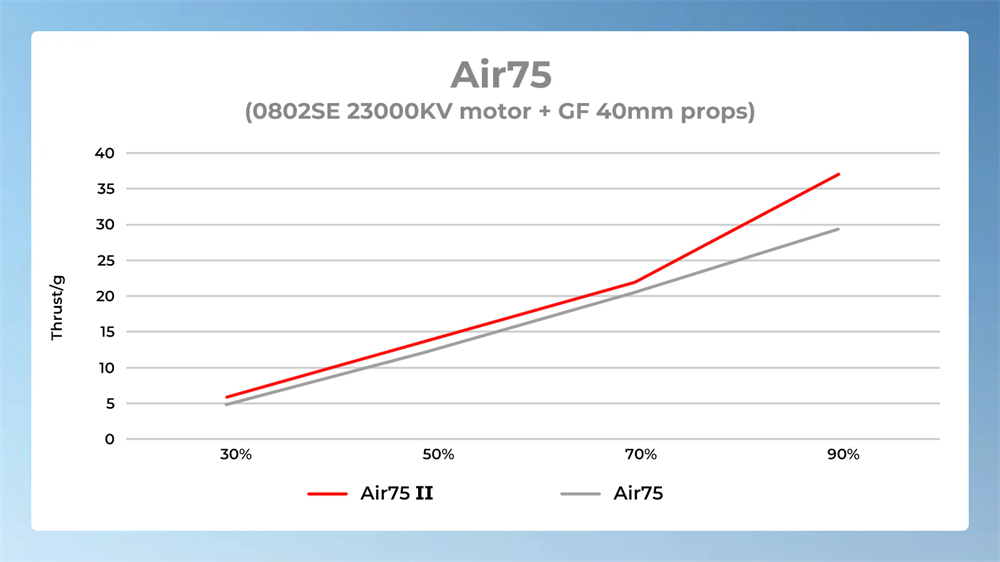

+11% Thrust: By strategically reducing arm braces from 6 to 4 and refining duct aerodynamics, the Air75 II achieves 11% higher thrust versus Gen 1 -- delivering instant throttle response and sustained power for the quadcopter.

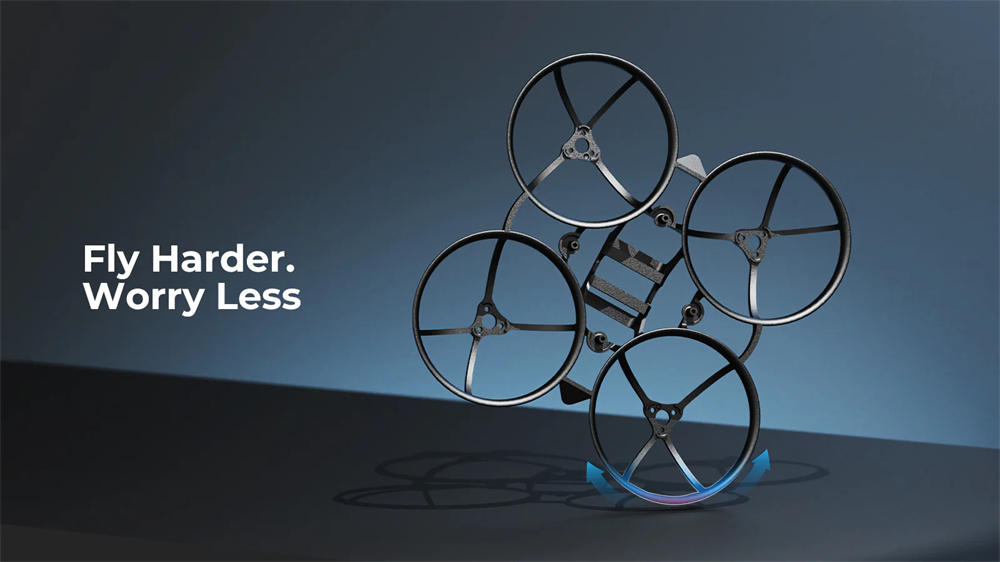

Optimized Resilient Material:

Our battle-tested PP blend laughs off concrete kisses and tree bites. Survive your most violent freestyle crashes – and fly home.



Details Matter:

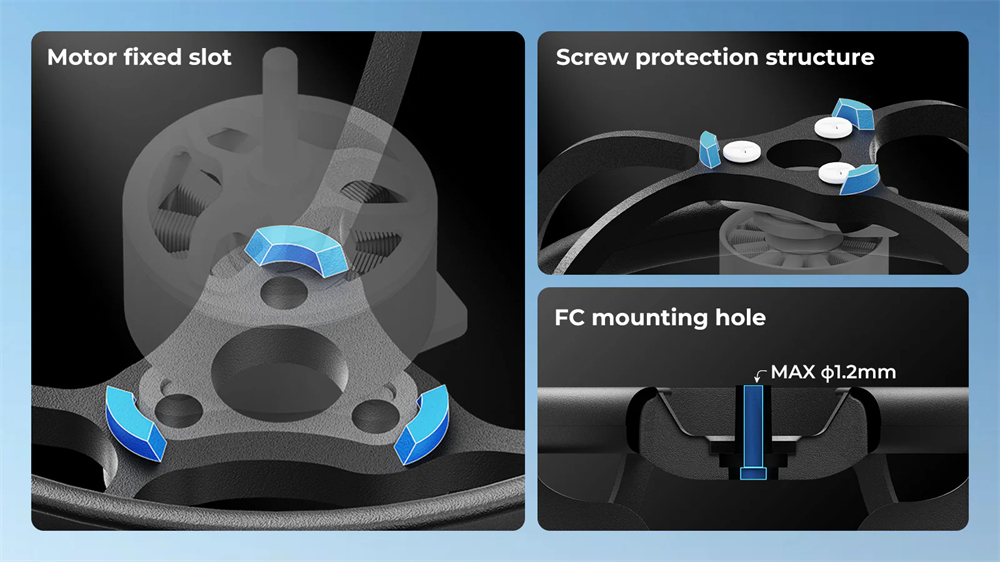

Every gram perfected: Retained motor fixed slots ensure precise alignment, new motor screw protection structures deflect crash impacts, and enlarged 1.2mm FC holes fit 1.4mm screws effortlessly. Where pilot priorities meet engineering obsession.

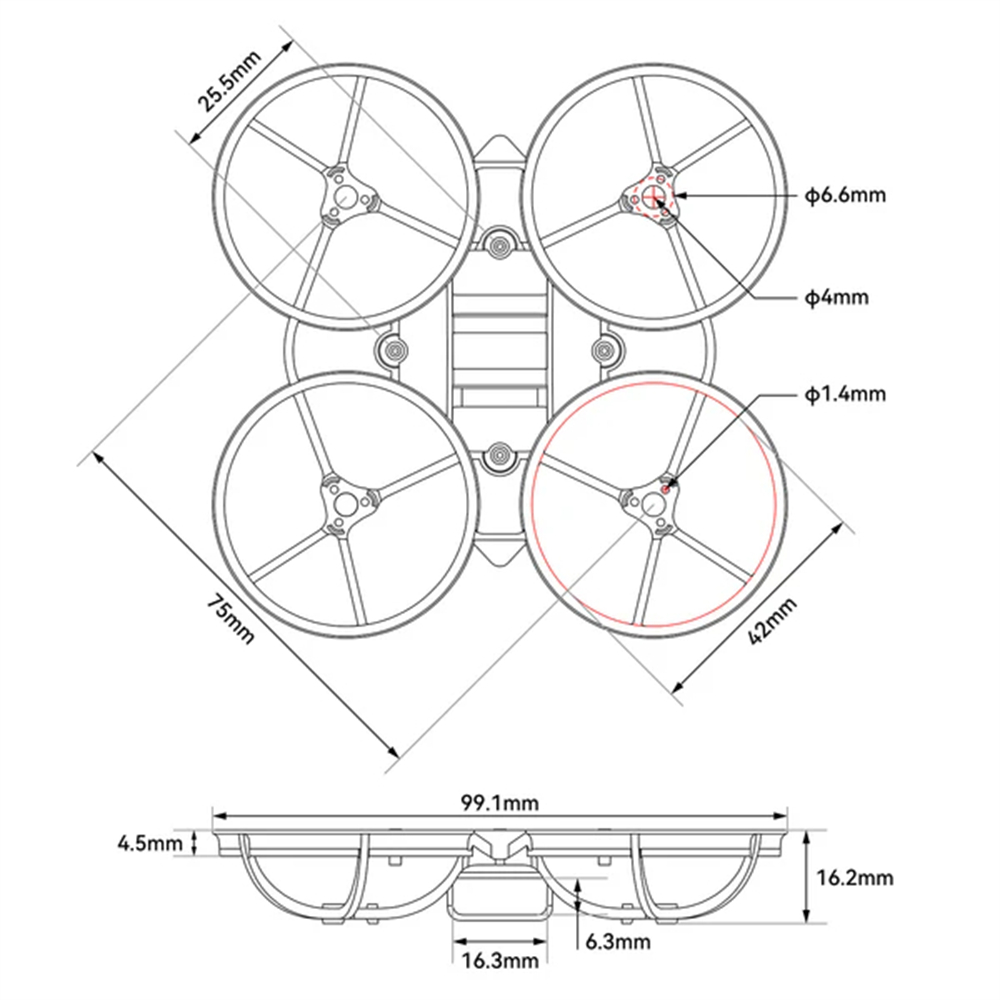

Specification:

Brand: BETAFPV

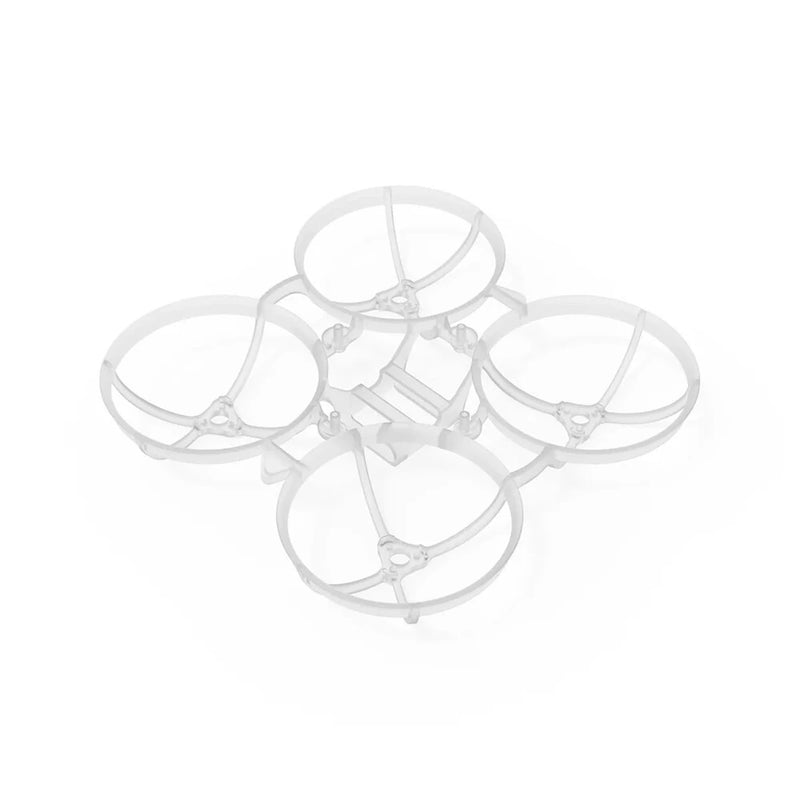

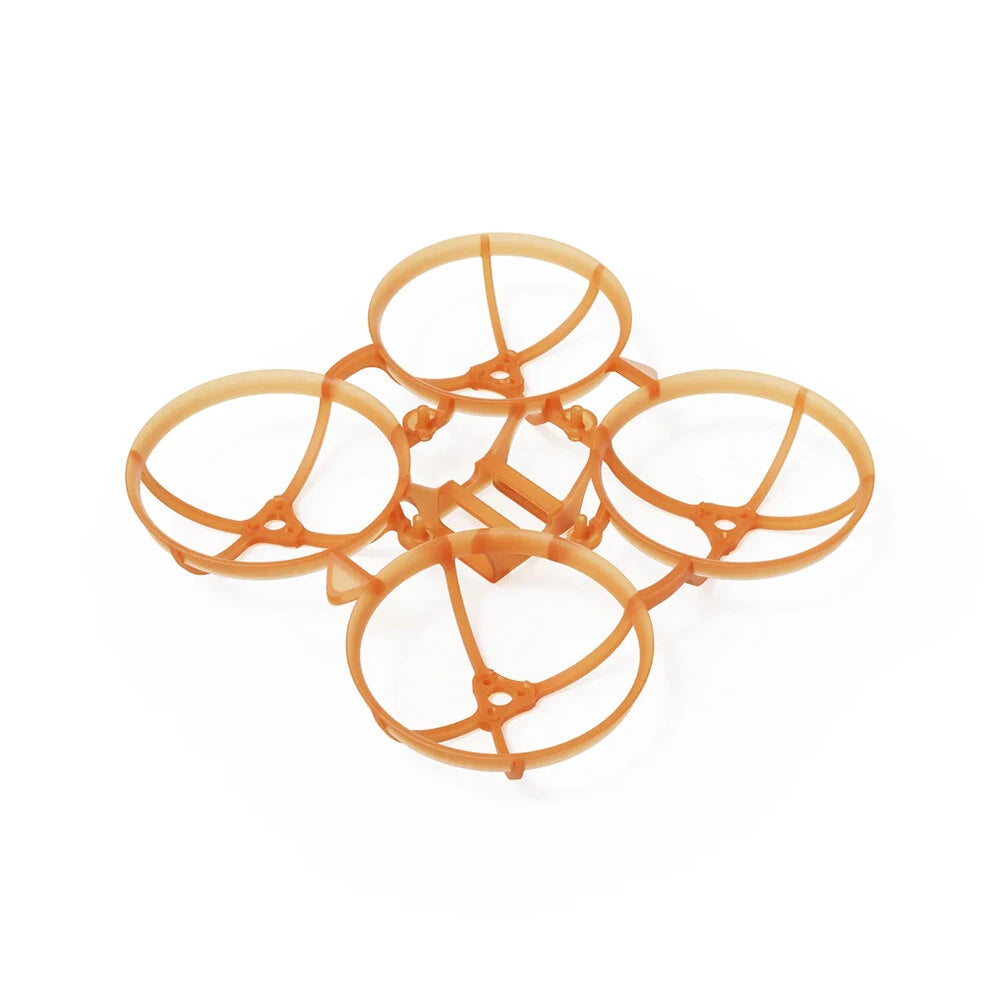

Item: Air75 II Brushless Whoop Frame

Material: PP

Weight: 4.00g

Wheelbase: 75mm

Motor Mounting: 3-M1.4-6.6mm

Flight Controller Mounting Hole: 25.5×25.5mm

Battery Slot Size: 16.3×6.3mm

Maximum Size: 99.1*99.1*16.2mm

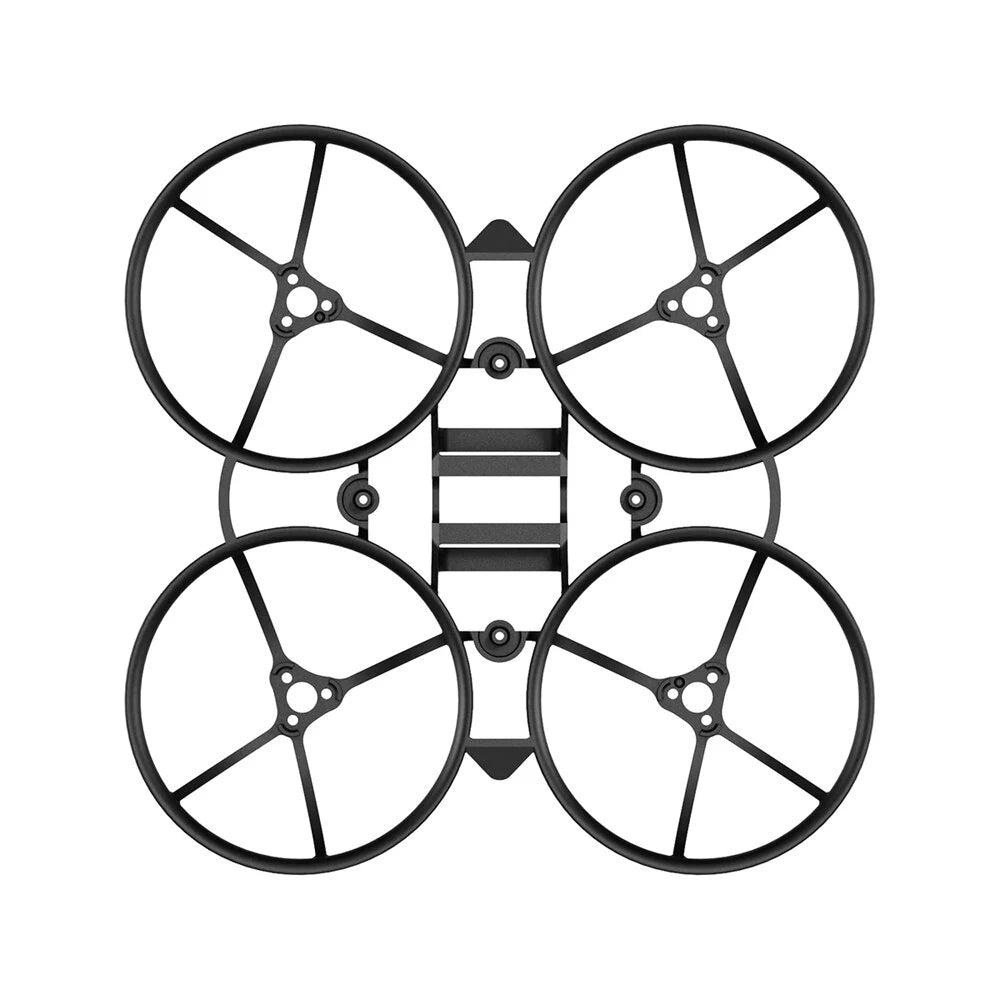

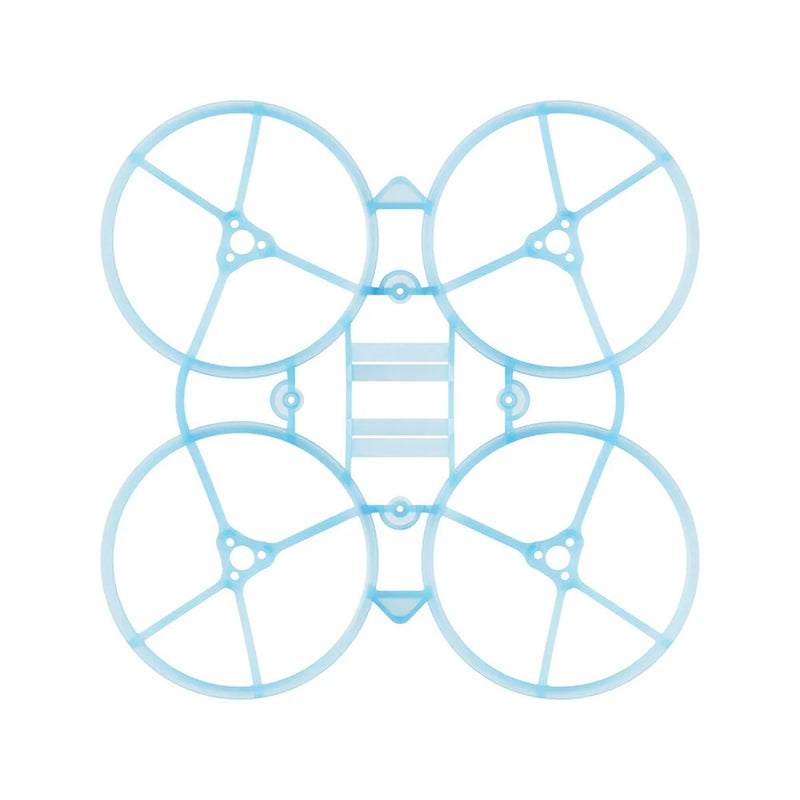

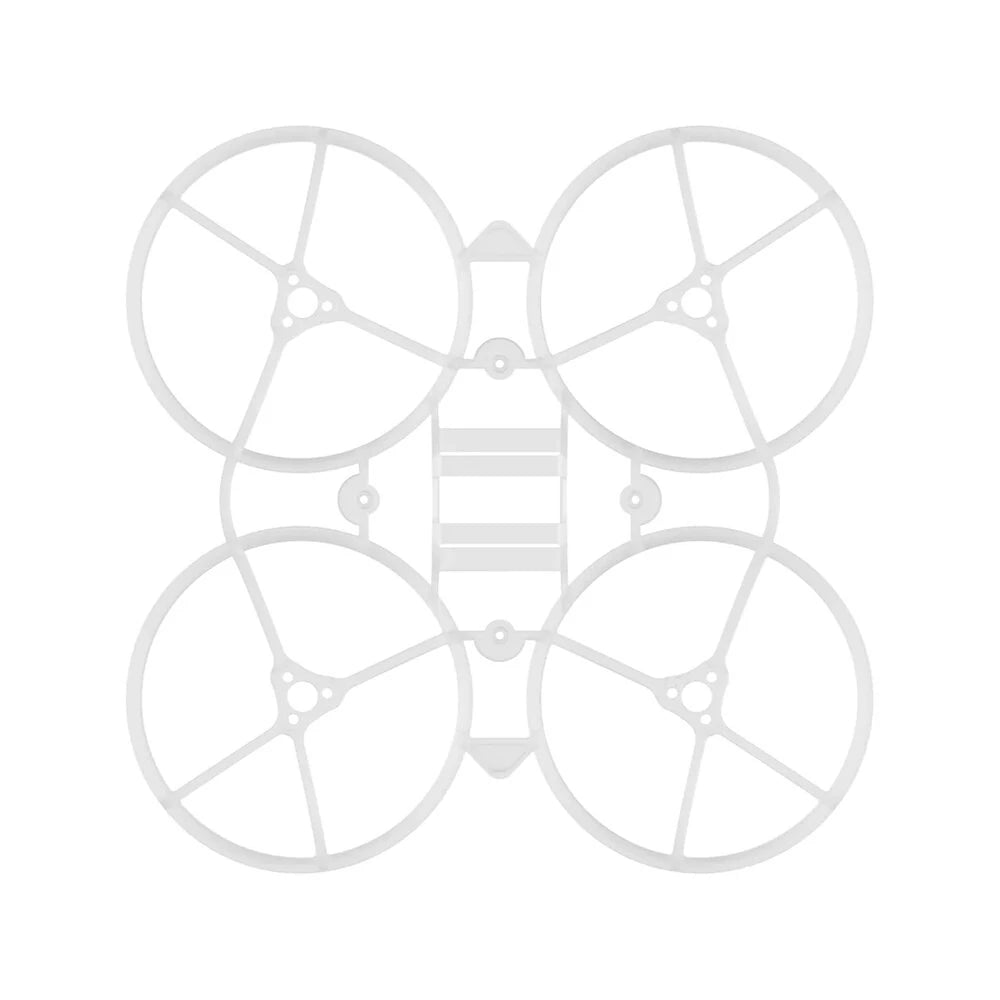

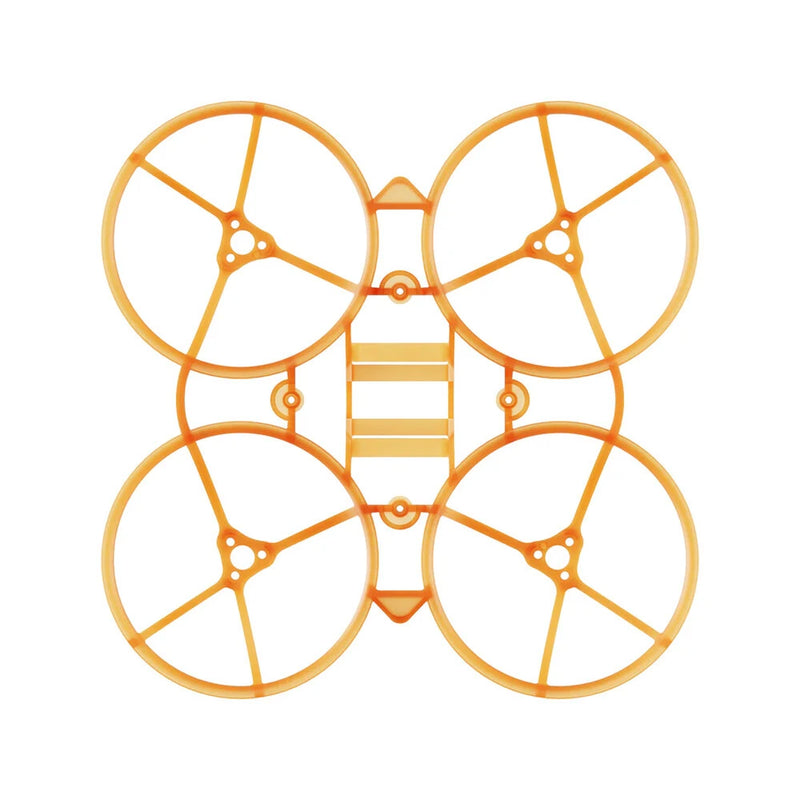

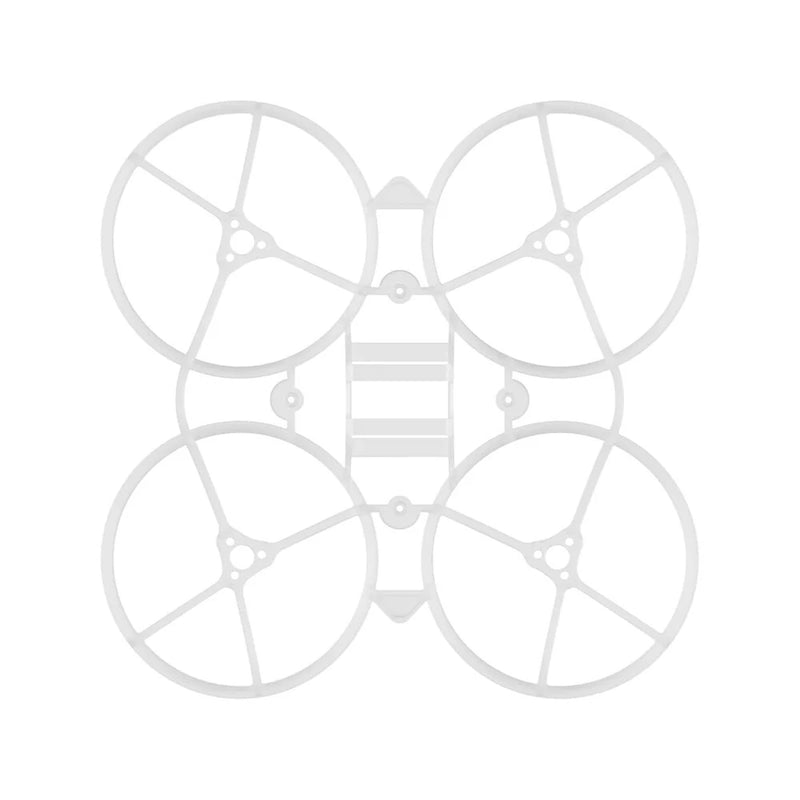

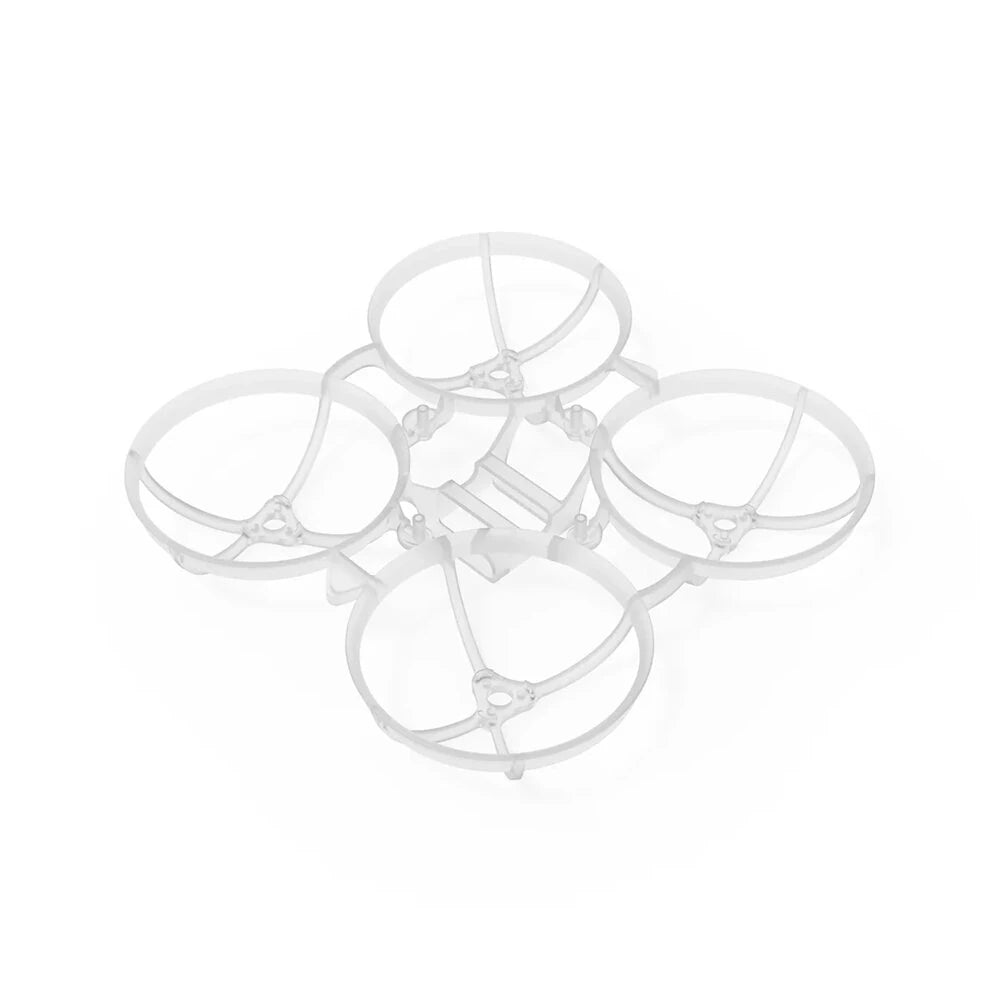

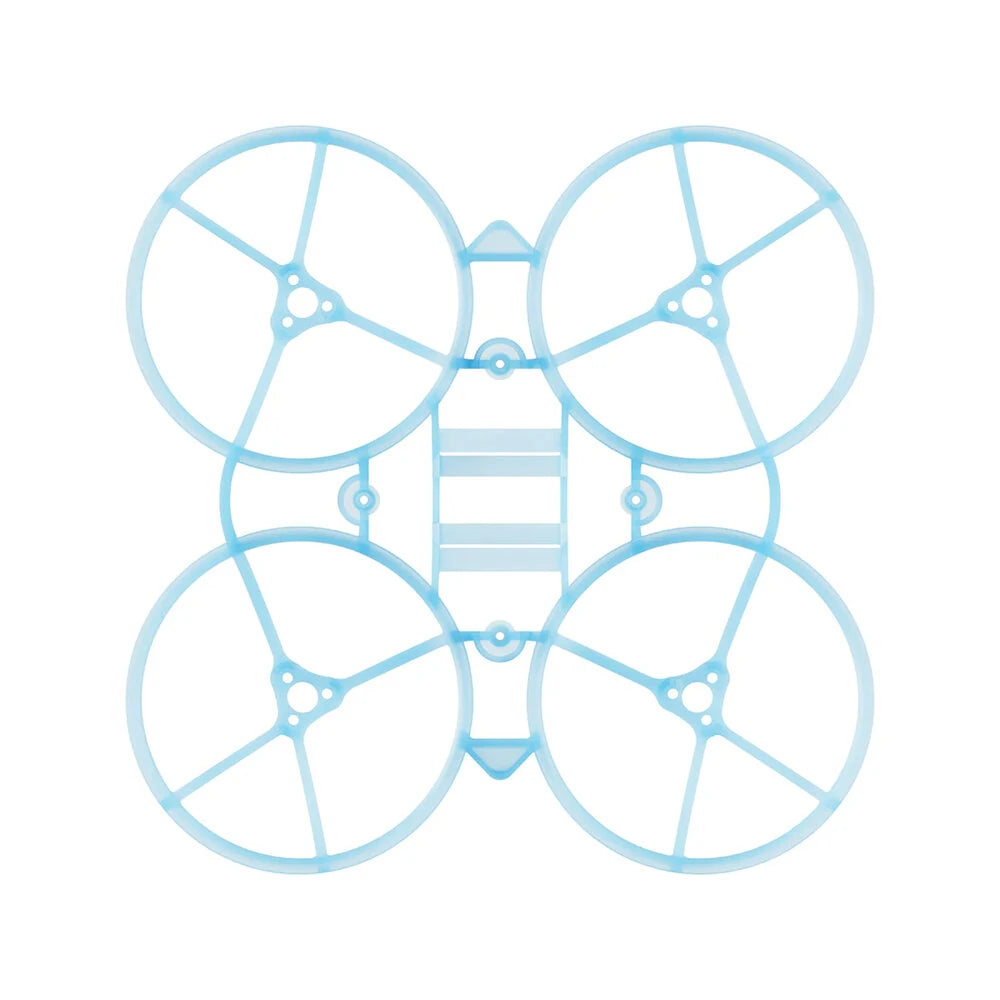

Color: Black, Transparent Blue, Transparent Orange, Transparent Purple, Transparent White

Name	Air75 II Brushless Whoop Frame	Air75 Brushless Whoop Frame
Weight	4.00g	4.45g
Wheelbase	75mm	75mm
Duct Diameter	42.0mm	42.5mm
Duct Height	4.5mm	4.7mm
Arm Braces	4	6
Motor Fixed Slot	Supported	Supported
Screw Protection Structure	Supported	Not Supported
Propellers	40mm propellers	40mm propellers



Recommended Parts(Not included):

Battery: 1S 450mAh 75C Battery, 1S 550mAh 75C Battery, BT2.0 550mAh 1S Battery, BT2.0 450mAh 1S Battery

FC: Air Brushless Flight Controller, Matrix 1S Brushless Flight Controller (3IN1/4IN1), Matrix 1S Brushless Flight Controller (5IN1)

Motors: 0702 II Brushless Motors, 0802SE Brushless Motors, 1102 Brushless Motors

Canopy: Air Canopy, Canopy for Micro Camera 2022, Micro Canopy Lite, Canopy for O4 Air Unit

Propellers: GF 40mm 2-Blade Propellers, GF 1611 3-Blade Propellers

Screws: Meteor Series Motor Fixing Screws Pack (40PCS)

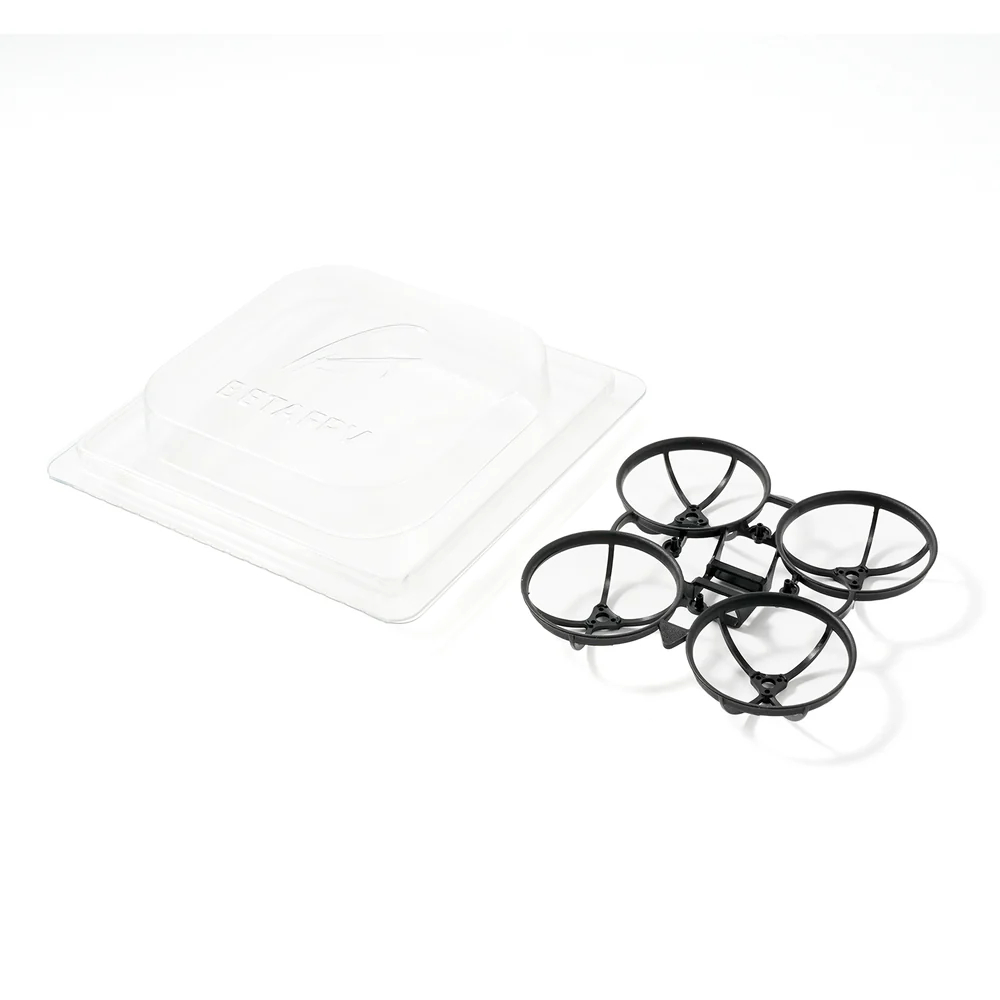

Package included:

1 x Air75 II Brushless Whoop Frame
