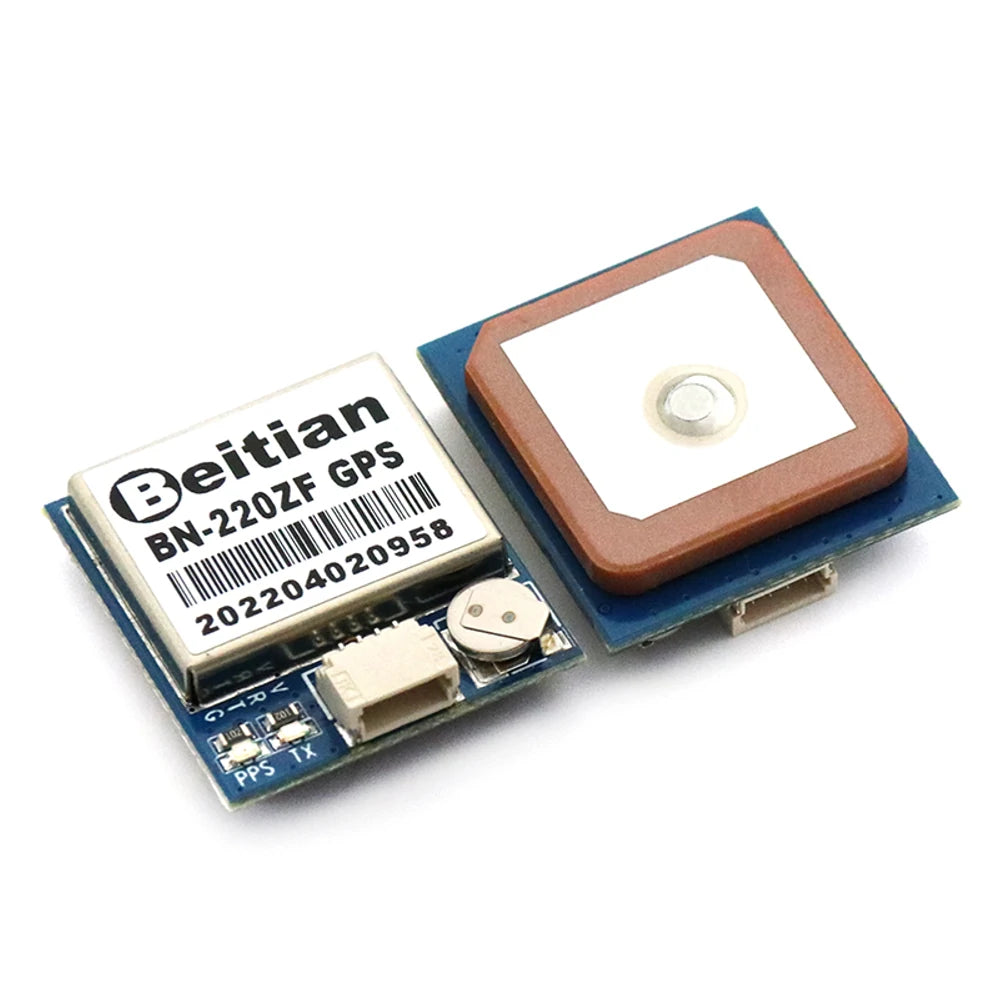

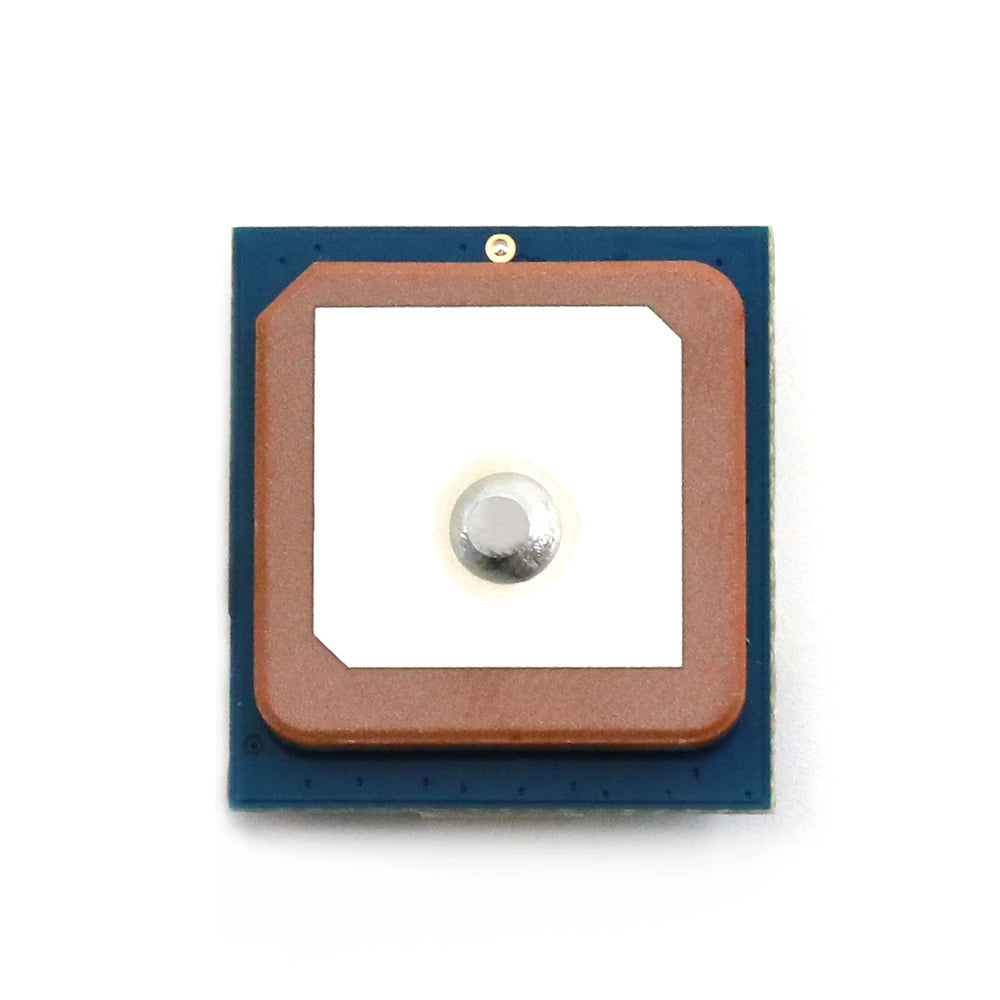

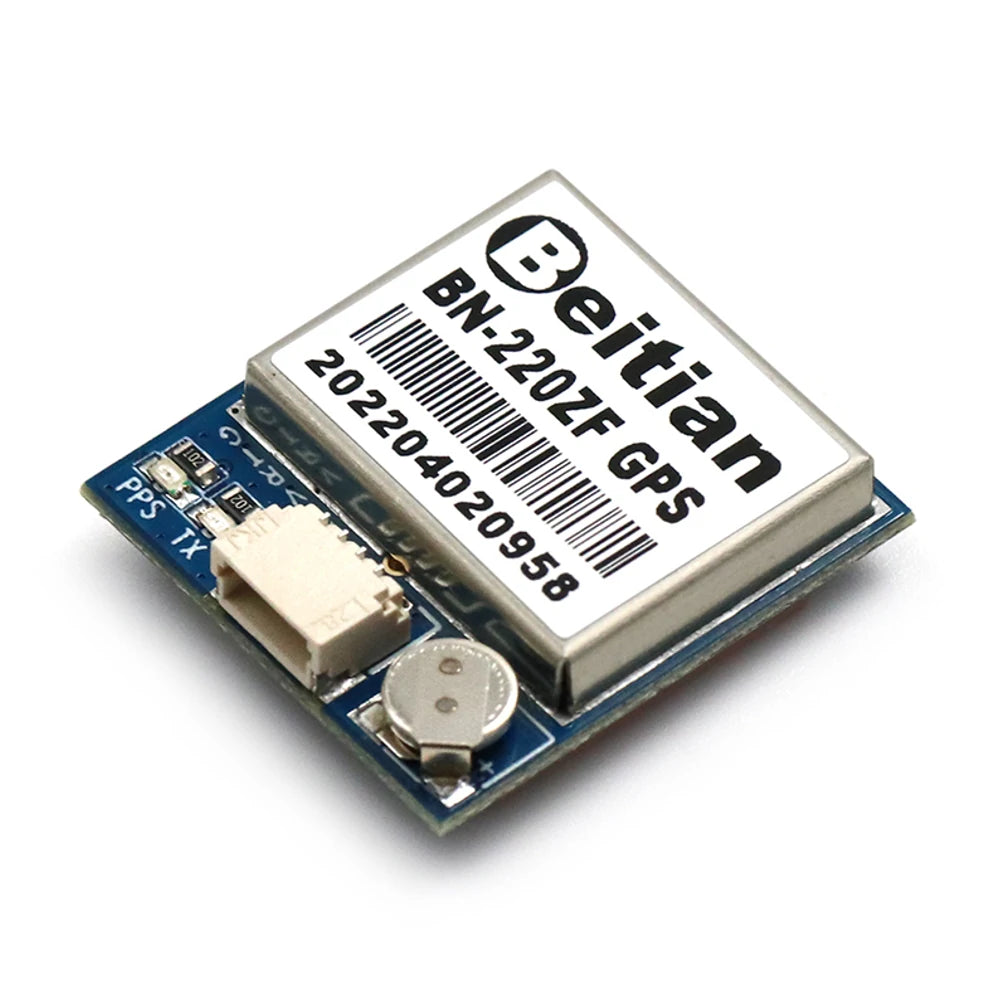

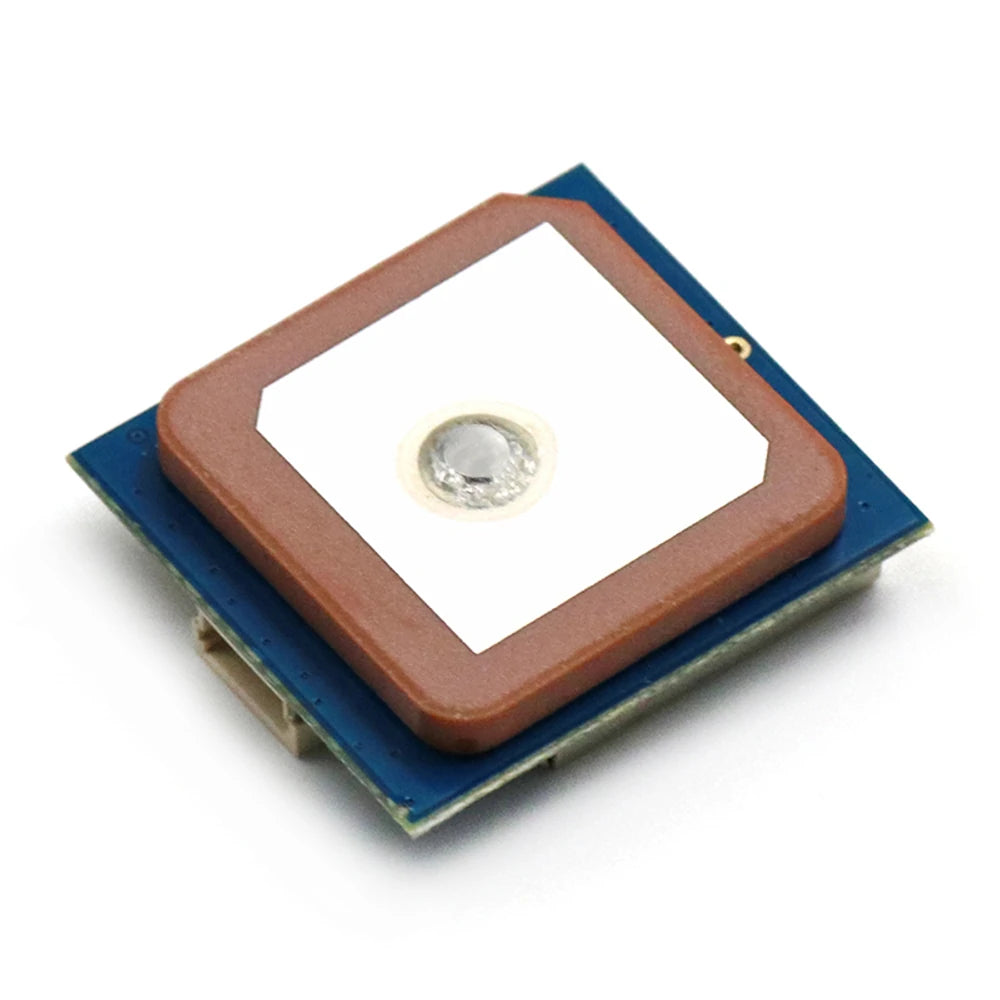

Beitian BN-220ZF GPS/GLONASS Module High Accuracy 72 Channels NMEA-0183 Protocol Compact Size Ideal for fpv airplane Drones and Robotics Navigation Systems
Beitian BN-220ZF GPS/GLONASS Module High Accuracy 72 Channels NMEA-0183 Protocol Compact Size Ideal for fpv airplane Drones and Robotics Navigation Systems
Beitian BN-220ZF GPS/GLONASS Module High Accuracy 72 Channels NMEA-0183 Protocol Compact Size Ideal for fpv airplane Drones and Robotics Navigation Systems
Beitian BN-220ZF GPS/GLONASS Module High Accuracy 72 Channels NMEA-0183 Protocol Compact Size Ideal for fpv airplane Drones and Robotics Navigation Systems
Roll over image to zoom in Click on image to zoom
Beitian BN-220ZF GPS/GLONASS Module High Accuracy 72 Channels NMEA-0183 Protocol Compact Size Ideal for fpv airplane Drones and Robotics Navigation Systems
Beitian BN-220ZF GPS/GLONASS Module High Accuracy 72 Channels NMEA-0183 Protocol Compact Size Ideal for fpv airplane Drones and Robotics Navigation Systems
Beitian BN-220ZF GPS/GLONASS Module High Accuracy 72 Channels NMEA-0183 Protocol Compact Size Ideal for fpv airplane Drones and Robotics Navigation Systems
Beitian BN-220ZF GPS/GLONASS Module High Accuracy 72 Channels NMEA-0183 Protocol Compact Size Ideal for fpv airplane Drones and Robotics Navigation Systems

Beitian BN-220ZF GPS/GLONASS Module High Accuracy 72 Channels NMEA-0183 Protocol Compact Size Ideal for fpv airplane Drones and Robotics Navigation Systems

Isaiah 55:8-9 John 3:16 Philippians 4:19
Pcs: 4 Pcs
Price:
R 836.50 R 1,264.75
Stock:
In Stock. Shipping via Courier.



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description



Specifications:

Brand Name: Beitian

Item Name: BN-220ZF

Chip: AT6558F

Frequency: GPS L1 GLONASS L1

Working Mode: GPS+GLONASS

Channels: 72 Searching Channel

Tracking Sensitivity: -162dBm

Reacquisition Sensitivity: -160dBm

Cold Start Sensitivity: -148dBm
Hot Start Sensitivity: -156dBm
Position Horizontal Accuracy: 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
Speed Accuracy: 0.1m/s 95% (SA off)

Time Accuracy: 30ns

Cold Start Acquisition Time: 32s
Hot Start Acquisition Time: 1s
Reacquisition Acquisition Time: 1s

Data Output Support Rate: 4800bps to 921600bps, Default 9600bps
Data Output Level: TTL Level
Data Output Protocol: NMEA-0183
Data Output NMEA Message: RMC, VTG, GGA, GSA, GSV, GLL
Data Output Update Rate: 1Hz-10Hz, Default 1Hz
Data Output Flash: Support, the configuration can be changed, and the data will not be lost when the power is off
Operational Altitude Limits: <50000m
Operational Speed Limits: <515m/s
Operational Acceleration Limits: <4g
Power Consumption of VCC: DC Voltage 3.6V-5.5V, Typical: 5.0V
Power Consumption of Current: Capture 50mA/5.0V
Dimension: 22.0mm*20.0mm*6.0mm
Weight: 5.4g
Connector: 1.00mm 4pins connector
Operating Temp: -40 °C ~ +85°C
Storage Temp: -40°C ~ +105°C
TX LED: Blue. The data output, TX LED flashing.
PPS LED: Red. PPS LED not bright when GPS not fixed, flashing when fixed.


Pin Description:

PIN
 PIN Name
 I/O
 Description
 Characteristic
1 GND G Ground
 Ground
2 TX O UART communication interface, TTL level
 GPS data output pin
3 RX I UART communication interface, TTL level
 GPS data input pin
4 VCC I Main power supply, DC input
 DC 3.6V - 5.5V, Typical: 5.0V


Package Included:

1x Beitian BN-220ZF GPS Module
