Description
Features:
1. BaoFeng UV-S9 PlusTri-band radio is upgrade of UV-5R. High Power .

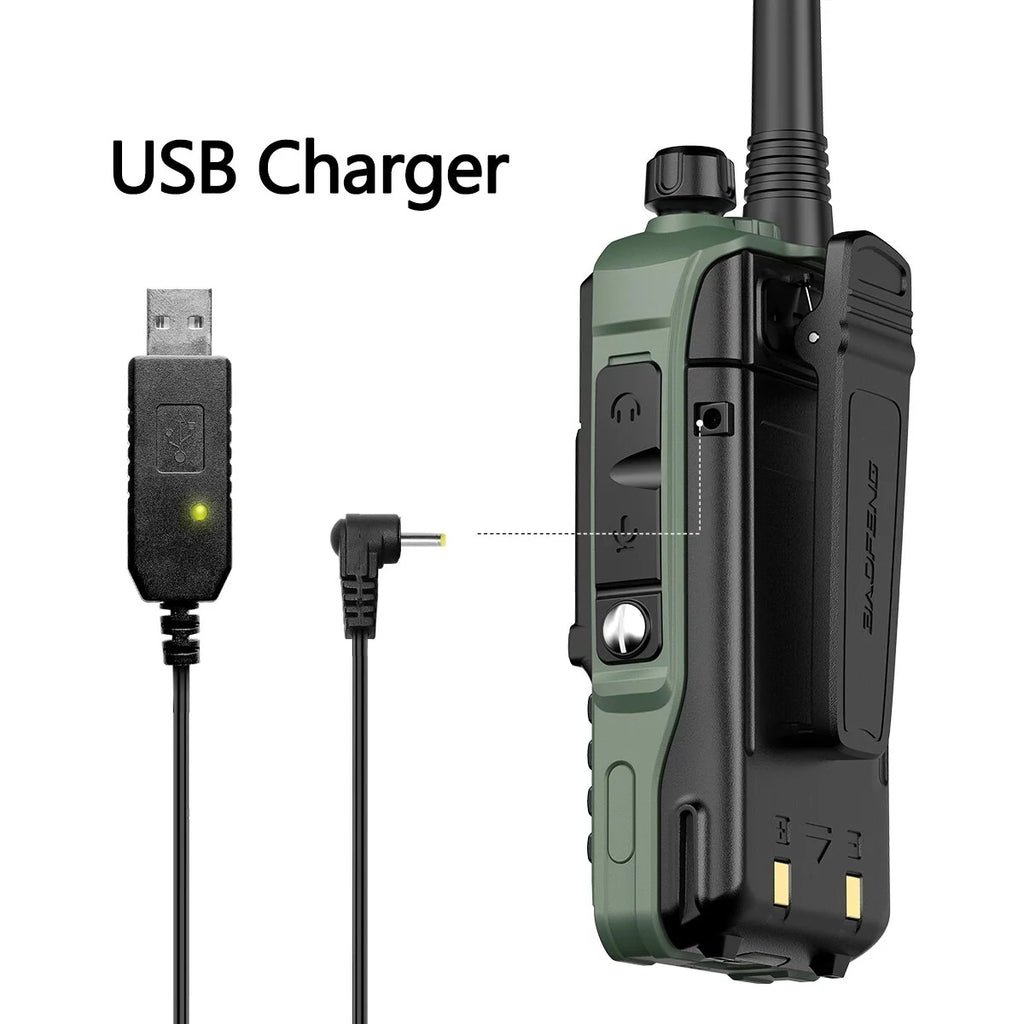

2. With optional methods to charge the battery.Multiple charging mode.
3. Frequency Range:
VHF: 136-174MHz (RX/TX),
UHF: 400-520MHz (RX/TX),220-260Mhz With 2 x Antenna (One is Specifically for 220-260Mhz）
65-108MHz (Only commercial FM radio reception).
Channels:128 groups of storage channels,Broadband (Wide) 25khz / Narrowband (Narrow) 12.5khz Selectable.
4. Larger Capacity Li-ion Battery Equipped with a 2800mAh Li-ion battery. UV-S9 Plus Tri-band is light weight and handy.Simply press PTT key to talk: even at night by switching on the built-in LED flashlight and built-in VOX Function hands-free communication.
5. 2022 new arrival colors (green and yellow), more accessories can be selected.
Specification:
General | ||
Frequency range |
136-174MHz(Rx/Tx) |
|
Memory channels |
Up to 128 channels |
|
Frequency stability |
2.5ppm |
|
Frequency step |
2.5/5/6.25/10/12.5/25KHz |
|
Antenna impedance |
50 OHM |
|
Operating temperature |
-20°C-60°C |
|
Supply voltage |
Rechargeable Lithium-Ion 7.4V |
|
Battery Capacity |
2800mAh |
|
Consumption in standby |
<=75mA |
|
Consumption in reception |
380mA |
|
Consumption in transmission |
<=1.4A |
|
Mode of operation |
Simplex or semi-duplex |
|
Dimensions |
110x58x32mm |
|
Transmitter | ||
RF power |
10W/1W |
|
Modulation type |
FM |
|
Emission class |
16K øF3E/11KøF3E(W/N) |
|
Maximum deviation |
<=±5KHz/<=±2.5KHz(W/N) |
|
Spurious emission |
<-60dB |
|
Receiver |
||
Receiver sensitivity |
0.2µV (at 12 dB SINAD) |
|
Inter modulation |
60dB |
|
Audio output |
1000mW |
|
Adjacent channel selectivity |
65/60dB |
|
Package Included:

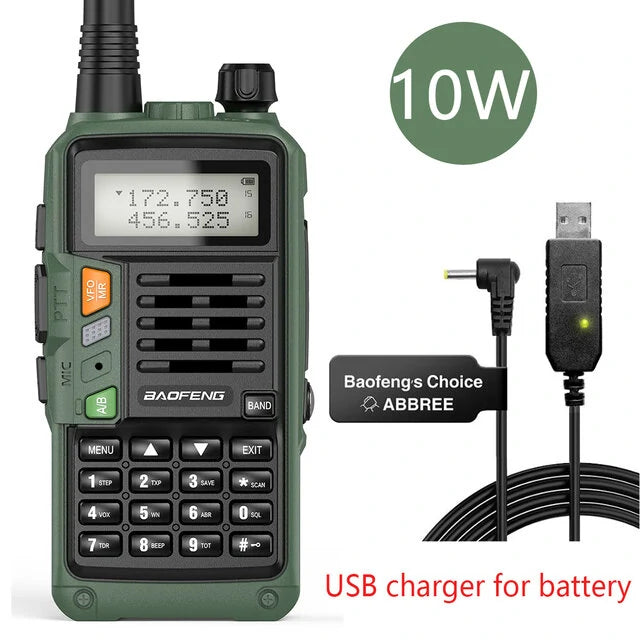

With USB Charger:
1 x BaoFeng UV-S9 (136-174Mhz /220-260Mhz /400- 520Mhz)
1 x 2800mAh Li-ion Battery Pack
2 x Antenna (One is Specifically for 220-260Mhz）
1 x Headset
1 x Belt Clip
1 x Hand Strap
1 x Adapter(We will send you the suitable adapter according to your location)
1 x Desktop Charger ( 100V ~ 240V )
1 x Product Manual(>>>Manual: Click here to open<<<)
1 x USB Cable

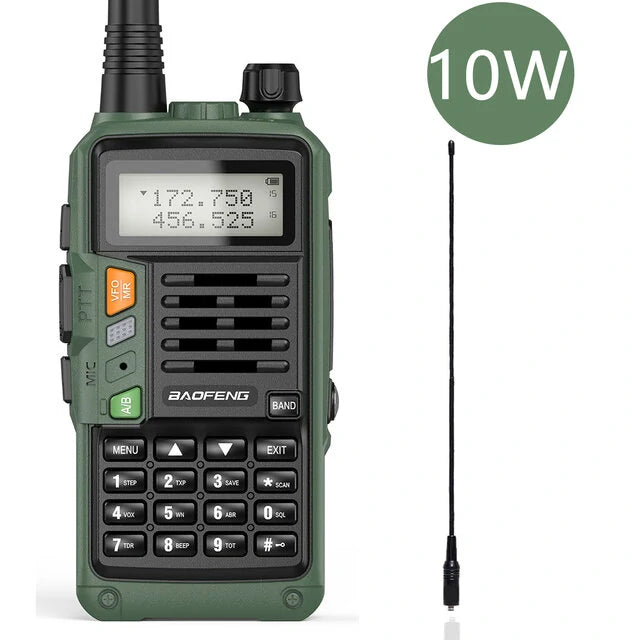

With 10W-771 Antena:
1 x BaoFeng UV-S9 (136-174Mhz /220-260Mhz /400- 520Mhz)
1 x 2800mAh Li-ion Battery Pack
2 x Antenna (One is Specifically for 220-260Mhz）
1 x 10W-771 Antena
1 x Headset
1 x Belt Clip
1 x Hand Strap
1 x Adapter(We will send you the suitable adapter according to your location)
1 x Desktop Charger ( 100V ~ 240V )
1 x Product Manual(>>>Manual: Click here to open<<<)
With 10W-mic:
1 x BaoFeng UV-S9 (136-174Mhz /220-260Mhz /400- 520Mhz)
1 x 2800mAh Li-ion Battery Pack
2 x Antenna (One is Specifically for 220-260Mhz）
1 x 10W-mic
1 x Headset
1 x Belt Clip
1 x Hand Strap
1 x Adapter(We will send you the suitable adapter according to your location)
1 x Desktop Charger ( 100V ~ 240V )
1 x Product Manual(>>>Manual: Click here to open<<<)
