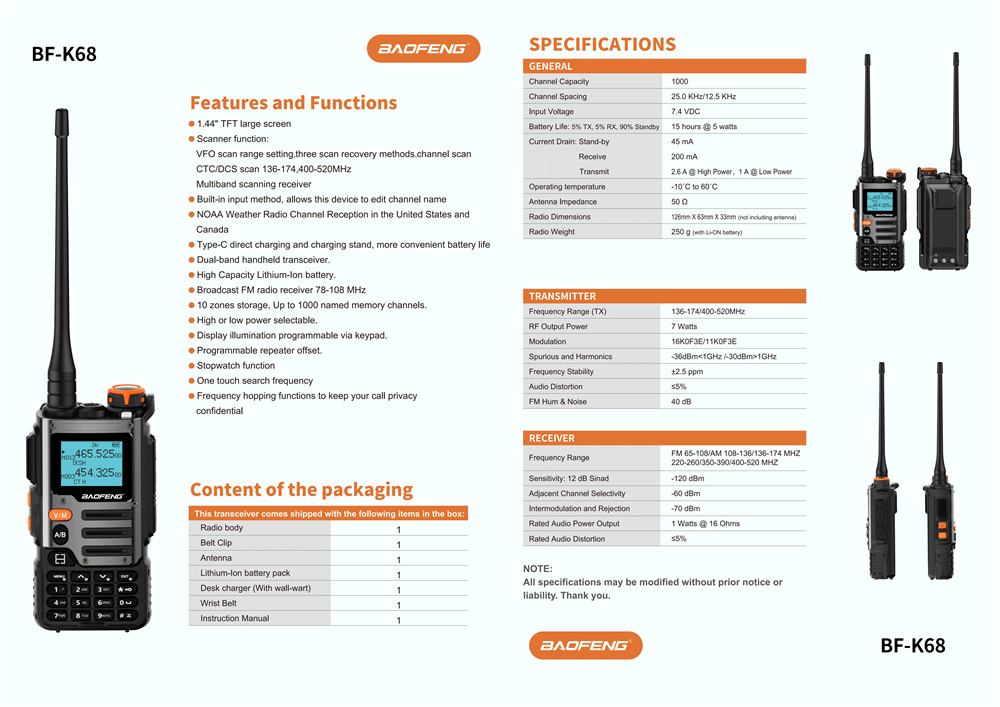

Specifications:

Channel Capacity: 1000

Channel Spacing: 25.0 KHz/12.5 KHz

Input Voltage: 7.4 VDC

Battery Life: 5% TX, 5% RX, 90% Standby — 15 hours @ 5 watts

Current Drain: Stand-by: 45 mA

Receive: 200 mA

Transmit: 2.6 A @ High Power, 1 A @ Low Power

Operating Temperature: -10°C to 60°C

Antenna Impedance: 50 Ω

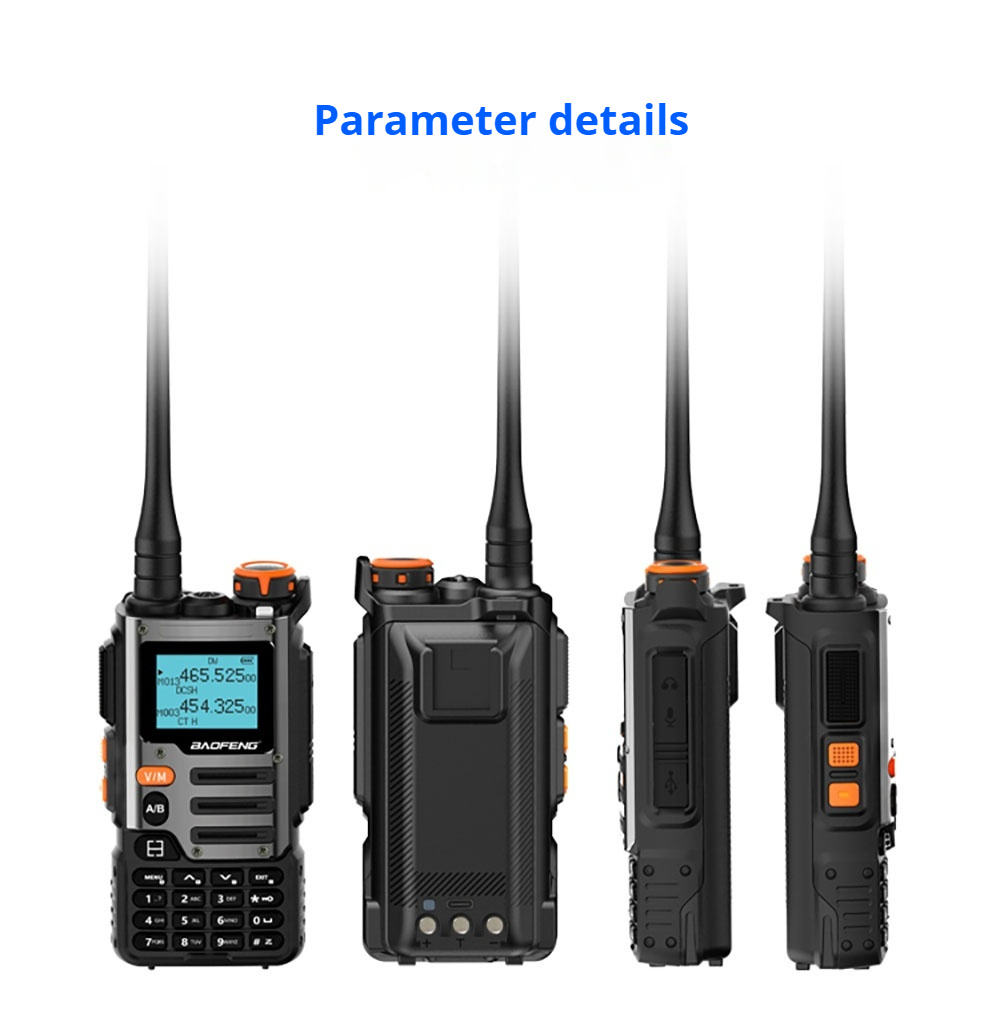

Radio Dimensions: 128mm x 63mm x 33mm (not including antenna)

Radio Weight: 250 g (with LiON battery)

Transmitter:

Frequency Range (TX): 136-174 / 400-520 MHz

RF Output Power: 7 Watts

Modulation: 16K0F3E/11K0F3E

Spurious and Harmonics: -36dBm<1GHz / -30dBm>1GHz

Frequency Stability: ±2.5 ppm

Audio Distortion: ≤5%

FM Hum & Noise: 40 dB

Receiver:

Frequency Range: FM 65-108/AM 108-136/136-174 MHz/220-260/350-390/400-520 MHz

Sensitivity: 12 dB Sinad: -120 dBm

Adjacent Channel Selectivity: -60 dBm

Intermodulation and Rejection: -70 dBm

Rated Audio Power Output: 1 Watts @ 16 Ohms

Rated Audio Distortion: ≤5%



Features:

1.Large 1.44' TFT Display

The Baofeng BF-K68 features a 1.44-inch TFT large screen display, which provides clear and vivid vision feedback. Whether you are in bright sunlight or dim light conditions, you’ll easily read your settings without straining your eyes.

2.Comprehensive Scanning Functions

Equipped with a robust scanner, this device offers VFO scan range setting, three scan recovery methods, channel scan, and CTC/DCS scan (136-174, 400-520MHz). This advanced scanning receiver ensures that you can swiftly find the channels you need, enhancing your communication efficiency.

3.NOAA Weather Radio Channel

Reception With the ability to receive NOAA Weather Radio channels, the BF-K68 keeps you informed of important weather updates. It's an essential feature for outdoor enthusiasts, enabling you to stay ahead of weather changes.

4.High Capacity Lithium-Ion Battery

The high capacity Lithium-Ion battery ensures that your radio will last throughout the day. Whether you are on a long hike or an extended operation, you can rely on the BF-K68 to stay powered up and ready for use.

5.Programmable and Intuitive Design

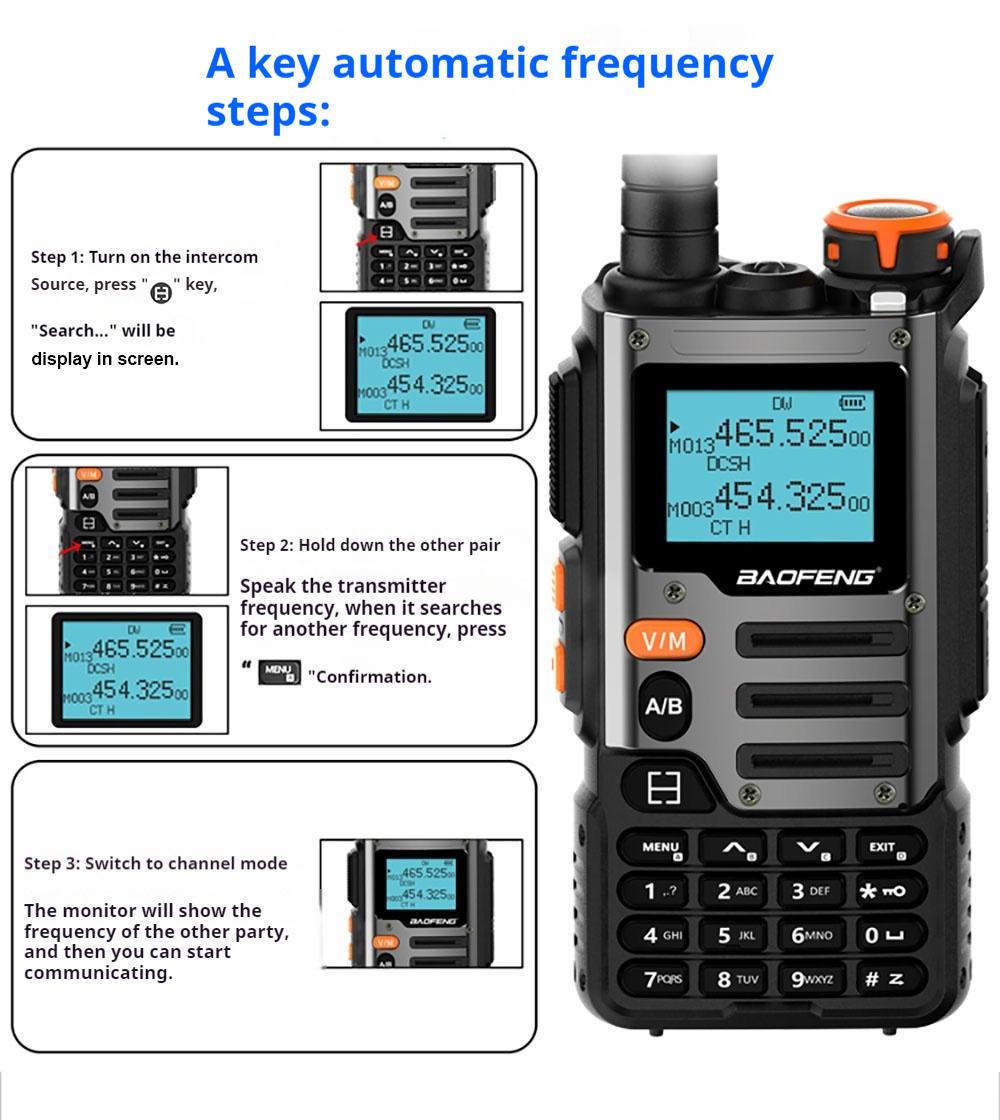

Featuring a programmable repeater deviation, display illumination via keypad, and one-touch search frequency, this radio offers ultimate user convenience. The built-in input method allows you to easily edit channel names directly on the device.



Package Included:

1 x Radio body

1 x Belt Clip

1 x Antenna

1 x Lithium-Ion battery pack

1 x Desk charger (with wall-wart)

1 x Wrist Belt

1 x Instruction Manual
