Description
Specification：
*Frequency Range: VHF 136-174MHz &UHF 400-480MHz
*Storage channel: up to 3000
*Operating Voltage:DC 7.4V
*Frequency Stability:±1.0ppm
*Operating Temperature:-30°c ~ 60°c
*Operating Mode:Same-frequency simple or different-frequency simplex
*Antenna Impedance:50Ω
*Battery Capacity:2200mAh
*Weight: about 300g(with battery & antenna)
*Volume: 133*62*36mm(antenna 14cm not including)
【Transmitting】
*Output Power:1W/5W
*Digital:Tier i&ii
*Adjacent channel:≤-65dB ≤-60dB
*Modulation Distortion:≤5%
*Digital Protocol: etsi-ts102 361-1,-2,-3
*Vocoder type: AMBE+2TM
【Receiving】
*Analog sensitivity:-122dBm (12dB SINAD)
*Digital sensitivity:-120dBm (BER ≤5%)
*Audio Power:1W
*Audio Distortion:<10%
*Inter-mediation:≥62dB / ≥ 58dB
*Adjacent channel selectivity:≥65dB /≥60dB
*Receiving current:≤380mA
*PM Noise :≥ 45dB*25KHz; ≥ 40dB*12.5KHz
Features：
1. Dual Band: It comes with a dual band of VHF 136-174MHz &UHF 400-480MHz enhancing its coverage area.
3. Digital Operating Mode: It operates on both analog and digital modes providing enhanced flexibility.
4. Powerful Battery: The device comes with a powerful battery of 2200mAh safeguarding uninterrupted service.
5. Output Power Variation: The device provides the option to switch output power between 1W and 5W for longer distance communication.

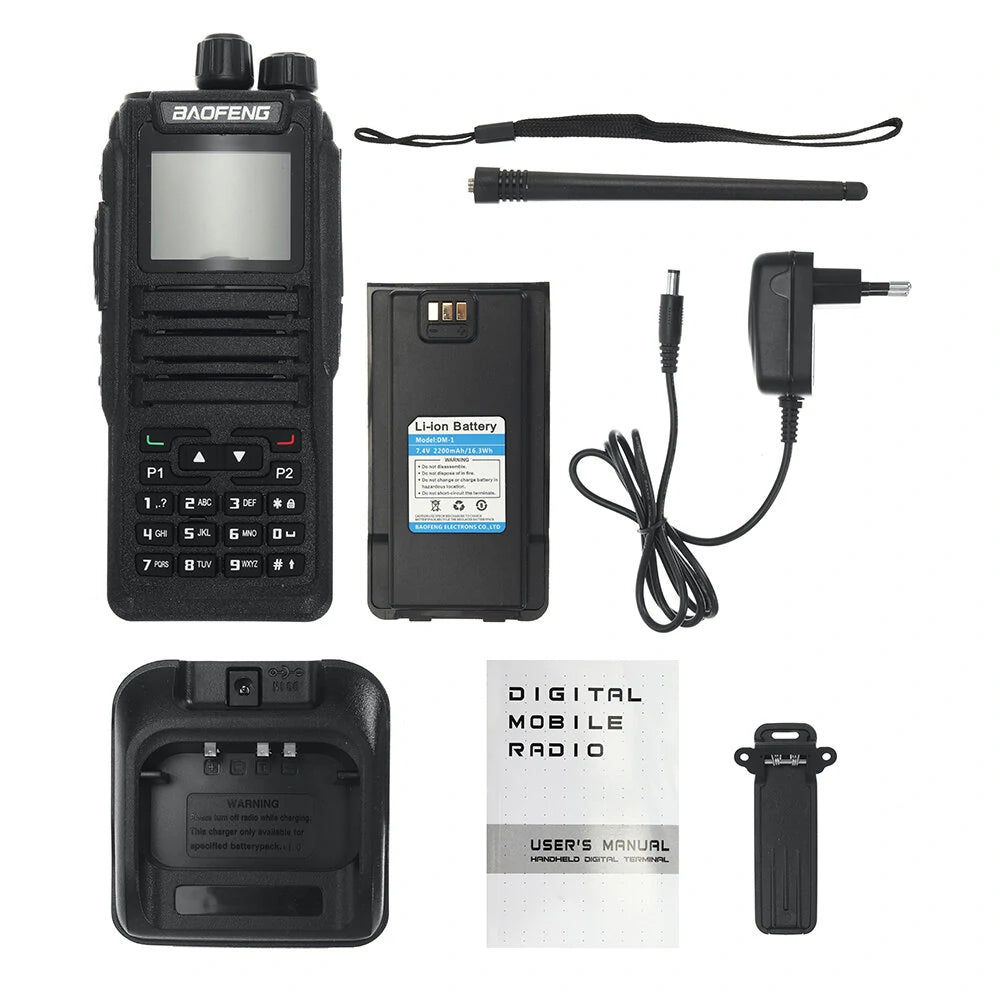

Package Include：

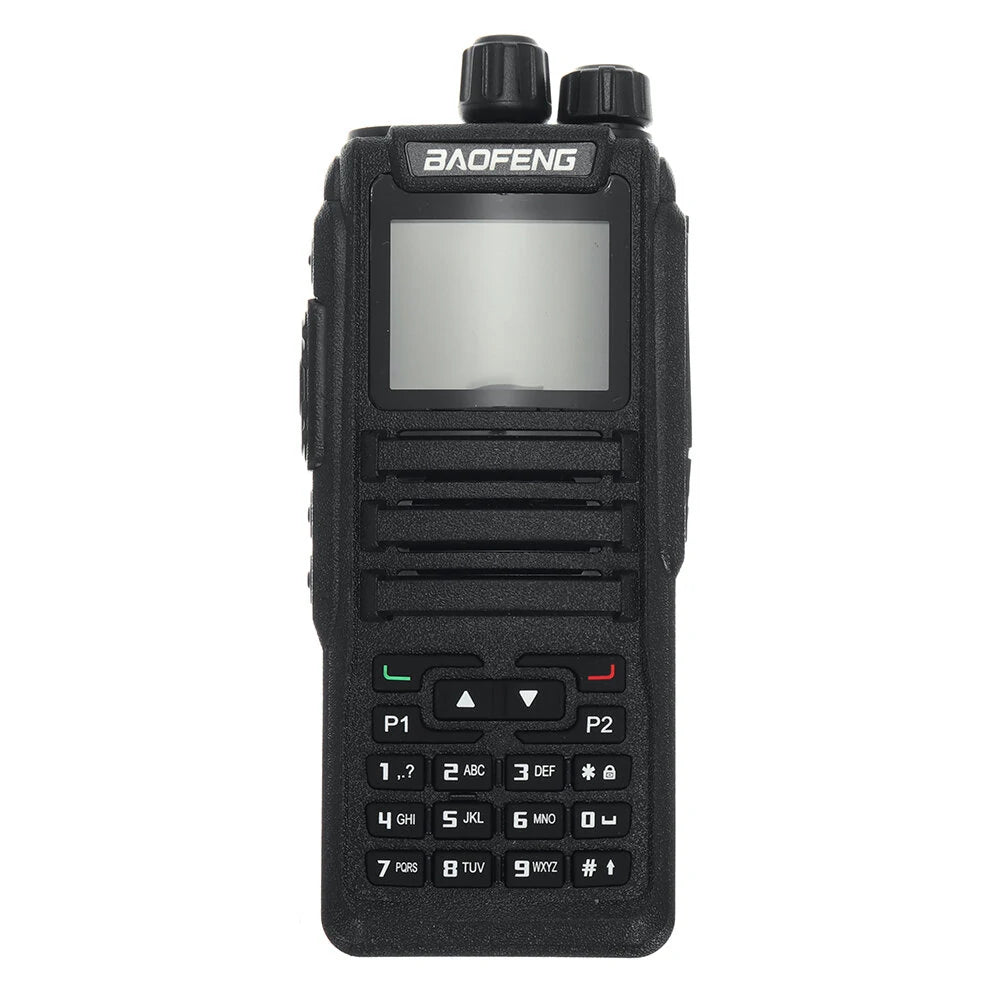

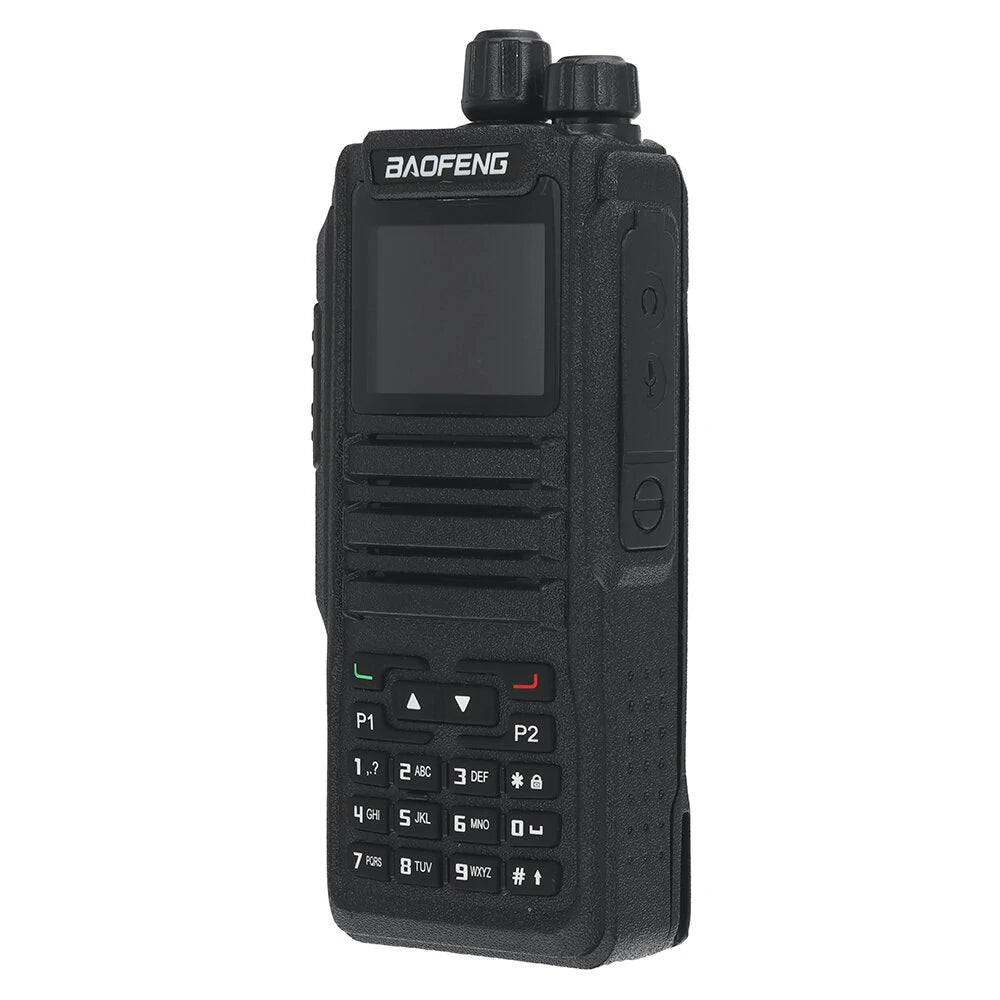

1× DM-1701 Radio

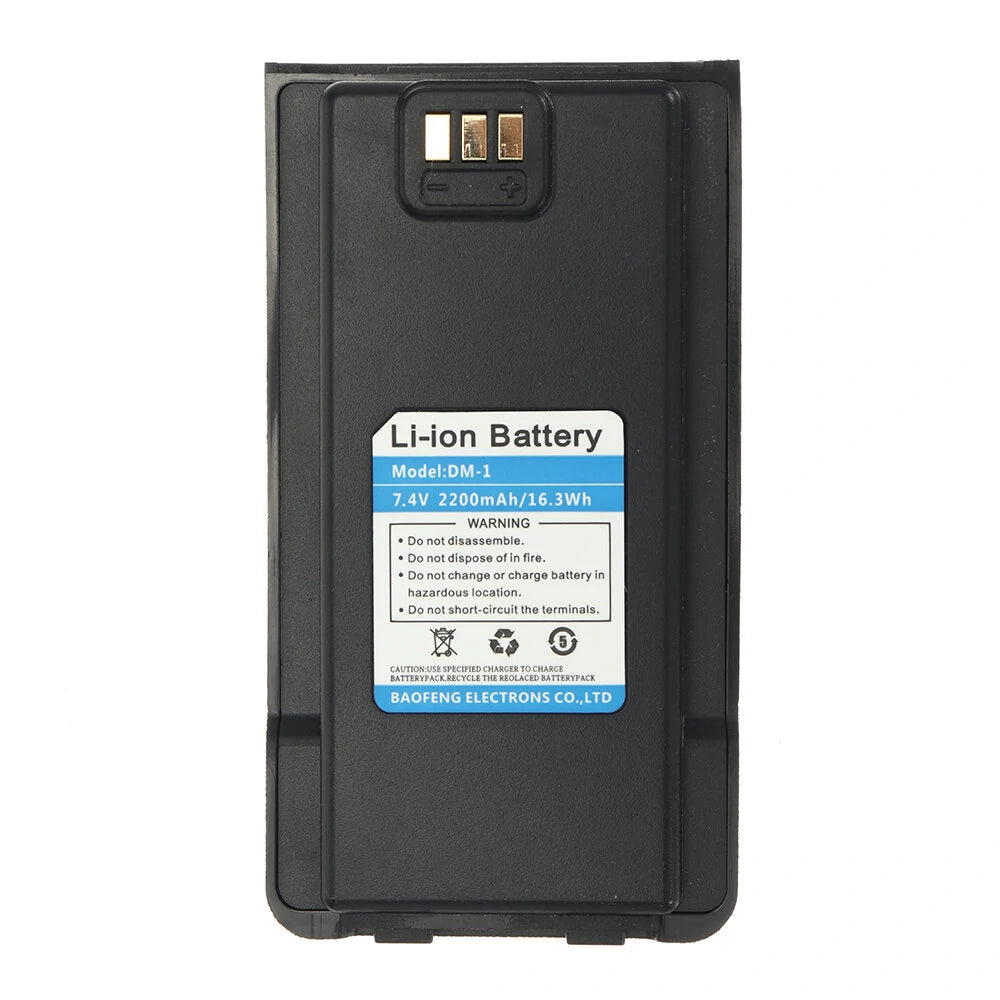

1× 2200mAh Li-ion Battery Pack

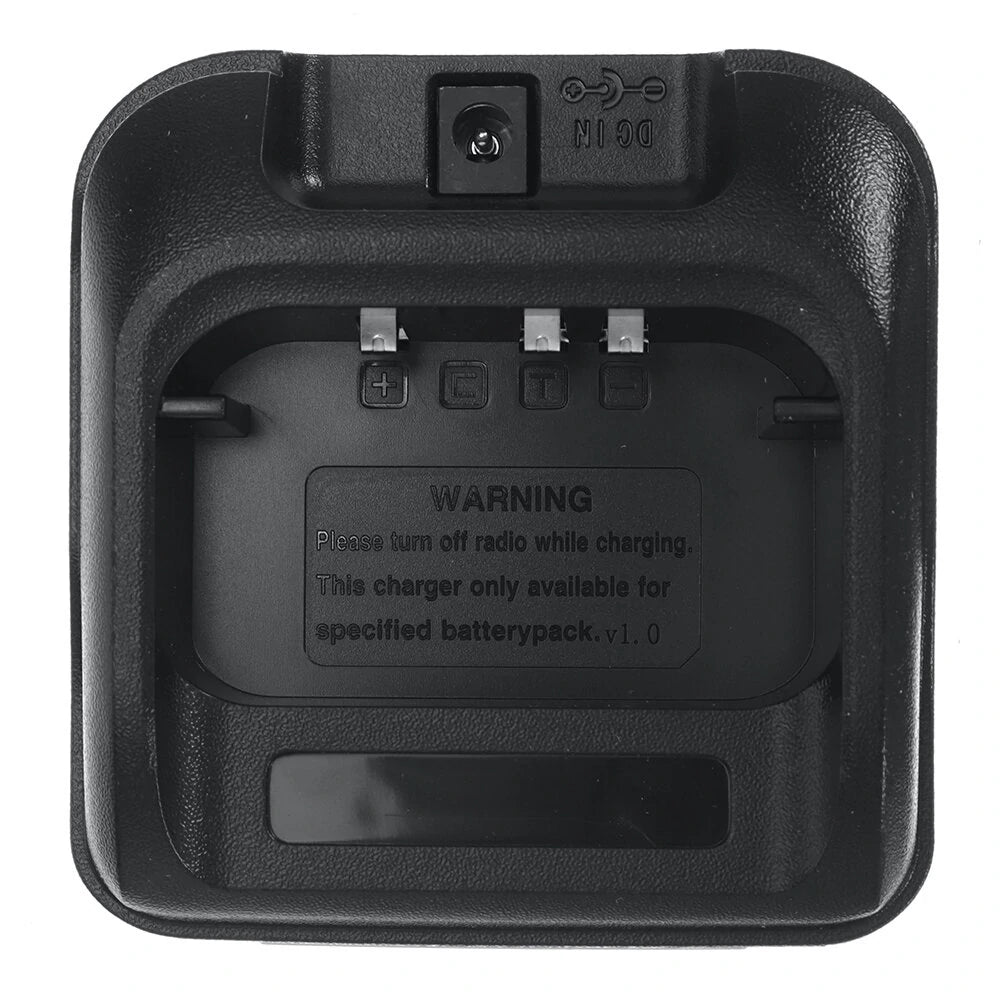

1× Desktop Charger
1x AC Adapter(EU)
1× Antenna
1× Hand Strap
1× Belt Clip
1× Ear Hock Earpiece
1× EN User Manual
