Description
Specifications:

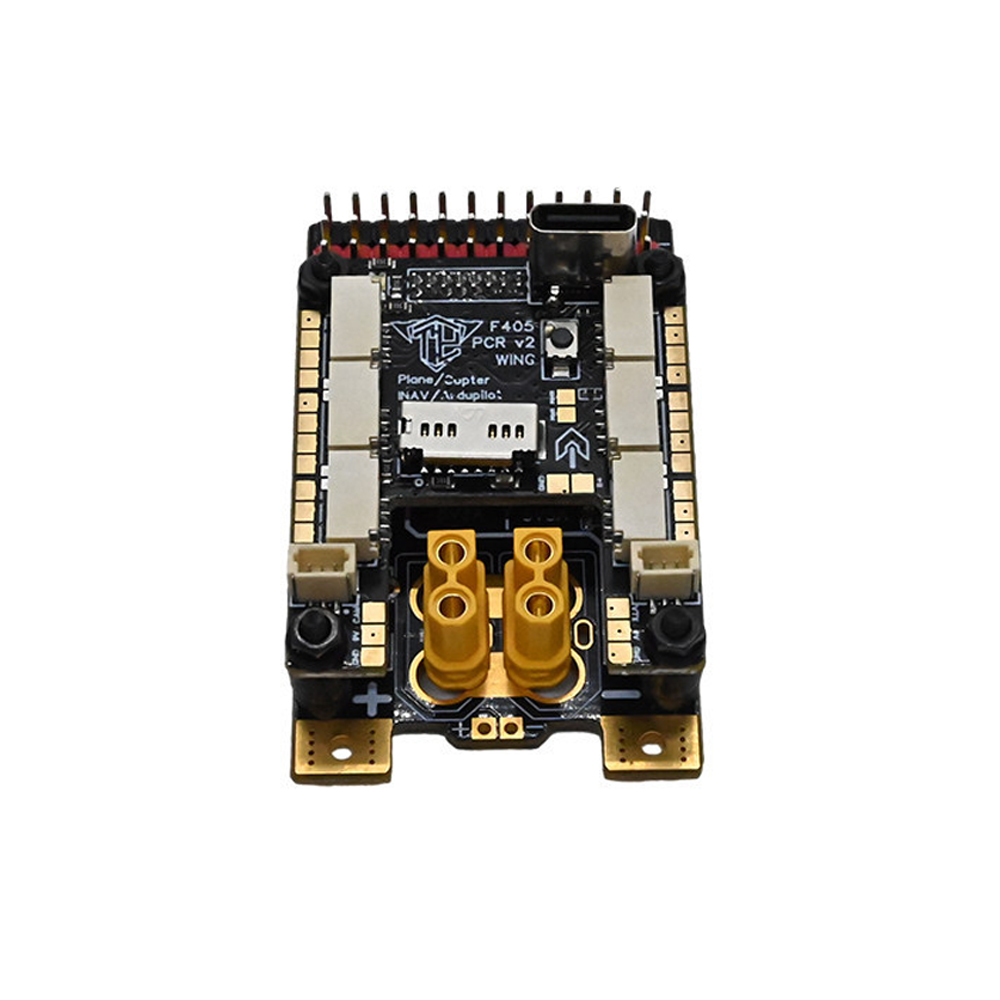

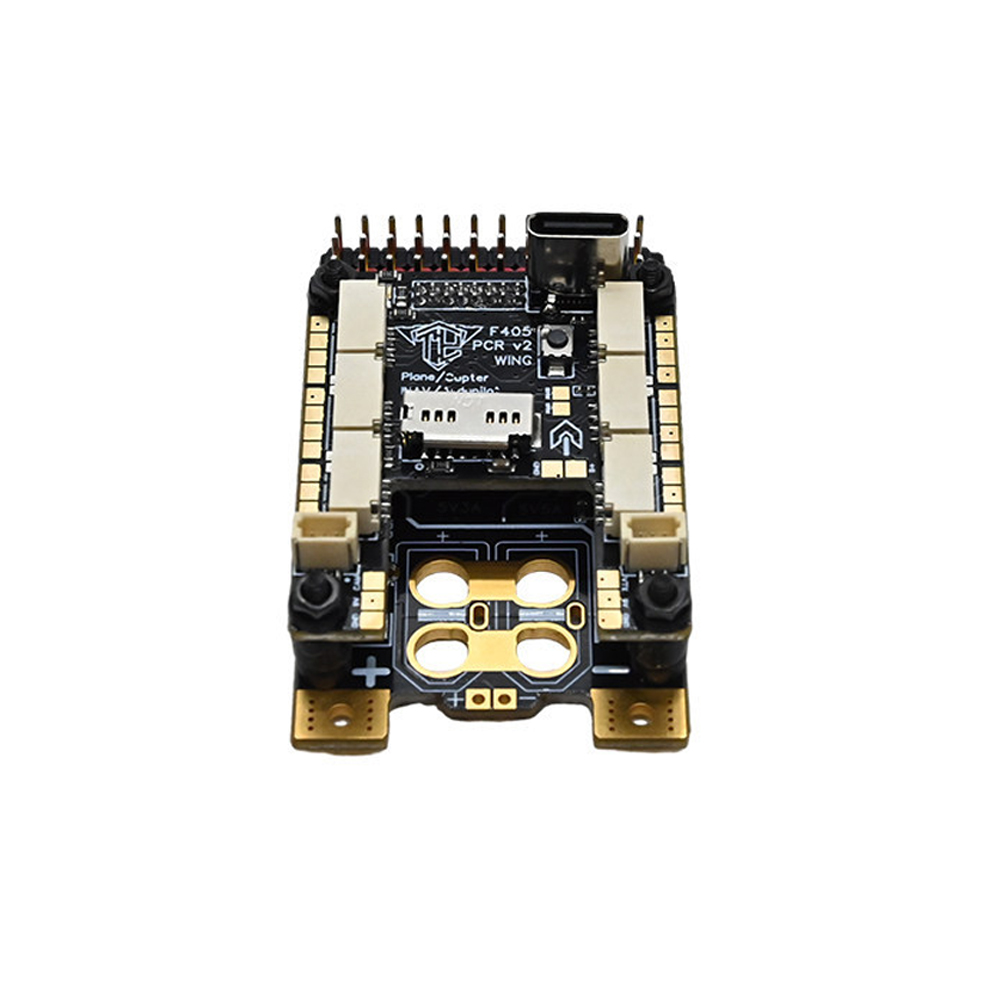

Model: BaldwingRC F405 Flight Controller
Plug Type: Standard Edition / Welded XT30 / Welded XT60 (Optional)
Firmware Support: Ardupilot / INAV / Betaflight (Optional)
Main Control: STM32F405
Barometer: High-precision DPS310, altitude accuracy within 10 centimeters
Gyroscope: ICM42688
Processor: STM32F405RGT6 / 168 MHz
OSD Chip: AT7456E
Sensors: DPS310 (barometric pressure)/ ICM42688 (gyroscope)/AT7456E (OSD)
Interfaces:Serial UART*6; PWM*11; I2C; BEC*3; SD Card Slot*1; External current detection
Rated Electrical Input: 2s-8s ((35V max))
Additional Support: Support all mainstream receivers and DJI HD, Snail HD, HDZERO, Analog OSD
Compatible with Additional Sensors: Airspeed sensors, GPS, compass, optical flow, etc.
Applicable Aircraft Types: Fixed-wing, multi-rotor, vertical takeoff fixed-wing, car, VTOL, etc.
Firmware:
BaldWingF405 FCR (INAV)
BaldWingF405 FCR (Ardupilot)
MATEKF405TE SD
Package Included:
1 x BaldwingRC F405 Flight Controller

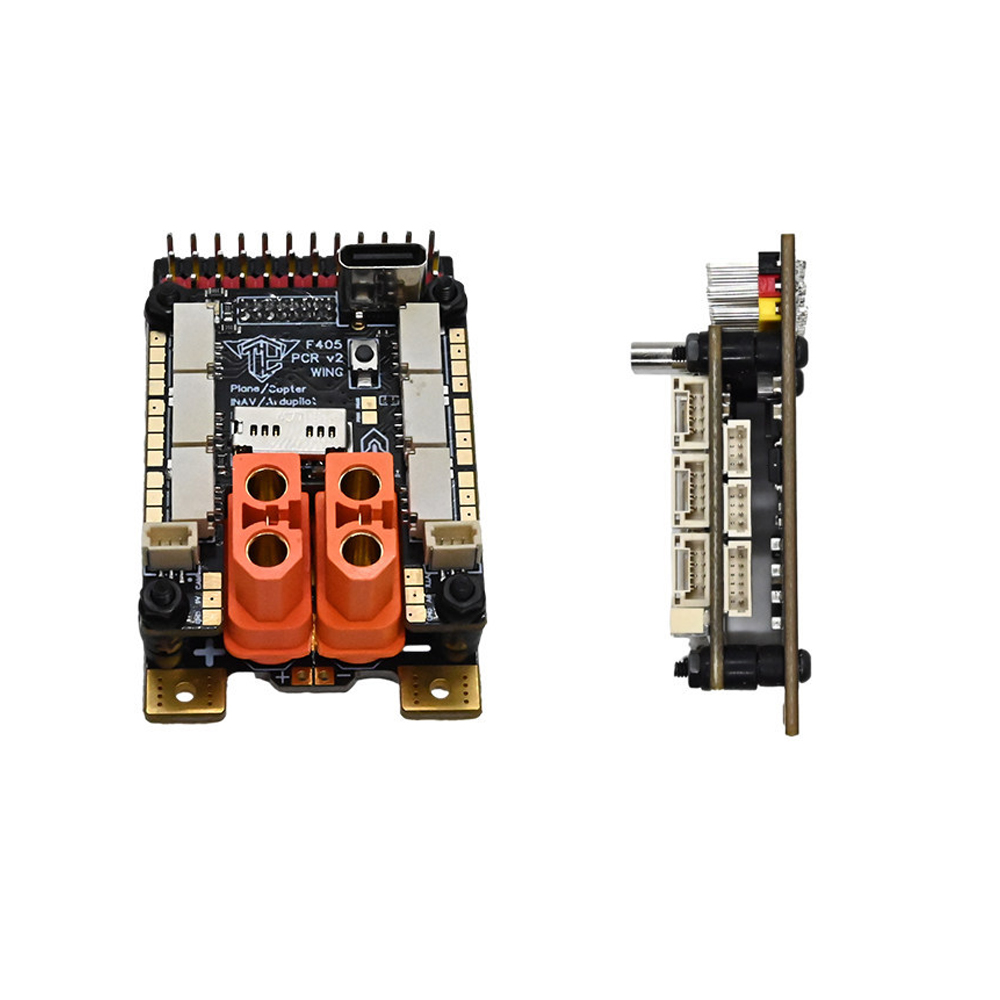

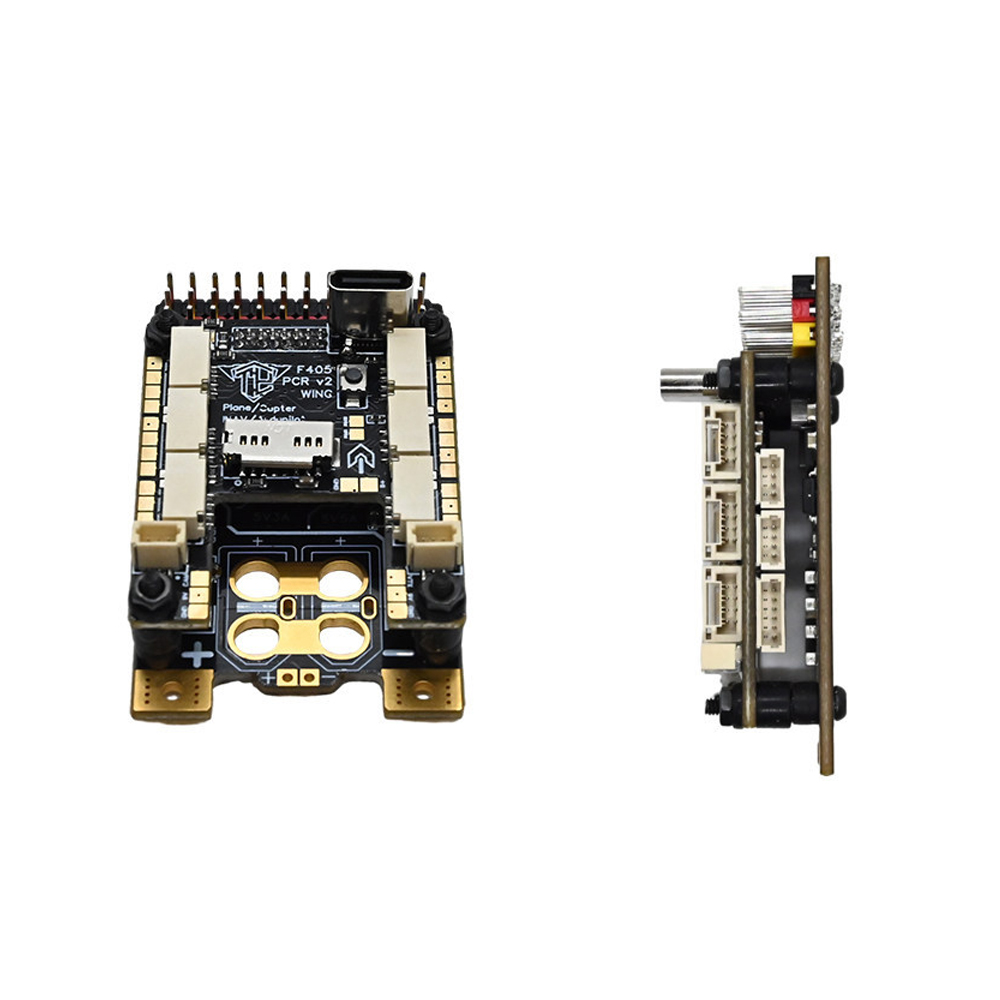

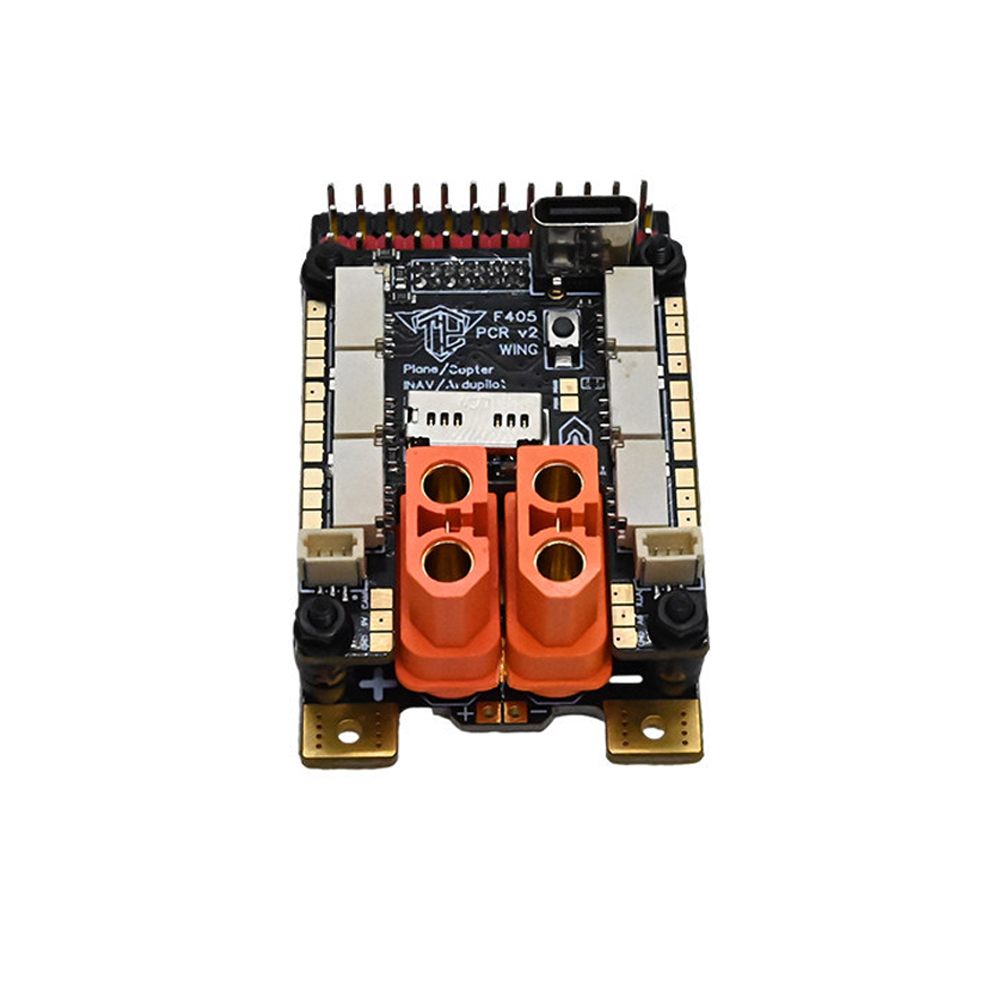

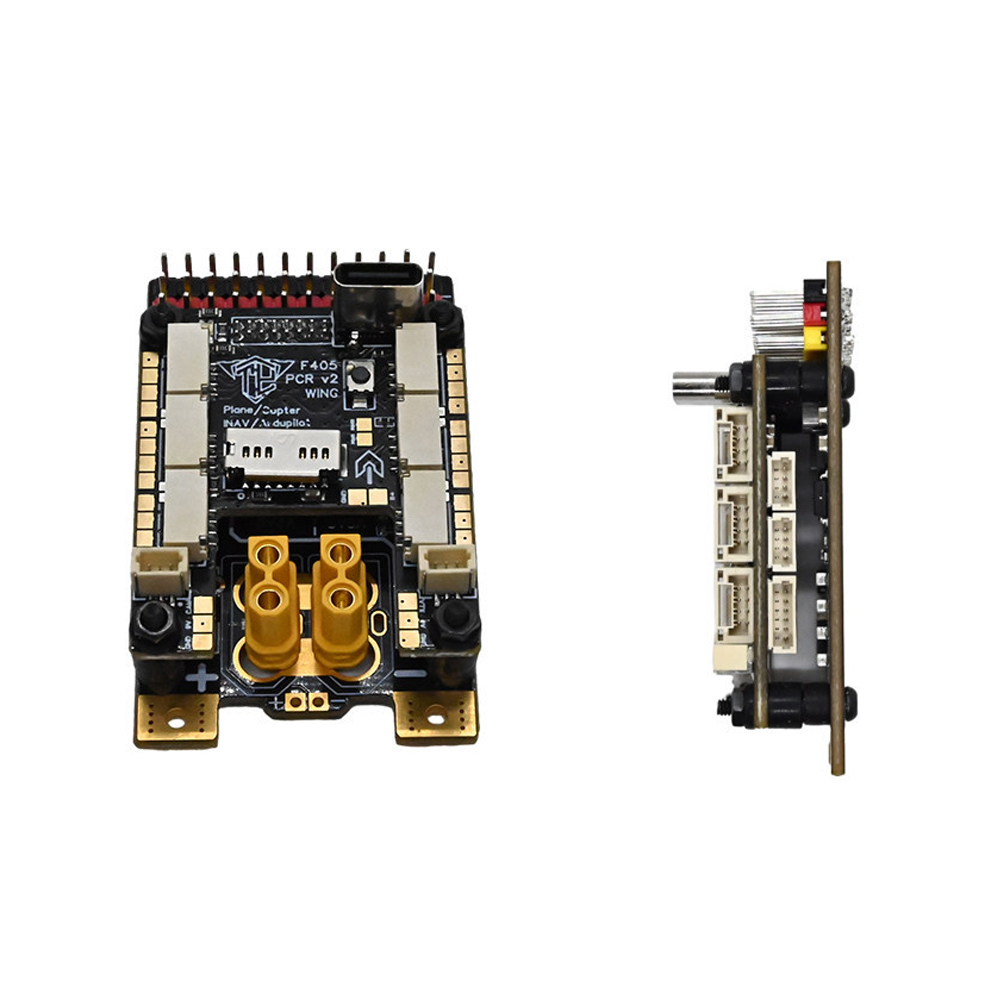

Note: The Standard Edition does not have a soldered connector; the XT30 version has a soldered XT30 connector; the XT60 version has a soldered XT60 connector.
