Description
Feature:
- Processor: STM32F103RC at 72Mhz
- Motor driver: DRV8313 with short circuit, overheat protection
- Onboard gyro and acceleration sensor MPU6050

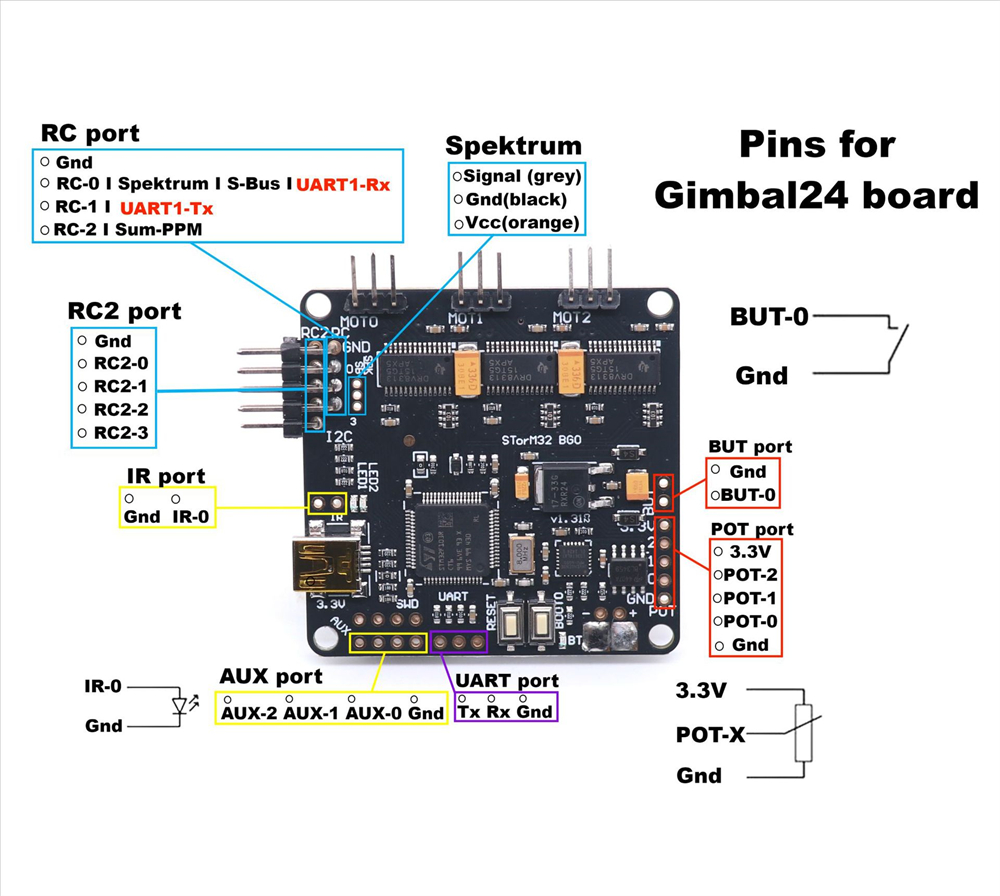

- IR LED Interface
- Futabaa S-BUS
- Spektrum satellitee port
- 7CH PWM/Sum-PPM input/output
- Each axis could connect analog joystick

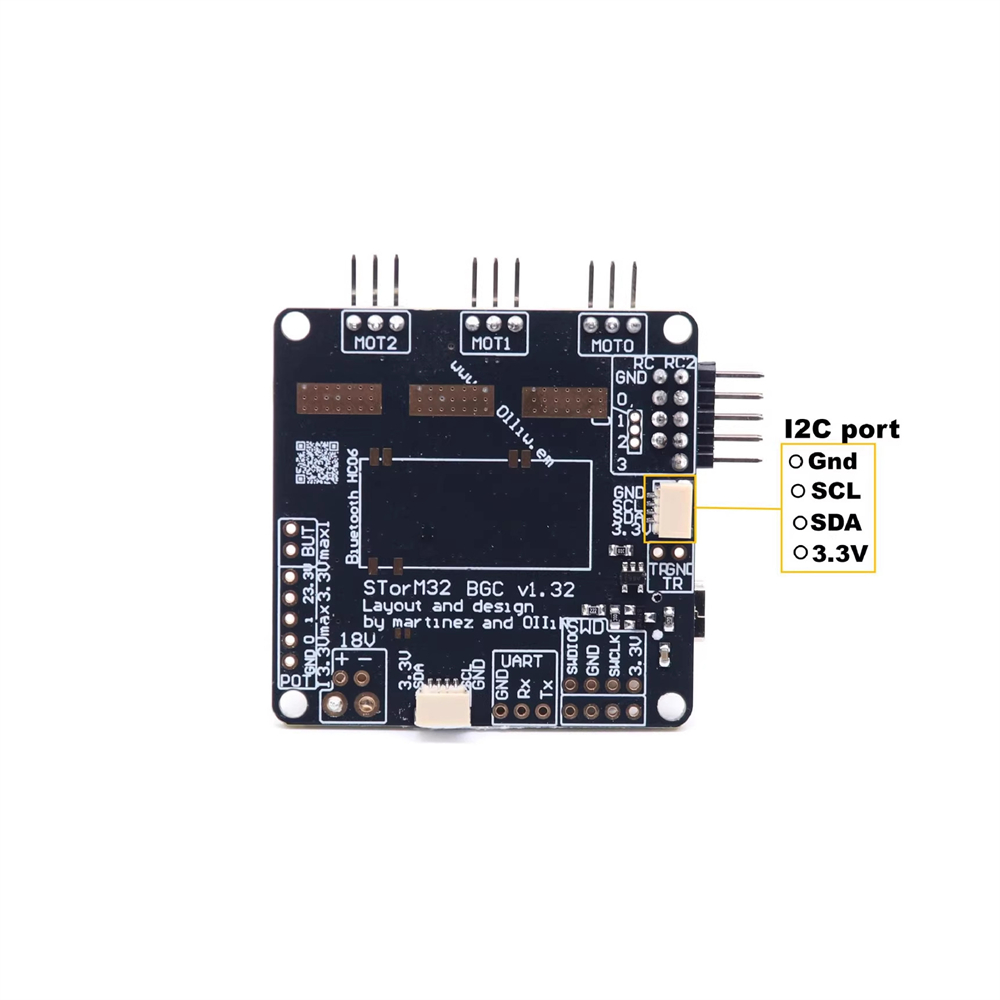

- With I2C port, could use external 6050 to replace onboard sensor
- 3* AUX port
Specifications:

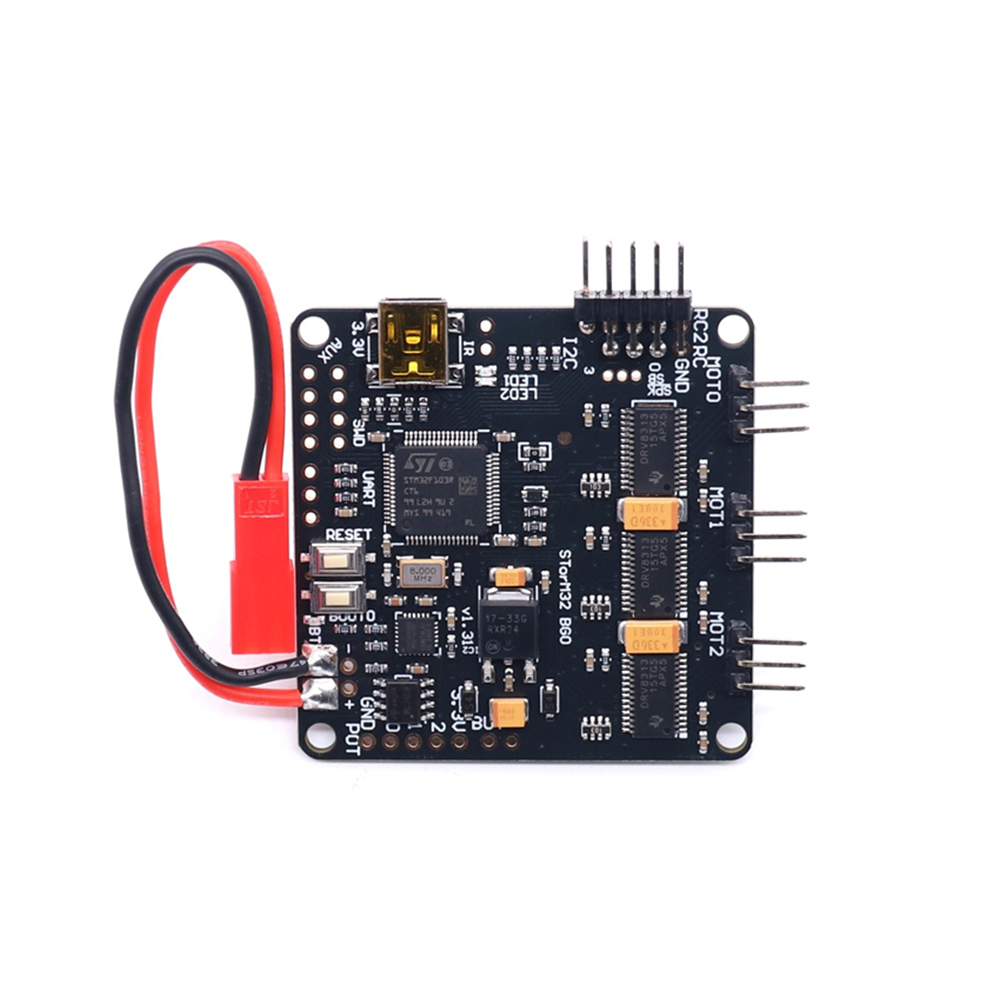

Item Name: Storm32 BGC 32-bit 3-axis Brushless Gimbal Controller
Hardware : Storm32BGC
Hardware Version: V1.32
Firmware: o323bgc-release-v096
Power supply: 9-18V(3-4S)
Drive current: Max.1.5A

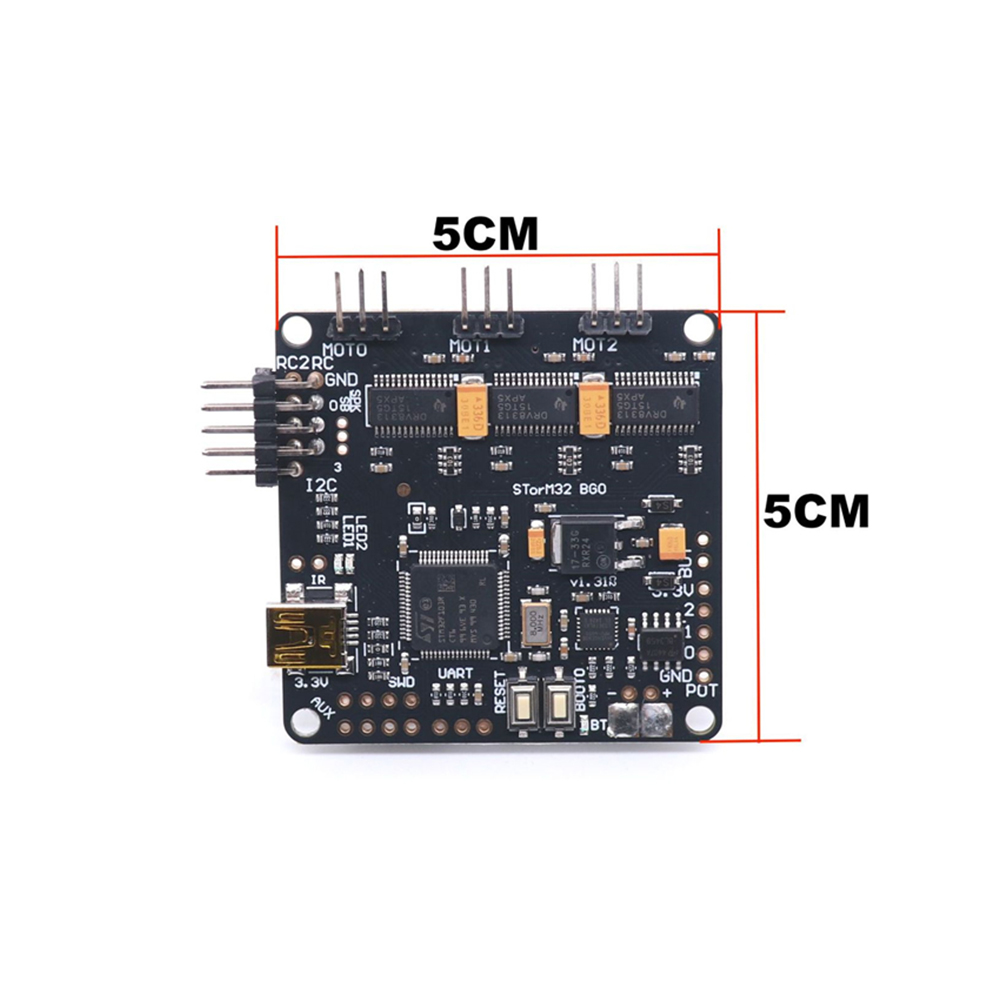

Dimension: 5-5cm, M3 screw hole, 45mm pitch
Weight: 10g
How to install:
1. Remove vibration ball, open at the mounting plate.
2. Lock mounting plate with screws at the bottom of the craft.
3. Install the shock absorber ball.
4. Install the camerawith a belt style compact camera.
Note:
Install the camera (be sure to install the camera properly, otherwise it will shake), power on the gimbal and stabilize it for above 30 seconds ,do not shake the gimbal, keep it hanging,do not touch the camera with hands, keep it suspended. After hearing the sound, it can be used normally.

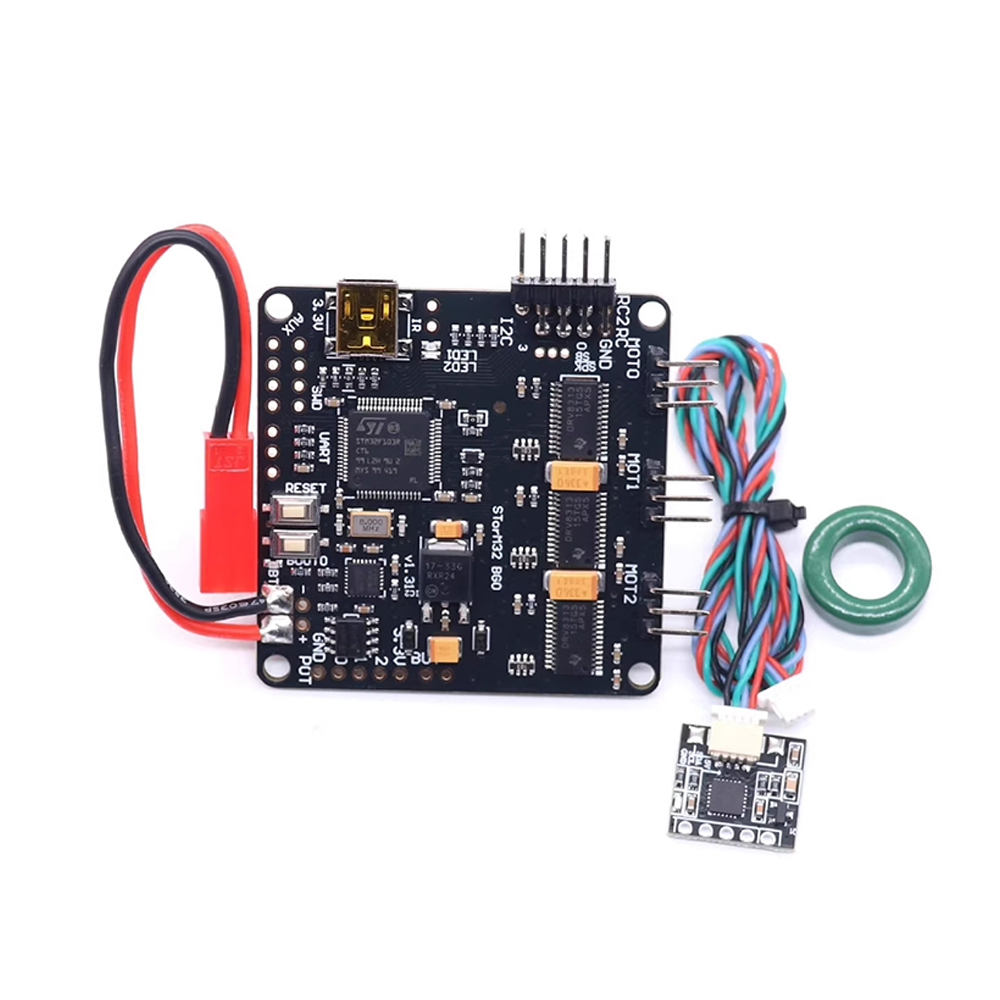

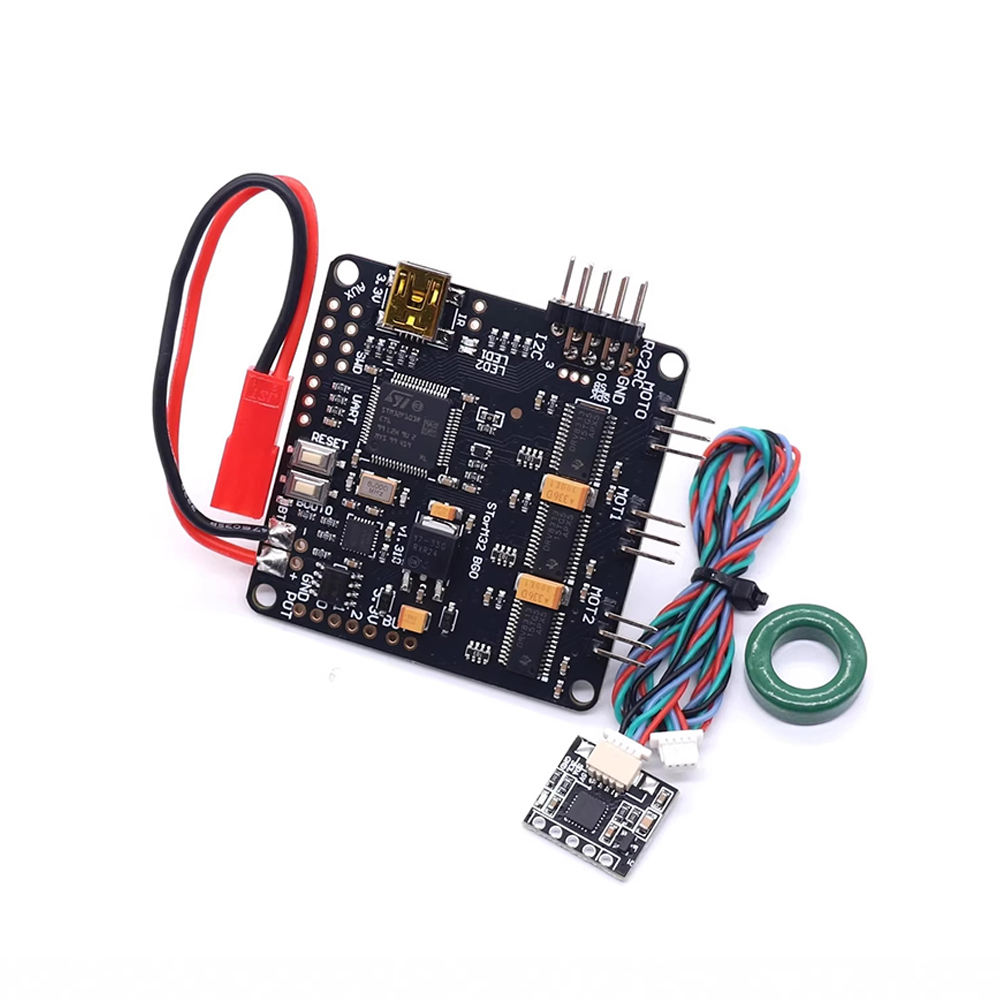

Package included:
1 x Strom32 3-Axis gimbal controller DRV8313 Driver

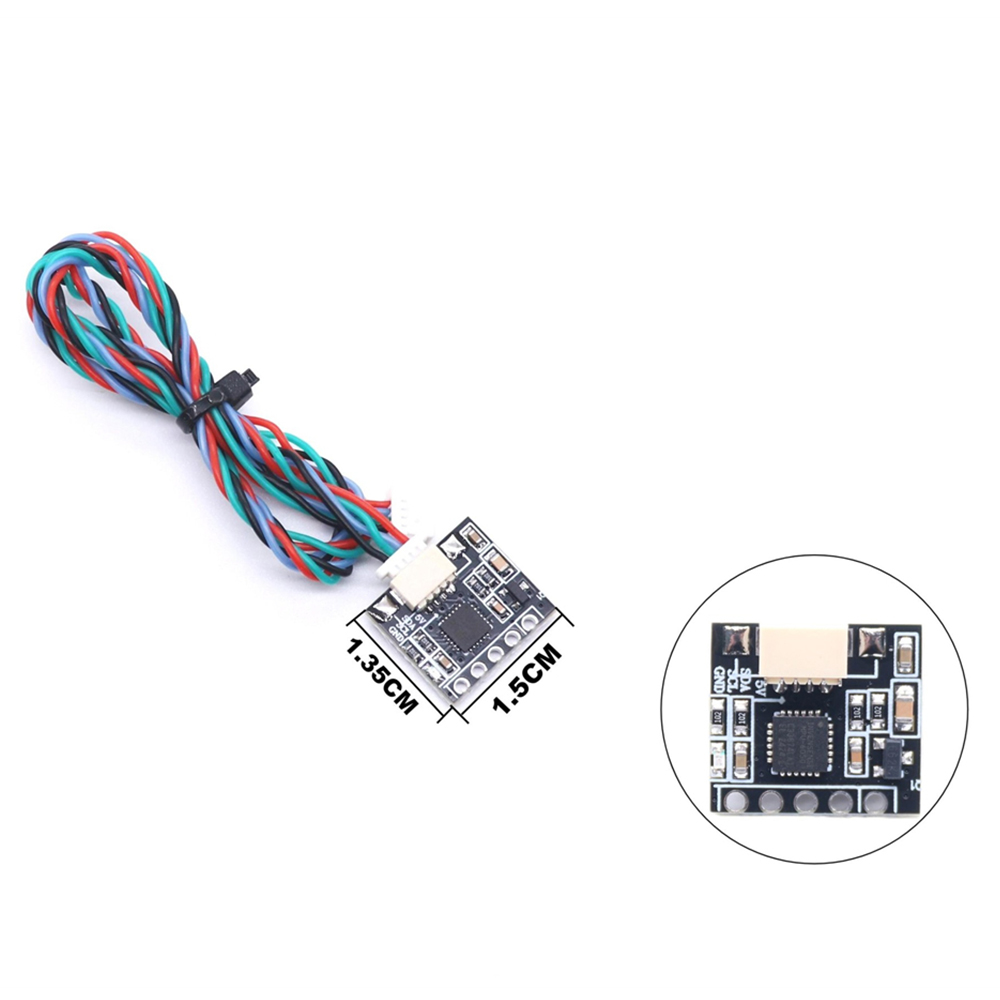

1 x Sensor
