IntroductionThis all-in-one FPV kit is designed for pilots who demand crystal-clear analog video, stable long-range transmission, and plug-and-play convenience—perfect for beginners building their first drone and experienced flyers looking for a reliable, high-valuee upgrade. The package includes a 5.8G OTG Receiver, a powerful VTX800 800mW Transmitter, and a 2000TVL 165° Wide-Angle HD Camera, delivering professional-grade performance in every flight scenario, from indoor acrobatics to outdoor long-range exploration.

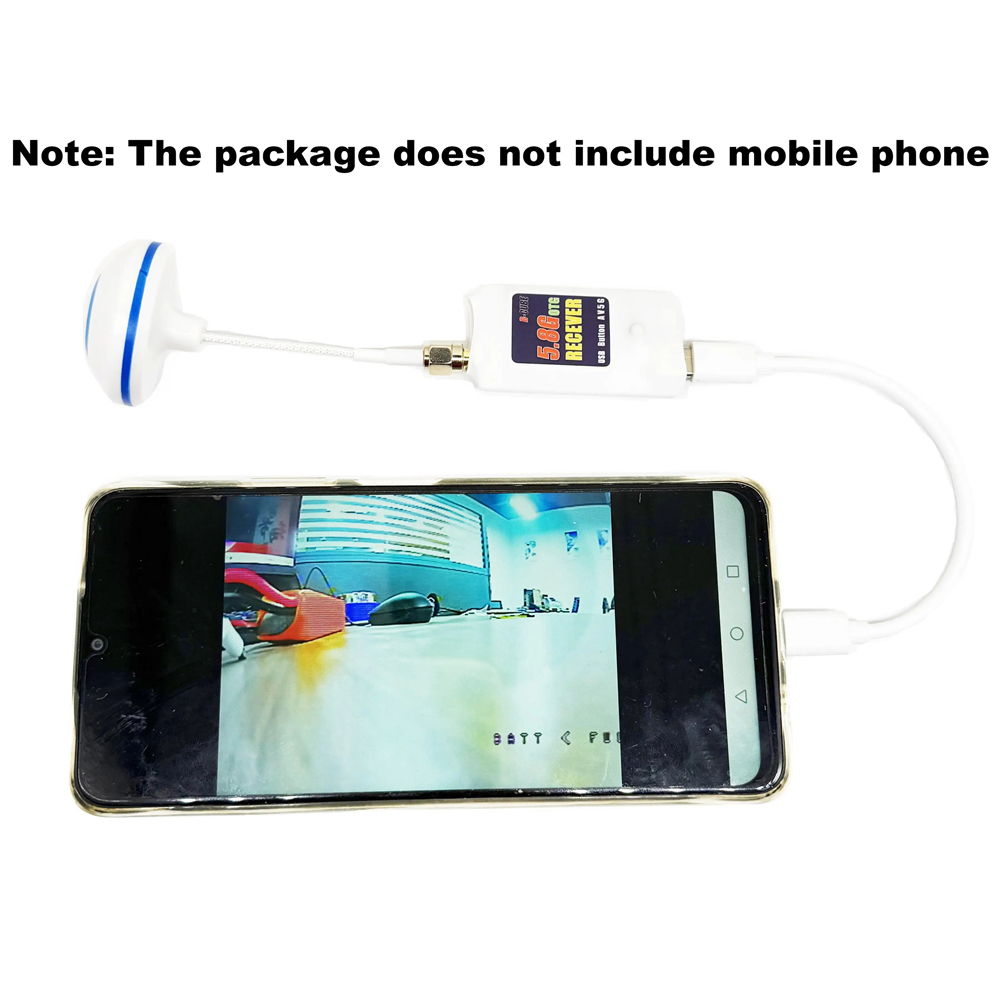

Core Components & Key Features1. 5.8G OTG Receiver – Turn Your Android into FPV Goggles- The compact 5.8G OTG Receiver is the ultimate portable FPV display solution.- Full Band Coverage: 5645MHz-5945MHz frequency range ensures access to all 5.8GHz channels.- Smooth Video Output: 640x480 resolution at 30fps delivers clear, fluid visuals for precise control.- Universal Connectivity: Type-C OTG port connects directly to Android smartphones/tablets (OTG function must be enabled).- Ultra-Light Design: Just 26g (50×30mm) adds minimal payload to your drone, preserving flight agilityy.- Rugged Durability: Operates flawlessly in temperatures from -10° to 65°C, suitable for all weather conditions.- Easy Setup: Simply power on, long-press the menu button for 3 seconds, and it auto-locks onto the strongest signal.2. VTX800 800mW VTX – Strong Signal, Flexible Power- The VTX800 is a feature-packed 5.8GHz transmitter built for reliability and performance.- Adjustable Power Modes: PIT Mode (indoor testing), 25mW, 200mW, 400mW, 800mW, and 1600mW—optimize power for range or battery life.- 40CH Interference-Free: 40 selectable channels avoid congestion and ensure a stable link in crowded areas.- Wide Voltage Input: 7-26V compatibility works with 2S-6S LiPo batteries, eliminating the need for an extra BEC.- Compact Mounting: 36×36mm dimension with 30.5×30.5mm screw holes (3mm aperture) fits seamlessly into most micro drone frames.- Lightweight: Only 7.3g keeps your build light and responsive.3. MINI MS-1672 2000TVL FPV Camera – Ultra-Wide, Low-Light Performance- The MINI MS-1672 is a high-sensitivity, wide-angle camera engineered for visibility in any environment.- 2000TVL Super HD: Delivers razor-sharp, high-contrast images far superior to standard 700TVL cameras.- 165° Extreme Wide FOV: The 2.1mm lens provides an expansive panoramic view, enhancing situational awareness for racing and freestyle.- Super WDR & 3DNR: Wide Dynamic Range suppresses glare, while 3D Noise Reduction ensures clean footage in bright sunlight or low light.- 0.001LUX Starlight Low Light: Performs exceptionally well in dawn/dusk or dark indoor environments, capturing clear footage when others fail.- Auto Format Switching: Automatically recognizes 4:3 or 16:9 aspect ratio and switches between NTSC/PAL—no manual tuning required.- Day/Night Modes: Versatile imaging modes (External/Internal/Black/White/Color) adapt to changing light conditions.

- Wide Voltage Power: 5-36V input works with nearly all drone power systems, ensuring stable power

Specification:

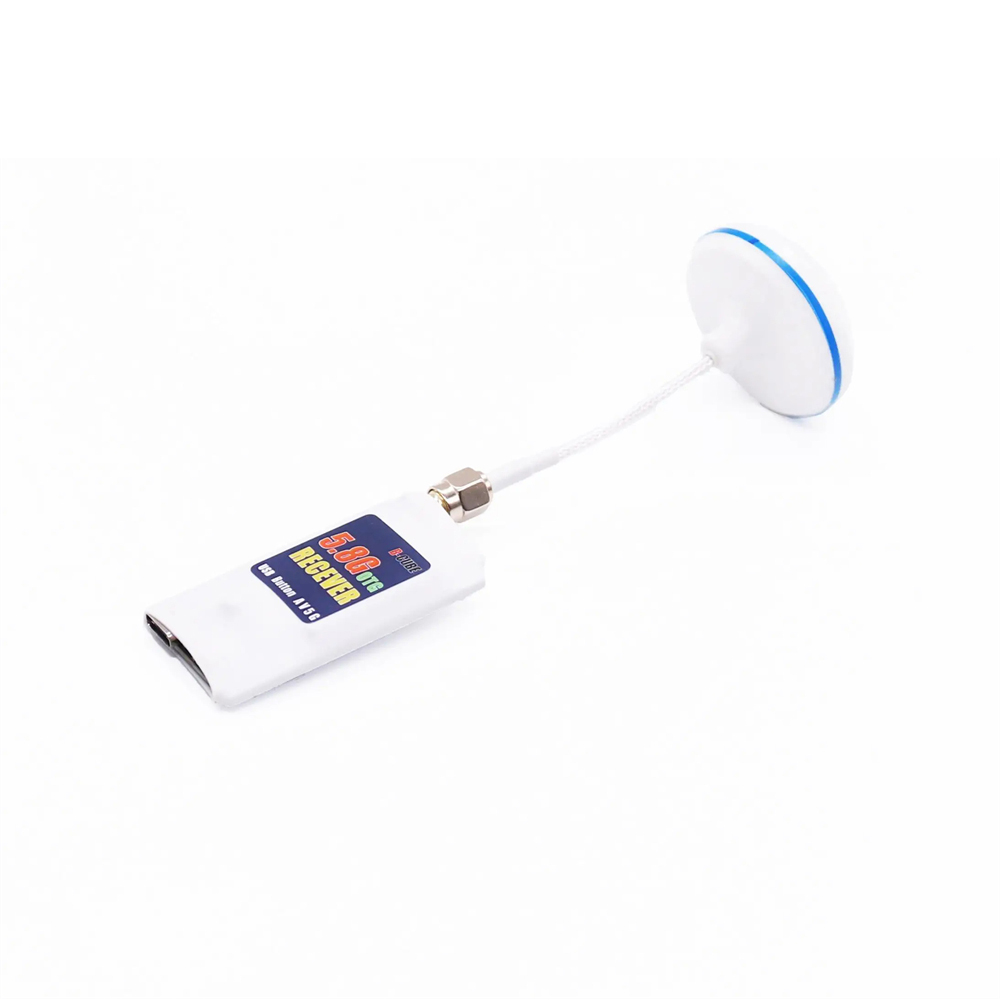

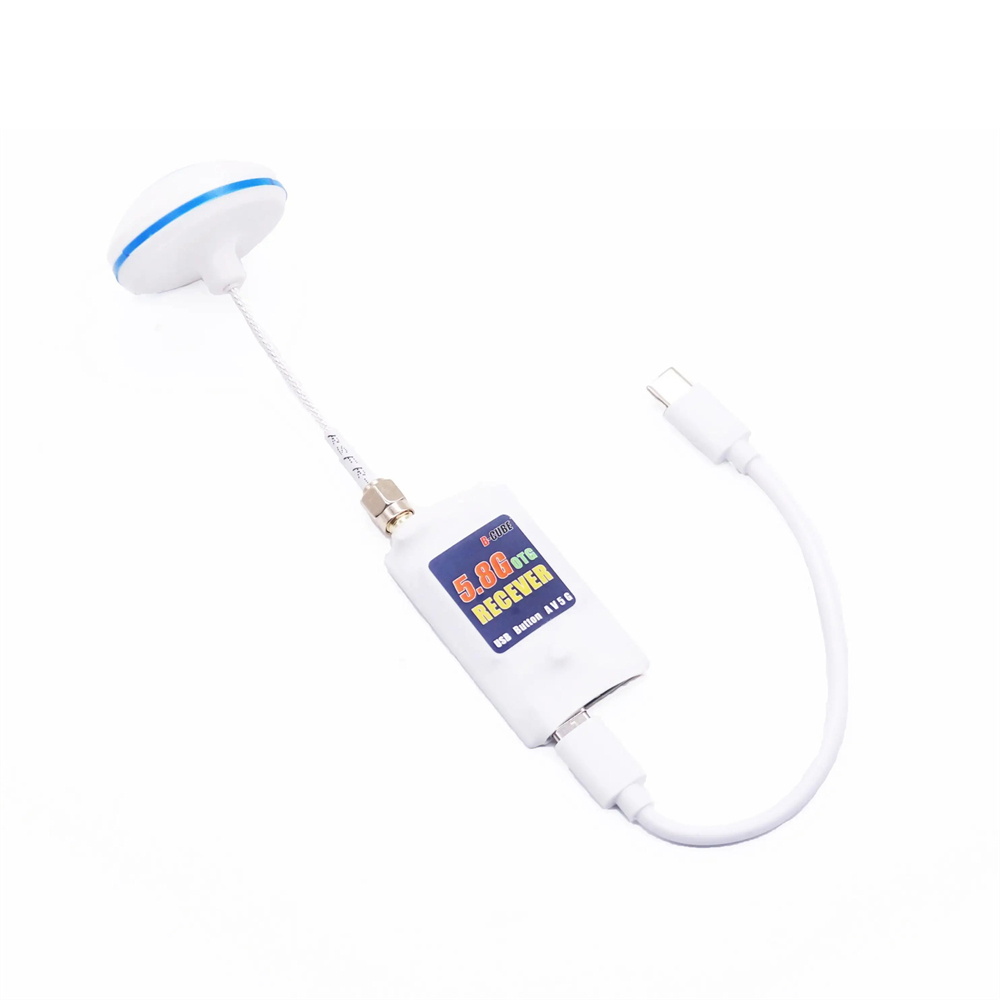

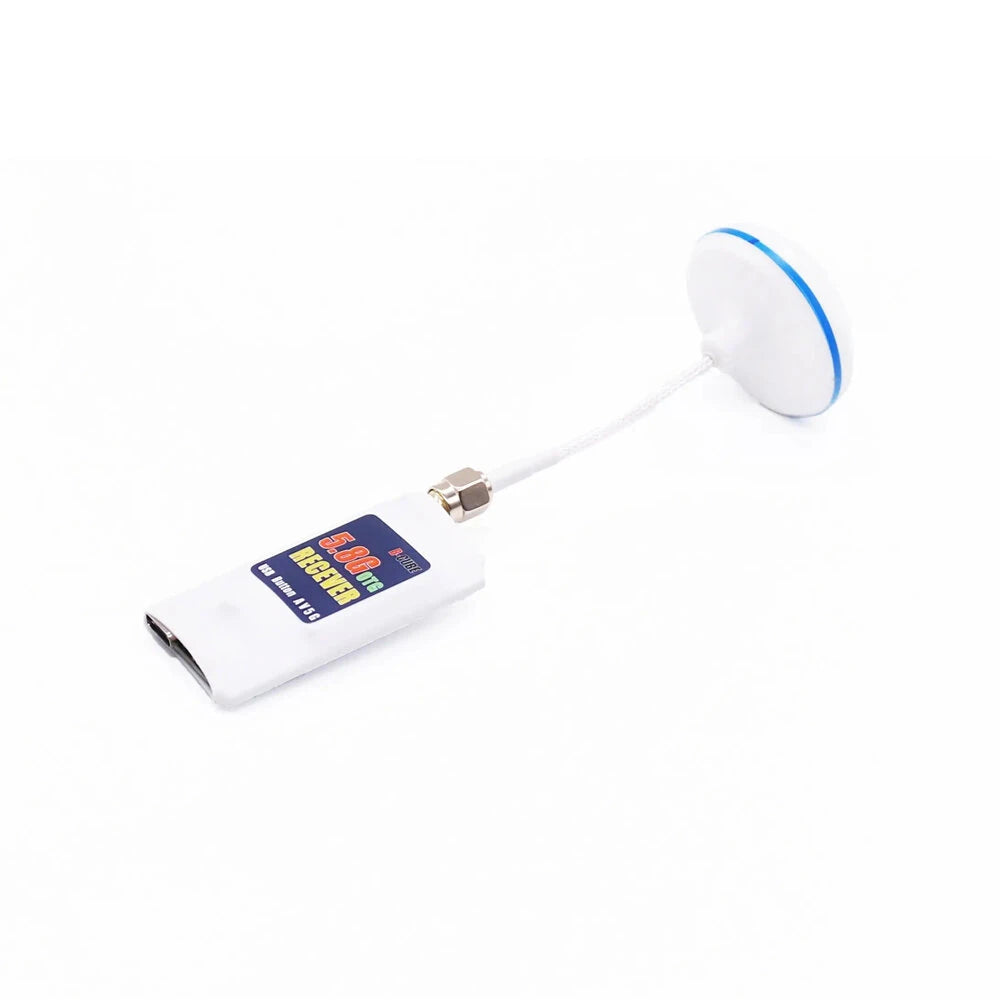

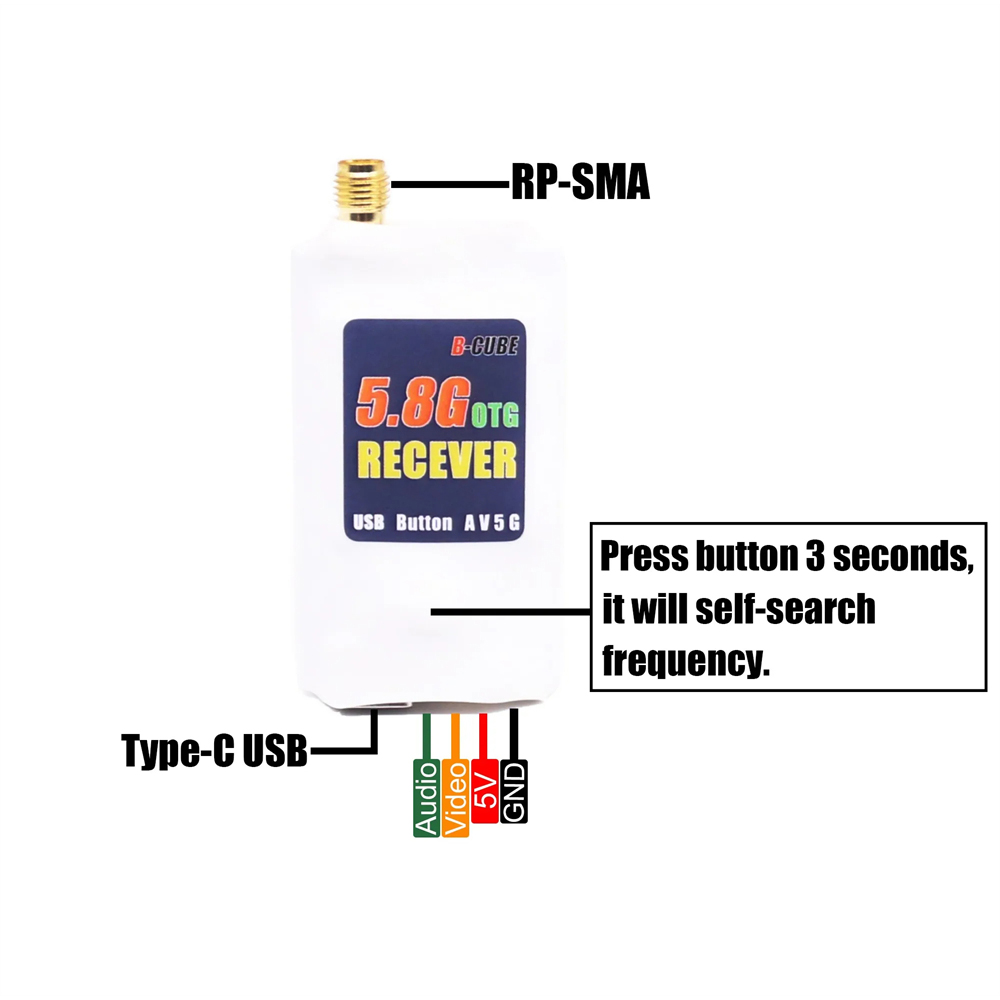

5.8G VTX OTG Receiver
Frequency:	5645MHz-5945MHz
Resolution:	640x480 30fps
Working Current:	USB 5V 190mA
Connector:	RP-SMA
USB:	Type-C
Working Temp.:	-10°~65°
Size:	50MM30MM
Weight:	26g

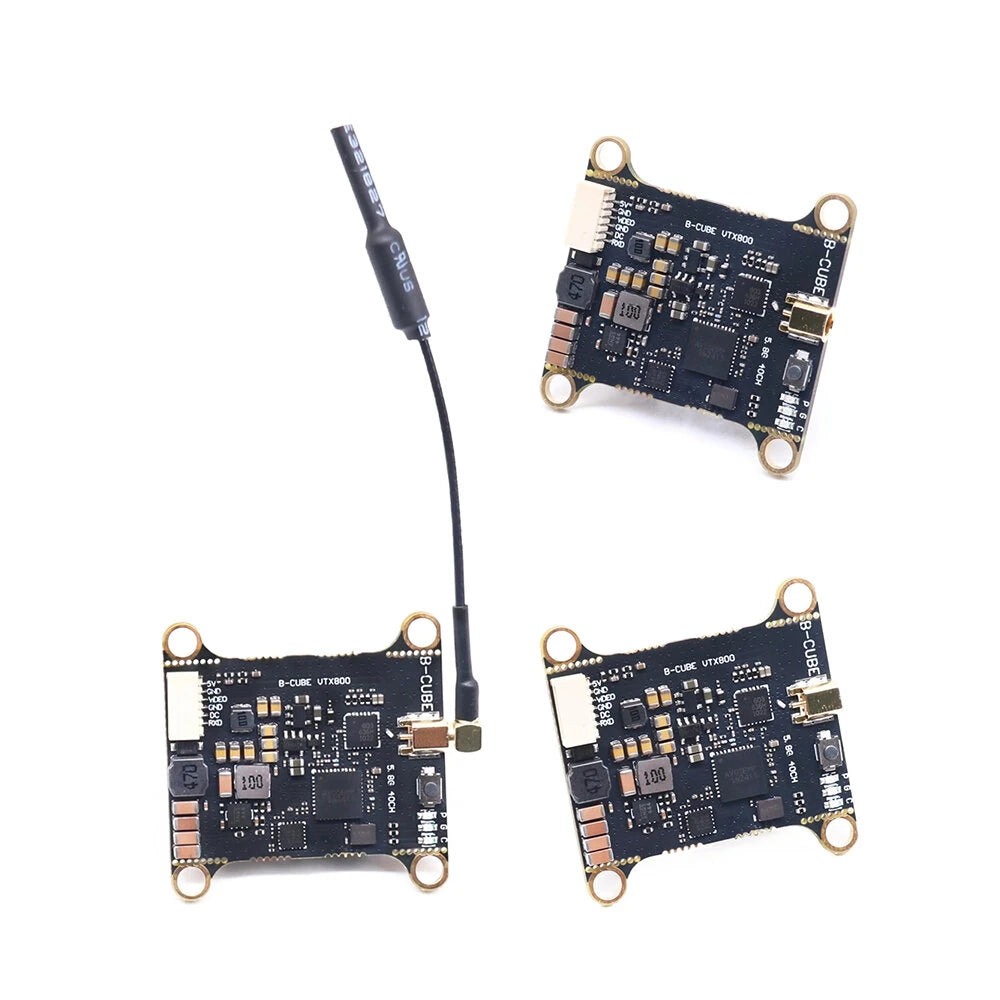

5.8GHZ VTX800 800MW Image Transmission
Default Output:	5865MHZ (5.865GHZ)/800MW
Model:	VTX800
Frequency:	5645-5945MHZ
Input Voltage:	7-26V
Output Voltage:	5V/1A
Channel :	40CH
Transmission Power:	PIT/25MW/200/400/800/1600MW
Boundary Dimension:	36 * 36MM
Screw Hole:	30.5 * 30.5MM
Screw Aperture:	3MM
Weight:	7.3g

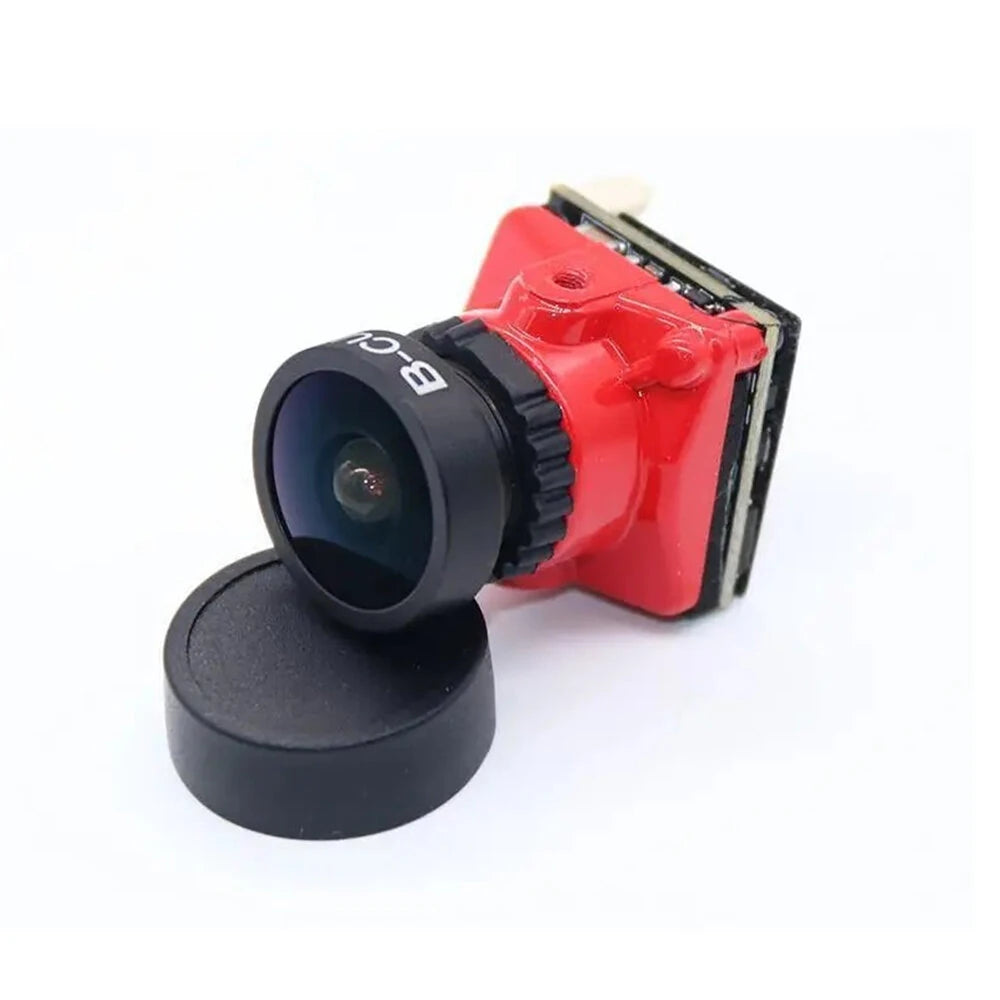

2000TVL 2.1 mm Wide Angle HD 1080P Camera
Model:	MINI MS-1672 FPV Cameras
Sensor:	1/1/8 Inch CMOS D1080H
Horizontal Resolution:	2000TVL
Horizontal Field of View:	165°
Lens:	2.1mm Lens
Video Format:	NTC&PAL (Adjustable)
Image Scale:	4:3&16:9 (Automatic Recognition)
Wide Dynamic Range:	Super WDR
Noise Reduction:	3DNR
Low Illumination:	0.001LUX
Video Output:	CVBS
Day and Night:	External/Internal/Black and White/Color
Language:	(English/Chinese/Traditional Chinese/Pyccnna)ESOABIK/TTASSNO/FRABCAUS/ POSDIM/PORTUGUES/Japanese
Electronic Shutter:	PAL: 1/50-100000NTSC: 1/60-100000
Wide Voltage Input:	5-36V
Working Temperature:	-20-60
Resolution:	960 * 1080
Weight:	110g
Dimensions:	19X19X19mm

Why Choose This All-in-One FPV Kit?* All-in-One Value: Eliminates the hassle of buying separate components—receiver, VTX, and camera are pre-matched for perfect compatibility.

* Crystal-Clear Vision: 2000TVL camera with 165° FOV and Super WDR ensures you never miss a detail, even in challenging light.

* Long-Range Stability: 800mW VTX power (up to 1600mW switchable) paired with a quality receiver delivers reliable signal up to 800m+ in open areas.

* Beginner-Friendly: Auto signal locking, auto format detection, and simple OTG setup make it easy to get flying without technical expertise.

* Versatile Usage: Use the receiver with Android devices (VR goggles mode) or connect to a monitor/PC for versatile viewing.Whether you' re building a micro drone, a toothpick quad, or upgrading your current FPV rig, this kit delivers the performance, reliability, and value you need. Fly further, see clearer, and experience FPV like never before!

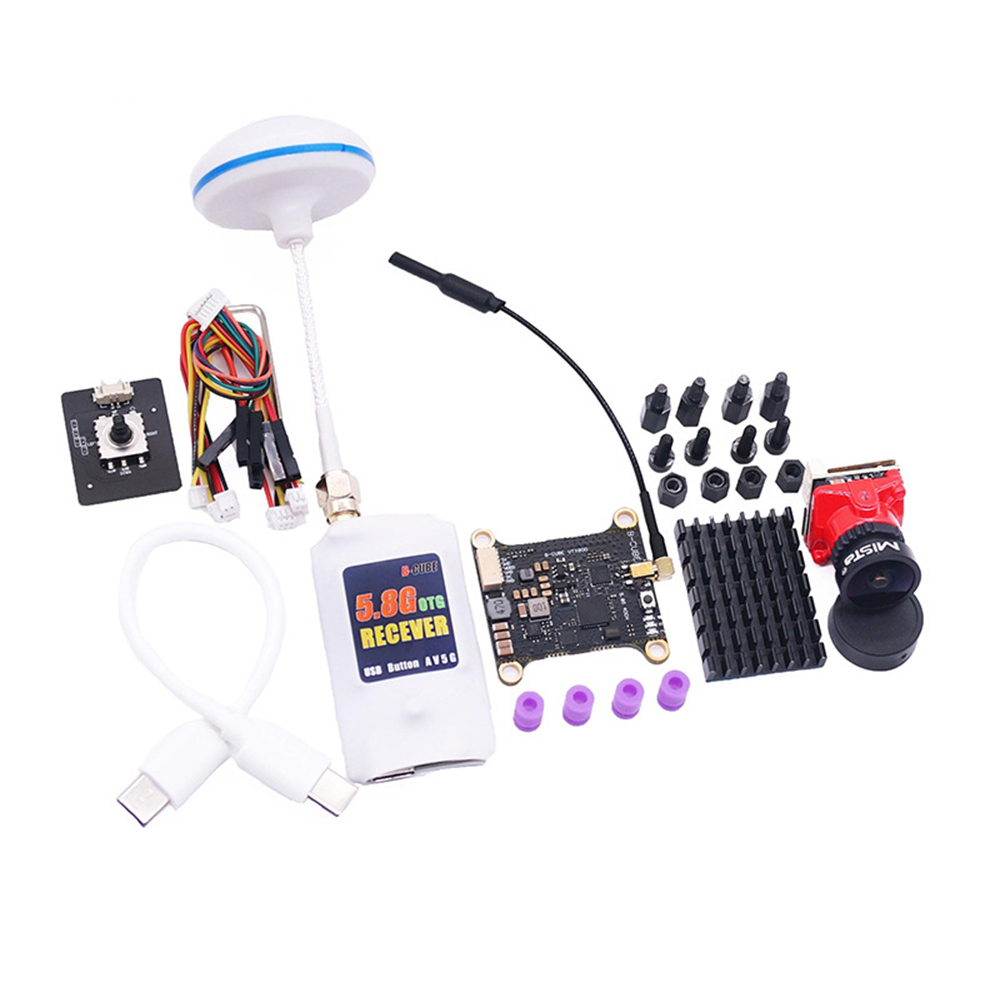

Package included:

1 x 5.8Ghz 150CH Receiver

1 x Type-C OTG Cable

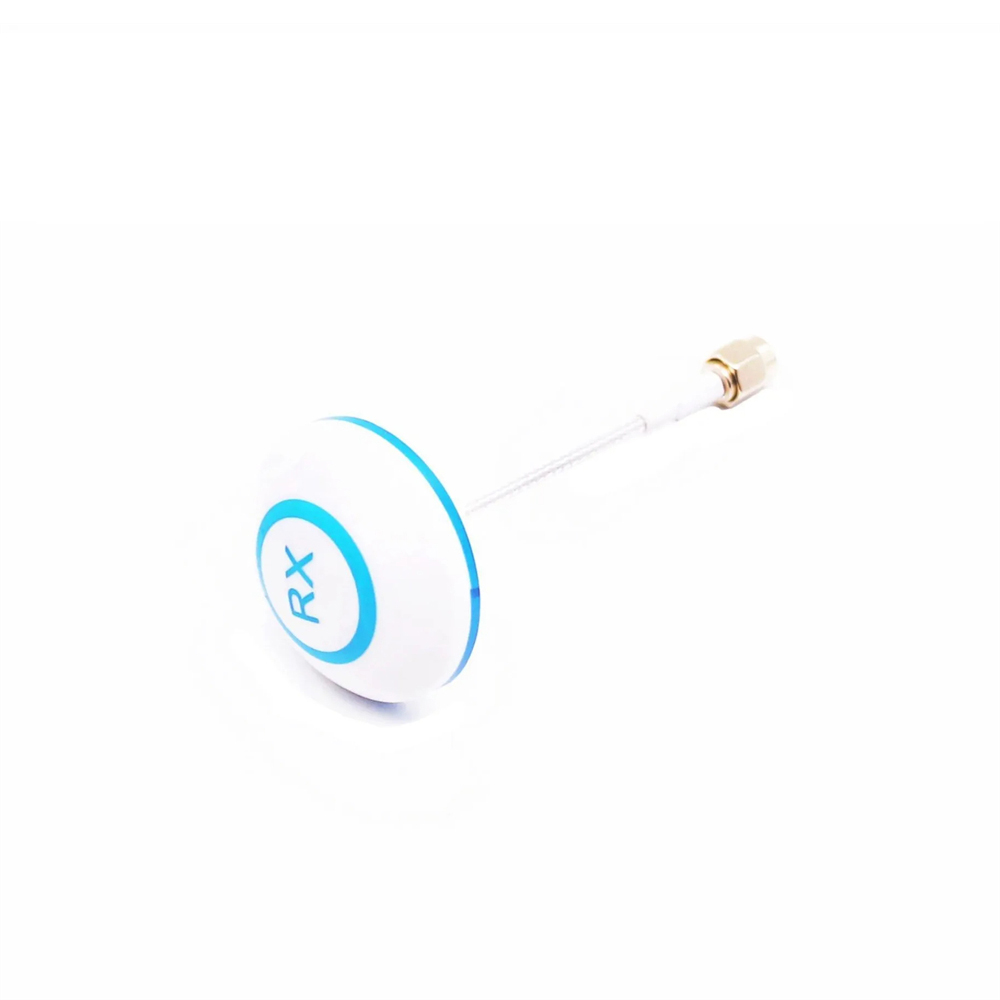

1 x Mushroomm Head RX Antenna

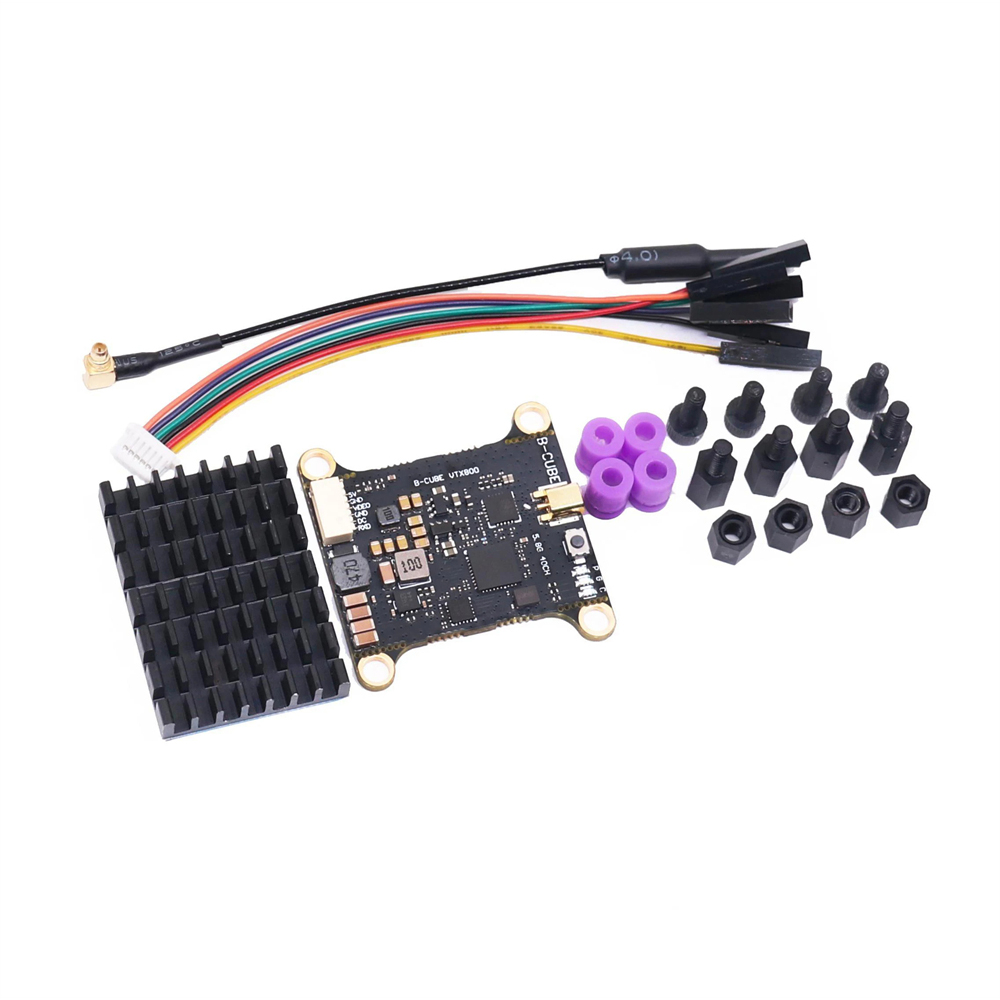

1 x VTX800 Board

4 x Shock-absorbing Ball

4 x Fixed Nylon Column

1 x Heat Dissipation Module

1 x 5.8G 5DB Antenna

1 x 6P * 1.0MM Plug Cable

1 x FPV Camera
