Description
Note ： Future firmware updates will enable PAL/NTSC auto-switching and parameter configuration via tuning boards
Features:

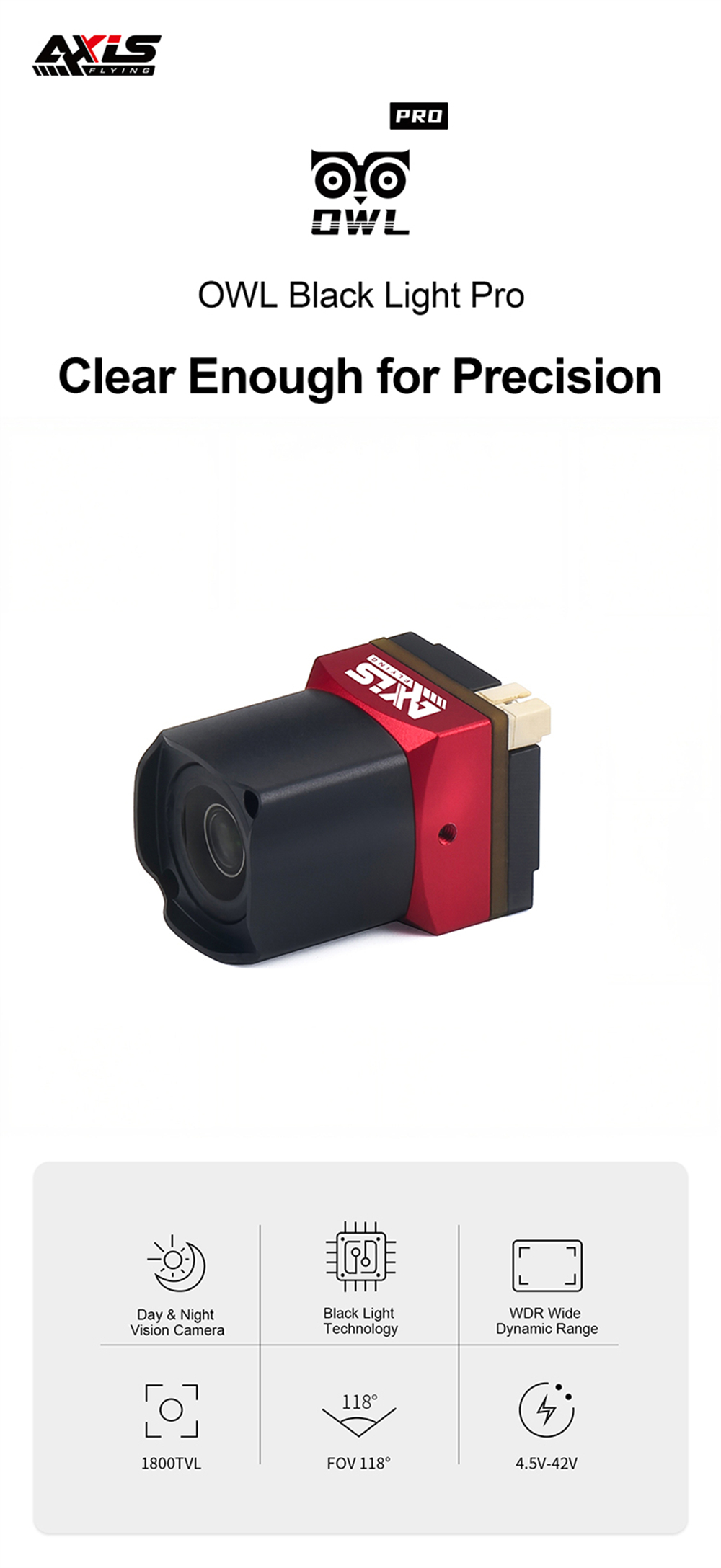

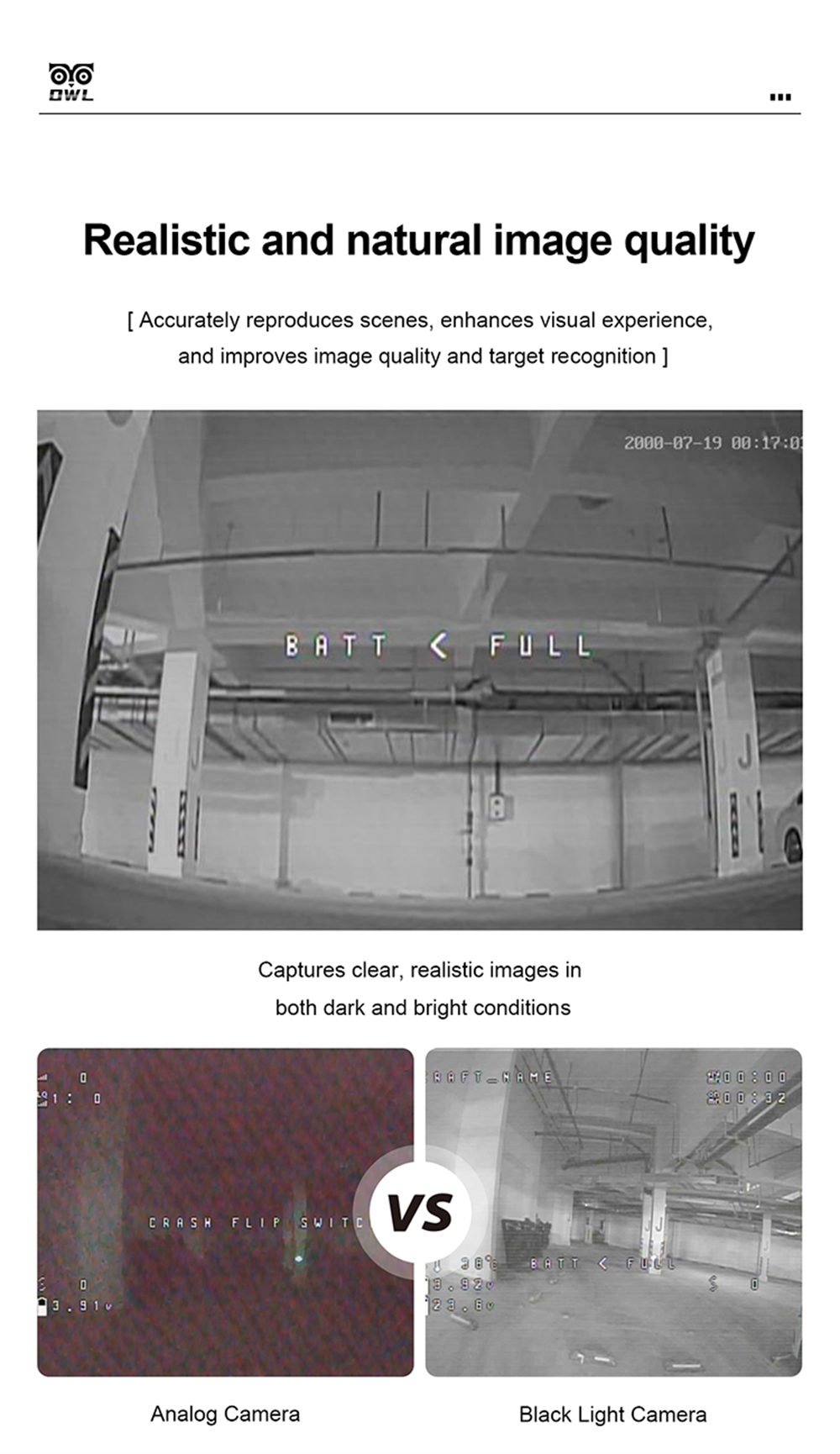

1. Day & Night Vision Compatibility: Featuring advanced Black Light Technology, this camera captures vivid images regardless of lighting conditions, ensuring consistent performance indoors and outdoors. (Black light is more suitable for dark nights.)
2. Wide Dynamic Range: With a 100dB dynamic range, it delivers superior image quality in high-contrast environments. Perfect for precise object recognition in challenging scenarios.
3. High-Resolution Clarity: Equipped with 1928x1088V effective pixels and 1800TVL resolution, it provides sharp and realistic images for detailed analysis.
4. Ultra-Wide Field of View: A diagonal FOV of 118° allows extended coverage, reducing blind spots and enhancing monitoring effectiveness.

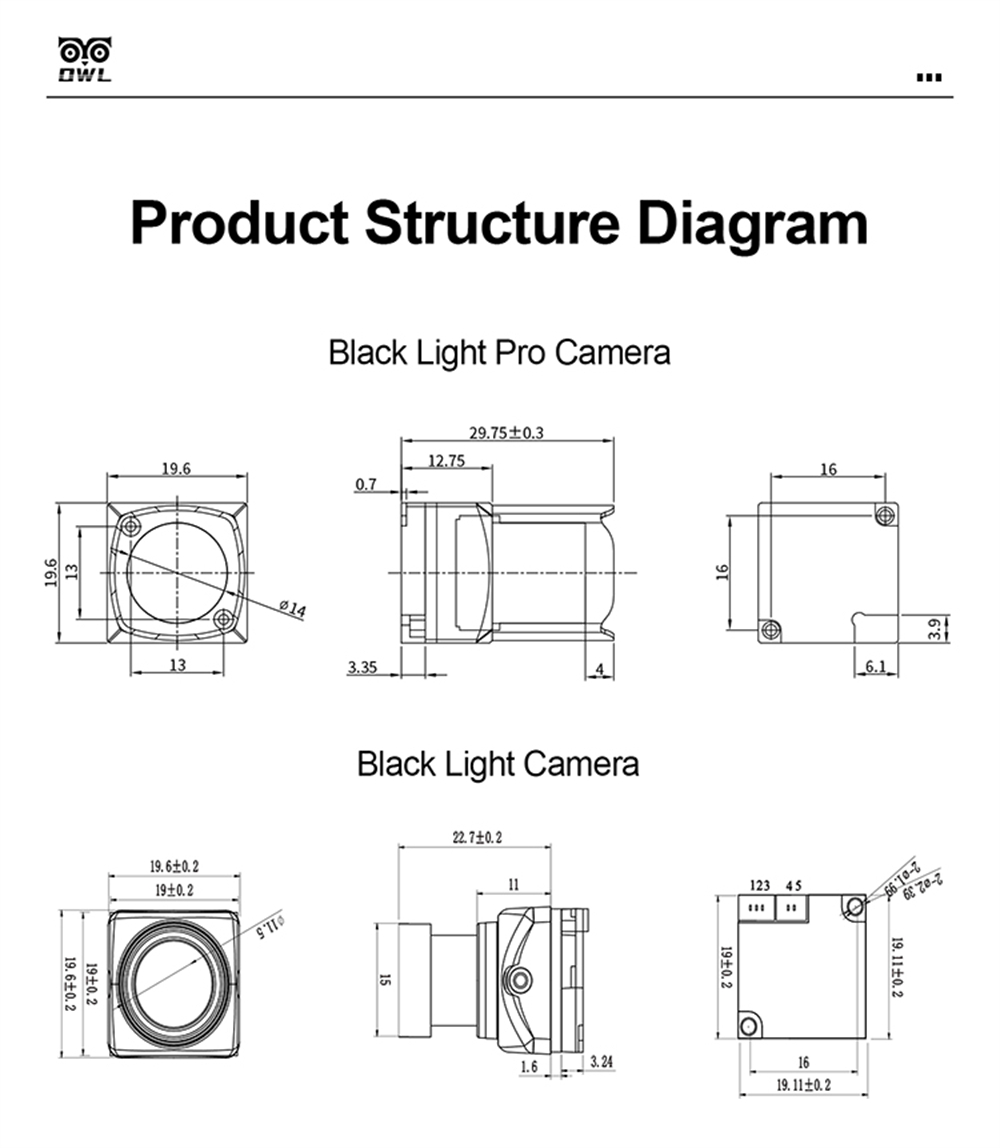

5. Compact Design for Versatile Mounting: Compact 19.6*19.6 mm dimensions make the camera easy to install, perfect for lightweight applications like drones and robotics.

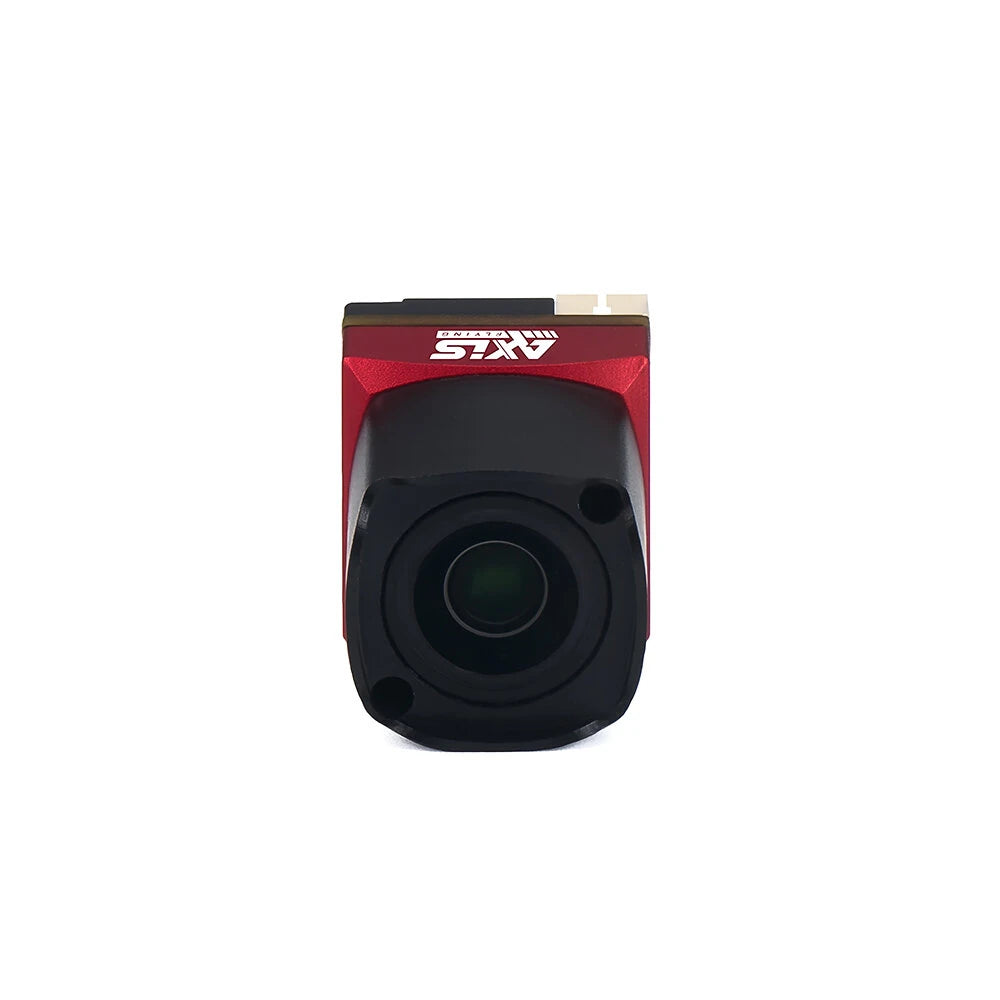

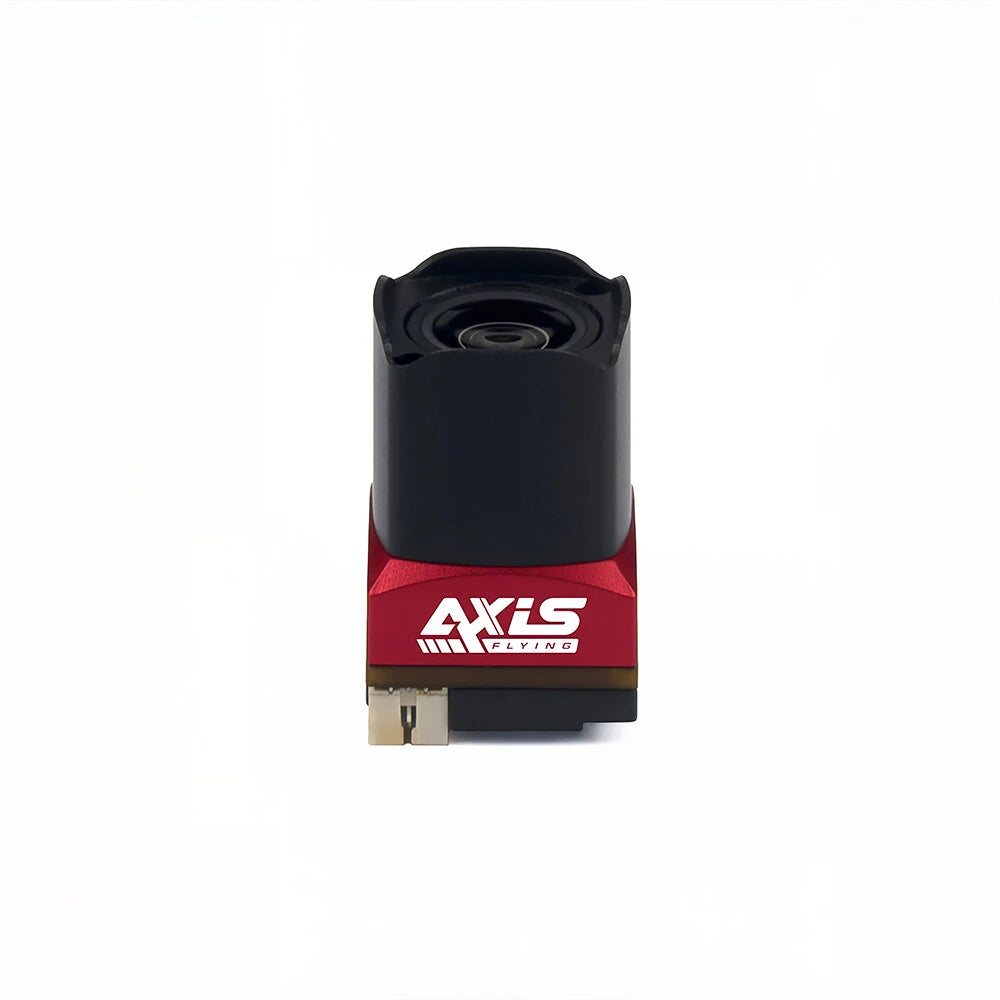

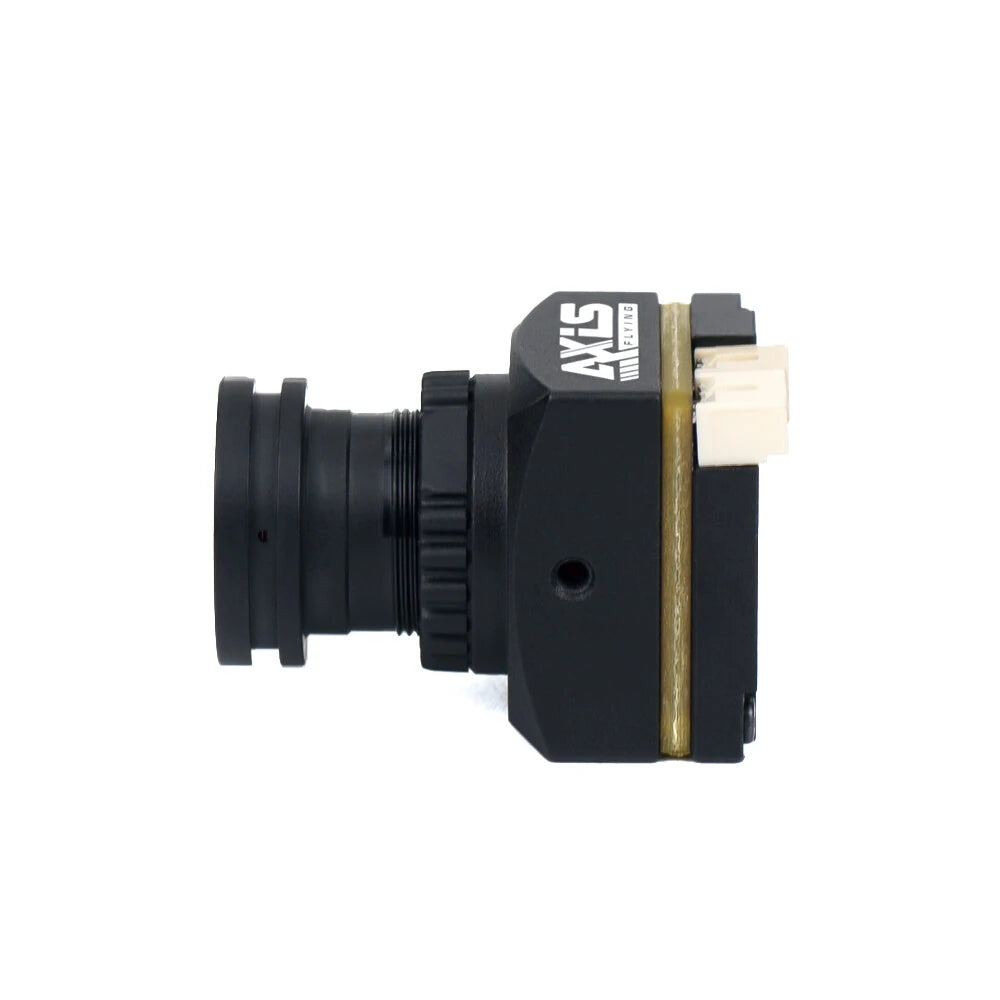

6. Square lens hood: To protect the lens when the camera crashes. Just like the camera lens with a hood.（The plastic film in front of the lens is to prevent the lens from being scratched during transportation and can be torn off during use.）

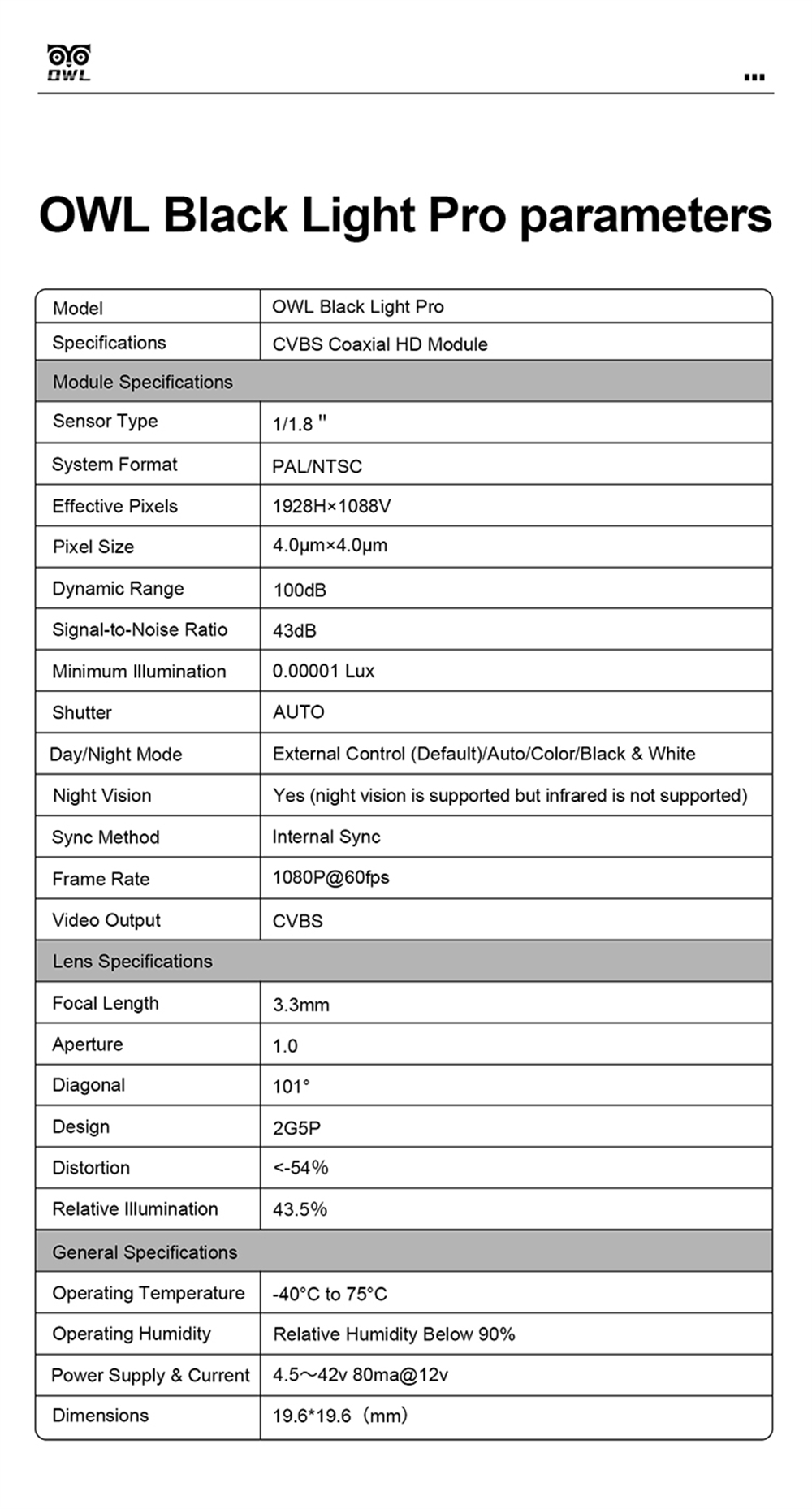

Specification:

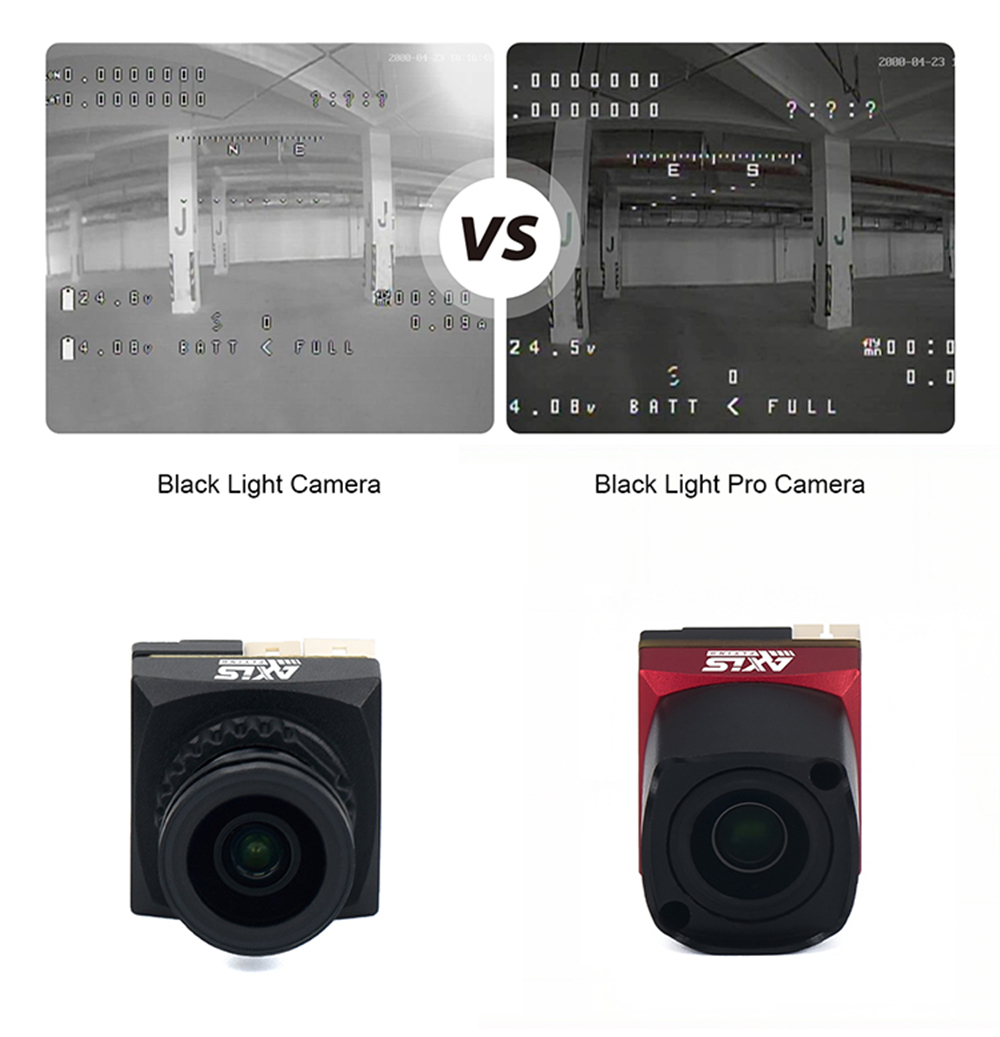

Model |
Black Light Pro Camera |
Black Light Camera |
Module Specifications |
Sensor Type: 1/1.8' System Format: NTSC Effective Pixels: 1928H×1088V Pixel Size: 4.0μm×4.0μm Dynamic Range: 100dB Signal-to-Noise Ratio: 43dB Minimum Illumination: 0.00001 Lux Shutter: AUTO Day/Night Mode: External Control (Default)/Auto/Color/Black & White Night Vision: Yes (night vision is supported but infrared is not supported) Sync Method: Internal Sync Frame Rate: 1080P@60fps Video Output: CVBS |
Sensor Type: 1/2.7' System Format: NTSC Effective Pixels: 1928H×1088V Pixel Size: 3.0μm×3.0μm Dynamic Range: 72dB Signal-to-Noise Ratio: 40dB Minimum Illumination: 0.00001 Lux Shutter: AUTO Day/Night Mode: External Control (Default)/Auto/Color/Black & White Night Vision: Yes (night vision is supported but infrared is not supported) Sync Method: Internal Sync Frame Rate: 1080P@60fps Video Output: CVBS |
Lens Specifications |
Focal Length: 3.3mm Aperture: 1.0 Diagonal: 101° Design: 2G5P Distortion: <-54% Relative Illumination: 43.5% |
Focal Length: 3.3mm Aperture: 1.1 Diagonal: 101° Design: 2G5P Distortion: <-54% Relative Illumination: 43.5% |
General Specifications |
Operating Temperature: -40°C to 75°C Operating Humidity: Relative Humidity Below 90% Power Supply & Current: 4.5~42v, 80ma@12v Dimensions: 19.6*19.6 (mm) |
Operating Temperature: -40°C to 75°C Operating Humidity: Relative Humidity Below 90% Power Supply & Current: 4.5~42v, 80ma@12v Dimensions: 19.6*19.6 (mm) |
Functions/Control |
/ |
Exposure: Brightness/Exposure Mode/Gain/Digital WDR White Balance: Auto Tracking/Manual White Balance Menu Control: OSD Menu Control Image Settings: Contrast/Sharpness/Saturation/Digital Noise Reduction/Mirroring Language: Support for 14 languages Restore Factory Settings: Yes |
Package included:

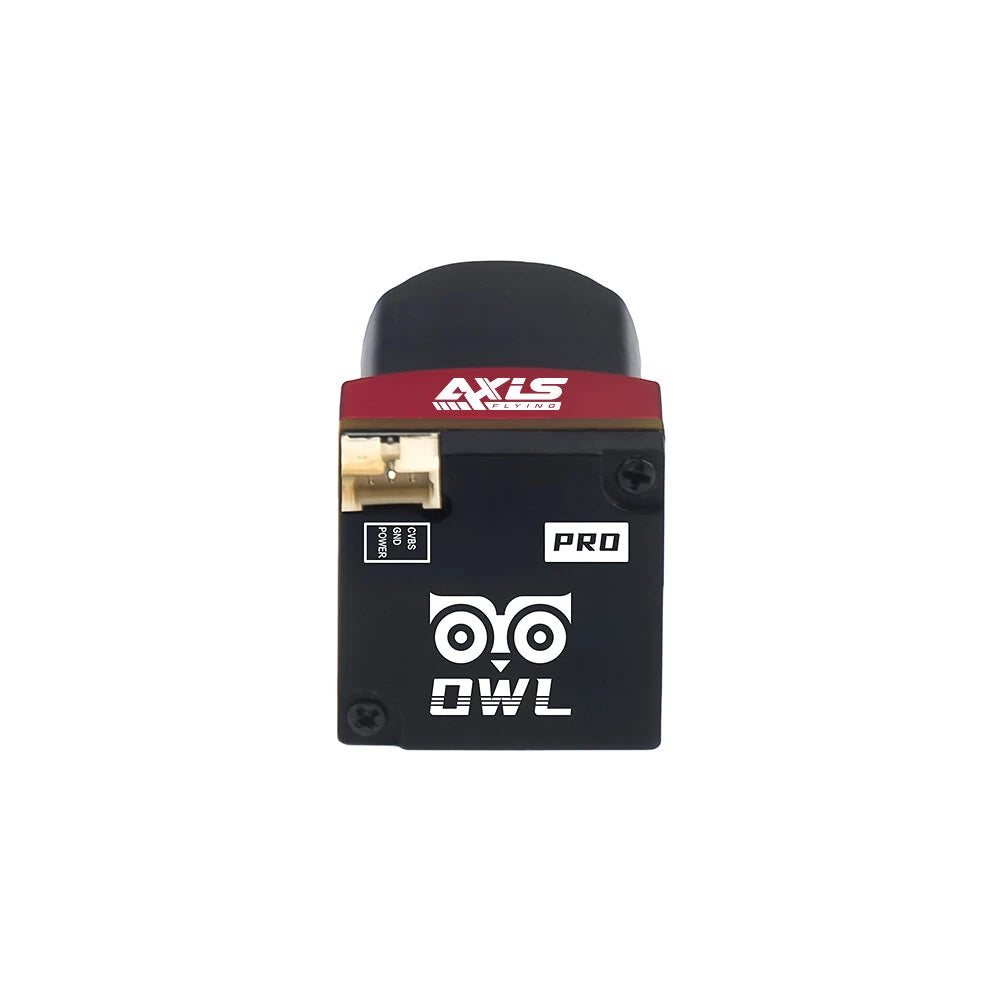

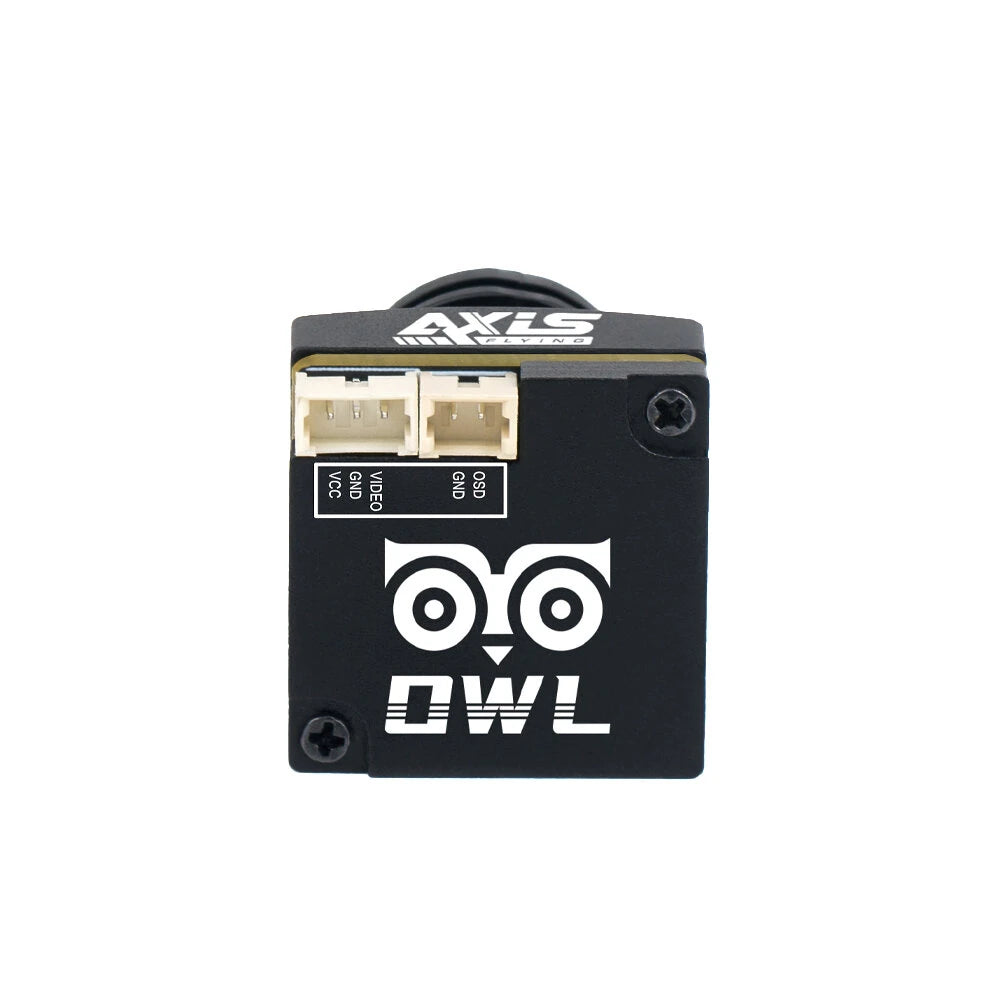

1 x Black Light / Black Light Pro Camera
