Description

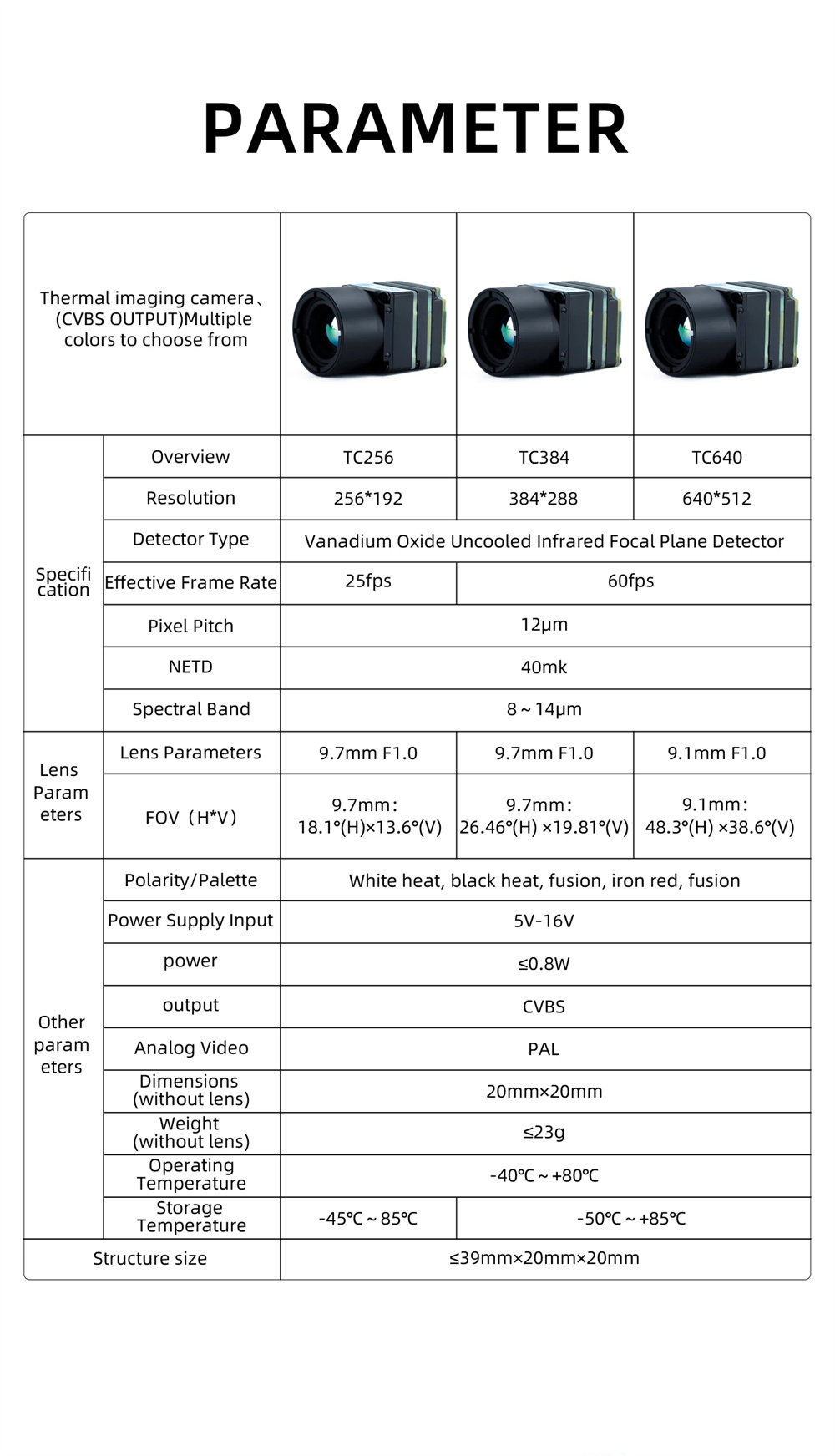

Specification:
Specification: |
Overview |
TC256 |
TC384 |
TC640 |
Resolution |
256*192 |
384*288 |
640*512 |
|
Detector Type |
Vanadium Oxide Uncooled Infrared Focal Plane Detector |
|||
Effective Frame Rate |
25fps |
60fps |
||
Pixel Pitch |
12μm |
|||
NETD |
40mk |
|||
Spectral Band |
8 ~ 14μm |
|||
Lens Parameters |
Lens Parameters |
9.7mm F1.0 |
9.7mm F1.0 |
9.1mm F1.0 |
FOV (H*V) |
9.7mm: 18.1°(H) x 13.6°(V) |
9.7mm: 26.46°(H) x 19.81°(V) |
9.1mm: 48.3°(H) x 38.6°(V) |
|
Other Parameter |
Polarity/Palette |
White heat, black heat, fusion, iron red, fusion |
||

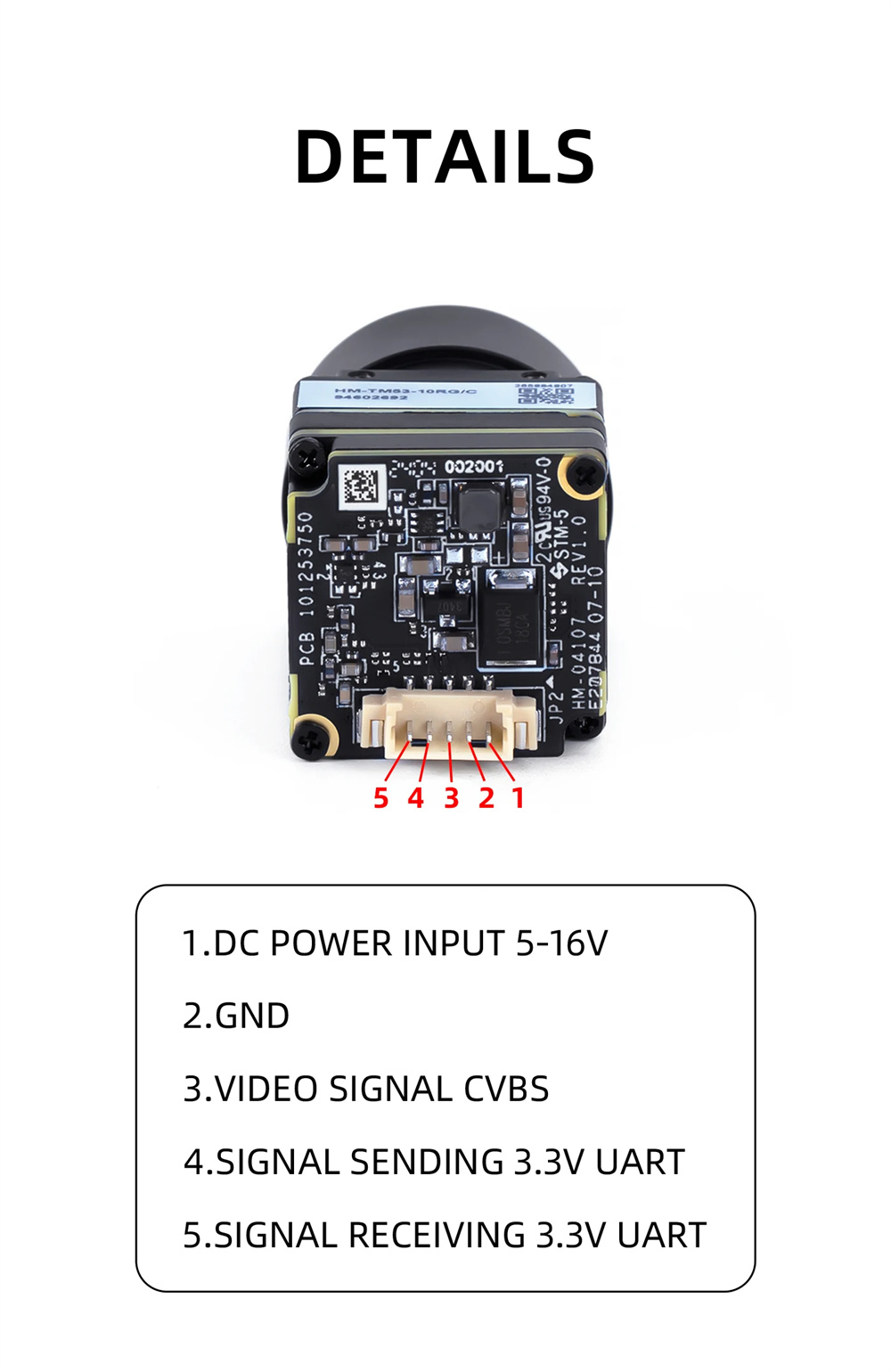

Power Supply Input |
5V-16V |
|||
Power |
≤0.8W |
|||
Output |
CVBS |
|||
Analog Video |
PAL |
|||
|
Dimensions (without lens) |
20mm x 20mm |
|||
|
Weight (without lens) |
≤23g |
|||
Operating Temperature |
-40°C~+80°C |
|||
Storage Temperature |
-45°C ~ 85°C |
-50°C ~ +85°C |
||

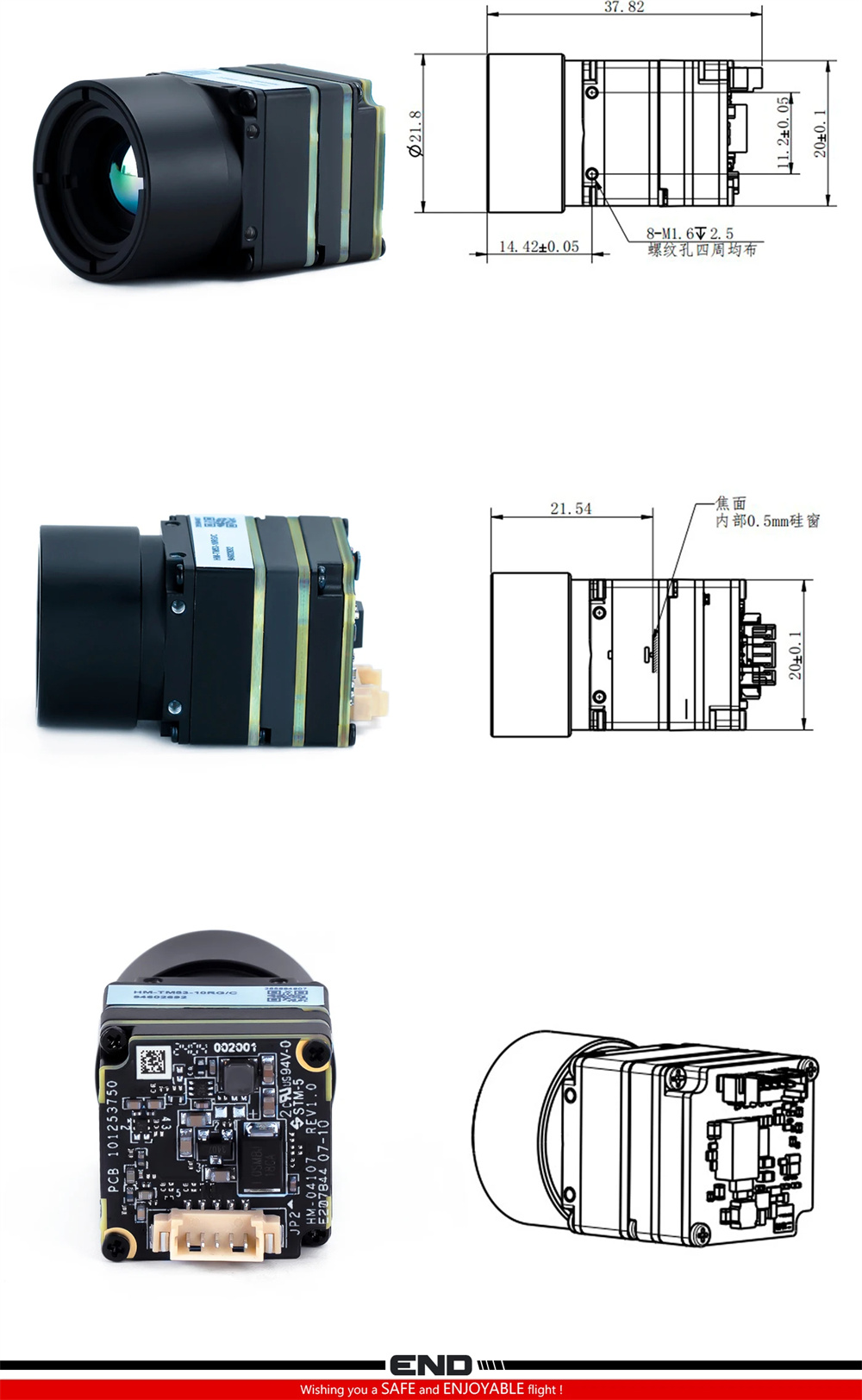

Structure Size |
≤39mm x 20mm x 20mm |
|||
Feature:
- High-sensitivity vanadium oxide uncooled detector, supporting 256x192/ 256*192 384x288/ 640 x512 resolution
- Support for analog signal output
- Supports automatic, manual correction, and background correction
- Small model design, easy to integrate
- Application scenarios: Integration of drone pods, intelligent equipment, etc
Package included:

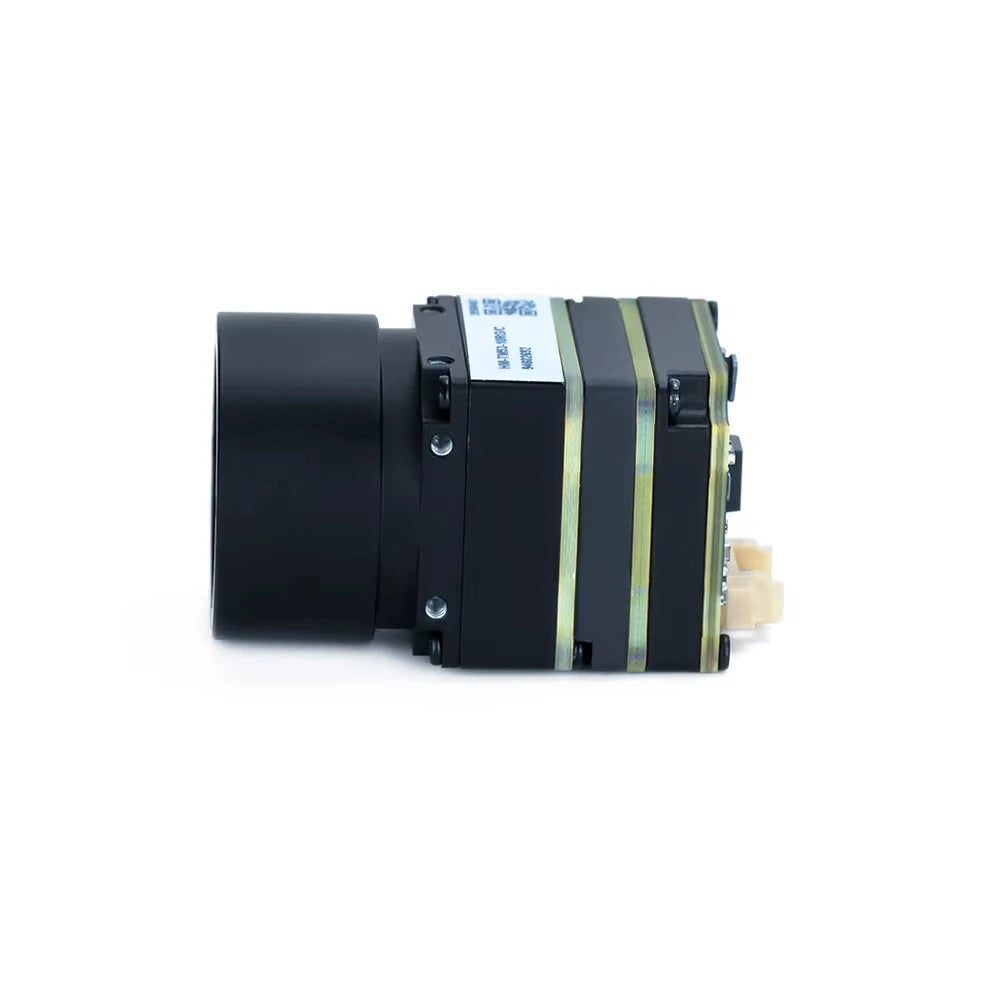

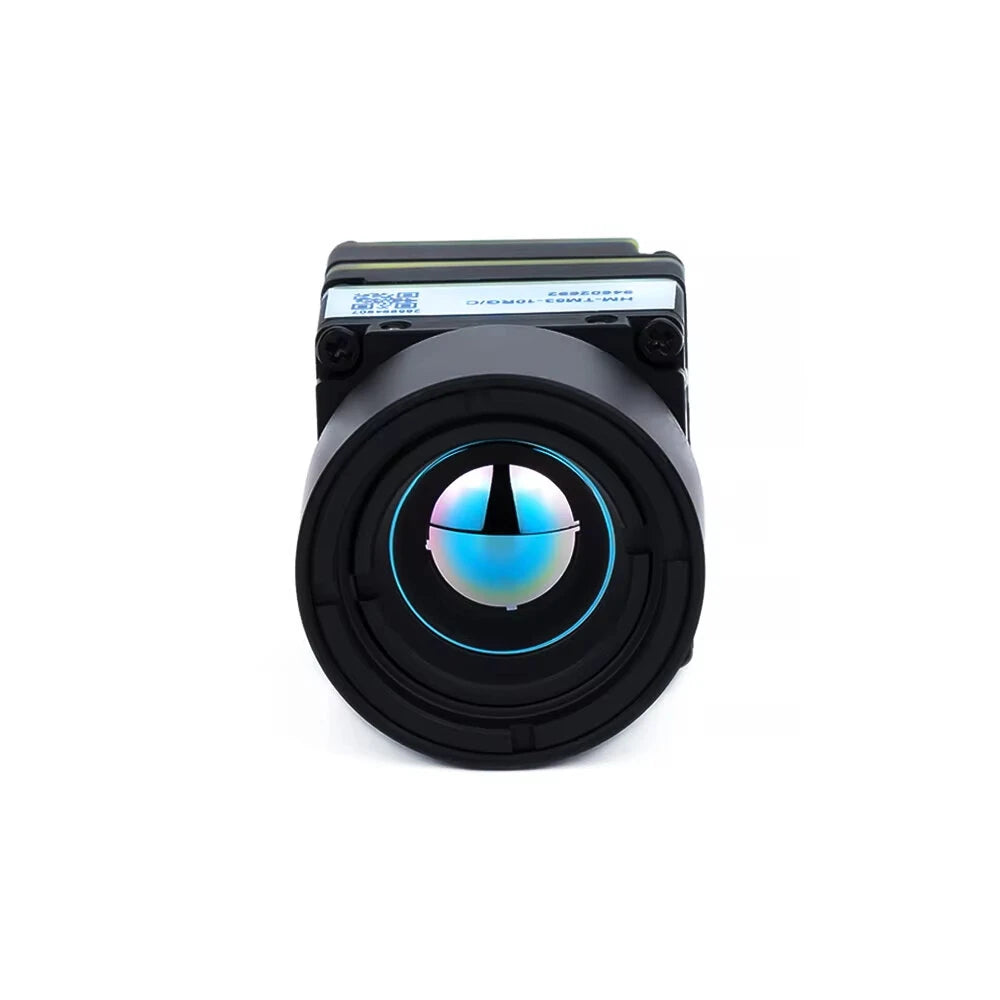

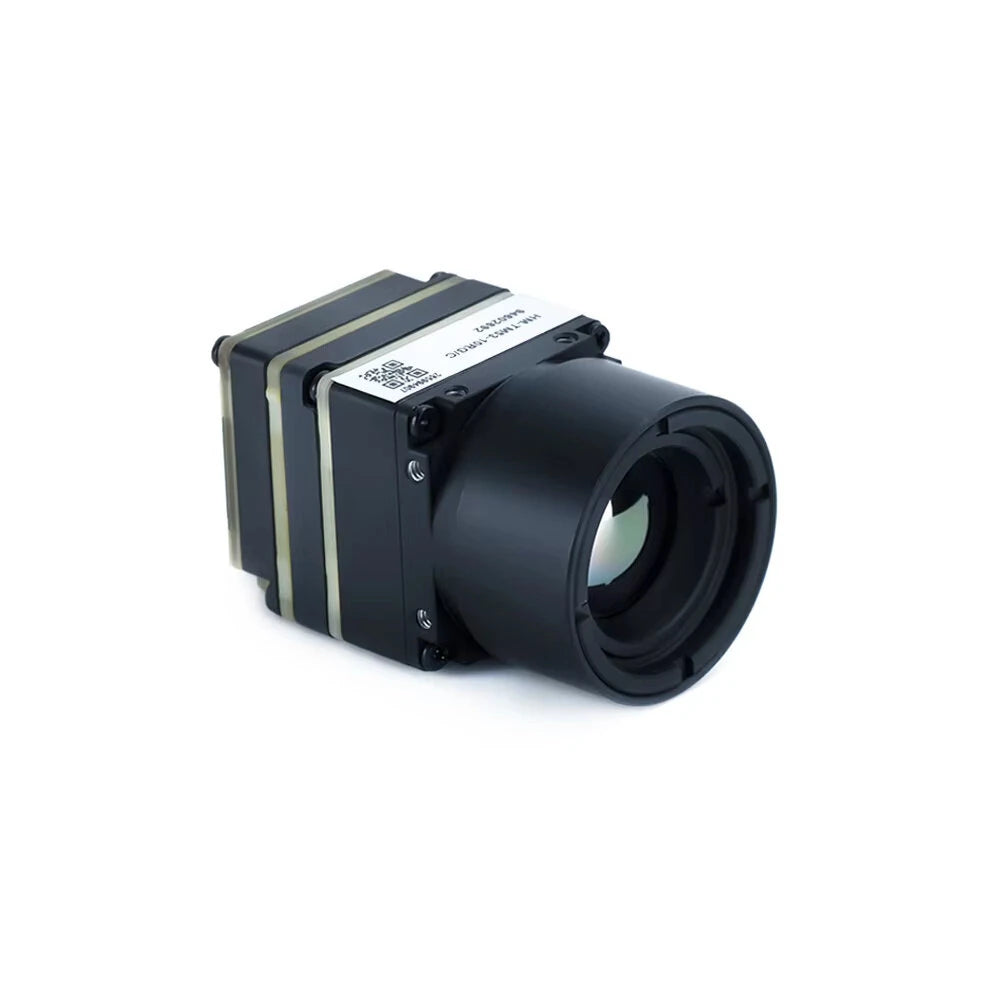

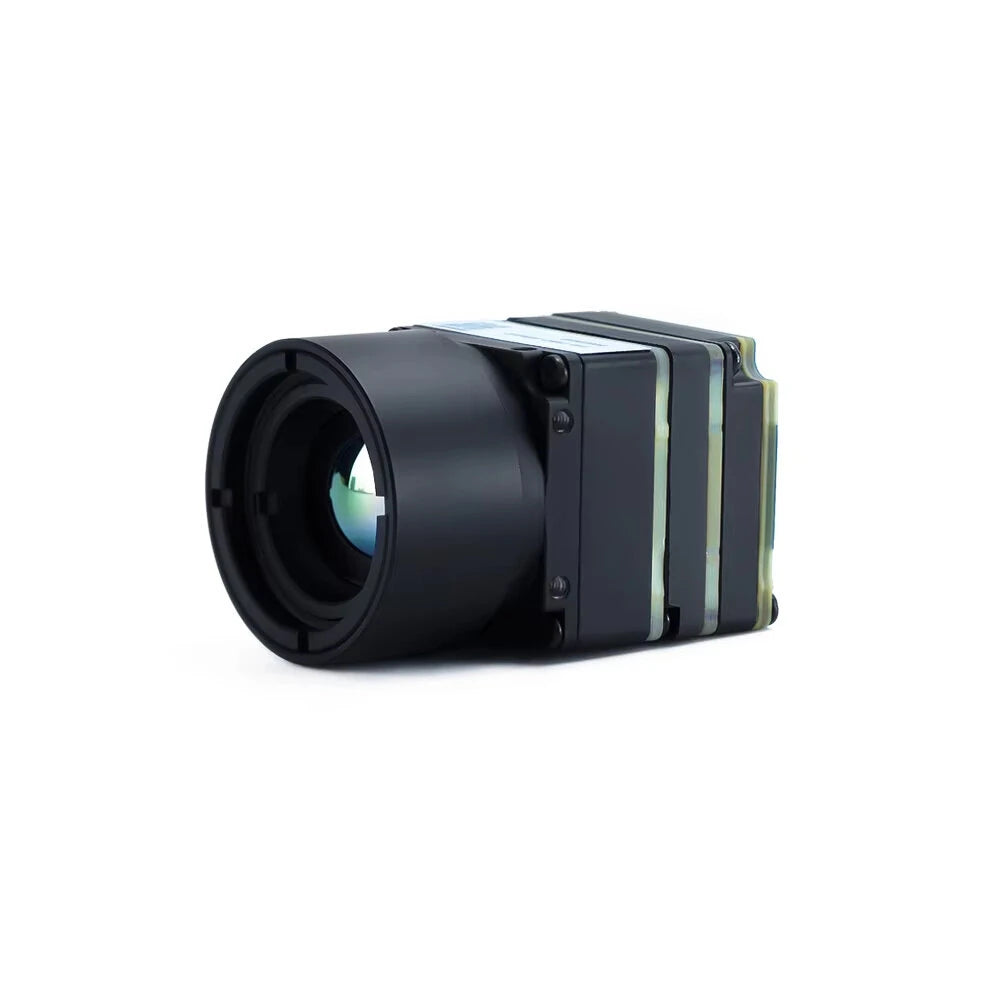

1 x Axisflying High Resolution Thermal Imaging Camera
