Description
Specification:
Brand: Axisflying
Model: Manta 5 PRO

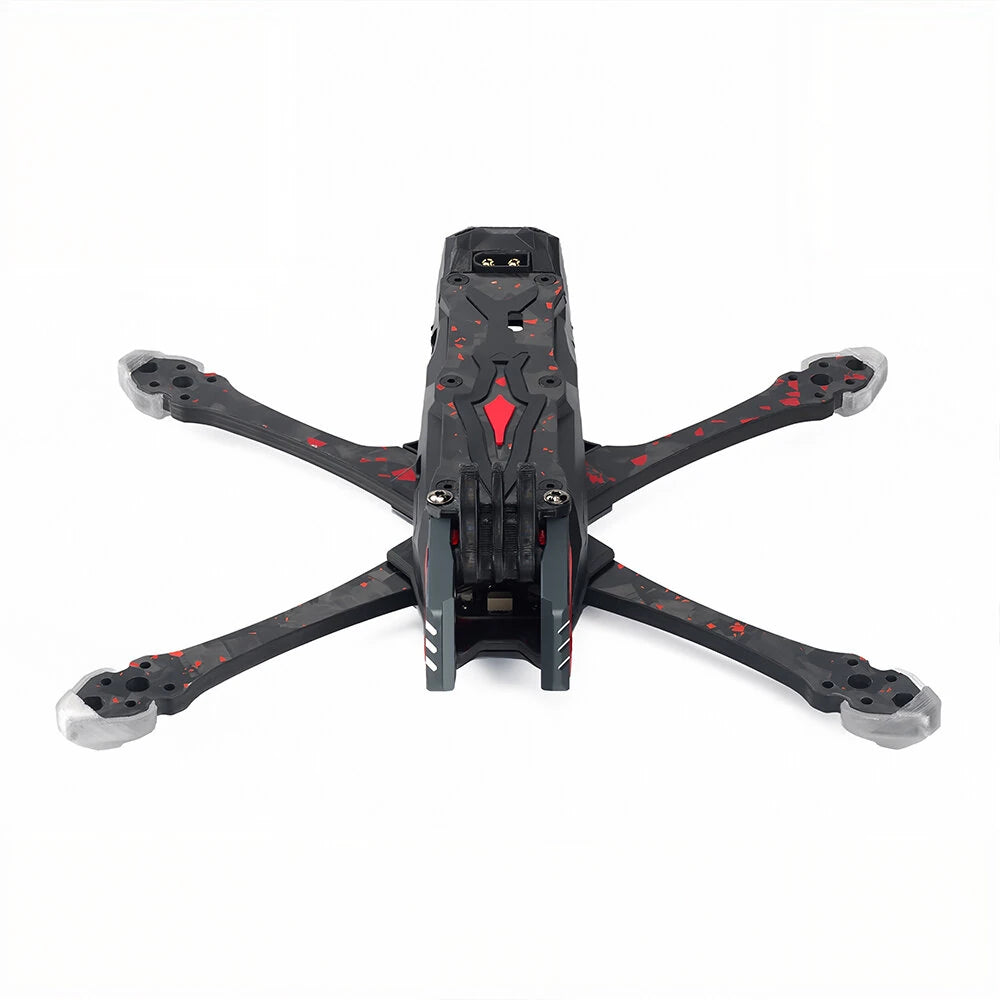

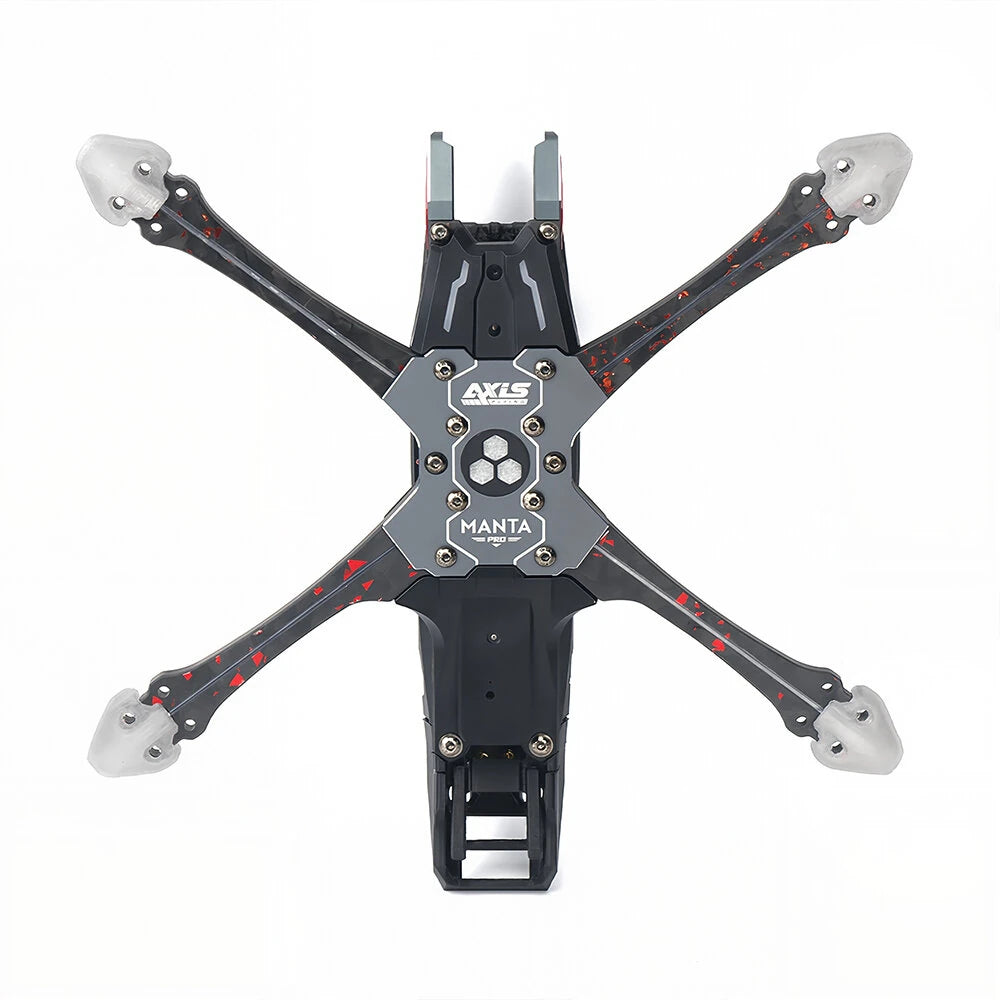

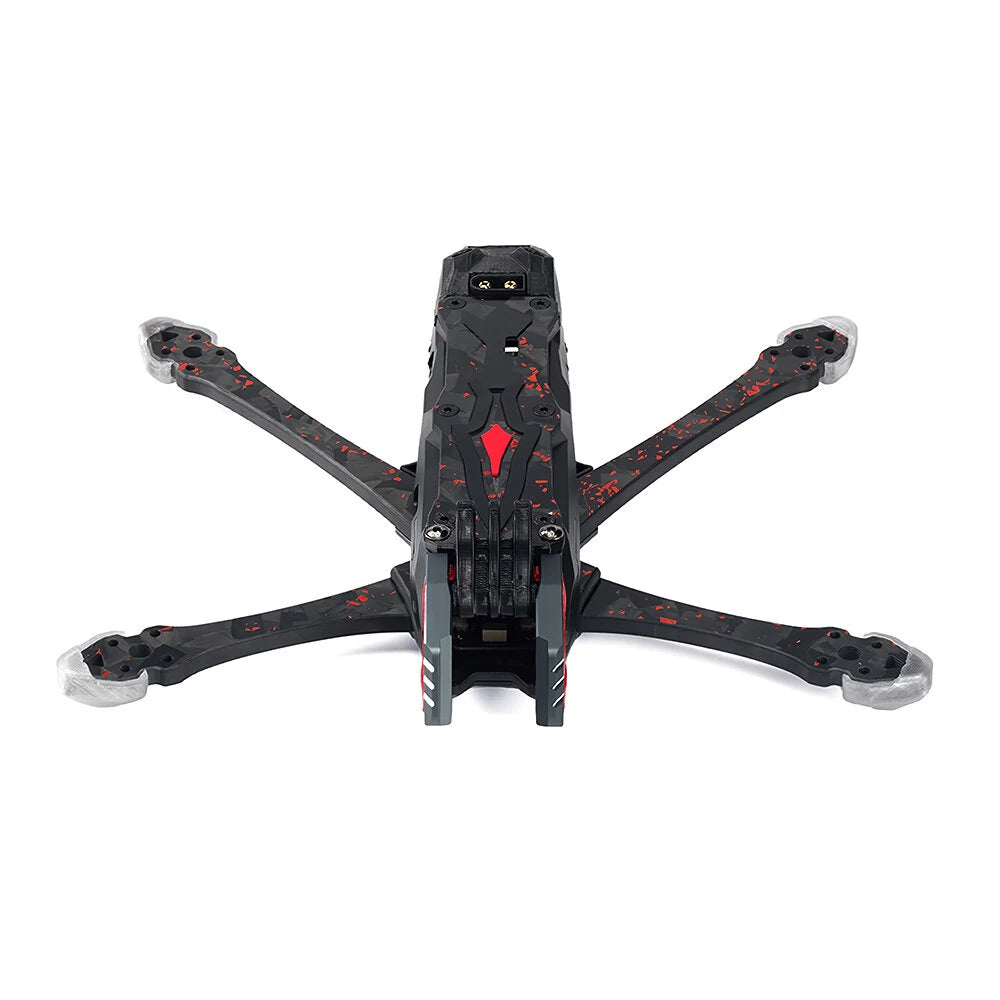

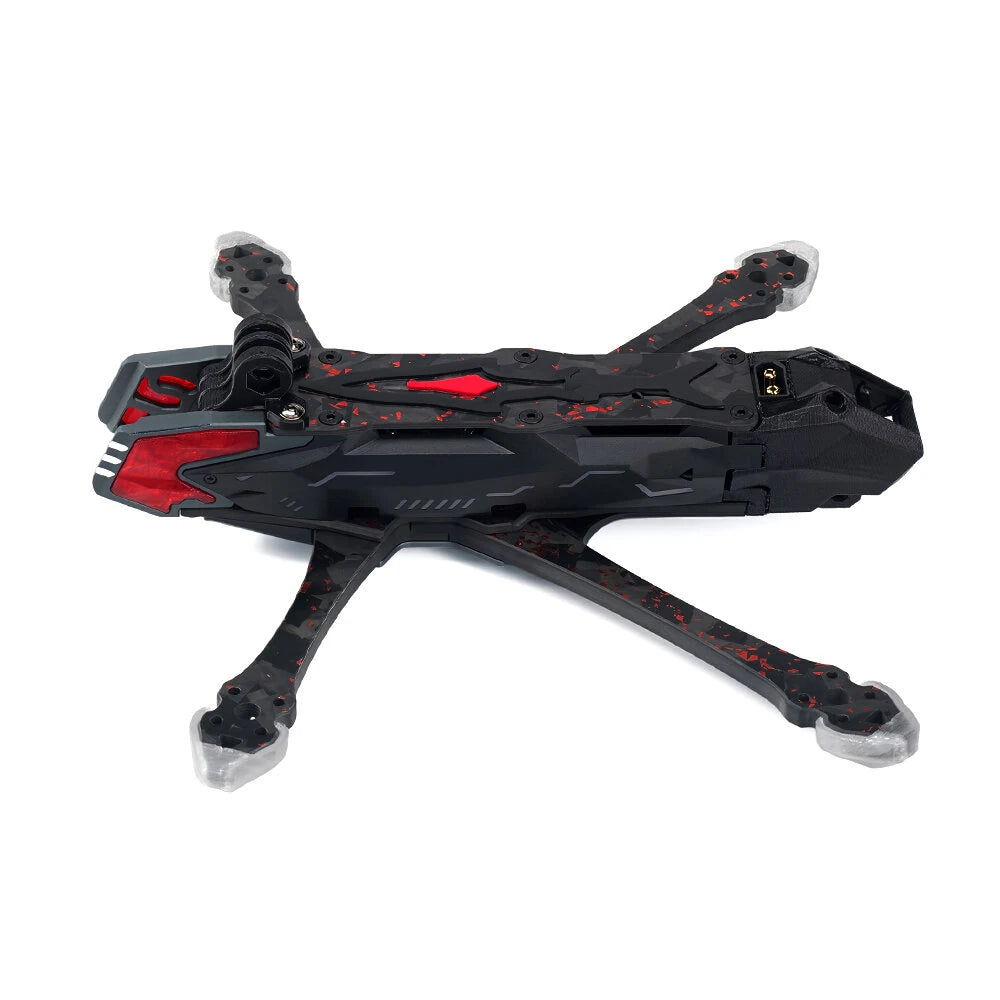

Item Name: Manta 5 Pro DC Frame Kit / Manta 5 Pro Squashed X Frame Kit
Item |
Specification |

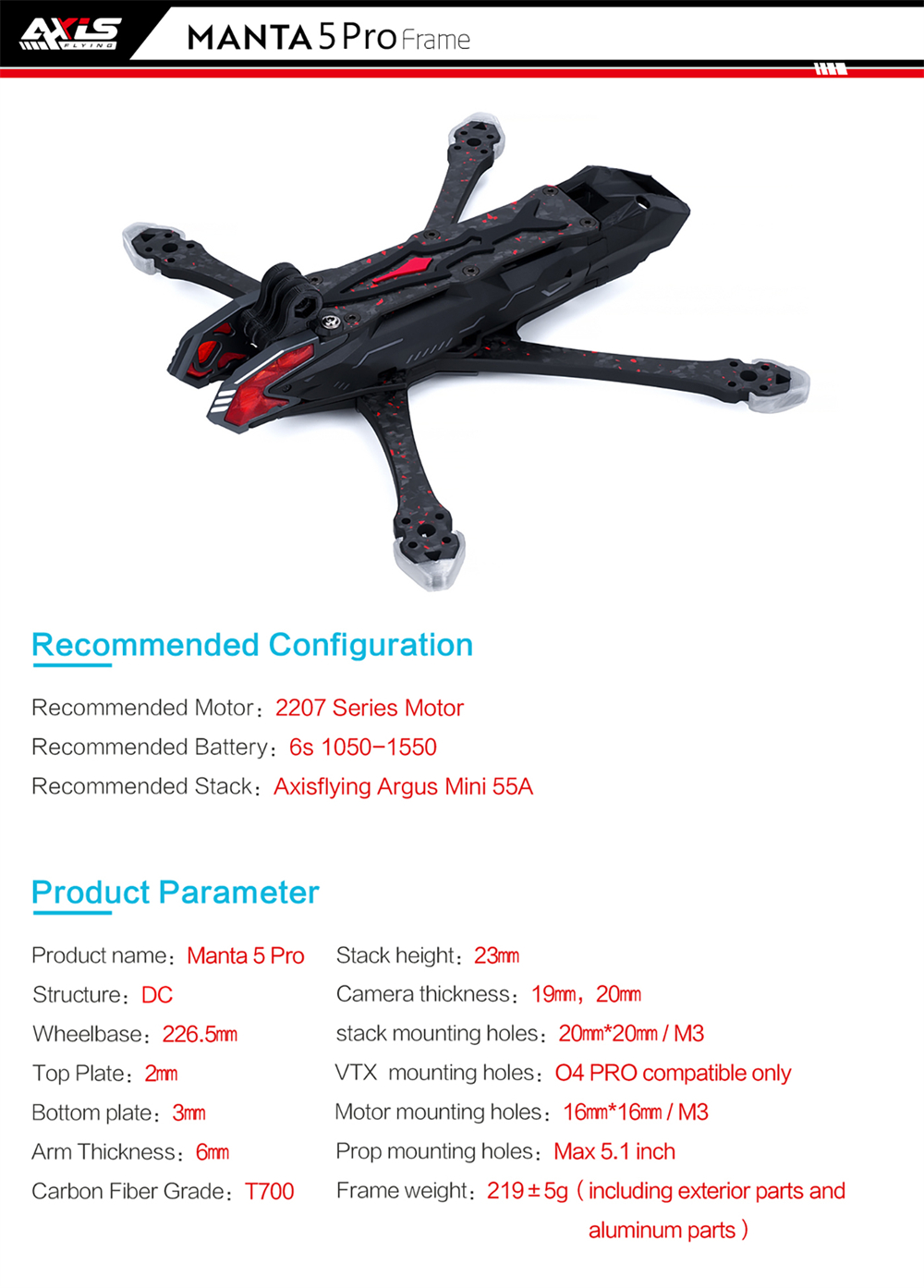

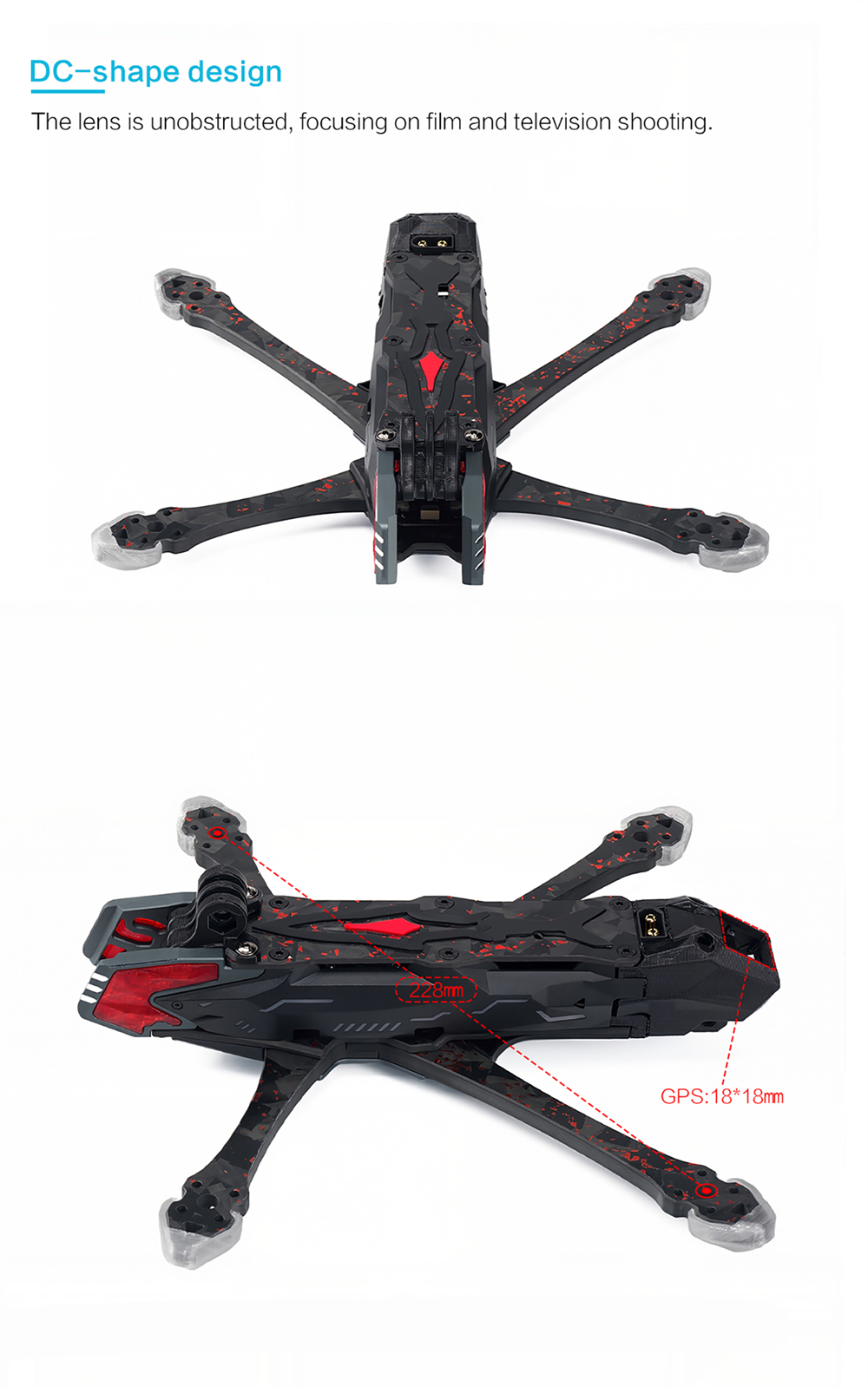

Manta 5 Pro DC Frame Kit |

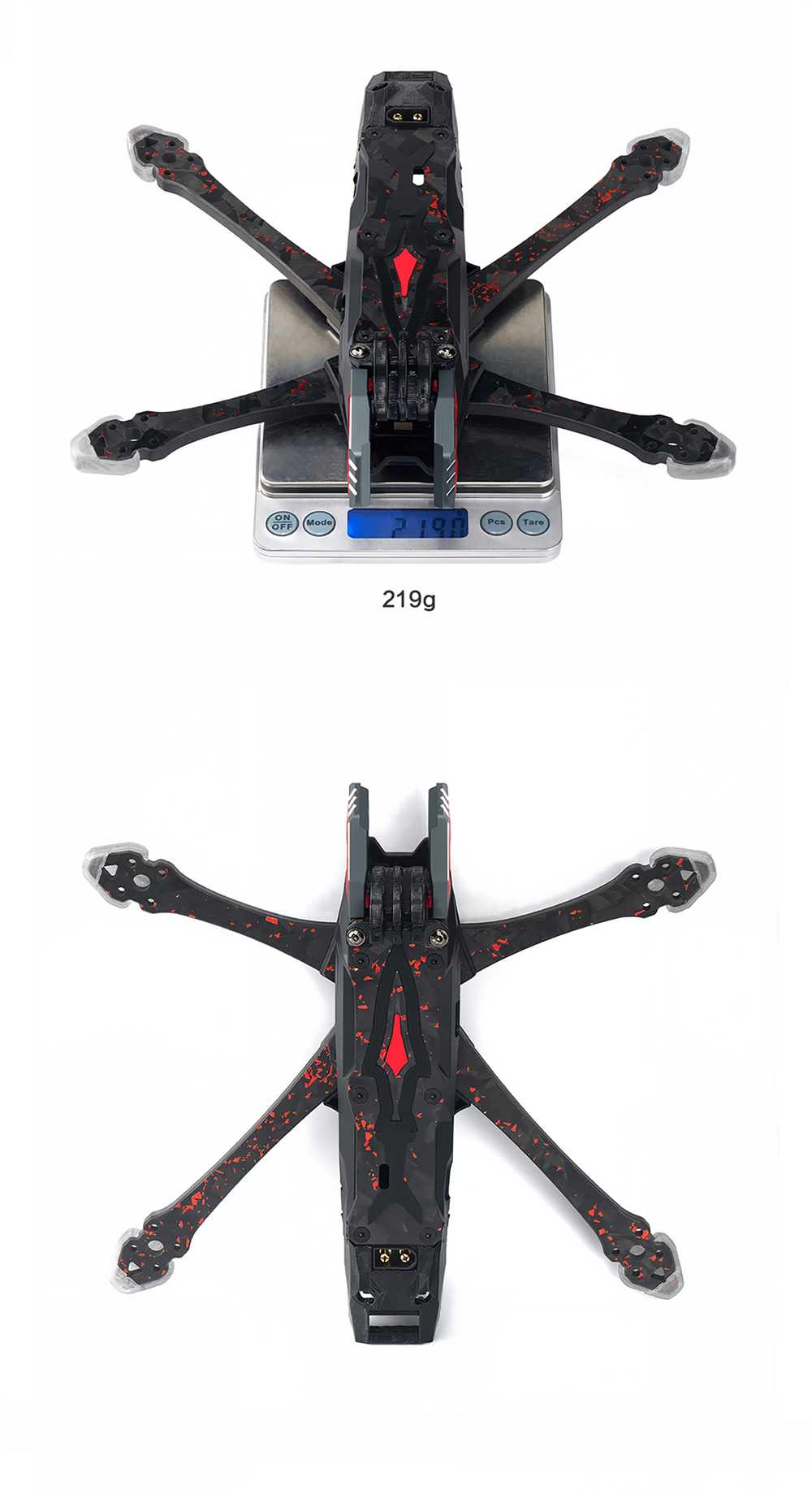

Structure: DC Wheelbase: 226.5mm Top Plate: 2mm Bottom Plate: 3mm Arm Thickness: 6mm Carbon Fiber Grade: T700 Stack Height: 23mm Camera Thickness: 19mm, 20mm stack Mounting Holes: 20mm20mm / M3 VTX Mounting Holes: O4 PRO compatible only Motor Mounting Holes: 16mm*16mm / M3 Prop Mounting Holes: Max 5.1 inch Frame Weight: 219±5g (including exterior parts and aluminum parts) |

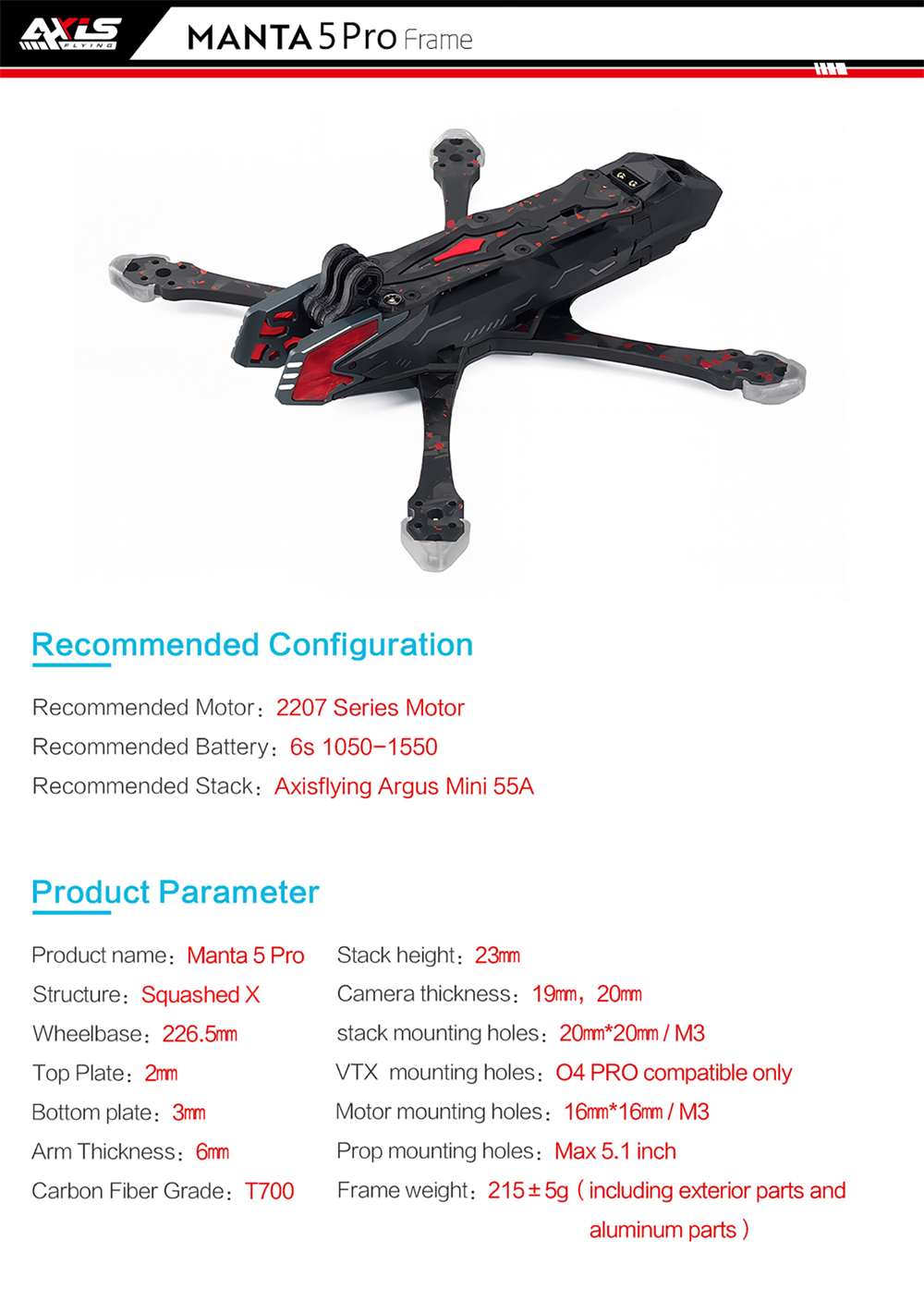

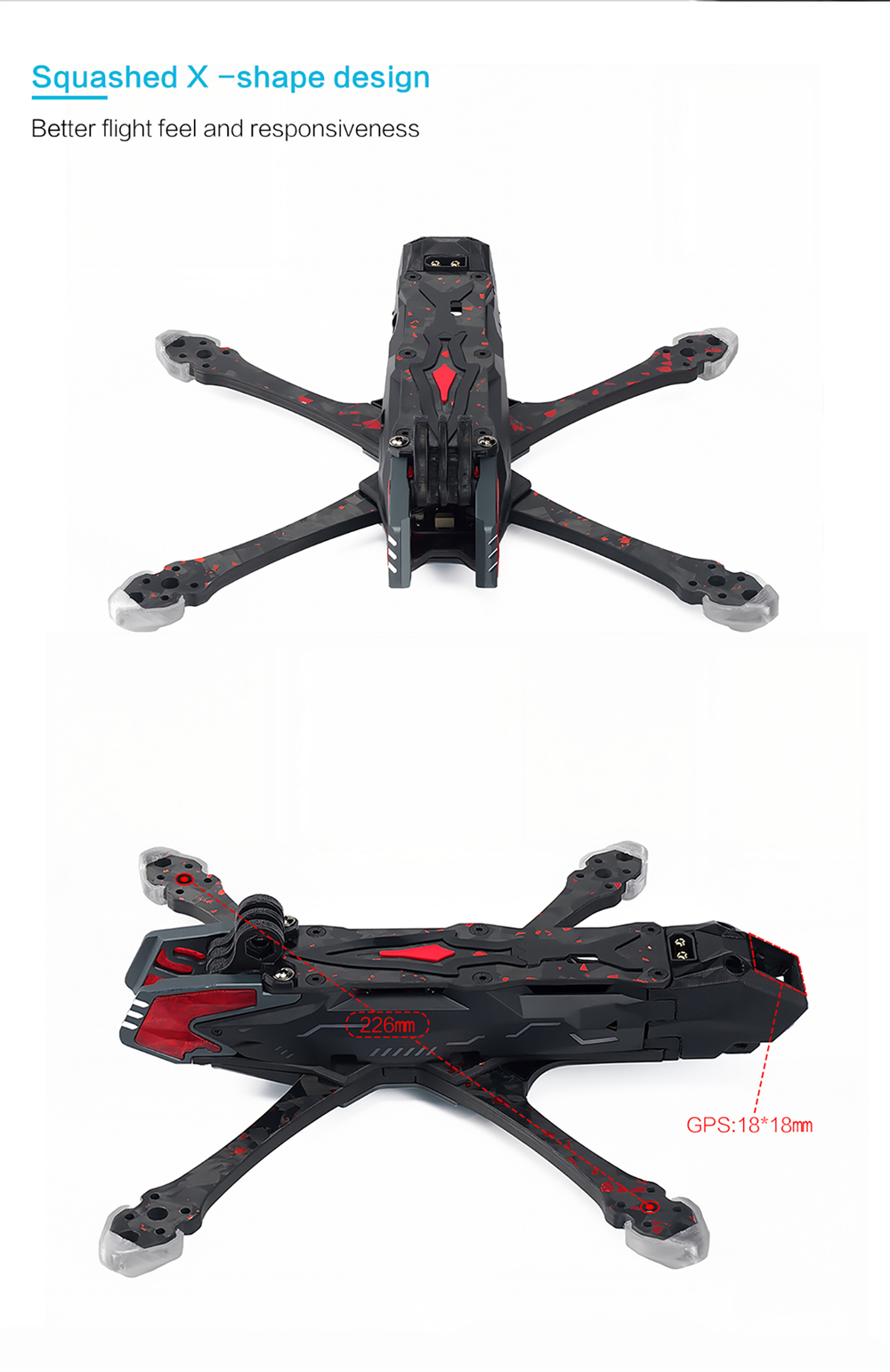

Manta 5 Pro Squashed X Frame Kit |

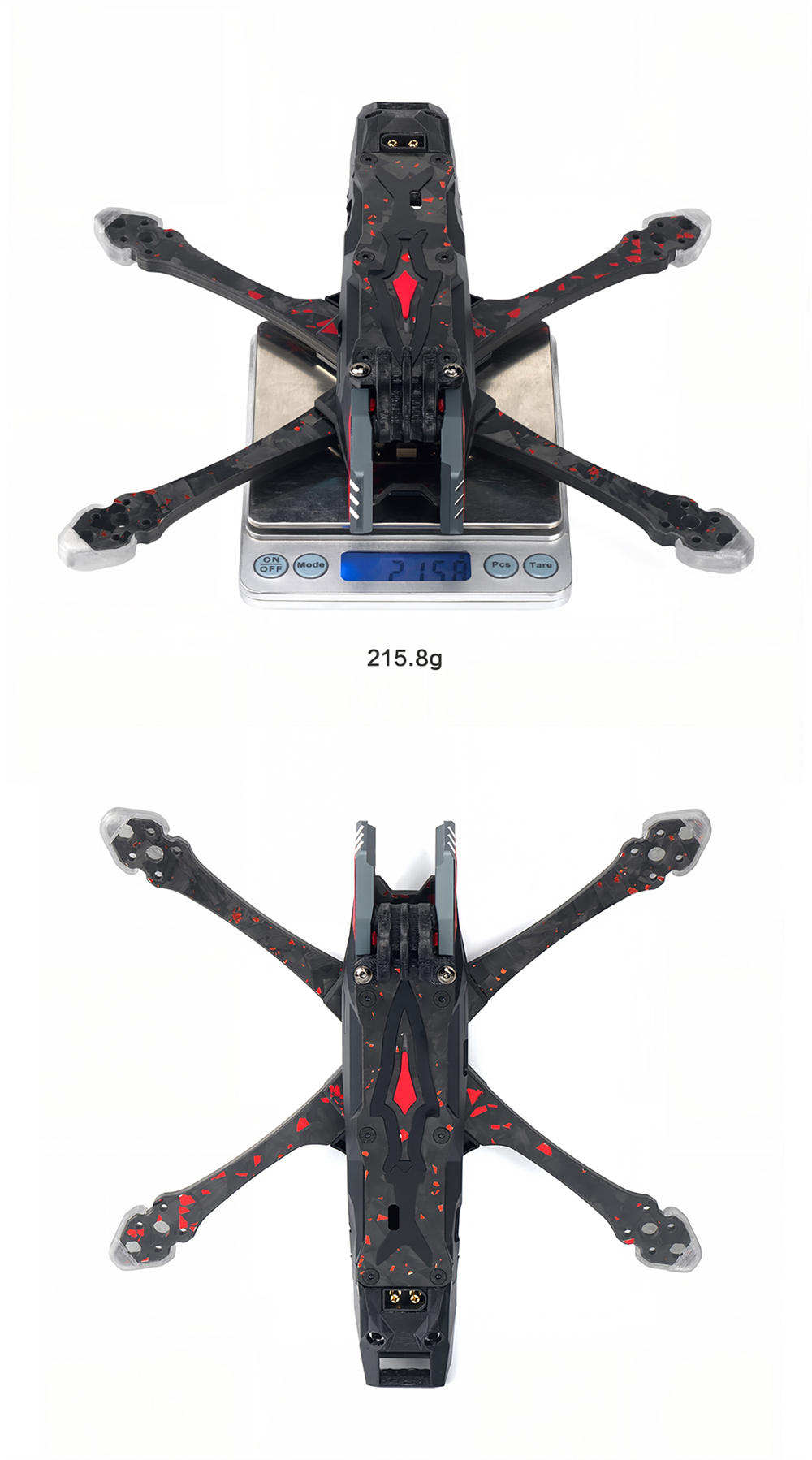

Structure: Squashed X Wheelbase: 226.5mm Top Plate: 2mm Bottom Plate: 3mm Arm Thickness: 6mm Carbon Fiber Grade: T700 Stack Height: 23mm Camera Thickness: 19mm, 20mm stack Mounting Holes: 20mm20mm / M3 VTX Mounting Holes: O4 PRO compatible only Motor Mounting Holes: 16mm*16mm / M3 Prop Mounting Holes: Max 5.1 inch Frame Weight: 215±5g (including exterior parts and aluminum parts) |
Recommended Parts(Not included):
Motor: Axisflying AE2207 V2 2207 1960KV 6S Brushles Motor / GEPRC SPEEDX2 2207 1960KV 6S Brushless Motor
VTX & Camera: DJI O4 Pro Air Unit
FC & ESC: Axisflying Argus Mini 55A
Propeller: 6 Pairs iFlight Nazgul F5 5.1Inch 3-blade Propeller

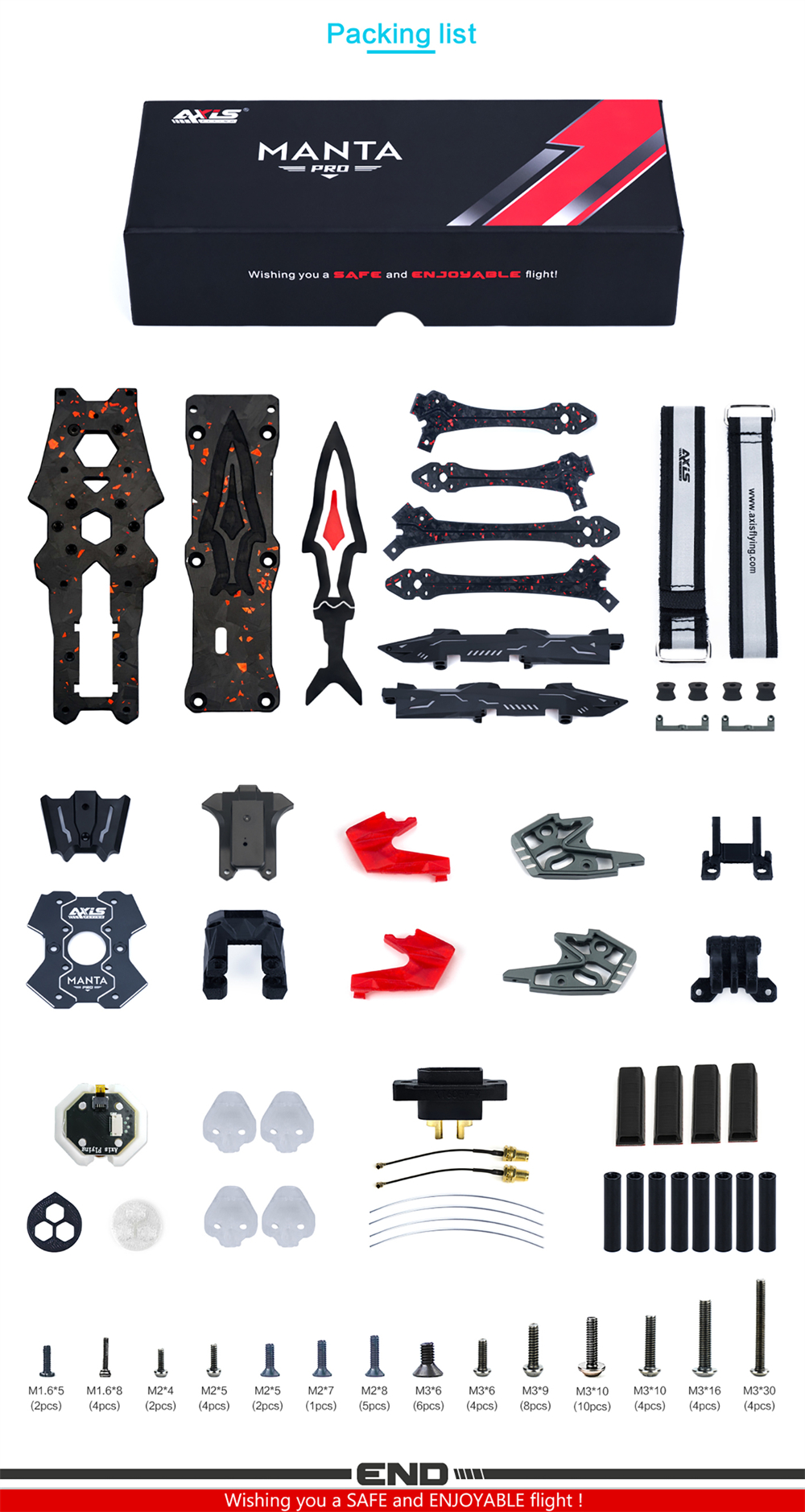

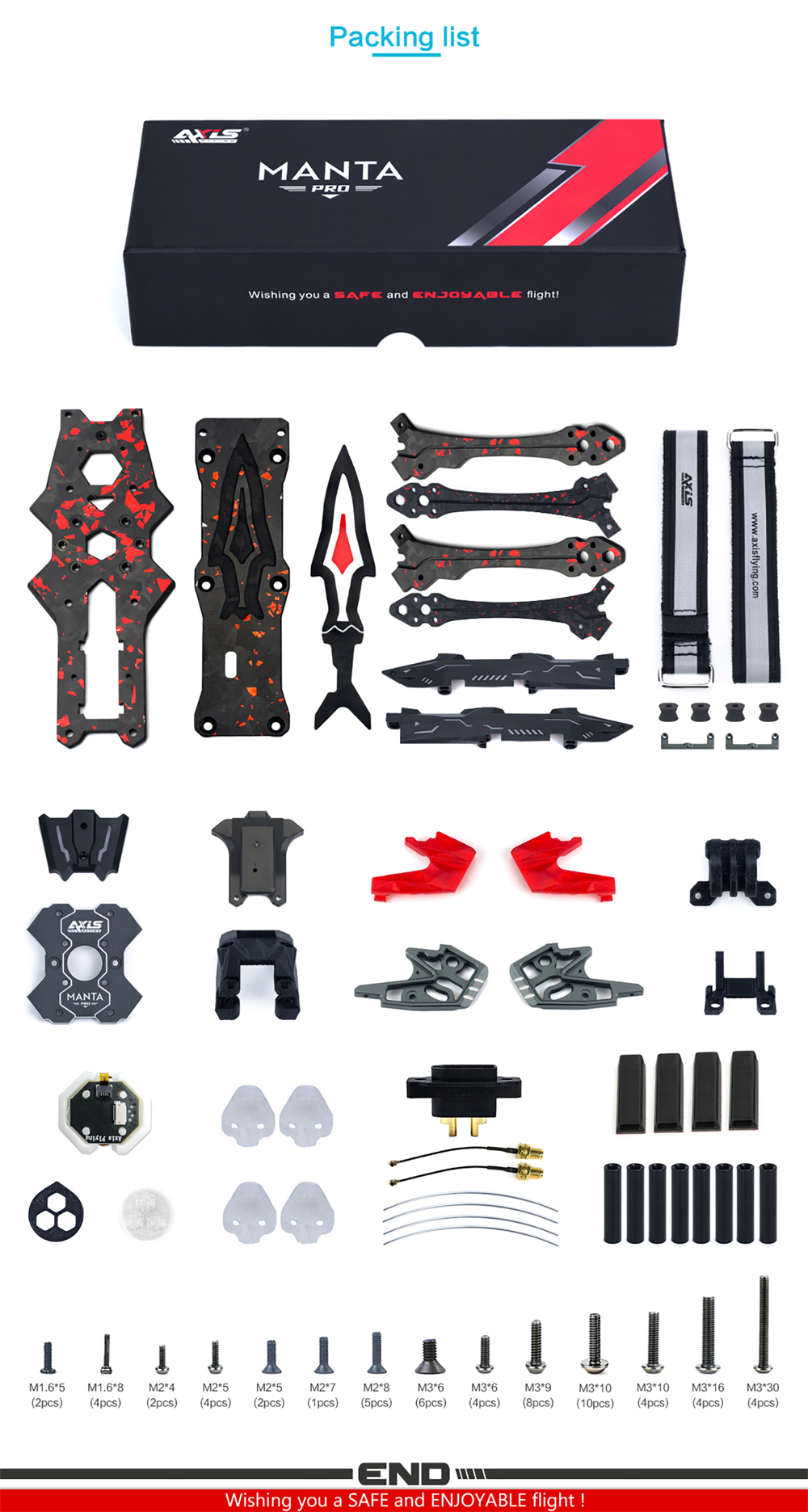

Package Included:
1 x Frame Kit
