Description
Description:

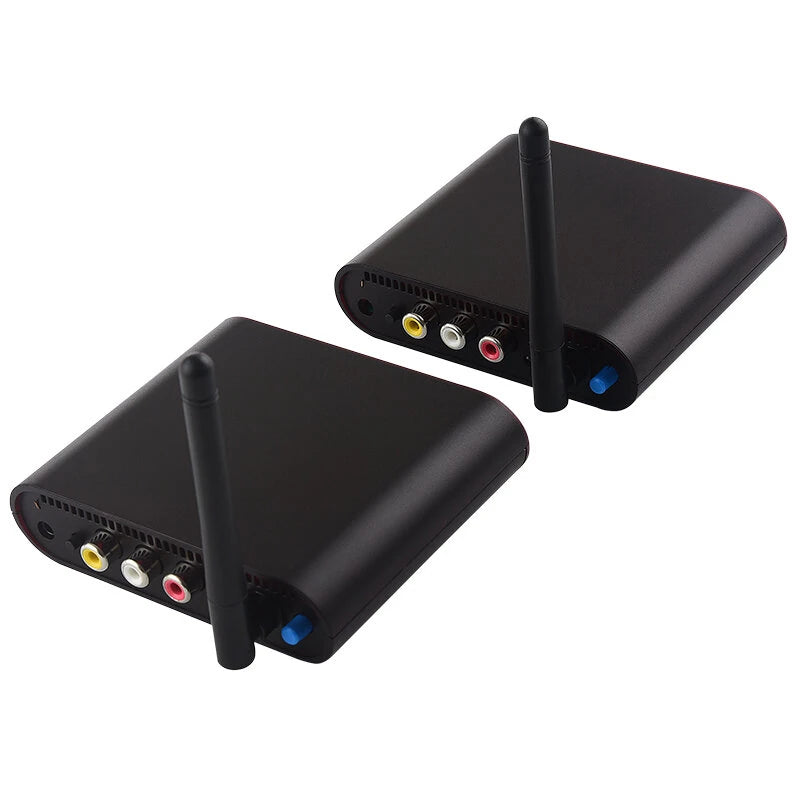

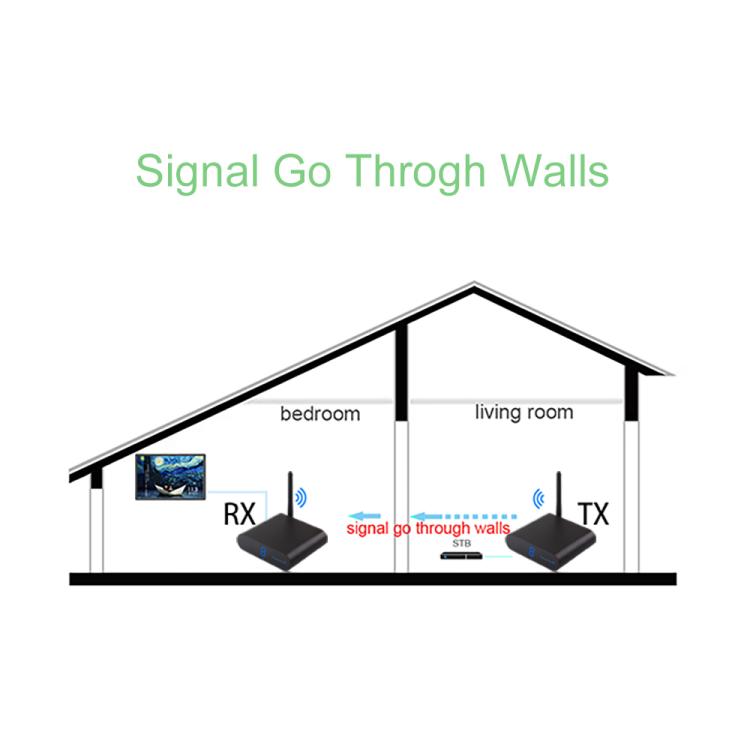

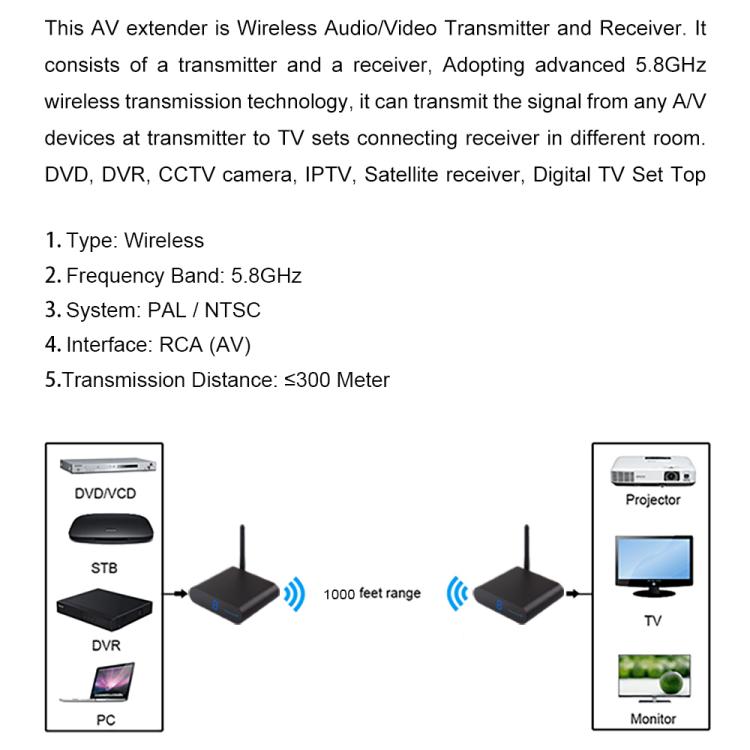

AV530 is Wireless Audio/Video Transmitter and Receiver. It consists of a transmitter and a receiver, Adopting advanced 5.8GHz wireless transmission technology, it can transmit the signal from any A/V devices at transmitter to TV sets connecting receiver in different room. DVD, DVR, CCTV camera, IPTV, Satellites receiver, Digital TV Set Top Box etc.
Specifications:
Transmitter/Receiver | |
Frequency |
5.8GHz |
Sensitivity |
-90dBm |
transmitted power |
50mW |
Channels |
8 groups |
Transmission range |
1000 feet |

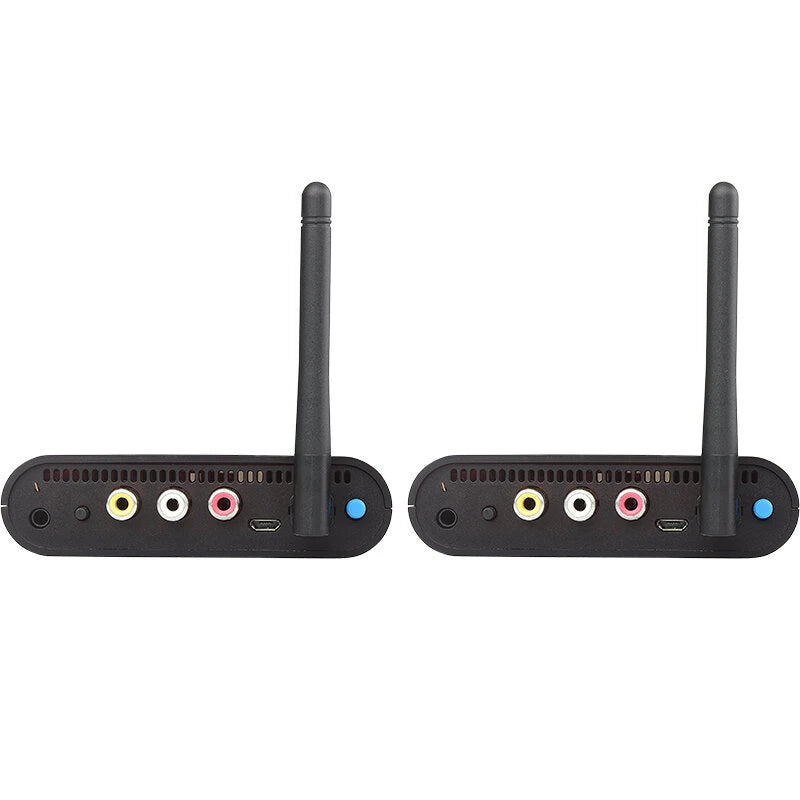

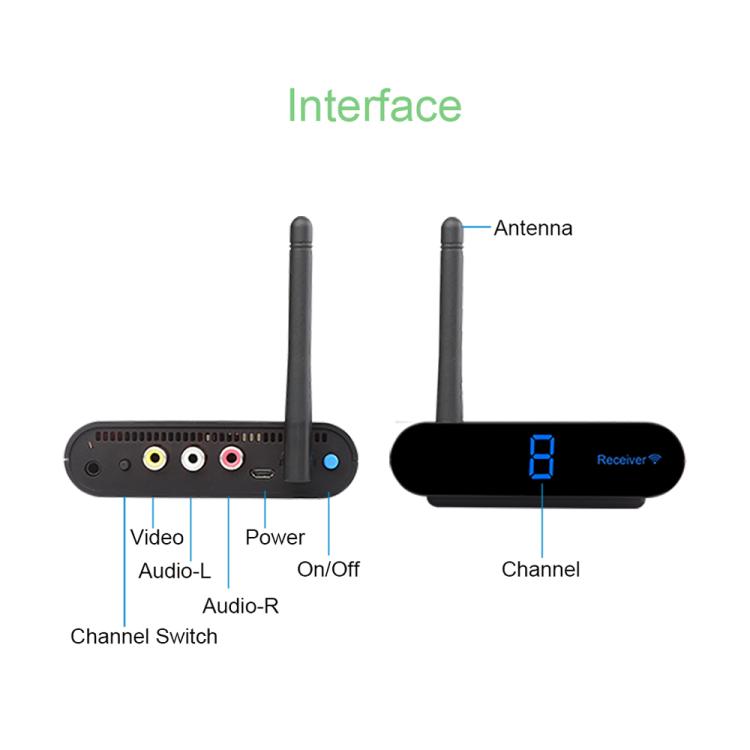

AV input/output |
RCA |
One video input/output |
1Vp-p（PAL/NTSC) |
One audio input/output |
1Vp-p（Stereo) |
Power input |
5V 1000mA |
Machine size |
100*1000*25mm |
Operating temperature |
32~104℉/0~40℃ |
Storage temperature |
-4~140℉/20~60℃ |
Humidity |
20~90RH |

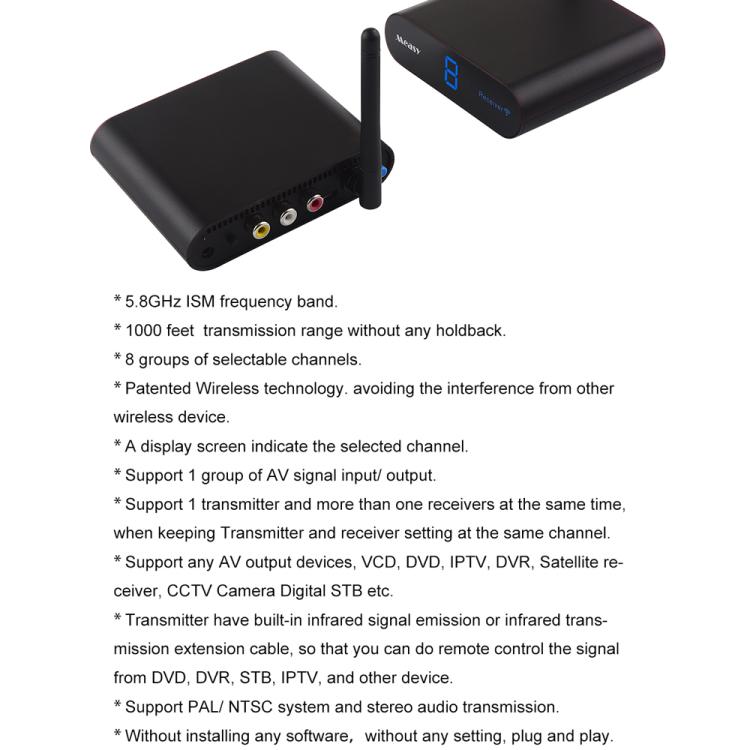

Features:
1. 5.8GHz ISM frequency band.

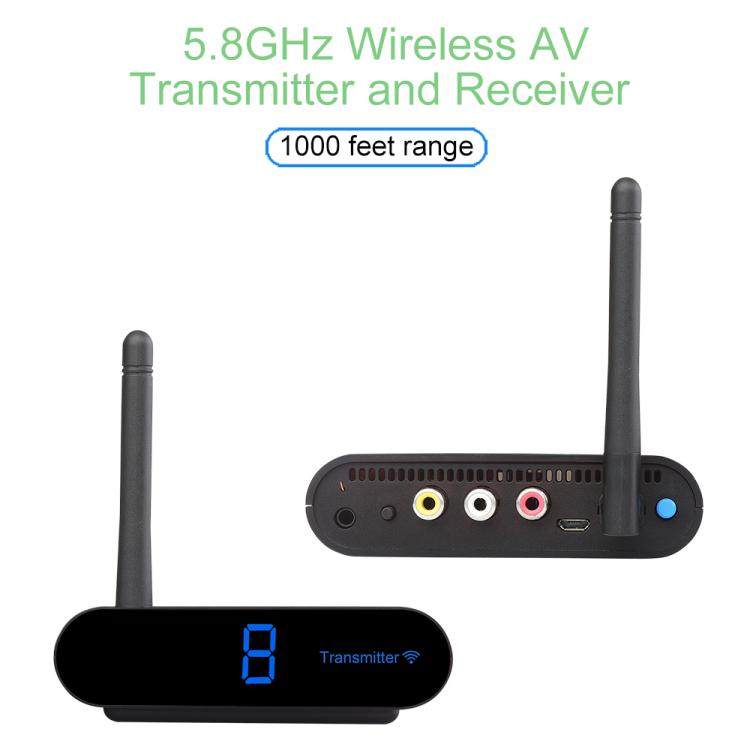

2. 1000 feet transmission range without any holdback.
3. 8 groups of selectable channels,
4. Patented Wireless technology. avoiding the interference from other wireless device.

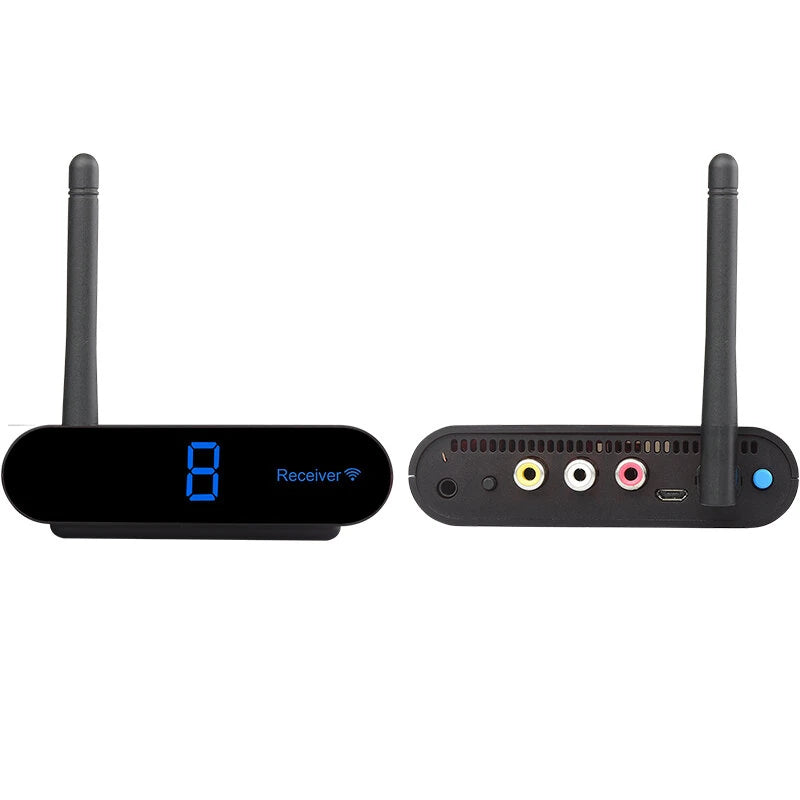

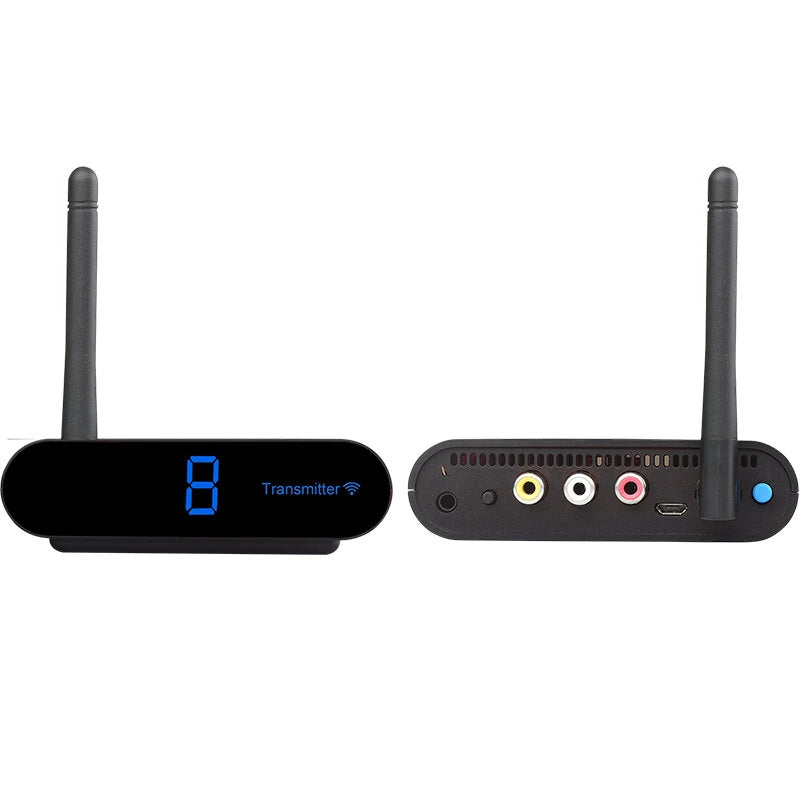

5. A display screen indicate the selected channel.
6. Support 1 group of AV signal input/ output.
7. Support 1 transmitter and more than one receivers at the same time, when keeping Transmitter and receiver setting at the same channel.
8. Support any AV output devices, VCD, DVD, IPTV, DVR, Satellites receiver, CCTV Camera Digital STB etc.
9. Support PAL/ NTSC system and stereo audio transmission
10. Without installing any software，without any setting, plug and play
Package Include:
1x Transmitter
1x Receivers
2x Power Adapter(Optional)
2x AV Cables
1x User Manual
