Description:

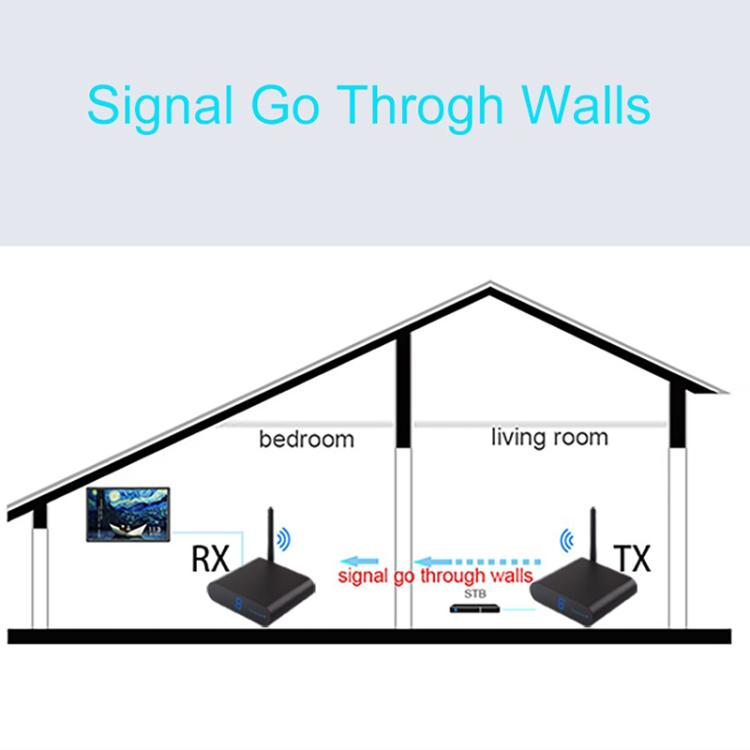

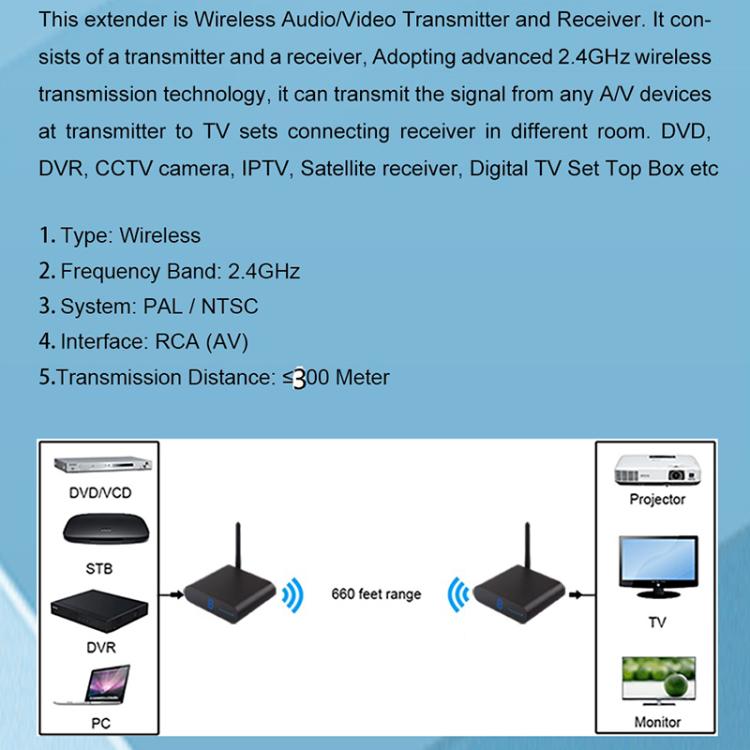

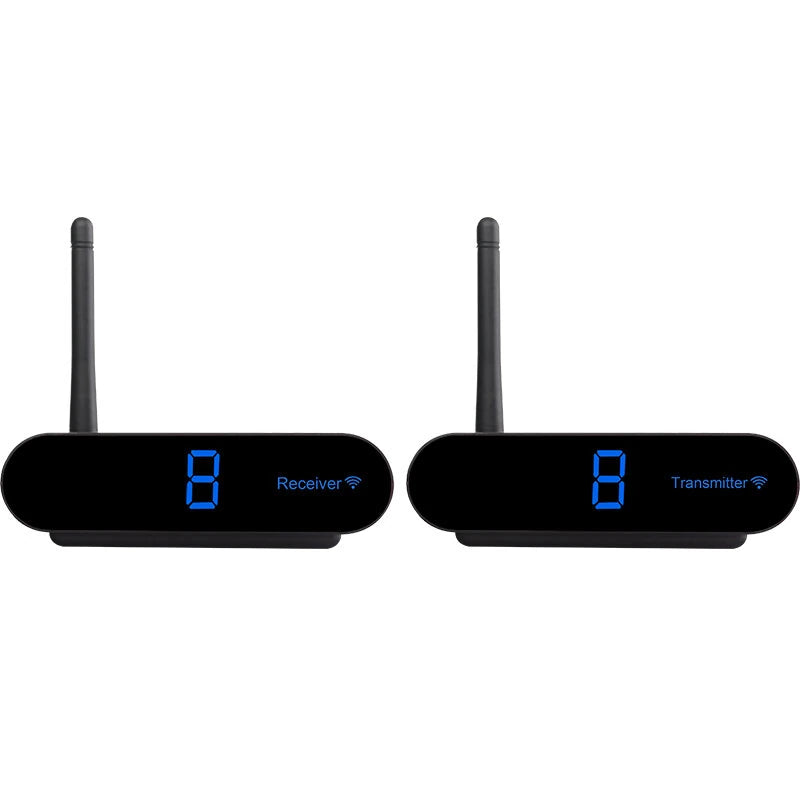

AV230 is Wireless Audio/Video Transmitter and Receiver. It consists of a transmitter and a receiver, Adopting advanced 2.4GHz wireless transmission technology, it can transmit the signal from any A/V devices at transmitter to TV sets connecting receiver in different room. DVD, DVR, CCTV camera, IPTV, Satellites receiver, Digital TV Set Top Box etc. Moreover, it can support the IR remote control at the receiver end to realize the function of wireless control of devices from another place.

Specifications:

Transmitter/Receiver
Frequency	2.4GHz
Sensitivity	-90dBm
transmitted power	50mW
Channels	8 groups
Transmission range	990 feet

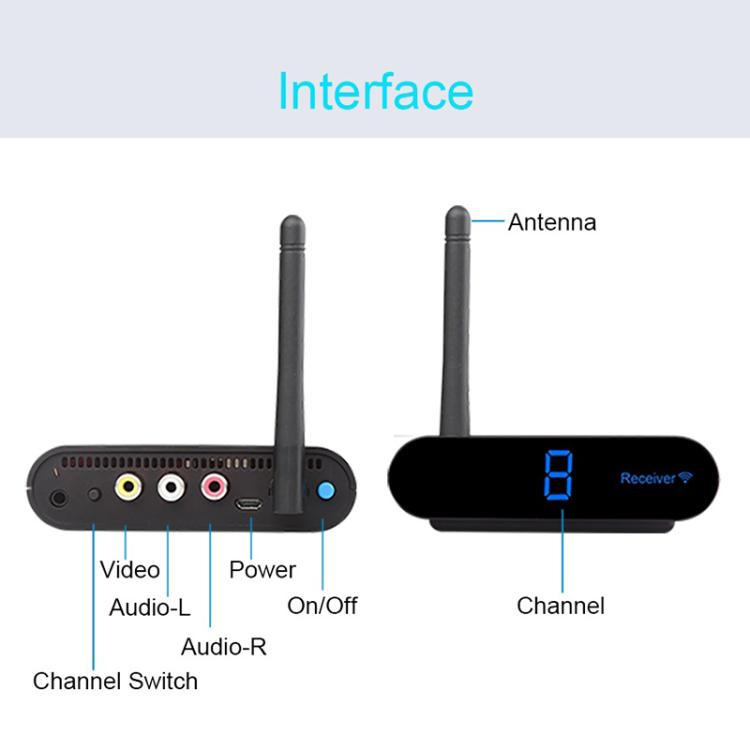

AV input/output	RCA
One video input/output	1Vp-p（PAL/NTSC)
One audio input/output	1Vp-p（Stereo)
Power input	5V/1000mA
Machine size	100*1000*25mm
Operating temperature	32~104℉/0~40℃
Storage temperature	-4~140℉/20~60℃
Humidity	20~90RH

Features:
1. 2.4GHz ISM frequency band.
2. 990 feet transmission range without any holdback.
3. 8 groups of selectable channels,
4. Patented Wireless technology. avoiding the interference from other wireless device.
5. A display screen indicate the selected channel.
6. Support 1 group of AV signal input/ output.
7. Support 1 transmitter and more than one receivers at the same time, when keeping Transmitter and receiver setting at the same channel.
8. Support any AV output devices, VCD, DVD, IPTV, DVR, Satellites receiver, CCTV Camera Digital STB etc.
9. Support PAL/ NTSC system and stereo audio transmission
10. Without installing any software，without any setting, plug and play

Package Include:
1x Transmitter

2x Receiver

2x Power Adapter(EU/US Optional)

2x AV Cables

1x User Manual
