Color: Red
Price:
R 1,569.70 R 1,893.64
Stock:
In Stock. Shipping via Courier.



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

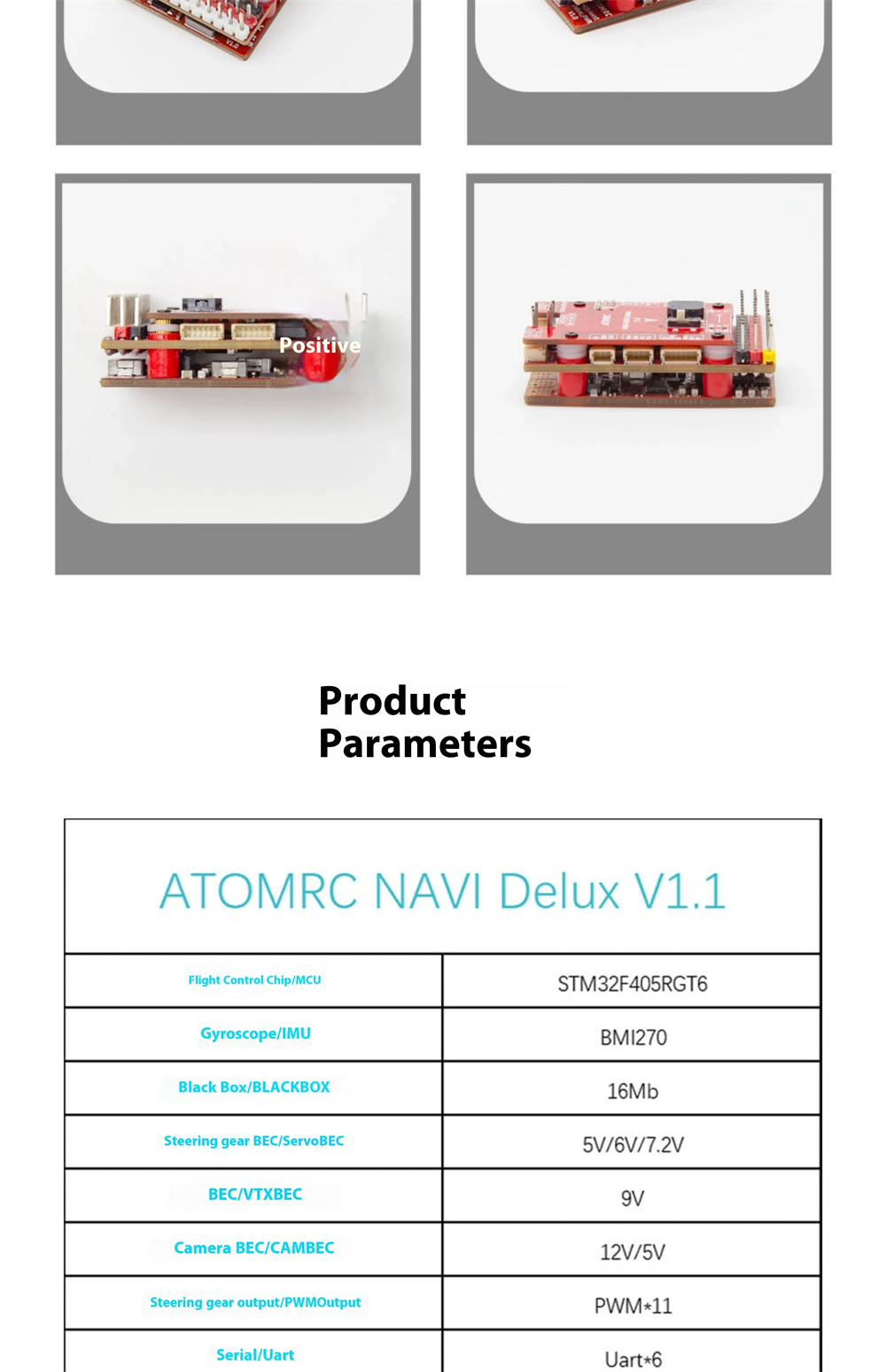

Specification:

Brand: ATOMRC

Model: F405 NAVI Delux

MCU: STM32F405RGT6

IMU: BMI270

Black Box: 16Mb

Servo BEC: 5V/6V/7.2V

VTX BEC: 9V

CAM BEC: 12V/5V

PWM Output: PWM*11

Uart: Uart+6

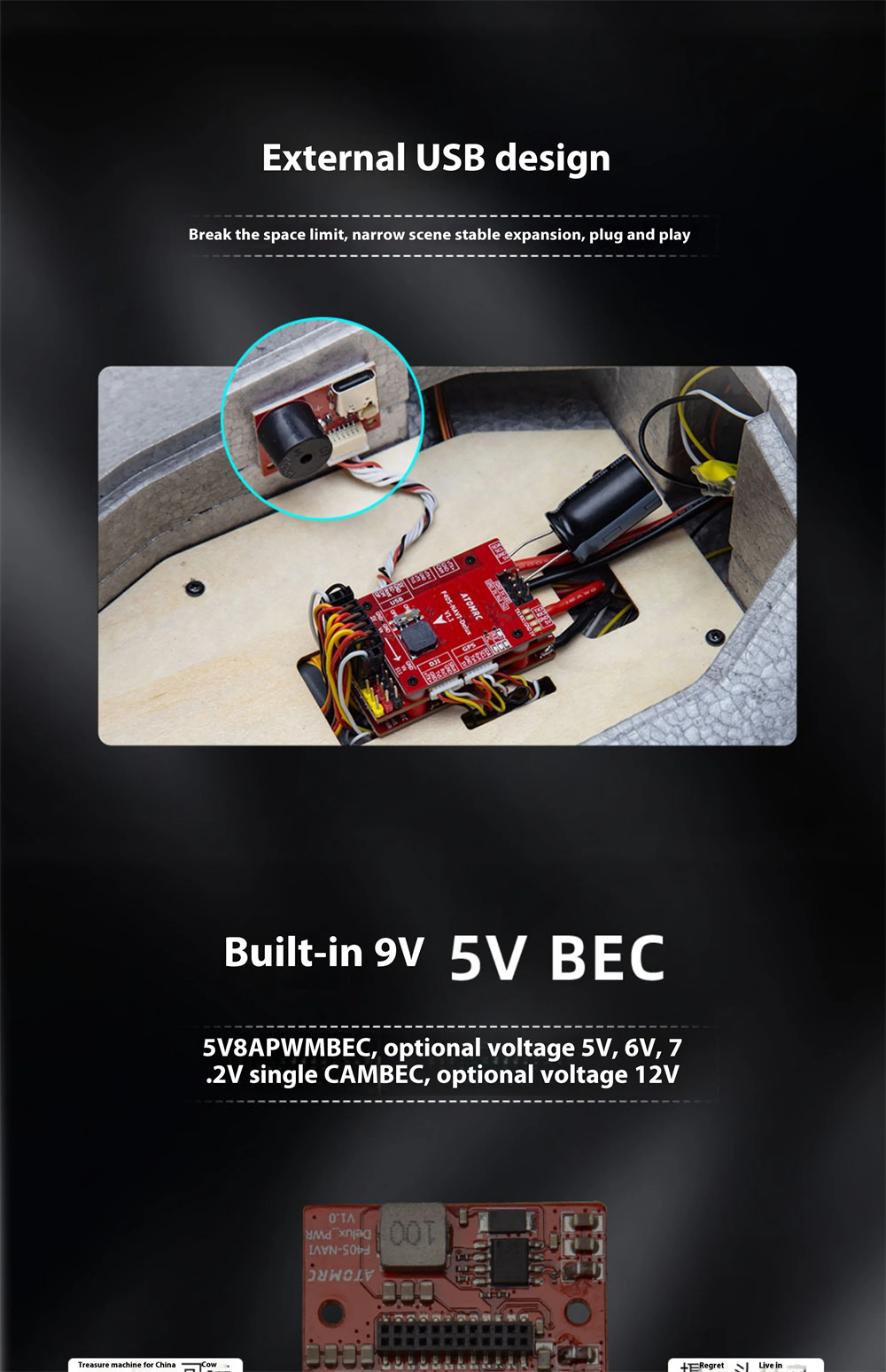

External USB-C Port: Buzzer/BOOT/Type C

LED: WS2812 LED Strip

Firmware: ArduPilot:ATOMRC F405 NAVI Delux; INAV:ATOMRC F405 NAVI Delux

Ammeter: 200A

Voltage Input: 12~30V (3~6S Lipo)

Mount Hole: 30×24x3 (mm)

Weight: 29g

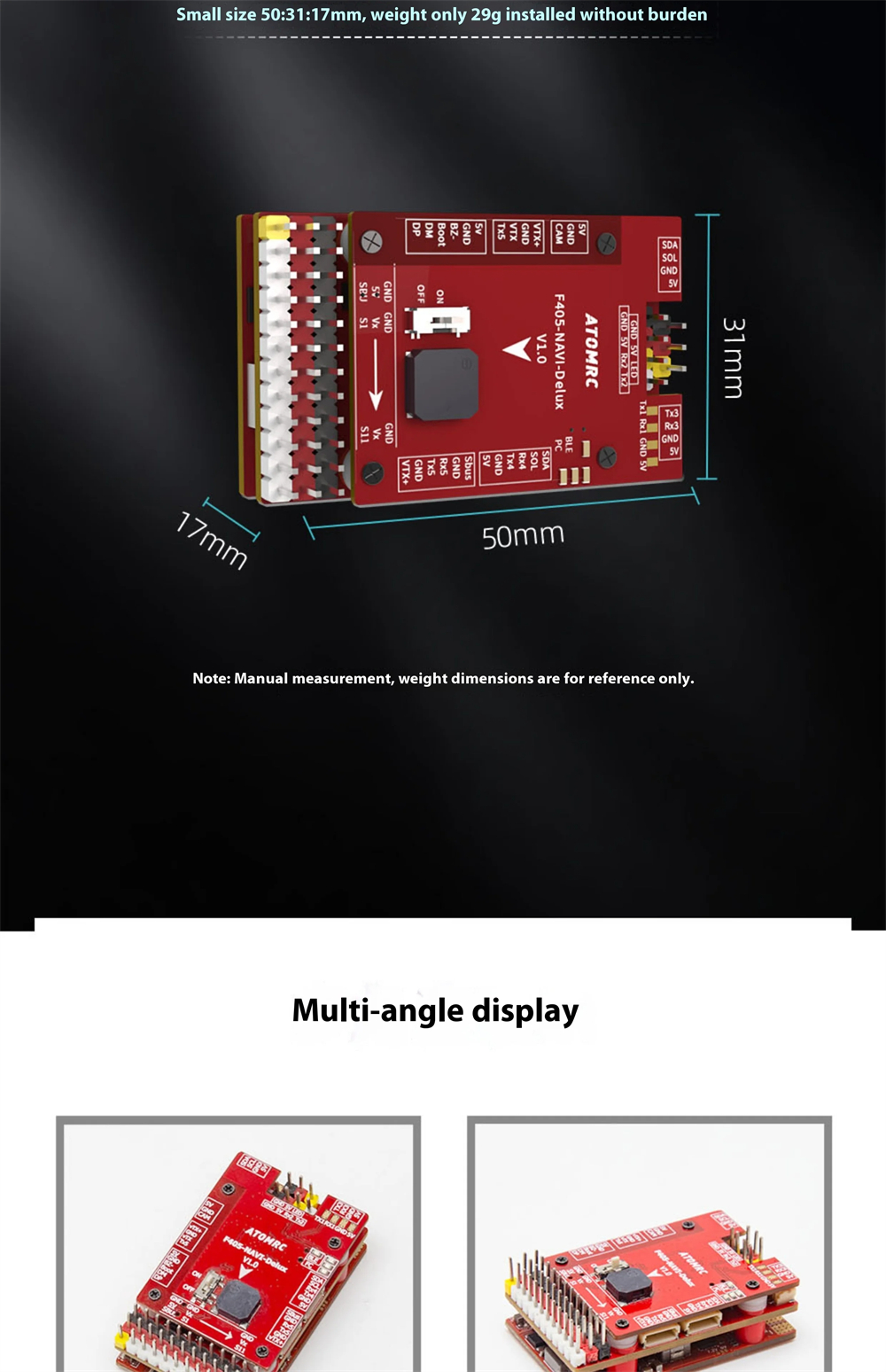

Size: 50×31×17 (mm)


Feature:

1. Powerful MCU for Smooth Control: Integrated STM32F405RTG6 chip ensures high-speed processing and stable operation, ideal for INAV and ArduPilot firmware compatibility.

2. Built-in Bluetooth and WiFi Module: Equipped with Bluetooth module and WiFi functionality for convenient wireless parameter adjustments.

3. High Precision Sensors: Comes with BMI270 IMU and 200A current sensor for enhanced flight safety and precise telemetry readings.

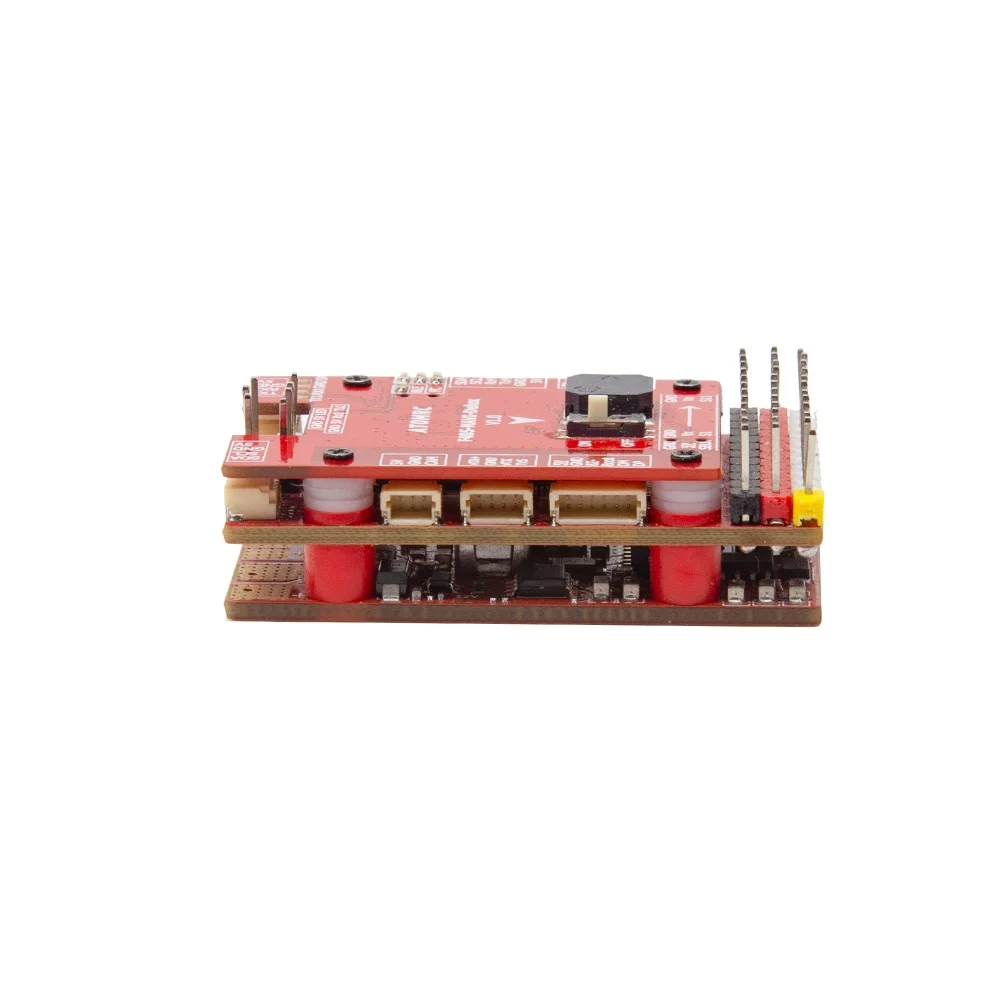

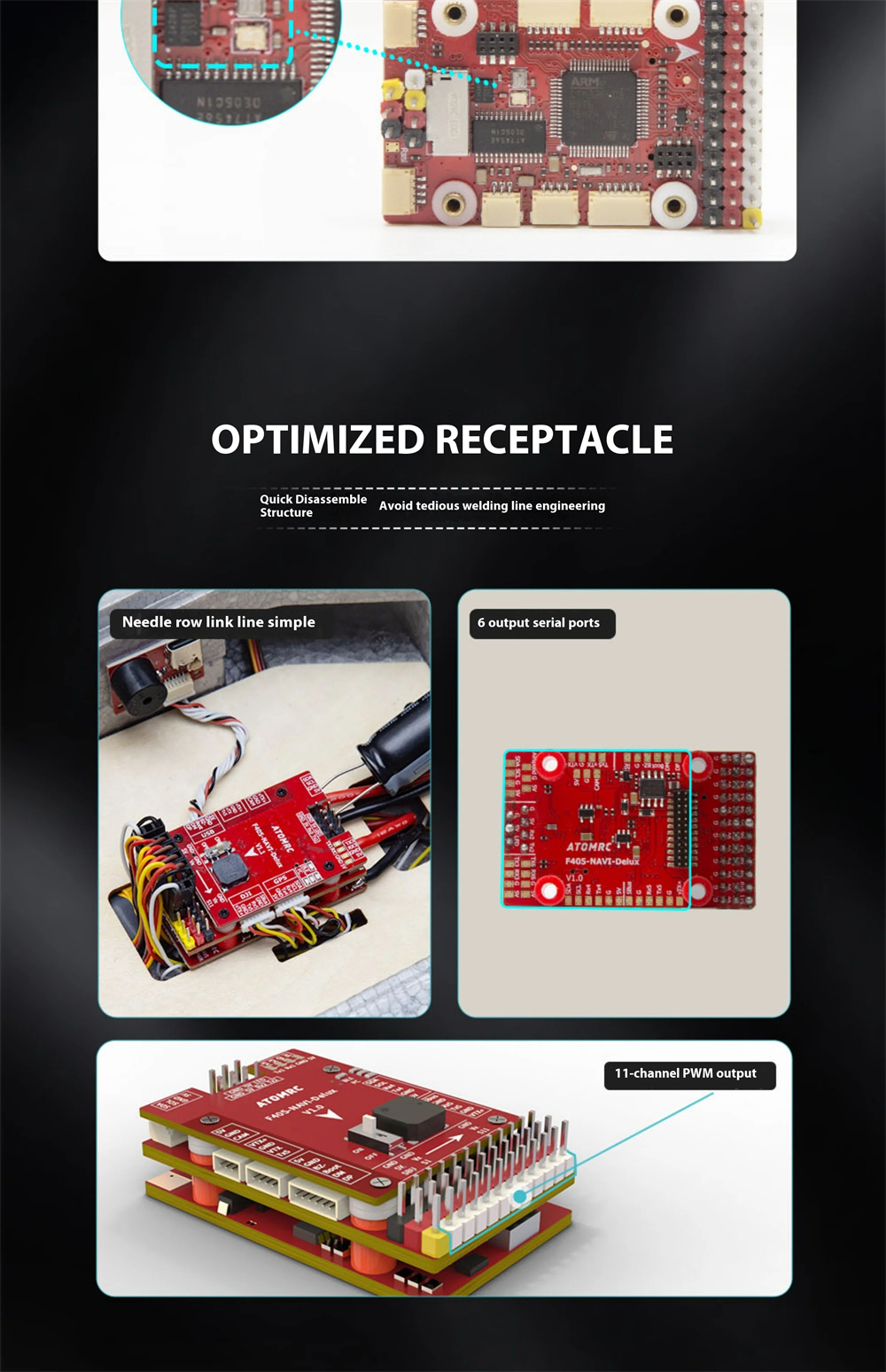

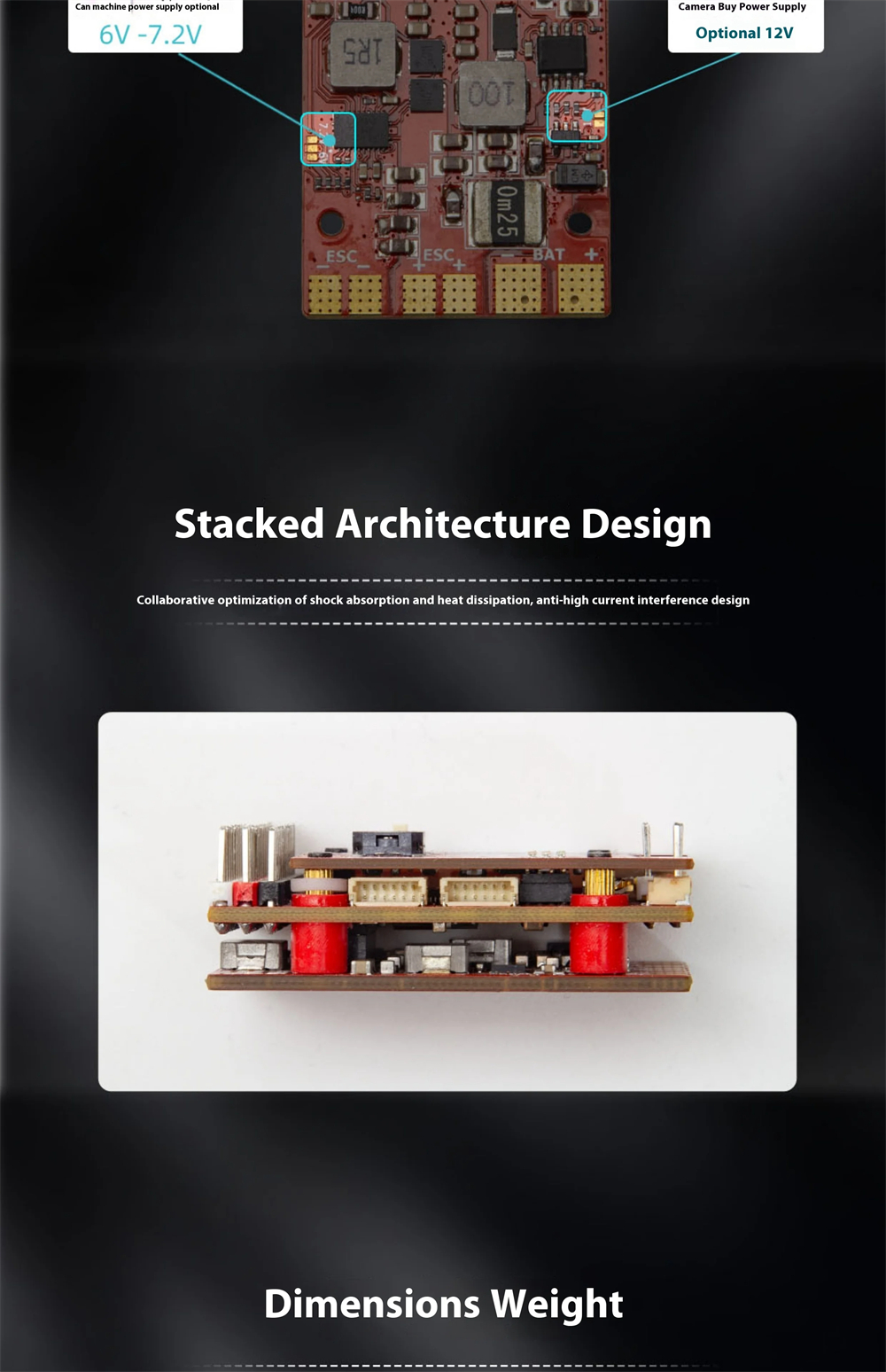

4. Optimized Structural Design: Compact layered build with reduced heat dissipation interference for more efficient performance in tight installation spaces.

5. Versatile BEC Options: Supports multiple outputs including 5V/6V/7.2V servo BEC and 12V/5V camera BEC, accommodating diverse power needs.

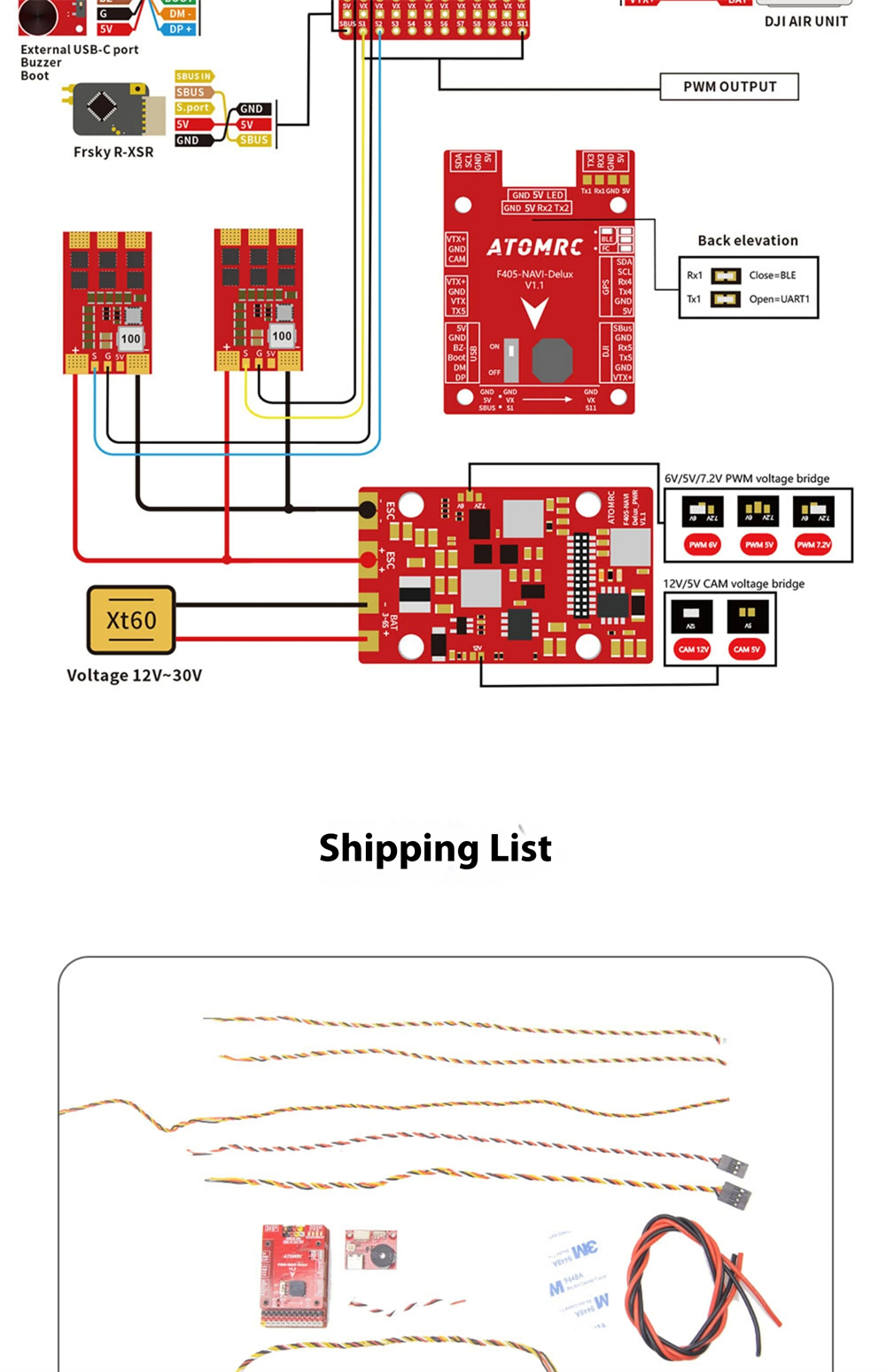

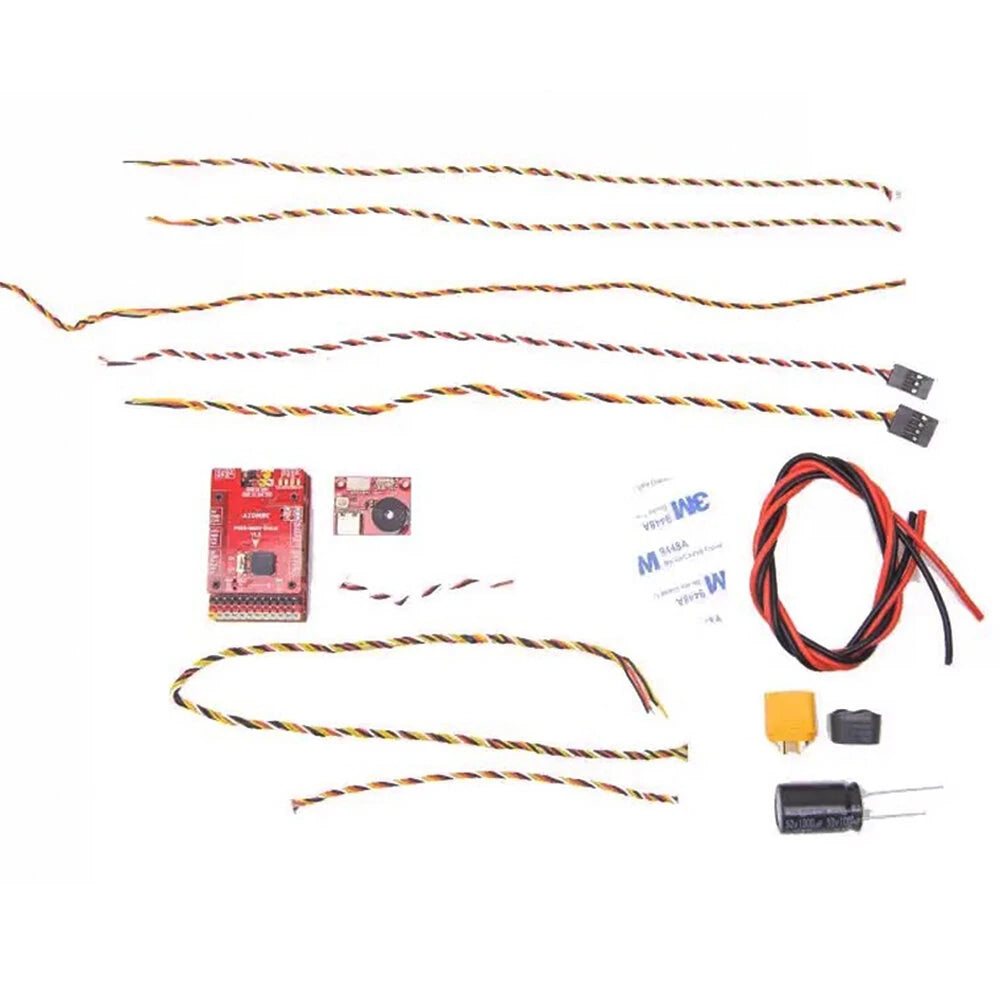

Package Included:

1 x F405 NAVI Delux V1.1

1 x F405 NAVI Delux PWR V1.1

1 x F405 NAVI Delux BLE V1.1

4 x M2*11 Copper Column

12 x 1.0 White Shock-Absorbing Pads

8 x M2*4.5*2.6 Flat Head Cross Screws

1 x F405 NAVI USB L=70mm

1 x F405 NAVI DJI L=400mm

1 x F405 NAVI GPS L=150mm

1 x F405 USB Small Board

1 x F405 USB Small Board 3M Adhesive

1 x F405 NAVI CAM 3PIN L=300mm

2 x F405 NAVI UART 4PIN L=300mm

1 x DuPont 4PIN L=300mm

1 x DuPont 3PIN L=300mm

1 x 16AWG Red and Black Power Cable L=300mm

1 x F405 NAVI Delux Flight Controller 3M Adhesive

1 x 50V 1000uf Capacitor

1 x XT60 Connector
