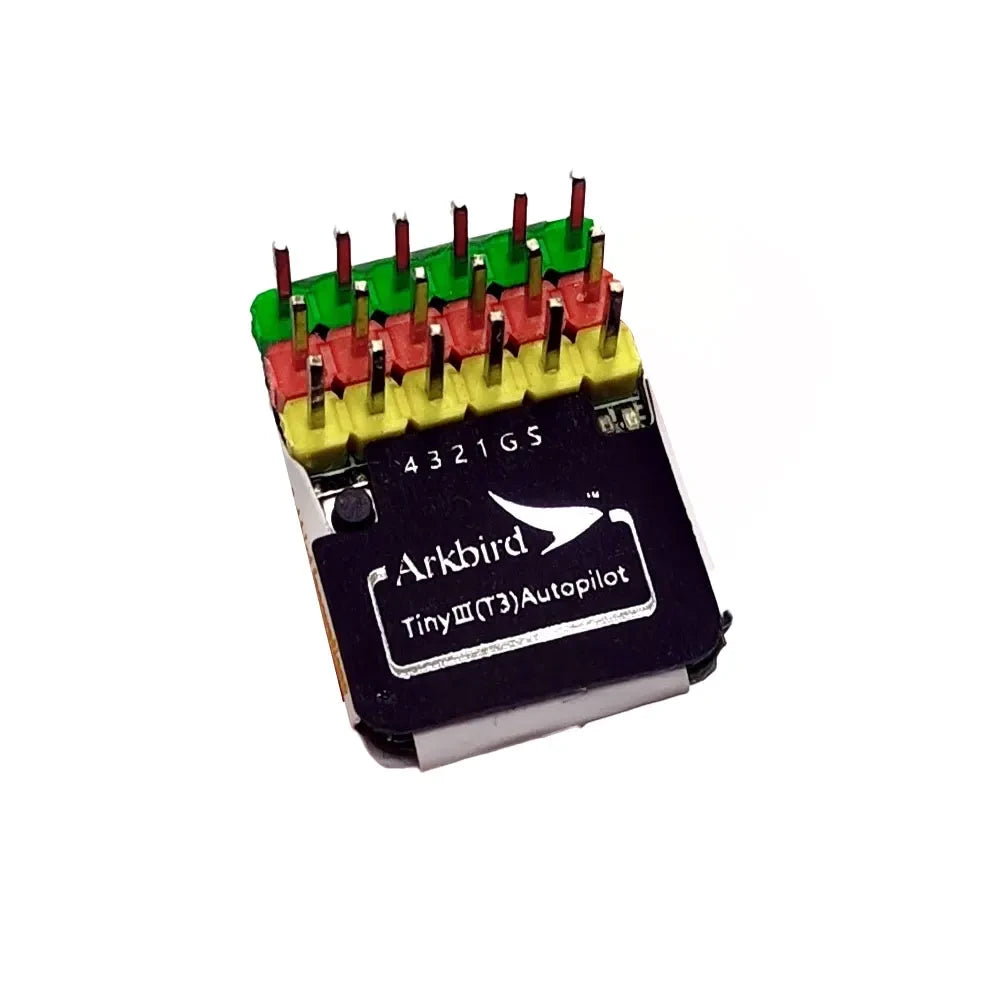

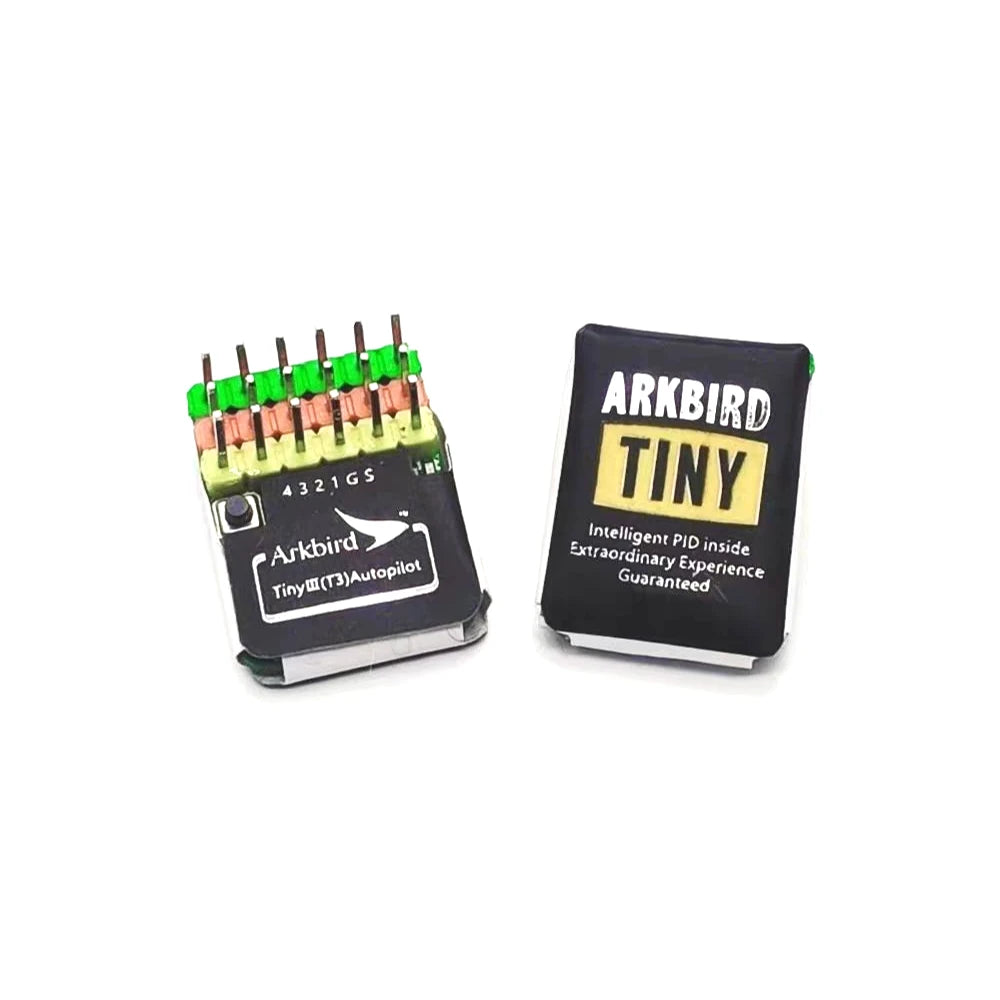

ARKBIRD-Tiny3 (T3) Product Features:

ARKBIRD System is a high-accuracy autopilot designed for fixed-wing, which has capability of auto-balancing to ease the manipulation while flying.

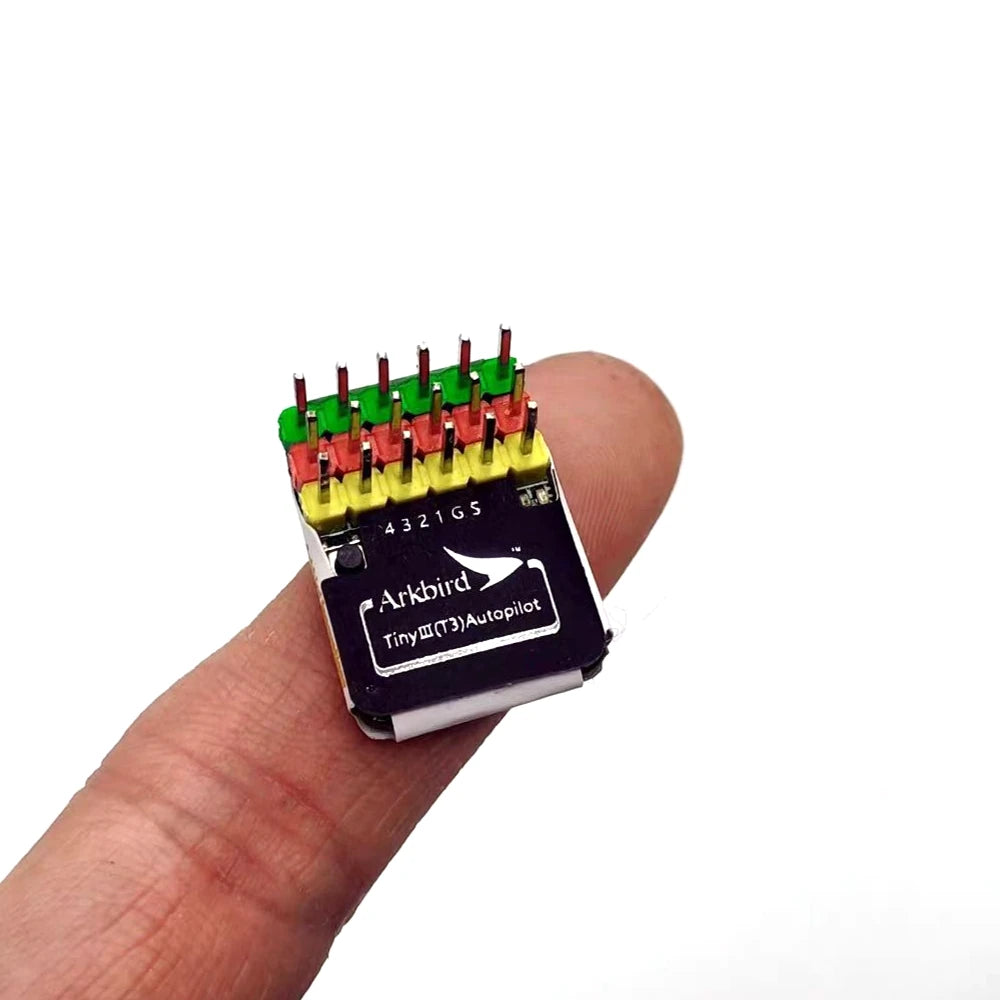

(Extreme small, only 1.8 * 1.5cm, weight only 1.7 grams), Super stable, plug and play. Capable of high-precision control of level flight, 3D flight, etc., combined with GPS, it can achieve RTH(return to home), fence mode (Out of area or under safe altitude, it returns automatically, best helper for beginner), etc; When only be connected to the steering wheel, used as a taxiing rectifying gyro, It corrects the airplane off tracking tendency, and accurately responds to the direction of the rocker steering action. for Electric Ducted Fan (EDF) and Jet power scale model airplane and so on.

1.Controls the steering angle of the steering wheel.

2.Can be installed flat wise or sidewise, suitable for small aircraft.

3.One button auto-leveling, stick back to center, plane can fly levelly.

4. One button RTH (return-to-home), lost radio signal return-home.

5. Hover mode Regard the hover position as balance position, nose up and keep steady.

6. Fence mode Out of rectangle area or safe height, it returns automatically, best helper for beginner.

7. Semi-Balance Mode When the CH1 and CH2 of rocker is less than 50%, the plane is in Balance Mode. When the rocker is more than 50%, the plane is in Gyro Mode.

Reminding:

For the first installation, please power up after a wire check. Forcible satellite search will be entered (incontrollable) every time you power up. You can cancel it manually and adjust rudder angle directions in Manual Mode and auxiliary control in Balance Mode. A Neutral Point Check for the sensor is necessary. Also, you need a fail-safe protection for the receiver in case your autopilot loses control when returning home.

For the first flight, we suggest taking off with 'Manual Mode'. Check if the aircraft flies normally after switching to “Balance Mode” in a level flight. Then switch to 'RTH Mode' and check the autopilot by using parameter (see the last chapter in the instructions: Notes for Balance and RTH). Please keep an eye on the important parameters during the flight (Vibration value, Satellite number, Speed and Altitude).

When the maiden flight test is done, Balance Mode can be used freely for taking off the autopilot, or you can use extended functions such as waypoints, cruise flight or fence mode.

Please read carefully before operating and pay close attention to the details and important parameters. Contact Arkbird@foxmail.com for supports.

English Manual, Click Here

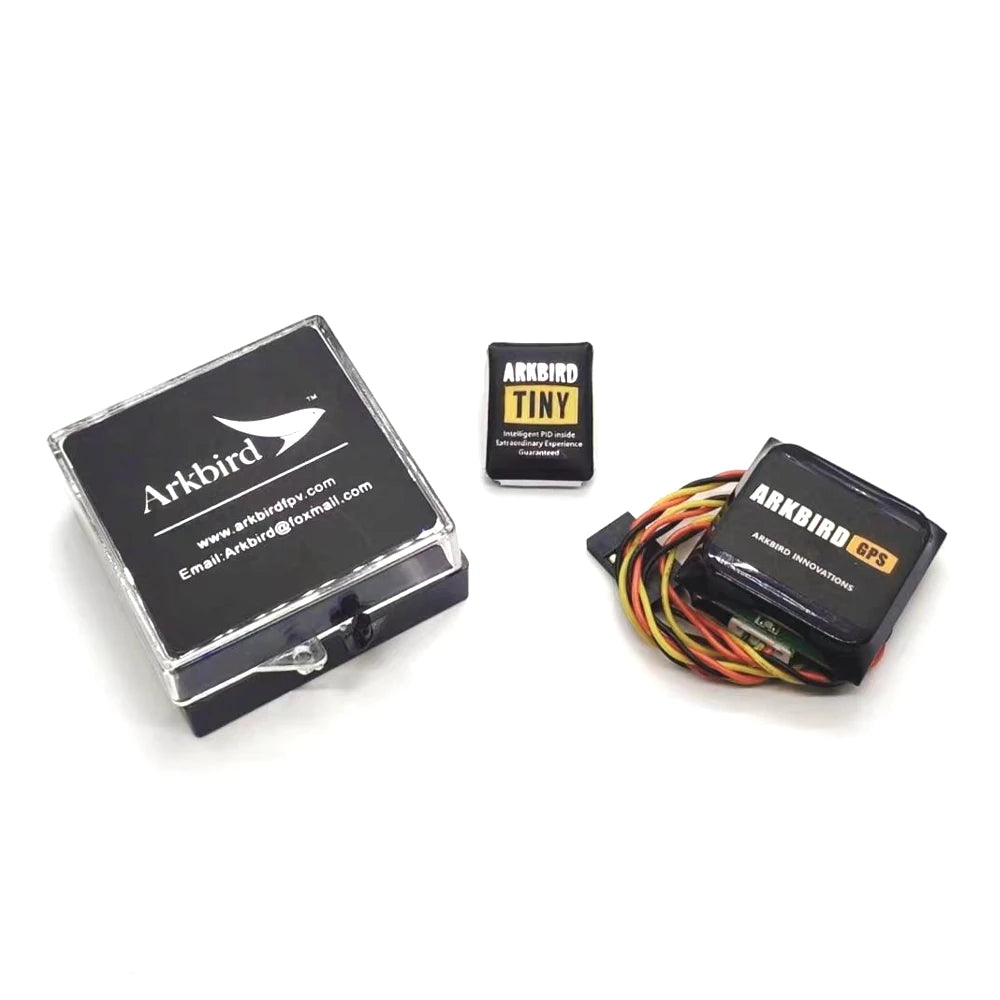

Package Included:

1x Arkbird Tiny3 Flight Controller

1x GPS Module
