Description

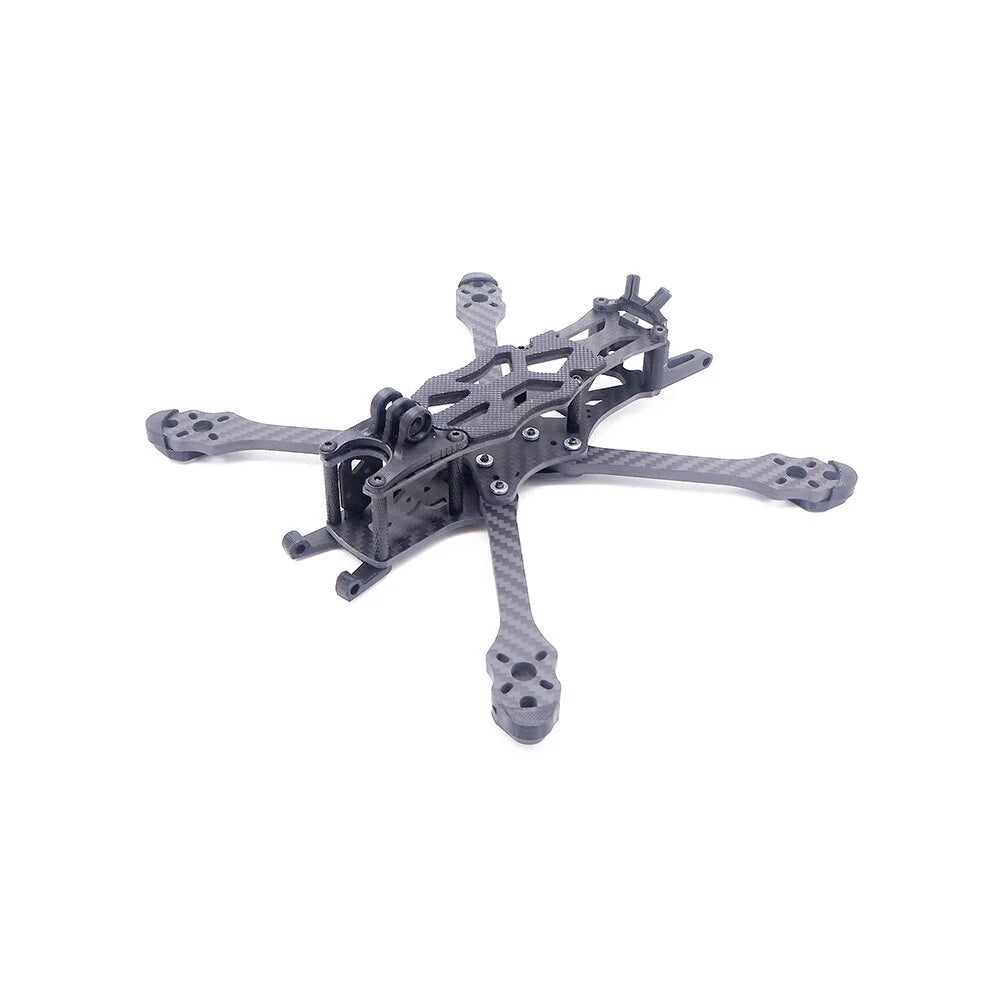

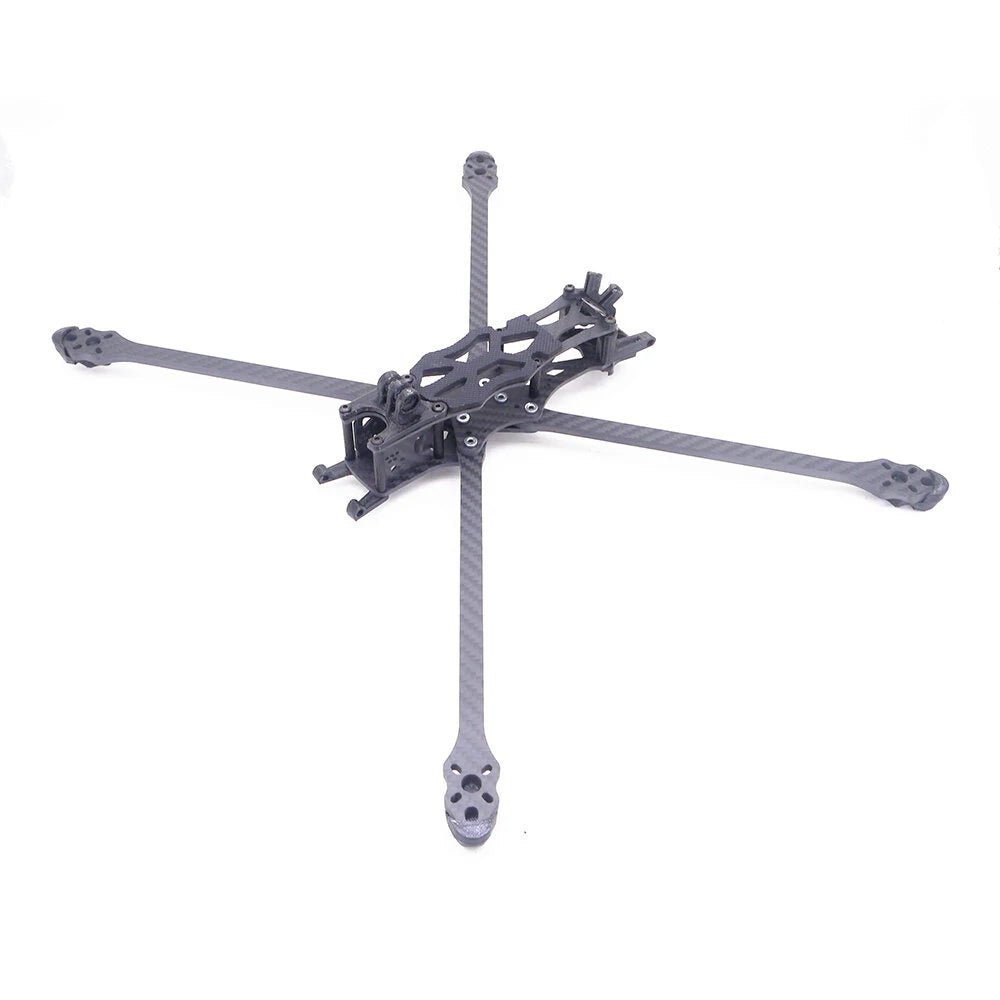

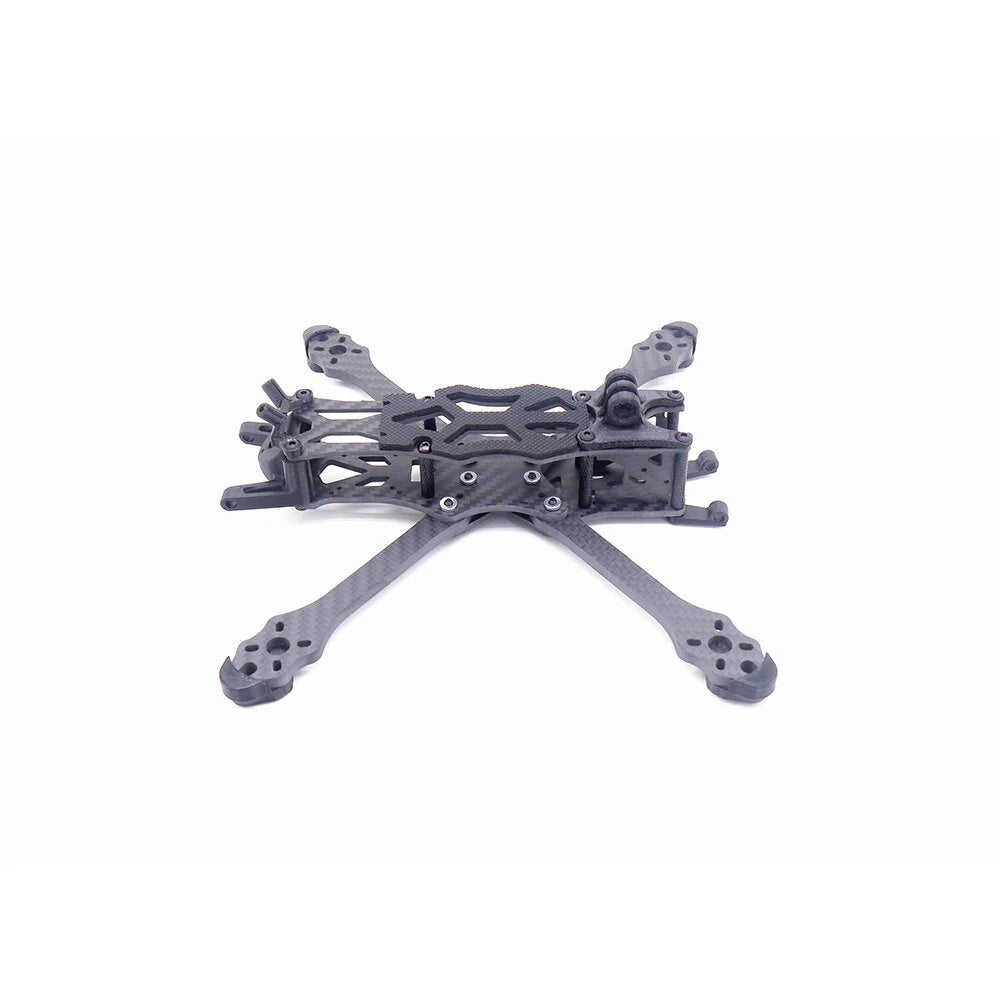

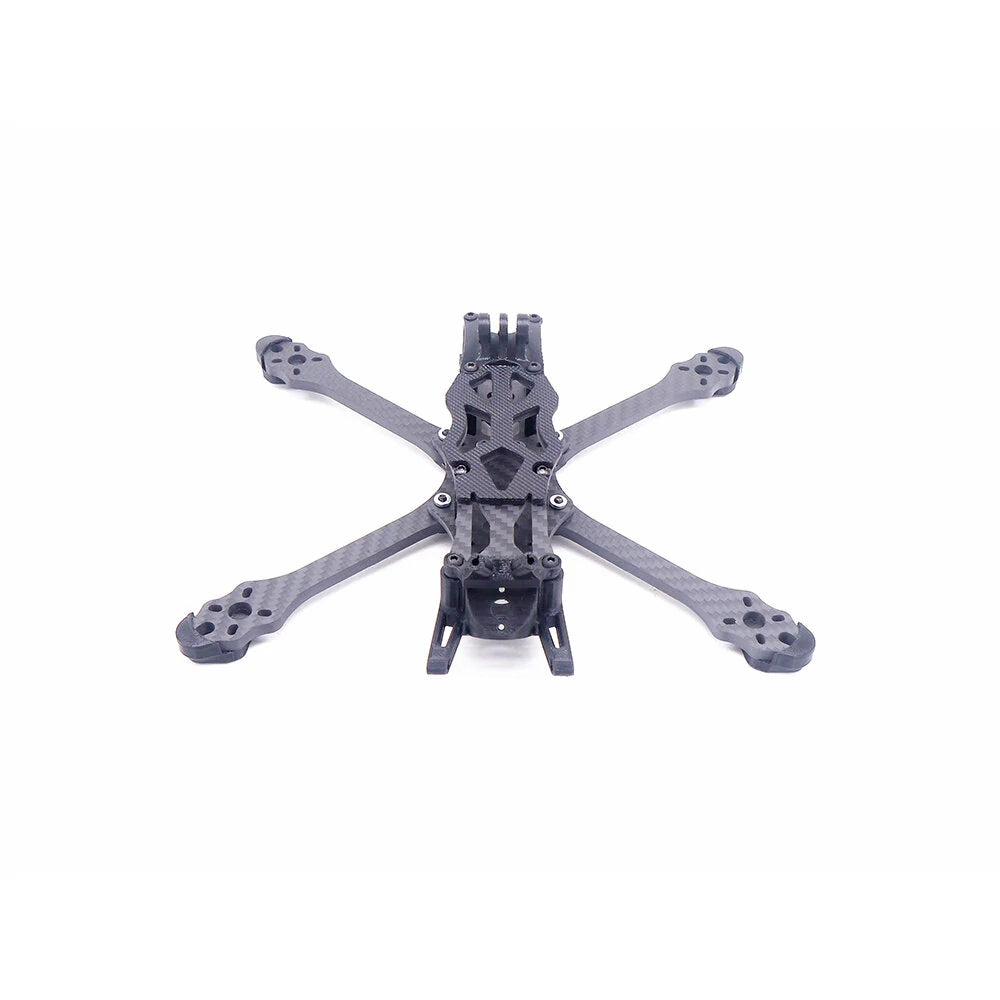

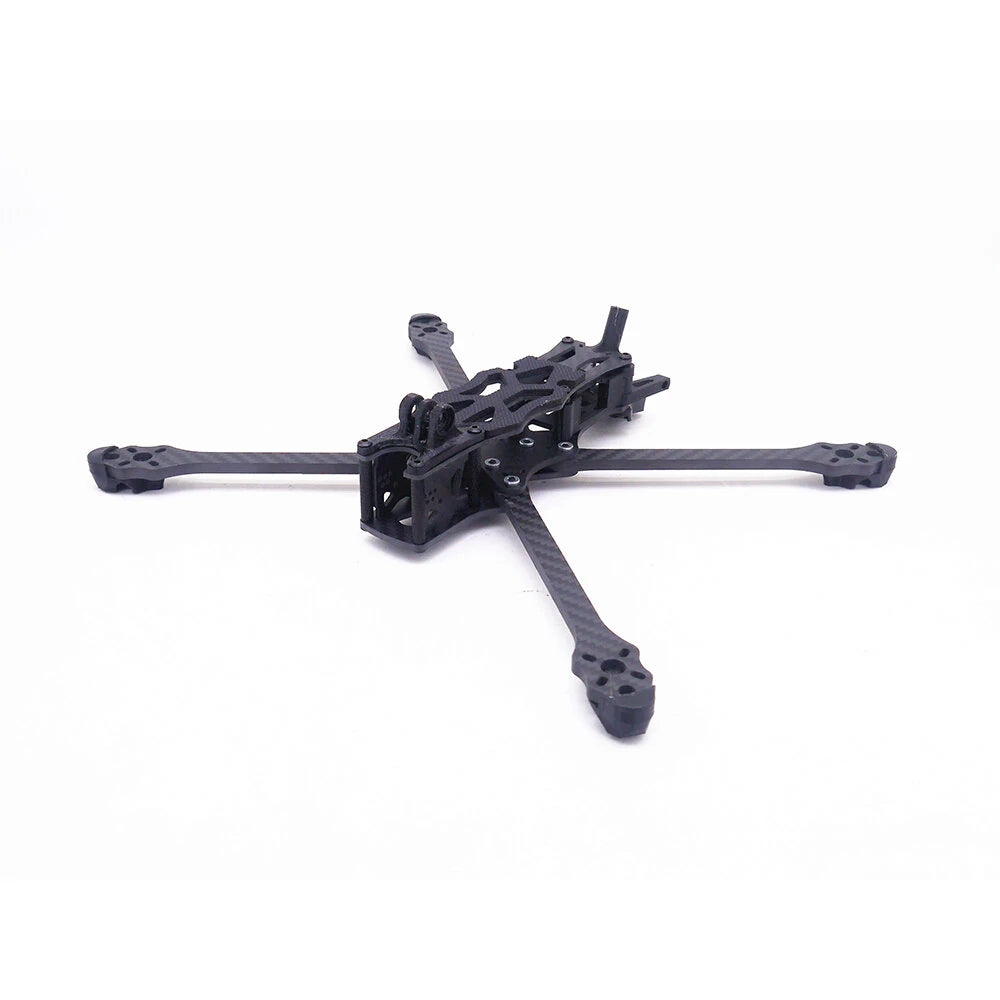

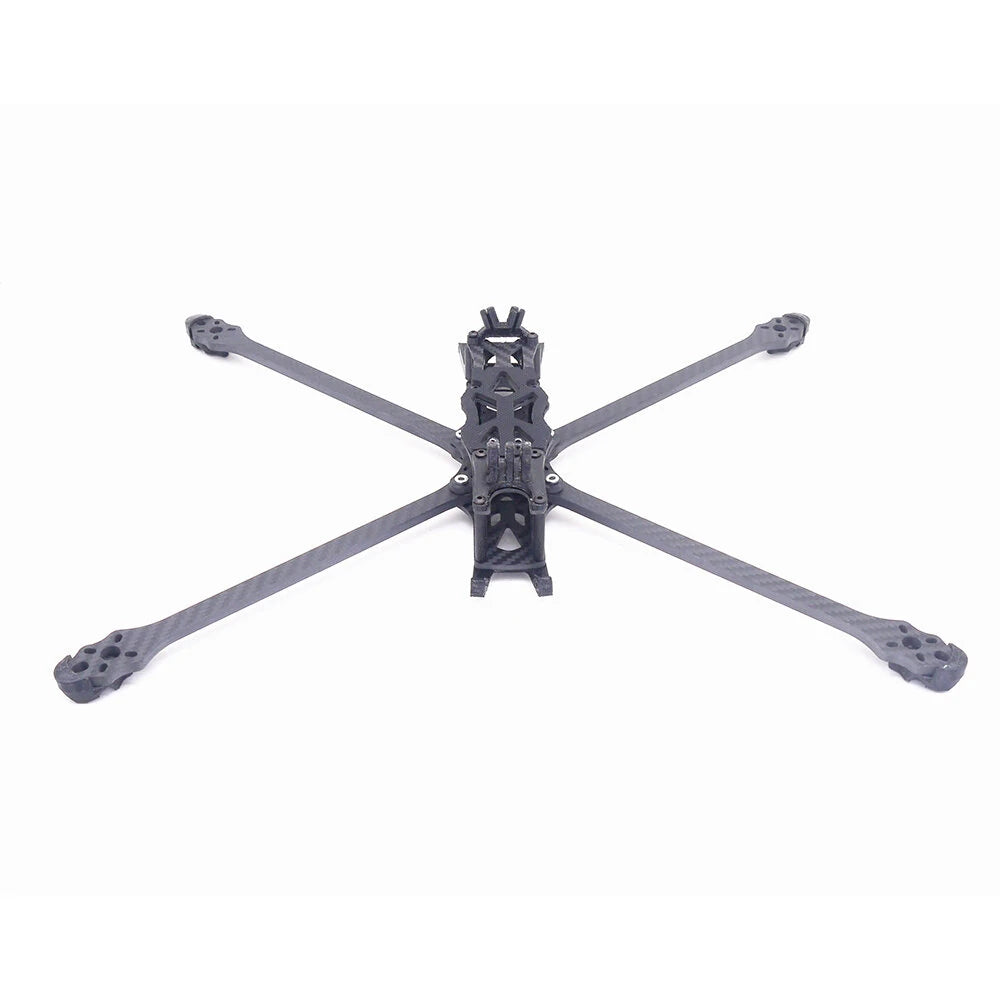

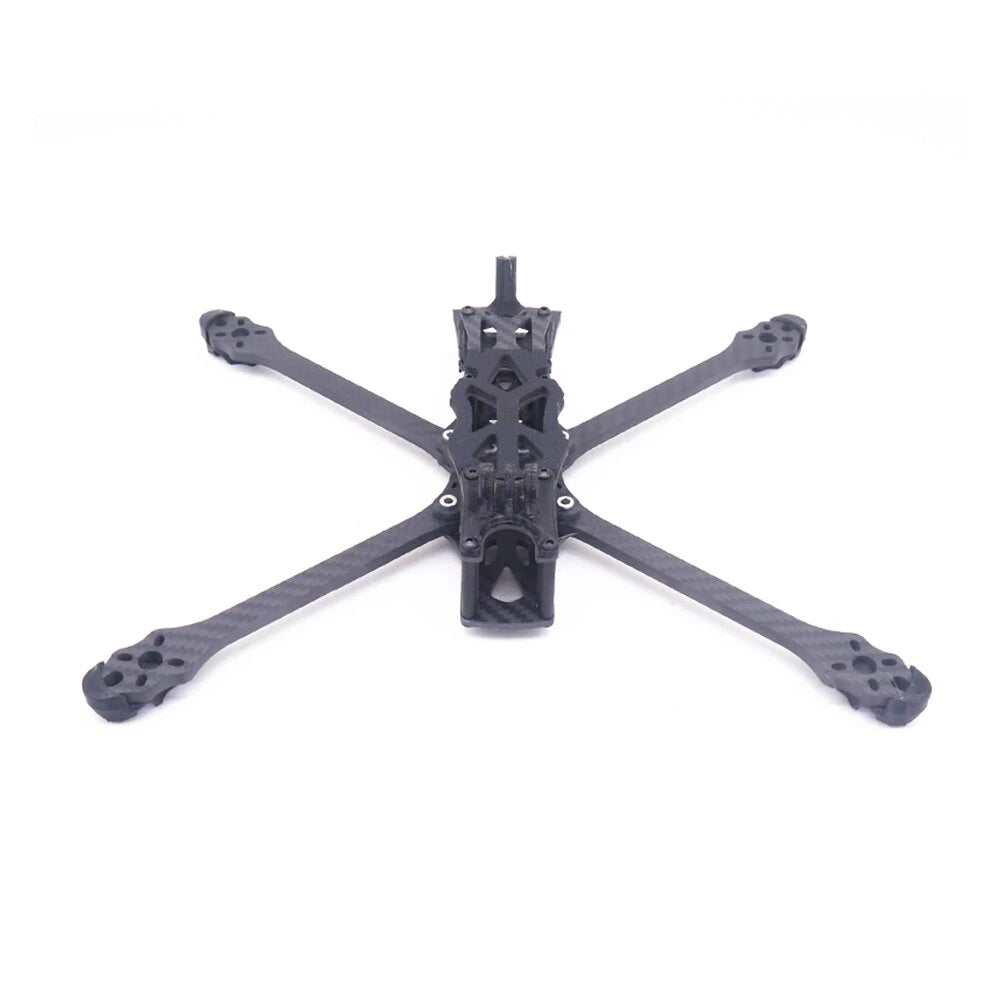

Notice: It is empty frame kit, comes unassembled. Need build by buyers.
Specifications:
Model: Ape5plus /Ape7plus/ Ape9plus / Ape10plus
Structure: X-shaped Split
Ape5plus ( 5 Inch) |
Ape7plus ( 7 Inch) |
Ape9plus ( 9 Inch) |
Ape10plus ( 10 Inch) |
|
Wheelbase |
220mm |
296mm |
376mm |
416mm |
Weight |
133G |
147G |
162G |
167G |
Arm thickness |
5.0mm |
5.0mm |
5.0mm |
5.0mm |
Top Plate thickness |
2.0mm |
2.0mm |
2.0mm |
2.0mm |
Side Plate thickness |
2.0mm |
2.0mm |
2.0mm |
2.0mm |
Bottom Plate thickness |
3.0mm |
3.0mm |
3.0mm |
3.0mm |
Clamp Plate thickness |
3.0mm |
3.0mm |
3.0mm |
3.0mm |
Propeller Size |
5.0 inches |
7.0 inches |
9.0 inches |
10 inches |
Flight Controller Mounting Holes |
30.5*30.5mm (M3) |
30.5*30.5mm (M3) |
30.5*30.5mm (M3) |
30.5*30.5mm (M3) |
VTX Mounting Holes |
20*20mm (M2), 25.5*25.5mm (M2) |
20*20mm (M2), 25.5*25.5mm (M2) |
20*20mm (M2), 25.5*25.5mm (M2) |
20*20mm (M2), 25.5*25.5mm (M2) |
Internal Height: Approximately 17mm
Motor Compatibility: Supports 16*16mm(m3) and 19*19mm(m3) hole spacing motors, compatible with 2204/2205,2207/2306/2405/2307/2308/2506, etc.
Compatibility: DJI Air Unit/VISTA Air Unit/DJI O3 Air Unit
GPS: Compatible with BN220
Features:
Versatile design compatible with various motors and flight controllers for customized builds.
Enhanced durability with robust arms and plates thickness ensuring crash resistance.
Optimized for high-performance flight components including DJI, VISTA, and DJI O3 Air Units.
Designed for seamless integration of GPS (BN220) and propellers up to 5.0 inches.
Simplified camera installation with a 20mm width and an internal space height of 17mm.
Recommend Parts: ( NOT Included)
|
Ape5plus ( 5 Inch) |
Ape7plus ( 7 Inch) |
Ape9plus ( 9 Inch) |
Ape10plus ( 10 Inch) |
|
| FC & ESC |
30.5x30.5mm Flashhobby F405 FC w/ 5V 9V BEC& 50A BL_S 4in1 ESC |
|||
| Motor |
iFlight XING2 2207 1855KV / 2755KV 4-6S |
iFlight XING2 2809 1250KV 6S |
iFlight XING2 2809 1250KV 6S |
XING2 3110 900KV |
| Propeller |
Ethix S5 5040 5x4 5 Inch 3-blade |
HQProp DP7X4X3 7 Inch |
9046 9 inch 3-balde |
