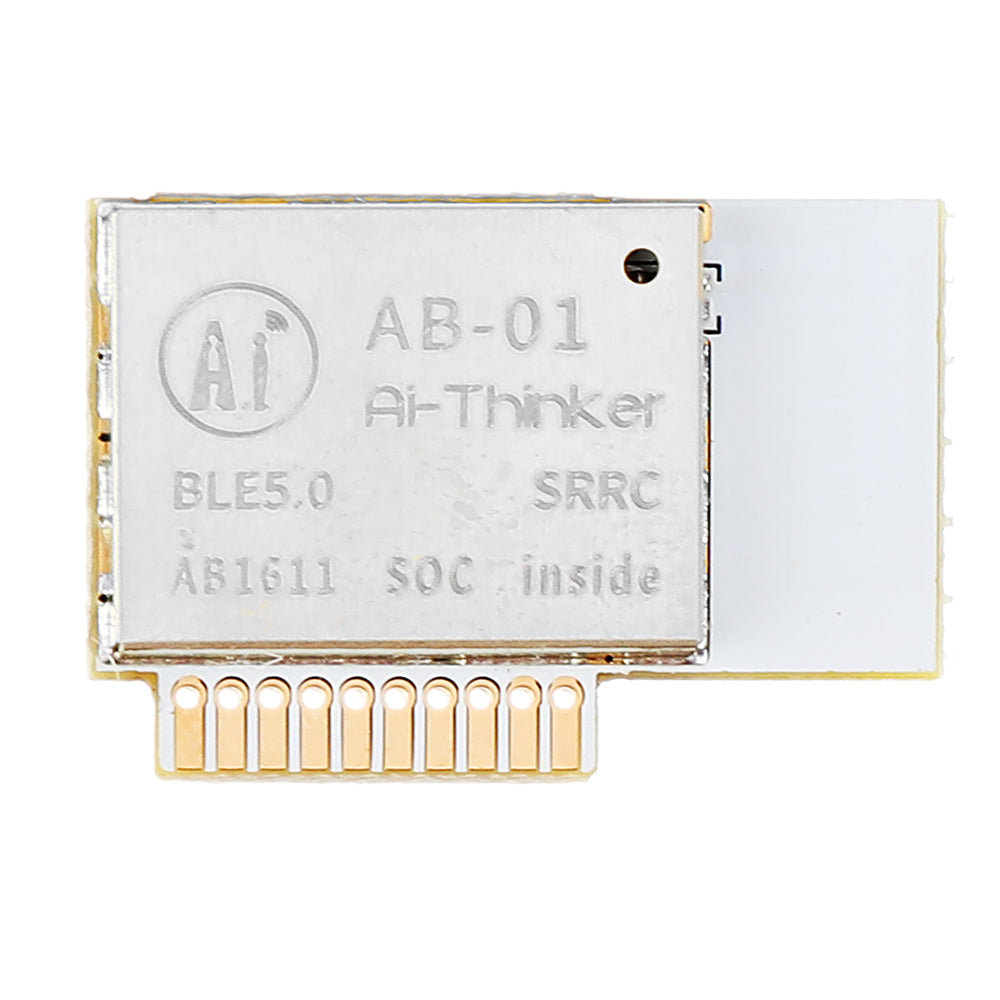

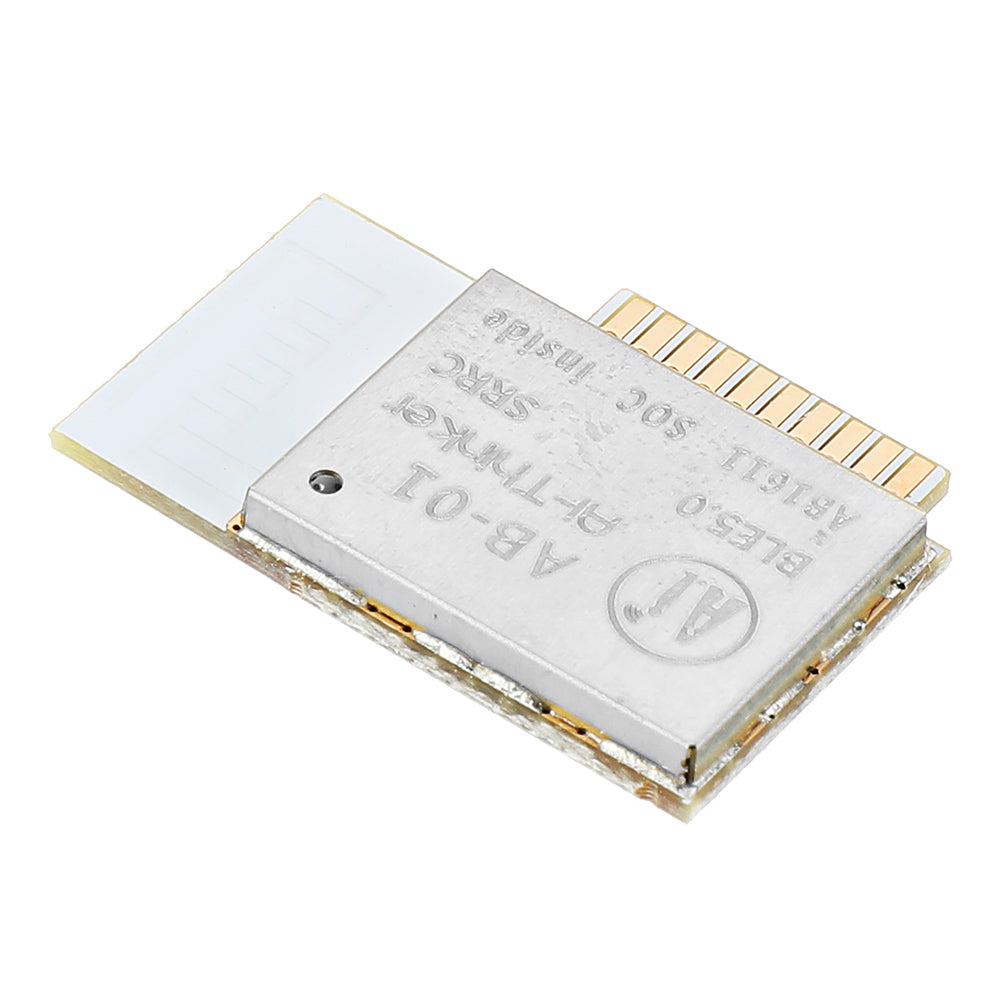

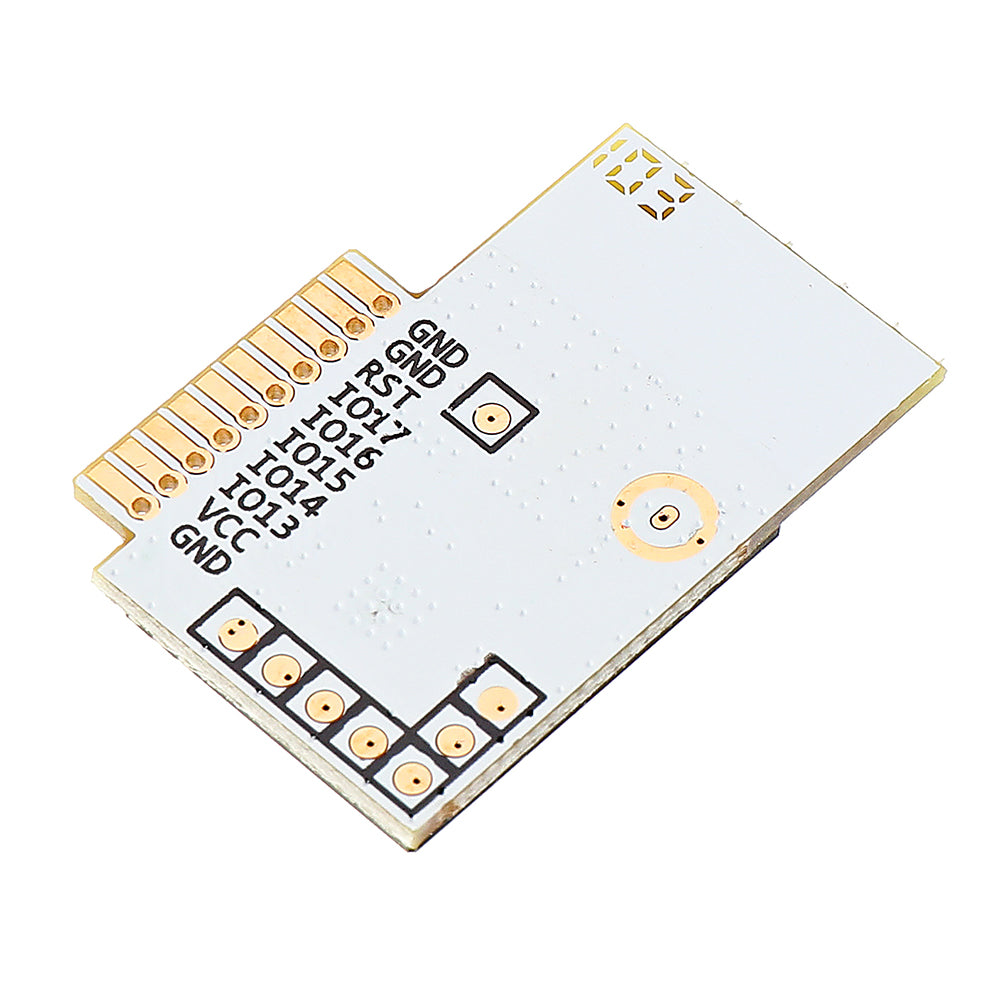

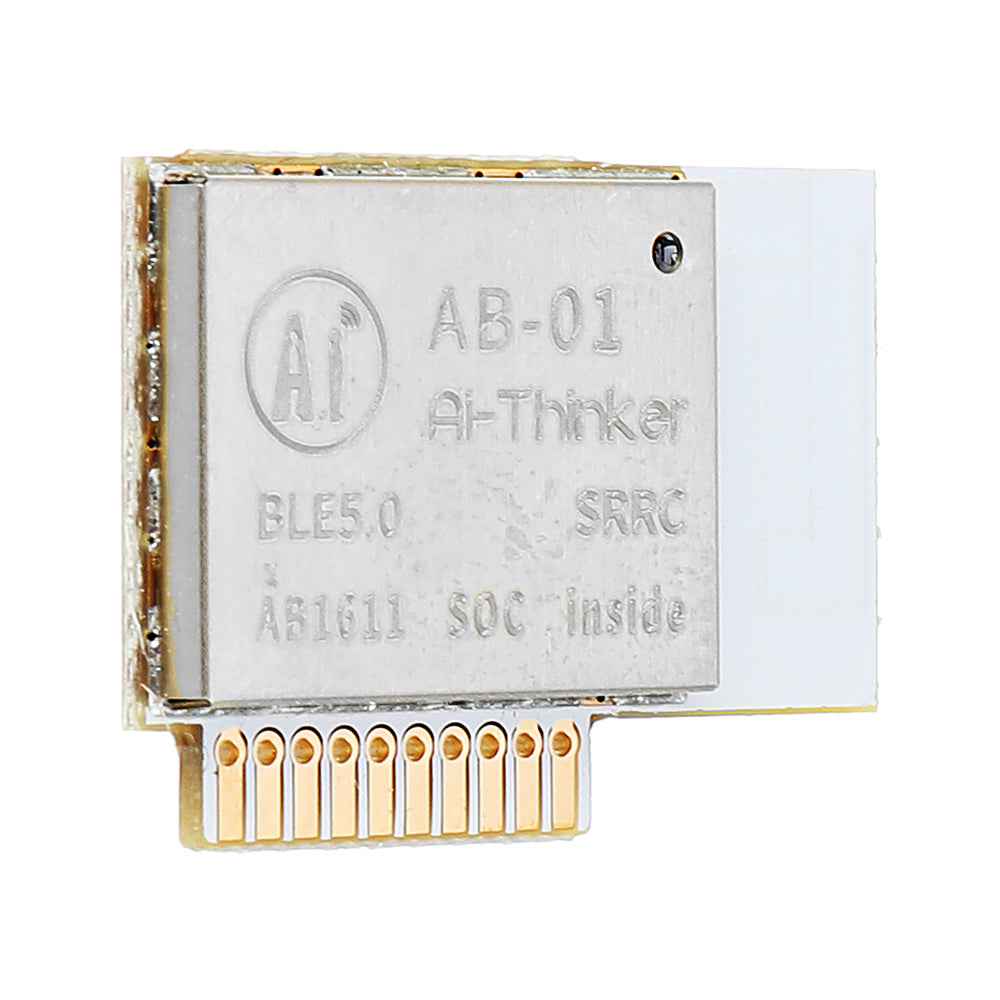

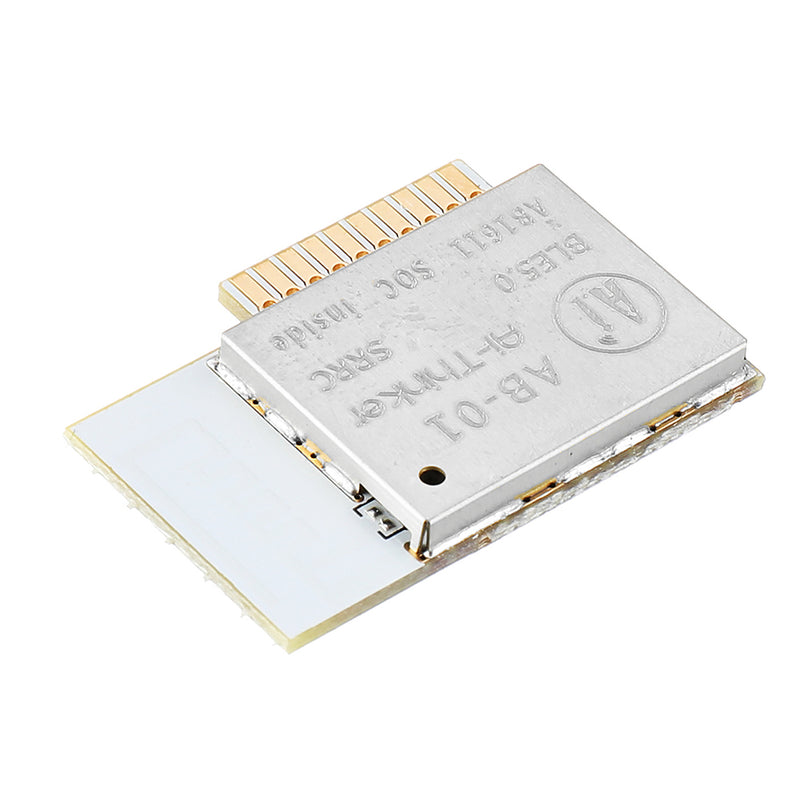

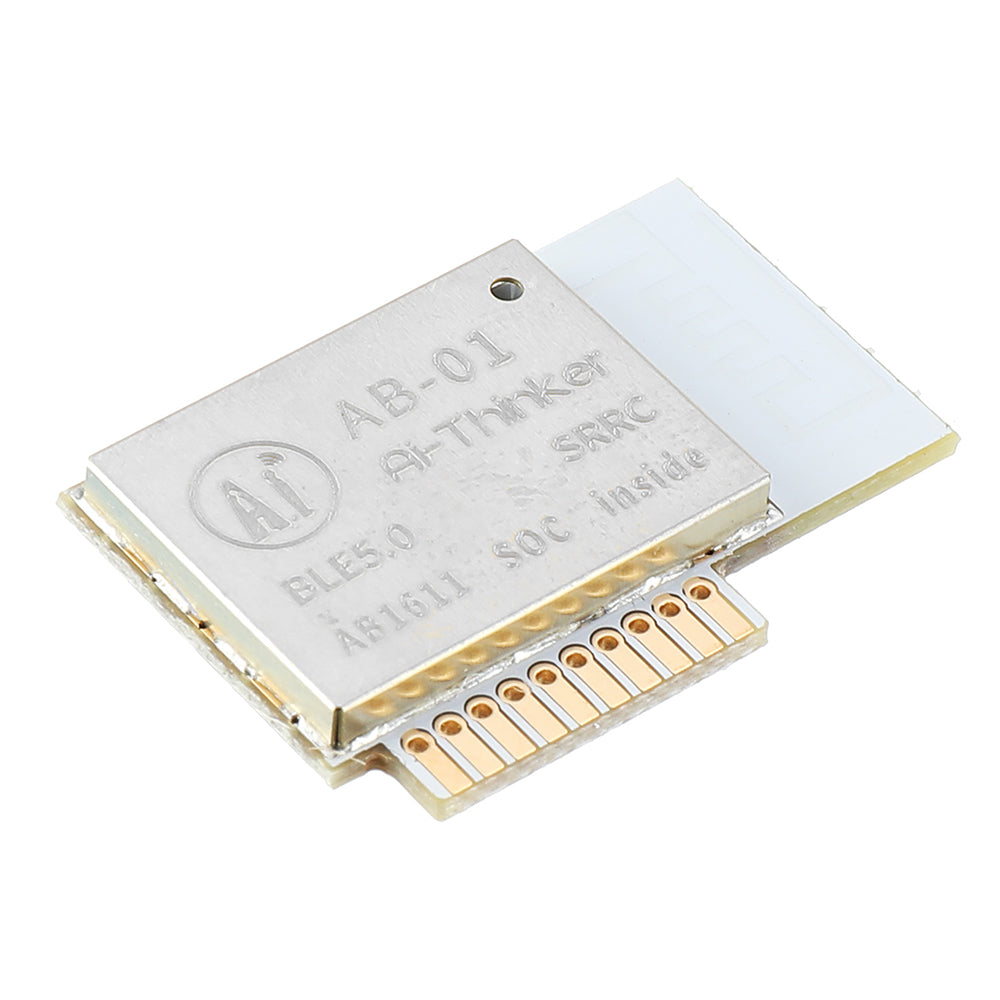

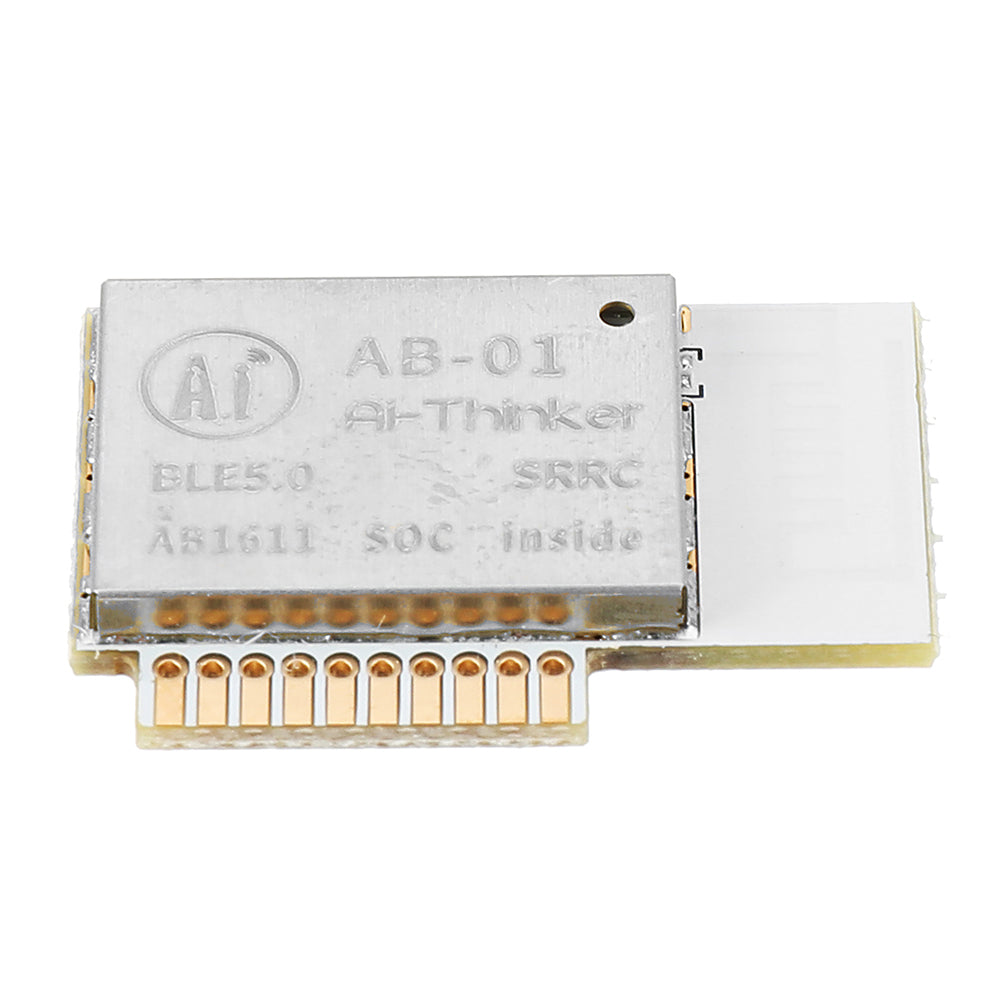

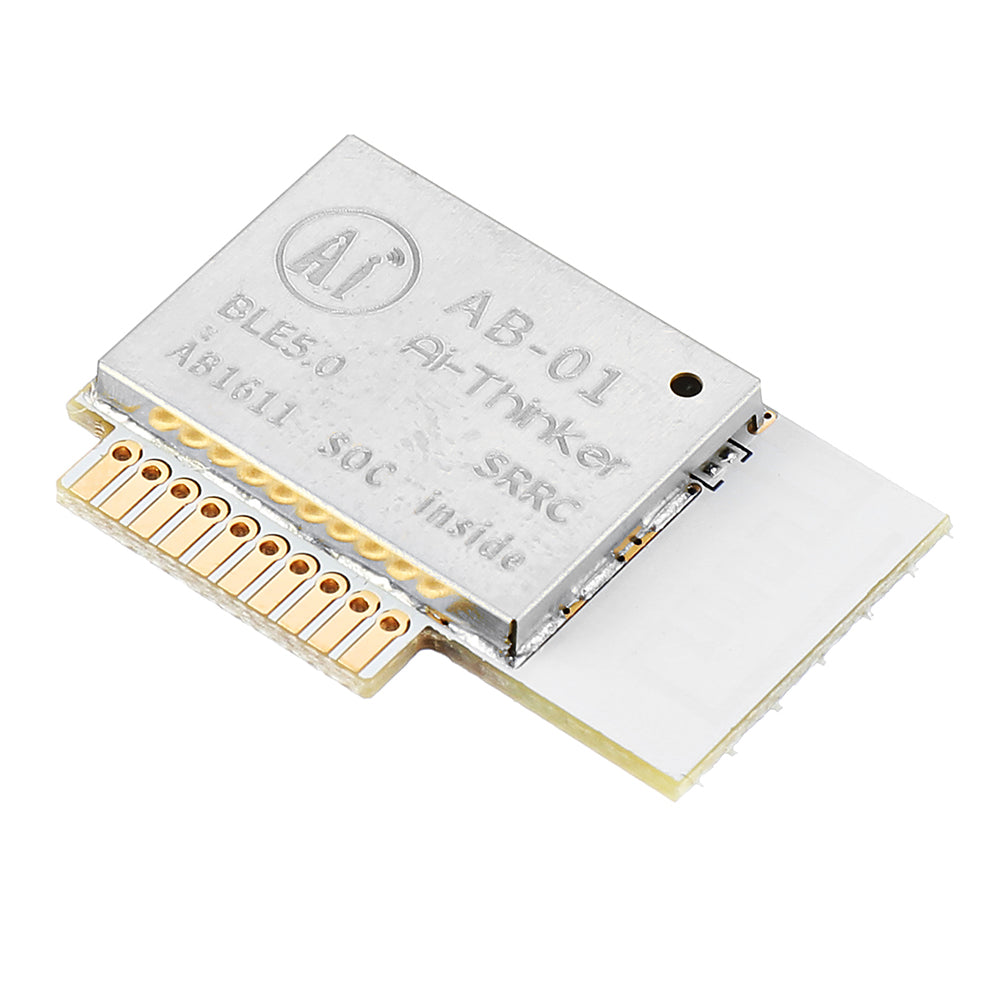

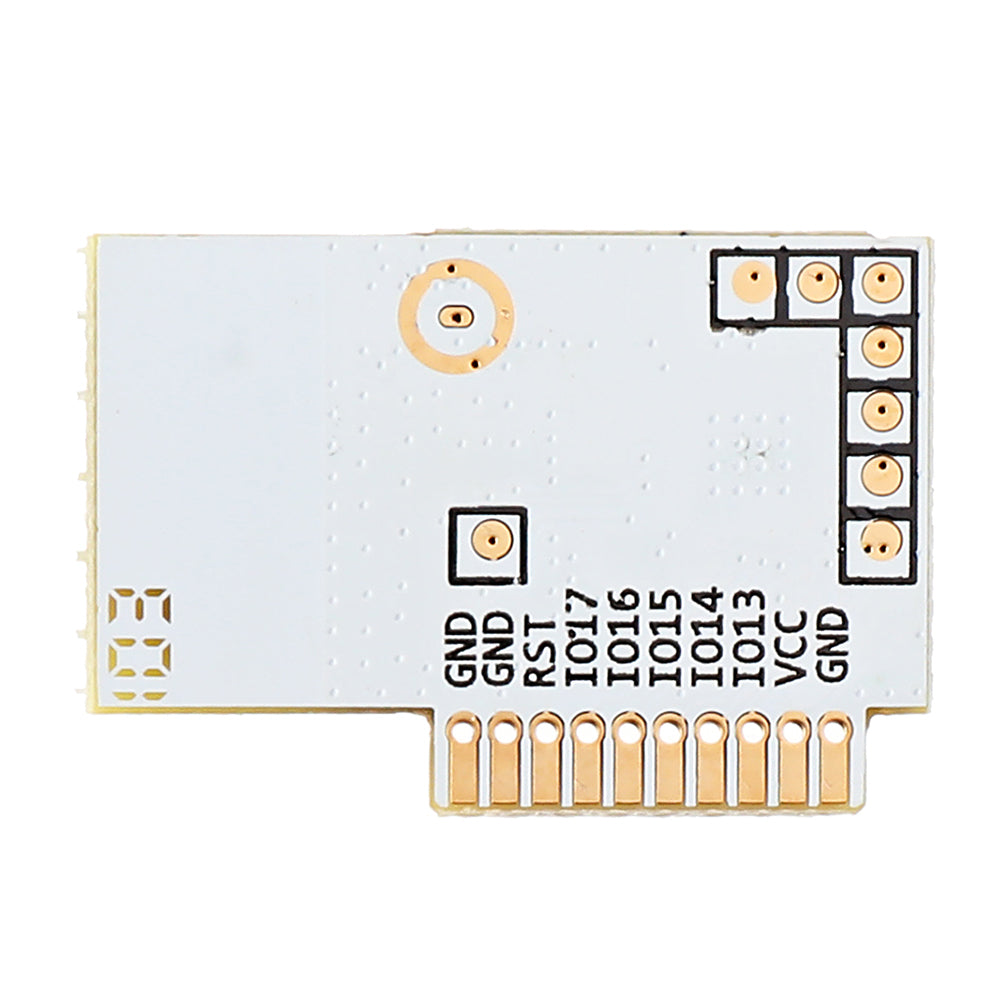

AI-Thinker AB-01 BLE Bluetooth 5.0 Audio Module DIY Module Low Power Wireless Mesh Networking


Isaiah 55:8-9 John 3:16 Philippians 4:19
Price:
Sale priceR 259.00 Regular priceR 340.00
Stock:
In Stock. Shipping via Courier.



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

Product Overview:

AB-01 is a general-purpose Bluetooth module designed by Ensign Technology for the Internet of Things. widely. It can be used for other smart appliances such as smart lights, smart sockets, smart air conditioners. The core of this module is Loda AB1611 chip, which has the characteristics of abundant peripherals and low power consumption. The processor has a 32-Bit Andes architecture, and the clock frequency can be adjusted from 16MHz to 72MHz. Built-in 512Kbyte programmable Flash, 64Kbyte SRAM. A 16-bit 16kHz ADC can be used for audio data acquisition. The AB-01 module complies with BT 5.0 and SIG Mesh specifications. It can form a Mesh network directly through a smartphone, and can also be connected to smart speakers such as Tmall Genie and Xiao Ai. It is suitable for a variety of smart home application scenarios.

Features:

32-bit MCU, main frequency 16MHz – 72MHz adjustable
512 Kbyte on-chip programmable flash
64 Kbyte SRAM on one side
Compliant with BT 5.0 protocol specifications
Compliant with SIG Mesh protocol specifications
Maximum transmit power can reach 10dBm
It can be connected with smart speakers such as Tmall Elf and Xiao Ai
DIP pin design for easy application on smart lights

Model Name AB-01
Packaging DIP-10
Size 26.0*18.2*3.0(±0.2)MM
Output power 10±2dBm
Sensitivity -94dBm
Consumptio n (typical) Tx@9.5dBm : 27.9mA Tx@0dBm : 11.44mA Rx@9.5 dBm :11.8mA Rx@0 dBm :8.4mA Sleep: 4uA Deep-Sleep: 0.6uA
Work Temperature  -20 °C ~ 70 °C
Storage Temperature  -40 °C~125 °C,<90%RH
Voltage 2.7V ~ 3.6V, default 3.3V
IO Quantity 5
Certification SRRC
Package includes:

1 x AB-01 BLE Bluetooth 5.0 Audio Module
