Description

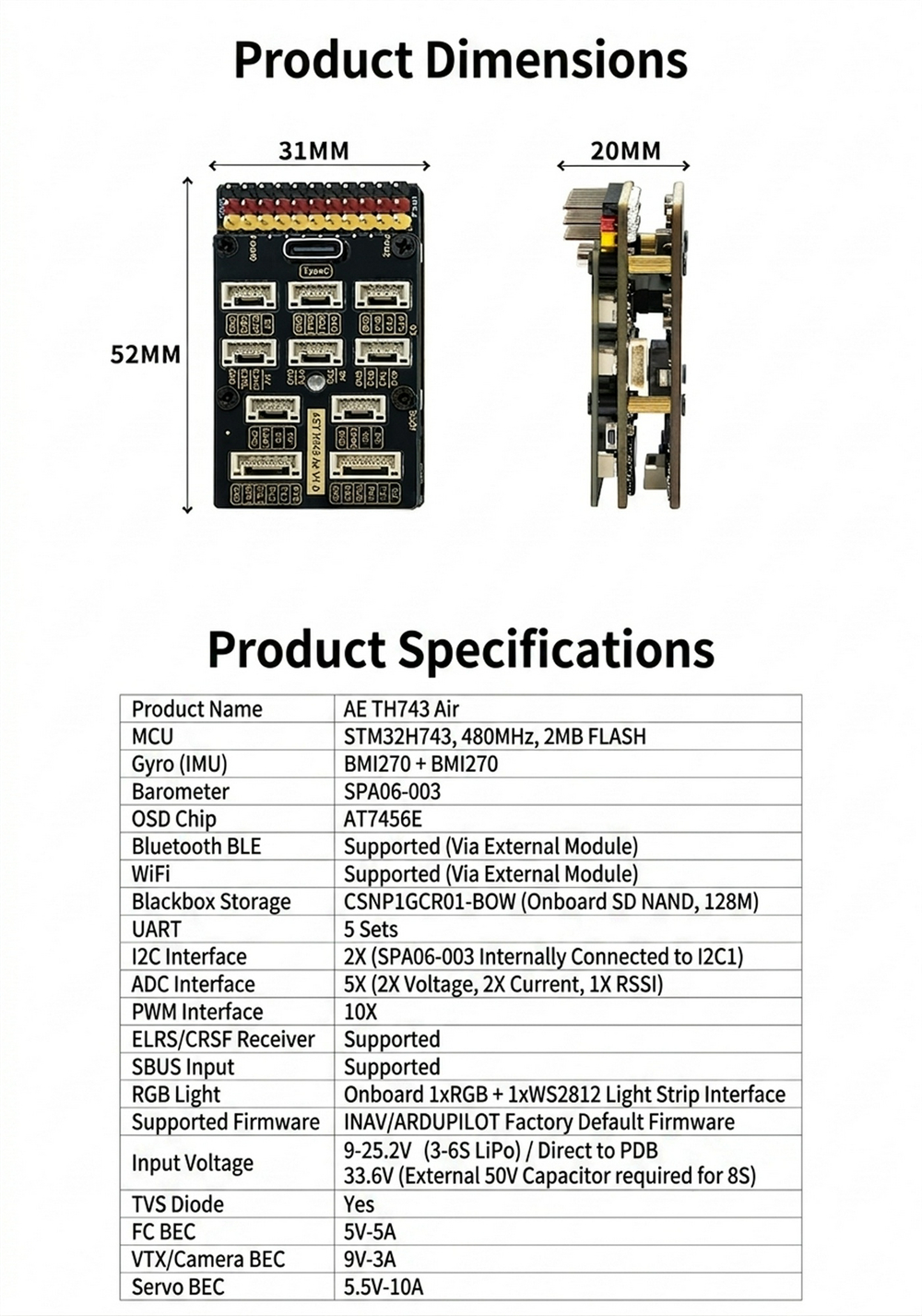

Specification:
Brand: AET
Model: H743 Air
Dimensions: 52 × 31 × 20mm
Master Control Chip: STM32H743, 480 MHz, 2 MB Flash
Gyroscope (IMU): BMI270 + BMI270
Barometer: SPA06-003
OSD Chip: AT7456E
Bluetooth BLE: Supported (external module)
WiFi: Supported (external module)
Black Box Storage: CSNP1GCR01-B0W (onboard SMD eMMC, 128 MB), 5 serial ports
UART Serial Port: 5
I2C Interface: 2 × SPA06-003 internal connection to I2C (1 × 5V, 2 × voltage, 2 × current, 1 × RSSI)
ADC Interface: 1 × 5V, 2 × voltage, 2 × current, 1 × RSSI
PWM Interface: 10×
ELRS/CRSF Receiver: Supported
SBUS Input: Supported
RGB Lighting: Onboard 1 × RGB + 1 × WS2812 strip interface; INAV/ARDUPILOT default factory firmware
Input Voltage: 9–25.2 V 6S LiPo battery direct plug-in, power distribution board 3.3 V / 5 V (5 V capacitor required for 5S external connection)
TVS Spike Suppression Diode (flight controller BEC): Present
Transmitter/Camera BEC: 5 V – 5 A
Servo BEC: 5.5 V – 10 A
Features:

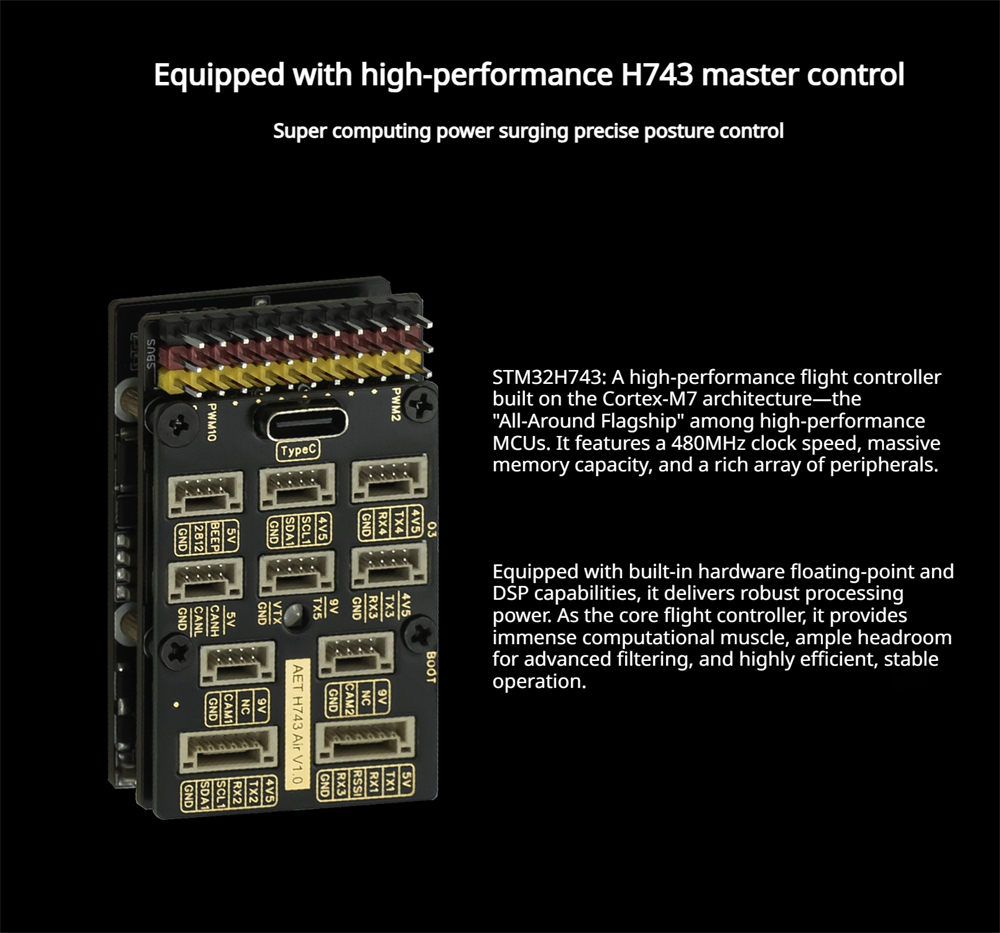

- High‑performance STM32H743 flight controller with 480 MHz Cortex‑M7 CPU and floating‑point DSP, delivering fast calculations and stable attitude control for advanced RC aircraft and VTOL toys.

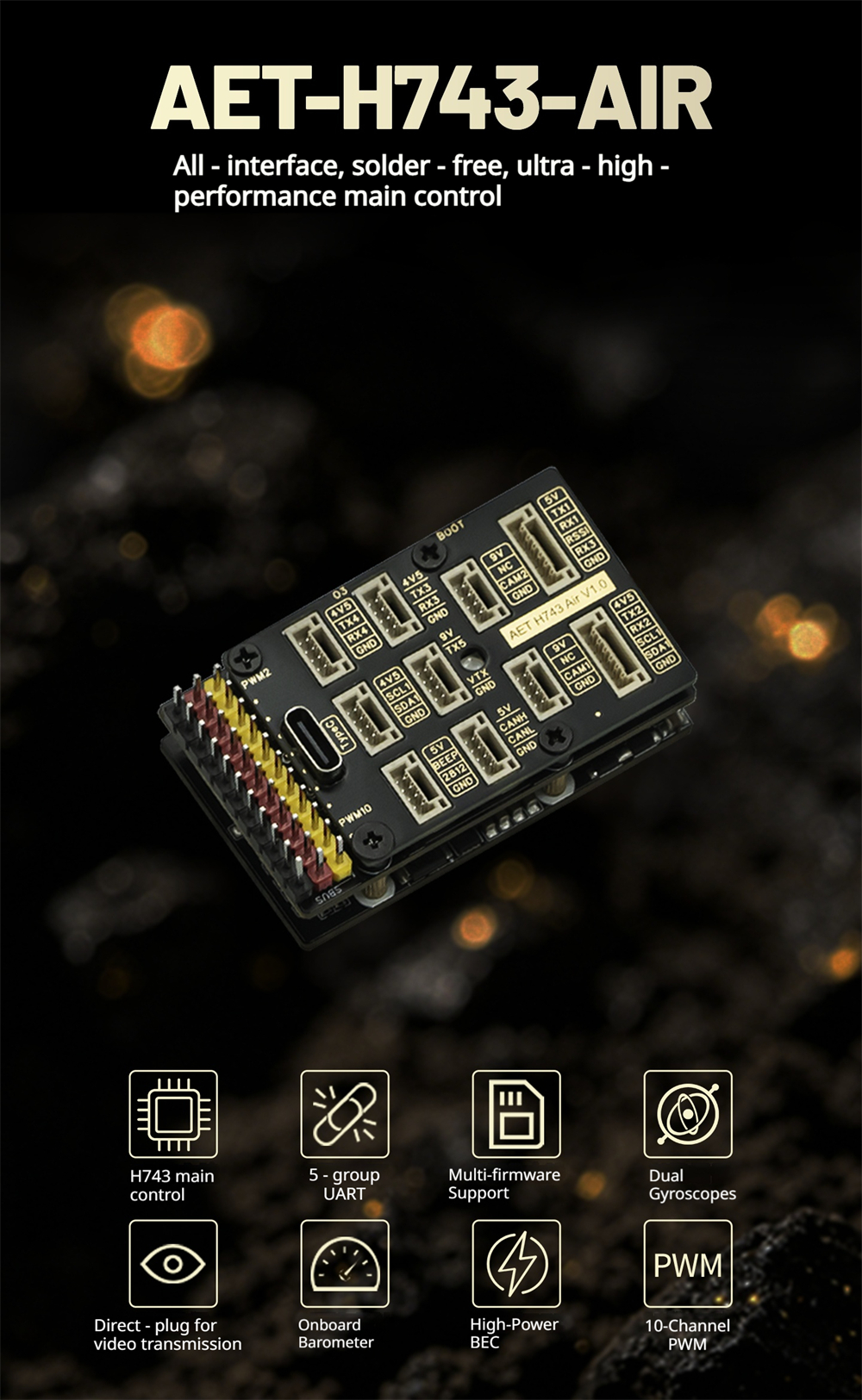

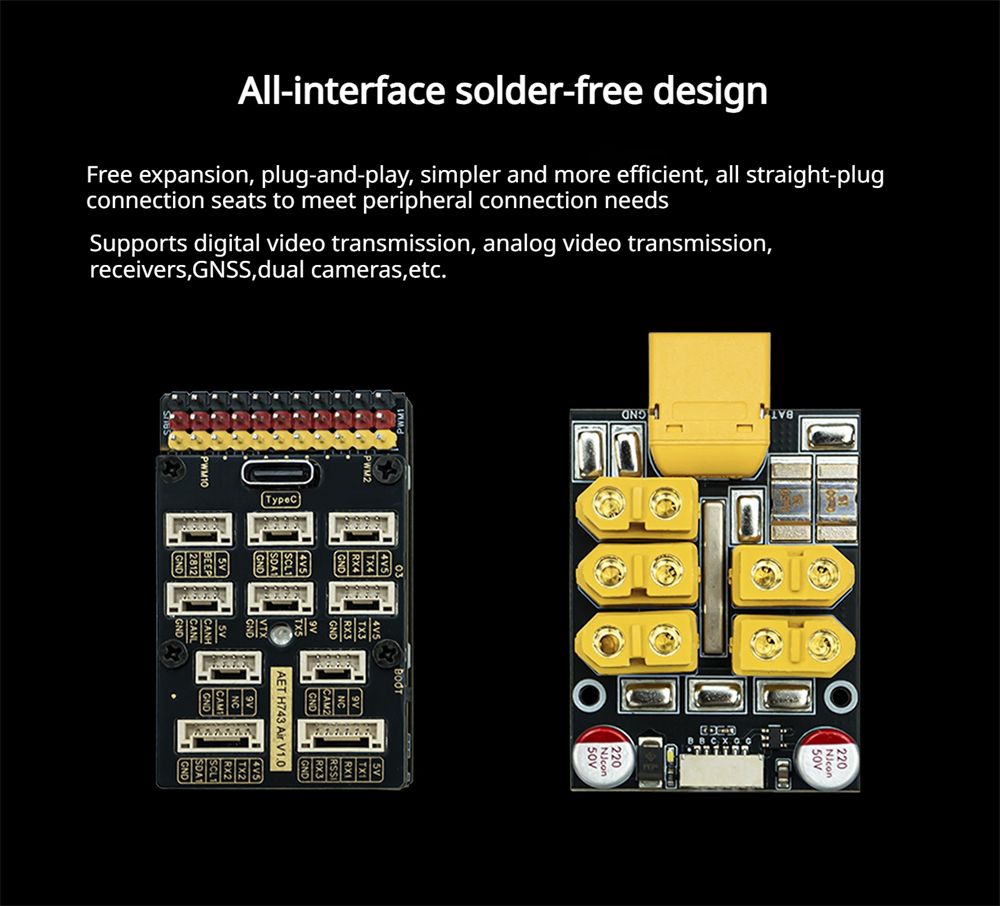

- Full plug‑in, solder‑free layout with clearly labeled ports for GPS, dual cameras, receivers and telemetry; kids and hobbyists can build or upgrade their aircraft quickly and safely.

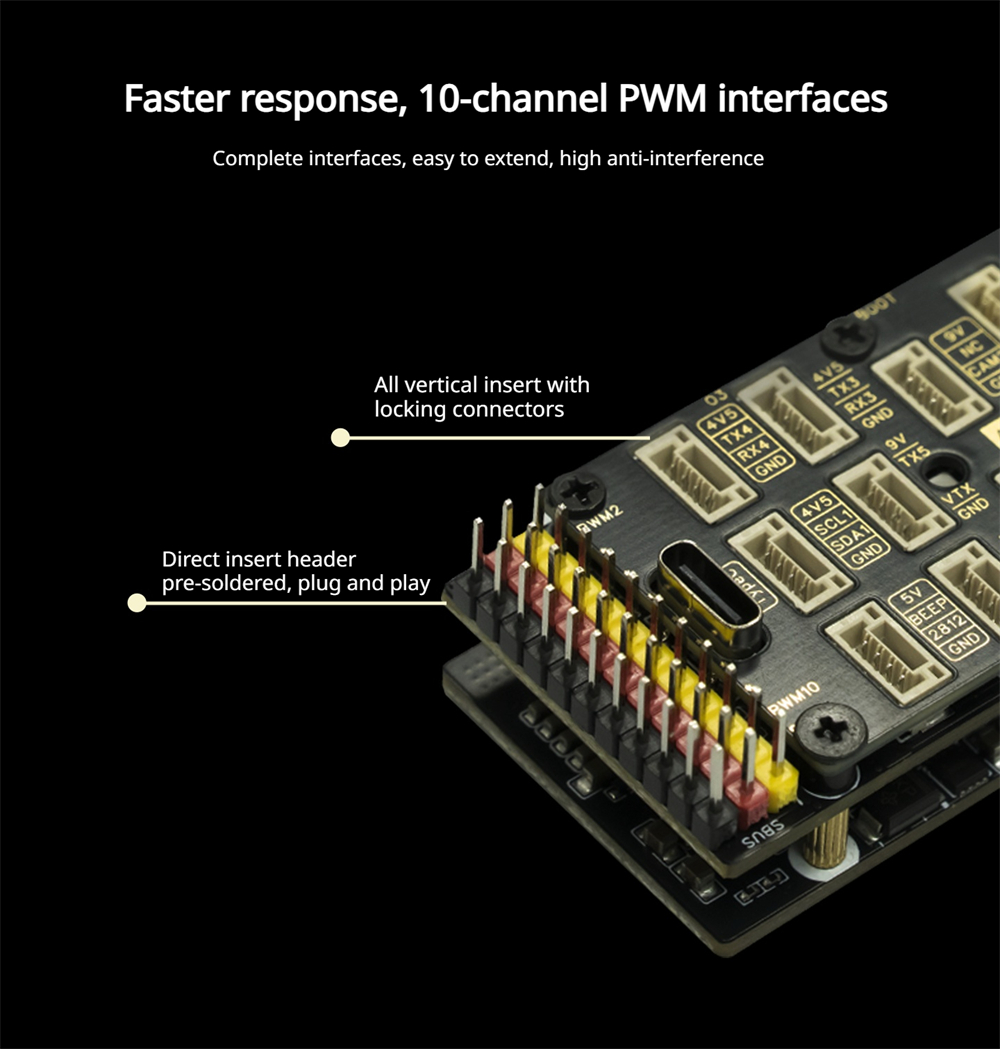

- 10 responsive PWM outputs with pin headers pre‑soldered; easily connect multiple motors, servos and gimbals to create complex multi‑rotor or fixed‑wing models with smooth control.

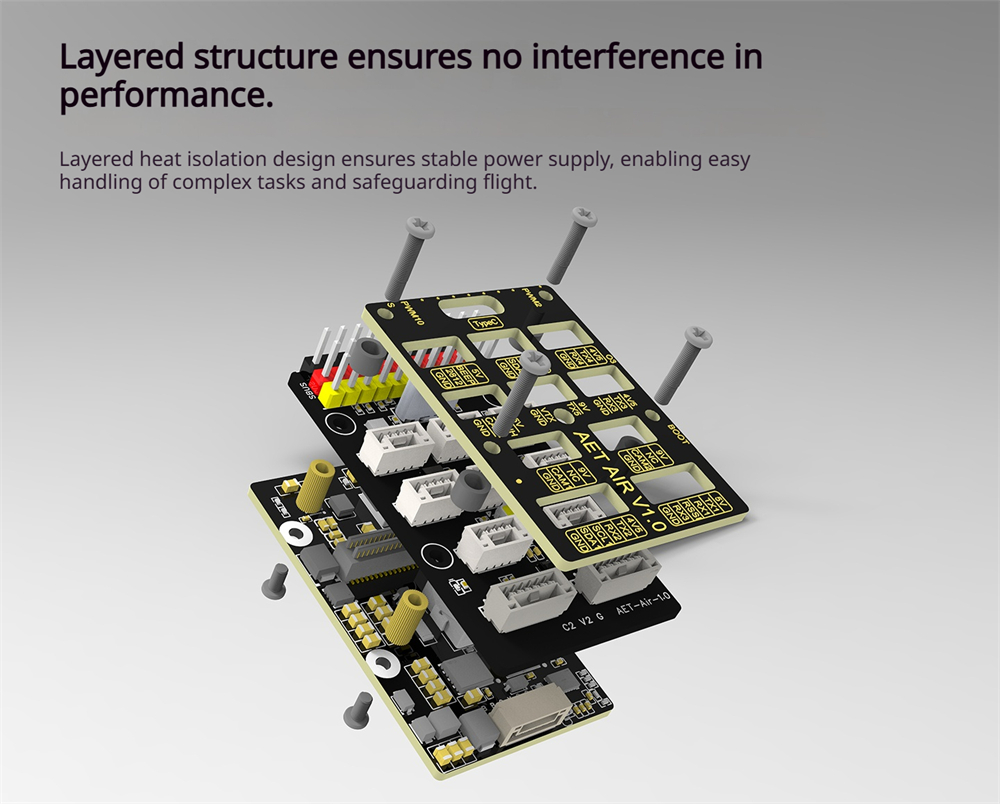

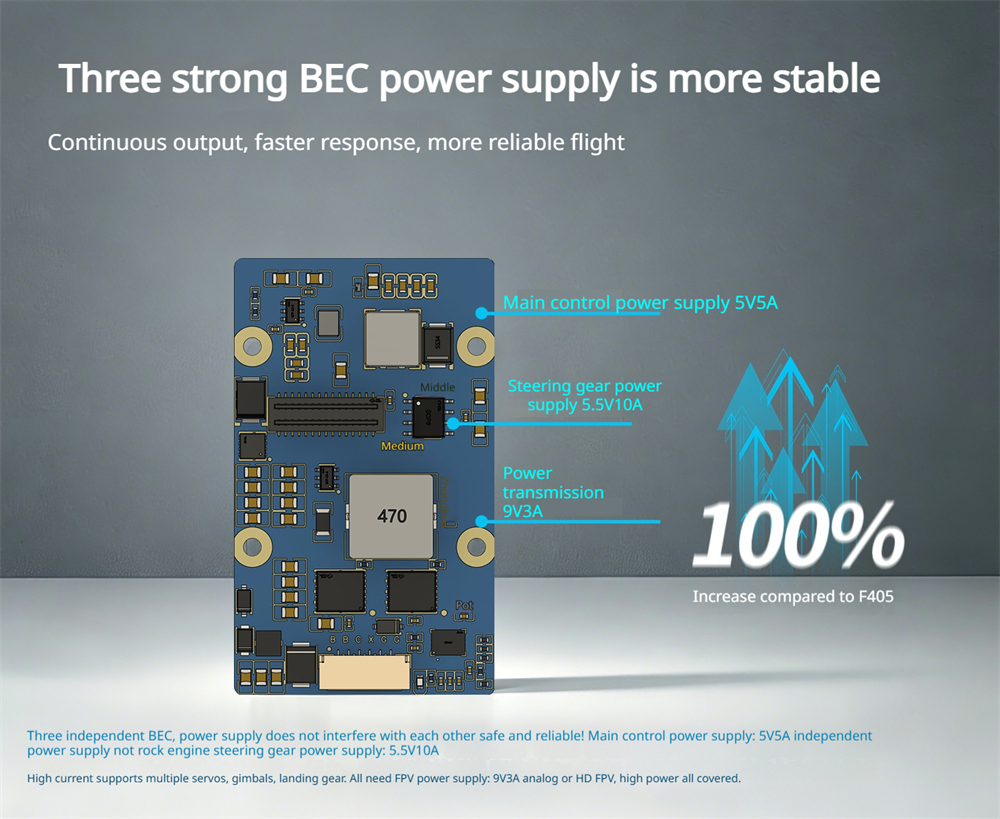

- Triple independent BEC power module (5V for FC, 5.5V for motors, 9V for video) and layered PCB structure, ensuring stable power delivery and reduced interference during long flights.

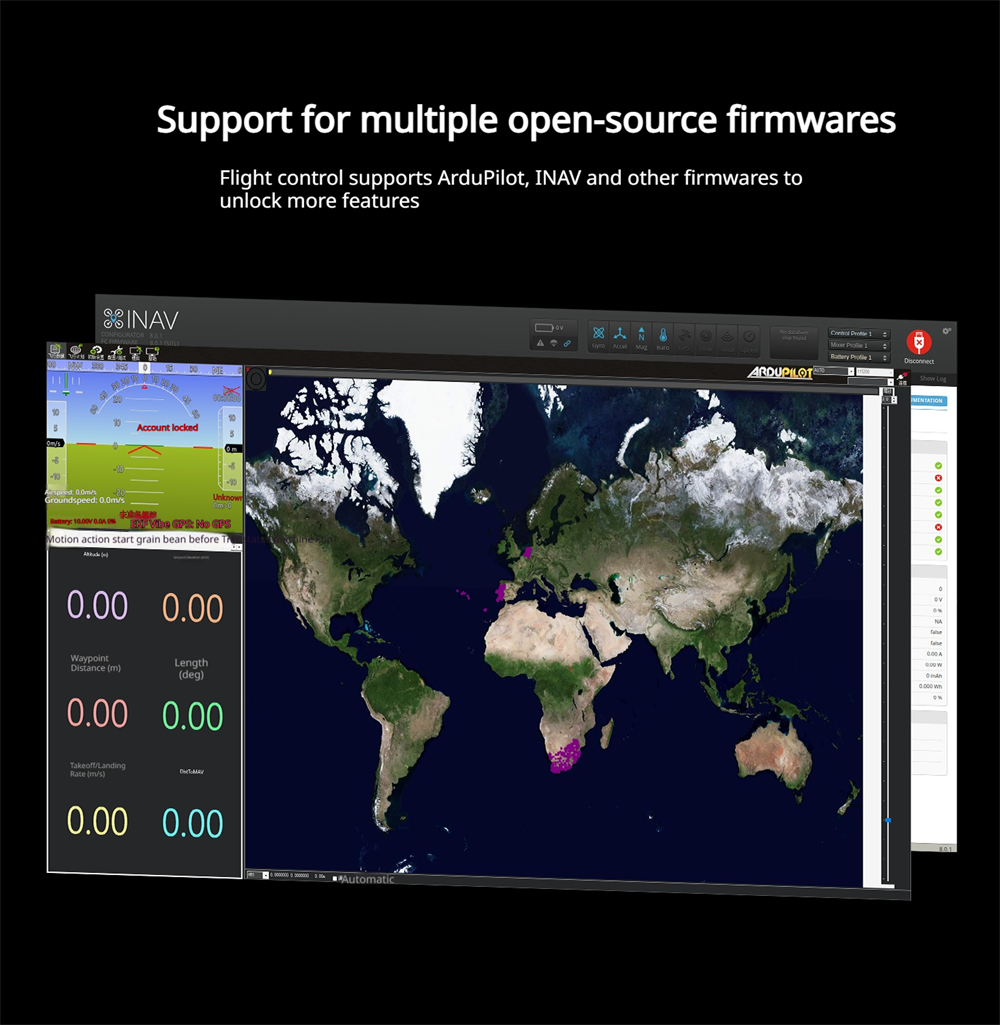

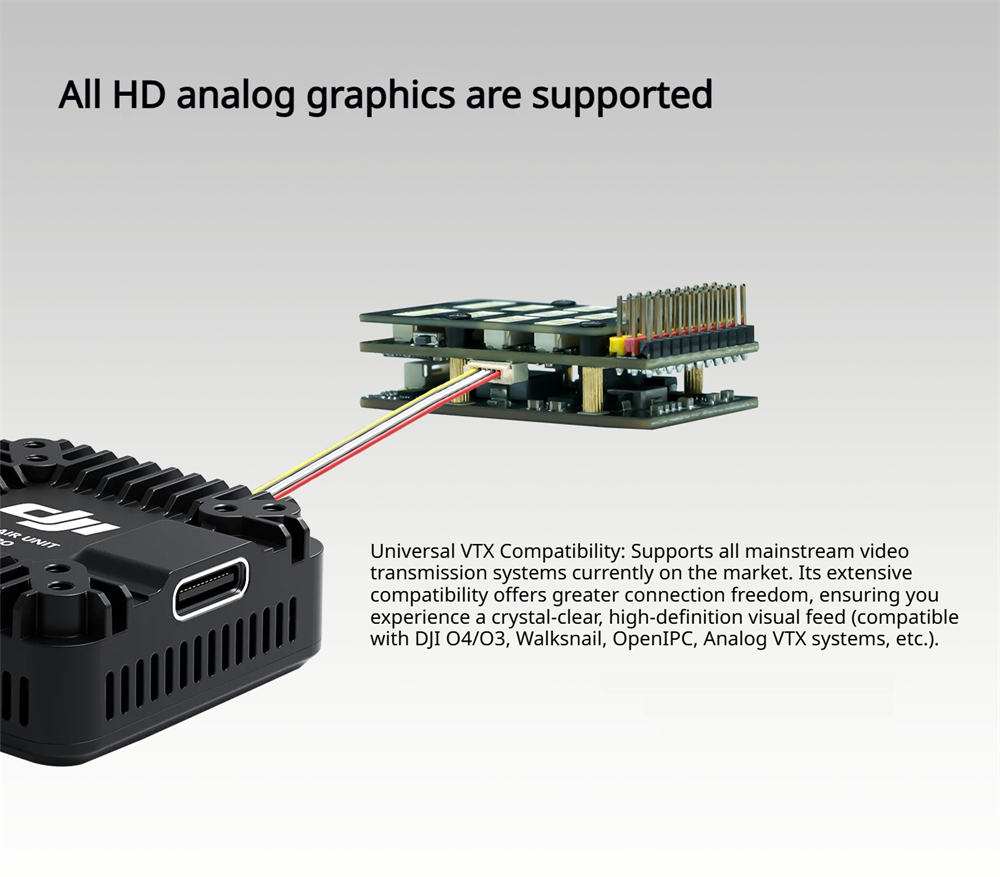

- Compatible with ArduPilot, INAV and AGC ground station; supports one‑click online configuration, waypoint missions and real‑time HD or analog video links, unlocking rich flight‑play modes.
English Manual, Click Here

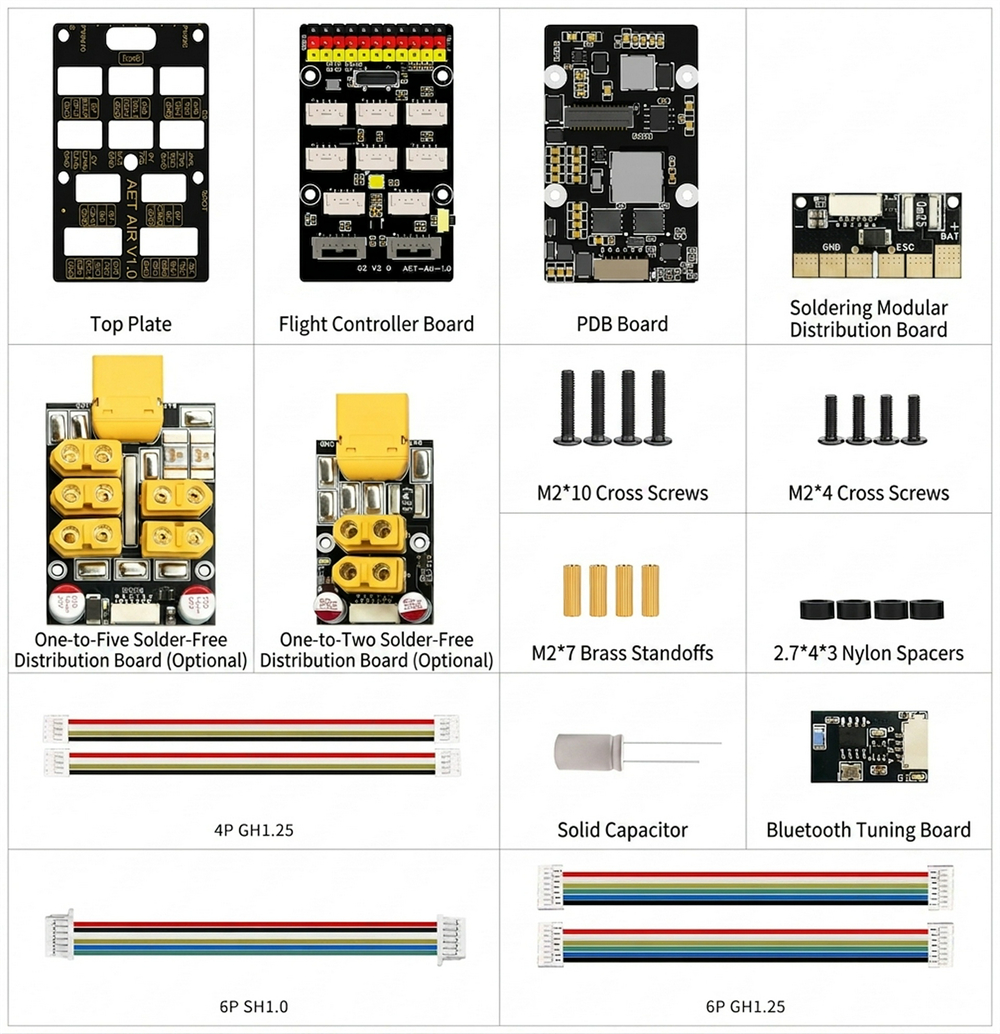

Package Included:
1 x Top Plate

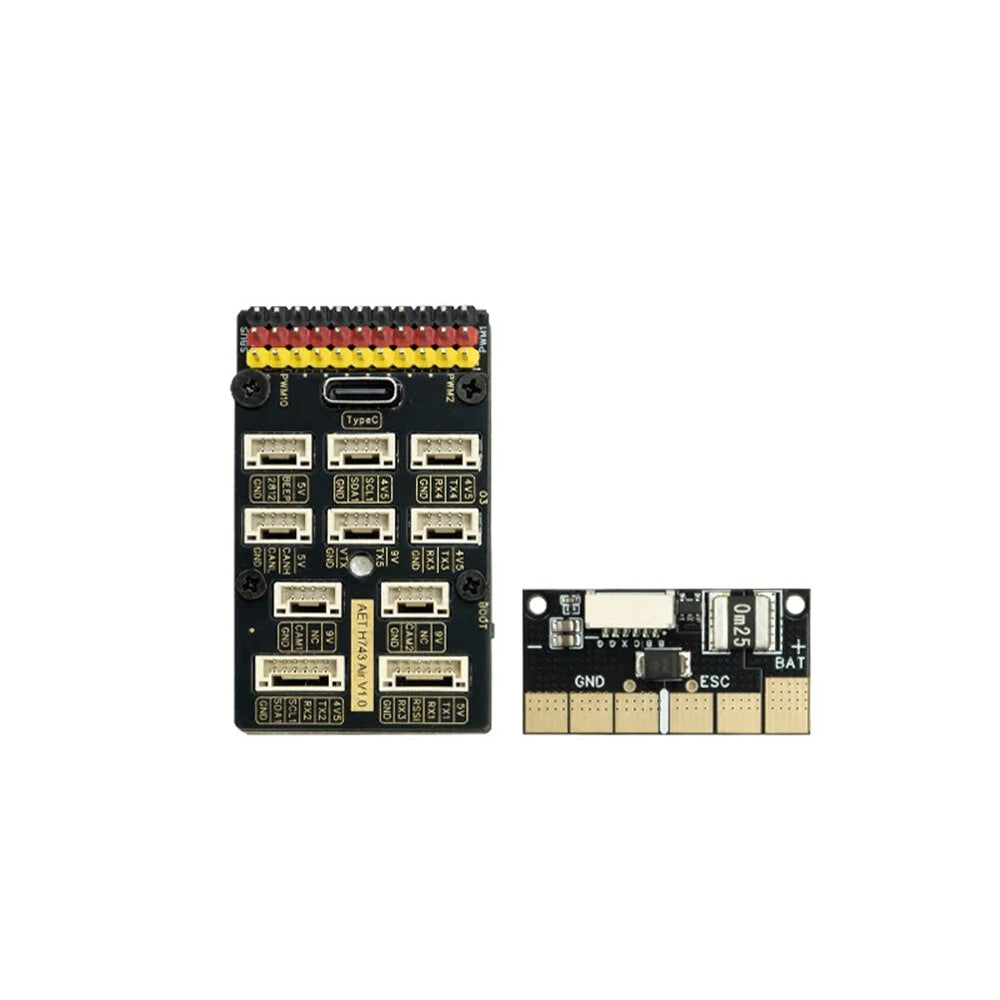

1 x Flight Controller Board

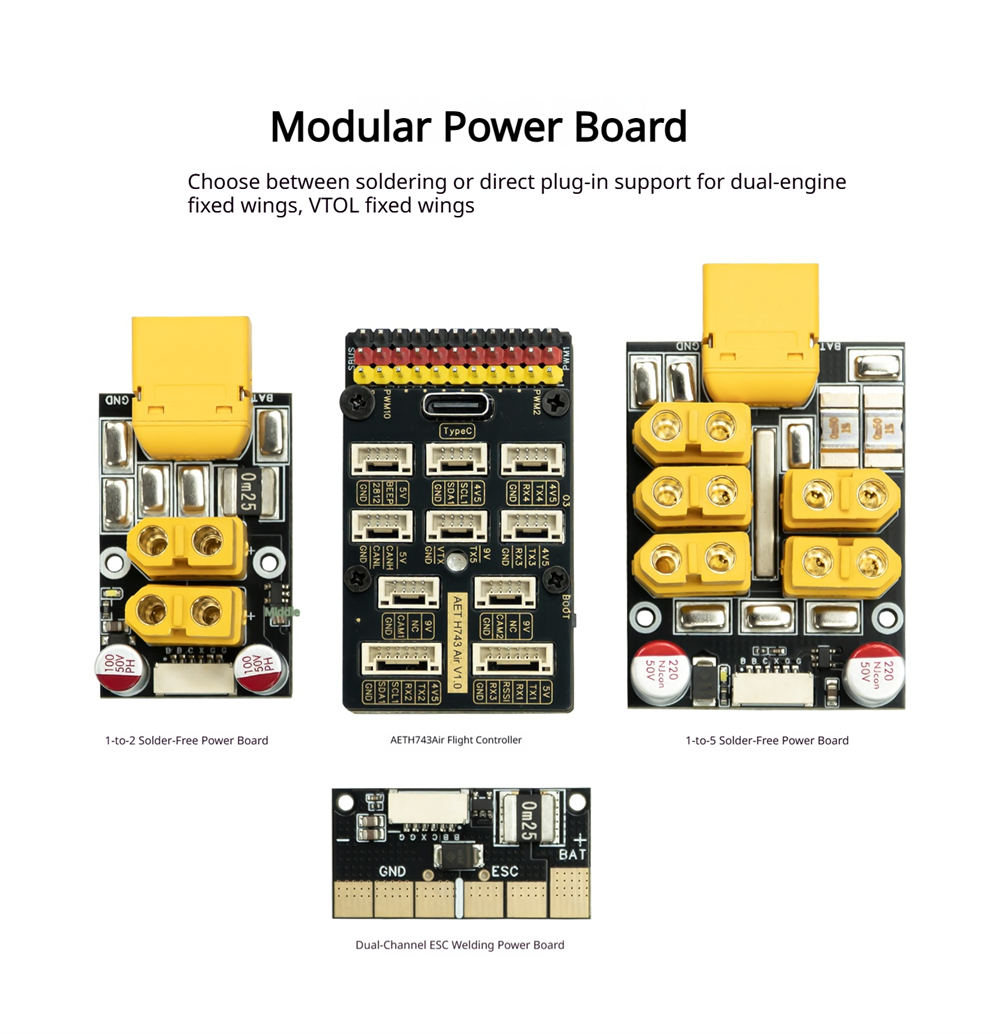

1 x PDB
1 x Solderable Modular PDB

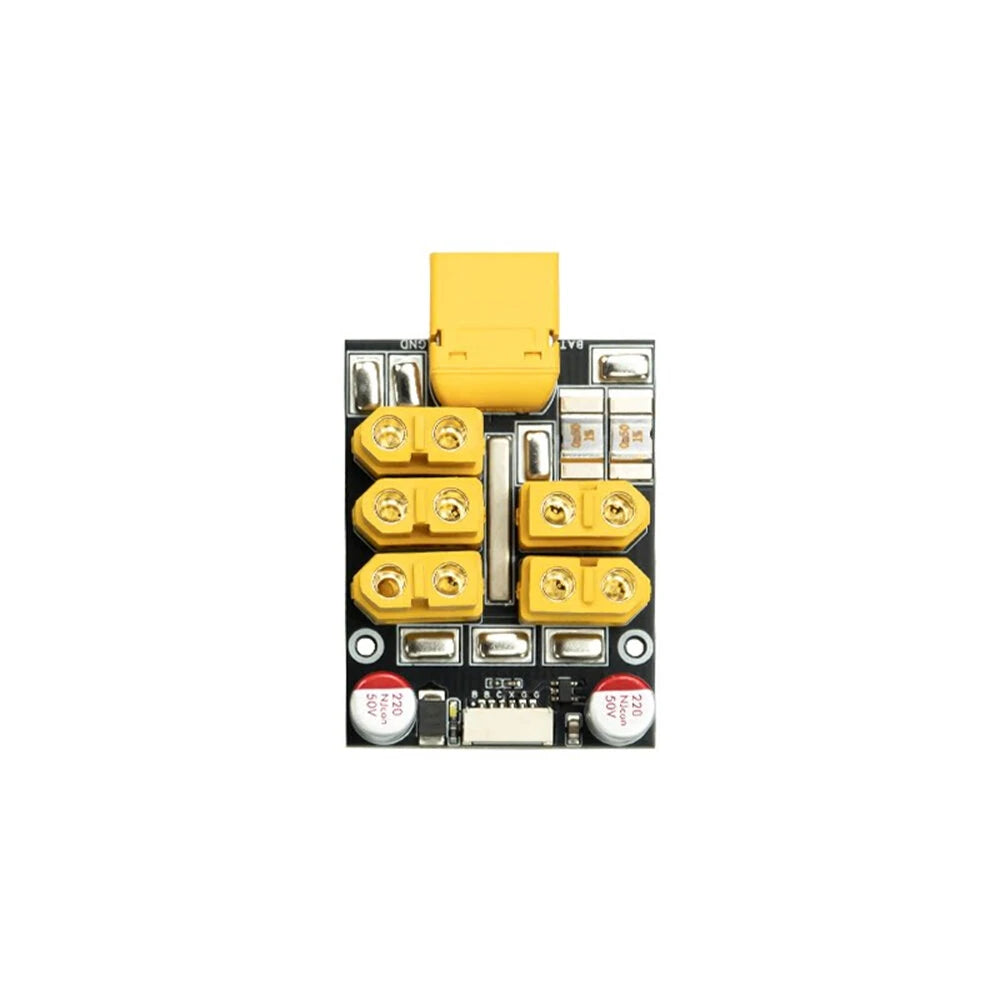

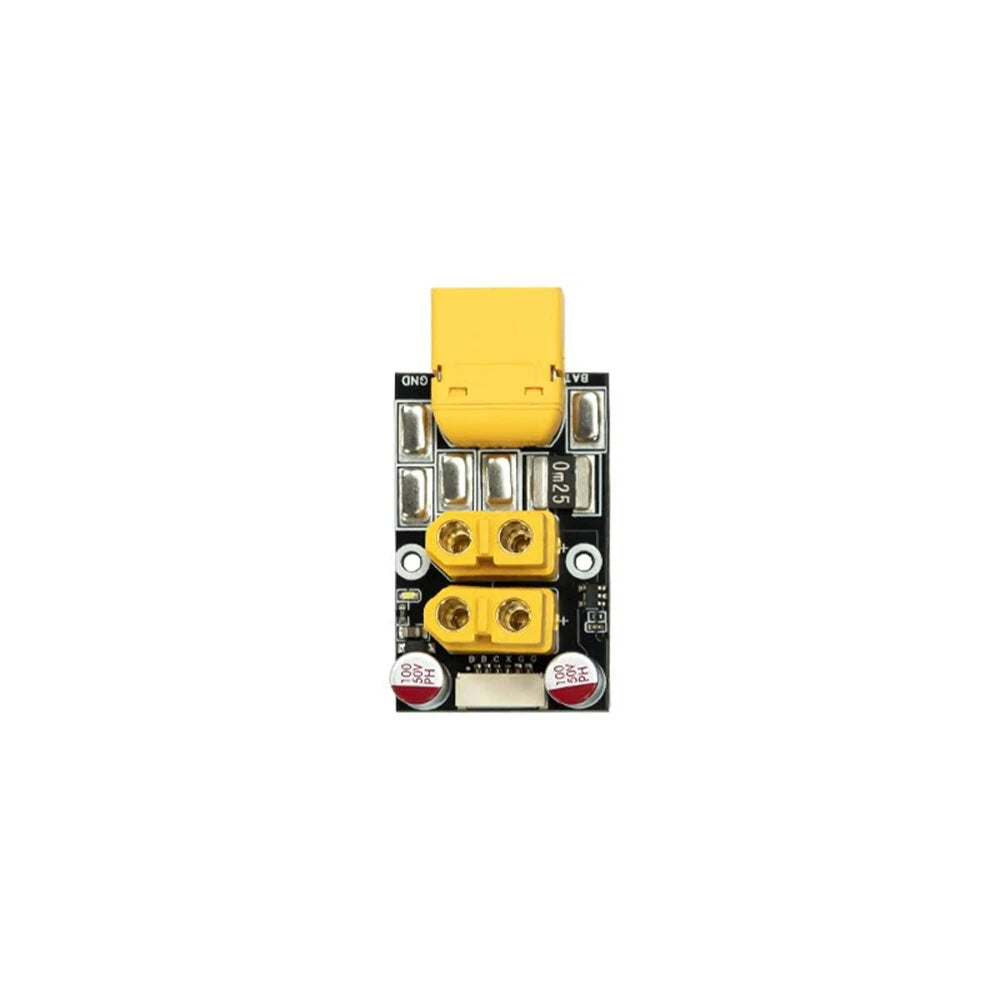

1 x 1-to-5 Solderless PDB / 1-to-2 Solderless PDB (Optional)
4 x M2*10 Phillips Screws
4 x M2*4 Phillips Screws
4 x M2*7 Brass Standoffs
4 x M2*7 Nylon Standoffs
1 x Solid-State Capacitor
1 x Bluetooth Configuration Module
2 x 4-Pin GH1.25 Cable
1 x 6-Pin SH1.0 Cable
2 x 6-Pin GH1.25 Cable
