Description
Specifications:

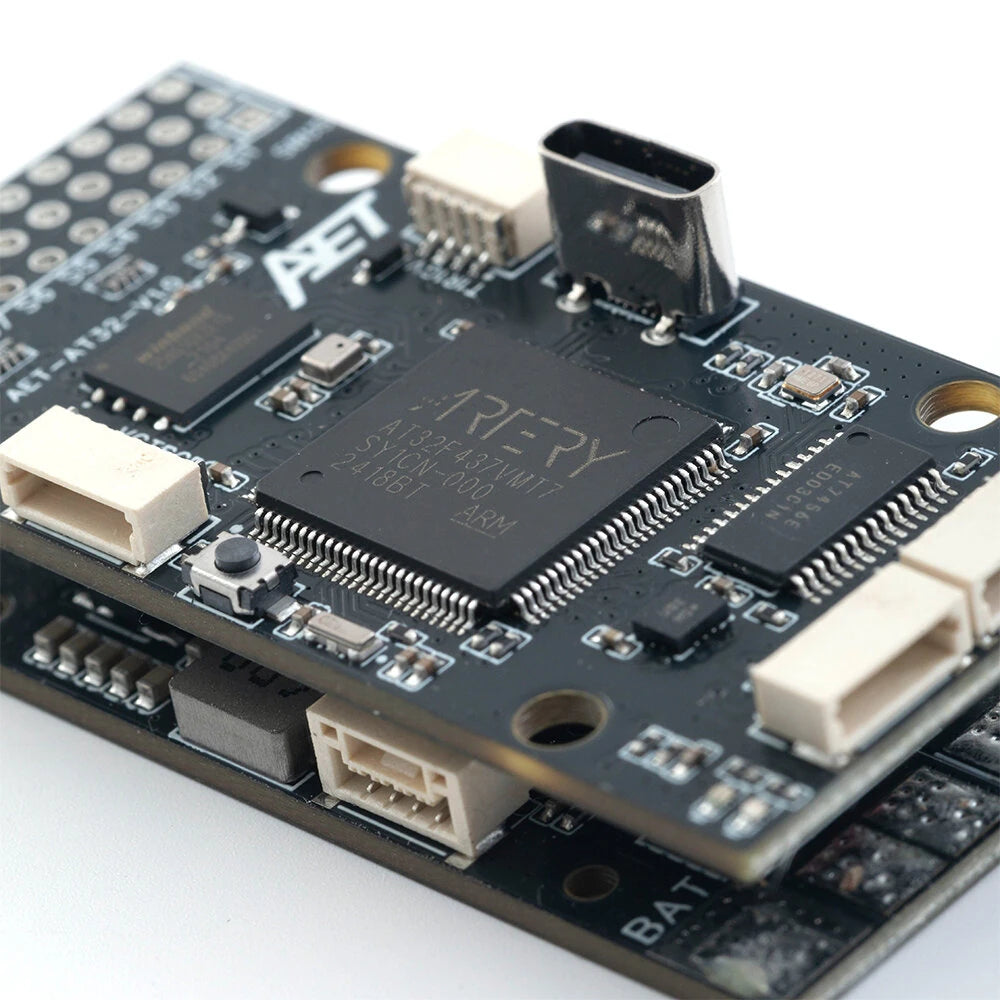

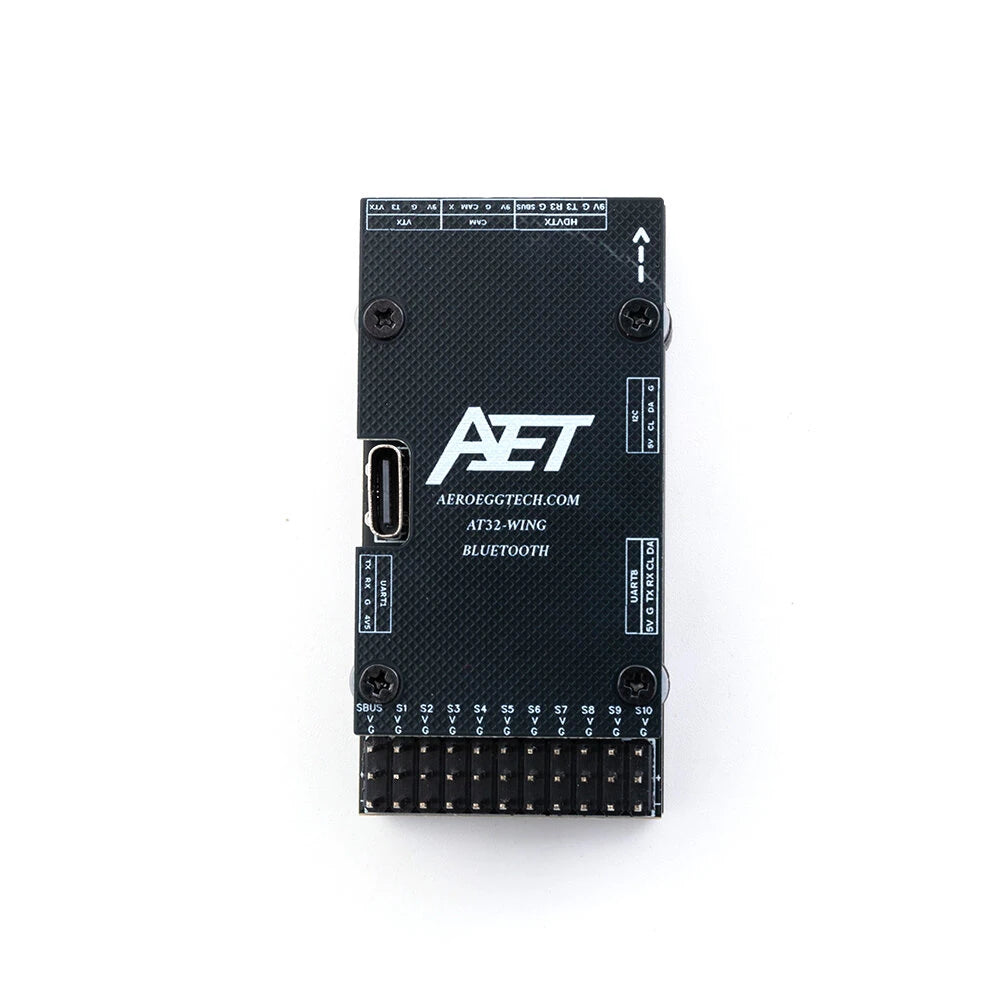

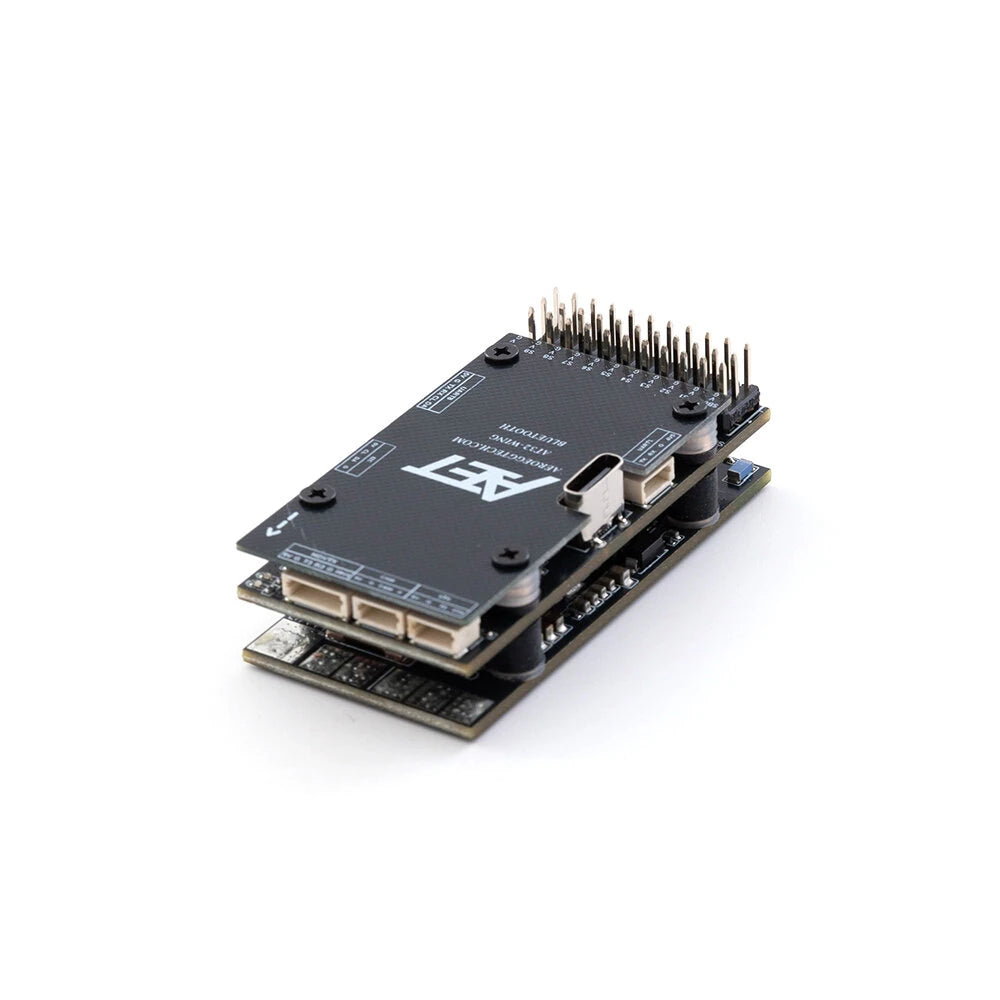

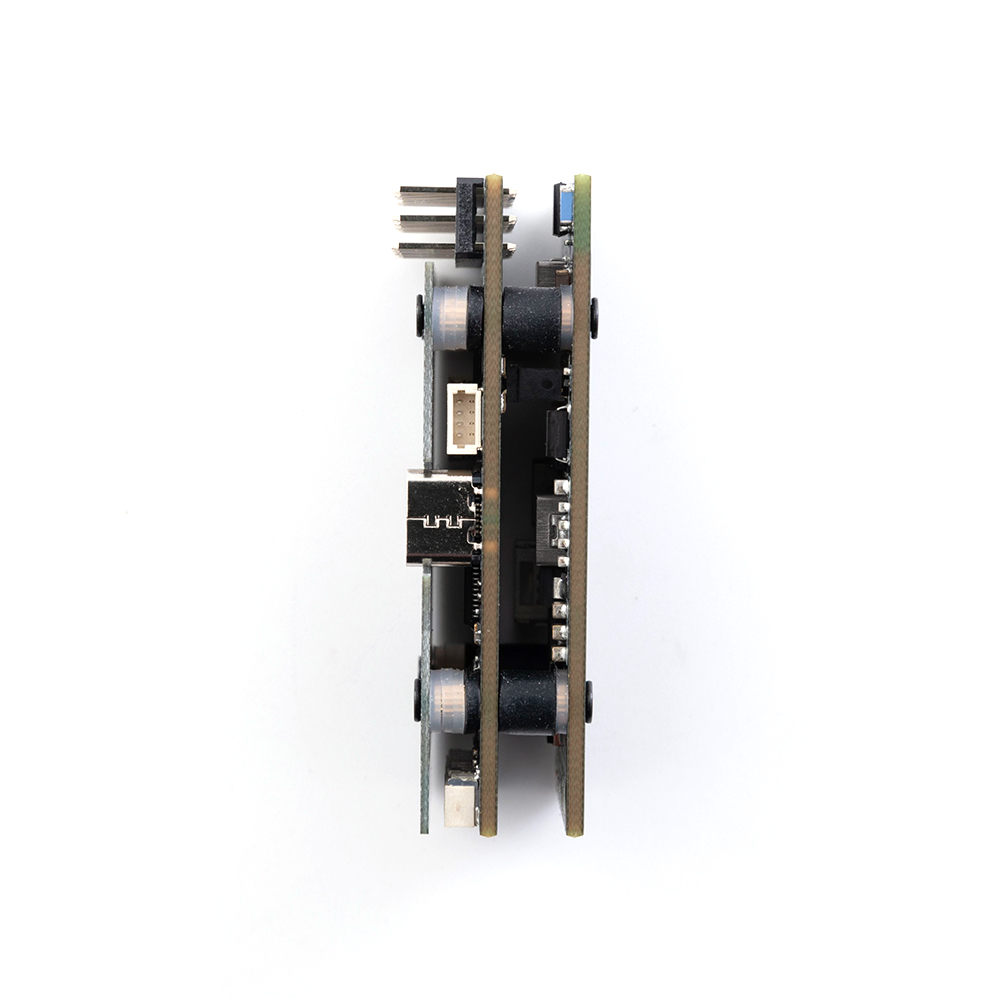

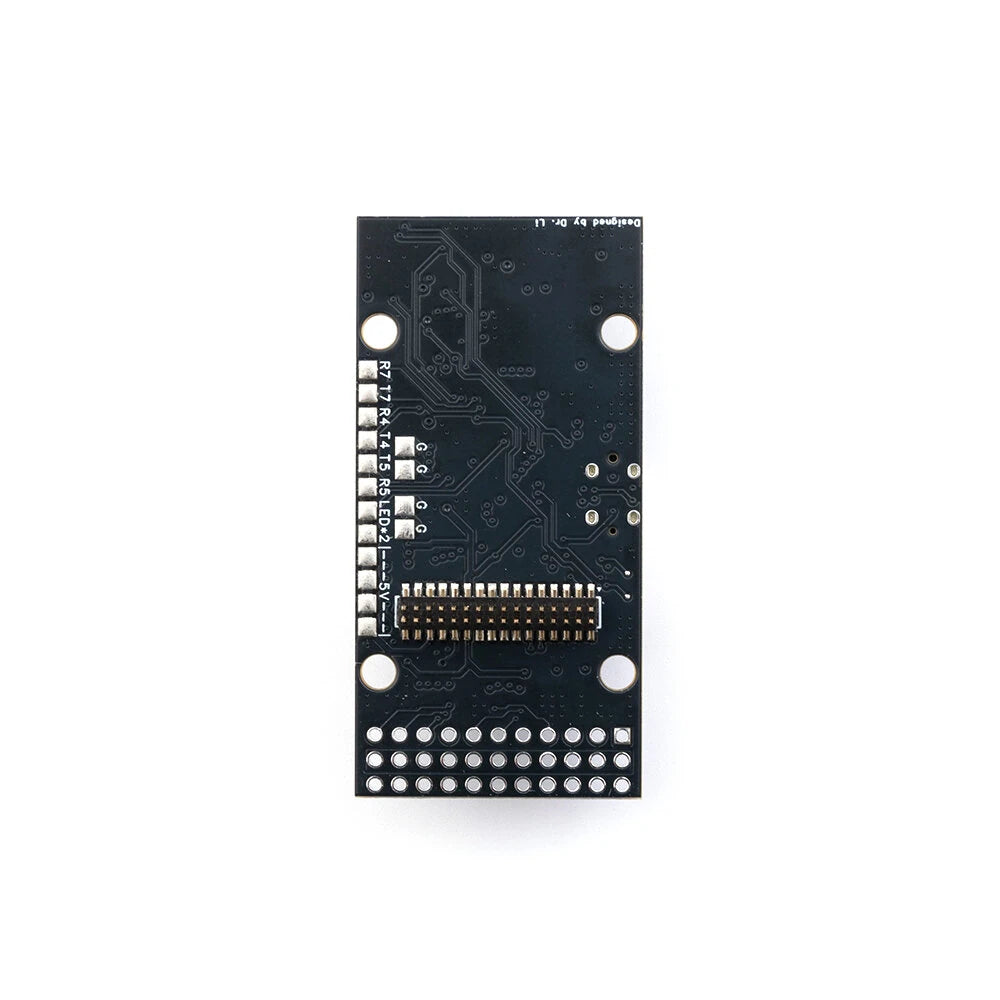

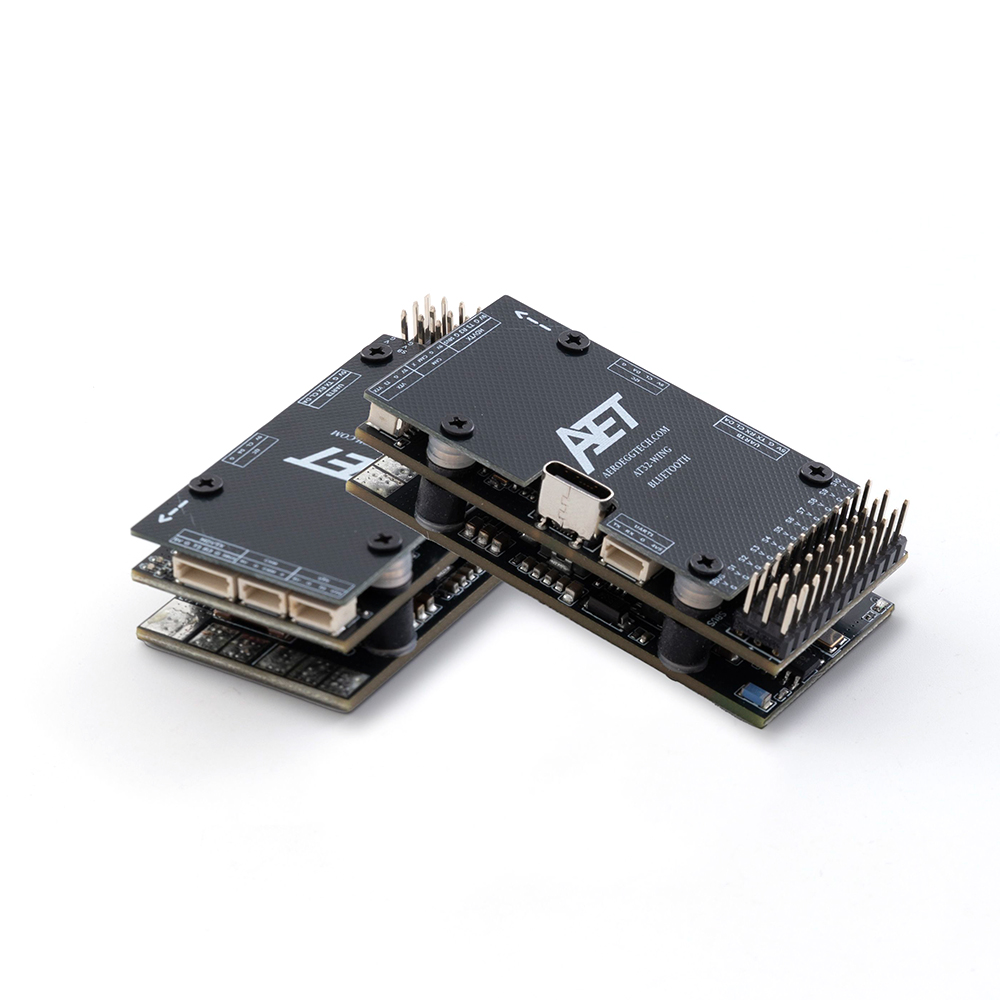

Model: AET AT32-Wing F437 Flight Controller
Processor: AT32F437@ 288MHz
Memory: 128M Flash
Sensors: ICM42607 & SPL06
Power Outputs: 5V5A/9V3A
Connectivity: Bluetooth built-in
Note:

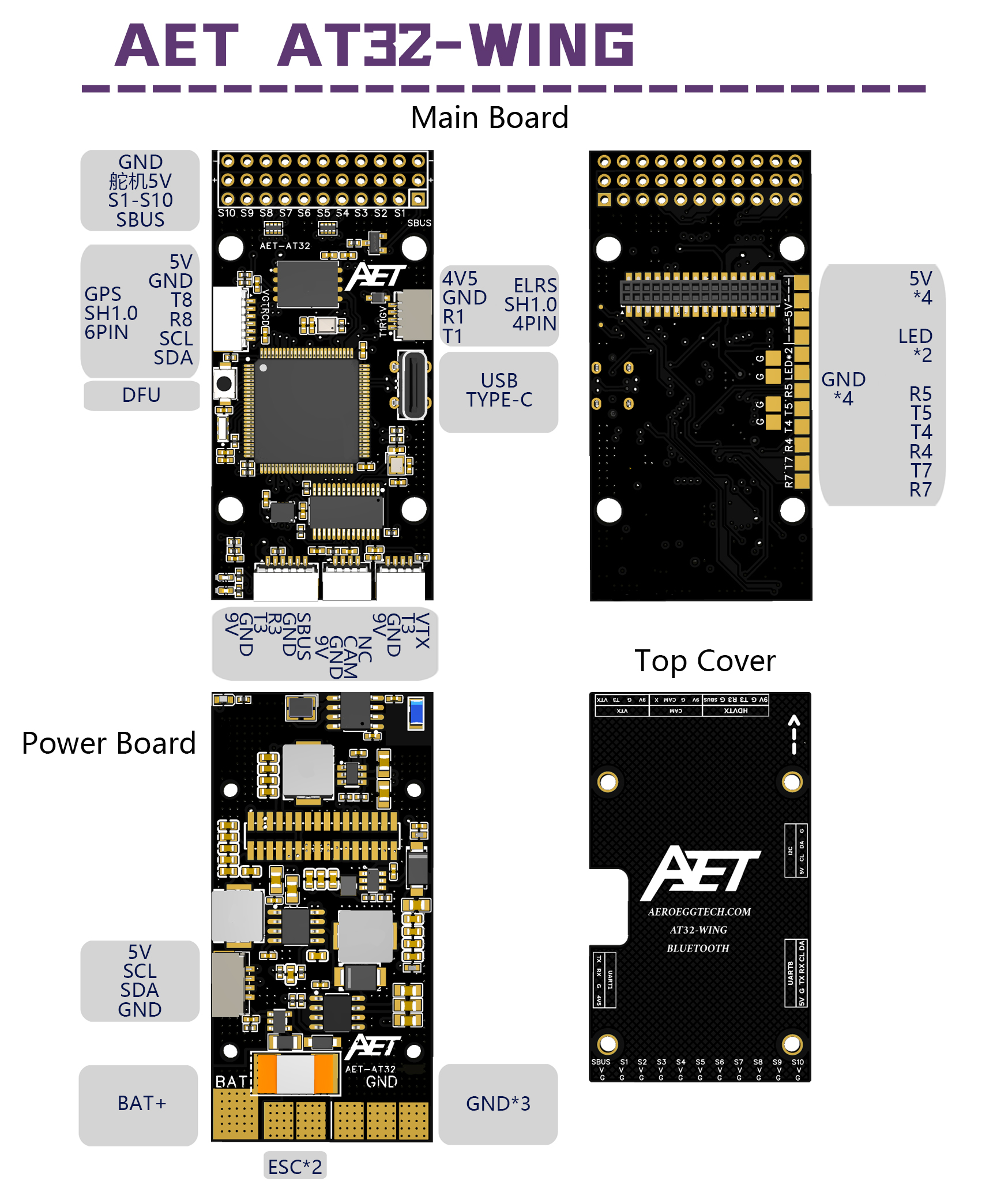

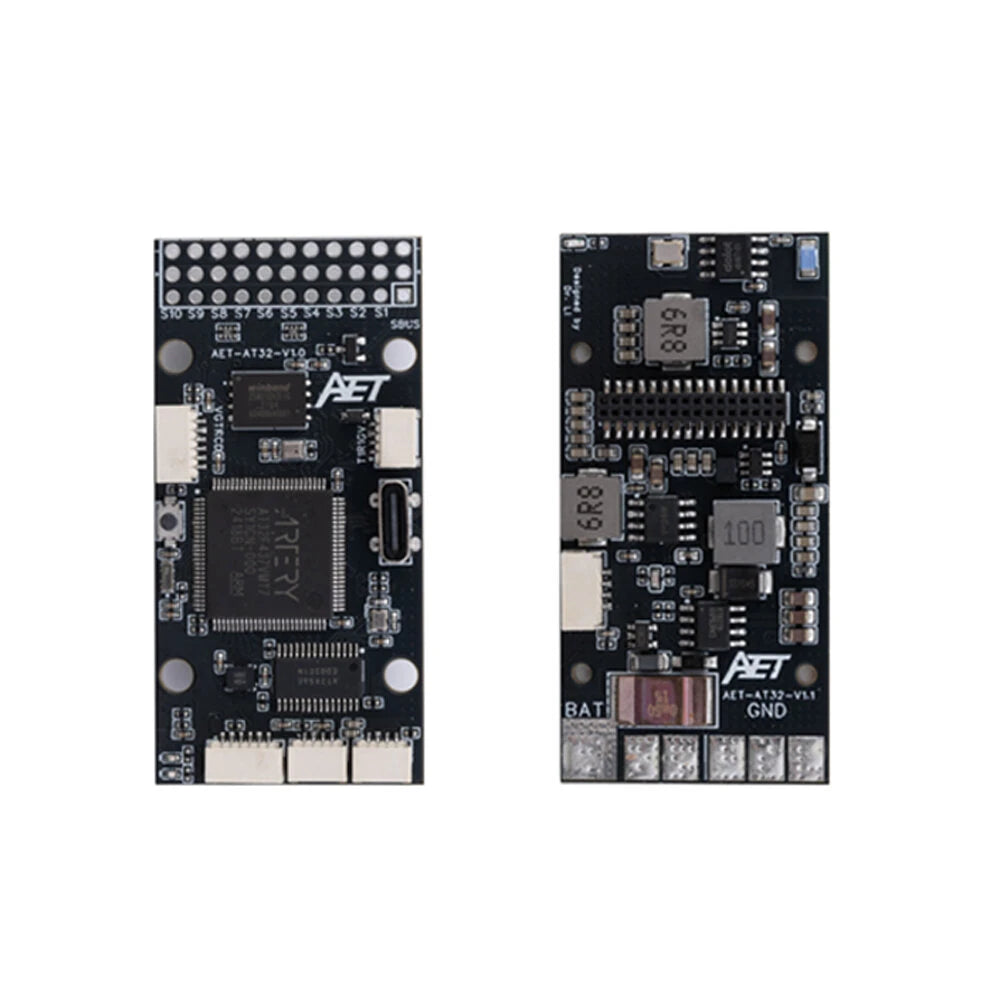

1. The power supply of this flight control is on the power board. Please combine the power board with the mainboard before connecting to USB, otherwise the flight control will not work.
2. Please connect a capacitor between ESC and GND, paying attention to the positive and negative poles.
3. Please insert the shock-absorbing ball into the mainboard hole and fill the gap with a silicone gasket.
4. This product supports Bluetooth. Please set UART2 to MSP and use APP to connect to INAV.
5. The INAV ammeter ratio is 240, the 6S power supply offset is 187, and the 4S power supply offset is 130. Please adjust it yourself.
6. The product supports 2-6S battery power supply, main control 5V5A, servo 5V5A, and image transmission 9V3A power supply.
7. Firmware download address: https://download.aeroeggtech.com/
Package included:
AET AT32-Wing F437-Basic Version:
1x AET AT32-Wing F437 Basic Flight Controller
AET AT32-Wing F437-Basic+Airspeed Meter Combo:
1x AET AT32-Wing F437 Basic Flight Controller
1x Airspeed Meter
AET AT32-Wing F437-Basic+GPS Combo:
1x AET AT32-Wing F437 Basic Flight Controller
1x GPS
AET AT32-Wing F437-Basic+GPS+Airspeed Meter Combo:
1x AET AT32-Wing F437 Basic Flight Controller
1x Airspeed Meter
1x GPS
