AC 250V Tempered Glass Wall Switch Panel - Two Switch Double Control


Isaiah 55:8-9 John 3:16 Philippians 4:19
Please select: Color White
Price:
Sale priceR 708.92
Stock:
Sold out



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

Description:
AC 250V Tempered Glass Wall Switch Panel - Two Switch Double Control

Specification:

Product Name 86 Smart Touch Control Panel
Type 2 Way 2 Gang/Two Switch Double Control
Features With remote control

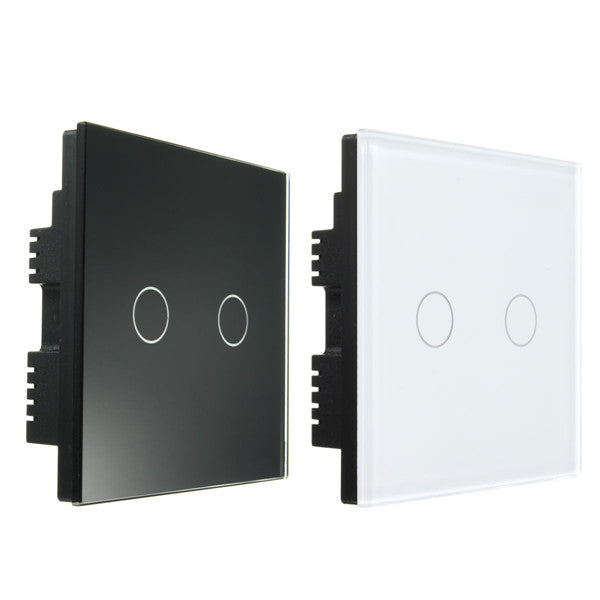

Color Black, White
Size 83 x 83 x 32mm
Panel Material High Grade Tempered Glass
Shell Material Inflaming Retarding ABS (Acrylonitrile Butadiene Styrene Copolymers)
Voltage 160-250V AC / 50Hz-60Hz
Current Stable Current ≤2A, Transient Current≤5A (Use with 16A TRIAC)
Power Unit Channel Load≤200W Single Channel
Power consumption less than 0.05W of static power consumption
Temperature -20 ~ 70 ℃
Humidity 10% to 90%
Minimum load single fire switches connected total load power ≥5W

Features:
1.Efficiency Designed, Tempered Glass Panel, Simple Operation.
2.Functional State Feedback;Ultrafast Reflection, Smaller Than 50 Milliseconds.
3.Support Mode Control (with the coordination of related terminals).
4.Adopt The Single Pole Double Throw Mode.
5.Over-length Life Span(Adopt high power SCR)
6. Anti-shocked Designed,Memory Function.
7.It Is Easily Installed and can replace an switch In Your Home Using Your Existing Wiring.

Switch Using Instruction:
1.Hand Mode Control:
-Switch ON/OFF on the glass panel. When the switch is ON, the pilot light changes to red; when it is OFF, the pilot light changes to blue. Everytime turning ON/OFF will the boomer make a sound of “Dee” to confirm the operation succeed.

Package Included:
Tempered Glass Wall Switch Panel
2×screws

More Details:





















,,,,,,,,,
