Description
Description:
Brand Name: JX Servo

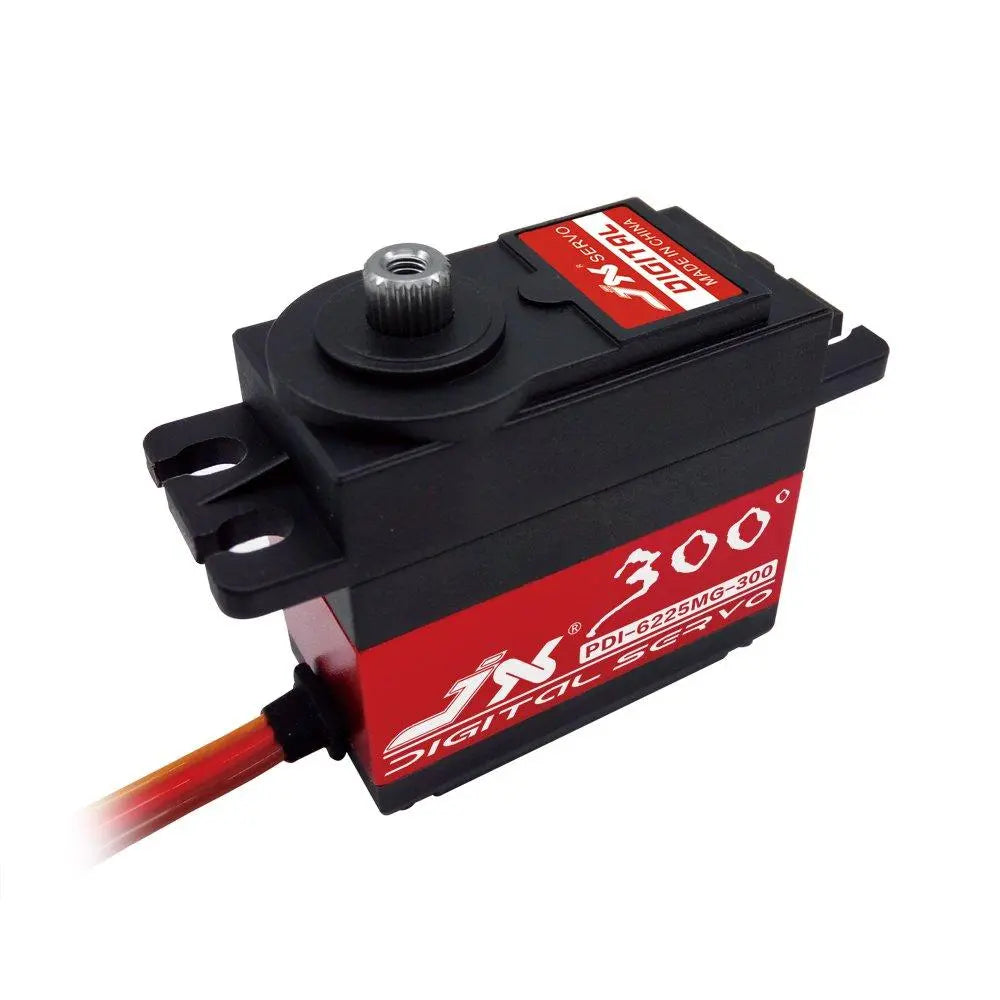

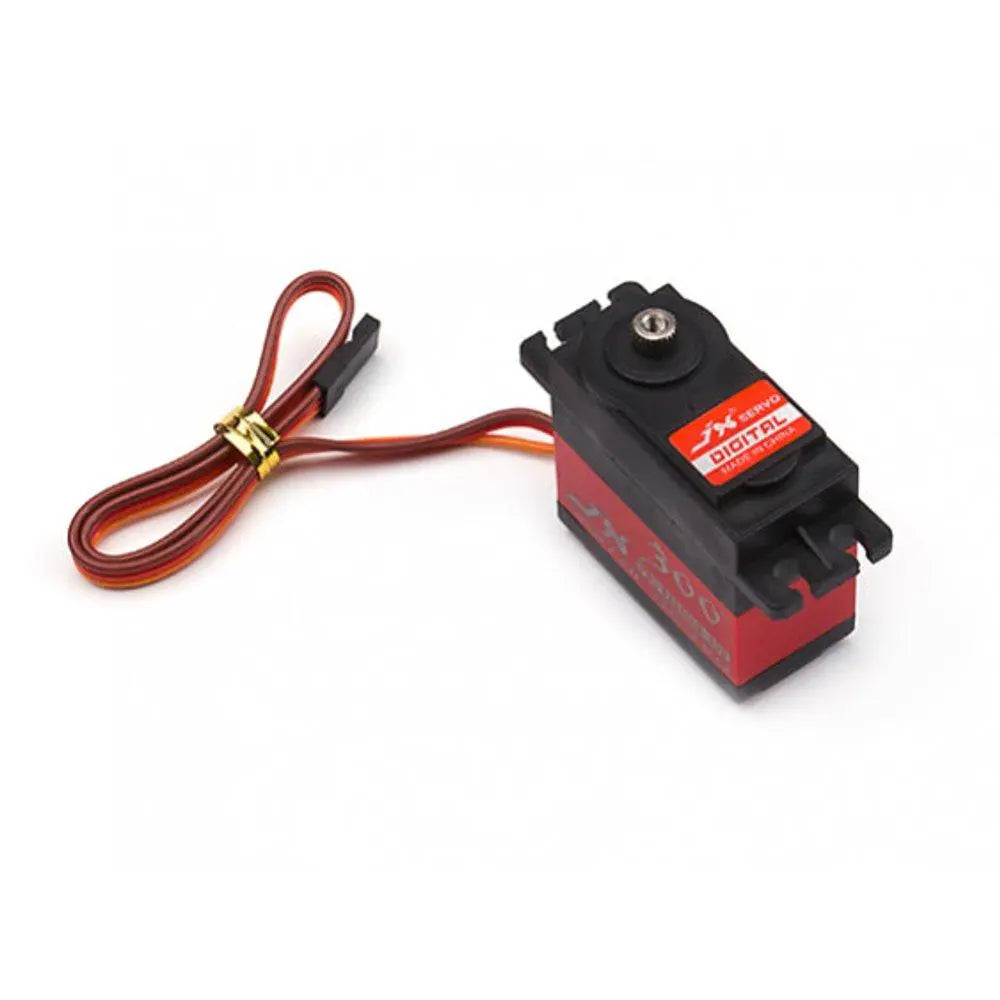

Item Name: PDI-6225MG-300 Degree
Max Angle: 295°
Dead Band: 4μs
Dead Band: 4μs
Maximum Pulse Width: 500-2500us (for control board)
Motor: Iron core
Voltage range: 4.8V-6.6V
Speed (4.8V): 0.25 sec / 60 degree
Speed (6V): 0.21 sec / 60 degree
Torque (4.8V): 19.9 kg.cm
Torque (6V): 25.3 kg.cm
Size: 40.5 x 20.2 x 38mm
Weight: 62g
Cable: JR 265 mm
Bearing: 2BB
Output Teeth: 25T (Futaba Universal)
Feature:
Package Included:
6x JX Servo PDI-6225MG-300 servo

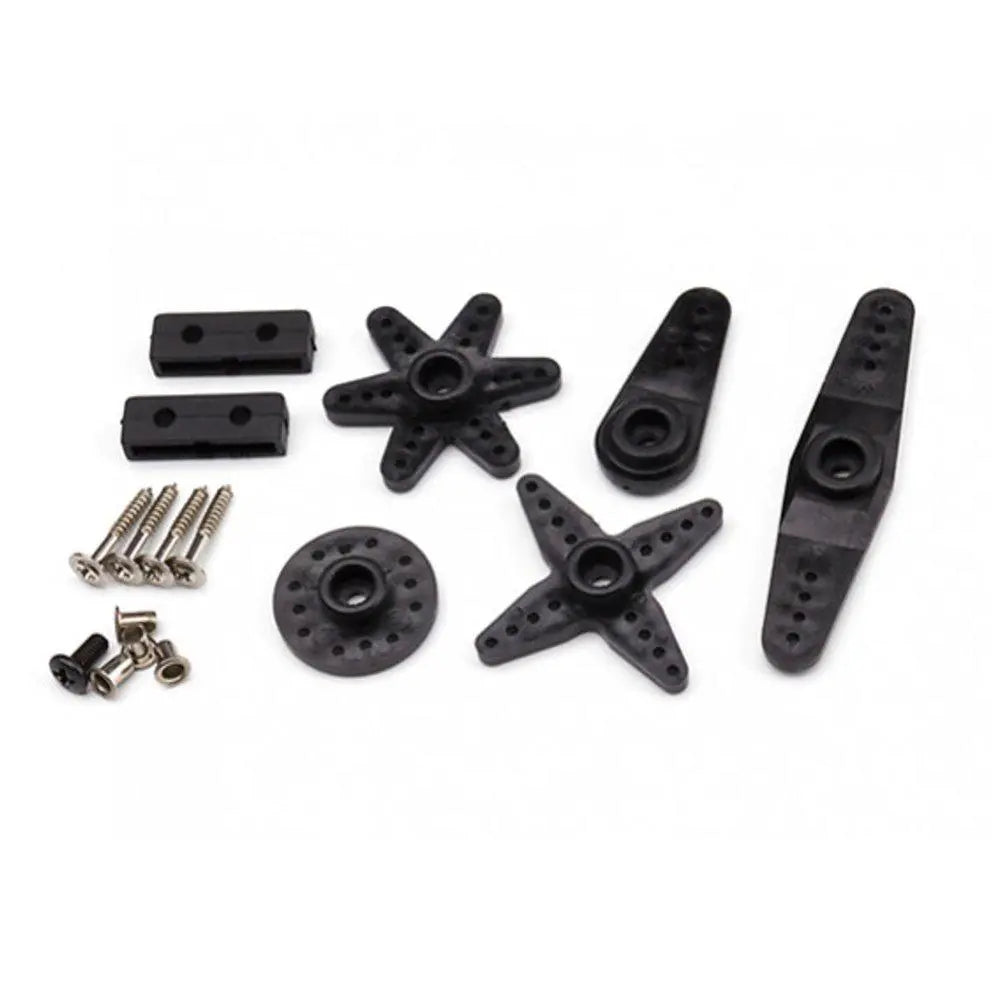

6x Accessories bag
Feature:
High Performance 25KG large torque standard digital servo
High precision gears
CNC aluminum shell
Dual ball bearing
Package Included:
6x JX Servo PDI-6225MG-300 servo
6x Accessories bag
