Description
Specifications:

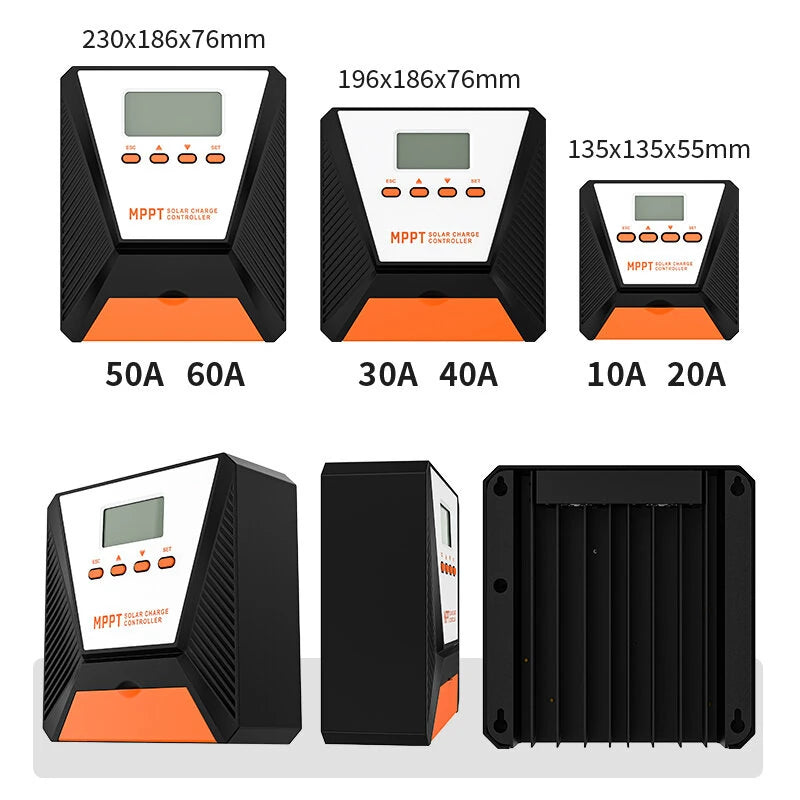

- Model: GM-D20/R, GM-D40/R, GM-D60/R
- System Voltage: 12V / 24V Auto-Adaptive
- No-load Loss: ≤0.4W
- Maximum Solar Input Voltage:
GM-D20/R: 50V VOC
GM-D40/R to GM-D60/R: 100V VOC
- Battery Voltage: 9-32V
- Maximum PowerPoin Voltage Range:
GM-D20/R: Battery Voltage: +2V~50V
GM-D40/R to GM-D60/R: Battery Voltage: +2V~100V
- Rated Charging Current:
GM-D20/R: 20A
GM-D40/R: 40A
GM-D60/R: 60A
- Rated Load Current: 20A
- USB Output: 5V*3A
- Maximum Input Power of the Solar Panel:
GM-D20/R: 240W/12V, 480W/24V;
GM-D40/R: 480W/12V, 960W/24V;
GM-D60/R: 720W/12V, 1440W/24V
- Conversion Efficiency: ≤98%
- MPPT Tracking Efficiency: >99%
- Temperature Compensation Coefficient: -2m v/°C/2V (Default Value)
- Operating Temperature: -10°C to +65°C
- Ingress Protection: IP21
- Net Weight:
GM-D20/R: 0.4kg
GM-D40/R: 1.08kg
GM-D60/R: 1.43kg
- Gross Weight:
GM-D20/R: 0.52kg
GM-D40/R: 1.3kg
GM-D60/R: 1.65kg
- Electromagnetic Compatibility: Compli
