Specifications:(Inverter)
Name	Power Inverter
Color	Yellow
Output voltage	AC 110V /220V for your choice
Output frequency	50Hz for 220V model /60Hz for 110V model.
Peaks Power	6000W
Rated Power	500W
Output Waveform	Modified sine wave
Size	20X11.2X5.6cm
Weight	0.8kg

Features:

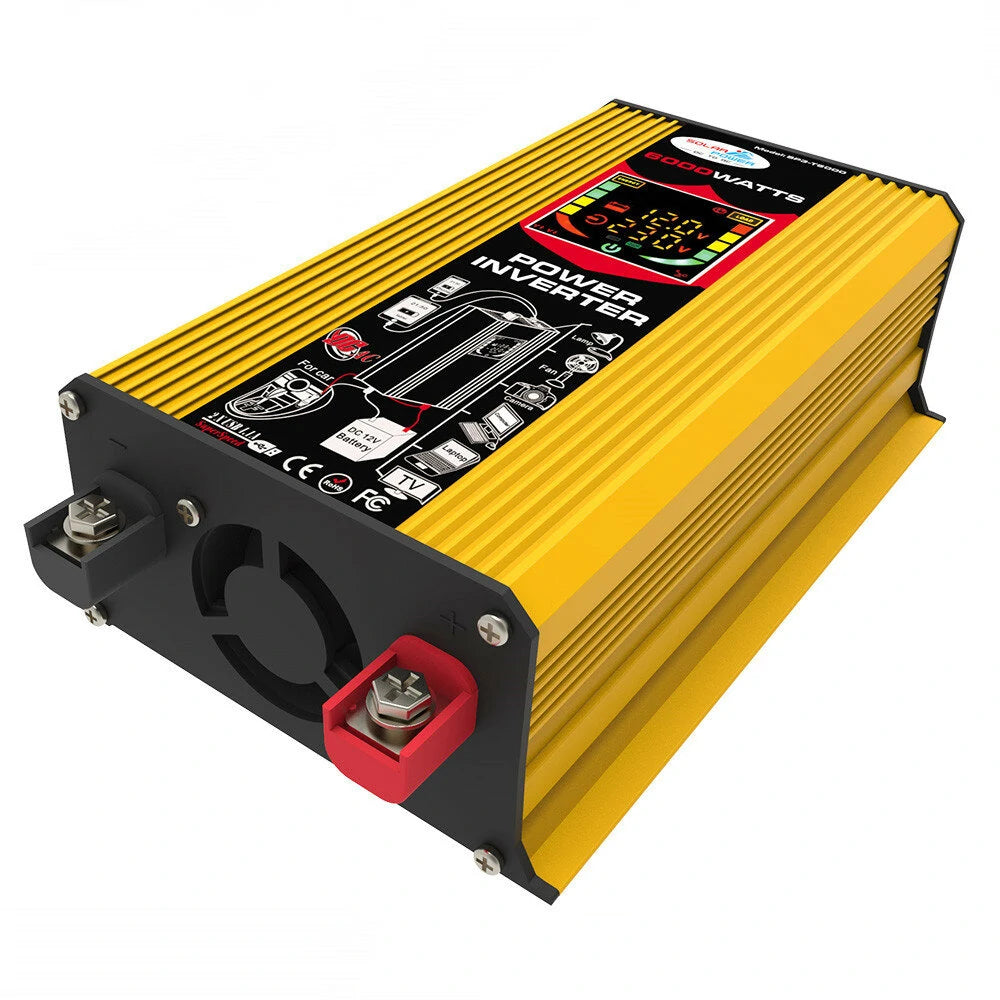

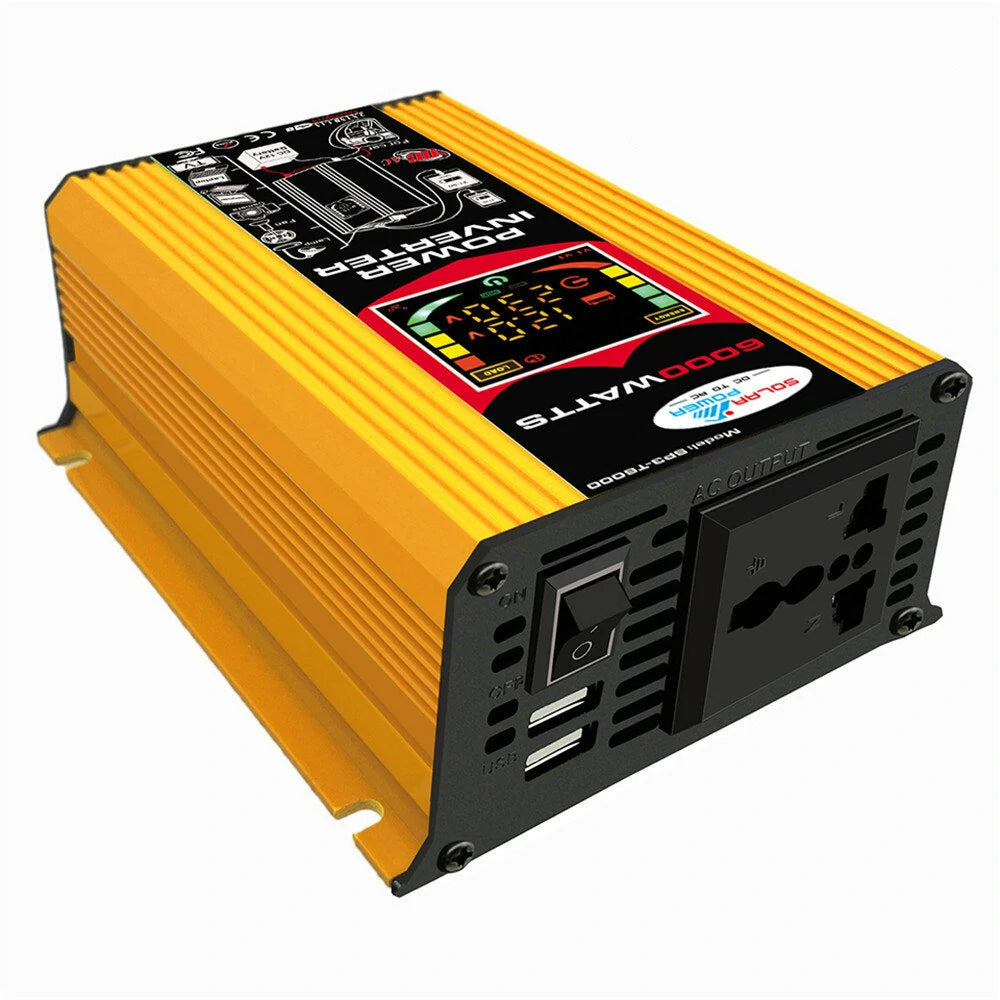

▲6000W Power inverter

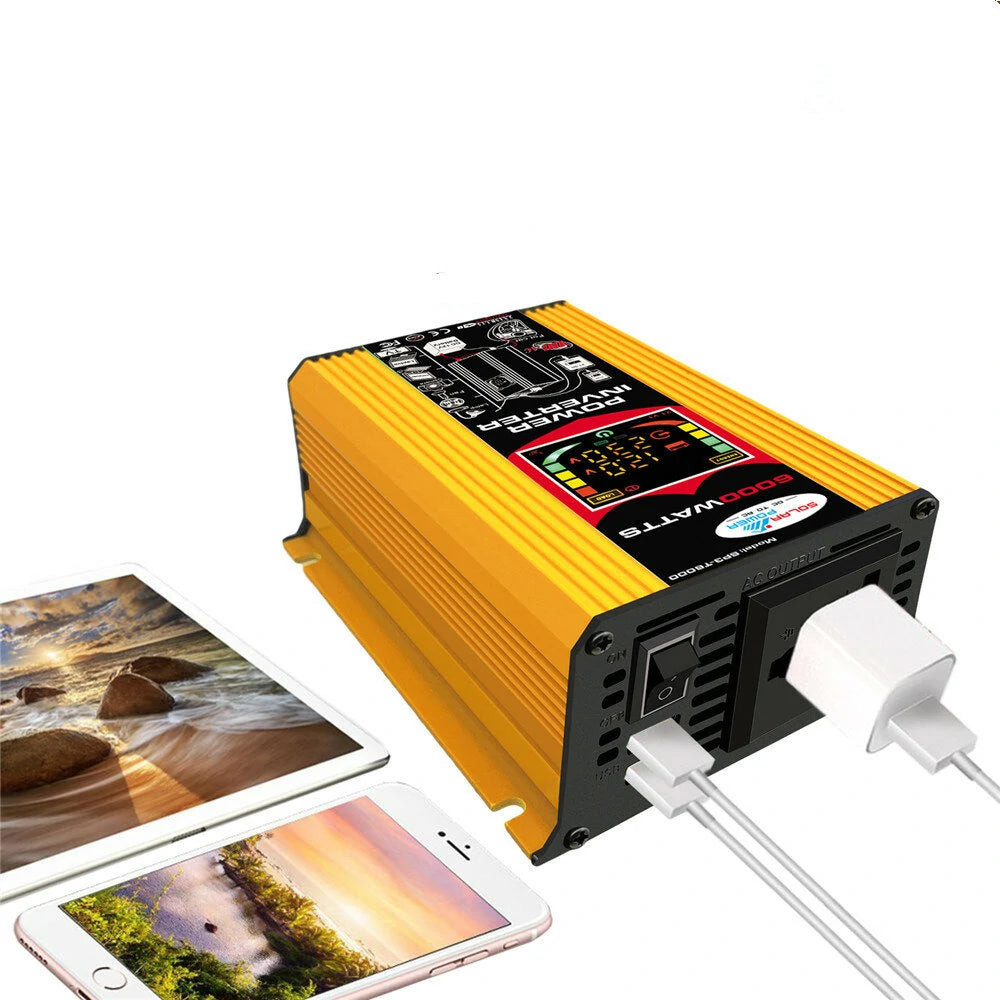

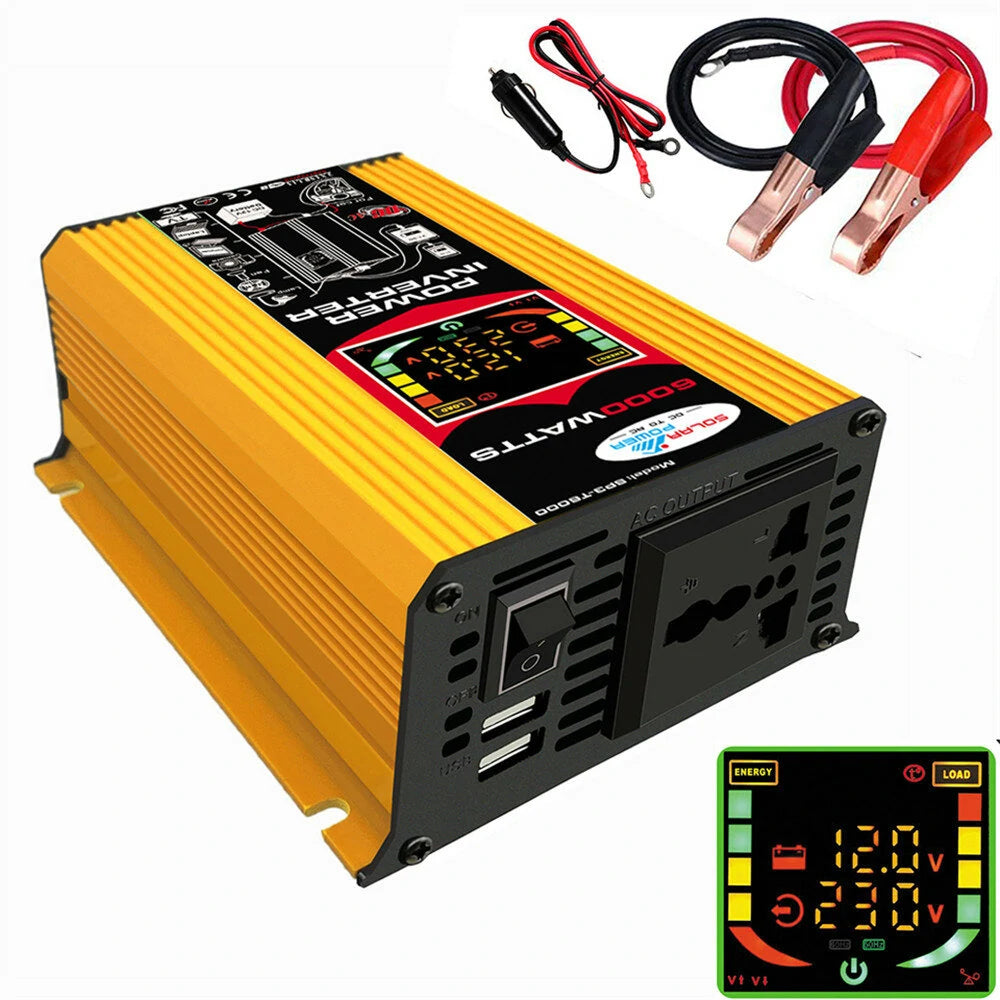

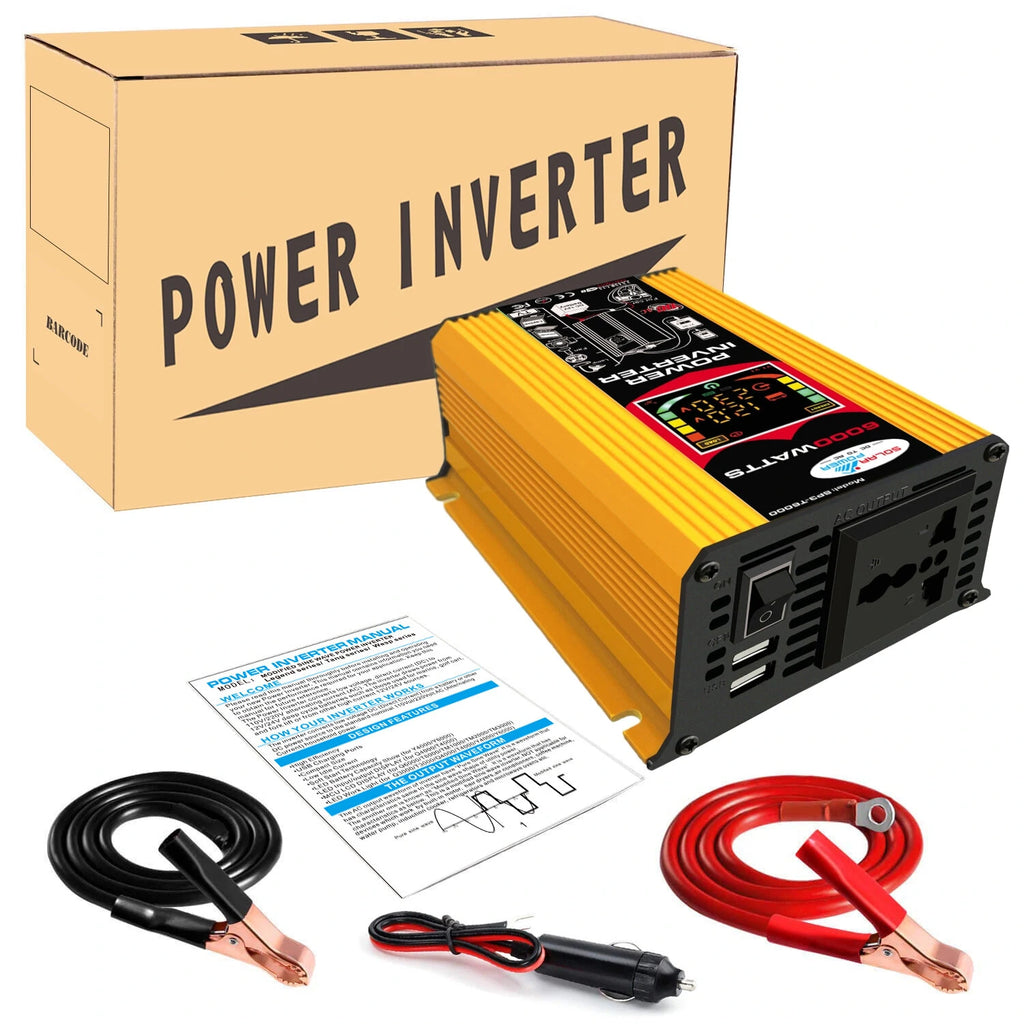

Car power inverter with 2 USB ports and AC outlet. The power inverter comes with free lighter and 2pcs battery clips,providing 500Watt continuous power, 6000watt peak power (Please make sure that the total rated power of the connected devices is ≤ 500W).



▲MCU LCD Display

 Car inverter has the micro-control unit LCD realizes the exchange of human-machine information, and can know the working status of the inverter in real time, including show real time of input voltage, output voltage, output frequency, battery power, load, Power on/off indicator and other information.



▲High Temperature Warning Indicator in LCD display

It is a powerful display reminder function. When high temperature over 45 Celsius, the symbol of temperature will light up and show red color, plus audible alarm then shutdown.



▲Show Battery Power in LCD display

 There is a battery Level Bar in the LCD Screen, it can show you the real time power of battery. Green means full power, yellow means half level, and red means low power of your battery, you have to recharge  the battery at once.



▲High/Voltage warning in LCD display

 (1)  When high voltage warning, the symbol of v lights up(Red), battery level bar flickers, input voltage display shows 15V or more, plus audible alarm then shutdown.  (2) When low voltage warning, the symbol of v lights up(Red), battery level bar flickers, input voltage display shows 10.5V or less, plus audible alarm then shutdown.



▲Power on/off indicator in LCD display

The symbol show green and mean working normal, show red and faulty, without output.
