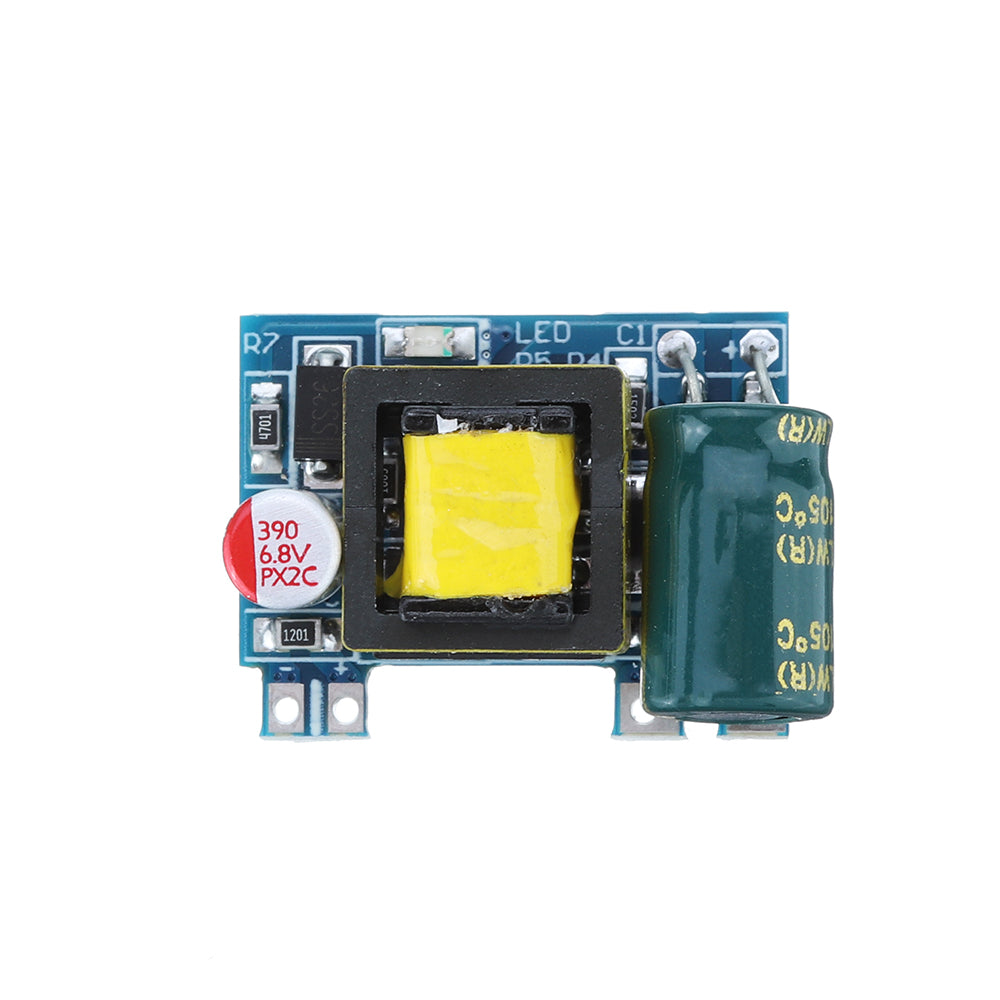

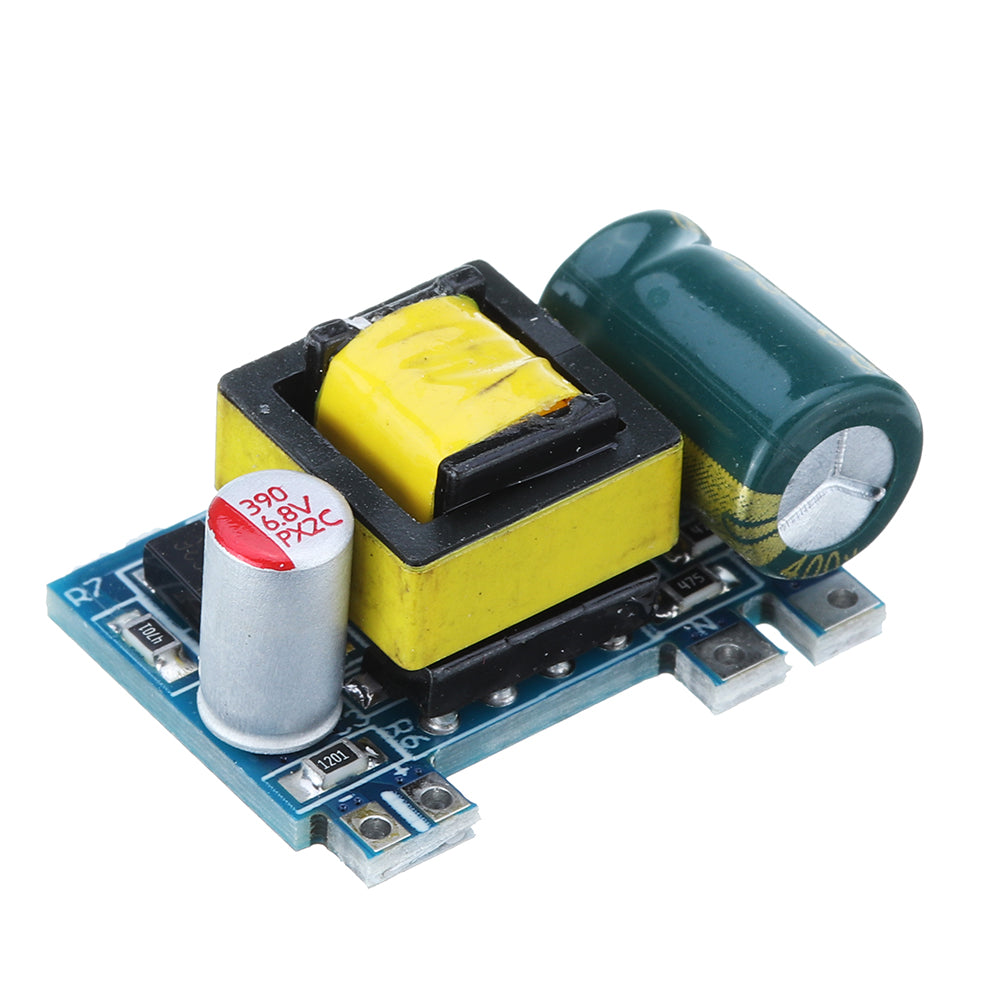

5pcs AC-DC 5V 700mA 3.5W Isolated Switching Power Supply Module Buck Regulator Step Down Precision Power Module 220V to 5V Converter


Isaiah 55:8-9 John 3:16 Philippians 4:19
Price:
Sale priceR 324.83 Regular priceR 430.00
Stock:
Sold out



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

Specification:

Input voltage range: AC50V-277V / DC70V-390V
No-load power: <0.05W Full load power: <4W
Output characteristics: Multiple voltage modules can be used in parallel to meet the needs of large currents in small spaces.
Output voltage: 5V +-0.15V no load and full load, light load minus 0.1V, rebound when heavy load, 50% load ripple 60mV
Output current: 5V0mA-700mA, enters constant current mode when fully loaded
Test resistance: 7 ohms (4.9V) for 5V
Output indicator: green light
Output power: 3.5W, efficiency is about 80%
Output protection: over voltage, over current, over temperature, over work, short circuit protection, etc.

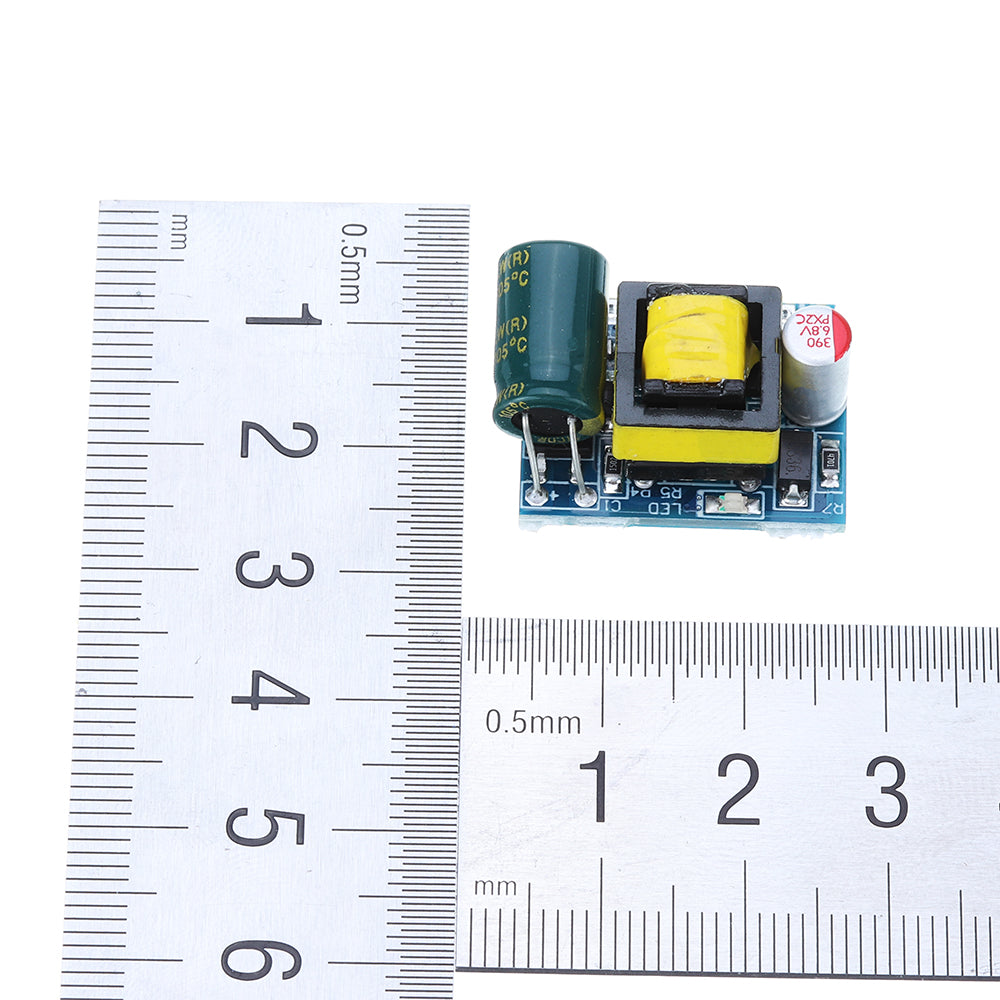

Overall height: 13.5mm
Package included:

5 x AC-DC 5V 700mA 3.5W Isolated Switching Power Supply Module
