Description
Specification:
Model: 533 Ultra

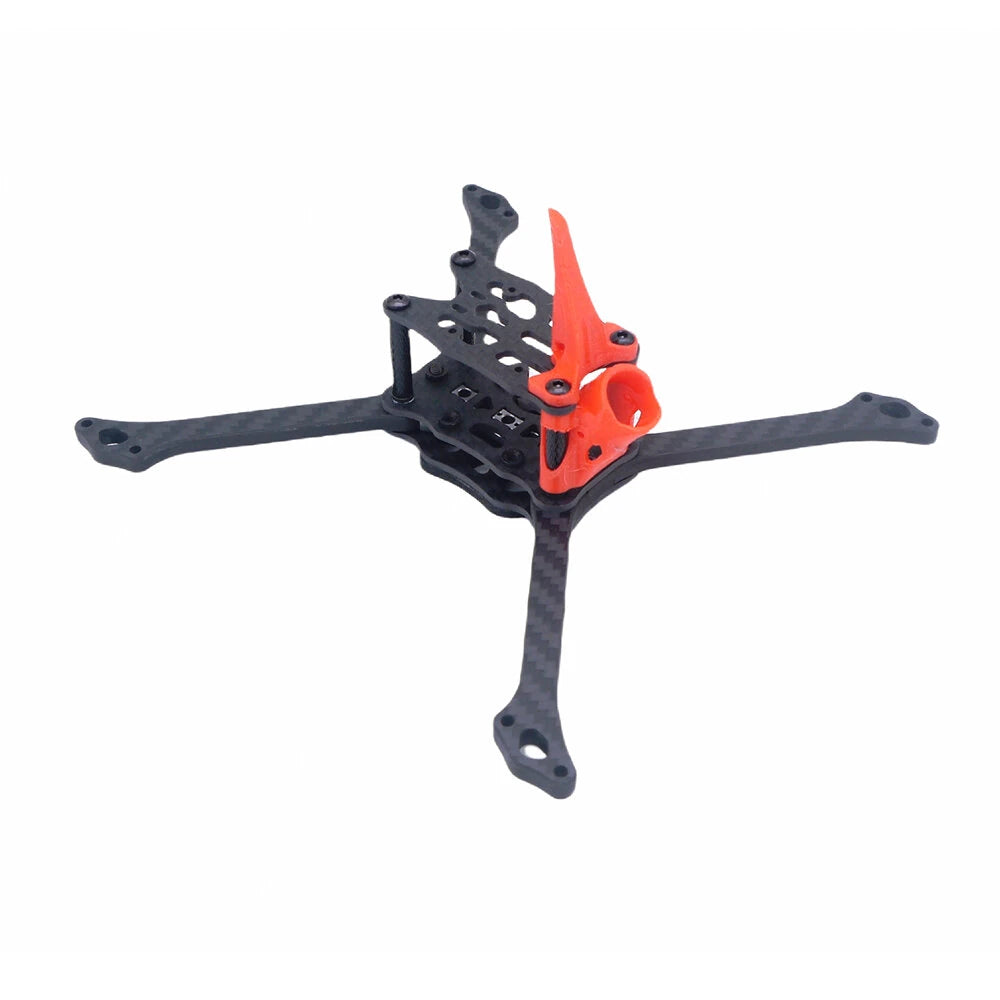

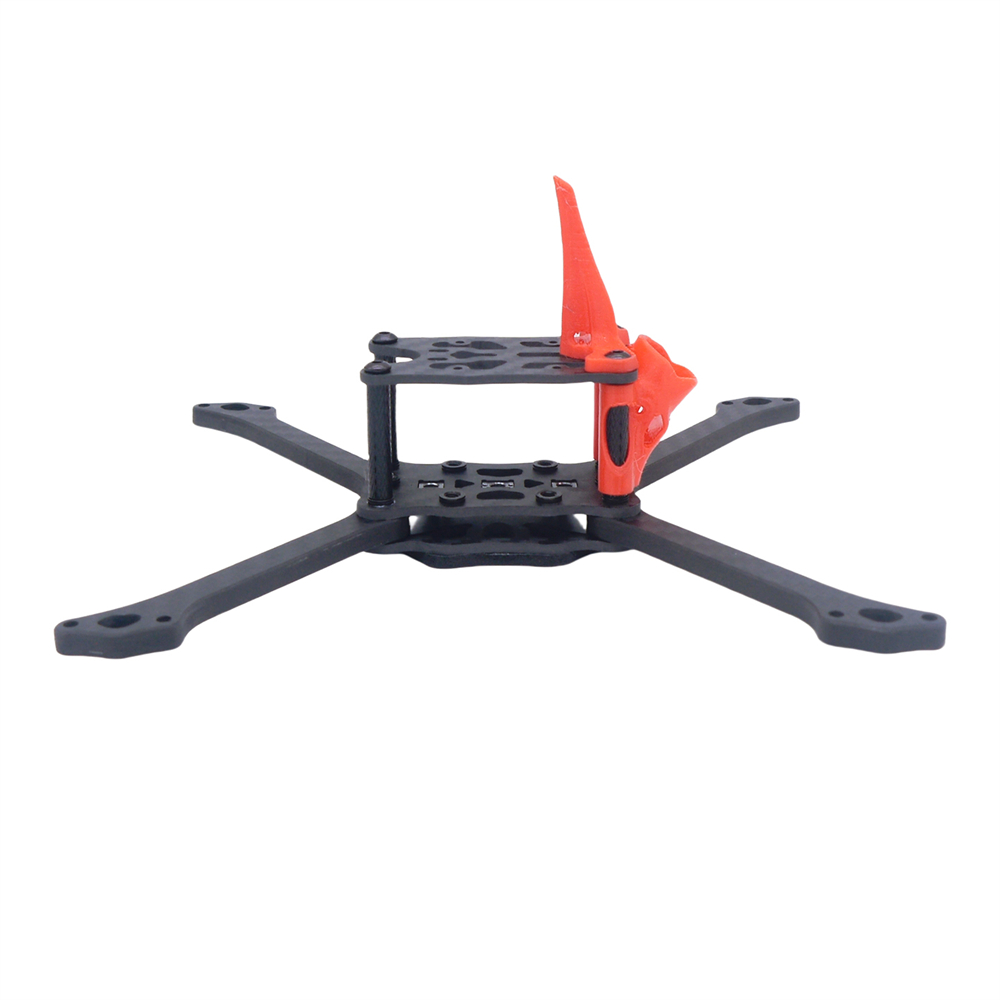

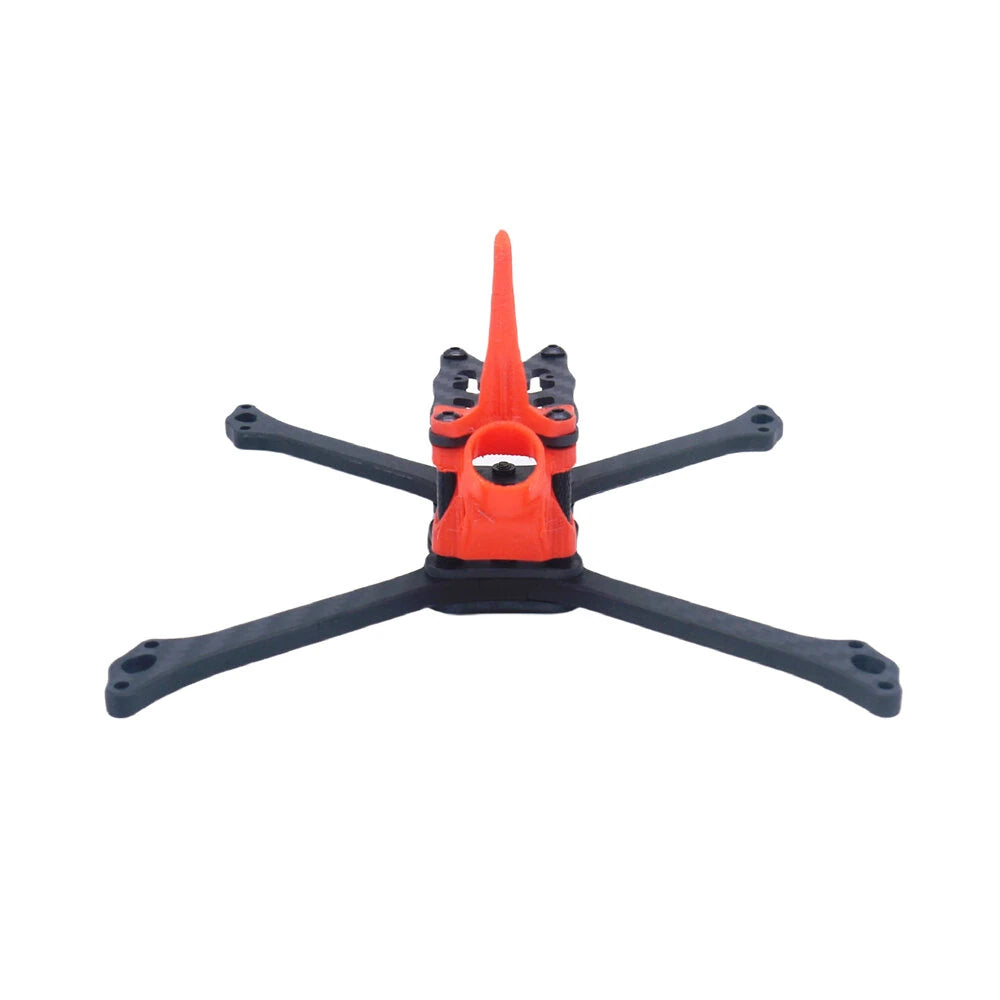

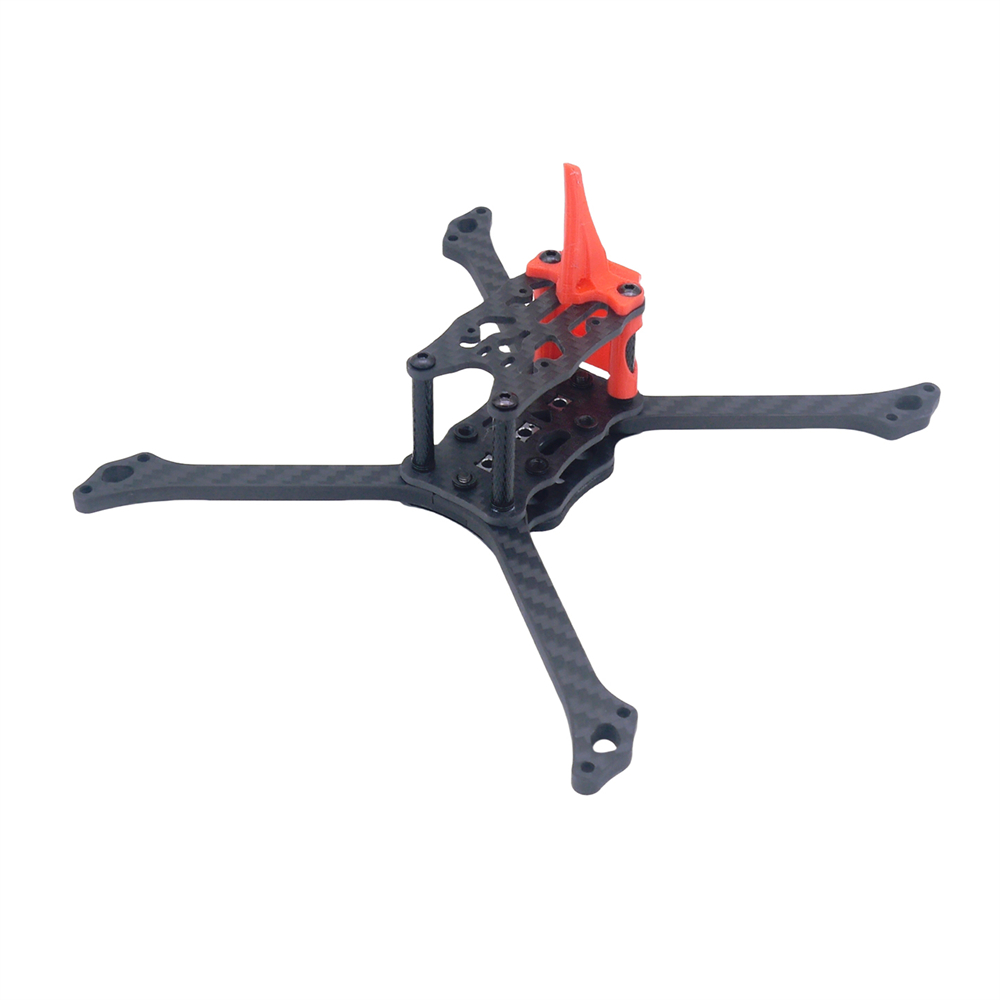

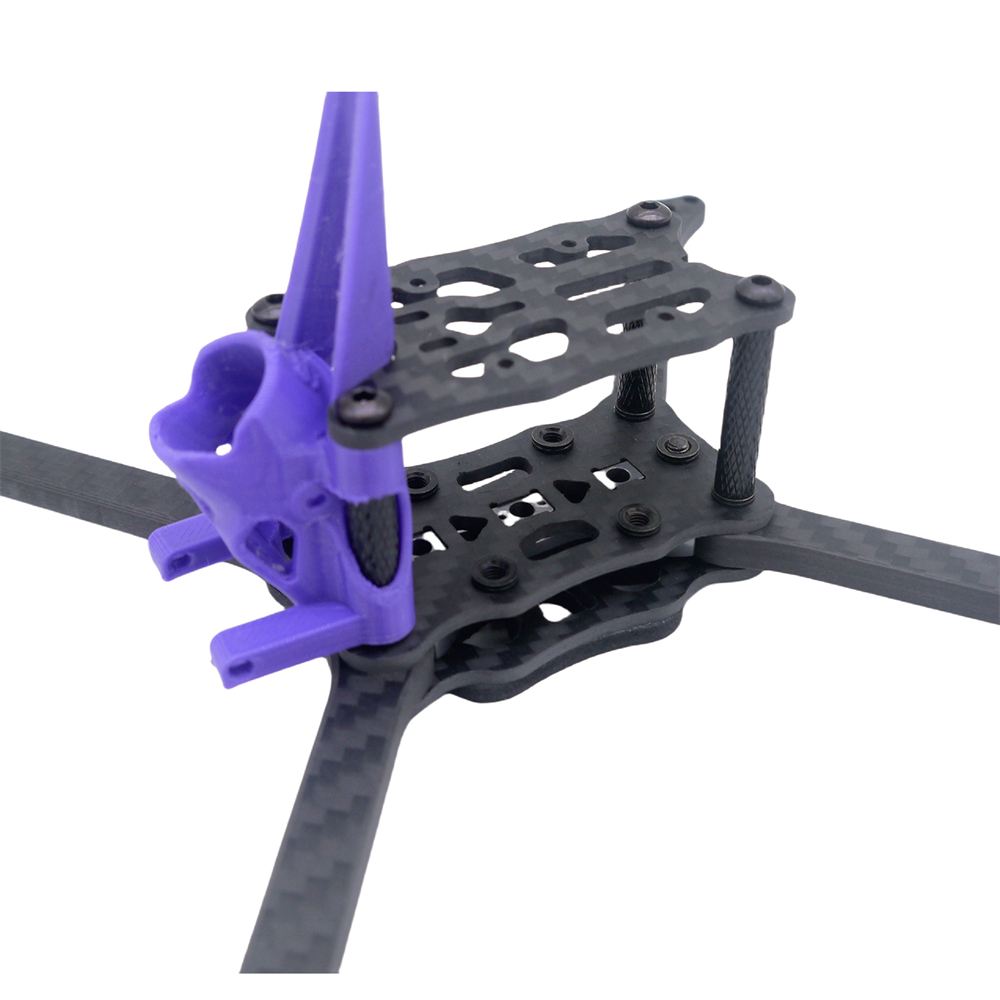

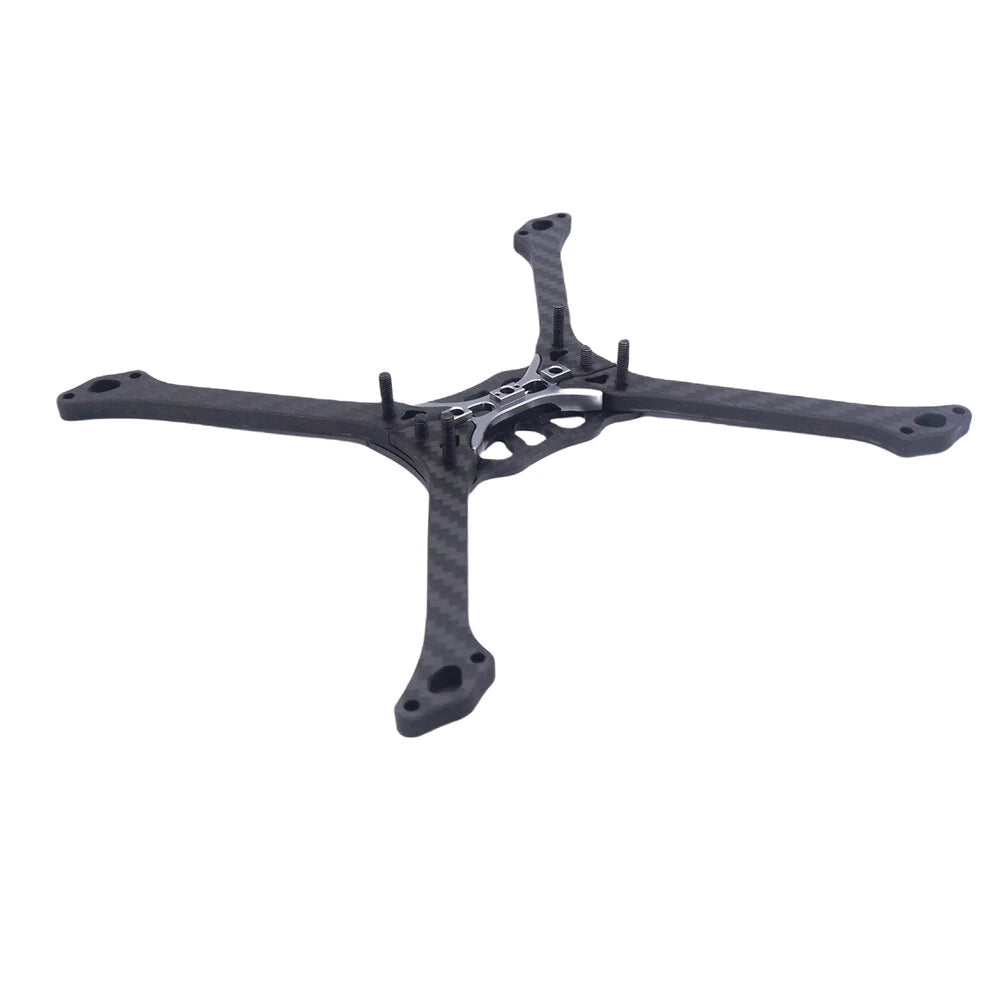

Item Name: 5 Inch X-type Frame Kit

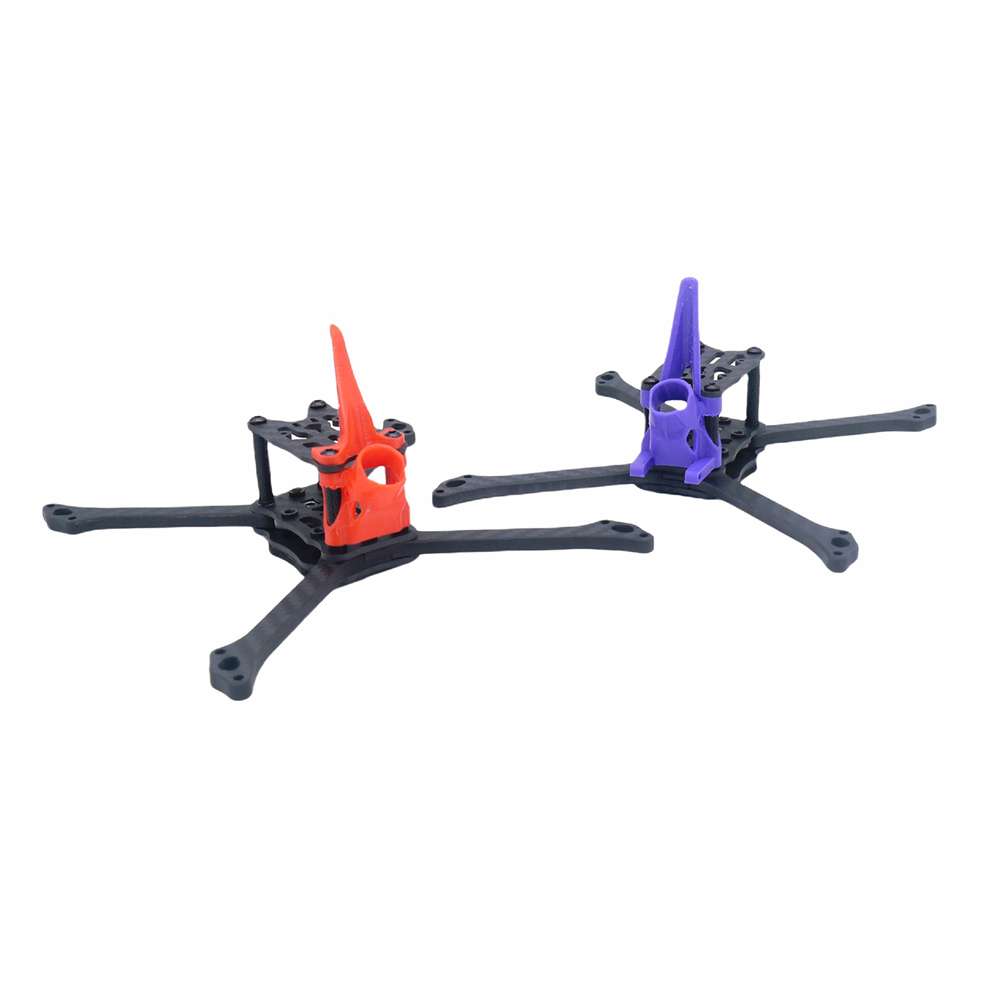

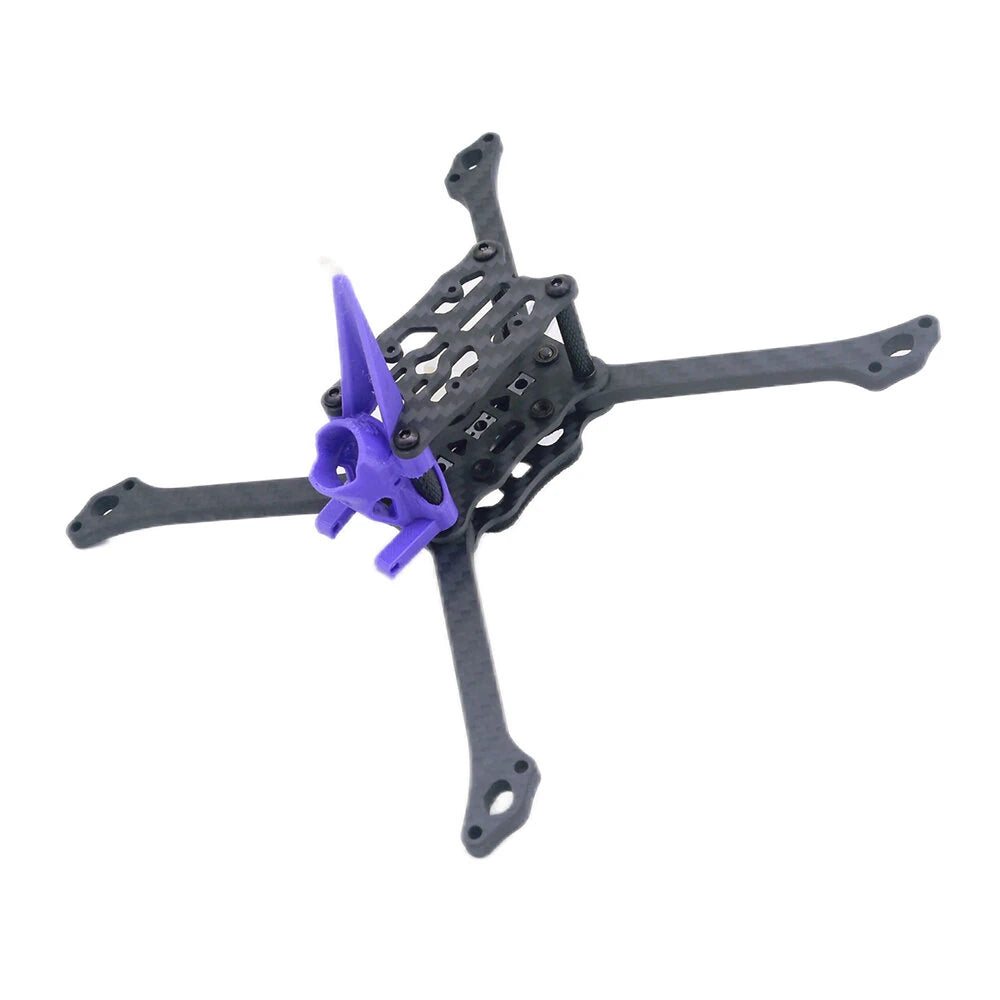

Color: Red / Purple (Optional)
Wheelbase: 188mm

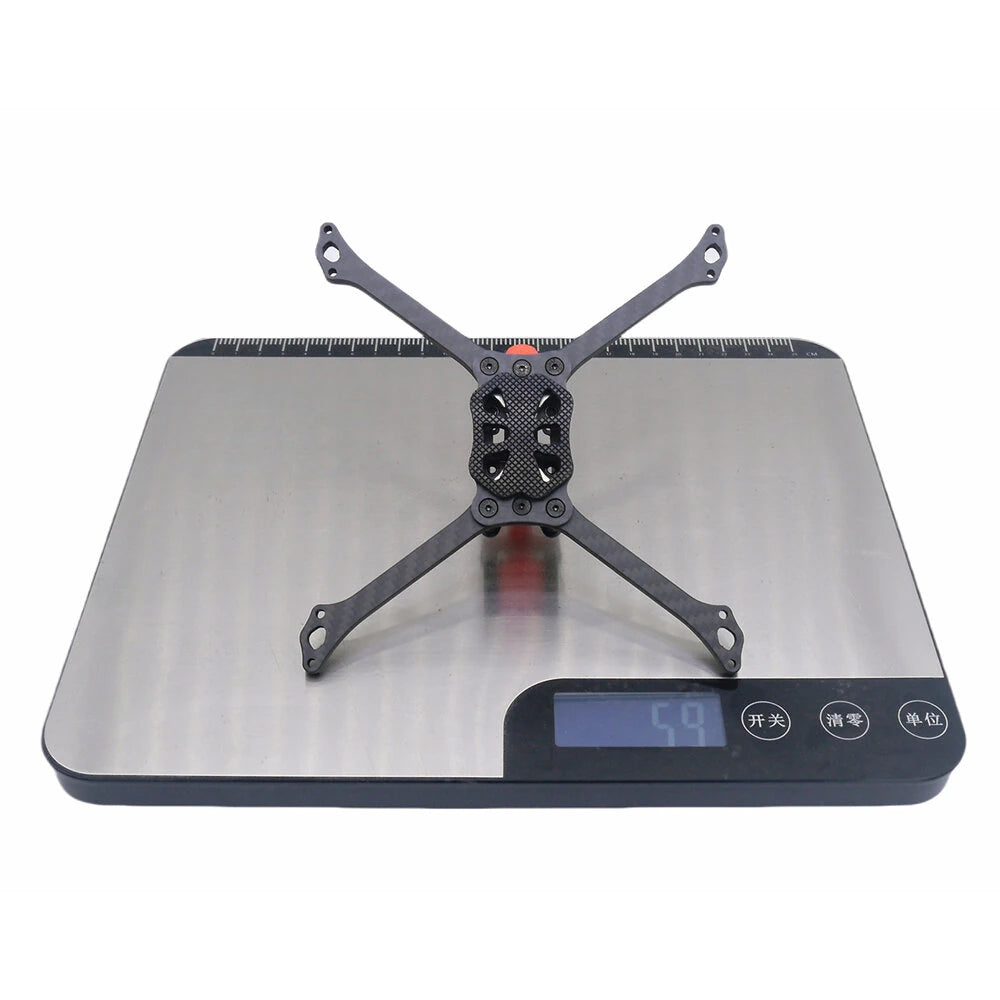

Weight: About 59g (Including printed parts, aluminum parts, battery anti-skid pads)

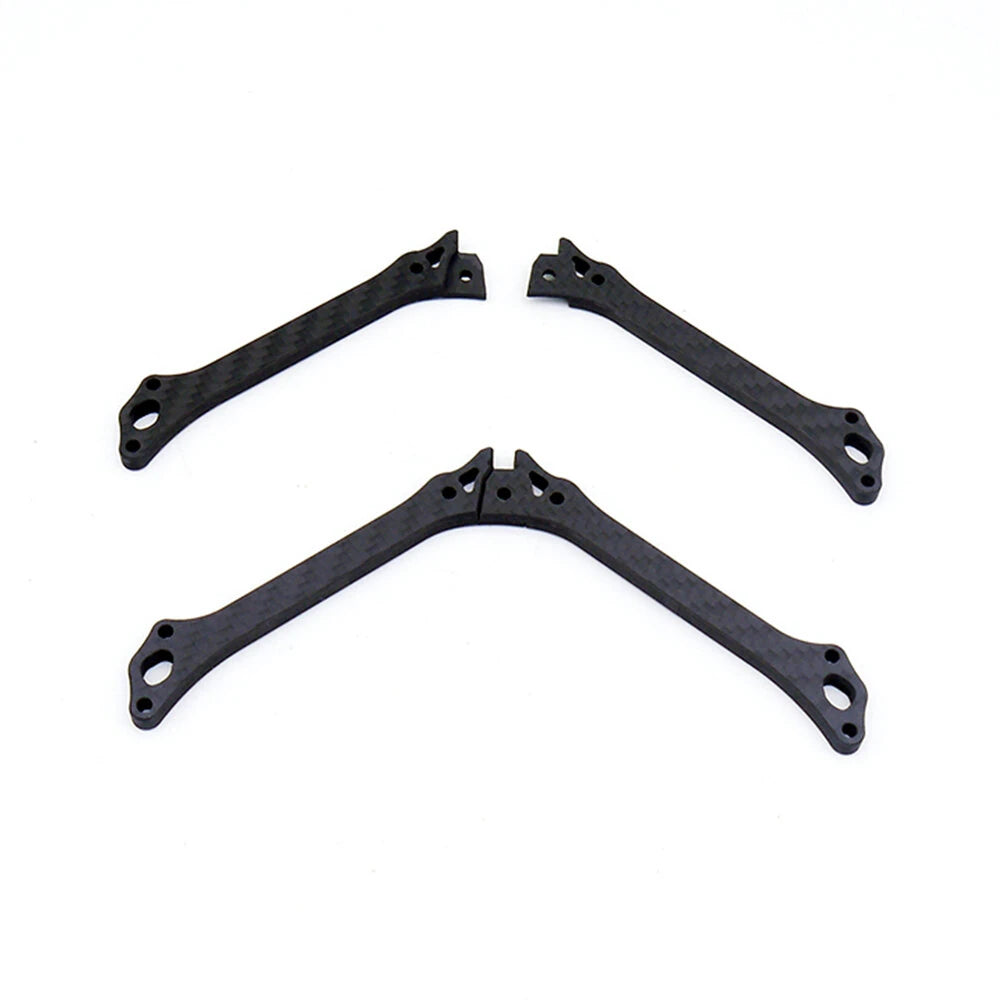

Thickness: 5.0mm for the arm, 2.0mm for other parts
Propeller: 5.0-inch Propeller
Flight Controller Hole Spacing: 20*20mm (M3)
Image Transmission Hole Spacing (On the Top Plate): 20*20mm (M2)
Camera Installation Width: 14mm (Compatible Lens: FOXEER PN5 (About 51°); HDZERO Nano90 + Rc18d lens (About 55°))
Motor Installation Hole: 16*16mm (M3)
Structure: X-type Split
Aluminum Column Height: M3*25mm
Distance Between Front and Rear Aluminum Columns: About 43mm
Compatible Antenna: Cherry2 Y-type Antenna
Printed parts list: 1 Shark Fin, 1 PN5 Head Cover, 1 NR Integrated Head Cover
Recommend Parts:FC&ESC: 20*20mm iFlight Borg 5S 60A 60RS 4-8S Stack
Brushless Motor: iFlight XING2 2306 1755KV 6S Brushless MotorPropeller: HQ Freestyle Prop 5X4.3X3V2S 5043 3-Blade Camera: RunCam Nano 2 NTSC/ PAL 1/3' 700TVL FPV Camera / FOXEER PN5 / HDZERO Nano90 Lens
Package Included:
1 x Frame Kit
