Description
Specifications:
| Model: | 2W VTX + 2.5mm Camera |
| Input Voltage: | DC 7V-32V |
| Channels: | 5.8G 48CH |
| Power: | 200mW (300mA) / 500mW (380mA) / 1W (460mA) / 2W (600mA) - 12V supply current |
| Antenna Type: | MMCX |
| Weight: | 35g (with antenna) |

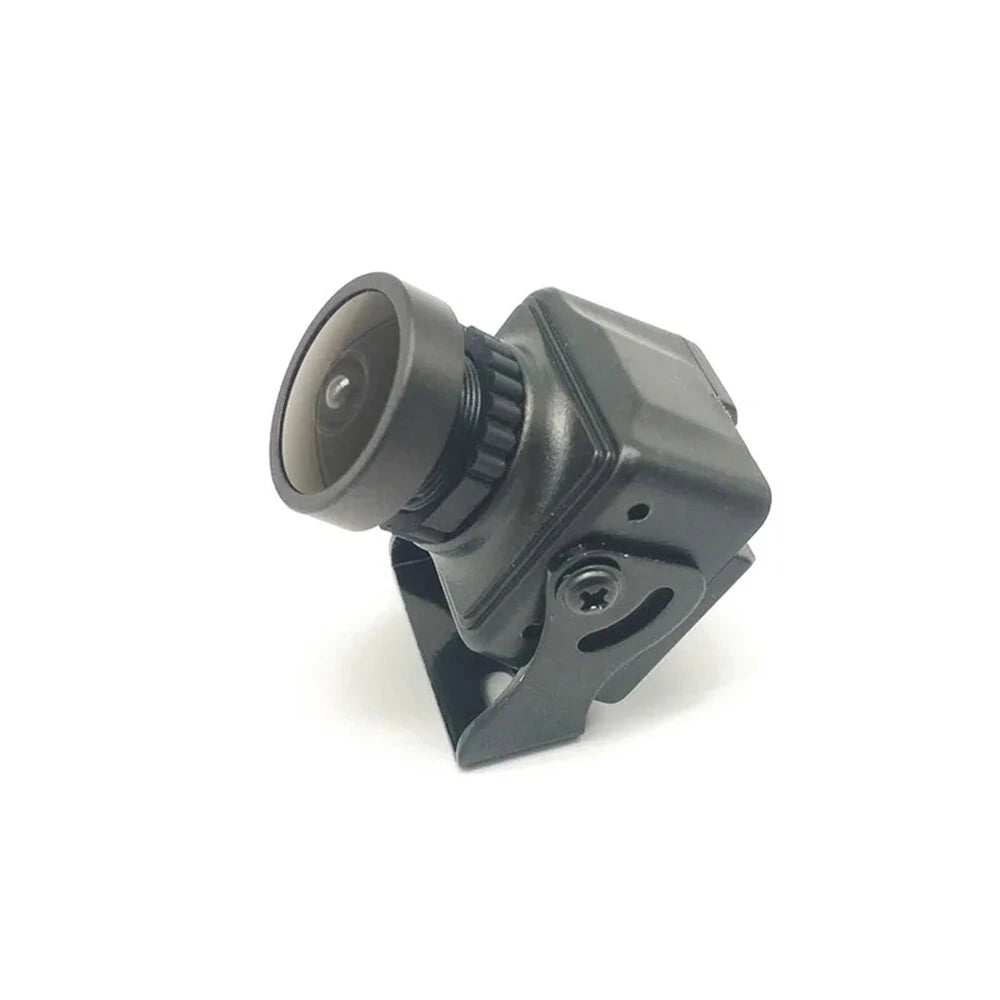

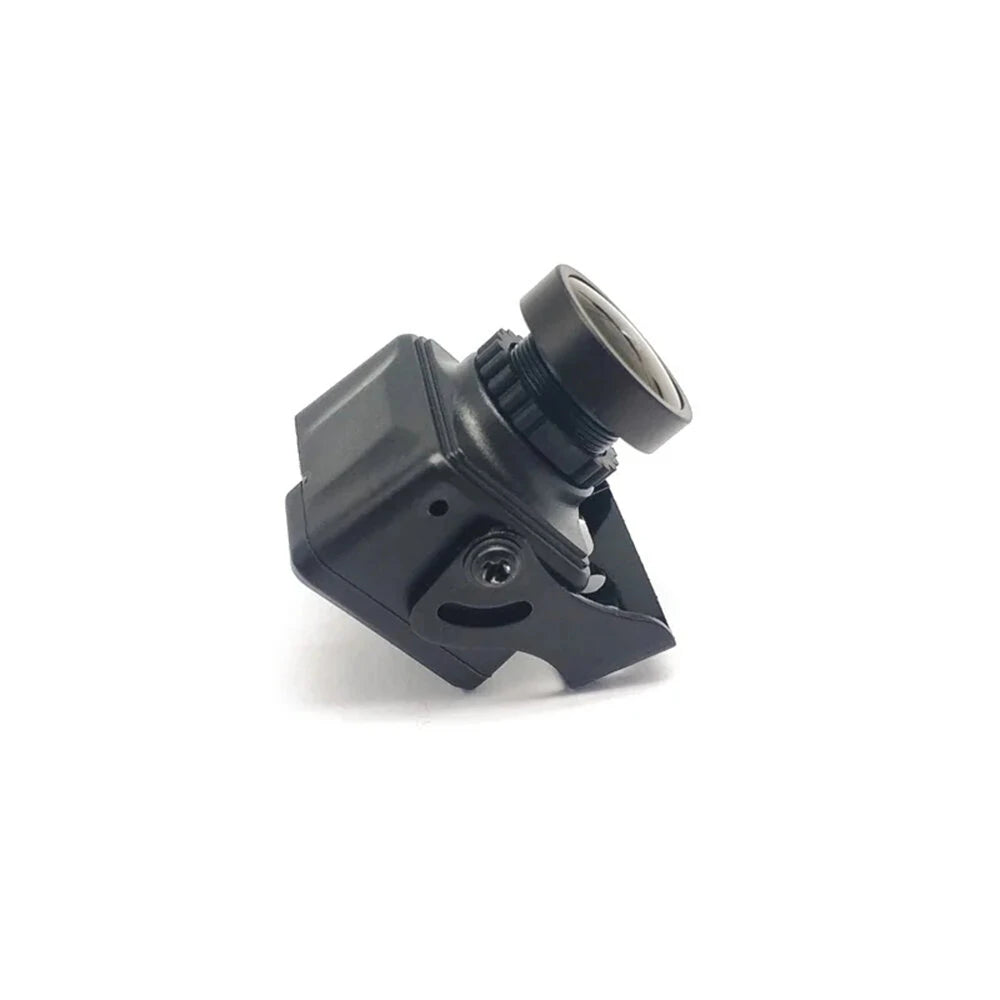

Camera Description :
| Item Name: | 1000TVL MiniiCamera |

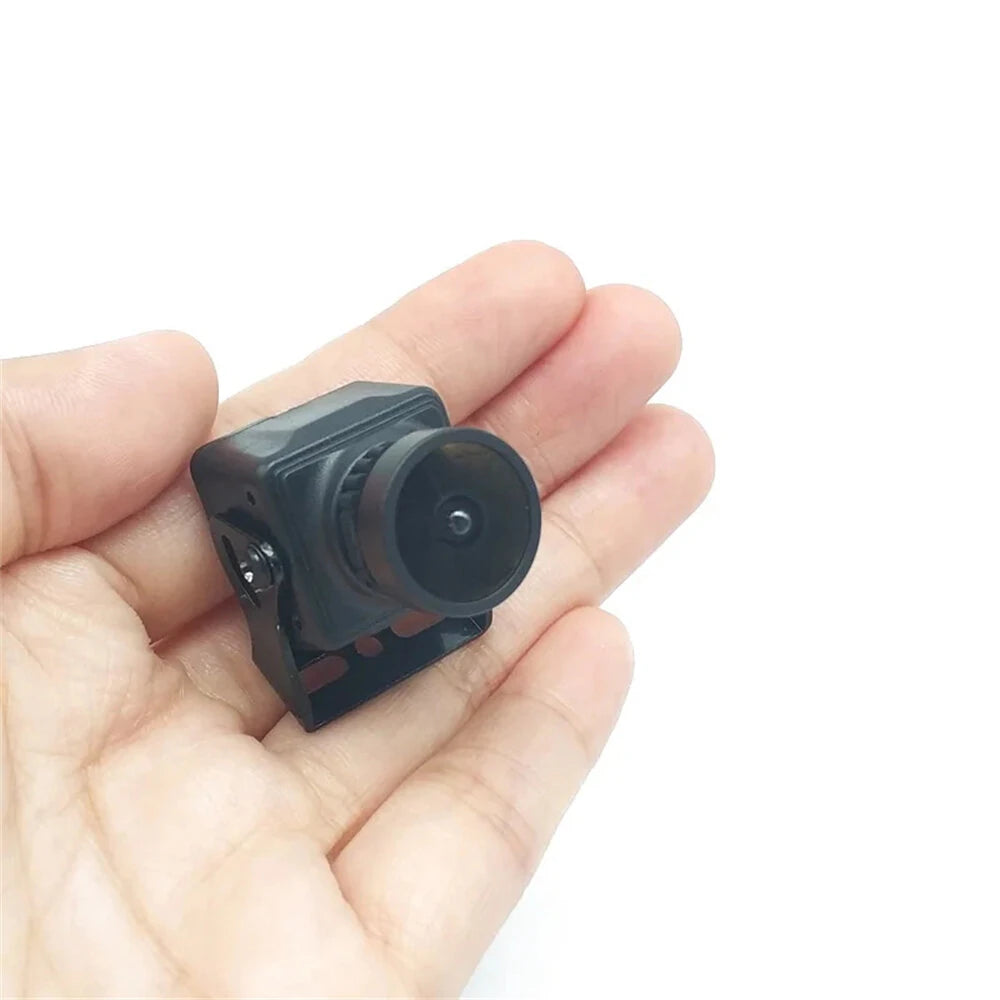

| Size: | 22mm x 22mm |
| Format: | PAL Optional |
| PAL: | 1920H×1080V(1MP) |
| NTSC: | 1020H×1920V (1MP) |
| Horizontal Resolution: | 1000TVL |
| Video Output: | 1.0Vp p/75ohm |
| AGC: | 0.25/0.50/0.75/1.00 4 levels adjustable, up to max. 55dB |
| WB: | ON/OFF |
| Exposure Type: | electronic exposure |
| Electronic Shutter: | 1/50(1/60) 1/100000 second |
| Gamma Correction : | 0.45/1.0 |
| Synchronization Mode: | inter sync |
| Lens : | 2.5mm 130 degree/2.8mm 120 degree optional |
| Working Voltage: | DC5 to 12V(wide voltage, measured 5 to 13V) |
| Working Current: | 70mA(ow power consumption) |
| Working Temp.: | -20degree to 60degree |
| Wetness: | 0%~98% |
Features:
1. High Power Output: Supports power options of 200mW, 500mW, 1W, and 2W, ensuring a robust and clear signal transmission over long distances.

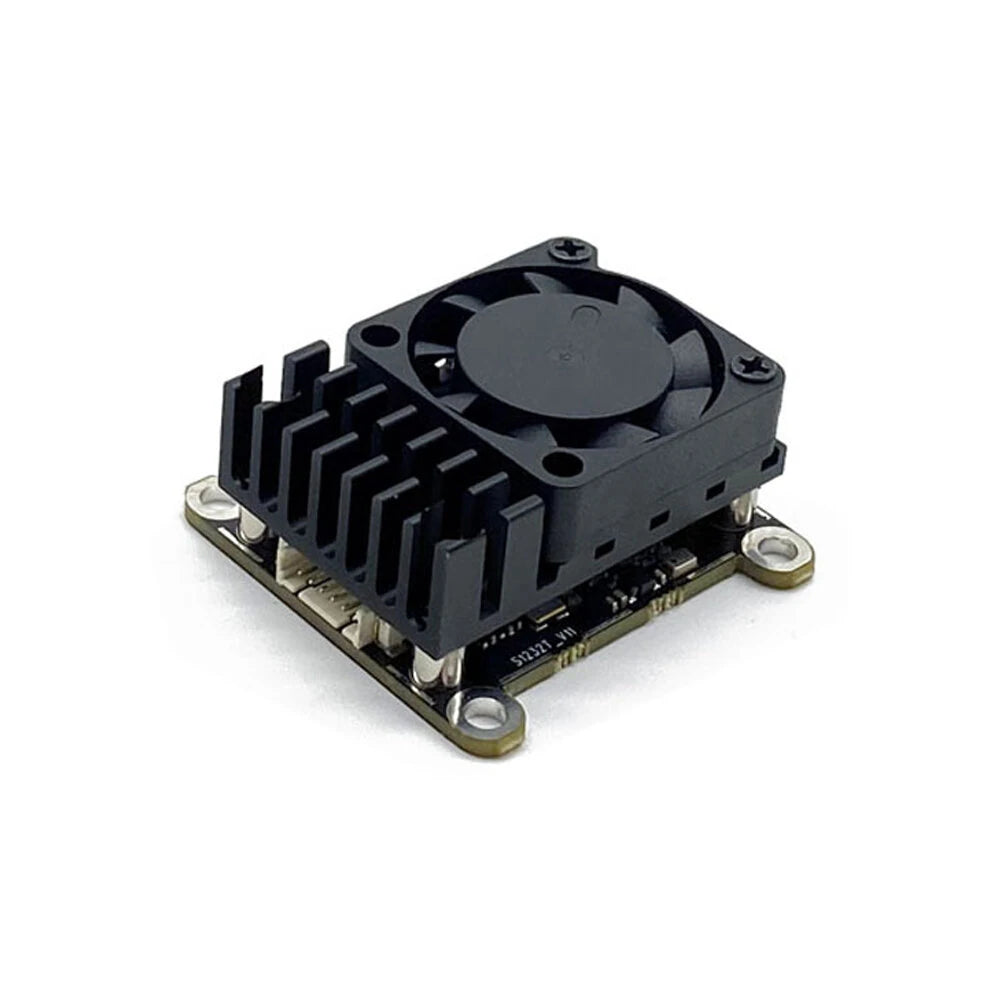

2. Efficient Cooling System: Equipped with an integrated cooling fan and heat sink design to maintain optimal temperature and performance during intensive usage.
3. Multi-Channel Flexibility: Features a versatile 5.8G 48CH frequency range providing flexibility to switch between channels for optimal signal clarity and strength.
4. Built-in Microphone: Includes a silicone microphone for high-quality audio capture during transmission, integrally enhancing communication and performance monitoring.
5. Compact Design: The VTX dimensions of 35mm by 30.5mm, and total weight of only 35g, make it easy to incorporate into various setups without adding significant weight.
Package included:

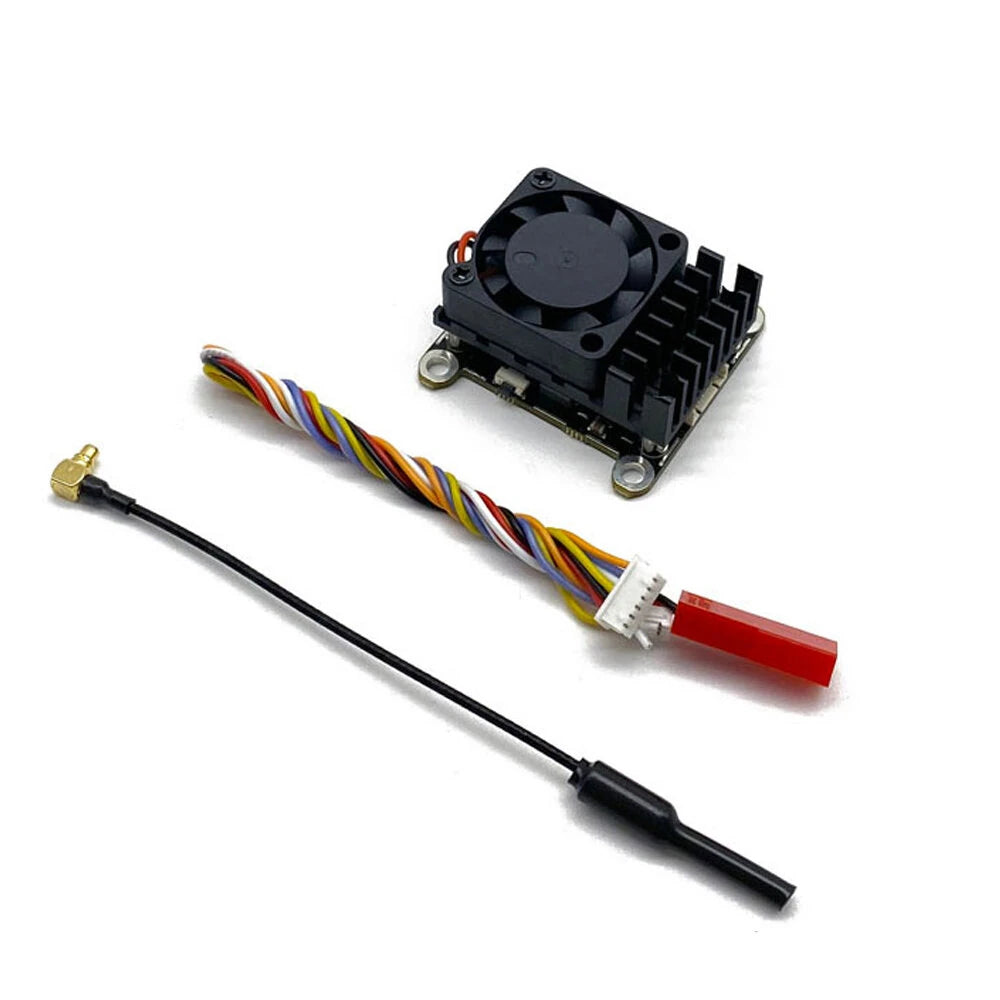

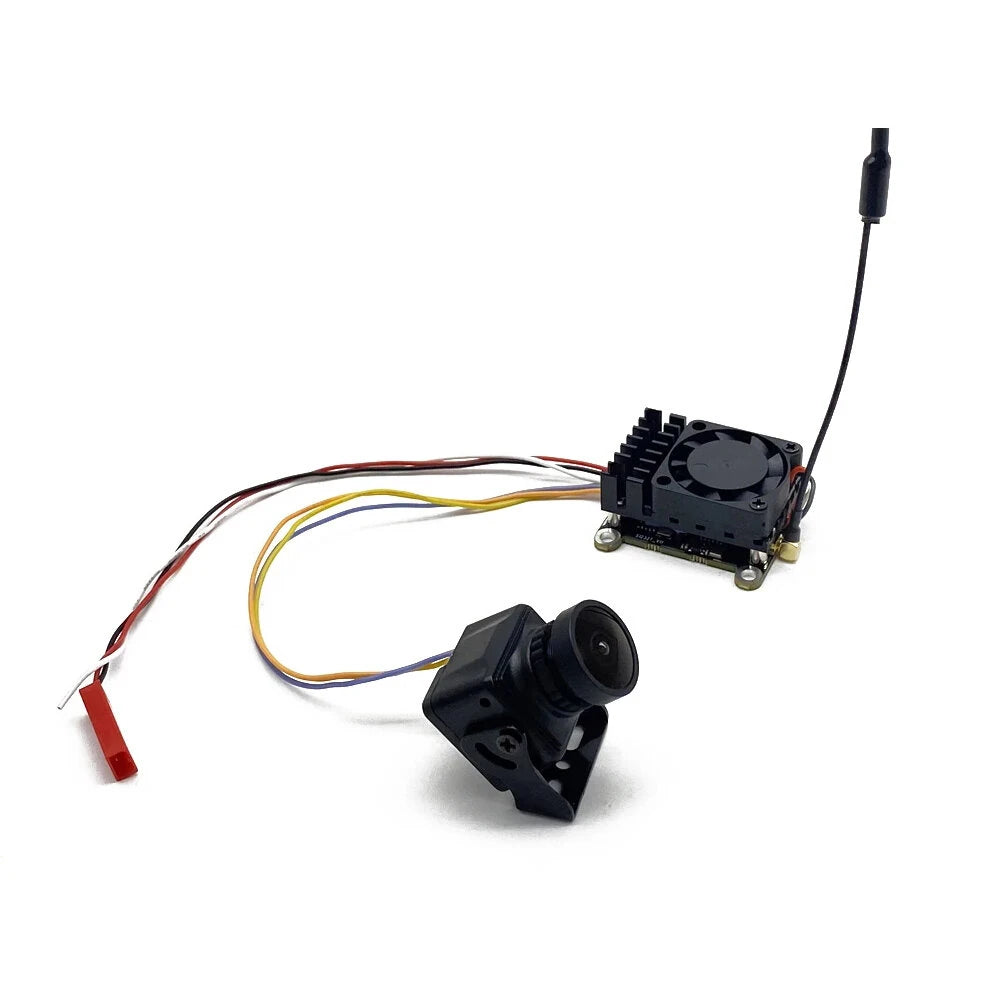

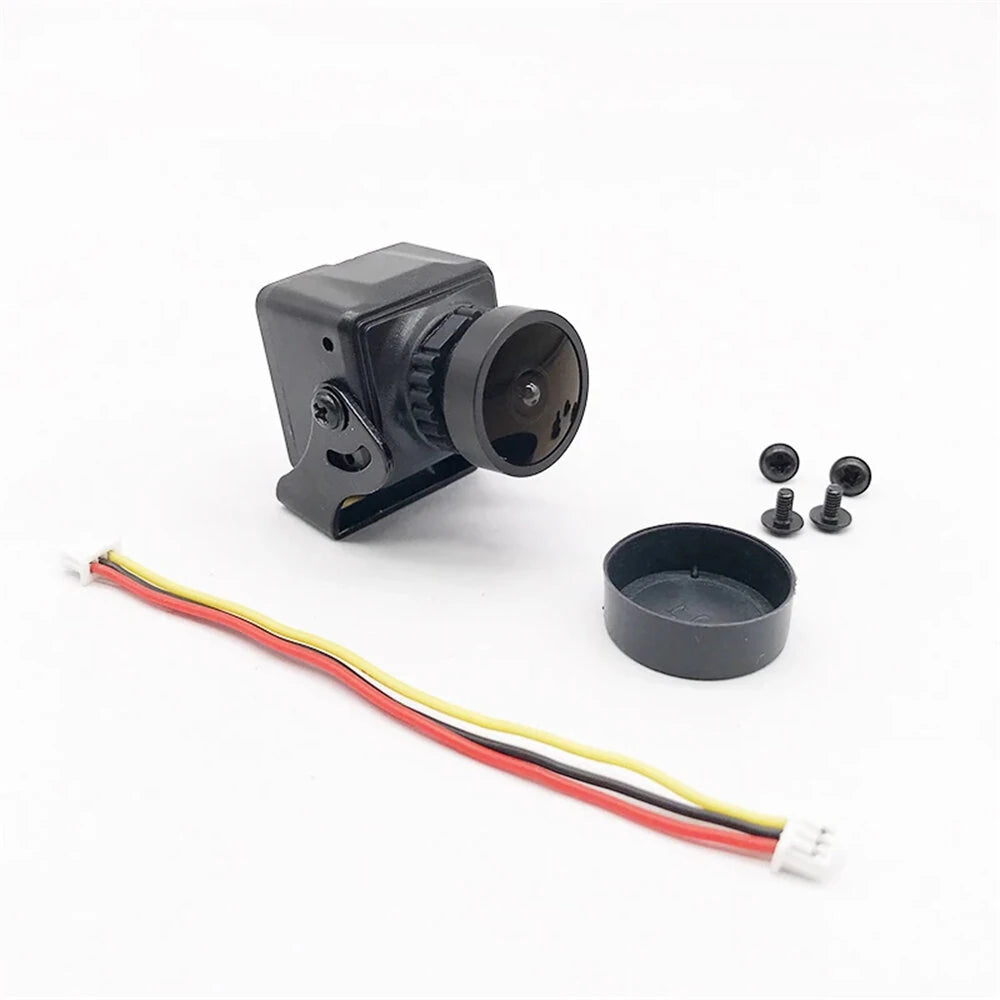

1x 2W VTX + 1 x1200TVL MiniiCamera（ 2.5mm）+1 x Cable
