Description
Specification:
| Model: | 5.8G 2.5W 48CH VTX |
| Color: | Black & Red |
| Two Channels Available: | 5.8G 2.5W |
| Frequency Point: | 48CH |
| Input Voltag: | DC7-36V (2-8s Battery) |
| Working Current: | 120-860mA (12V / 25mw-2500mW) |
| Operating Temperature: | -10 ~ 60℃ |
| Video Input Impedance: | 75Ω |
| Antenna Interface: | MMCX |
| Standard: | NTSC/PAL |
| Protocol: | IRC Tramp |
| Output Power: | 25mW / 400mW / 800mW / 1600mW / 2500mW/Pit ,Built-in Microphone |
| Size: | 39.5x27.5x14.5mm |
| Product Weight: | 20g |
| Installation Hole Position: | 25.5x25.5mm / ΦM2 |
Features:
- Equipped with high and stable output power for longrange transmission.
- It features six-switch transmitting power:
PIT/25mW/400mW/800mW/1500mW/2500mW, enabling quick frequency locking without disturbing colleagues.
- Features a self-check function for output power.
- Supports full-standard video formats: NTSC/PAL.
- Enclosed in a robust, all-metal CNC shell, the transmitter offers excellent anti-dust and explosion-proof properties and good heat dissipation for stable power.

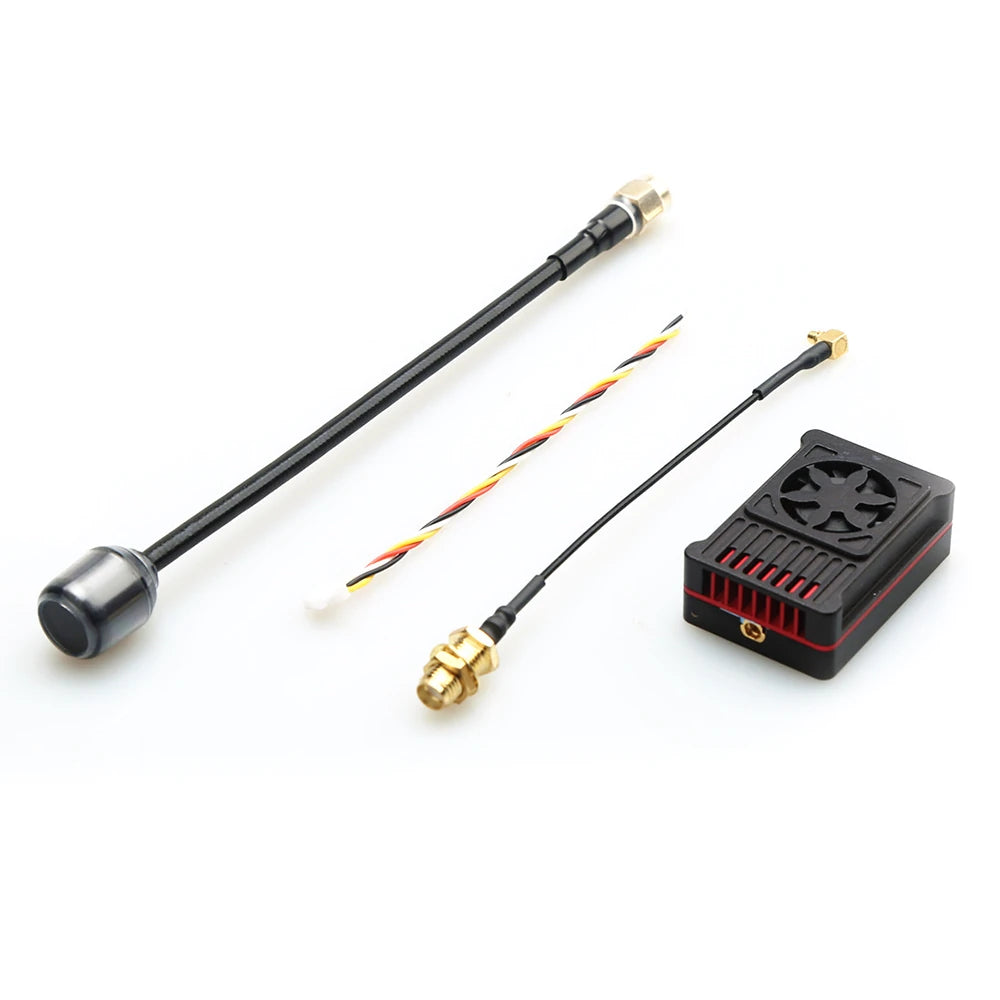

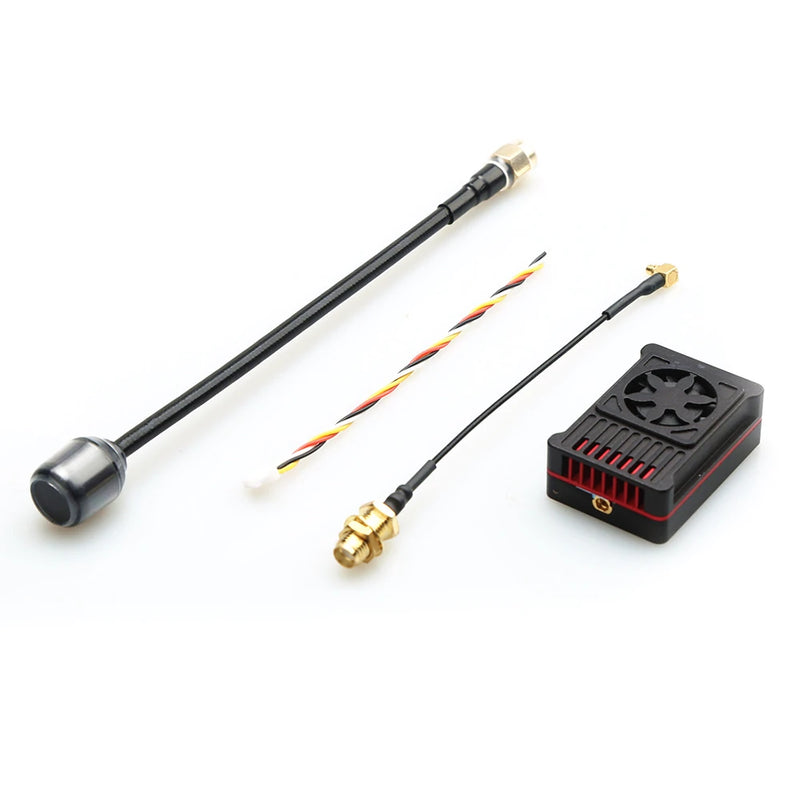

Package Included:
1x 5.8G 2.5W 48CH VTX
OR
1x 5.8G 2.5W 48CH VTX
1x Antenna
