4PCS GEPRC SPEEDX2 1404 3000KV 4S 4600KV 3-4S Brushless Motor for Tern LR40 2 Inch 3 Inch 4 Inch Lightwight RC FPV Racing Drone
4PCS GEPRC SPEEDX2 1404 3000KV 4S 4600KV 3-4S Brushless Motor for Tern LR40 2 Inch 3 Inch 4 Inch Lightwight RC FPV Racing Drone
4PCS GEPRC SPEEDX2 1404 3000KV 4S 4600KV 3-4S Brushless Motor for Tern LR40 2 Inch 3 Inch 4 Inch Lightwight RC FPV Racing Drone
4PCS GEPRC SPEEDX2 1404 3000KV 4S 4600KV 3-4S Brushless Motor for Tern LR40 2 Inch 3 Inch 4 Inch Lightwight RC FPV Racing Drone
Roll over image to zoom in Click on image to zoom
4PCS GEPRC SPEEDX2 1404 3000KV 4S 4600KV 3-4S Brushless Motor for Tern LR40 2 Inch 3 Inch 4 Inch Lightwight RC FPV Racing Drone
4PCS GEPRC SPEEDX2 1404 3000KV 4S 4600KV 3-4S Brushless Motor for Tern LR40 2 Inch 3 Inch 4 Inch Lightwight RC FPV Racing Drone
4PCS GEPRC SPEEDX2 1404 3000KV 4S 4600KV 3-4S Brushless Motor for Tern LR40 2 Inch 3 Inch 4 Inch Lightwight RC FPV Racing Drone
4PCS GEPRC SPEEDX2 1404 3000KV 4S 4600KV 3-4S Brushless Motor for Tern LR40 2 Inch 3 Inch 4 Inch Lightwight RC FPV Racing Drone

4PCS GEPRC SPEEDX2 1404 3000KV 4S 4600KV 3-4S Brushless Motor for Tern LR40 2 Inch 3 Inch 4 Inch Lightwight RC FPV Racing Drone

Isaiah 55:8-9 John 3:16 Philippians 4:19
Quantity: 4 PCS
KV: 4600KV
Price:
R 1,814.70 R 2,732.05
Stock:
In Stock. Shipping via Courier.



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

Specifications:
Brand: Geprc

Model: SPEEDX2 1404

Item Name: 1404 3000KV 4S 4600KV 3-4S Brushless Motor


Optional KV Version
3000KV

Model: SPEEDX2 1404 3000KV Motor
Configuration: 9N12P
Dimension: φ18.2mm*13.8mm
Shaft Diameter: φ1.5mm
Shaft Protruding Length: 4mm
Mounting holes: 9mm*9mm（M2）
Lead: 160mm/26AWG
Input Volts: 14.8V（4S LiPo)
Winding: Single strand copper winding

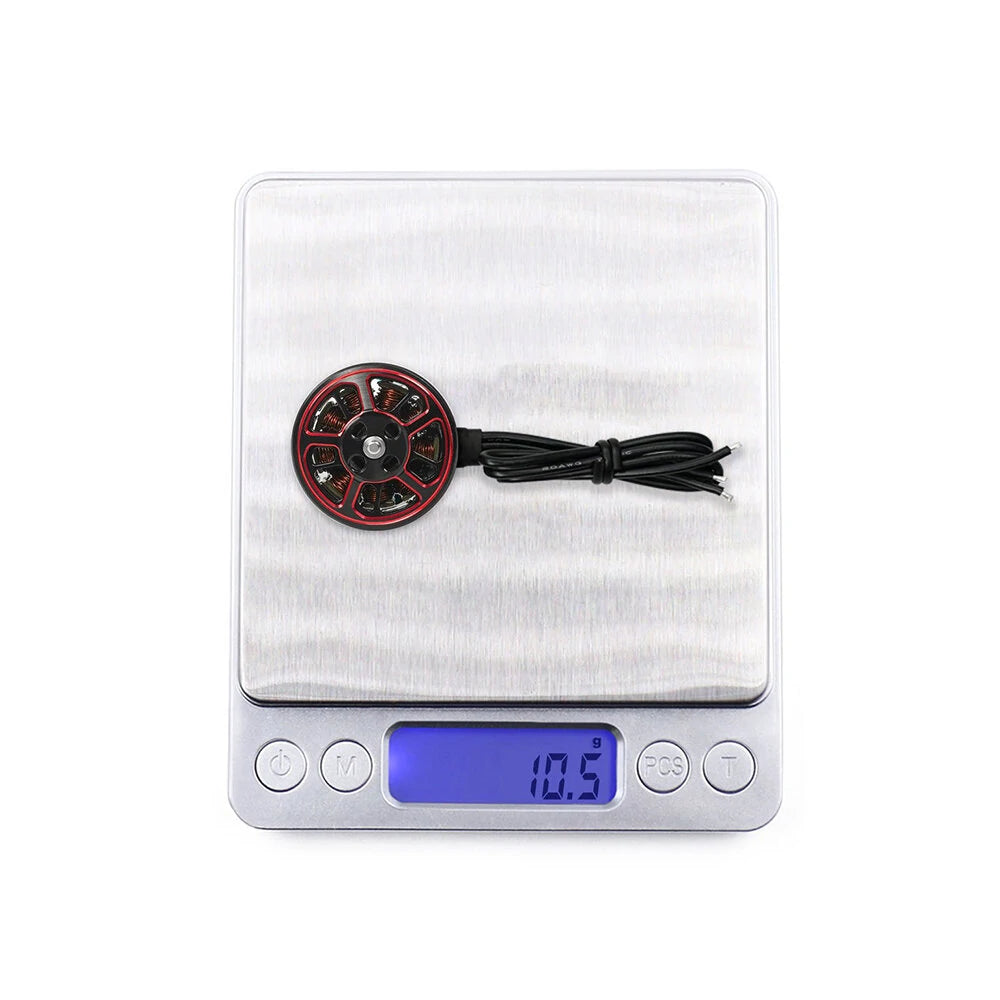

Weight: 10.5g (included wire)

Max Watt: 160W
Peak current: 10A/3″
Interphase resistance: 0.33Ω
Magnet: N52H
Bearing type: NSK/NMB

Recommend ESC: 12A/2-4S（7.4V-14.8V）
Suitable for: 3 inch – 4 inch lightweight models
4600KV

Model: SPEEDX2 1404 4600KV Motor

Configuration: 9N12P
Dimension: φ18.2mm*13.8mm
Shaft Diameter: φ1.5mm
Shaft Protruding Length: 4mm
Mounting holes: 9mm*9mm（M2）
Lead: 160mm/26AWG
Input Volts: 11.1V – 14.8V（3S – 4S LiPo)
Winding: Single strand copper winding
Weight: 10.5g (included wire)

Max Watt: 180W
Peak current: 14.3A/3″
Interphase resistance: 0.19Ω
Magnet: N52H
Bearing type: NSK/NMB

Recommend ESC: 20A/2-4S（7.4V-14.8V）
Suitable for: 2 inch – 3 inch lightweight models


Features:
Red with black color is obviously high-end.
Use bearings with excellent performance and strong anti-wear ability.
Lightweight silhouette, strong power.
Suitable for 2-inch-4-inch lightweight chassis.

Package Included:
1x SPEEDX2 1404 3000KV OR 4600KV Motor
1 set x Screws
