Description
Bullet Points:

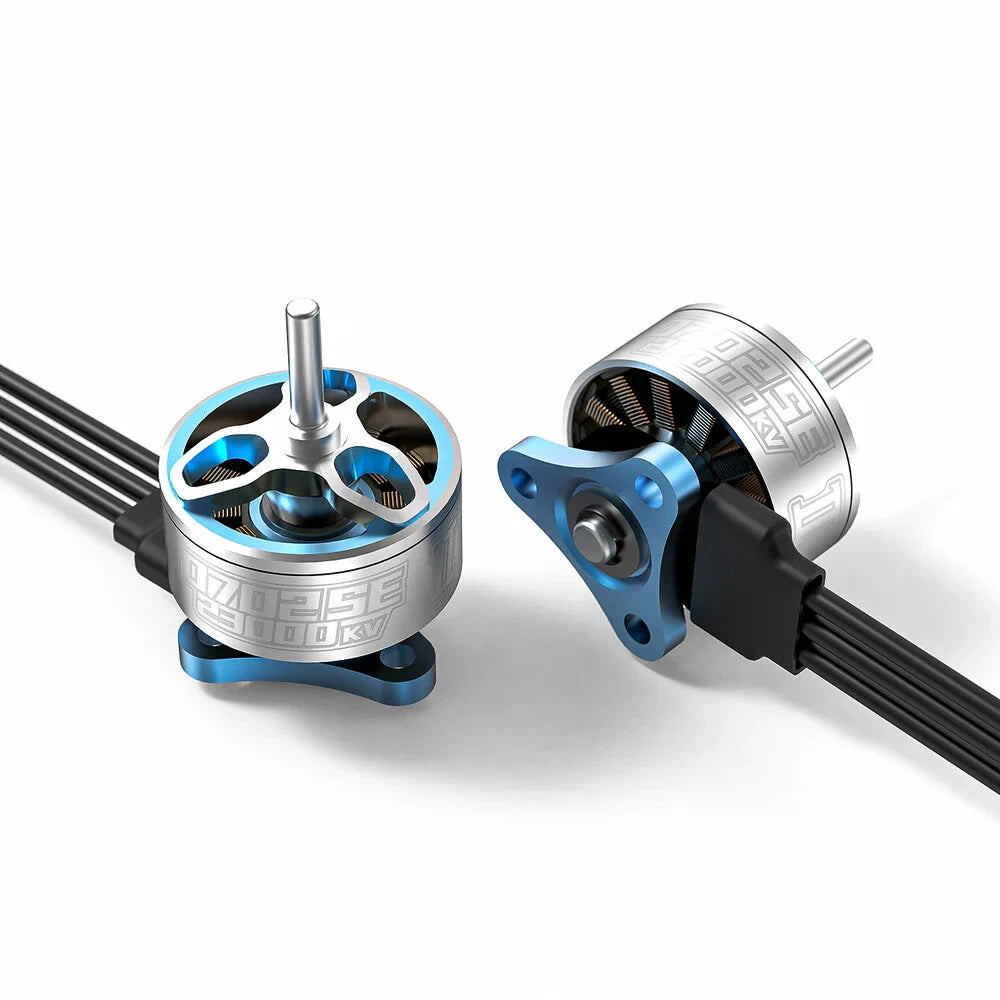

- The second generation of 0702 motors are custom-designed for ultra-lightweight 65mm racing drones, delivering exceptional performance for extreme indoor FPV racing and aggressive freestyle flying.
- Upgraded with advanced tile-shaped magnets, the 0702 II and 0702SE II motors deliver up to a 14.8% thrust increase while virtually eliminating magnetic degradation, even during intense flights.

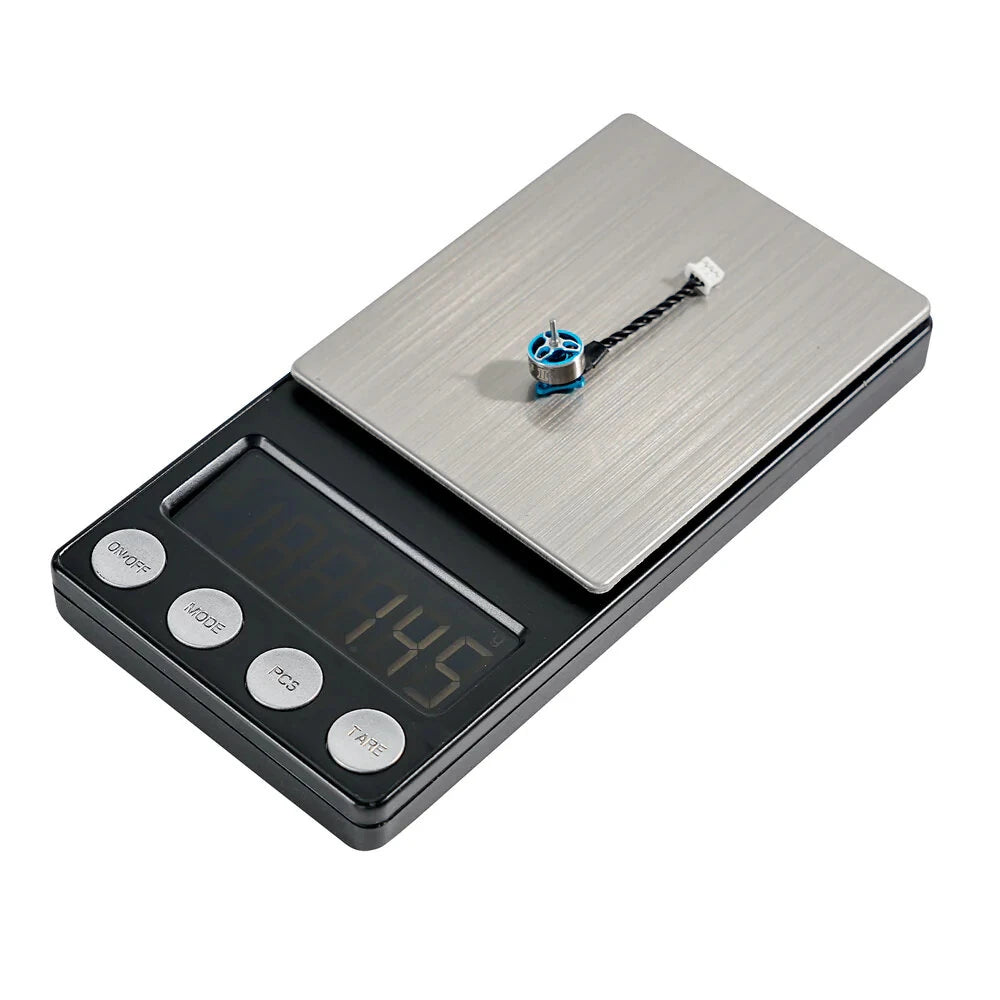

- The 0702SE II motors feature brass bushings, making it both lightweight at 1.45g (23000KV) and 1.47g (27000KV) and highly efficient. This more affordable and durabl motor is the perfect choice for extremely lightweight installations.
- Paired with the PEEK screws only weighing 0.10 grams/12pcs, it can save up to 0.46g for a build. With superior heat resistance, anti-friction, anti-shock, and anti-fatigue properties, the PEEK screws are both reliable and durabl.

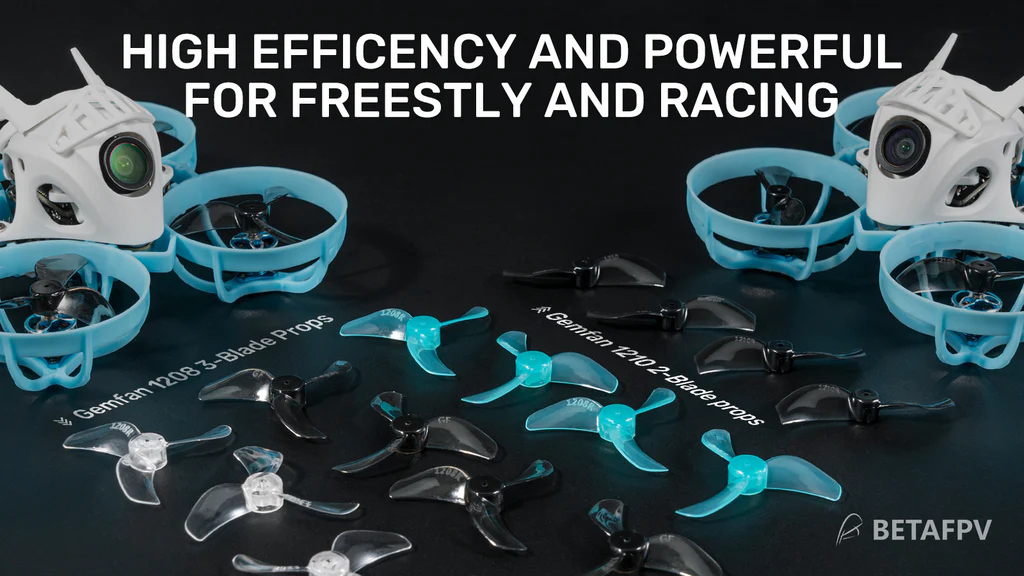

- Combine these with the ultra-light Gemfan 1210 2-blade or Gemfan 1208 3-blade propellers, you can get robust power output and unparalleled responsiveness, perfect for racing and freestyle flight. Meet various needs of the lightweight whoop drone installation.

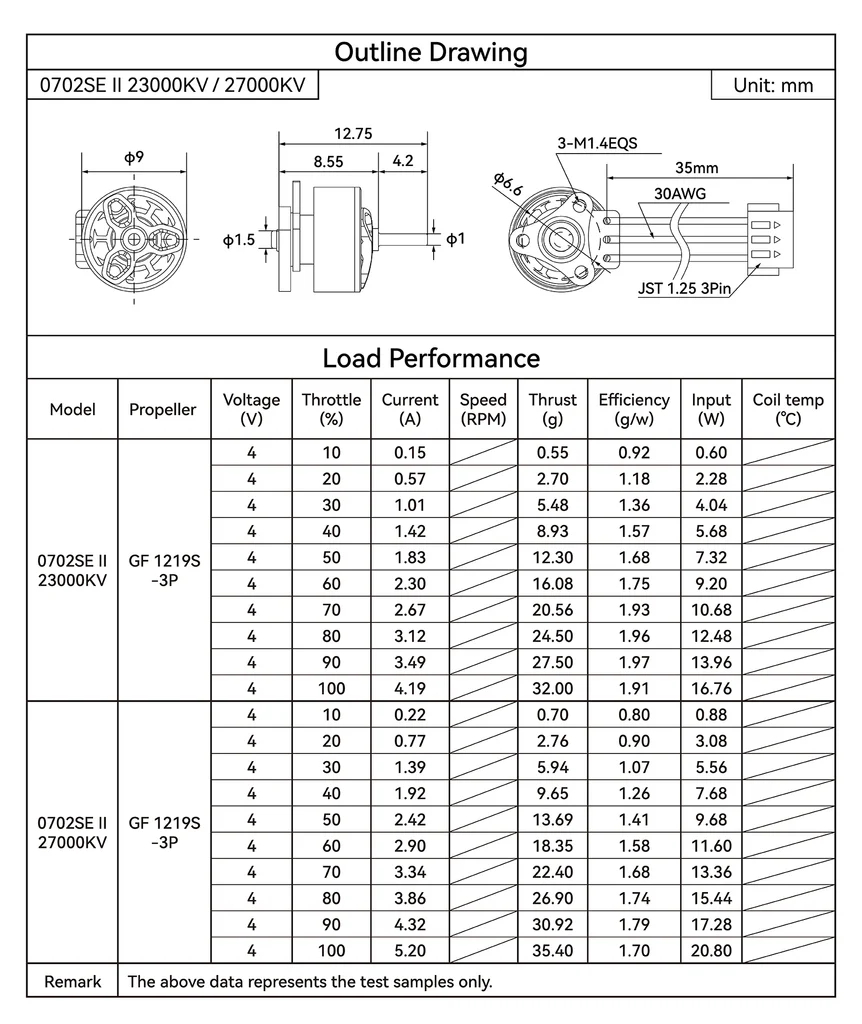

Specification:
Brand: BETAFPV
Item: 0702SE II Brushless Motors
Motor KV (rpm/V): 27000KV, 23000KV
Bearing: Brass bushings (0702SE II)
Weight: 1.45g (0702SE II 23000KV), 1.47g (0702SE II 27000KV)
Color: Ice Blue (0702SE II)

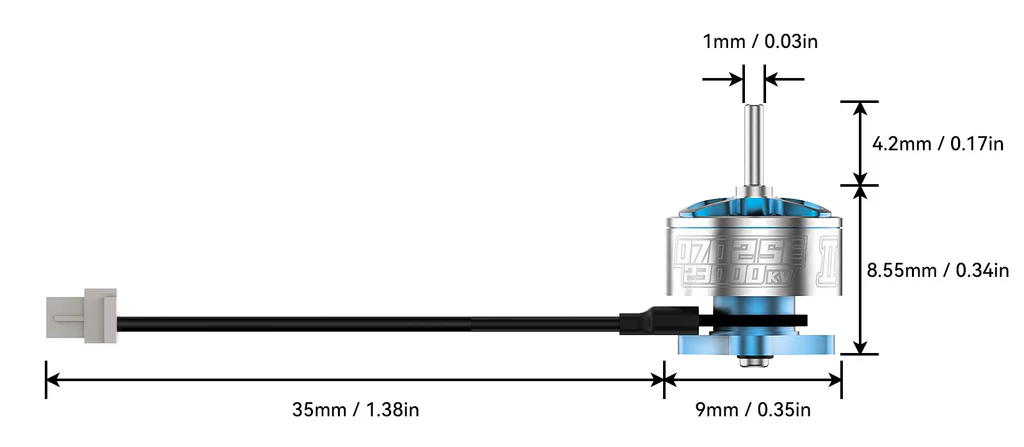

Shaft Diameter: 1mm
Shaft Length: 4.2mm
Hole Distance: 6.6mm
Motor Mount Holes: M1.4
Input Voltage: 1S
Cable: 35mm (connector included), 30AWG
Model |
0702SE II 23000KV |
0702SE I 23000KV |
0702SE II 27000KV |
0702SE I 27000KV |
Color |
Ice blue |
|||
Bearing |
Brass bushings |
|||
Motor KV |
23000KV |
27000KV |
||
|
Max Thrust (GF 1219S-3) |
32g |
28.3g |
35.4g |
31.4g |
Thrust Enhancement Rate |
13% |
12.7% |
||
Weight (35mm connector included) |
1.45g |
1.42g |
1.47g |
1.44g |
Weight (25mm cable included) |
1.38g |
1.35g |
1.4g |
1.37g |
Shaft Diameter |
1mm |
|||
Shaft Length |
4.2mm |
|||
Motor Mount |
3*M1.4-EQS Ø6.6mm |
|||
Input Voltage |
1S |
|||
Cable |
35mm (Connector included) |
|||
Recommended Parts(Not included):
Propellers: GF 1210 2B Props, GF 1208 3B Props, GF 1219S 3B Props
Frame: Meteor65 Pro, Air65 frame
FC: Air FC, Matrix 1S 5IN1 FC
Battery: LAVA 1S 260mAh, LAVA 1S 300mAh

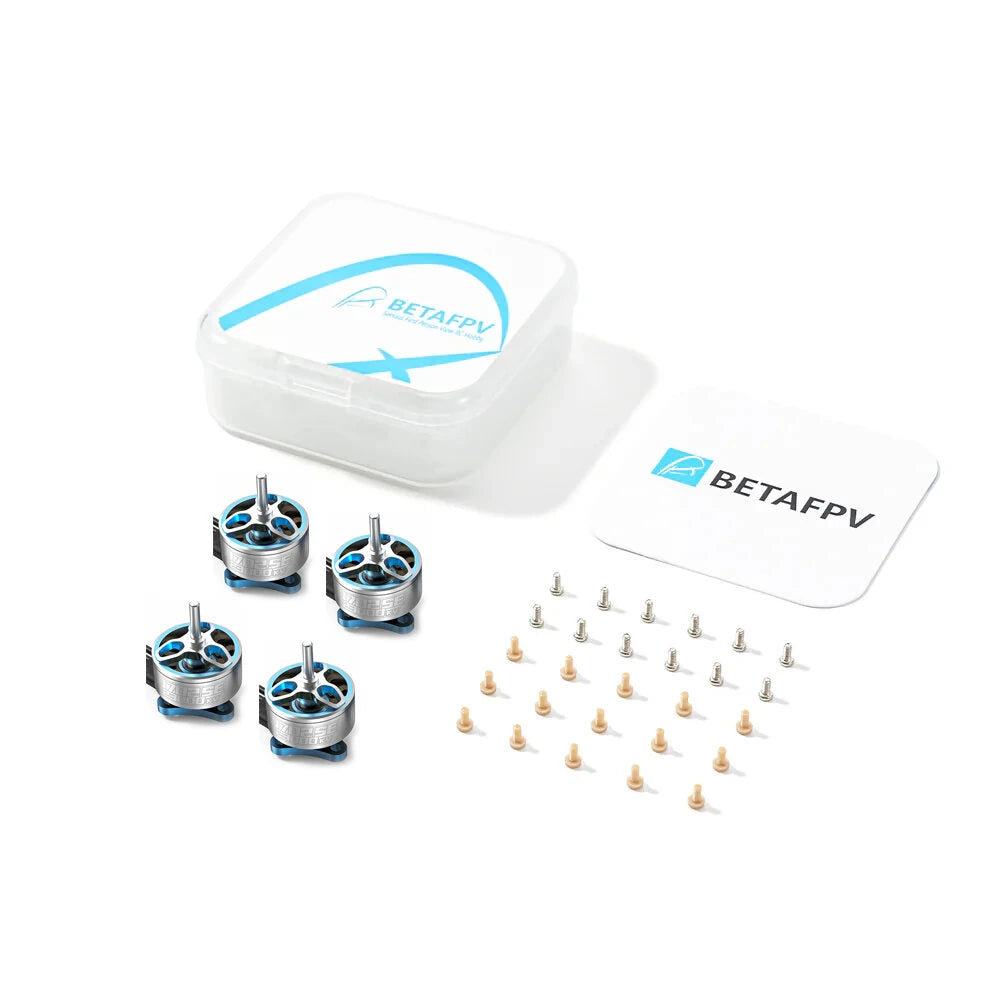

Package included:

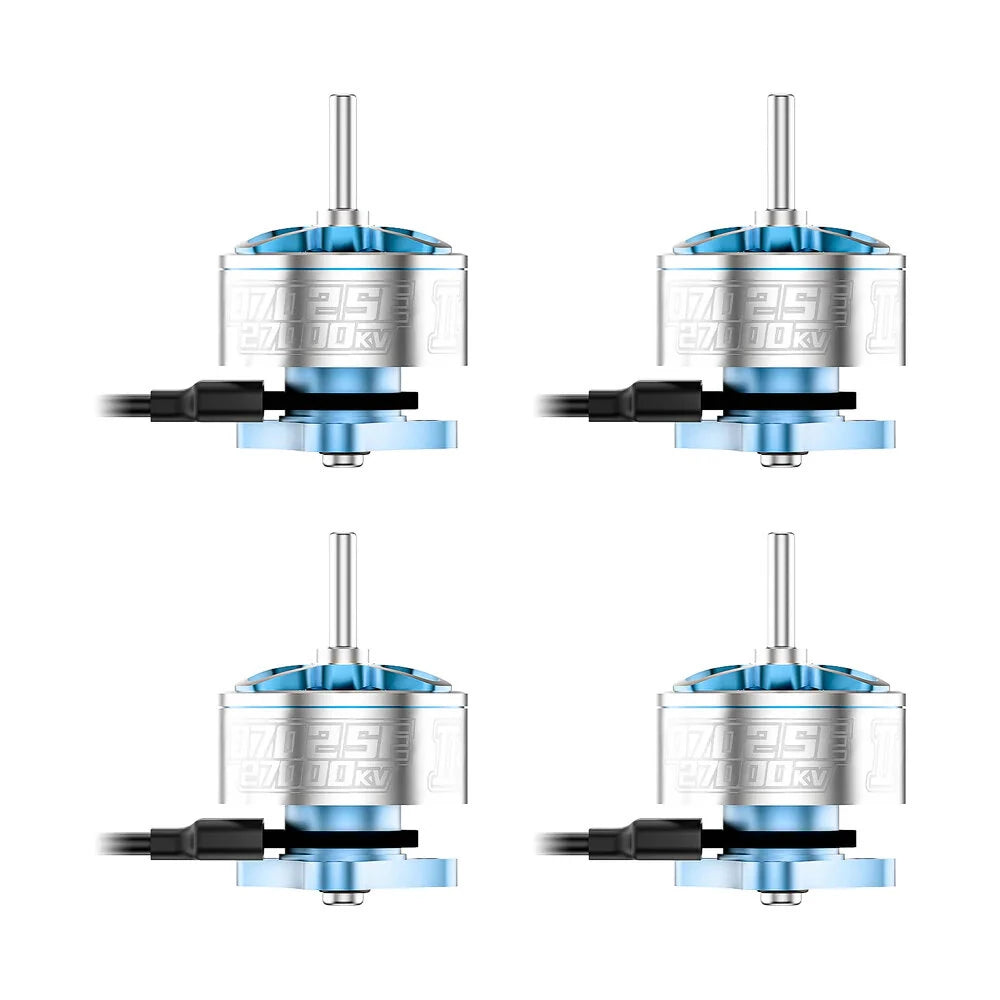

4 * 0702SE II Brushless Motors
15 * M1.4*3 PEEK screws
12 * M1.4*3 metal screws
