40mm/44mm Piston Pin Rings Kit For 47cc 49cc Mini Motos Scooters Skateboards


Isaiah 55:8-9 John 3:16 Philippians 4:19
Price:
Sale priceR 416.82
Stock:
Sold out



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

Feature:

1. Fits older models with 47cc - 49cc engines that have 40mm / 44mm pistons

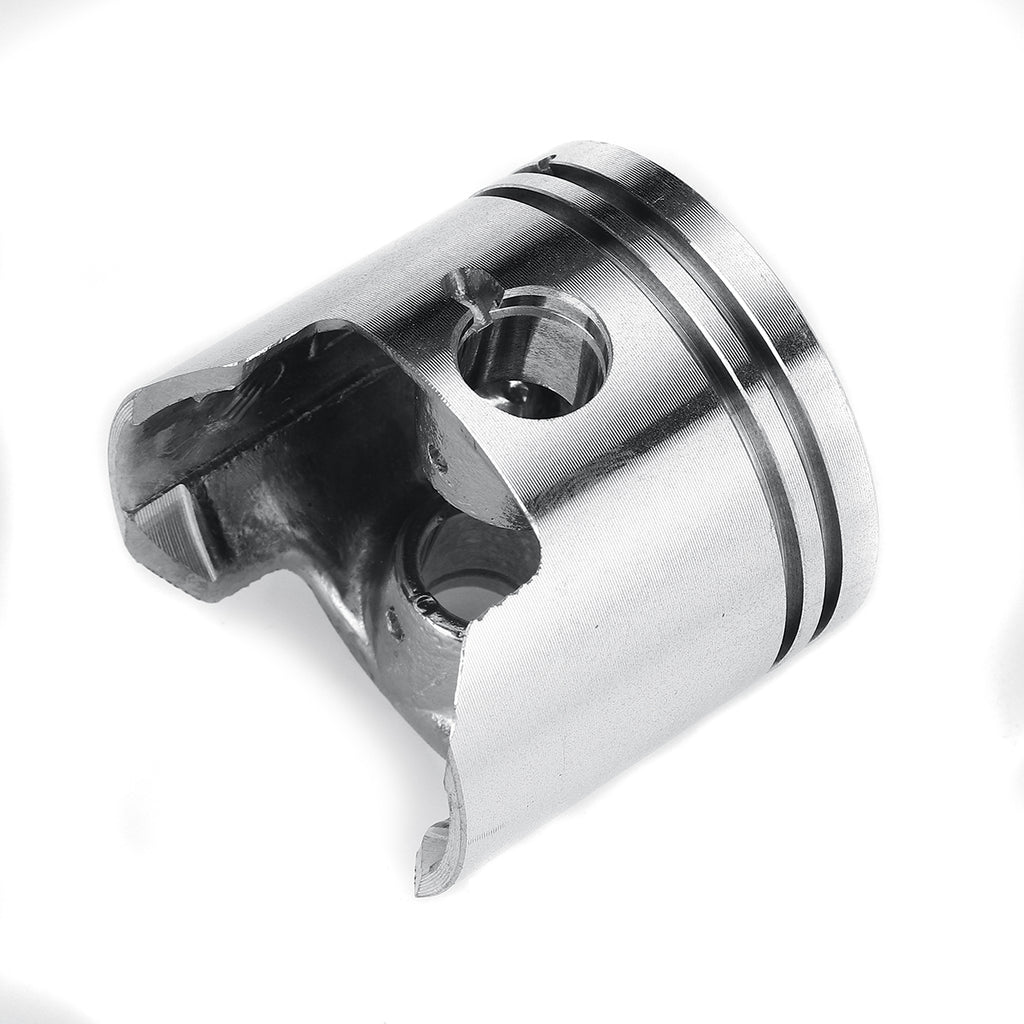

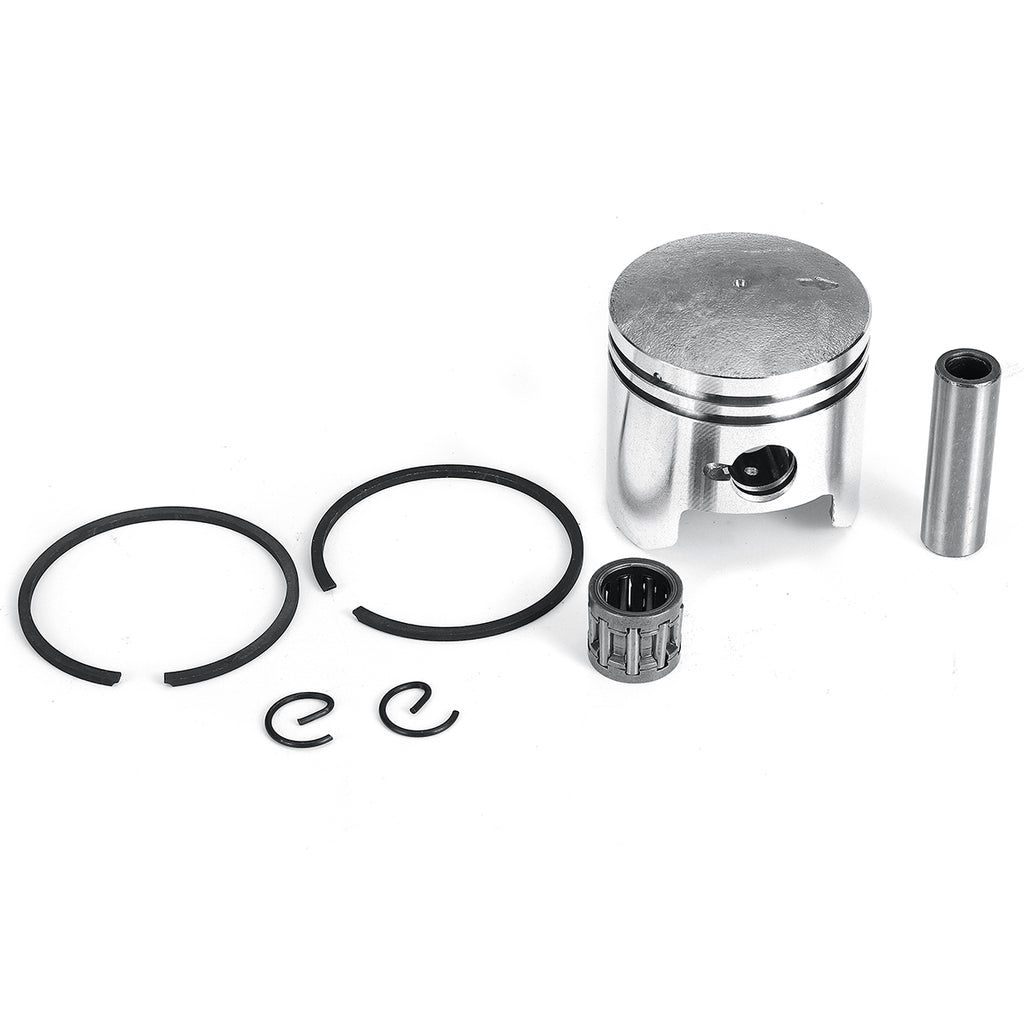

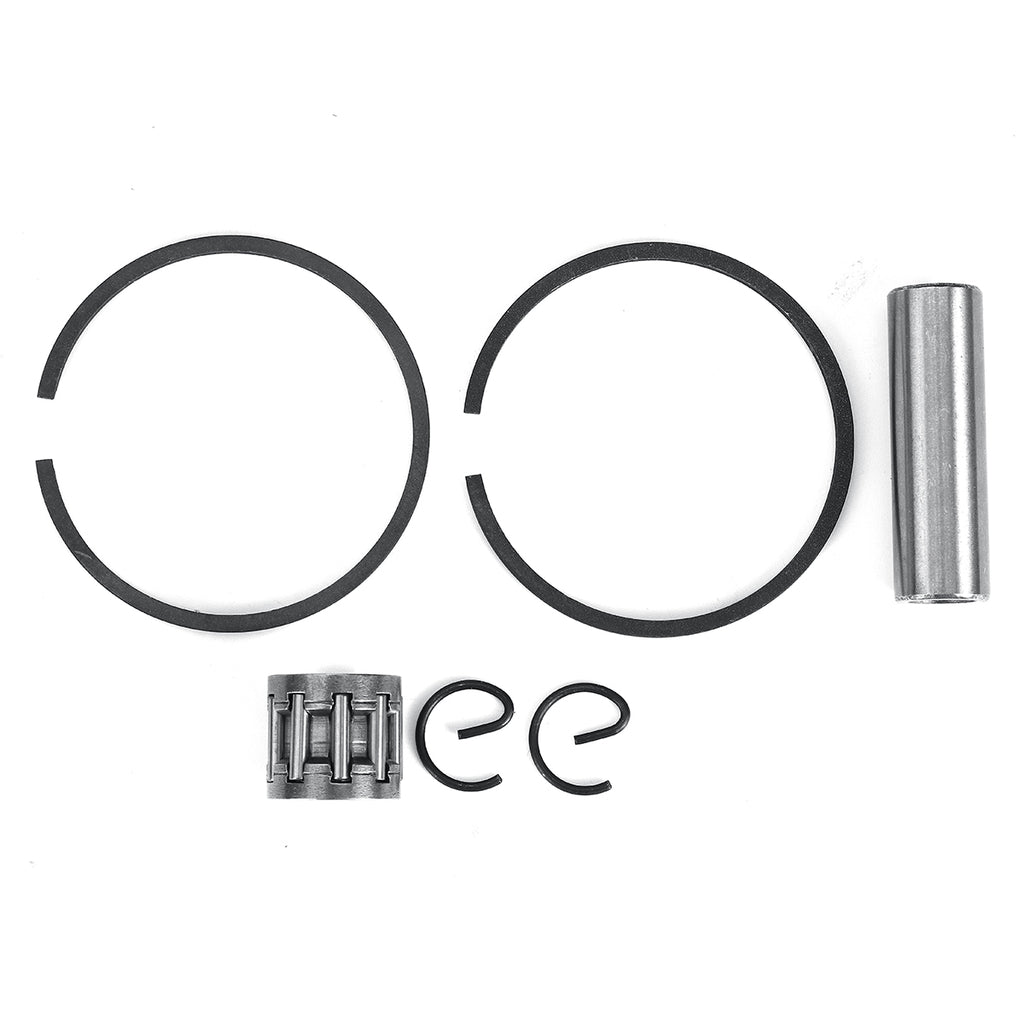

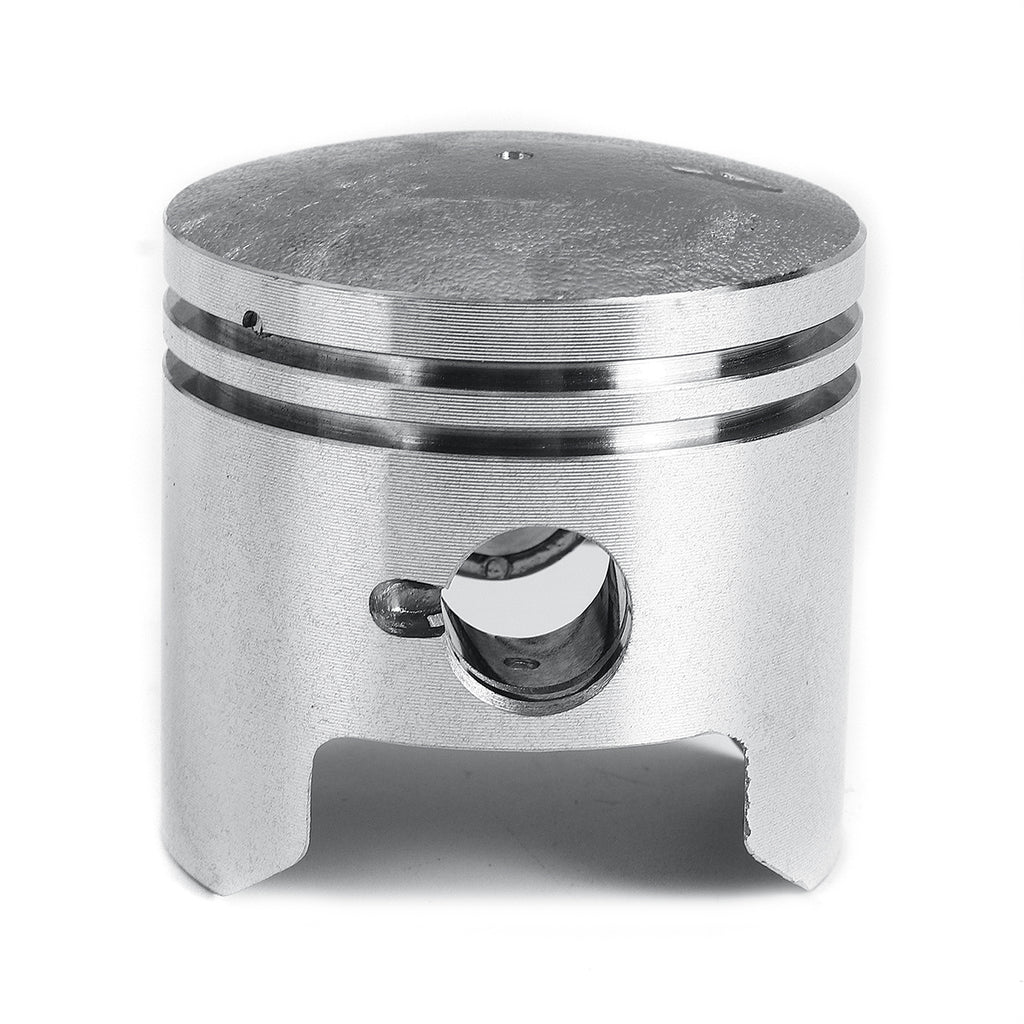

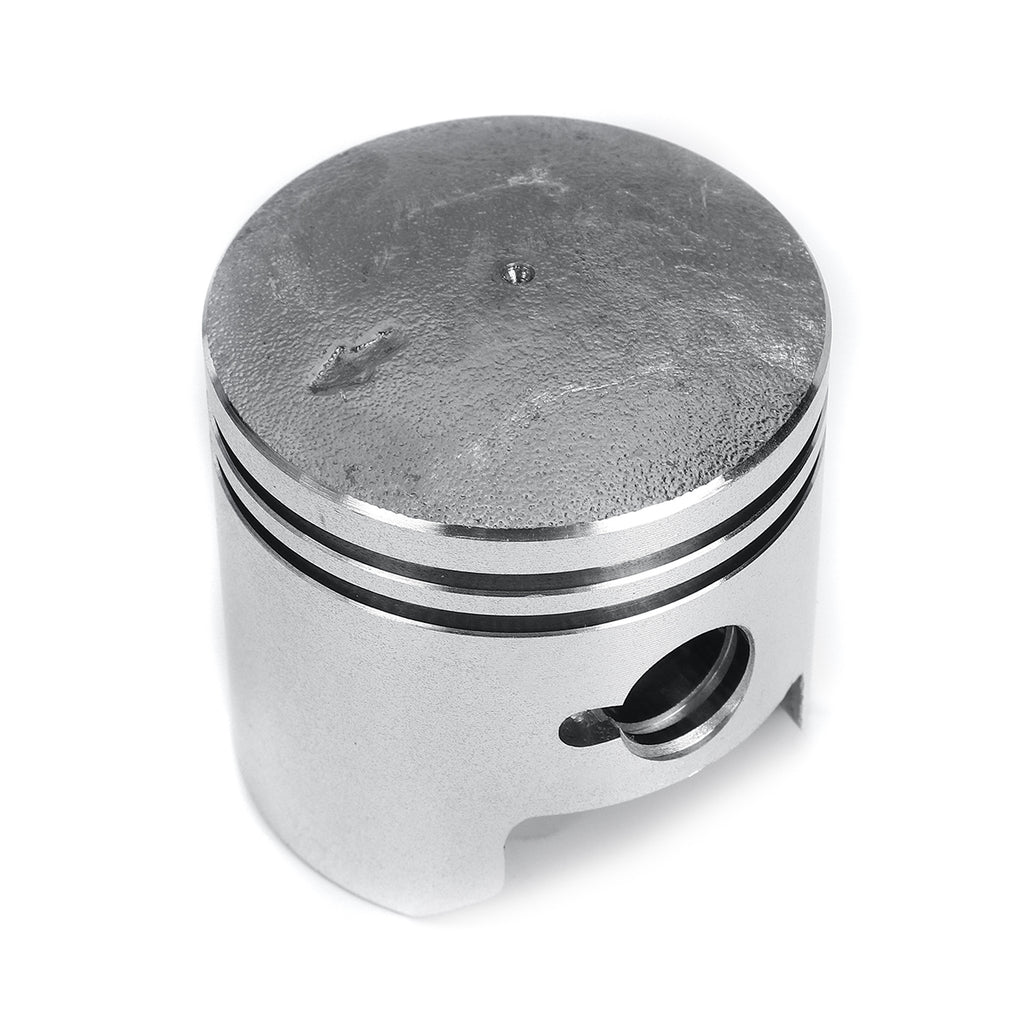

2. The kit includes one piston, two piston rings, one gudgeon pin (10mm), two circlips and one top end bearing.



Specification:

Product Name

 Piston Kits & Piston Rings

Type

 Piston Kit

Color

 As pictured

Material

 Metal

Centre of Pin Hole to Crown

 12.5 mm / 0.49 inch

Crown Height

 12.5 mm / 0.49 inch

Gudgeon Pin Diameter

 10 mm / 0.39 inch

Gudgeon Pin Length

 36.5 mm / 1.44 inch

Ring Thickness (thickest)

 1.46 mm / 0.057 inch

Thickness of Top Two Rings

 1.46 mm / 0.057 inch

Number of Piston / Oil Rings

 2

Number of Piston Windows

 None

Includes Top End Bearing

 Yes

Shape of Piston Top

 Domed

Number of Valve Indents

 None

40mm Piston Size

 Lower Piston Diameter: 40 mm / 1.57 inch

 Lower Piston Diameter: 40 mm / 1.57 inch

 Piston Height: 40 mm / 1.57 inch

 Upper Piston Diameter: 40 mm / 1.57 inch

44mm Piston Size:

 Lower Piston Diameter: 44mm / 1.73 inch

 Lower Piston Diameter: 44mm / 1.73 inch

 Piston Height: 42mm / 1.65 inch

 Upper Piston Diameter: 44mm / 1.73 inch



Note:

1.We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow 0.5-1 inch difference due to manual measurement.(1inch=2.54cm)

3.The instruction is not included in the package.Professional installation is Highly Recommended.



Package Included (Just like in picture):

1 X

 Piston

2 X
