Description
Specifications:
Power requirement: DC 8-15V
Measure range: 5-9999RPM
Clear ze ro: Automatic
Display refresher rate: 3 Times/Sec
Measure indication: RPM<5000,±2, RPM>5000,±3
Display: Green 0.56" LED
Response frequency: 100HZ
Tachometer dimension: 72 x 36 x 20mm
Panel cutout Dimension:68 x 33mm
Sensor dimention: 12 x 55mm
Proximity output current: 200mA

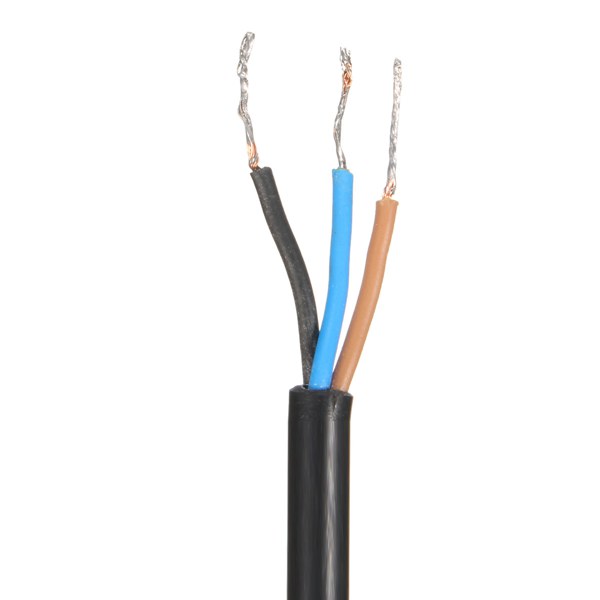

Sensor wiring: brown-Power+;blue-Power-;black-signal
Operating temperature: 0°C to 50°C

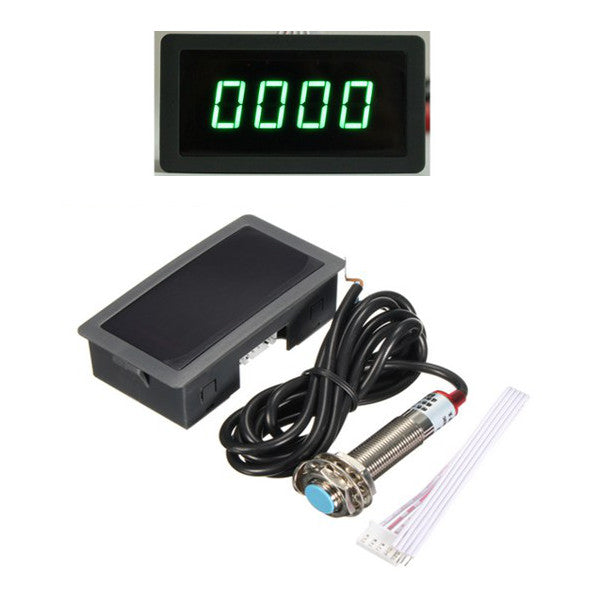

Package includes:

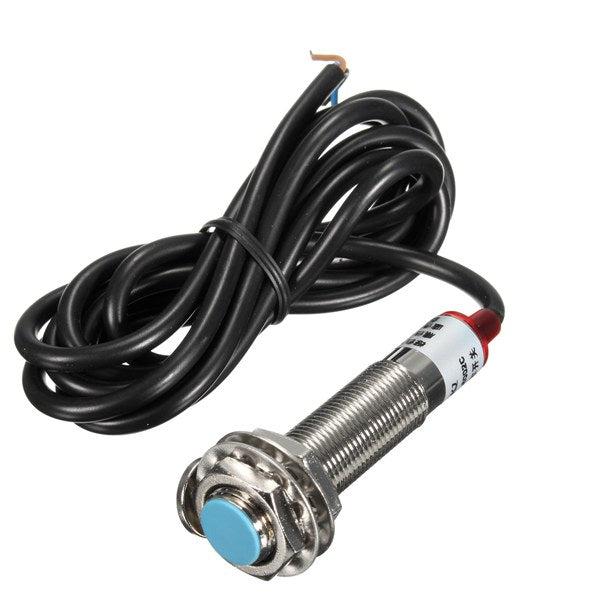

1 x Proximity switch
1 x Tachometer
Power requirement: DC 8-15V
Measure range: 5-9999RPM
Clear ze ro: Automatic
Display refresher rate: 3 Times/Sec
Measure indication: RPM<5000,±2, RPM>5000,±3
Display: Green 0.56" LED
Response frequency: 100HZ
Tachometer dimension: 72 x 36 x 20mm
Panel cutout Dimension:68 x 33mm
Sensor dimention: 12 x 55mm
Proximity output current: 200mA
Sensor wiring: brown-Power+;blue-Power-;black-signal
Operating temperature: 0°C to 50°C
Package includes:
1 x Proximity switch
1 x Tachometer
