Description
Features:

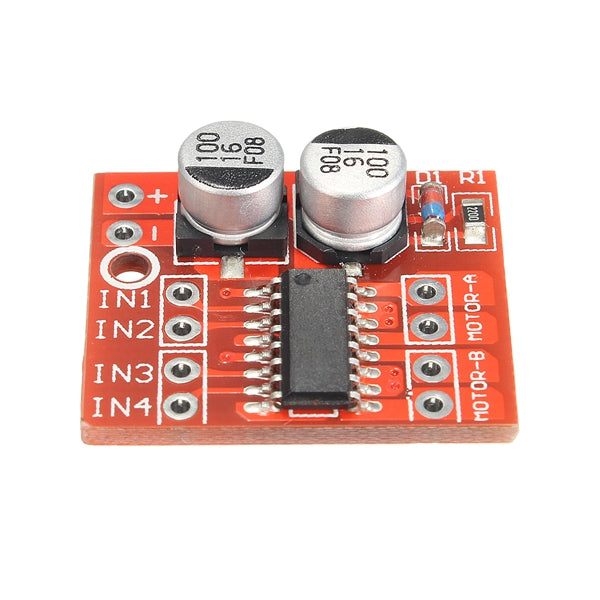

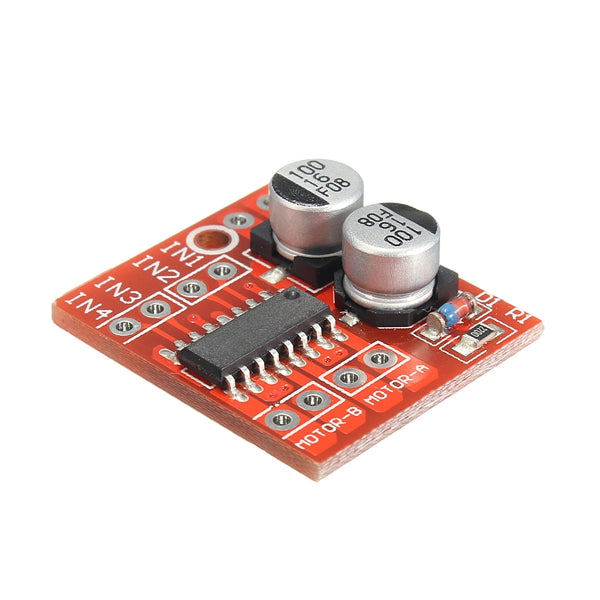

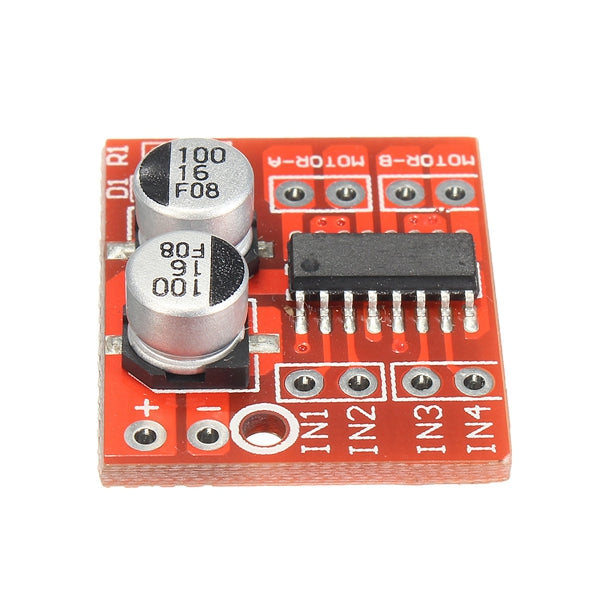

1.Dual H-bridge motor driver, can drive two DC motors or a 4-wire two-phase stepper motors
2.Built-in TSD, without worrying about motor stall
3.Ultra-small size, suitable for assembly and car
Specification:
1.Module supply voltage: DC 2V-10V
2.Signal input voltage: DC 1.8-7V
3.Single working current: 1.5A
4.Peak current up to 2.5A
5.Low standby current (less than 0.1uA)
6.Built-in common conduction circuit, the input terminal vacant, the motor does not malfunction
7.Size: 24.7 x 21 x 7mm
8.Mounting hole diameter: 2 mm
Package included:
3 x Mini dual channel DC motor driver module
,
,
,
1.Dual H-bridge motor driver, can drive two DC motors or a 4-wire two-phase stepper motors
2.Built-in TSD, without worrying about motor stall
3.Ultra-small size, suitable for assembly and car
Specification:
1.Module supply voltage: DC 2V-10V
2.Signal input voltage: DC 1.8-7V
3.Single working current: 1.5A
4.Peak current up to 2.5A
5.Low standby current (less than 0.1uA)
6.Built-in common conduction circuit, the input terminal vacant, the motor does not malfunction
7.Size: 24.7 x 21 x 7mm
8.Mounting hole diameter: 2 mm
Package included:
3 x Mini dual channel DC motor driver module
,,,
