Description
Package Included:

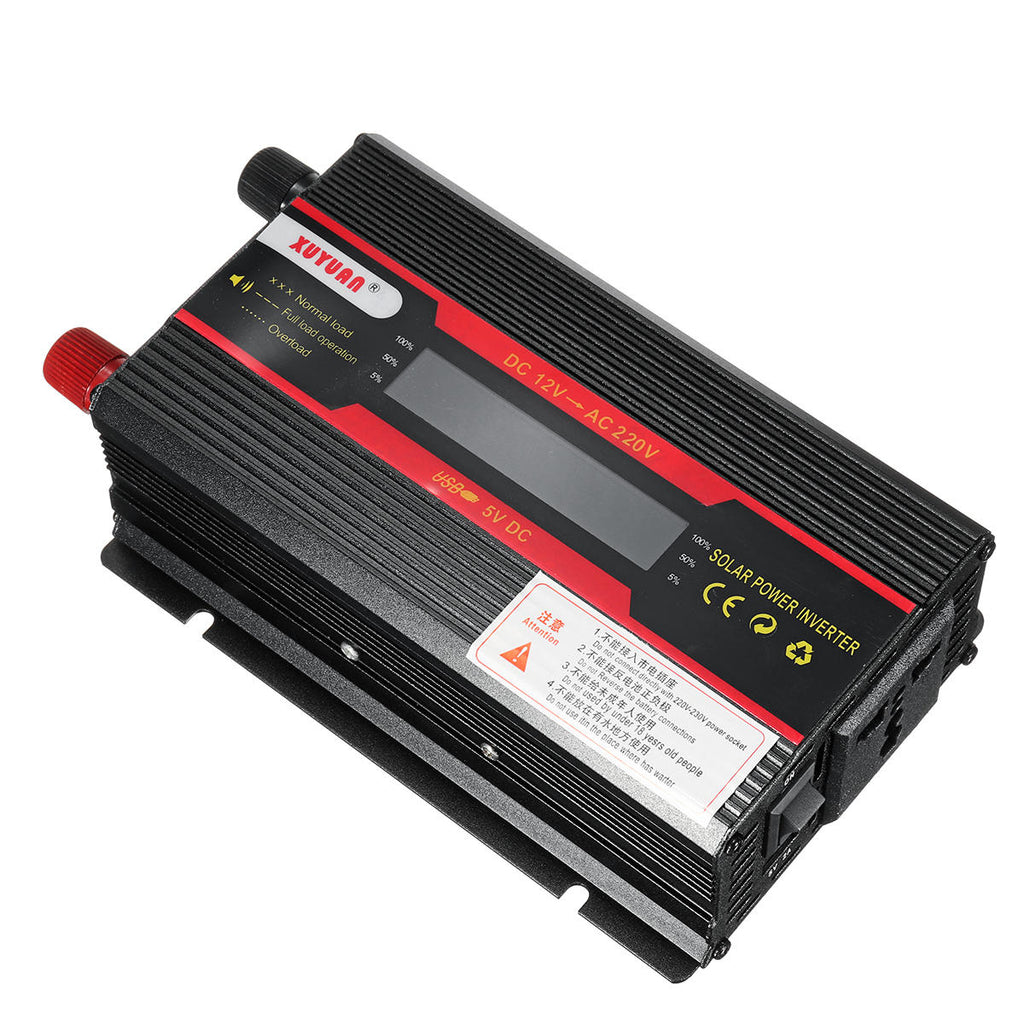

1* Solar Inverter

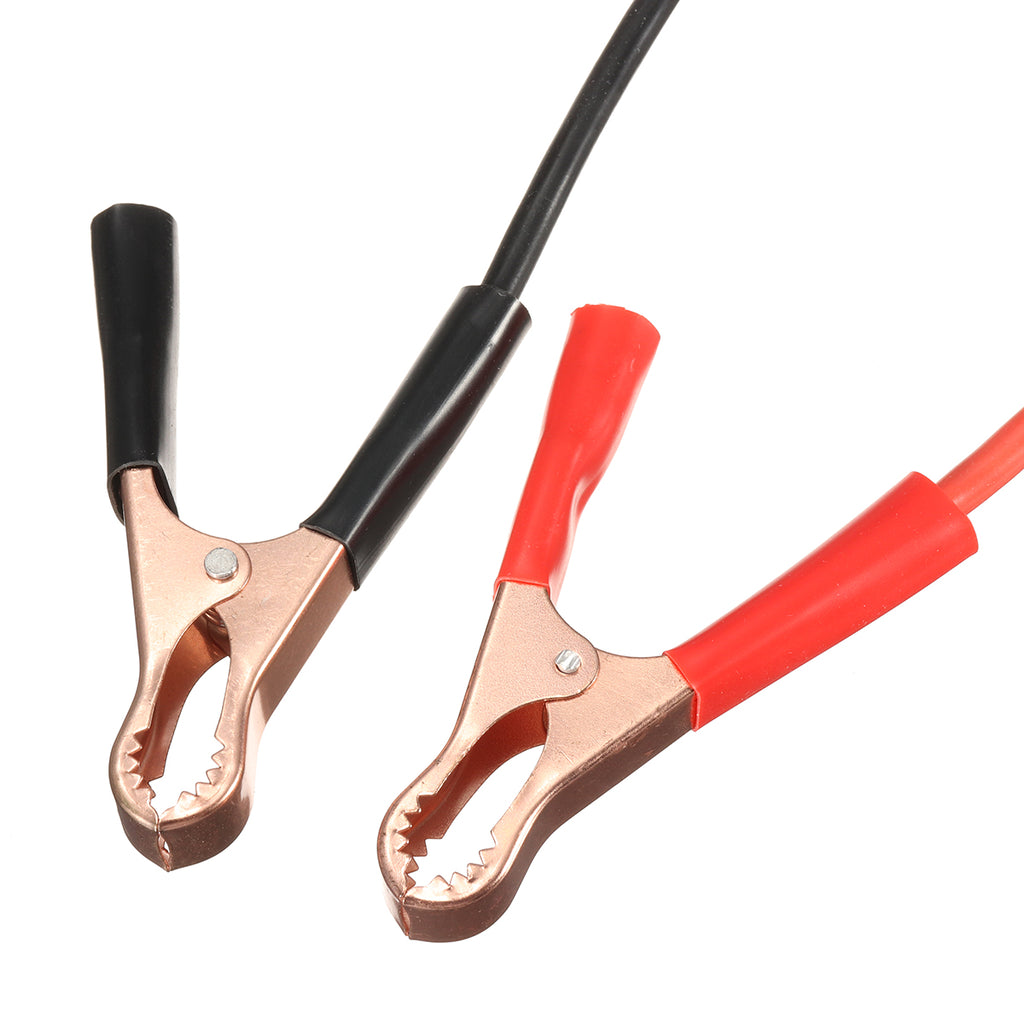

1* Pair of Alligator-Clip Battery Cable
1* Cigare tte Lighter Cable
Specifications:
- Peak Power : 3000W
- Rated power : 350W (Please Ensure the Rated Power is Higher than the electric appliance you wanna apply to.)
- Input Vottage: 12V 24V
- Output voltage: AC 220V/50Hz ± 3Hz
AC 110V/60Hz ± 3Hz
- USB Output: 5V-2A
- No load current: <0.9A
- Digital Display: Input/Output Voltage LCD Display
- Output voltage waveform: Modified Sine Wave
- Conversion Efficiency:90%
Appearance
- Modle: SDB-600A
- Color: Black
- Material: Aluminum Alloy
- Socket Style: Universal Socket
- Built-in cooling fan with low noise.
- USB output Charging interface available.
- Positive and negative pole terminal
- Working Indicator Lamp
- Inverter Manual Switch
- Size: Approx.19.5x11x5.5cm/7.7"x4.3"x2.2"
Features:
- The inverter can convert DC12 / 24V to AC 110V/220V.
- 12V is generally for cars, 24V for trucks.
- Available Range Of Rated Voltage Of Electrical Appliances : 210~230V, 110~130V
- Safe Range Of Input Voltage:
①12V : 9.8~15V
②24V : 20~28V
- 8 Safety Protection Function:
①Reverse polarity protection
②Low input voltage protection
③High input voltage protection
④Over-current protection
⑤Short circuit protection
⑥Over temperature protection
⑦Overload protection
⑧External or Internal fuses
Application:
-Applicable Loads for Rated Power 350W:
10W-Digital Electronics
20W-LED Lamp
60W-Compact Fluorescent Lamp
60W-Incandescent lamp
60W-Mechanical Electric Fan
100W-Non-laser Printer
200W-Desktop Computer
200W-32inch LCD TV
300W-Audio Amplifier Equipment
-Inapplicable Loads for Rated Power 350W:
300W-Electric Hand Mill
300W-Electric Hand Drill
350W-Non-laser Printer
350W-Laminator
500W-Rice Cooker
600W-Heater
600W-Dust Cleaner
800W-Intelligent Rice Cooker
800W-Juice Extractor
1000W-Induction Cooker
1000W-Hair Drier
1200W-Electric Kettle
1400W-Steam Iron
2000W-Hair Drier
Note:
①Please Ensure the Rated Power is higher than the electric appliance you wanna apply to.
②And if you wanna run several appliance at the same time, you should refer to the total Watt.
③If you wanna run a inductive load for a long time, it`s suggested to buy a pure sine wave inverter.
