30.5x30.5mm Mamba F405 MK2 V2 3-6S Flight Controller ICM42688P with 5V 9V BEC Output for RC FPV Racing Drones
30.5x30.5mm Mamba F405 MK2 V2 3-6S Flight Controller ICM42688P with 5V 9V BEC Output for RC FPV Racing Drones
30.5x30.5mm Mamba F405 MK2 V2 3-6S Flight Controller ICM42688P with 5V 9V BEC Output for RC FPV Racing Drones
30.5x30.5mm Mamba F405 MK2 V2 3-6S Flight Controller ICM42688P with 5V 9V BEC Output for RC FPV Racing Drones
Roll over image to zoom in Click on image to zoom
30.5x30.5mm Mamba F405 MK2 V2 3-6S Flight Controller ICM42688P with 5V 9V BEC Output for RC FPV Racing Drones
30.5x30.5mm Mamba F405 MK2 V2 3-6S Flight Controller ICM42688P with 5V 9V BEC Output for RC FPV Racing Drones
30.5x30.5mm Mamba F405 MK2 V2 3-6S Flight Controller ICM42688P with 5V 9V BEC Output for RC FPV Racing Drones
30.5x30.5mm Mamba F405 MK2 V2 3-6S Flight Controller ICM42688P with 5V 9V BEC Output for RC FPV Racing Drones

30.5x30.5mm Mamba F405 MK2 V2 3-6S Flight Controller ICM42688P with 5V 9V BEC Output for RC FPV Racing Drones

Save R 173.95
Isaiah 55:8-9 John 3:16 Philippians 4:19
Version: F405 FC
Price:
R 819.73 R 993.68
Stock:
In Stock. Shipping via Courier.



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

Description:

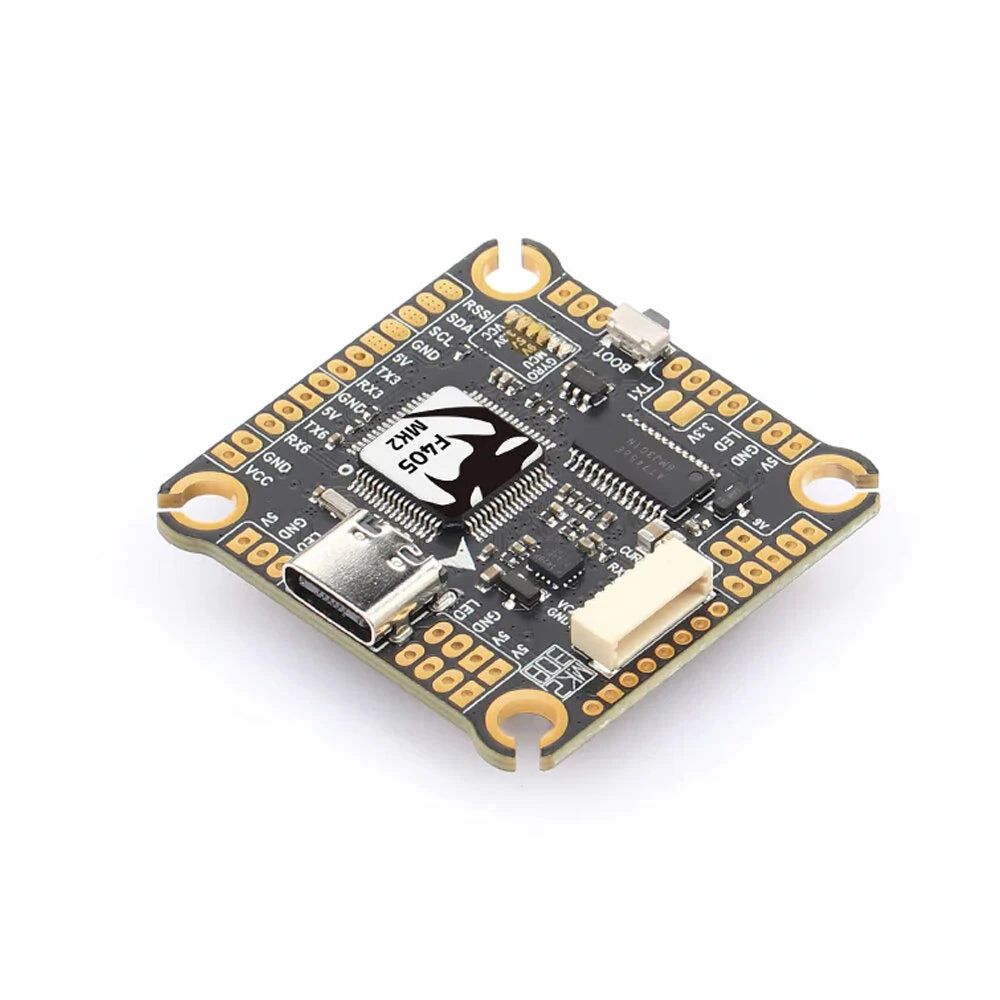

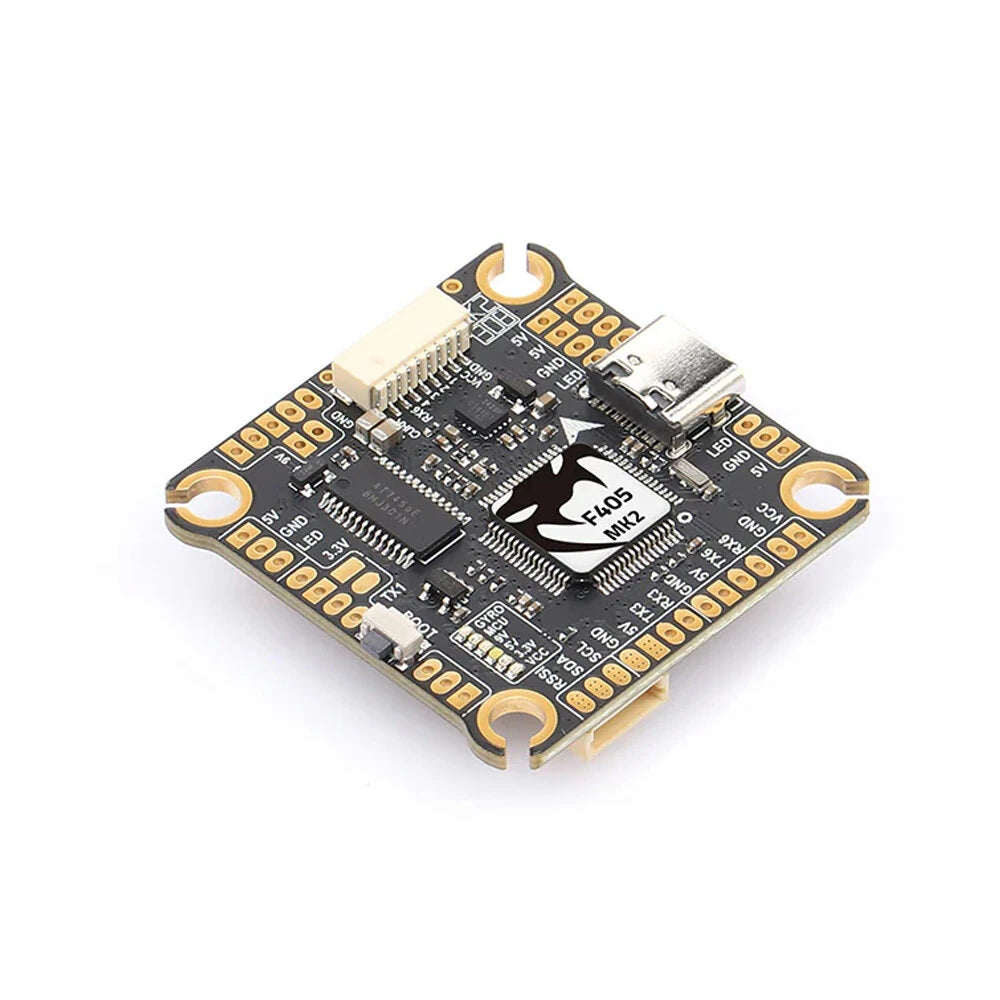

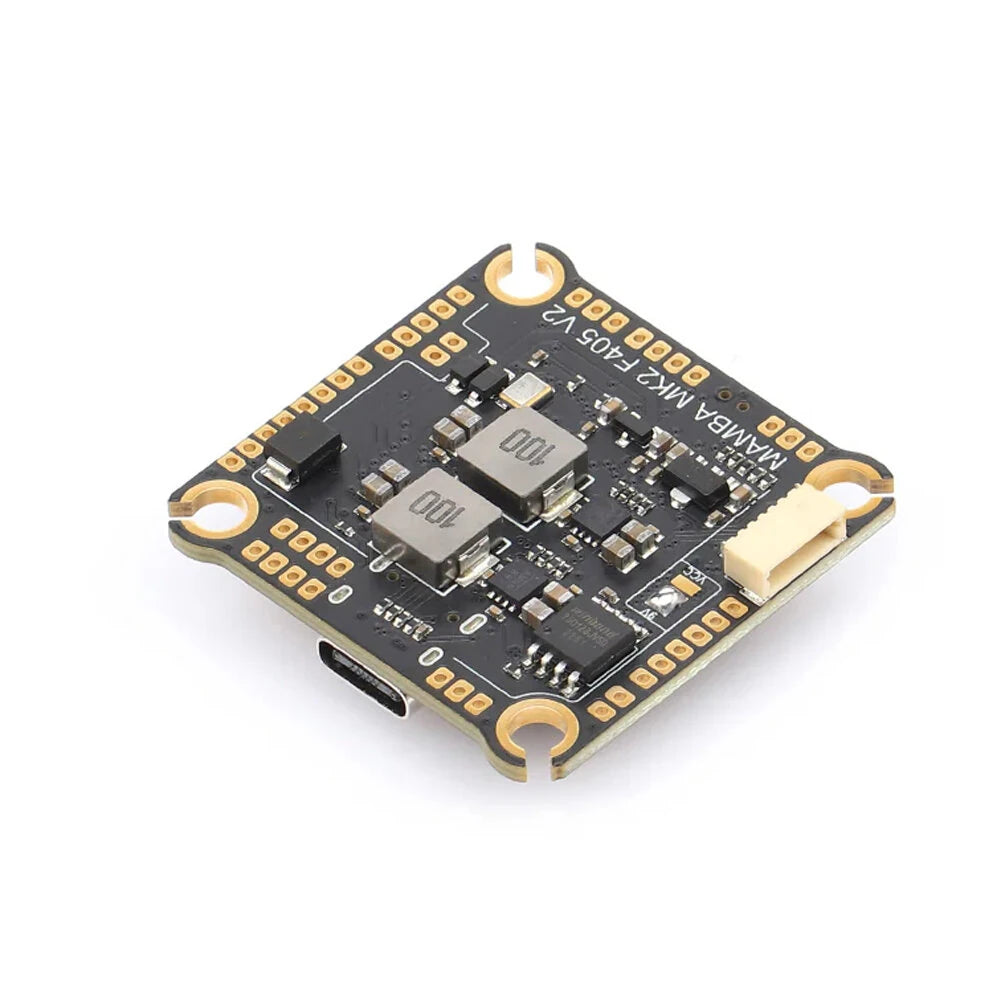

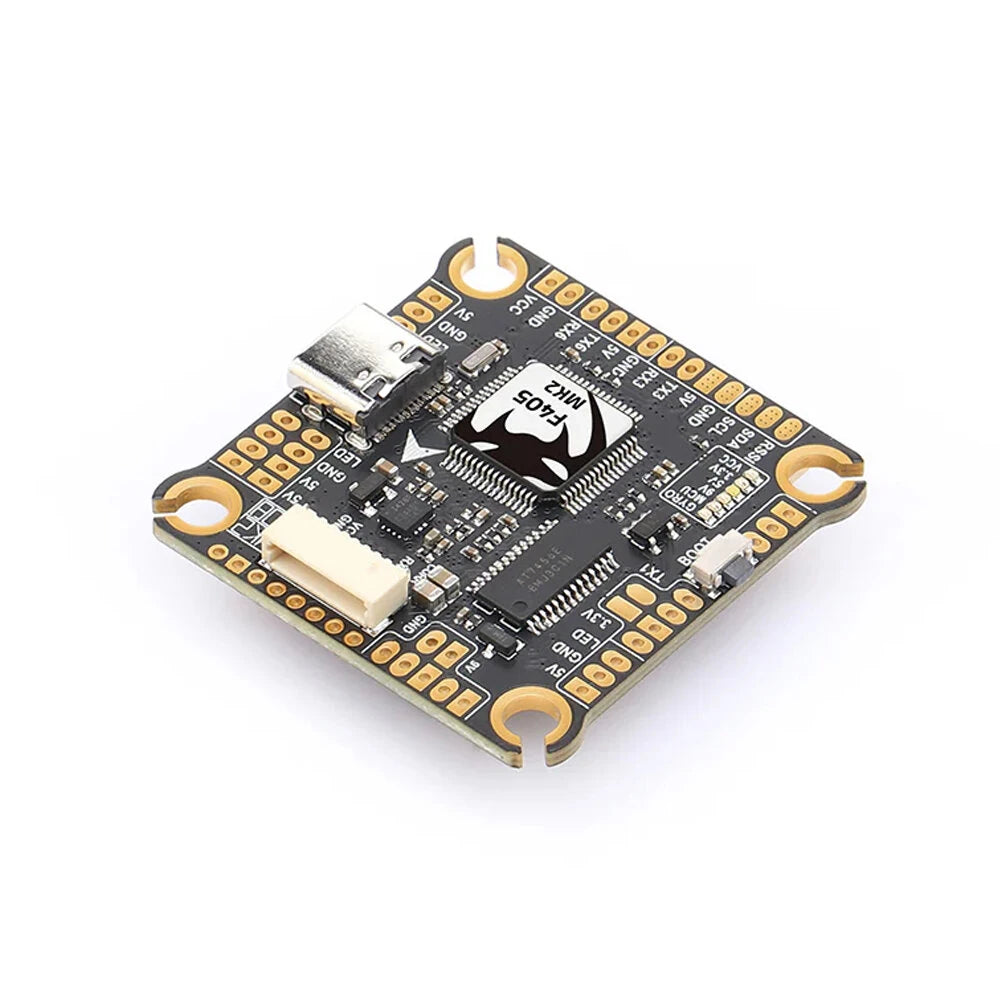

Mamba F405 MK2 is an affordable F4 flight controller with ICM-42688-P gyro. The flight controller has 16MB memory for blackbox, OSD, 5V and 9V BEC. It uses a USB-C connector to connect to a PC. The board also has a connector for easy connection of digital video transmitters and an I2C bus for connecting a compass or barometer. For easy LED installation, pads are available on four sides of the board. The board can be powered by 3-6S batteries and is protected by a TVS diode.

Specification:
Brand: Mamba
Item Name: F405 MK2 V2 Flight Controller
Processor: STM32F405
IMU: ICM-42688-P
Blackbox memory: 16MB
Number of UARTs: 3
BEC: 5V@2.5A, 9V@2A
Input voltage: 3-6S
BF Target: FURYF405OSD
Mounting holes: 30.5x30.5mm M3
Size: 38x38x7mm

Package Included:
1x Flight controller
