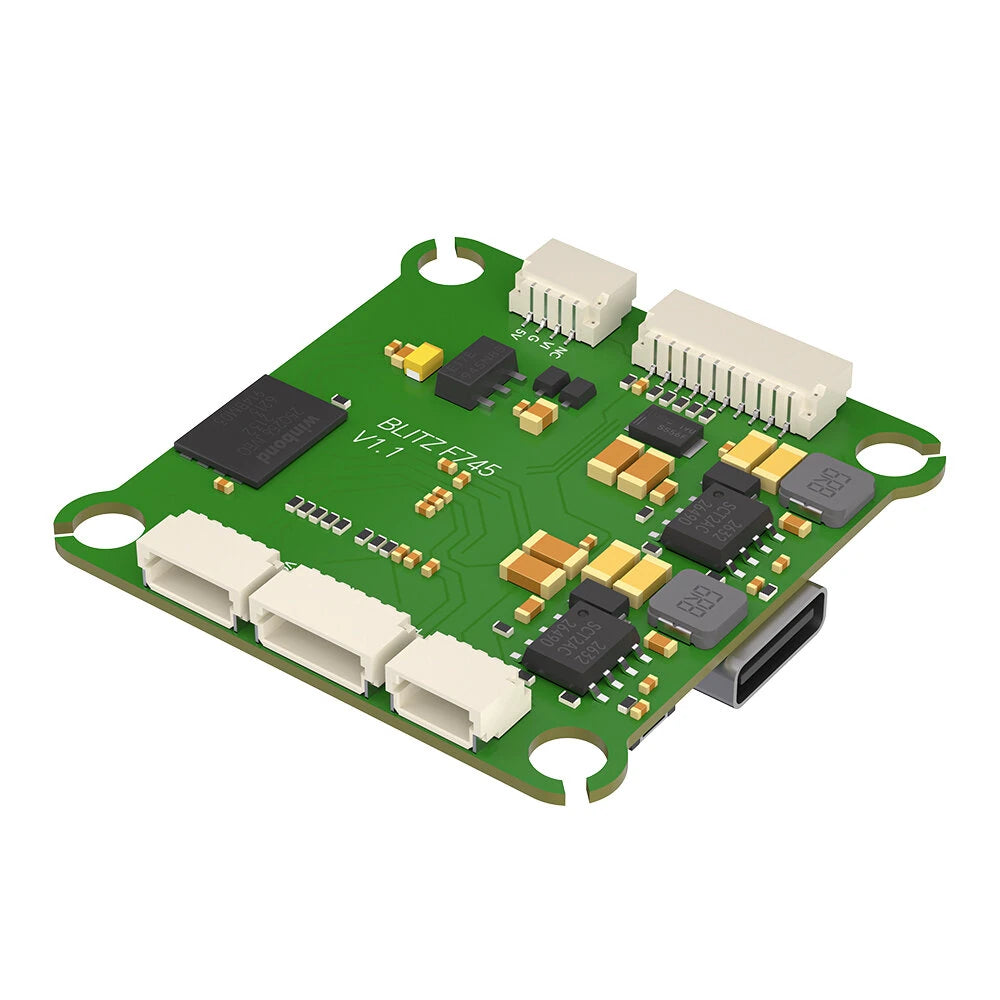

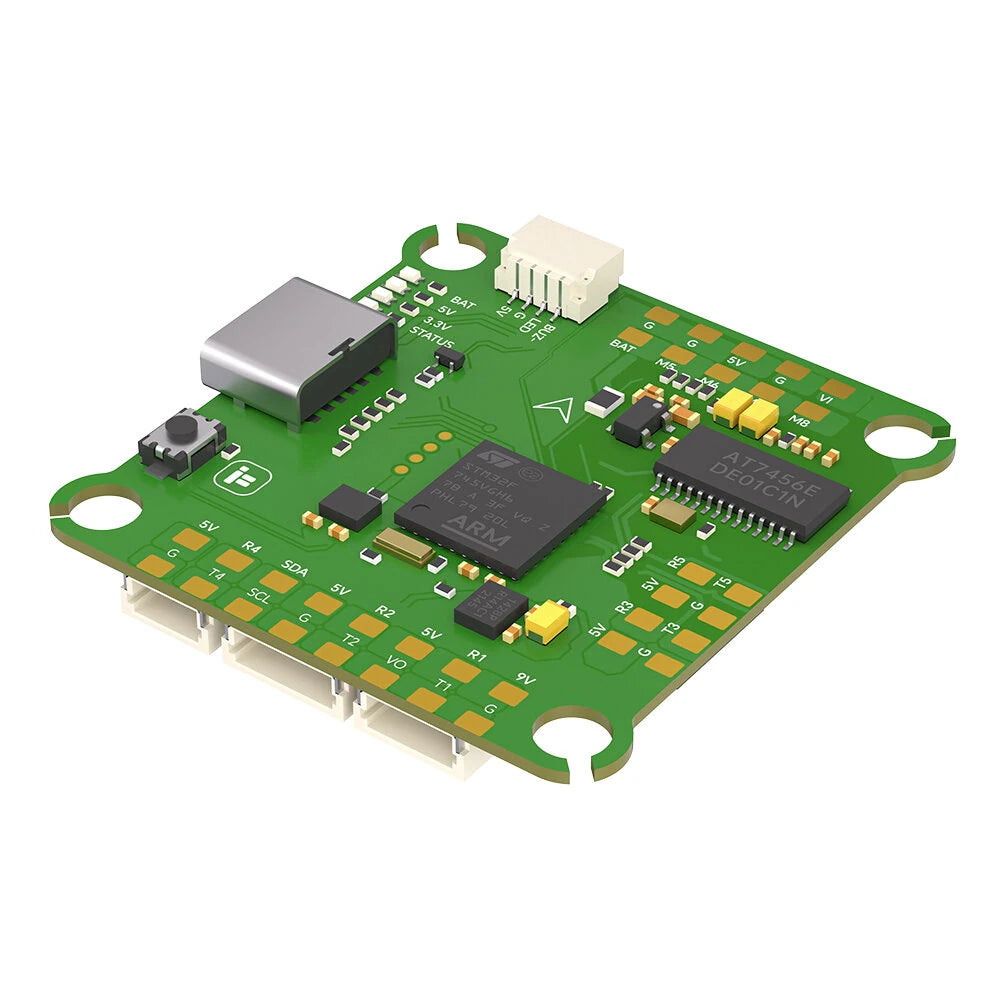

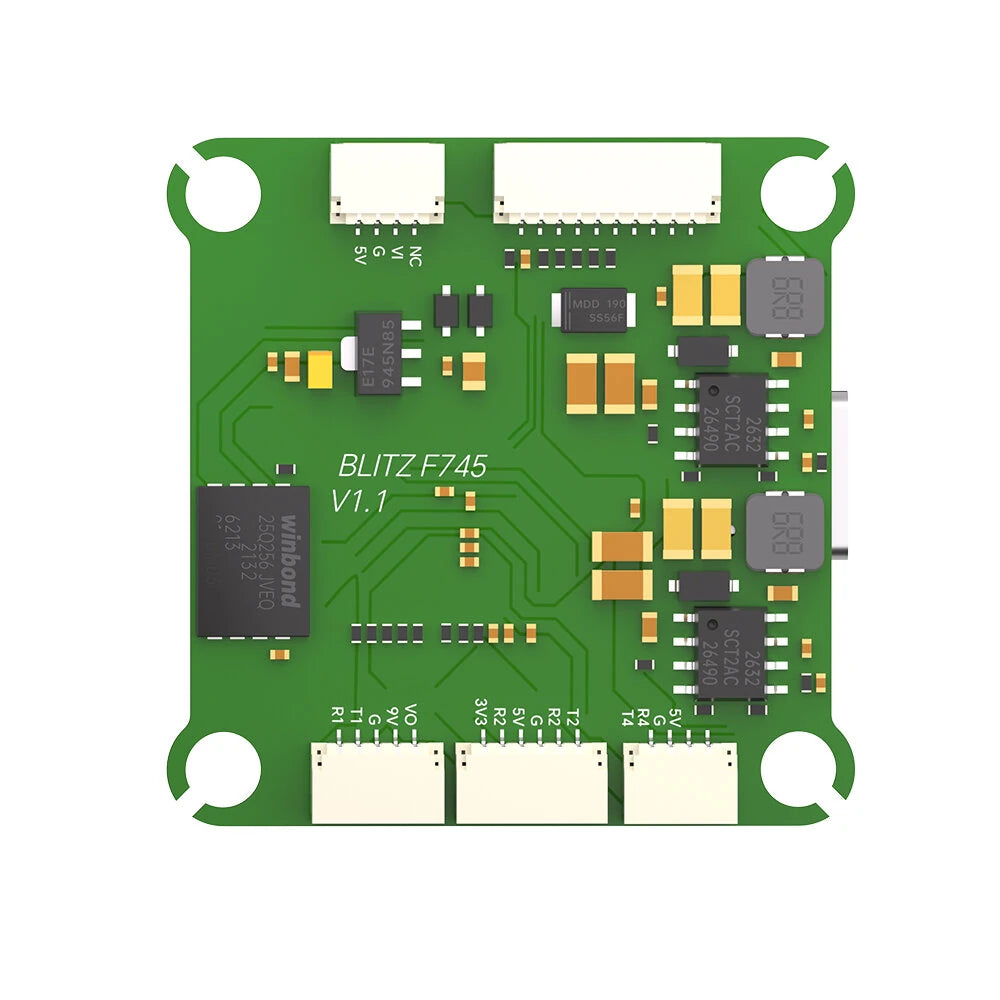

30.5x30.5mm iFlight BLITZ F745 OSD Flight Controller with 5V 9V BEC Output Support Analog DJI O3 for FPV RC Racing Drone
30.5x30.5mm iFlight BLITZ F745 OSD Flight Controller with 5V 9V BEC Output Support Analog DJI O3 for FPV RC Racing Drone
30.5x30.5mm iFlight BLITZ F745 OSD Flight Controller with 5V 9V BEC Output Support Analog DJI O3 for FPV RC Racing Drone
30.5x30.5mm iFlight BLITZ F745 OSD Flight Controller with 5V 9V BEC Output Support Analog DJI O3 for FPV RC Racing Drone
Roll over image to zoom in Click on image to zoom
30.5x30.5mm iFlight BLITZ F745 OSD Flight Controller with 5V 9V BEC Output Support Analog DJI O3 for FPV RC Racing Drone
30.5x30.5mm iFlight BLITZ F745 OSD Flight Controller with 5V 9V BEC Output Support Analog DJI O3 for FPV RC Racing Drone
30.5x30.5mm iFlight BLITZ F745 OSD Flight Controller with 5V 9V BEC Output Support Analog DJI O3 for FPV RC Racing Drone
30.5x30.5mm iFlight BLITZ F745 OSD Flight Controller with 5V 9V BEC Output Support Analog DJI O3 for FPV RC Racing Drone

30.5x30.5mm iFlight BLITZ F745 OSD Flight Controller with 5V 9V BEC Output Support Analog DJI O3 for FPV RC Racing Drone

Save R 303.35
Isaiah 55:8-9 John 3:16 Philippians 4:19
Version: Flight Controller Module
Price:
R 1,466.73 R 1,770.08
Stock:
In Stock. Shipping via Courier.



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

Specifications:

Brand: iFlight

Model: BLITZ F745

Item Name: Flight Controller

MCU: STM32F745
Gyro: ICM42688
Barometer: DPS310
OSD Chip: AT7456E
Flash: 32MB (Blackbox flash)
UARTS: 6
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Mount pattern: 30.5*30.5mm
Dimensions: 36.5*35 mm
Weight: 7.8g
BEC:
Output 5V 2.5A continuous output current, 3A peak current (15 seconds)
Output 9V 2.5A continuous output current, 3A peak current (15 seconds)
BF Firmware target: IFLIGHT_BLITZ_F7_AIO
Ardupilot Firmware：arduplane_with_bl

Features:
1.Improved circuit design, better components and lower electrical noise!
2.DJI HD VTX Connector (Plug-and-Play / No soldering required)
3.FC indicator LEDs for visual debugging
4.Support Betaflight, INAV, Ardupilot firmware

Wiring Suggestion:
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemet

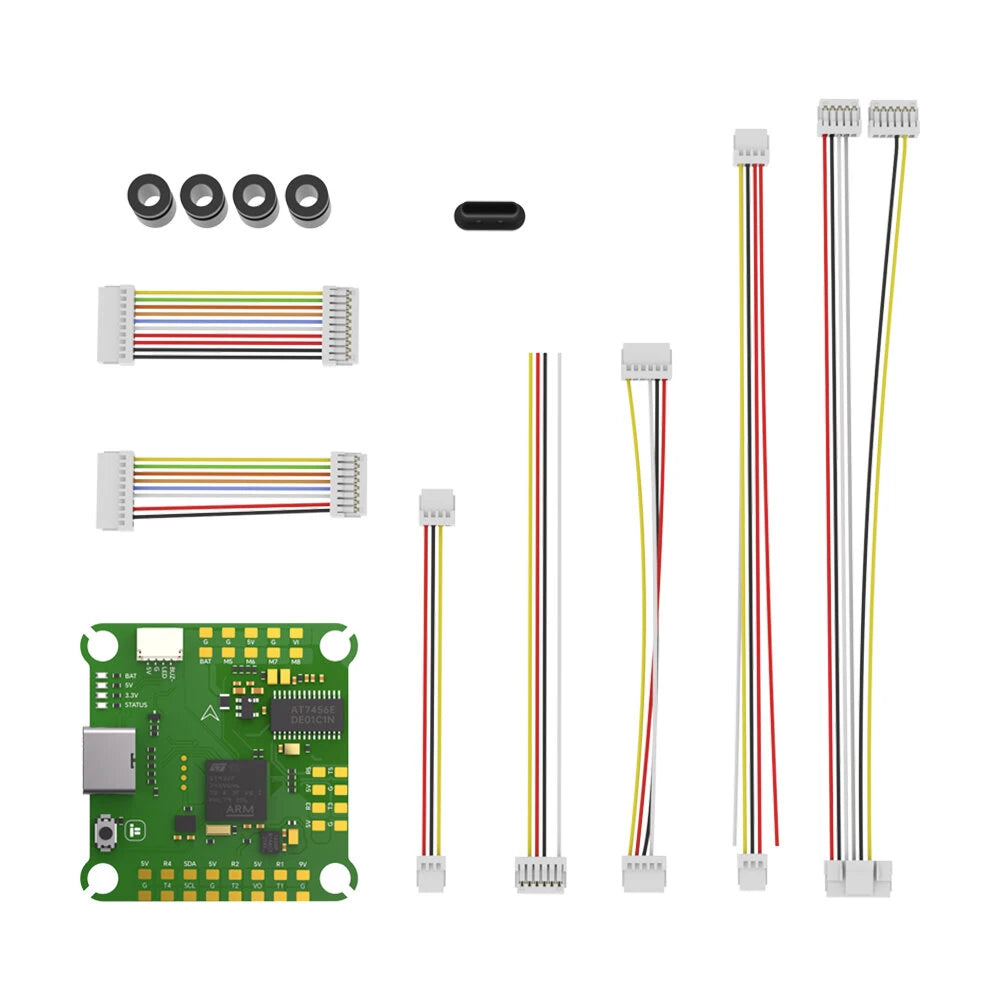

Package Included:
1x BLITZ F745 Flight Controller

4x Anti-vibration Balls

1x set of Cables
