Description

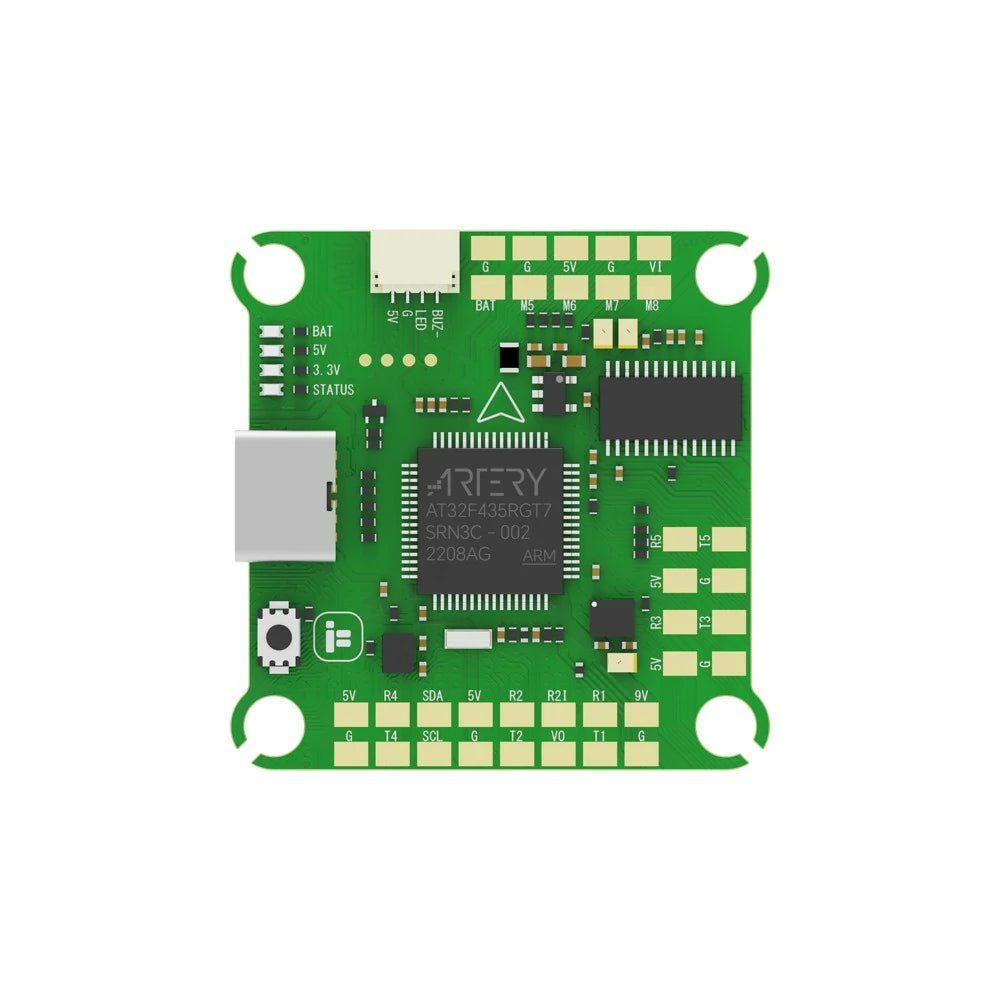

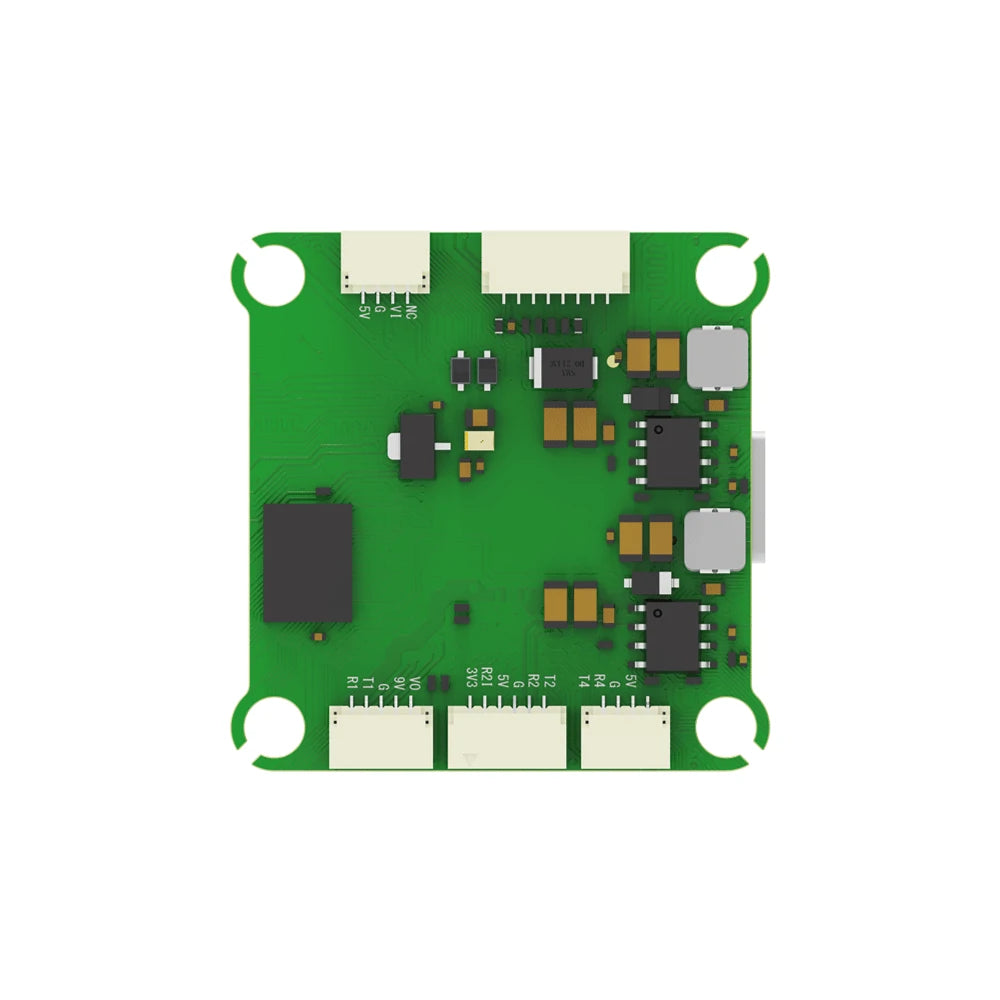

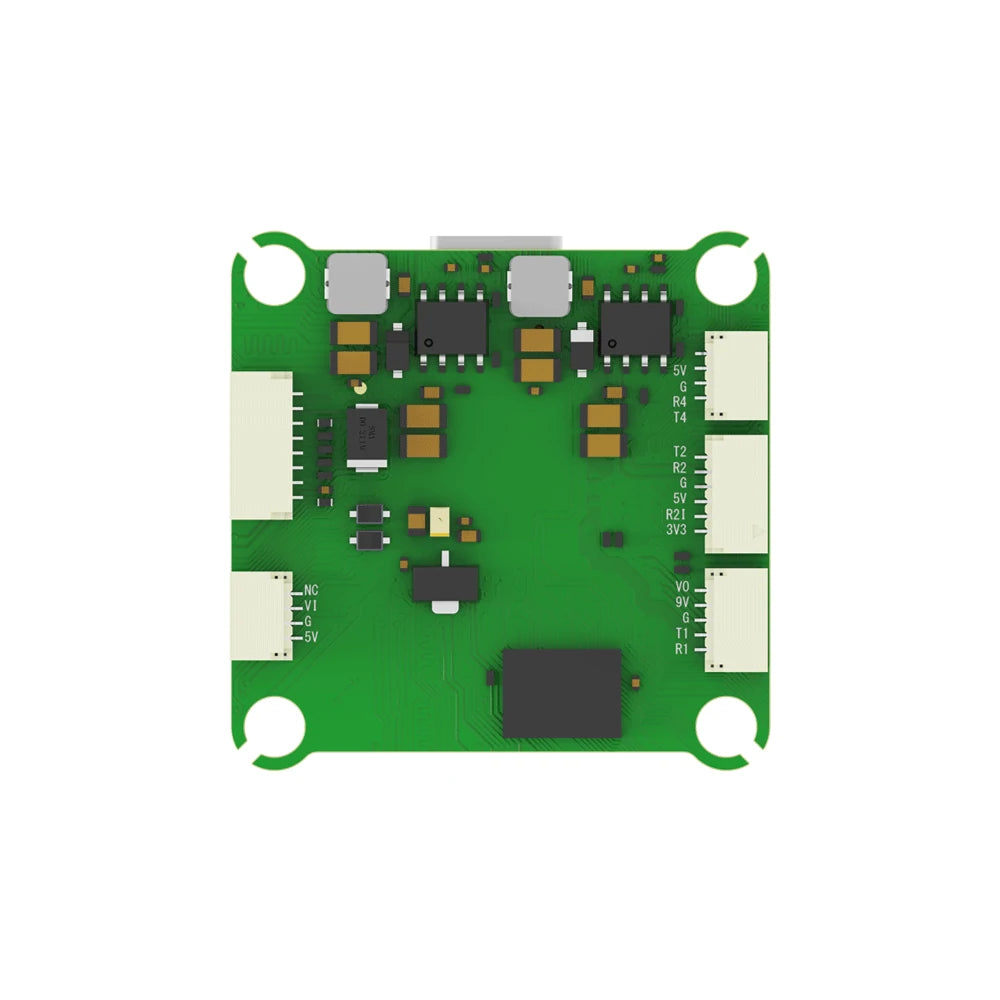

Specifications: ( Diagram Picture)
Brand: iFlight

Model: BLITZ ATF435
MCU: AT32F435CGU7
Gyro: BMI270
Barometer: DPS310
OSD Chip: AT7456E
Flash: 32MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFLIGHT_BLITZ_ATF435
Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter
Dimensions: 36.5*35 mm
Weight: 7.8g
BEC: 5V 2.5A / 9V 2A

Wiring Suggestion:

UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemet

Features:

State-of-the-art MCU and Gyro combo ensuring optimal flight stability and precision.

Supports Smartaudio / IRC Tramp VTX protocol for flexible and reliable communication.

Integrated 32MB Blackbox flash for enhanced flight data recording.

Multiple UART ports, ideal for connecting VTX, Receiver, GPS, sensors, and ESC telemetry.

Compact design with a robust mount pattern and a weight of just 7.8g for seamless integration into any setup.

Package Included:

1x BLITZ ATF435 Flight Controller
