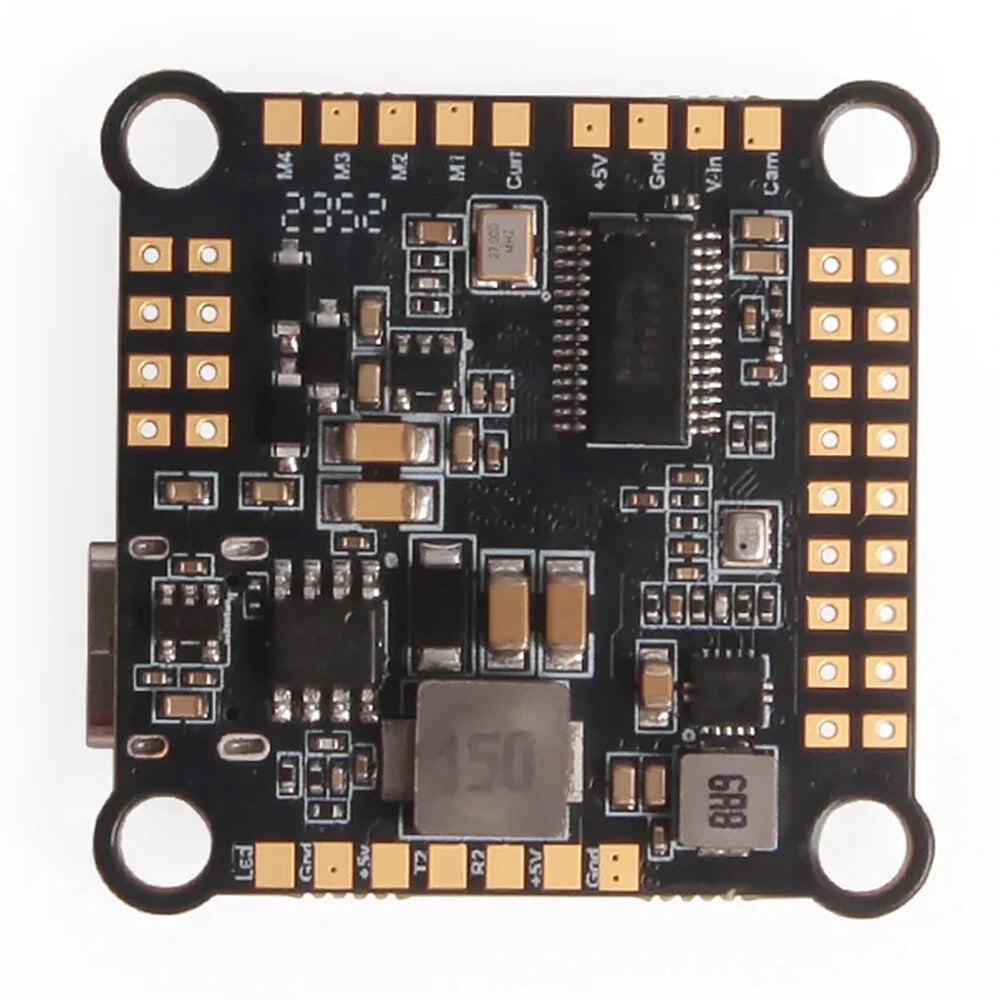

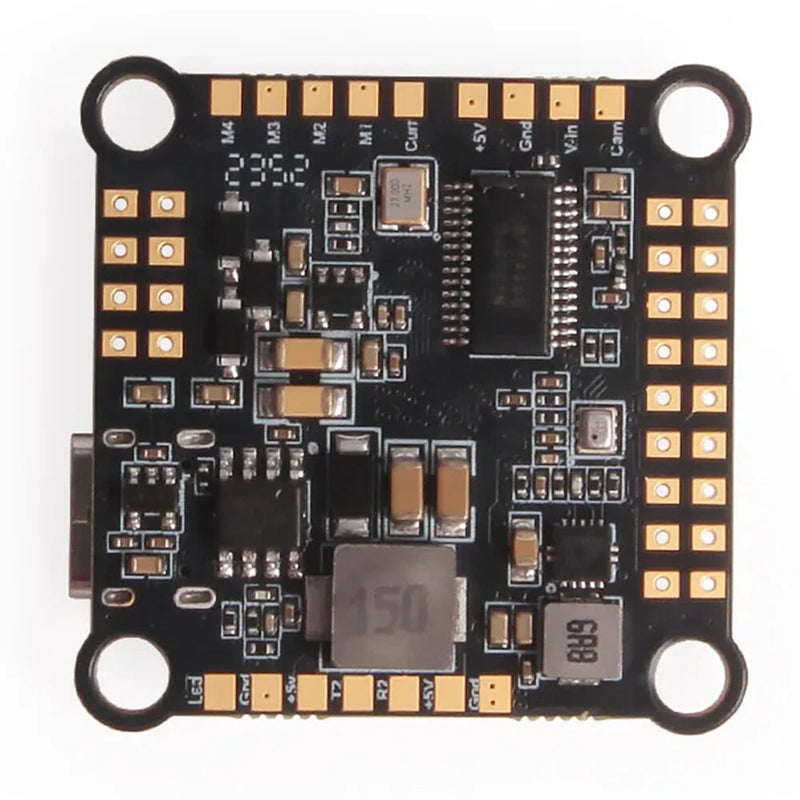

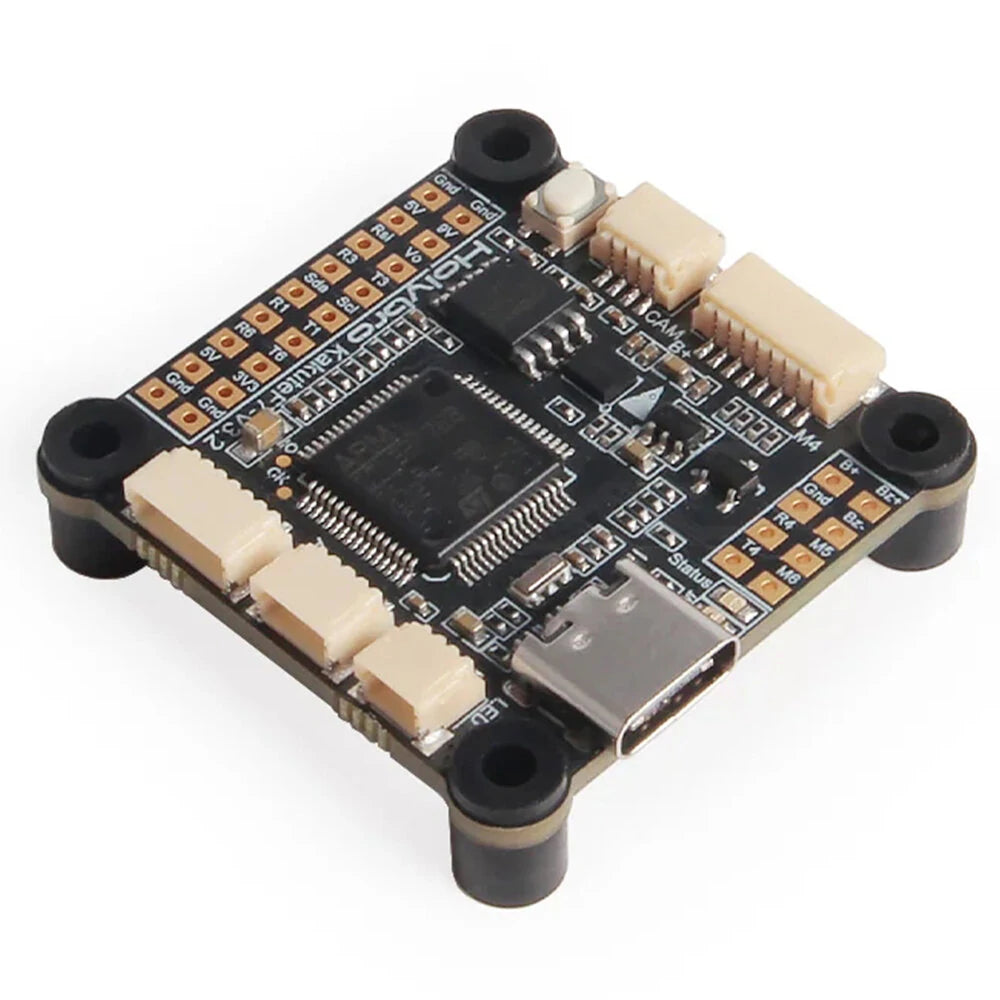

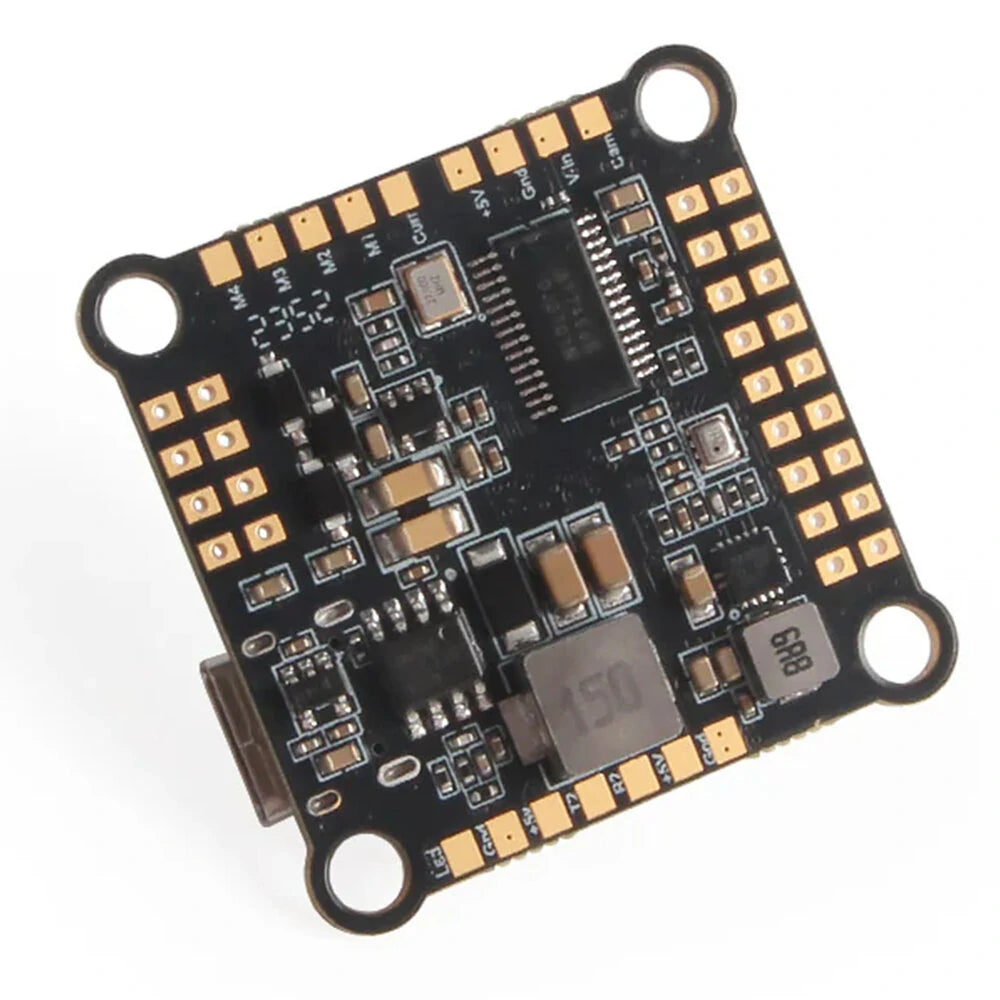

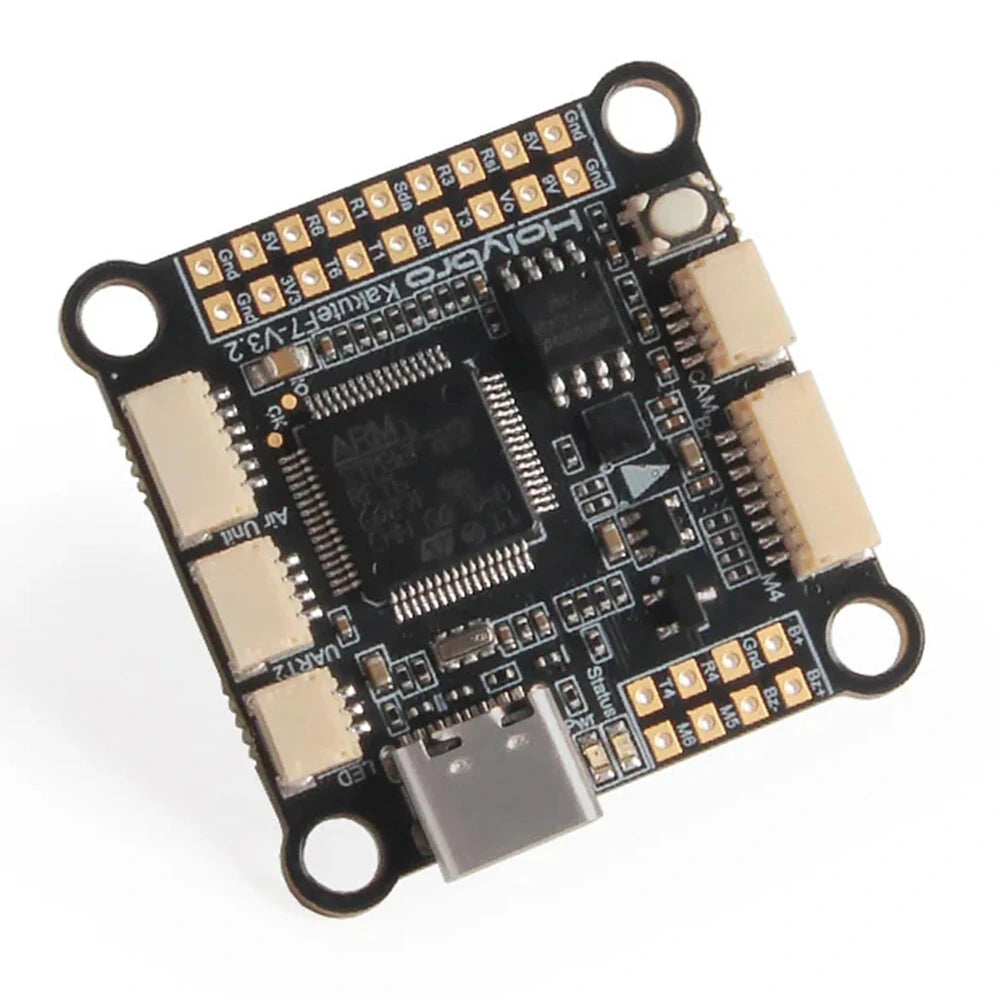

30.5x30.5mm Holybro Kakute F722 F7 OSD Flight Controller 3-8S with 9V 5V 3.3V BEC Output Support DJI O3 CADDX VISTA HDZERO Analog for FPV RC Racing Drone
30.5x30.5mm Holybro Kakute F722 F7 OSD Flight Controller 3-8S with 9V 5V 3.3V BEC Output Support DJI O3 CADDX VISTA HDZERO Analog for FPV RC Racing Drone
30.5x30.5mm Holybro Kakute F722 F7 OSD Flight Controller 3-8S with 9V 5V 3.3V BEC Output Support DJI O3 CADDX VISTA HDZERO Analog for FPV RC Racing Drone
30.5x30.5mm Holybro Kakute F722 F7 OSD Flight Controller 3-8S with 9V 5V 3.3V BEC Output Support DJI O3 CADDX VISTA HDZERO Analog for FPV RC Racing Drone
Roll over image to zoom in Click on image to zoom
30.5x30.5mm Holybro Kakute F722 F7 OSD Flight Controller 3-8S with 9V 5V 3.3V BEC Output Support DJI O3 CADDX VISTA HDZERO Analog for FPV RC Racing Drone
30.5x30.5mm Holybro Kakute F722 F7 OSD Flight Controller 3-8S with 9V 5V 3.3V BEC Output Support DJI O3 CADDX VISTA HDZERO Analog for FPV RC Racing Drone
30.5x30.5mm Holybro Kakute F722 F7 OSD Flight Controller 3-8S with 9V 5V 3.3V BEC Output Support DJI O3 CADDX VISTA HDZERO Analog for FPV RC Racing Drone
30.5x30.5mm Holybro Kakute F722 F7 OSD Flight Controller 3-8S with 9V 5V 3.3V BEC Output Support DJI O3 CADDX VISTA HDZERO Analog for FPV RC Racing Drone

30.5x30.5mm Holybro Kakute F722 F7 OSD Flight Controller 3-8S with 9V 5V 3.3V BEC Output Support DJI O3 CADDX VISTA HDZERO Analog for FPV RC Racing Drone

Isaiah 55:8-9 John 3:16 Philippians 4:19
Price:
R 1,264.50
Stock:
In Stock. Shipping via Courier.



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

Feature:
- High-performance STM32 F722 MCU with speeds up to 216MHz.
- ICM42688P gyroscope, independent low-noise power supply.
- Various Ports for quick & easy setup: ESC port, Digital VTX port, Analog VTX port, Receiver port, and LED port.
- Built-in analog video OSD, 16 Mbytes black box,
- High power synchronous rectifier BEC, supports up to 8S input and provides stable 9V/3A & 5V/2A output.

Specification:
Brand: Holybro

Model: Kakute F722

Item Name: F7 Flight Controller
MCU: STM32F722 32-bit processor, 216MHz, 256Kbytes RAM, 512Kbytes Flash
IMU: ICM42688-P (SPI)
Barometer: BMP280
OSD: AT7456E
5x hardware UARTS (UART1,2,3,4,6)
7x PWM Outputs (6 Motor Output, 1 LED)
Onboard 16 Mbytes for Blackbox logging
Battery input voltage: 3S - 8S
BEC: 9V/3A, 5V/2A, 3.3V/0.2A
Connector
-2x JST-SH 8pin port for ESC
-1x JST-SH 6pin port for HD VTX
-2x JST-SH 4pin port for Receiver & Analog Camera
-1x JST-SH 3pin port for LED
USB Type -C
Dimensions: 35x35mm
Mounting Holes: Standard 30.5 x 30.5
Weight: 8g

Firmware Targets
Betaflight Target: KAKUTEF7MINIV3
INAV Target: KAKUTEF7MINIV3

Package Includes:
1x Kakute F722 Flight Controller
4x M3 Silicon Grommets
1x JST-SH1.0_8pin 150mm Cable (For ESCs)
2x JST-SH1.0_6pin 80mm & 150mm Cable (For DJI Air Unit)
1x JST-SH1.0_6pin Colored Silicon 150mm Cable (For Caddx HD System and other VTX)
1x JST-SH1.0_4pin to Dupont 150mm Cable
1x JST-SH1.0_3pin to Dupont 150mm Cable
1x JST-SH1.0_4pin to Molex1.25 150mm Cable
