Description
Features:
1. Use mainstream STM32F405 chip
2. Equipped with the latest 42688-P gyroscope
3. 16M black box storage
4. Integrated LC filter
5. Upgrade type-C USB interface
6. Directly plugged into the DJI Air Unit
7. Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
8. 12V@2.5A + 5V@3A dual independent BEC
Specifications:
Brand: GEPRC

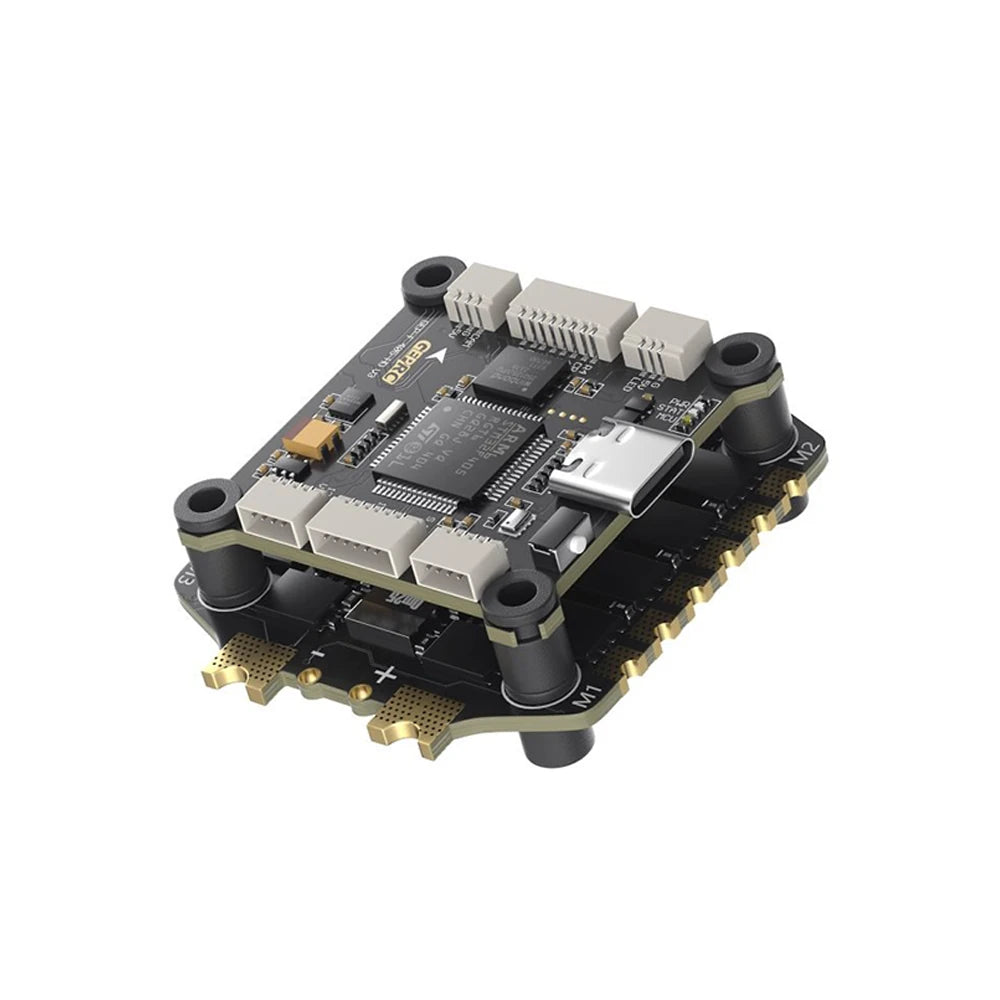

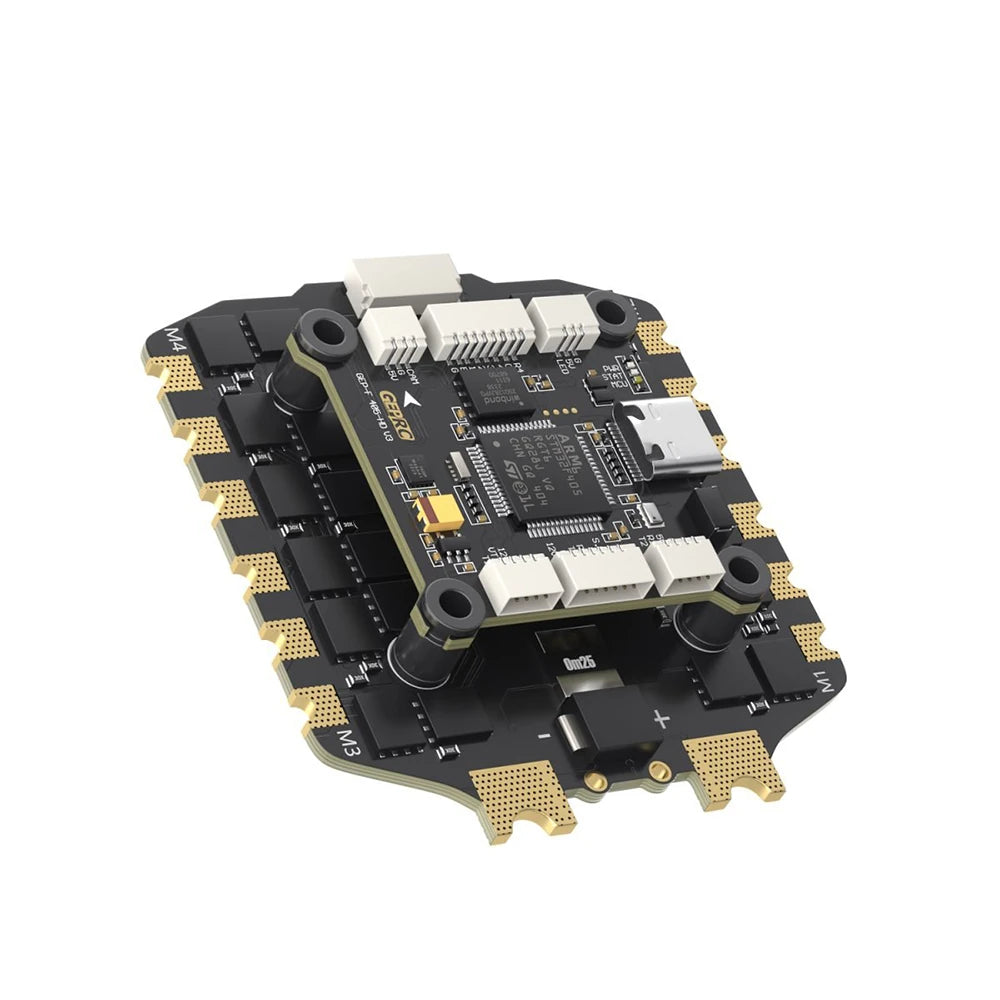

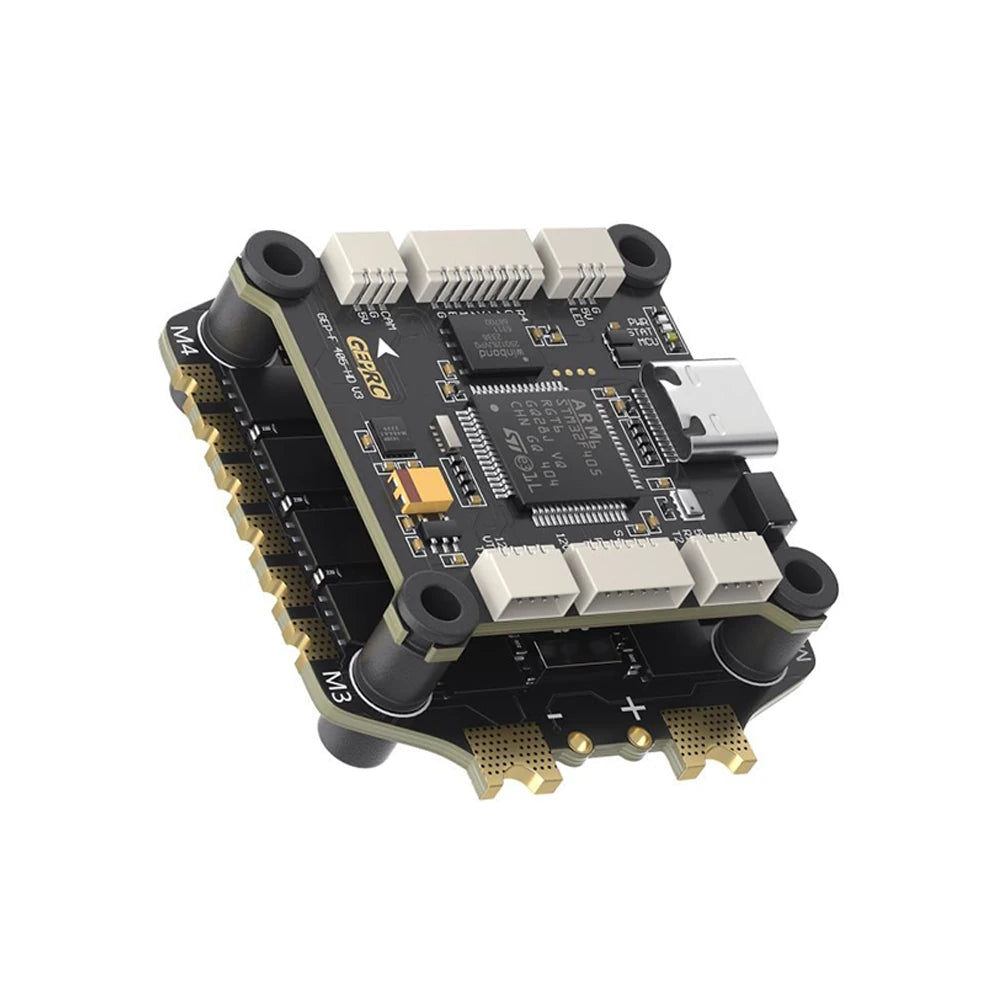

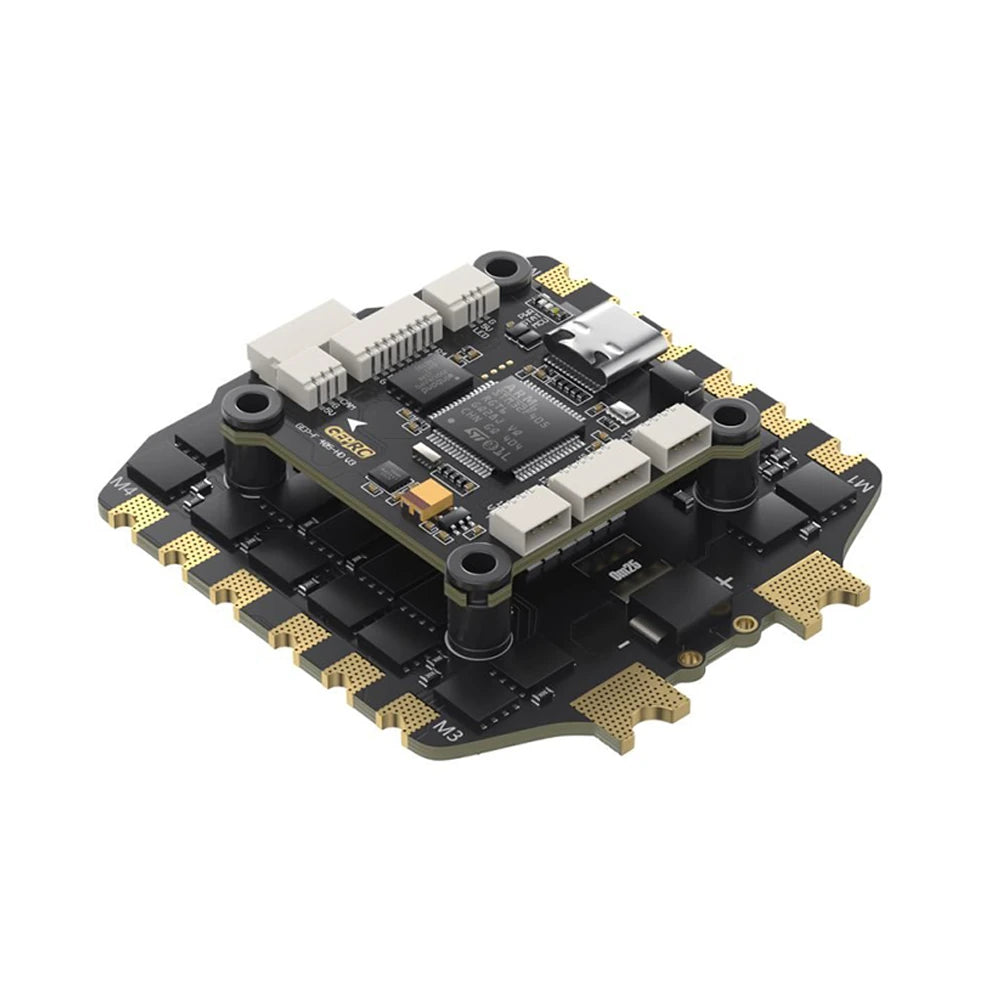

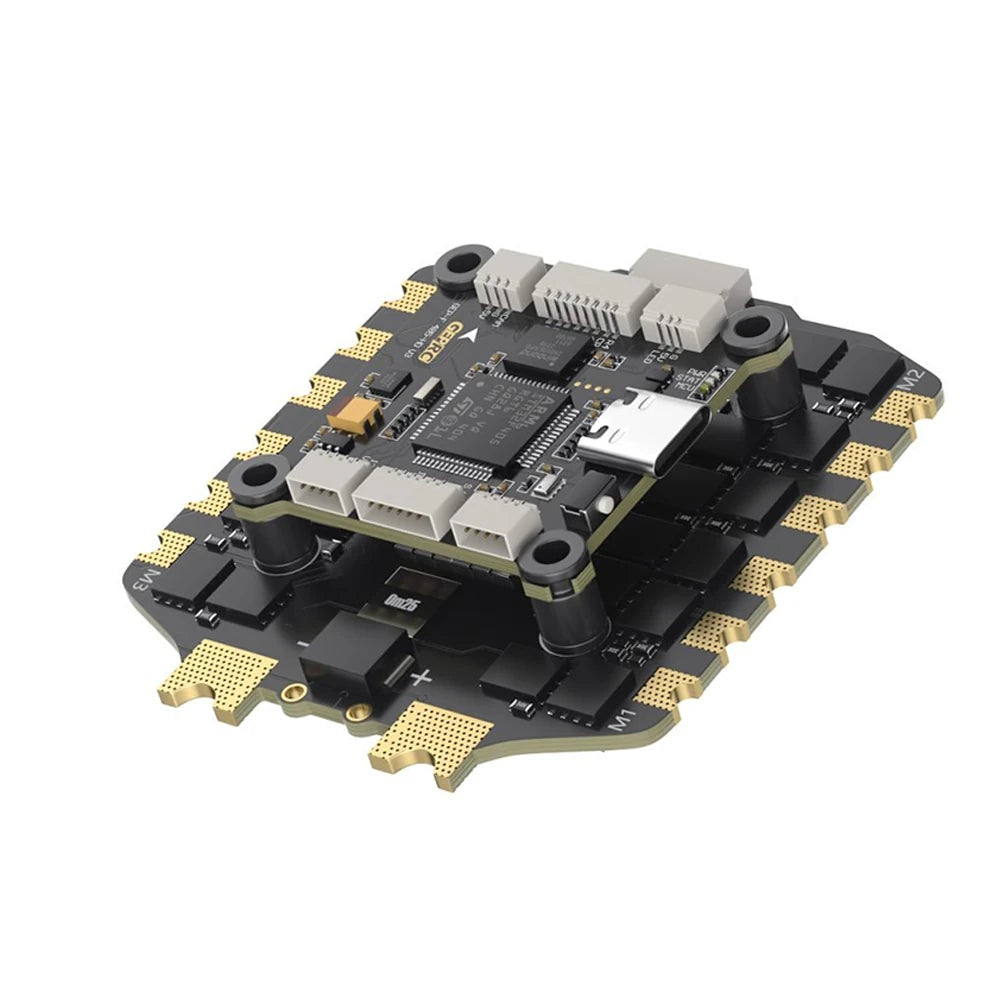

Model: TAKER F405 BLS 60A V2 / 80A V2 Stack

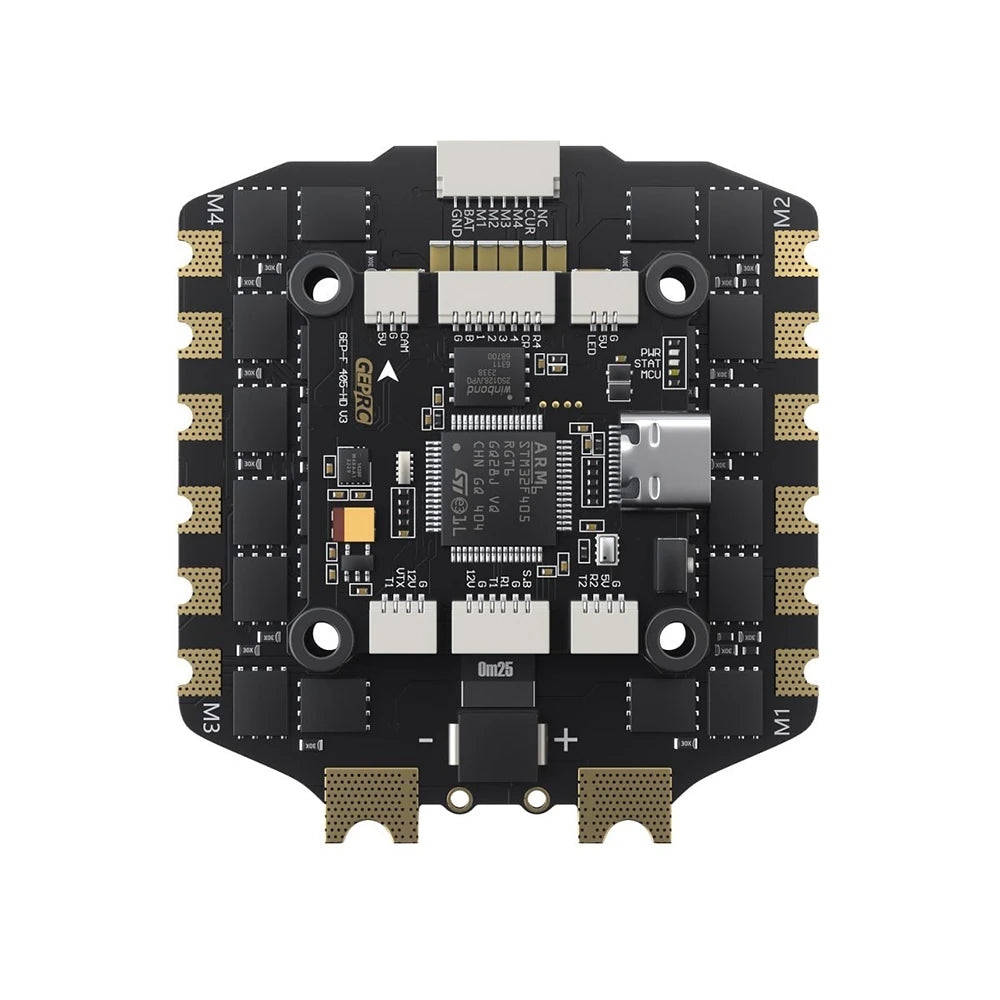

| F405 HD V3 Flight Controller |
MCU：STM32F405 IMU：ICM42688-P(SPI) Air Unit Connection：Direct plugging into DJI Air Unit Black Box：16M onboard Barometer: BMP280 Motor outputs: M1-M6 USB Interface: Type-C OSD: BetaFlight OSD w/ AT7456E chip BEC: 5V@3A,12V@2.5A dual BEC Firmware Target：GEPRCF405 Mounting: 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle Input Voltage：3-6S LiPo UART：6 UARTs Power Filter：Integrated LC filter Weight：7.3g |

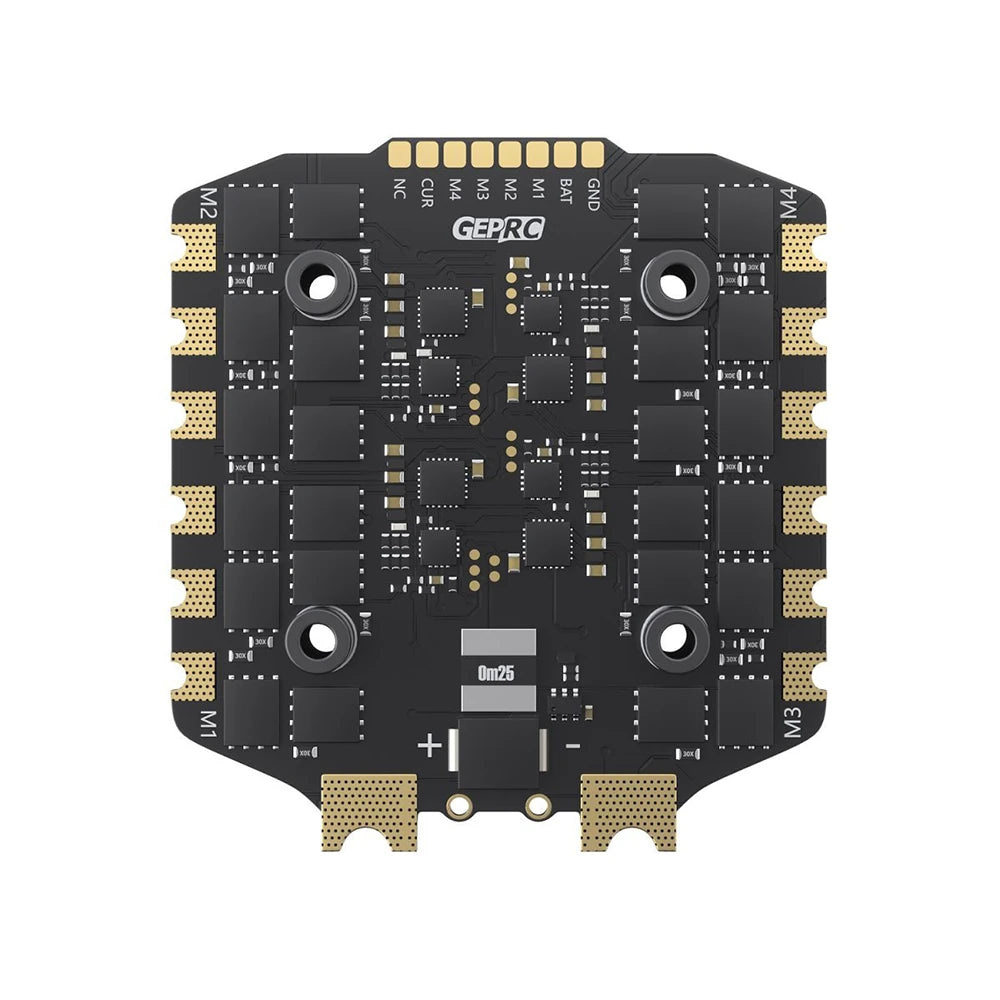

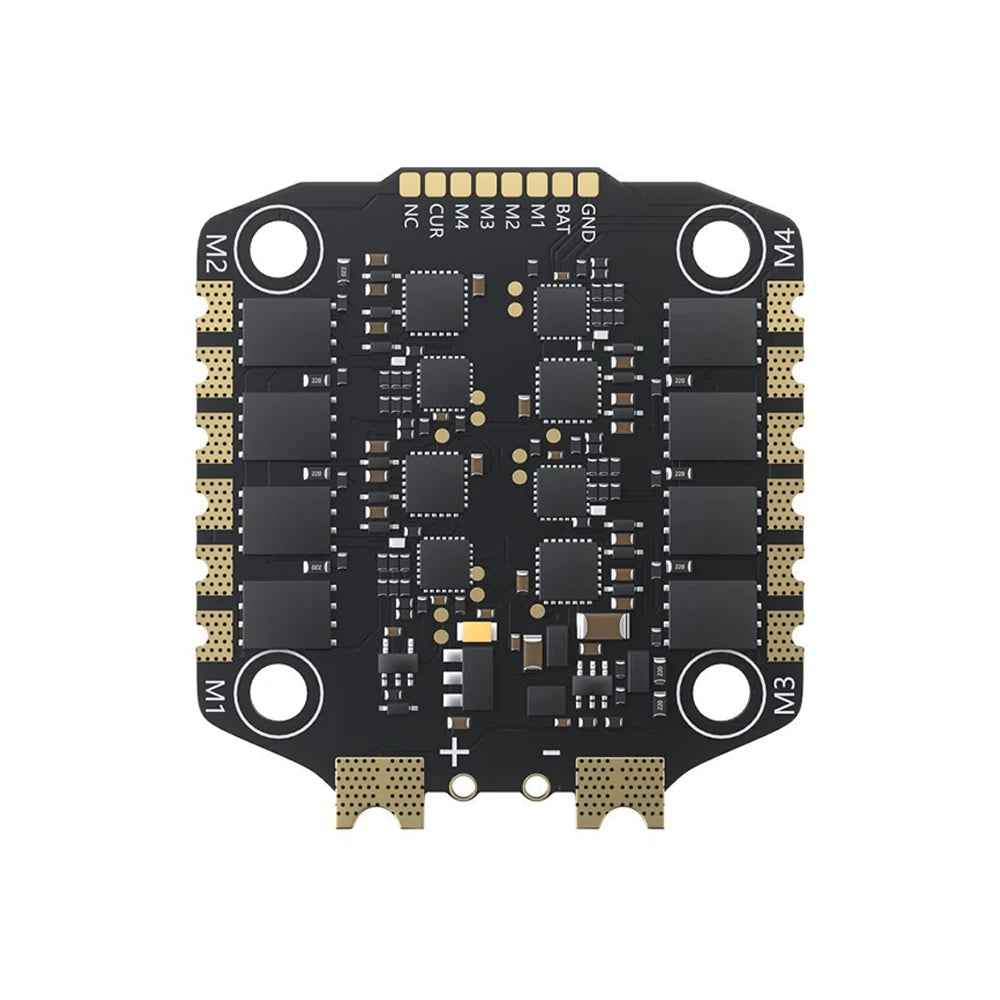

| 60A ESC ( Optional Version) |
Model: TAKER H60_BLS 60A Input Voltage: 3-6S Lipo Ammeter: Support Continue Current: 60A Burst Current: 65A（5 second） Support Protocol: Dshot 150/300/600 Size: 42×45.7mm, hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring. Weight: 14.9g Target: B_X_30 |

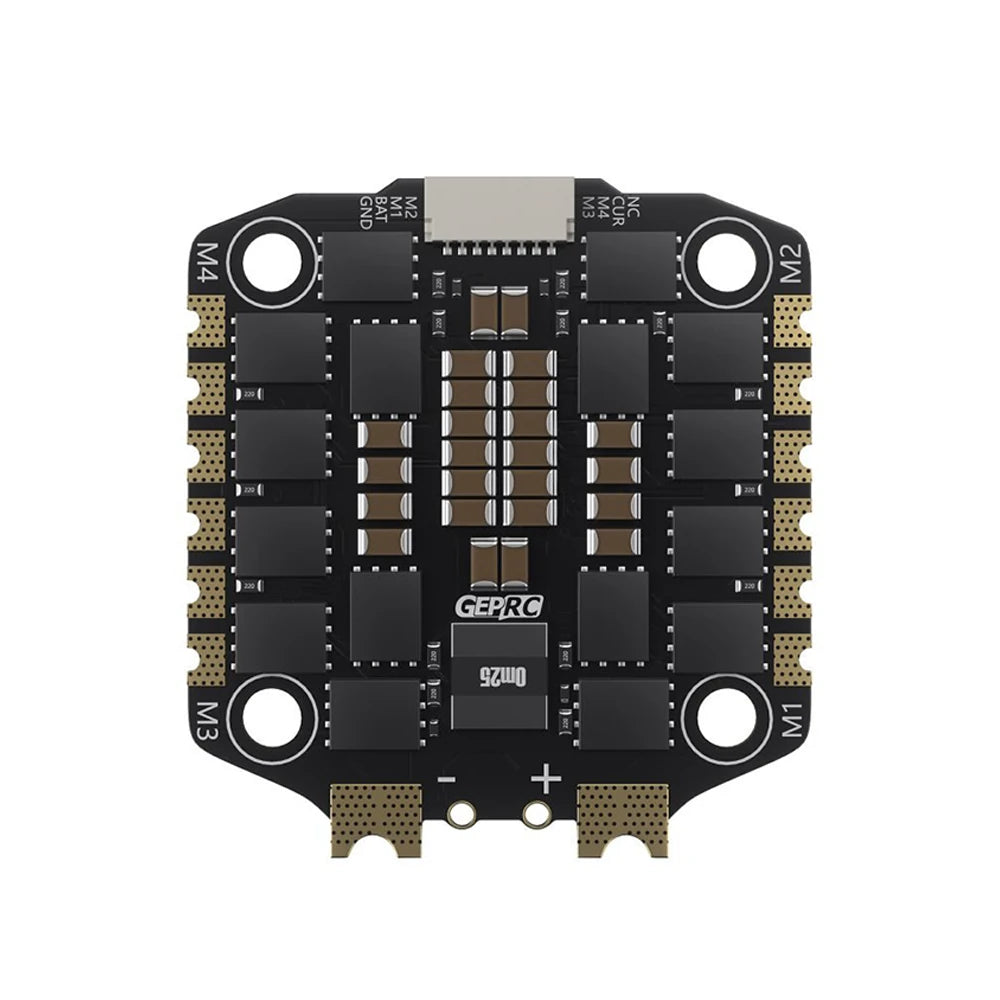

| 80A ESC ( Optional Version) |
Model: TAKER H80_BLS 80A Input Voltage: 3-6S Lipo Ammeter: Support Continue Current: 80A Burst Current: 85A（5 second） Support Protocol: Dshot 150/300/600 Size: 56.3*61.1mm，hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring. Weight: 28.1g Target: B_X_30 |
Package included:
1 x Flight Controller
1 x ESC ( 60A / 80A Optional)
1 x Capacitor
1 x DJI Air Unit Adapter Cable
1 x Flight Controller Adapter Cable
1 x XT60 Power cable
4 x M3*30 Screws
4 x M3*25 Screws
8 x Nylon nuts
8 x Silicone grommets
2 x sh1.0 4pinsilicone cable
1 x Camera connection cable
