Description
Specifications:
Model: F405 FC+60A ESC
Iterm Name: 30.5x30.5mm Stack
|

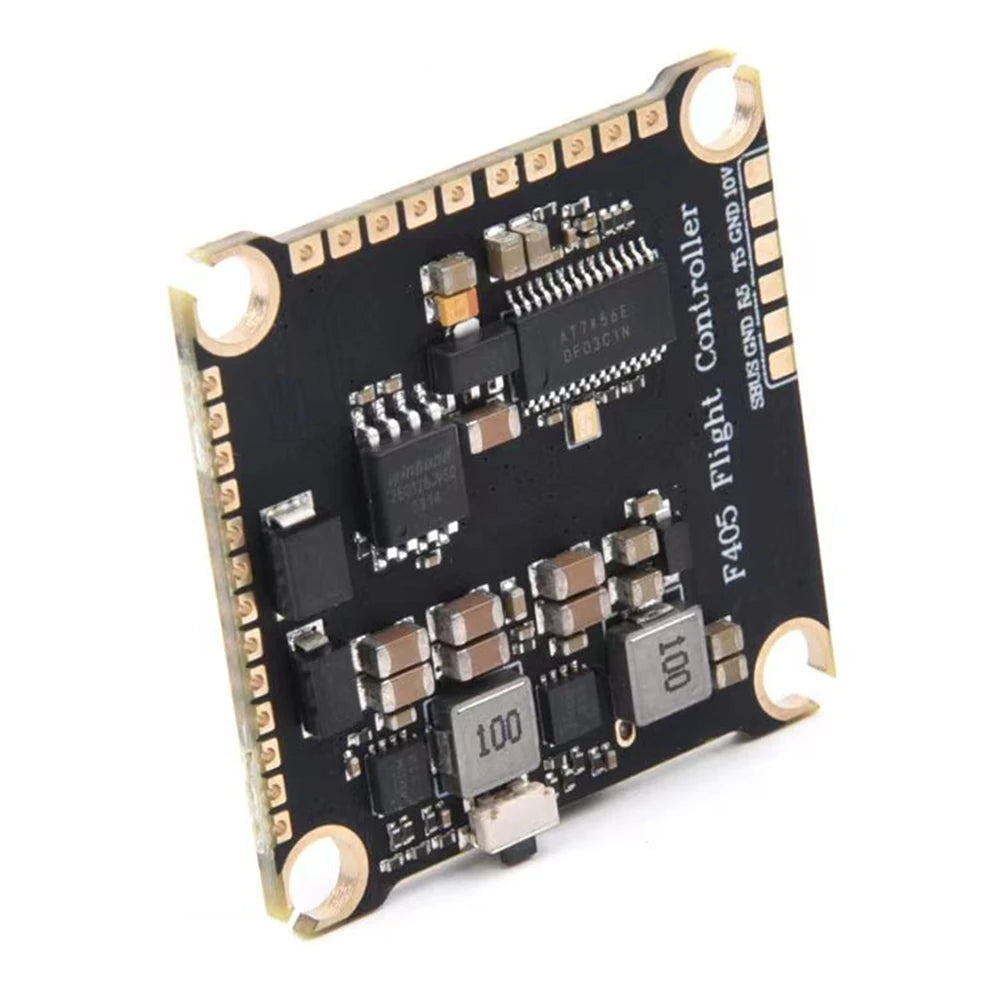

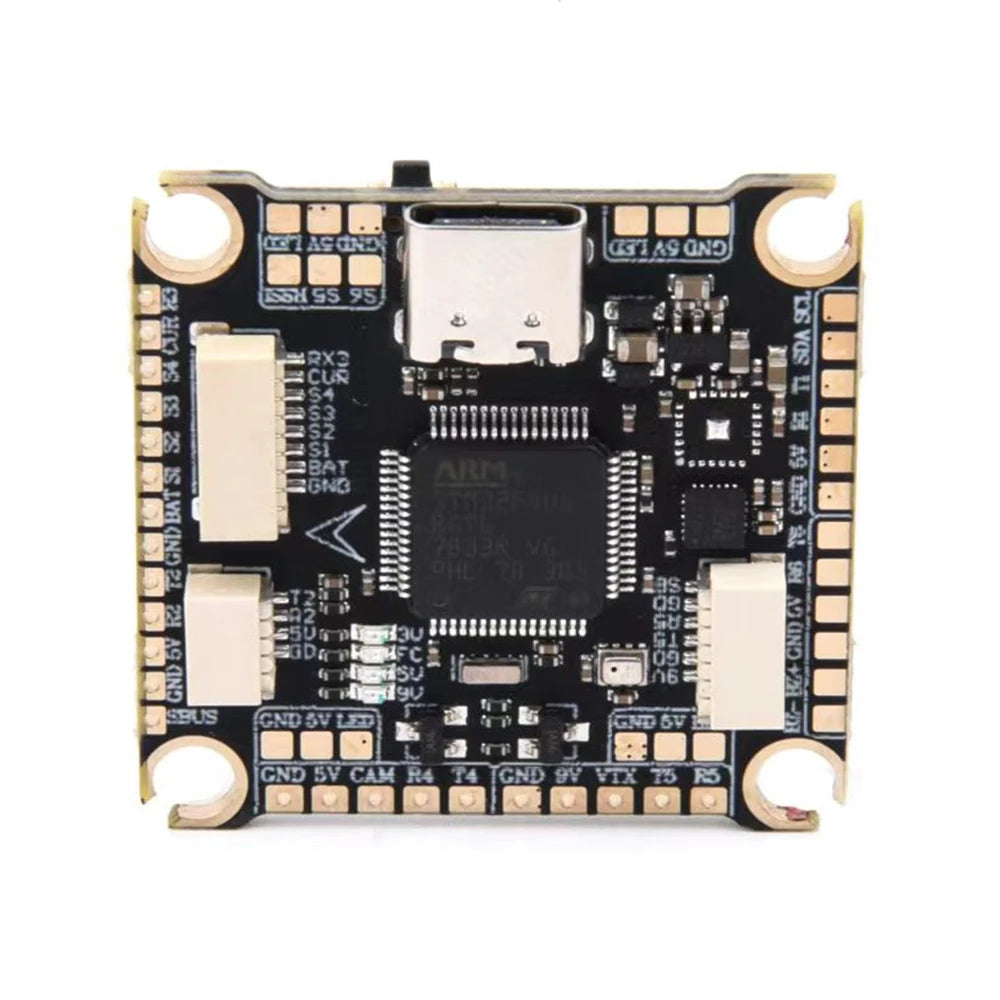

F4 F405 Flight Controller: |

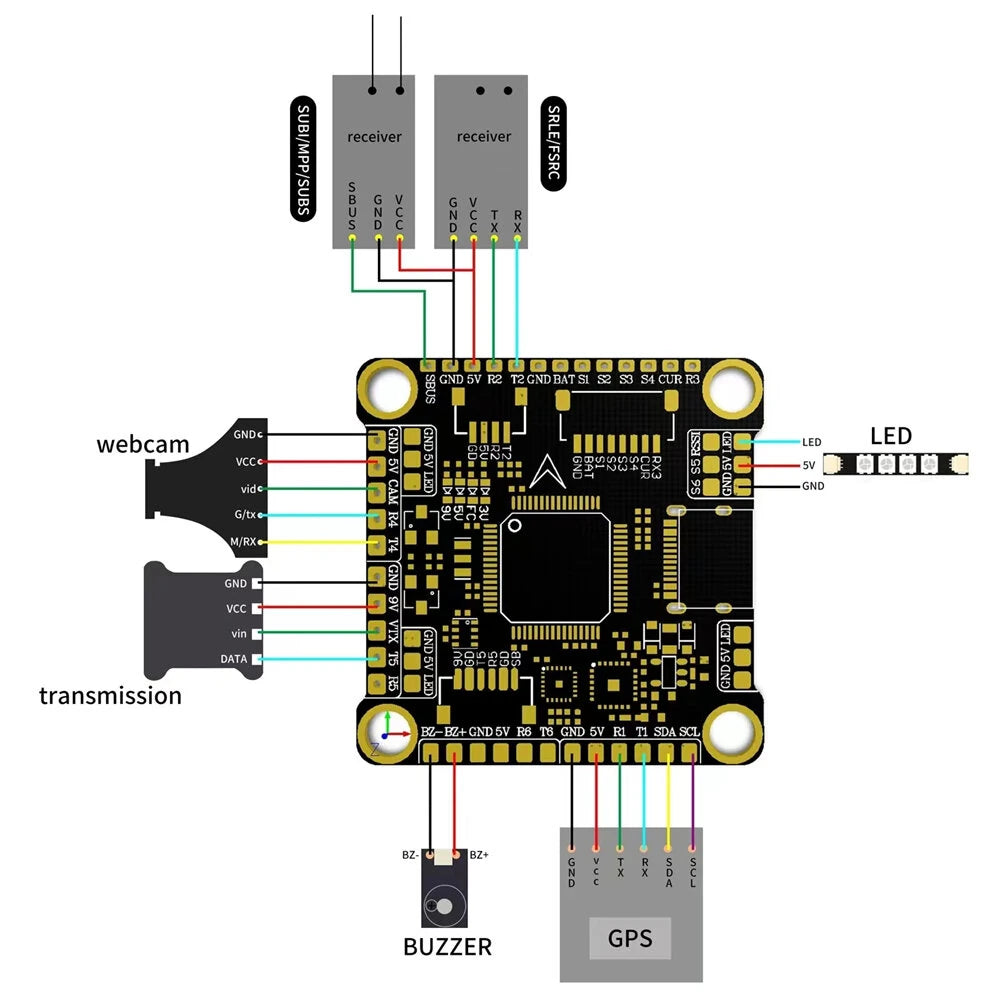

Product Parameters: MCU: STM32F405RGT6 168MHz Gyroscope: Mpu6500 Baro:Bmp280 OSD: Betaflight SPI OSD DJI HD OSD(UART5) Black box: 16MB 6x Uarts: UART 1/2/3/4/5/6 4x PWM outputs 1x I2C 2x LEDs for FC STATUS (Blue) and 3.3V indicator(Red) and 5V indicator(Red) and 9V indicator(Red) USB Type-C(USB2.0) 1x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Curr/Rx3) 1x JST-SH1.0_6pin connector (9V/GND/T5/R5/GND/R2) VTX 9V filtered power DJI FPV OSD is supported by any spare UART LED: 4 LED independent pads, support WS2812 programming lamp output. Receiver: Support Sbus, crsf, ibus, SBUS, XBUS receiver, The default receiver input is UART2(You can solder ELRS RX on UART2). Power: Input voltage: 3-6S BEC: 5V/10V 3A max dual-channel BEC supports stable power supply on the sky side of DJI LDO 3.3V: Max.1A FC Firmware: BetaFlight firmware: DAKEFPVF405 INAV firmware:DAKEFPVF405 Mounting: Installation size: 30.5mm × 30.5mm The installation hole is M4 and supports shock column installation External size 36mm × 36mm Flight controller weight: 6.9g Flight controller onboard voltage sensor. |
|

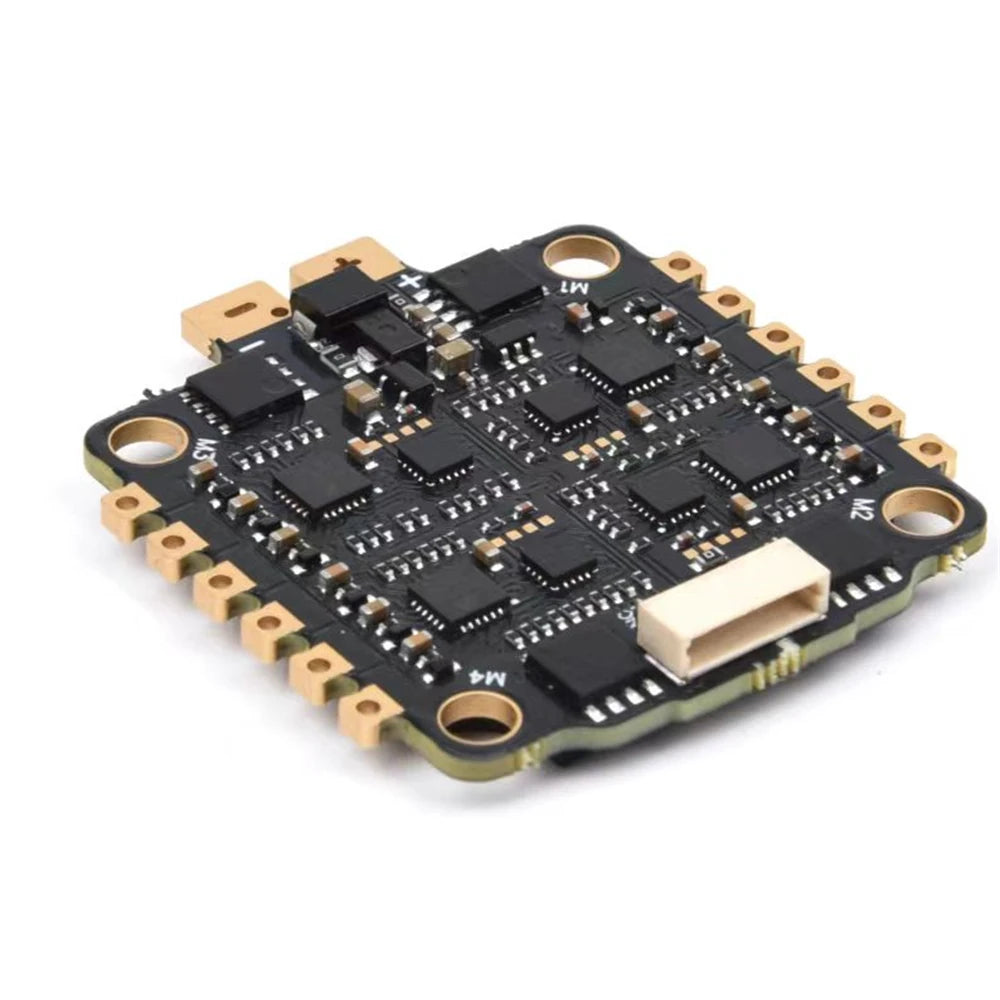

BLHeli-S 60A 3-6S DShot600 4-in-1 ESC: |
Support Dshot600, Dshot300, Dshot150, Oneshot125, Multishot, PWM control signal Power supply voltage: 3-6S (12-26V) Continuous working current: 45A/60A No built-in 5V BEC output Firmware: BLHeli-S Screw hole spacing: 30.5*30.5MM Aperture: 4MM Weight: 14.6g |
Feature:
- The ESC has an on-board filter capacitor that suppresses the back electromotive force, stabilizes the battery voltage, and protects the flight control ESC precision components.
- EMI Shell provides stronger anti-interference capability.
Package Included:
1x F4 F405 Flight Controller
1x BLHeli-S 60A 3-6S DShot600 4-in-1 ESC
